Product Overview

Description

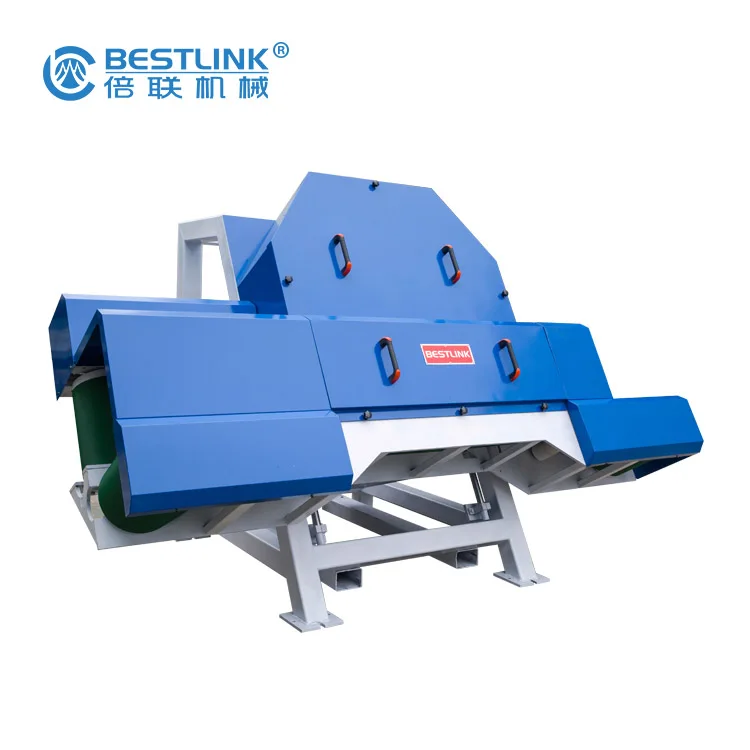

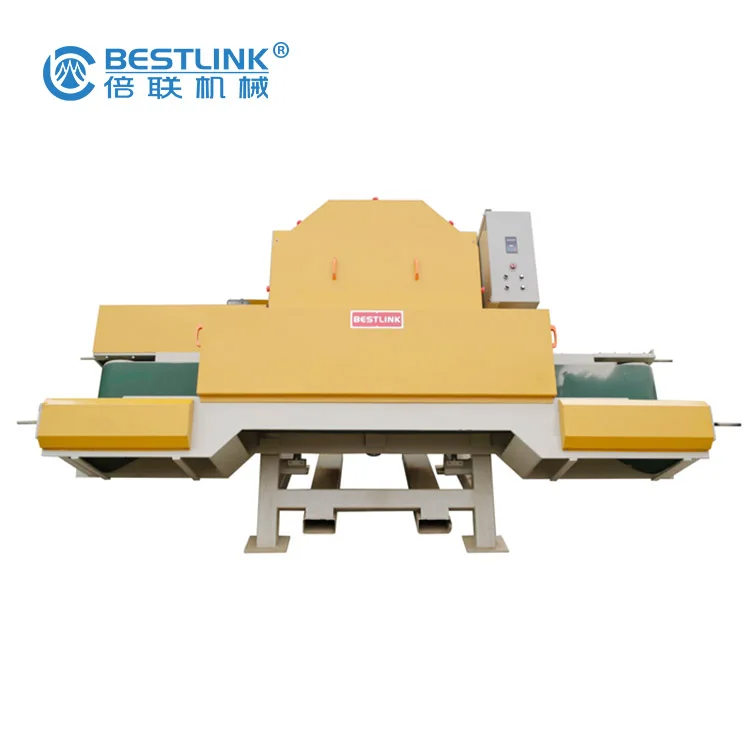

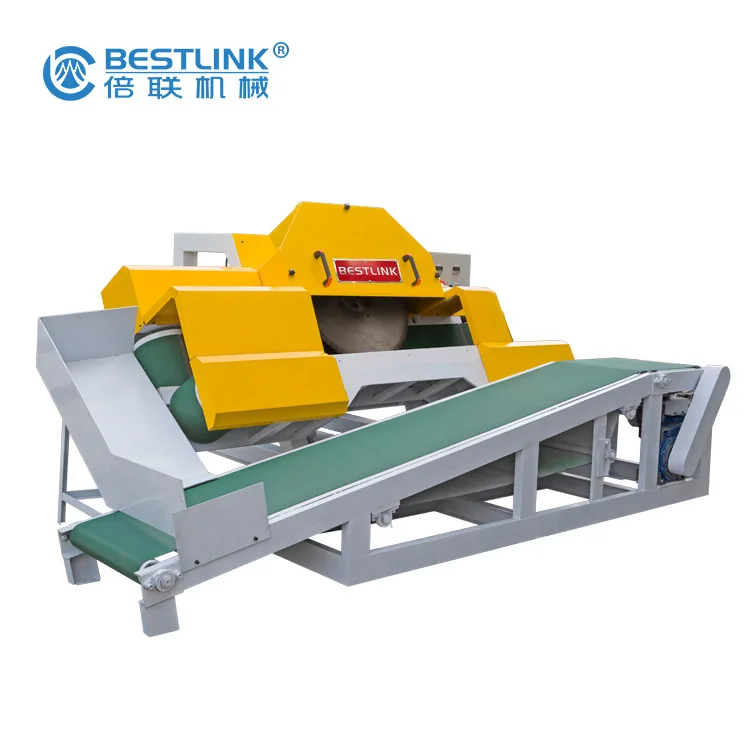

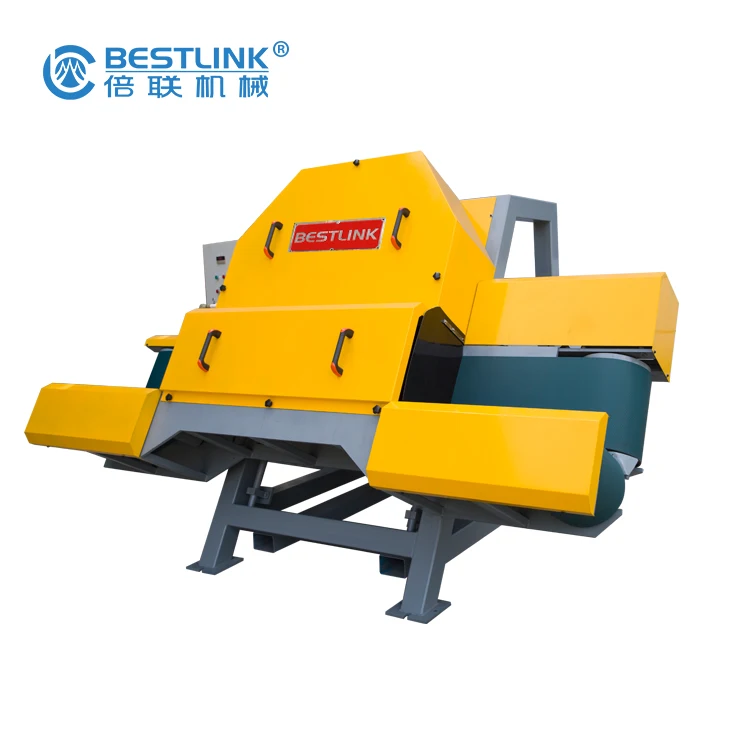

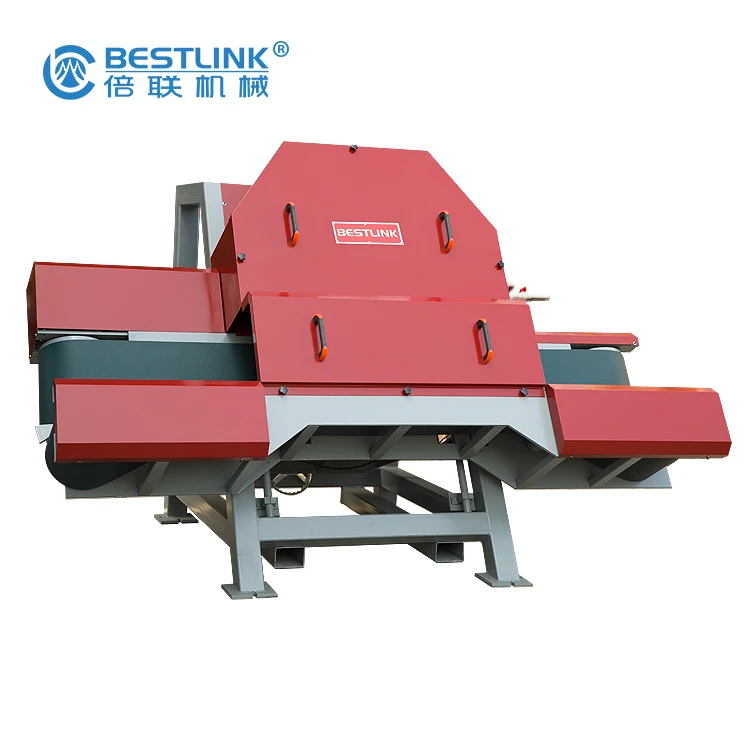

Bestlink Irregular stone veneer saw cutting machine for flate cut

VS series thin stone veneer saw (mighty stone saw) make cutting thin stone veneer flats and 90-degree corners quick, simple, low maintenance,and profitable. The unique v-structured cutting surface easily cuts split-face or natural finished sandstone, brick, limestone, and other hard stones up to 16" high and 2.5" thick. A single pass through the saw turns large stone pieces into thin stone veneer with unmatched consistency, efficiency, and reliability. There are two model:30HP&60HP.

Technical Data/Model	60HP	30HP
Dimensions (L×W×H)	3300mm×2180mm×2180mm	2850mm×1900mm×1800mm
Machine Weight	3200kg	2300kg
Main Motor Power	45kw	22kw
Electricity	3 Phase, 240/460V	3 Phase, 240/460V
Amperage	172/86A	86/43A
Water Consumption	4m³/h	3.5m³/h
Blade Size	1000mm-1200mm	800mm
Blade Speed Standard(Adjustable)	780rpm	900rpm
Max. Cutting Depth	300-450mm	280mm
Conveyor Belt Speed(Adjustable)	600mm/min-2450mm/min	600mm/min-2450mm/min
