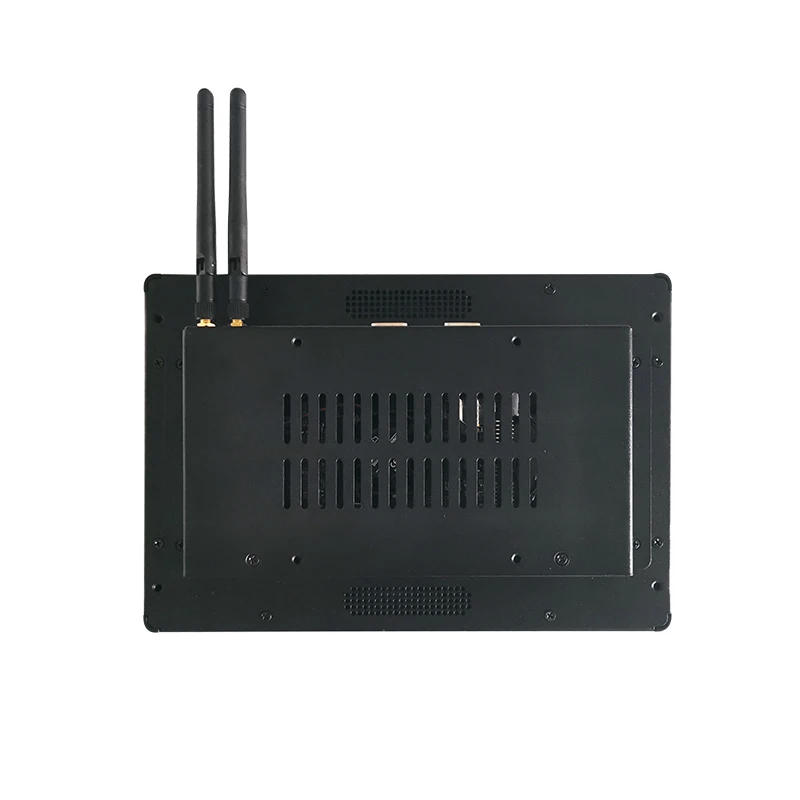

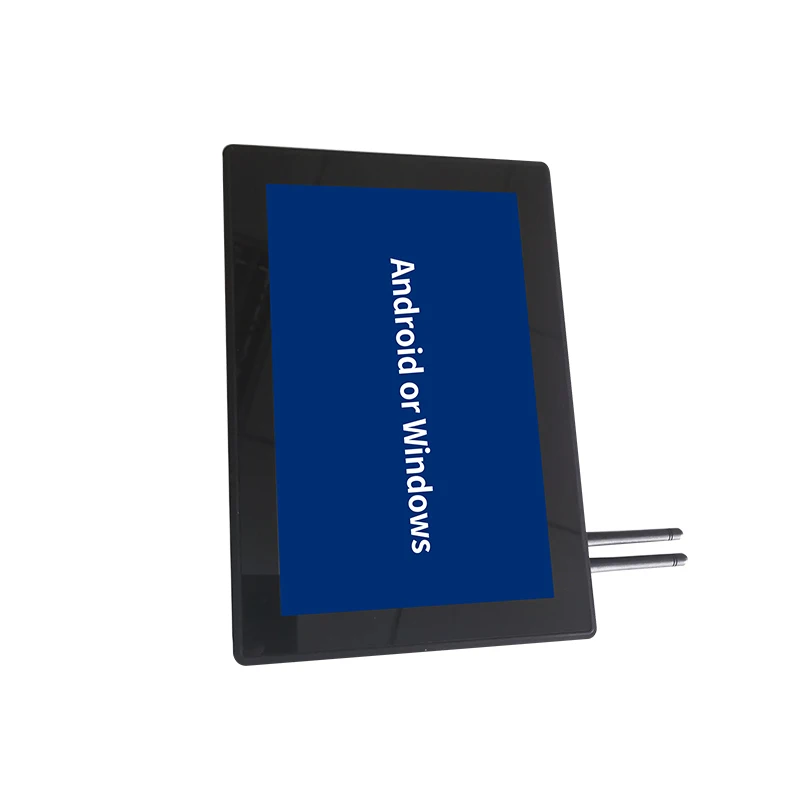

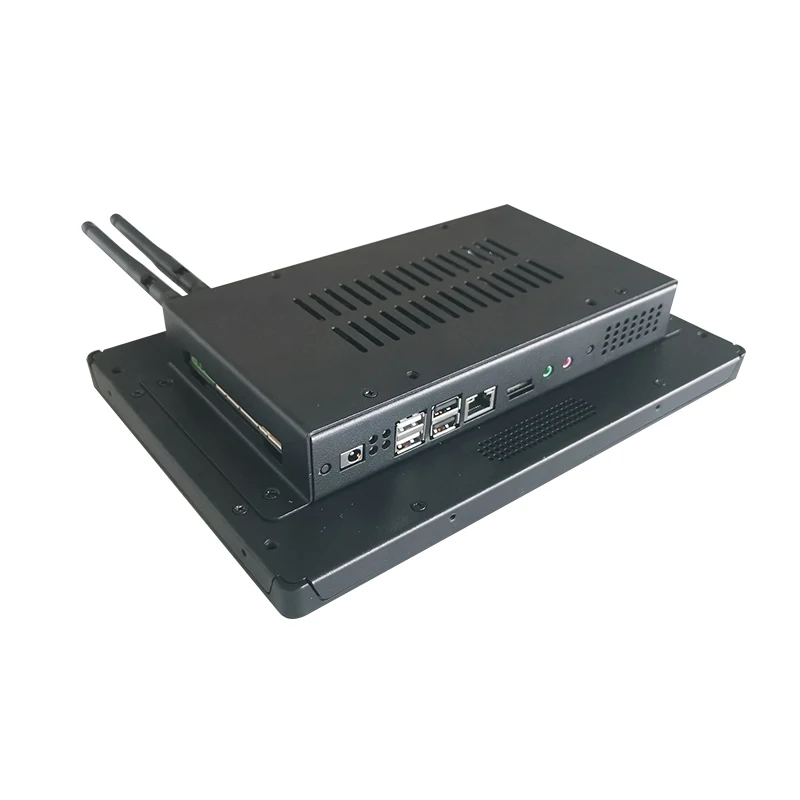

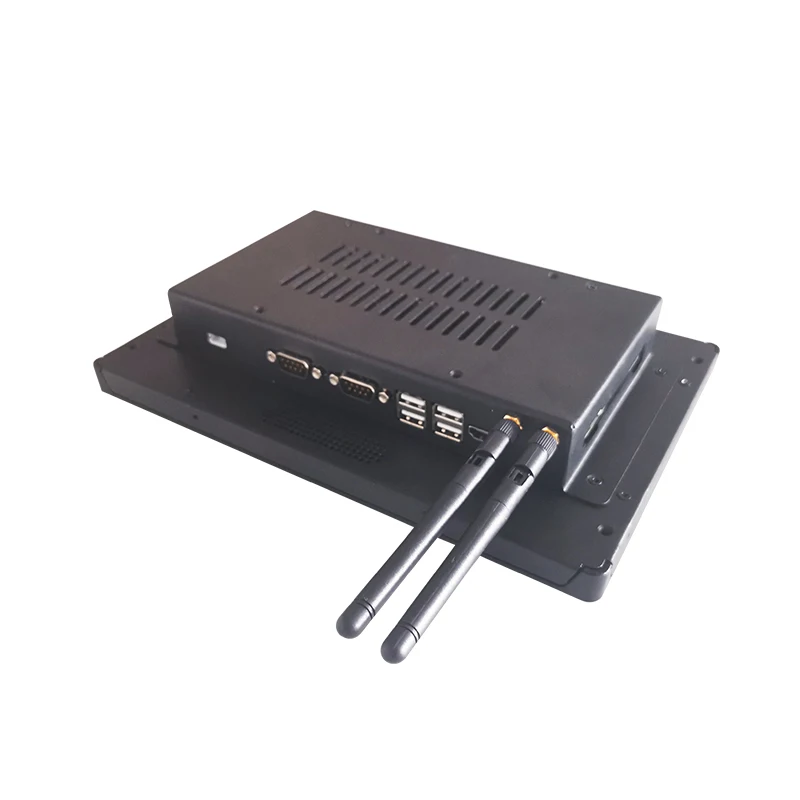

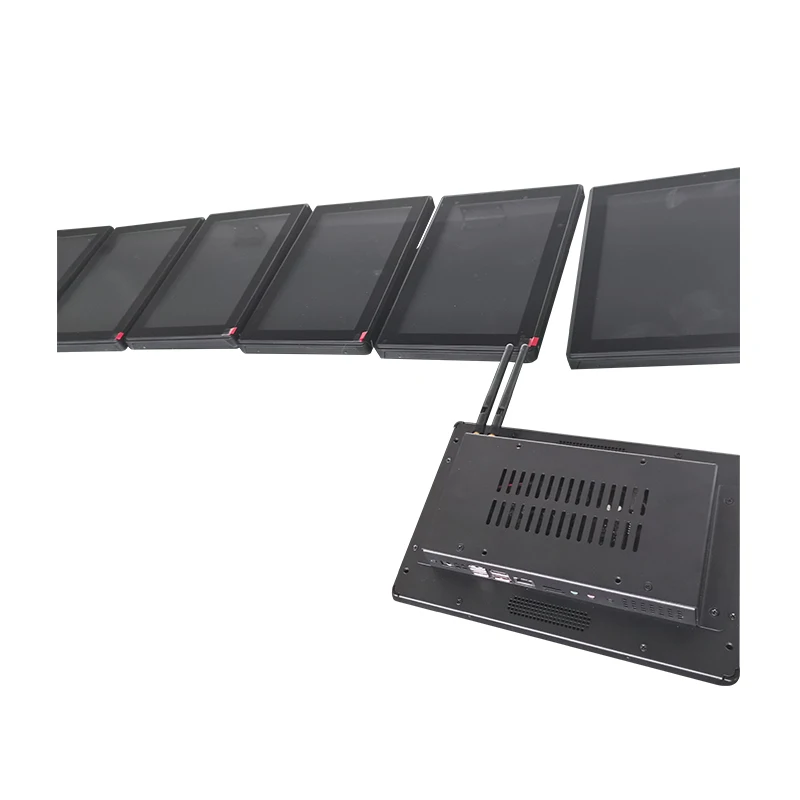

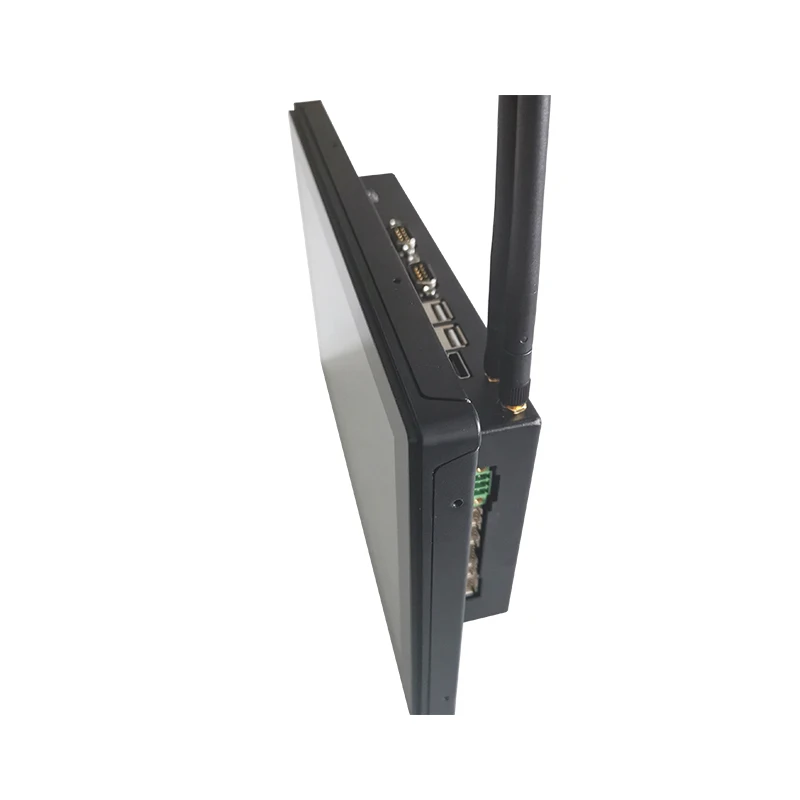

Android Industrial All in One PC With Touch Panel Linux Embedded 10 inch Industrial Touch Screen Panel PC
- Category: Industrial Computer & Accessories >>>
- Supplier: Suzhou Dewo Smart System Co. Ltd.
Share on (1600626523637):
Product Overview
Description
Product Description
2. Optional storage and memory;
3. Support OEM/ ODM.
4. IP65 for front touch panel;
Application
10.1 inch, 15 inch, 21.5 inch, etc.
Widely use kinds of cabinet locker.
15.6 inch, 21.5 inch, 24 inch, etc.
mainly use for vending machines.
self-services kiosk, etc.
7/8/10.1/11.5/15/15.6/21.5 inch, etc
Specification
We also supply 7inch, 8inch, 10.1inch, 15.6inch, 21.5inch, etc industrial touch panels. Optional Windows, Android system.
Support desktop bracket, wall-mounted bracket and top bracket.
If you need barcode scanners please click here!
CPU | RK3288 4-core Cortex-A17 architecture, the highest frequency is 2GHz |
GPU | ARM MALI-T764） |
Memory /storage | Standard 2G (4G optional) / EMMC standard 16G (8G/32G/64G optional) |
audio and video output | Support left and right channel output, built-in dual 8R/5W power amplifier |
Earphone | Support one headphone jack |

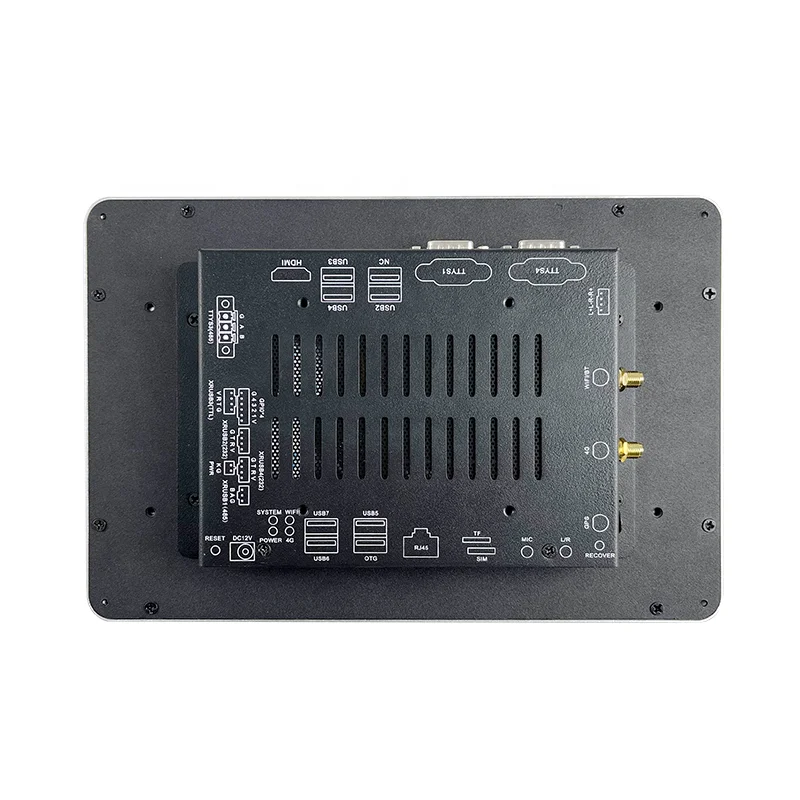

USB | 1* USB2.0(Support OTG/HOST switching); 7* USB2.0 HOST; 8*USB in total |
Serial port | 4*RS232, 2*485，1* TTL，1* DEBUG total 8 serial port |
Mipi Camera | Dual channel supports dual camera 30pin FPC interface, supports 1300w Camera |
TF card | Support TF card |
WIFI、BT | Built-in WIFI, BT4.0 (optional) WIFI module, support WIFI hotspot sharing during 4G communication |
3G/4G | Built-in WCDMA, EVDO, 4G full Netcom expansion interface |
Screen size | 10.1 inch |
LCD screen | capacitive touch |
contrast | 900:1 (Typ.) (Transmission) |
Resolution | 1280(RGB)×800 |
Screen ratio | 16 : 10 |
Operating temperature | -20℃ ~ 70℃,≤80% RH |
Storage humidity | -30℃ ~ 70℃,≤80% RH |
Response time | ≤16ms |
Normal power | ≤30W |
Screen pitch | 0.0565×0.1695 mm (H×V) |

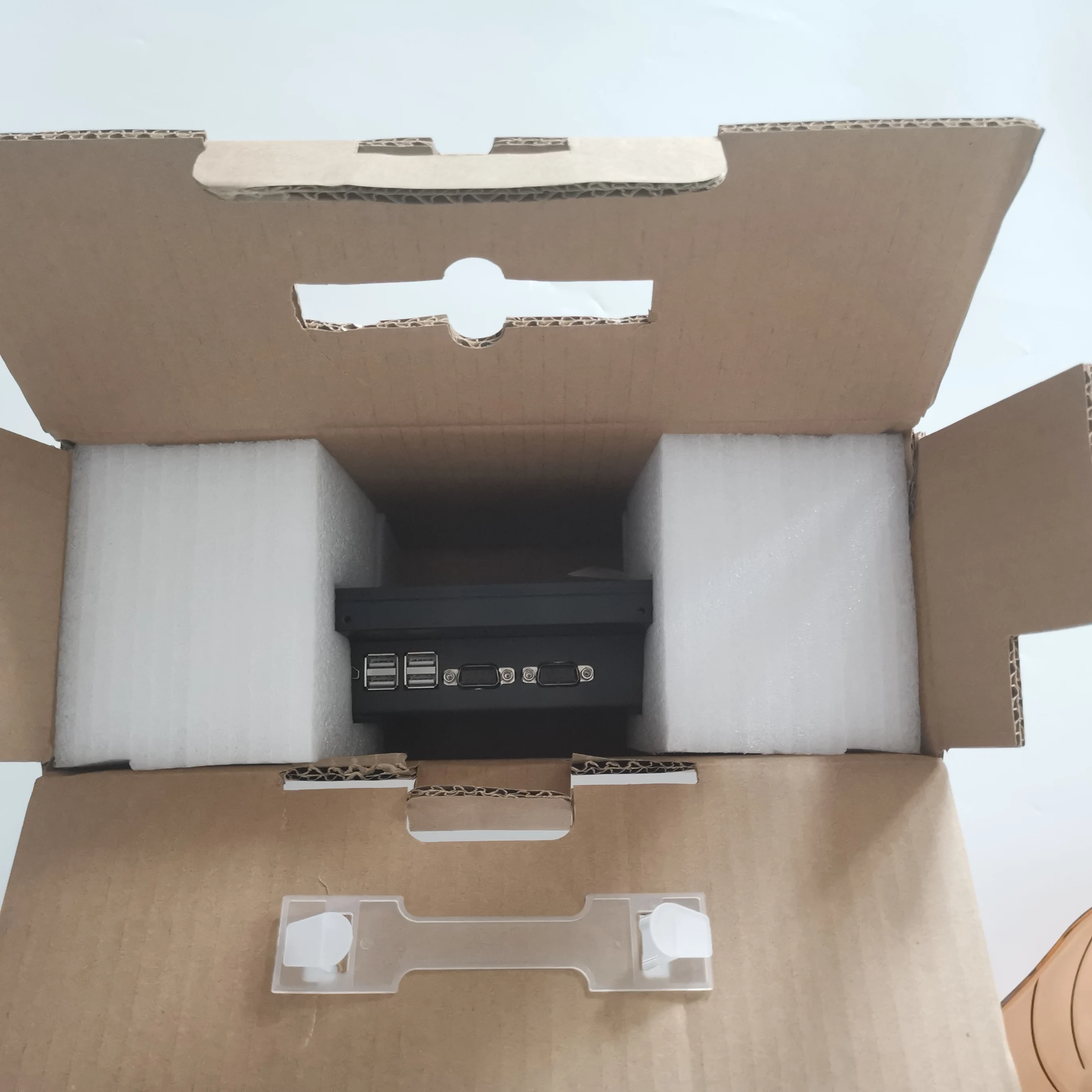

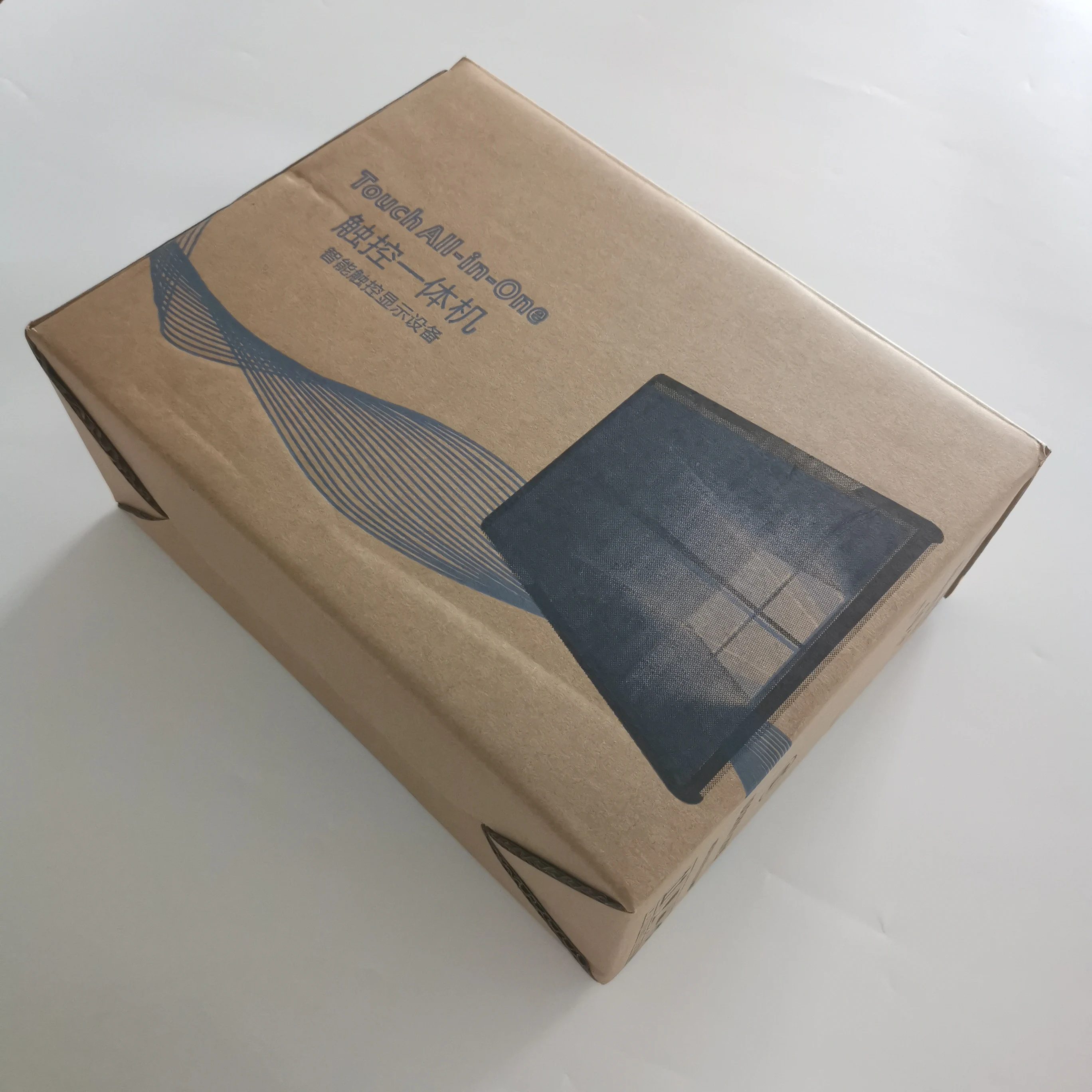

Packing & Delivery
