2024 year PE carbon spiral pipe making machine/production line/extrusion plant for pre stressed pipe in bridge and road way
- Category: >>>
- Supplier: Zhangjiagang Ivima Technology Co. Ltd.
Share on (1600627159701):
Product Overview
Description
Product Overview
Machine Introduction

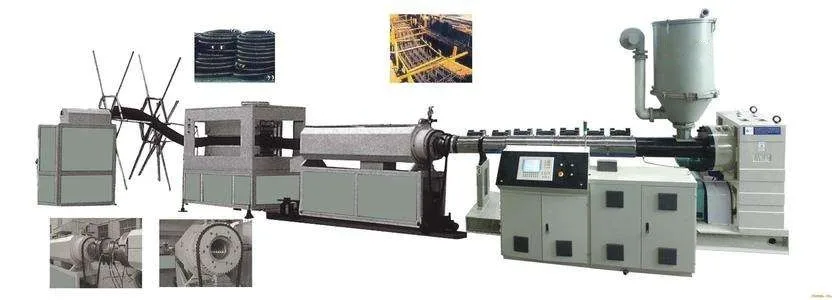

PE carbon spiral pipe extrusion machine
This line shall be used to produce small diameter single wall corrugated pipe in PE raw material.
Molding corrugated pipe with a rotating mould, This kind pipe used as electricity pipe, prestressed pipe in bridge and road way etc. The standard pipe diameter is 16-75mm ,
This line shall be used to produce small diameter single wall corrugated pipe in PE raw material.
Molding corrugated pipe with a rotating mould, This kind pipe used as electricity pipe, prestressed pipe in bridge and road way etc. The standard pipe diameter is 16-75mm ,
PRODUCT SPECIFICATIONS
No. | Major part | Detail information |
1 | Vacuum Loading Machine | Driving motor: 1.1KW |
2 | Drying Hopper | Electric heating power: 6KW, blower: 0.25KW |
3 | Single Screw Extruder | Driving motor: 15-30KW, Capacity: 50-60KG/HOURS |
4 | Die mould | 16mm,20mm,25mm,32mm,40mm,50mm,63mm,75mm aterial:40Cr. |
5 | Forming machine | Driving motor:4KW,Cooling:2.2KW*1 |
6 | Haul off Machine | hauling motor:1.5KW*2pcs |
7 | Single station winder | 25N.M,winding release:air cylinder. |
FEATURES AT A GLANCE
1. Reliable gear box
2. 38CrMoAl screw and barrel
3. continually working
4. optional 16-75mm pipe diameter
5. water and air cooling
6.meter counter online
7.single station winder or stacker
8.winder inner diameter is adjustable
9.automatic winding speed control
Main extruder

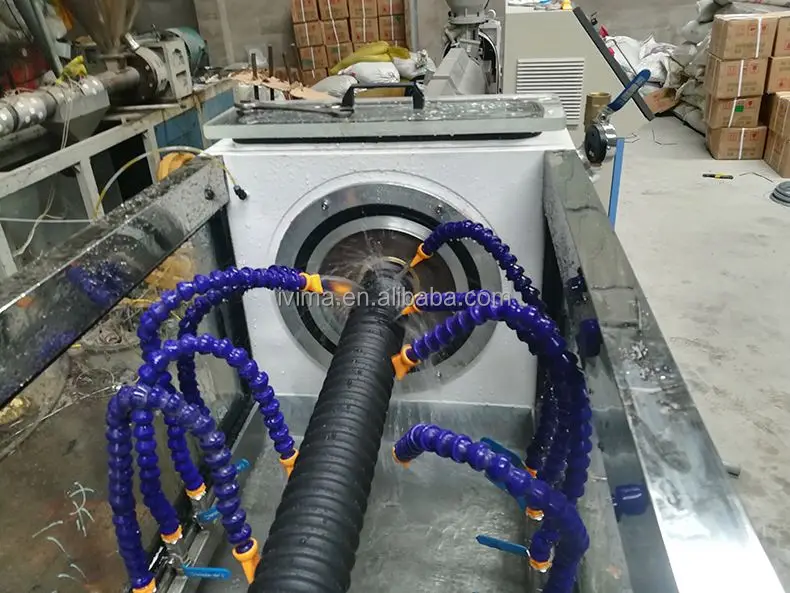

extrusion mould

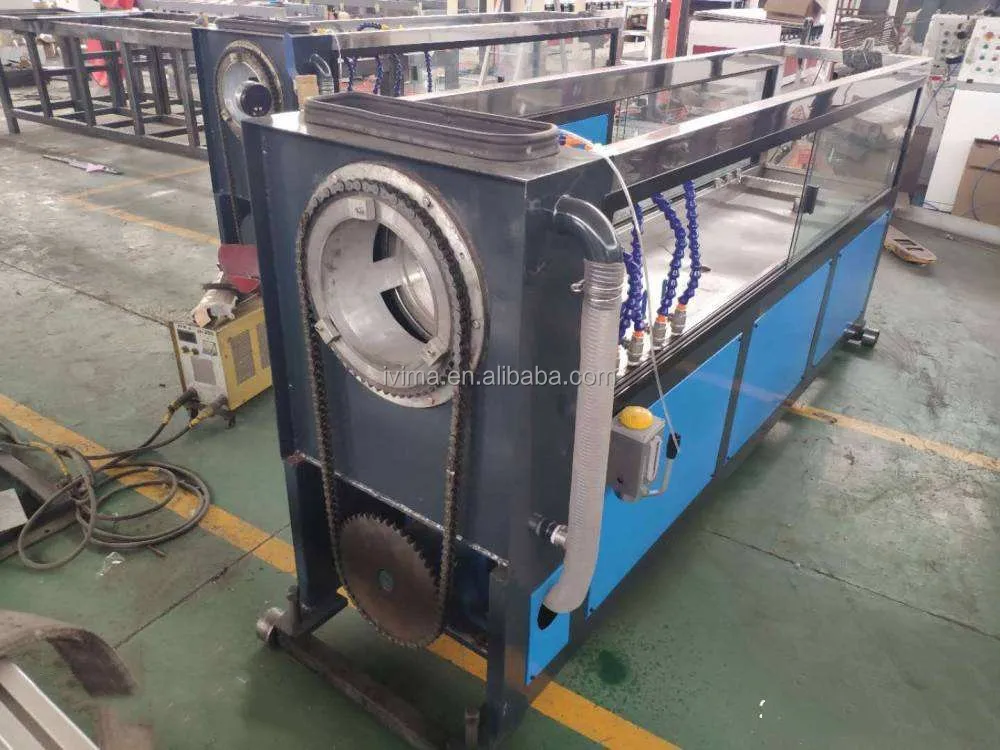

calibration mould

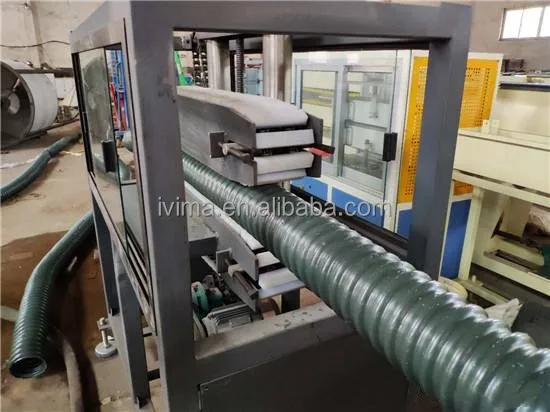

hall off machine

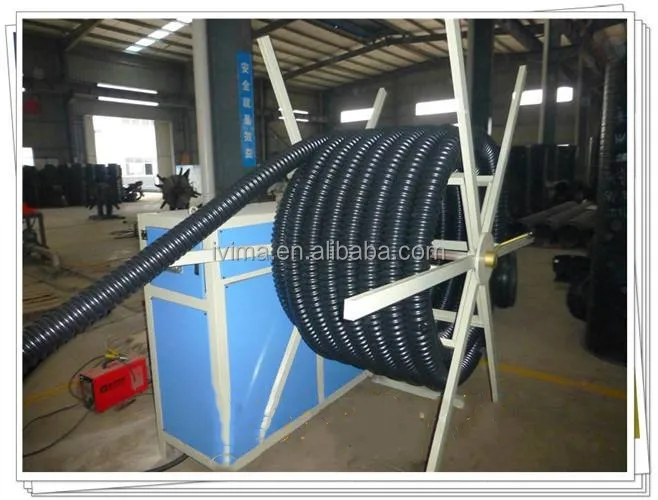

single station winder
final pipe
PRODUCT CONFIGURATION
Siemens motor optional
hard teeth gear box
38CrMoAl screw and berral
Siemens electric part
Siemens smart PLC
ABB inverter
FAQ：
What about the payment way?
●TT,L/C at sight or Alibaba trade assurance.
If you can extend the guarantee time?
●Yes.Our guarantee time is 12 months.
If you will send engineer coming to our factory to install and make training for worker?
●Yes,Every set of machine, we will send professional engineer to your factory and help installation and making training for you.
If you have CE,SGS,ISO certificate?
●Yes,except these,if you also need other certificates,we also can help to apply.
If we buy your machines, can you offer us wear-out spare pats?
●Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free .
Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems
from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers
will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
The voltage,if you can design according to our request?
●Yes.
If you support Alibaba trade assurance pay?
●Yes.100% support.
●TT,L/C at sight or Alibaba trade assurance.
If you can extend the guarantee time?
●Yes.Our guarantee time is 12 months.
If you will send engineer coming to our factory to install and make training for worker?
●Yes,Every set of machine, we will send professional engineer to your factory and help installation and making training for you.
If you have CE,SGS,ISO certificate?
●Yes,except these,if you also need other certificates,we also can help to apply.
If we buy your machines, can you offer us wear-out spare pats?
●Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free .
Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems
from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers
will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
The voltage,if you can design according to our request?
●Yes.
If you support Alibaba trade assurance pay?
●Yes.100% support.
