Product Overview
Description
Product Overview
Model No. | XKP-400-BB | XKP-450-BB | XKP-560-BB | XKP-560L-BB |
Diameter of front roll | 400 mm (groove) | 450 mm (groove) | 560 mm (groove) | 560 mm (groove) |
Diameter of back roll | 400 mm (groove) | 450 mm (groove) | 510 mm (groove) | 560 mm (groove) |
Drum working length | 600mm | 760mm | 800mm | 1000mm |
Front roll liner speed | 34.5 m/min | 38.0 m/min | 40.6m/min | 44m/min |
Roll ratio | 1:2.5 | 1:2.5 | 1:2.5 | 1:2.5 |
Max roller spacing | 10 mm | 10 mm | 10 mm | 10mm |
Motor power | 45KW/55KW | 55KW /75KW | 75KW/90KW | 110 KW/132KW |
Weight | 8.5 T | 11T | 17.5T | 21T |
L*W*H | 4.3*1.8*1.6m | 4.6*2.0*1.65m | 5.3*2.0*1.7m | 5.6*2.0*1.7m |

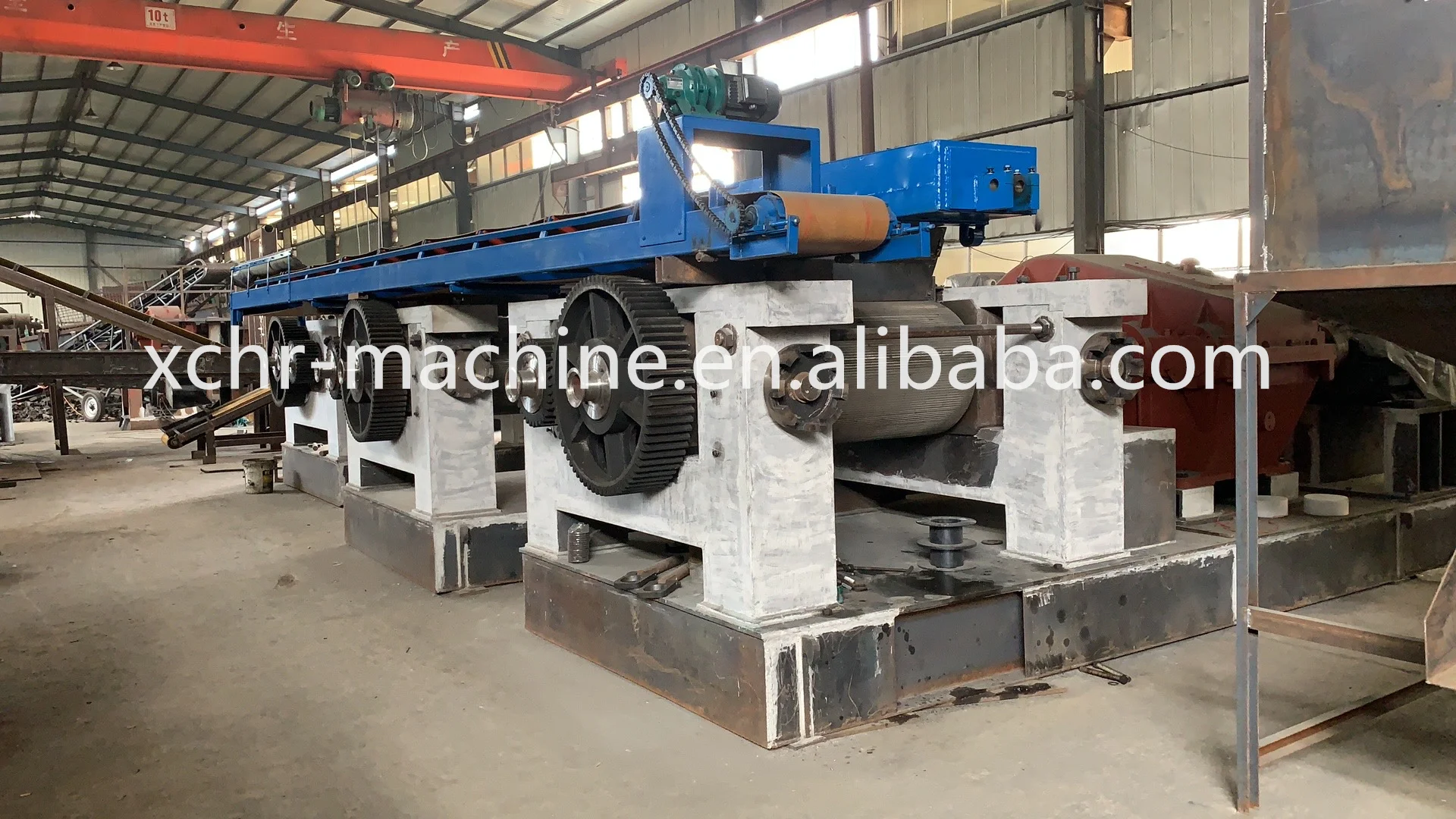

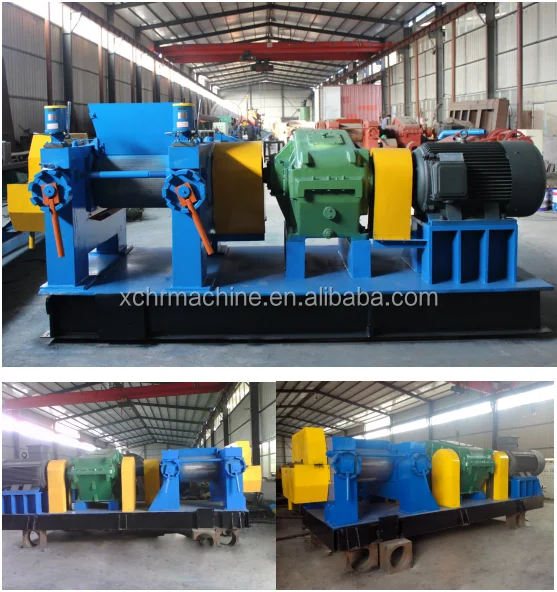

Advantages of rubber crusher
Rubber Granule Processing Machines Waste Used Tire
Tyre Recycling Line Crusher Machine Make Rubber Powder

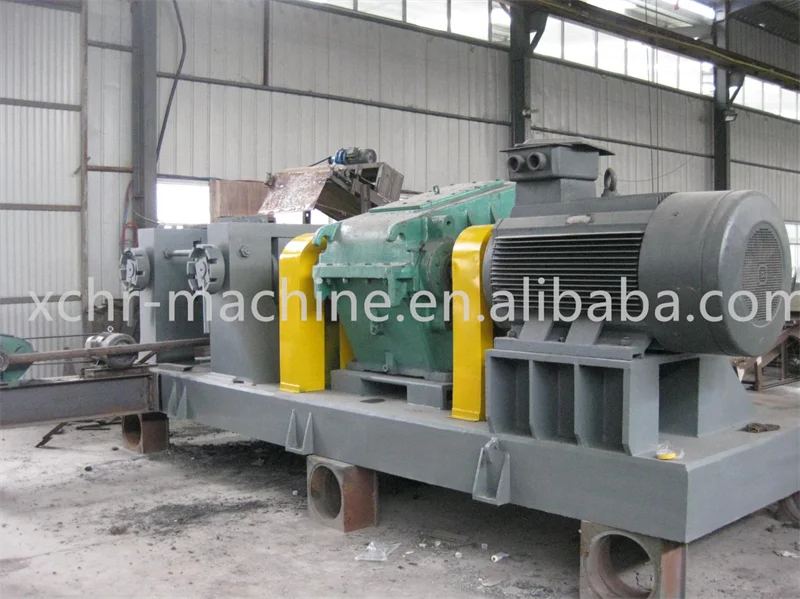

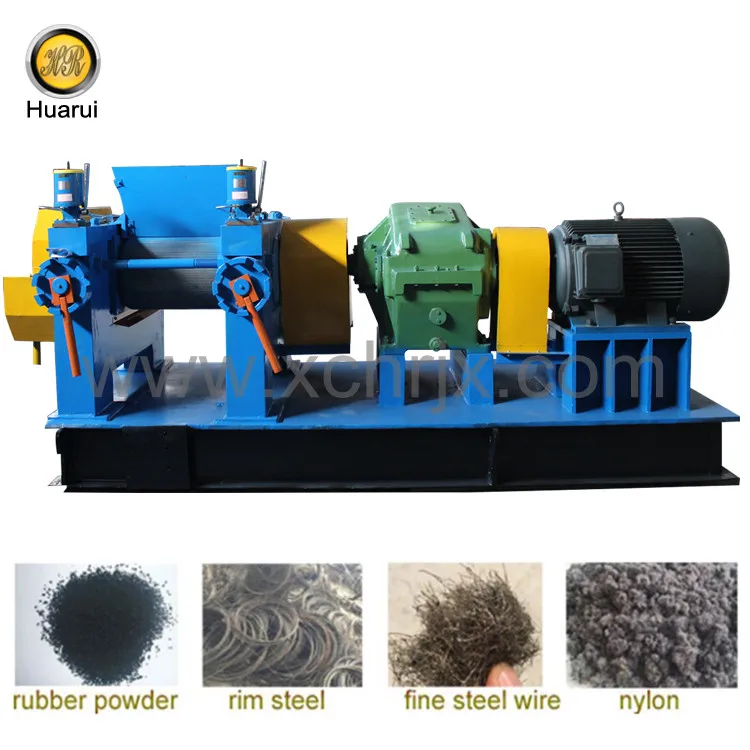

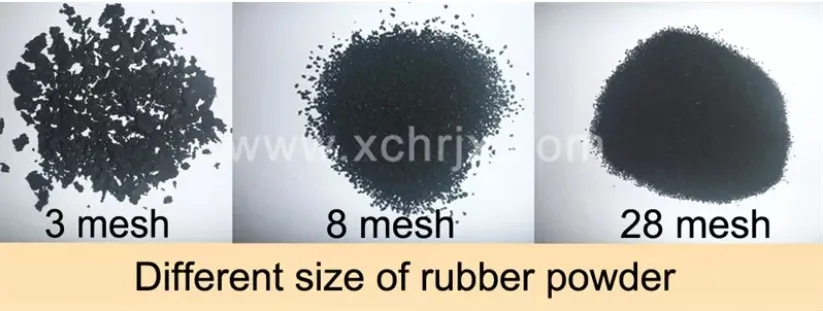

Tire crusher : Crush rubber blocks into 5- 40 mesh rubber granule
This machine can grind the rubber blocks to rubber powder, and we can customize this machine according to the powder size you required, normally, we match this crusher with vibrating screen, magnetic separator, fiber separator. According to different capacity, the machine details will be some different. Pls feel free to tell us your demands, we can customize this production line for you.
Sally Li Whatsapp/wechat: 008615638769216 Email: sally@xchrjx.com
Advantages of our rubber crusher !
1- Under normal using, we provide 2 years warranty for the machines, 3 years warranty for the rollers of the main machine and life-long technical support. If the users have some questions when using the machines, we can reply within 24hours.

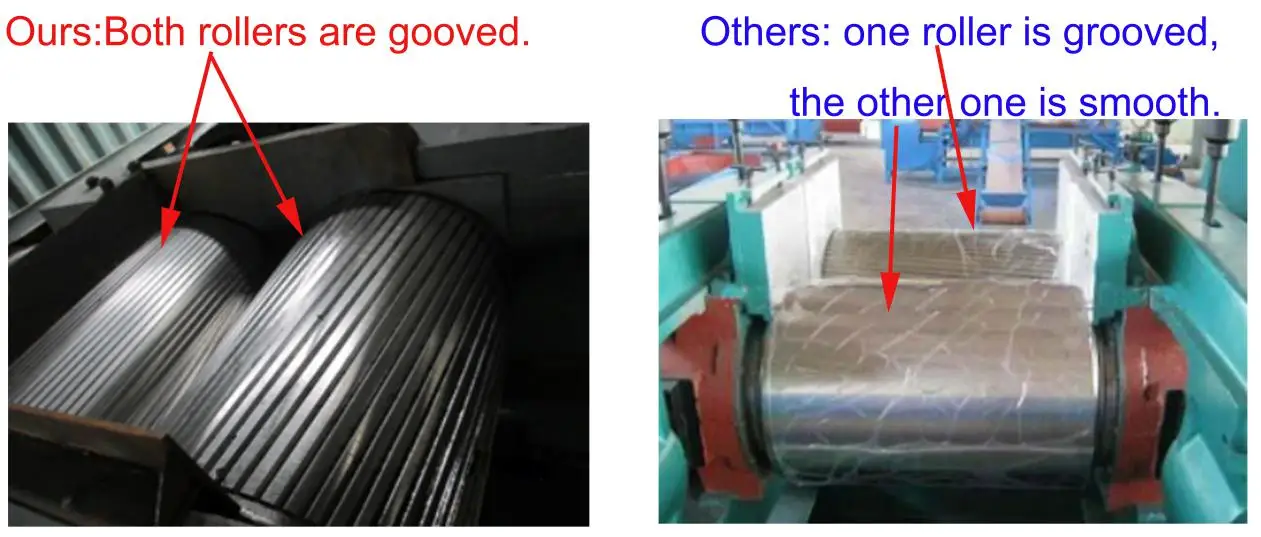

Our roller is not cast iron or alloy steel, but composite steel roller (5Cr6MnMo).

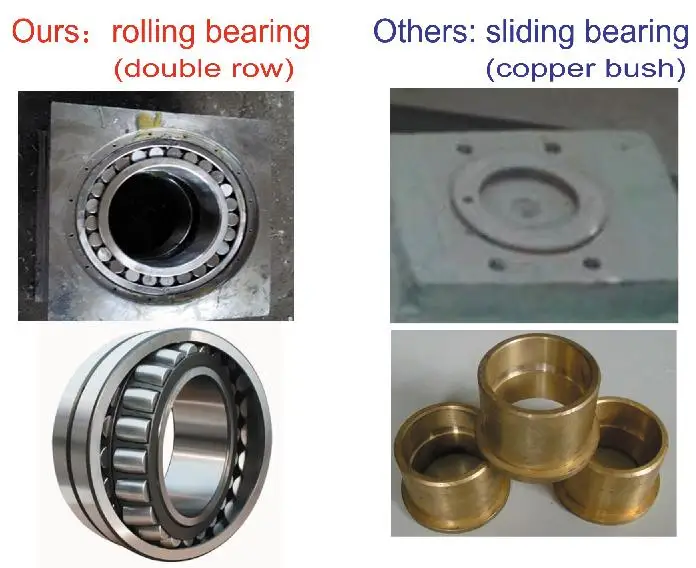

2- Our machine adopts rolling bearing, which has less friction, low energy consumption, simple installment and maintenance, compact structure, high precision, high speed and suitable for mass production.
The sliding bearing or copper bush of other companies will easily get hot and the motor will be burned out.

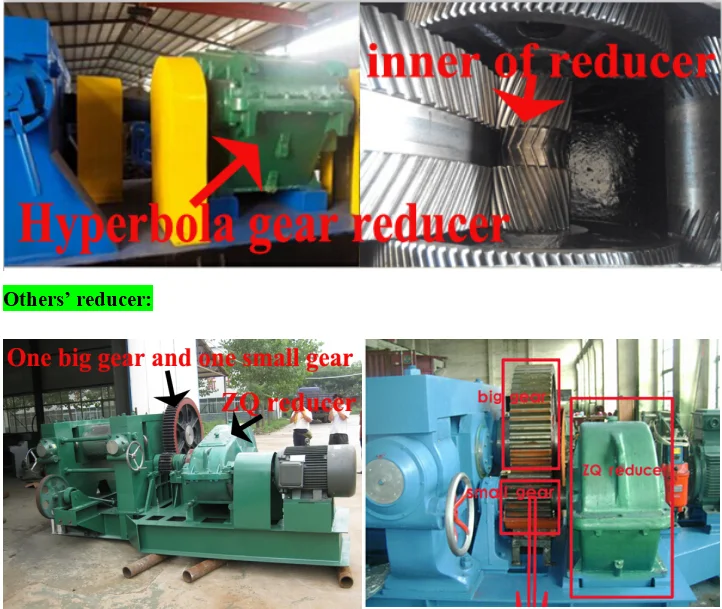

3- Our reducer is Hyperbola gear reducer. Our reducer have 8 gears, Hard Tooth Surface, while others have 4 gears. The motor will transmit the energy to the reducer. The more gears in the reducer, the bigger the torque, which can carry a higher load, more durable. It can work for long time and won't get broken although it is used to make a great amount of rubber powder. While other company's machine will break down soon if it is used to make high production for long time.
Specification of each machine

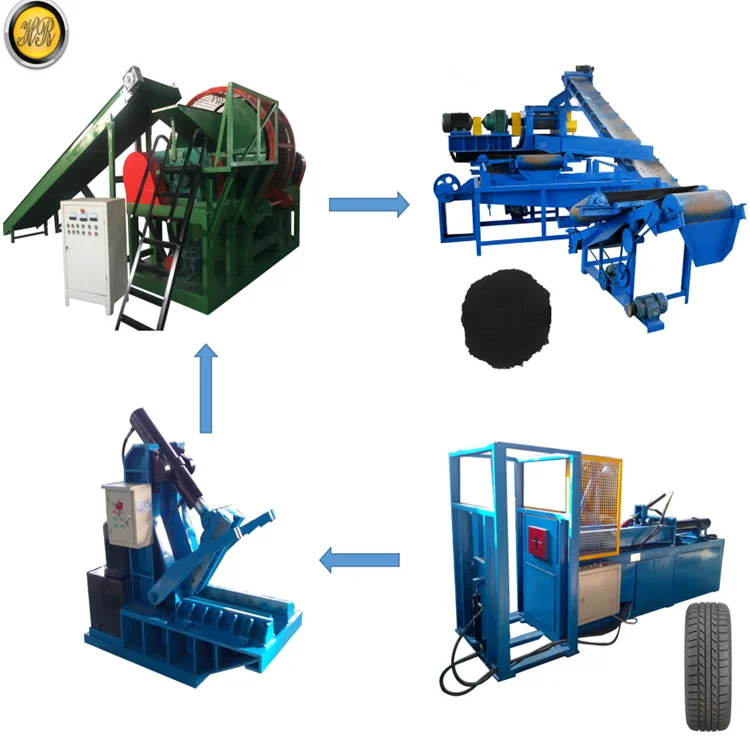

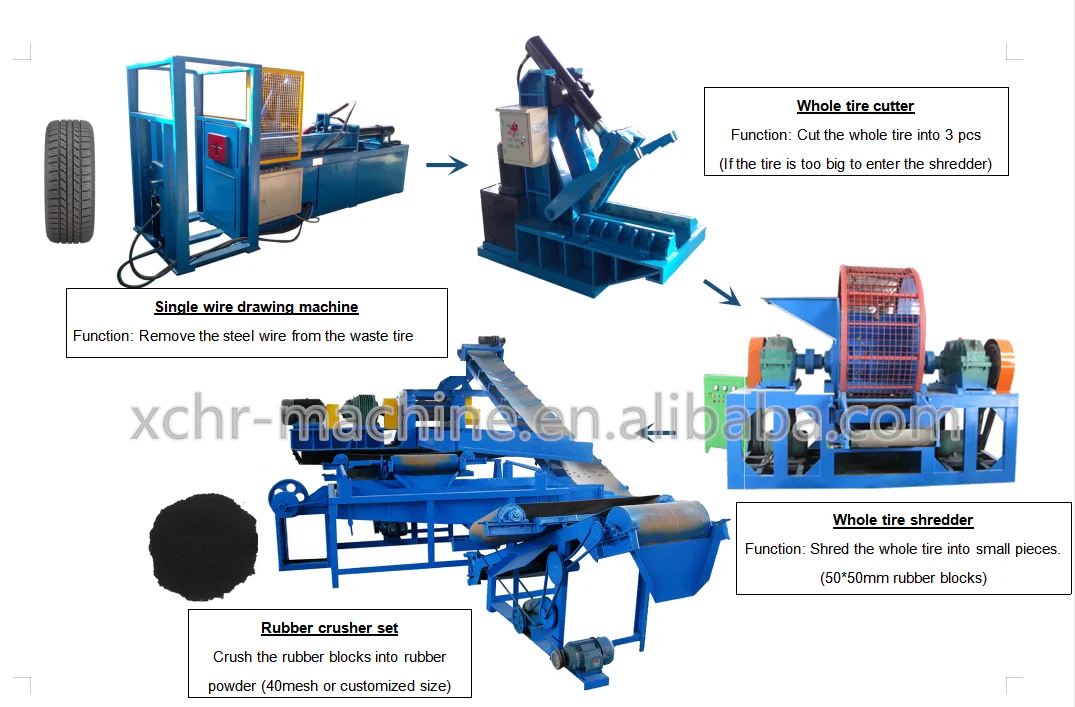

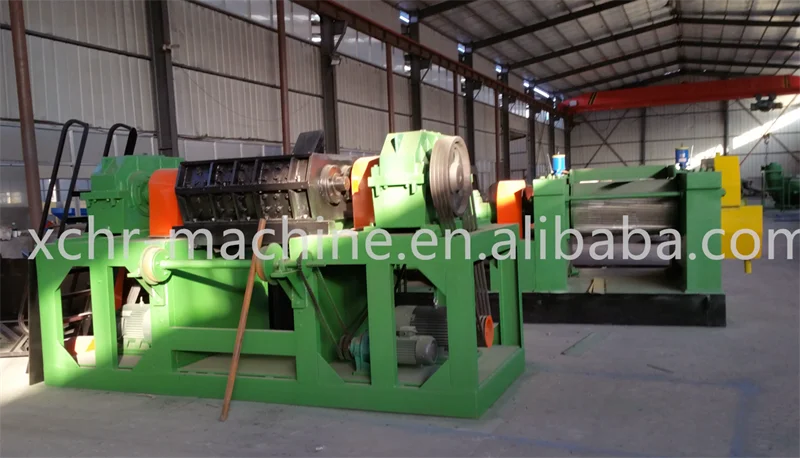

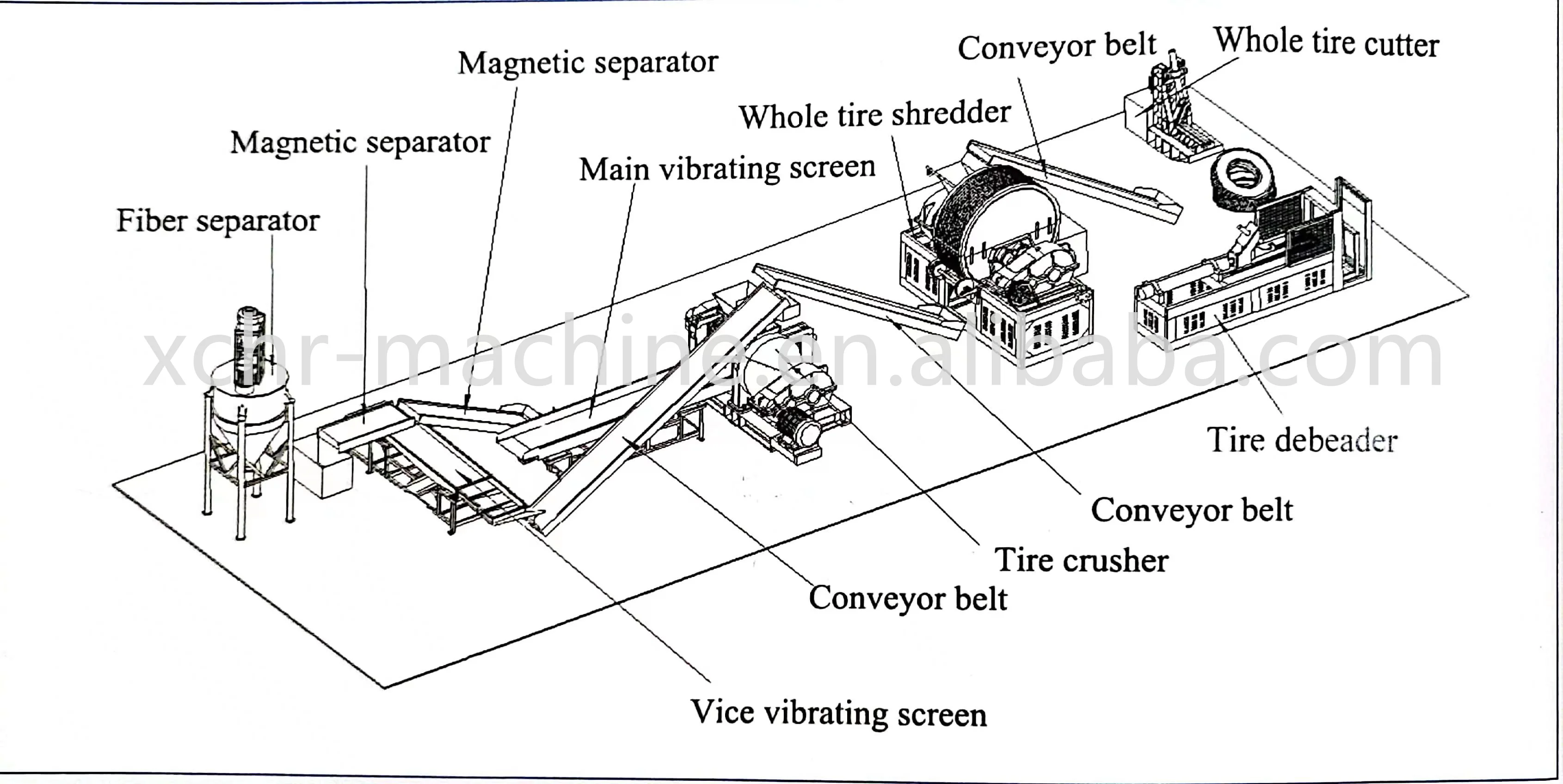

* Fully automatic production line specifications
More details contact us directly: Sally whatsapp/wechat/mobile: 008615638769216

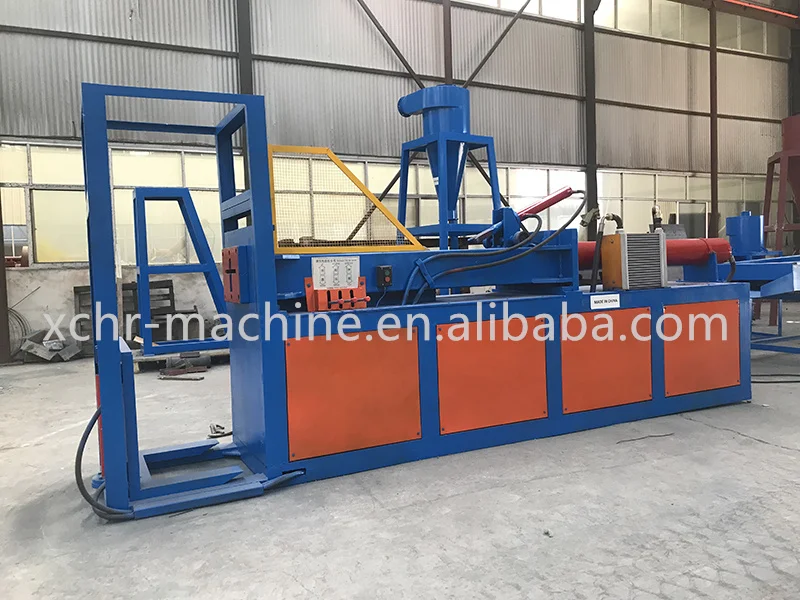

1- Steel wire remover
This is single wire drawing machine, it can draw out the steel loops from the tire bead, then we can shred the whole tire.
Model | Power (KW) | Feed size of tire (mm) | Capacity (tires/h) | Overall dimensions (m) | Equipment weight (T) |
TD-1200 | 11 | ≤φ1300 | 30-40 | 4.1*0.9*1.7 | 1.8 |

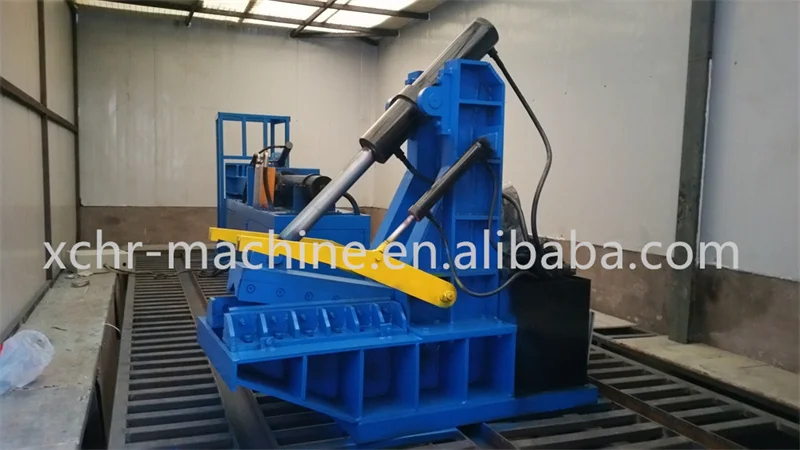

2- Whole tire cutter
If yout tire id too big to enter the tire shredder, will need this machine to cut the whole tire into 3 pieces or smaller pieces.
Name | Feed size of tire(mm) | Capacity(tires/h) | Power(KW) | Overall dimensions(m) | Equipment weight (T) |
Whole tire cutter | ≤φ1300 | 30-40 | 5.5/7.5 | 1.8*0.9*1.85 | 1.5 |

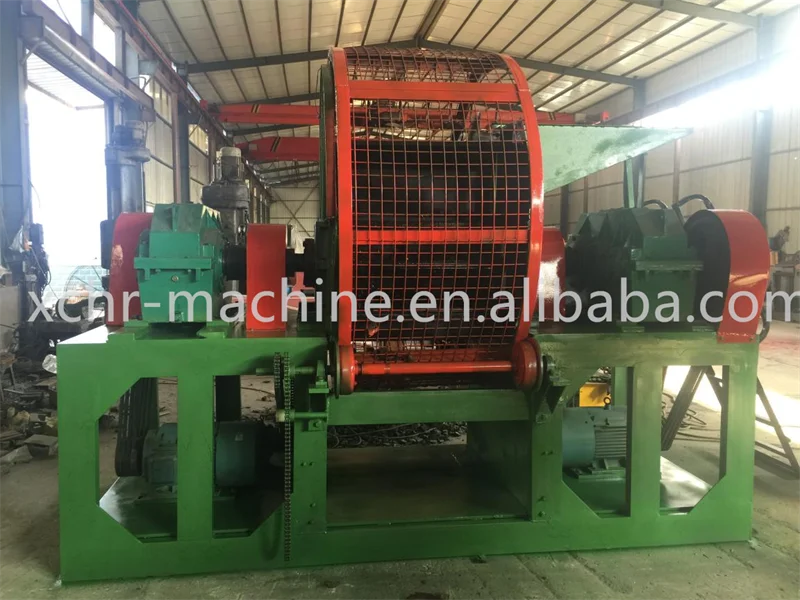

3- Tire shredder
This machine can shred the whole tire into 50*50 mm small rubber blocks, preparing for the rubber powder making.
Model No. | TS-800 | TS-1000 | TS-1200 | TS-1500 | TS-1800 |
Output(T/h) | 1-2T/h | 2-4T/h | 4-6T/h | 8-10T/h | 13-15T/h |
Feed size of tire(mm) | ≤φ900 | ≤φ1000 | ≤φ1250 | ≤φ1500 | ≤φ1800 |
Output size(mm) | ≤50*50 | ≤50*50 | ≤60*60 | ≤75*75 | ≤85*85 |
Power(KW) | 22/30*2+4 | 45*2+3+1.5 | 75*2+5.5 | 90*2+5.5 | 110*2+5.5 |
Speed(r/min) | 17 | 17 | 17 | 17 | 17 |
Equipment weight | 9T | 12T | 15T | 18T | 20T |
SIMILAR PRODUCTS

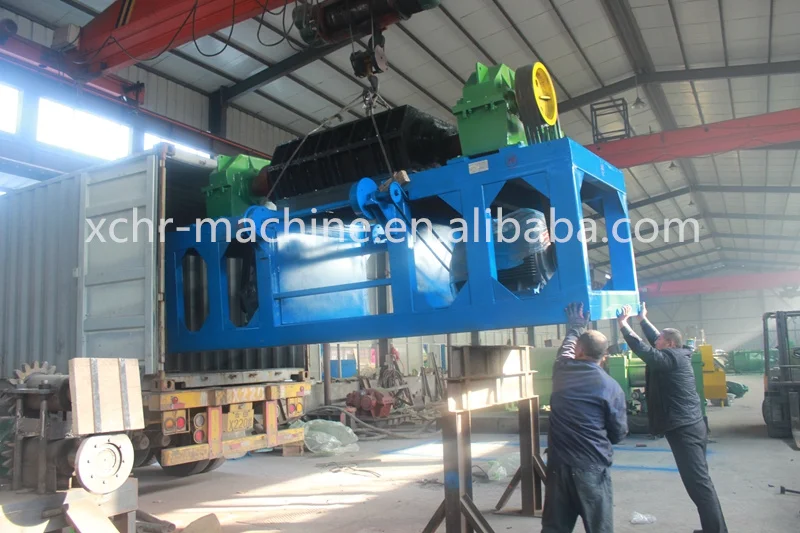

Loading and Shipping Pictures
Successful Project
Thailand project
Jordan Project
Mexico Project
America project
Algeria project
Georgia project
FAQ
Q1: Are you manufacturer or trader?
A1: We are machinery manufacturer with over 20 years experience.
Q2: Do you offer customize service?
A2: Yes, we can customize machine according to your demands.
Q3: How many years warranty can you offer?
A3: We offer 2 years warranty.
Q4: Can you ship your machine to my country?
A4: Yes, if you don't have shipping agent , we can ship machines to your nearest sea port.
Q5: What payment term do you accept?
A5: TT, L/C, Alibaba assurance order, D/P, Paypal, Western Union and so on.
Q2: Do you offer customize service?
A2: Yes, we can customize machine according to your demands.
Q3: How many years warranty can you offer?
A3: We offer 2 years warranty.
Q4: Can you ship your machine to my country?
A4: Yes, if you don't have shipping agent , we can ship machines to your nearest sea port.
Q5: What payment term do you accept?
A5: TT, L/C, Alibaba assurance order, D/P, Paypal, Western Union and so on.
If you have other questions, pls contact us directly. We will offer you our best service.
Sally Li whatsapp/wechat: 008615638769216
Email: Sally@xchrjx.com
Xuchang Huarui Machinery
Xuchang Huarui Machinery Co., Ltd. was established in 1990, mainly engaged in the R&D and manufacturing screw and nail making machine, furnace, waste tire recycling machine and auxiliary equipment.Our main products are screw and nail making machine, furnace, waste tire recycling machine, wire drawing machine, rebar straightening and cutting machine, CNC wire bending machine and auxiliary equipment.
As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.
In order to service customers best, the warranty of all our products are two years. We are ready to join hands with our friends for establishing a bright future.
As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.
In order to service customers best, the warranty of all our products are two years. We are ready to join hands with our friends for establishing a bright future.
