Прямые поставки от производителей, покрывало из керамического волокна для печи
- Category: Ceramic Fiber Blankets >>>
- Supplier: Beijing Jiahe Hengtai Material Technology Co. Ltd.
Share on (1600628802458):
Product Overview
Description
Product Description

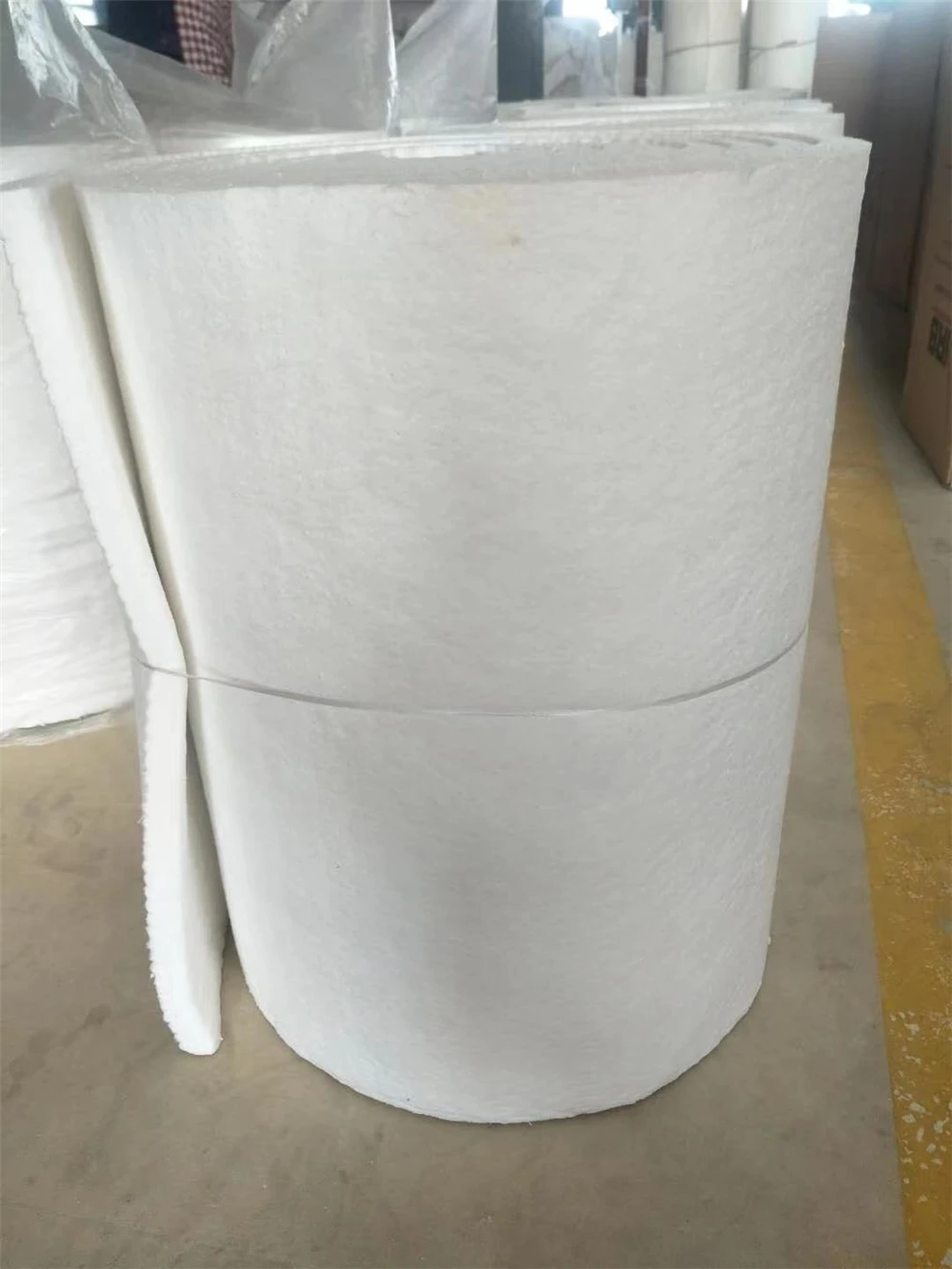

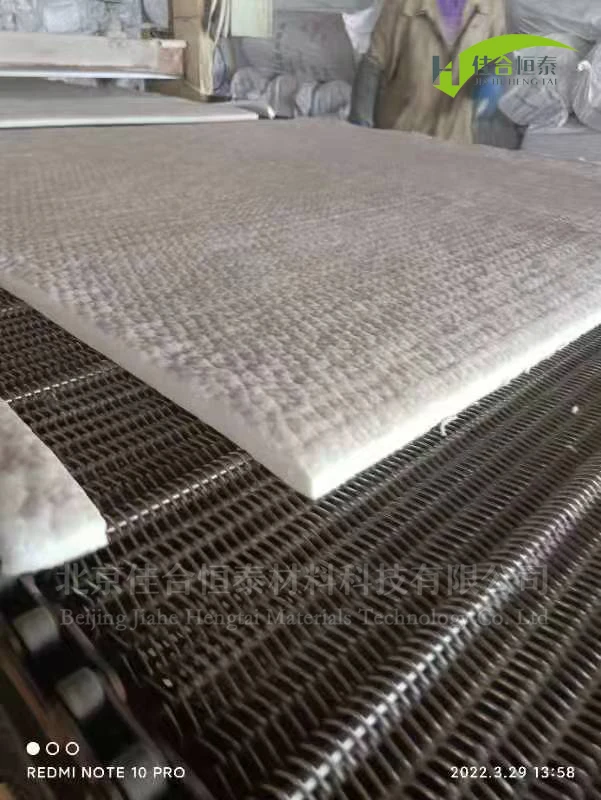

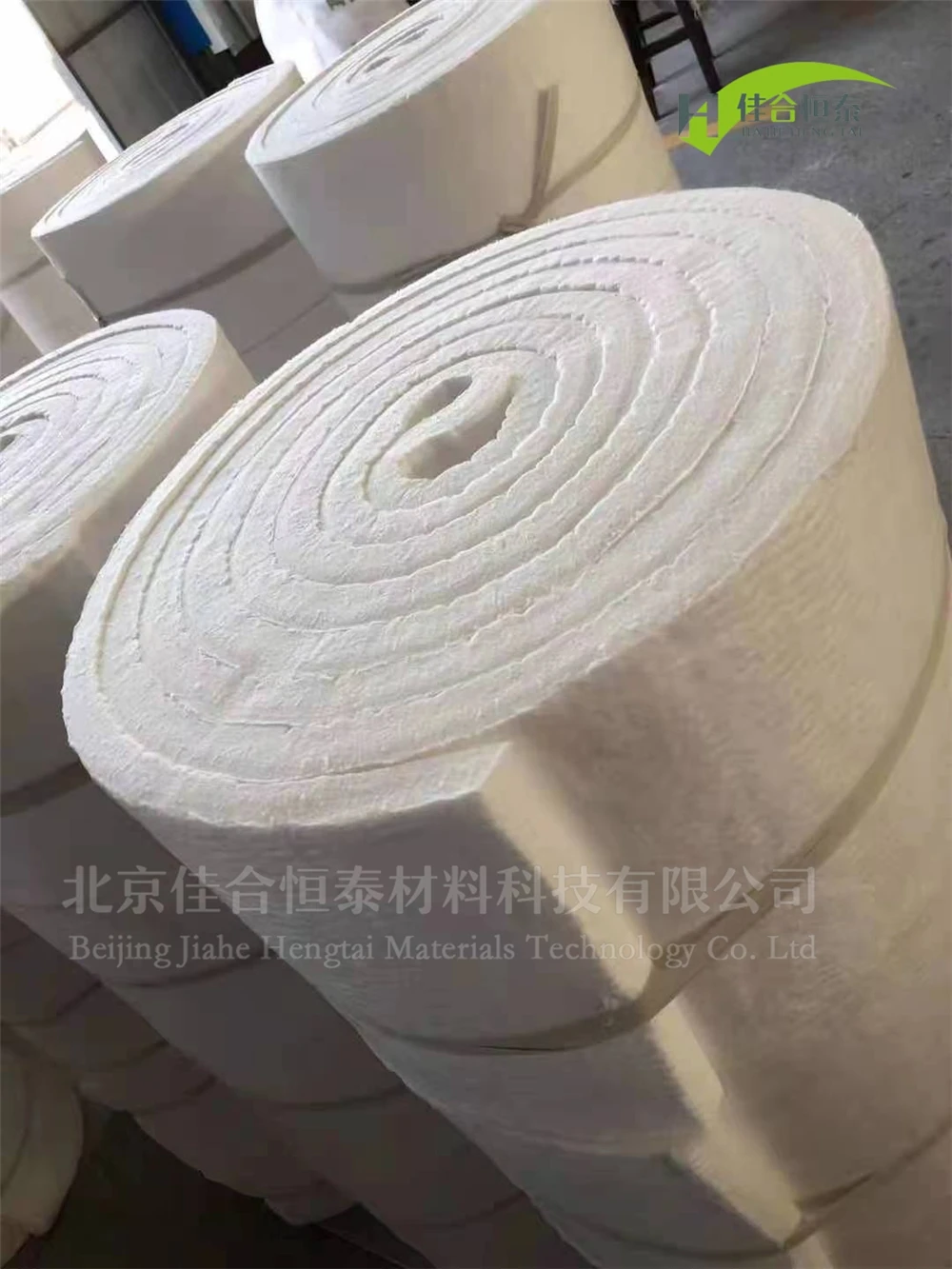

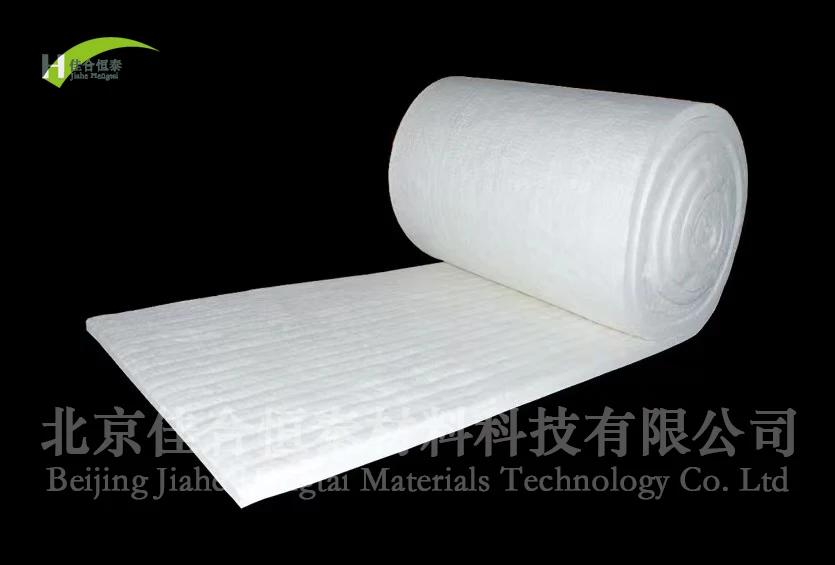

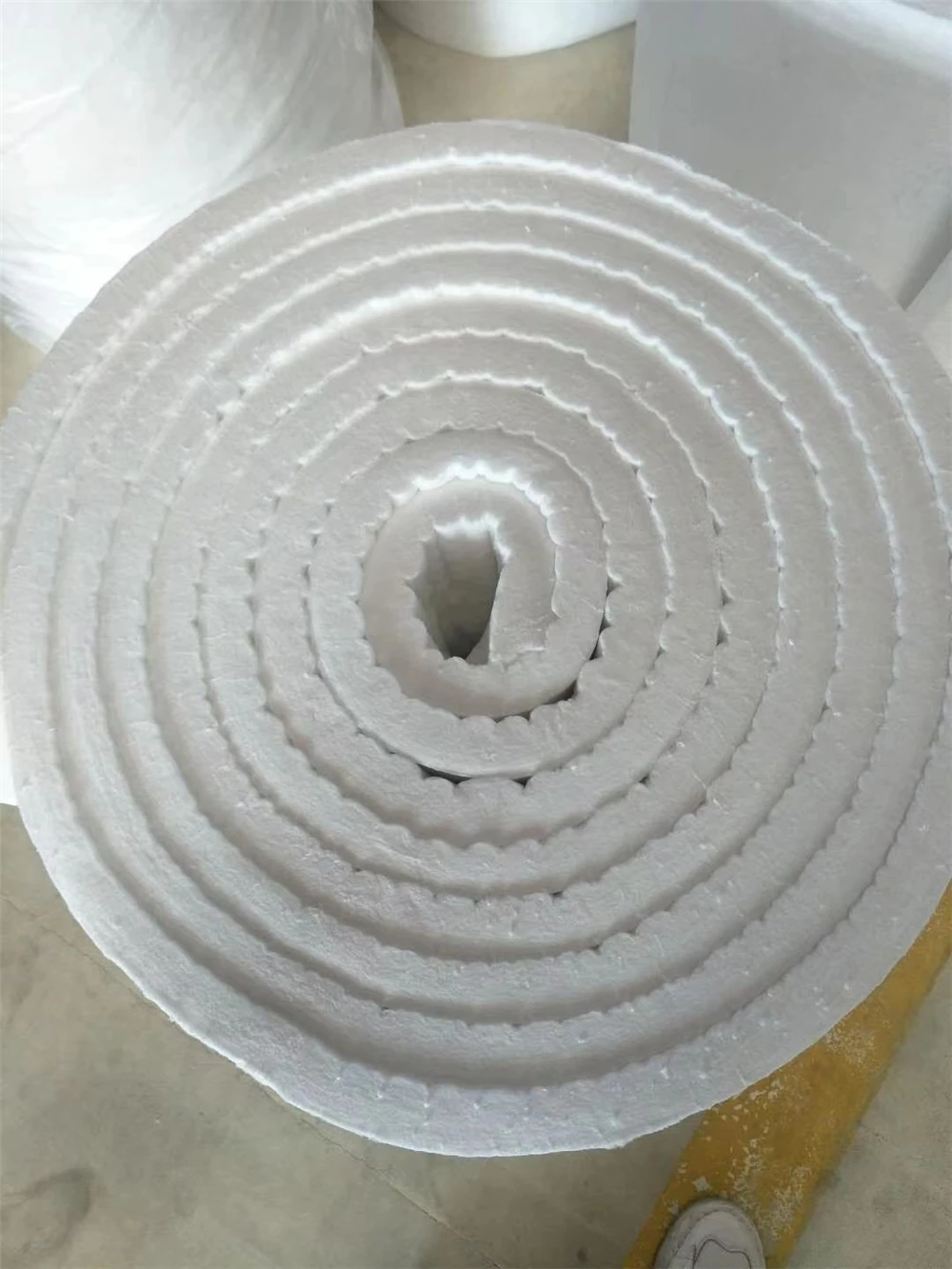

Ceramic Fiber Blanket
Performance: Ceramic fiber blanket is the kind of fire-resistance material which do not contains any adhesive, with the character of low conductivity, low thermal capacity, good chemical stability, excellent thermal stability, thermal shock resistance, good tensile strength and good sound-absorb capacity.
Application: used in the fields like industrial furnace, heating equipment, high-temp pipe lining, furnace expansion joint sealing, furnace masonry, furnace door and cover sealing.
Specification:
Normal Thickness: 12.7mm, 25.4mm, 50mm
Normal width: 610mm, 1000mm,1220mm
Normal length: 14.4m, 7.2m, 3.6m
Working temperature: 1000-1430℃
Application: used in the fields like industrial furnace, heating equipment, high-temp pipe lining, furnace expansion joint sealing, furnace masonry, furnace door and cover sealing.
Specification:
Normal Thickness: 12.7mm, 25.4mm, 50mm
Normal width: 610mm, 1000mm,1220mm
Normal length: 14.4m, 7.2m, 3.6m
Working temperature: 1000-1430℃
Specification
TECHNICAL DATA OF CERAMIC FIBER BLANKET
Item | Common | Standard | High pure | Zirconium and Aluminum | Zirconium | ||||||
Max Temperature (℃) | 1000 | 1260 | 1260 | 1400 | 1430 | ||||||
Working Temperature (℃) | 800 | 1000 | 1100 | 1260 | 1350 | ||||||
Color | white | white | white | white | white | ||||||
Density(kg/m3) | 64 96 128 | 64 96 128 | 64 96 128 | . 96 128 | 96 128 160 | ||||||
Rate of liner (%) (24h, Density 128kg/m3) | ≤4 (1000℃) | ≤4 (1000℃) | ≤4 (1100℃) | ≤4 (1260℃) | ≤4 (1350℃) | ||||||
Rate of thermal conductivity (w/m .k) (Density 128kg/m3) | 0.153(400℃) 0.165(800℃) | 0.153(400℃) 0.165(800℃) | 0.14(400℃) 0.16(800℃) 0.165(1000℃) | 0.15(600℃) 0.165(1000℃) | 0.153(800℃) 0.16(1000℃) | ||||||
Tensile Strength (Mpa) (Density128kg/m3) | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | ||||||
Chemical Analysis (%) | Al2O3 | 43-45 | 45-46 | 47－49 | 35-40 | 35-40 | |||||
Al2O3+SiO2 | 95-96 | 96-99 | 97-99 | 91-94 | 81-84 | ||||||
Zirconium | - | - | - | 5-7 | 15-17 | ||||||
Standard size: (mm) | 12.7mmx610mmx14400mm 25mmx610mmx7200mm 38mmx610mmx4800mm 50mmx610mmx3600mm | ||||||||||
Note: Other size available upon special request
