Digital switch track gauge for turnout track gauge level measuring
- Category: Railway Parts & Accessories >>>
- Supplier: Wuhan Linkage Track Equipment Co. Ltd.
Share on (1600629110484):
Product Overview
Description
Product Description

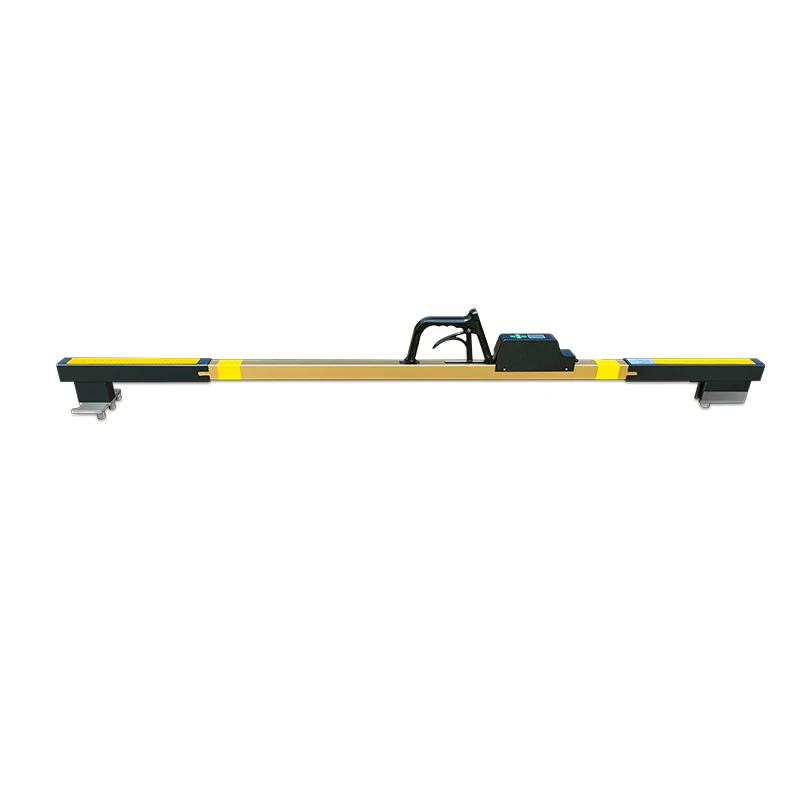

Digital Track Gauge
Digital switch Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge and back to back distance,flangeway clearance through microelectronics, embedded and sensor technologies and OLED display screen.
Features
1. Large LED backlit display: especially suitable for day outside and dark night
2. Quick calibration operation: simple measurement process
3. Large capacity battery:long standby time
4. Accurate measurement:keep long-term stability
5. Temperature compensation :working temperature is -30~+55℃
6. Insulated design
7. Anti-electromagnetic interference
8. Waterproof:could use in rainy day
9. power saving function: no operation within 15 minutes, the system will automatically shut down.
10. Approval by CRCC , CE certificate.
2. Quick calibration operation: simple measurement process
3. Large capacity battery:long standby time
4. Accurate measurement:keep long-term stability
5. Temperature compensation :working temperature is -30~+55℃
6. Insulated design
7. Anti-electromagnetic interference
8. Waterproof:could use in rainy day
9. power saving function: no operation within 15 minutes, the system will automatically shut down.
10. Approval by CRCC , CE certificate.
Specification
Model(1435mm) | GJC-TJG1 |
Track gauge(mm) | 1384-1470 |
Gauge rail check gauge(mm) | 1364-1450 |
Guard rail face gauge(mm) | 1344-1430 |
Superelevation measuring range(mm) | -200~+200 |
Flangeway Clearance(mm) | 20-107 |
Superelevation division value(mm) | 0.10 |
Track gauge division value(mm) | 0.1 |
Track gauge max indication error(mm) | ±0.25 |
Superelevation error(mm) | ±0.45 |
Application rail line | railway speed less than 250km/h |
Details Images

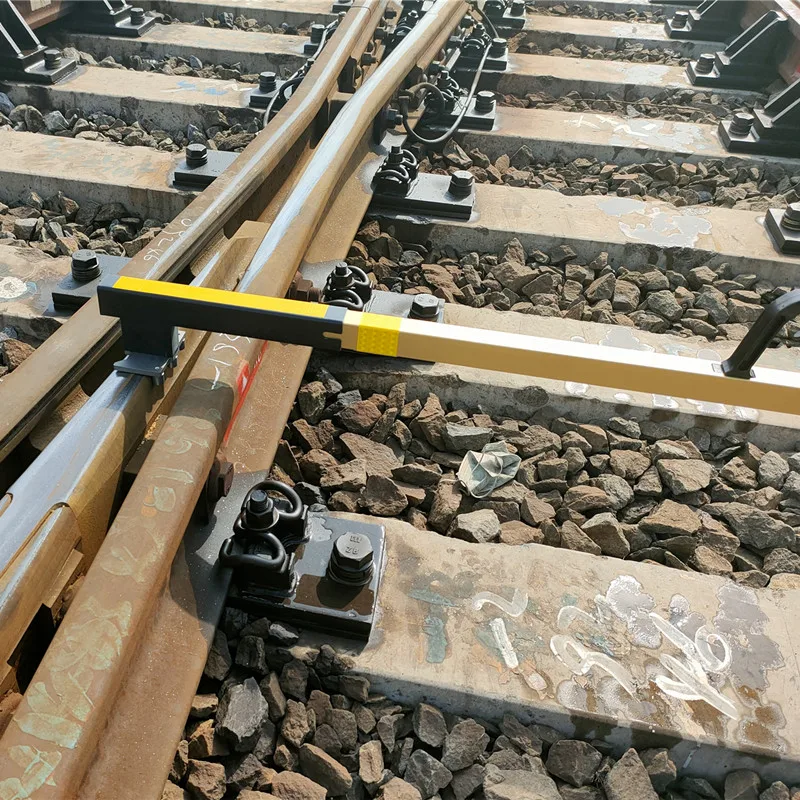

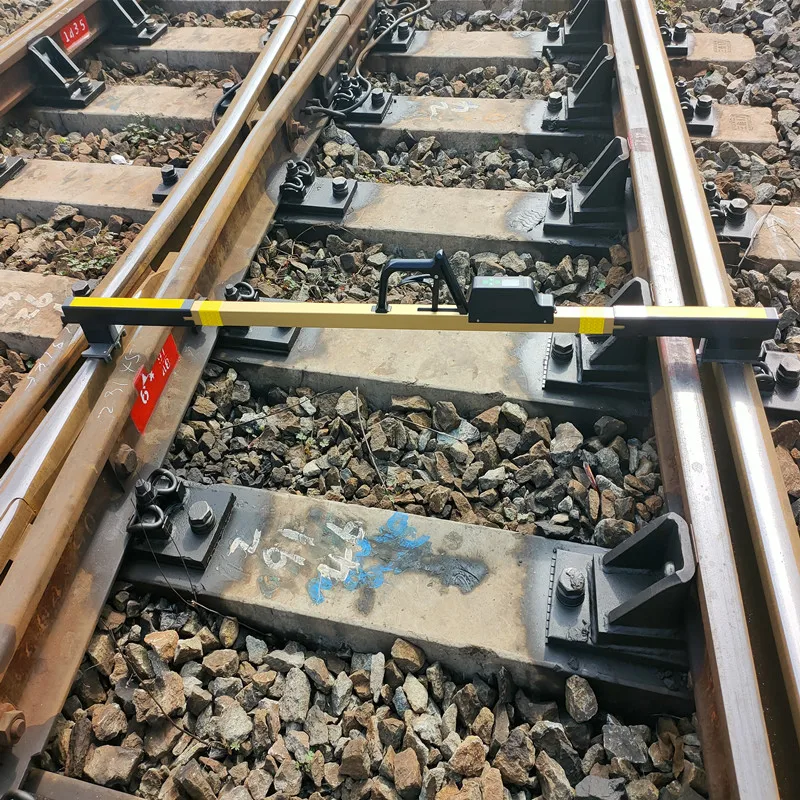

Digital track gauge for turnout measurement
Digital switch track gauge is a important railroad tools

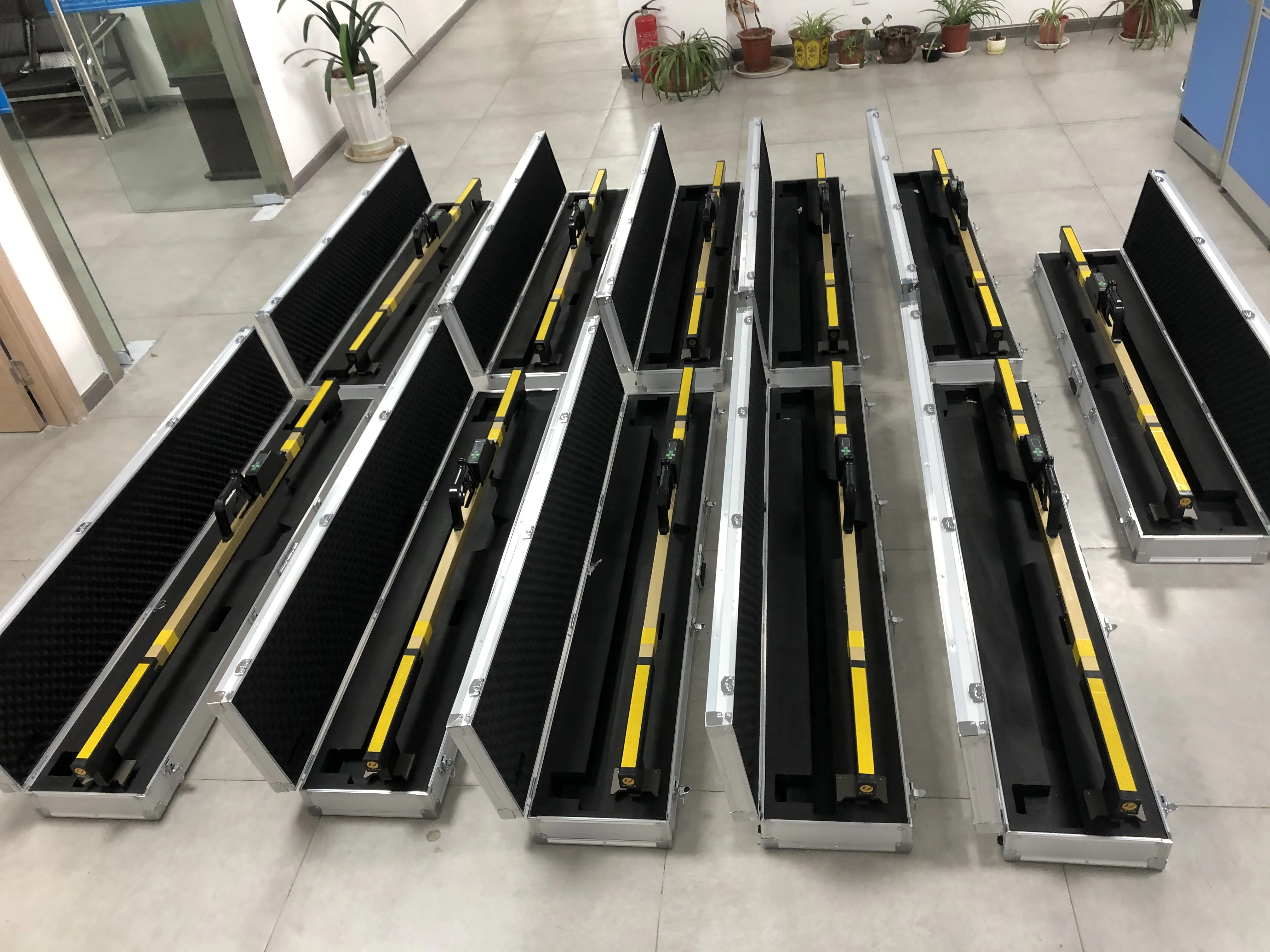

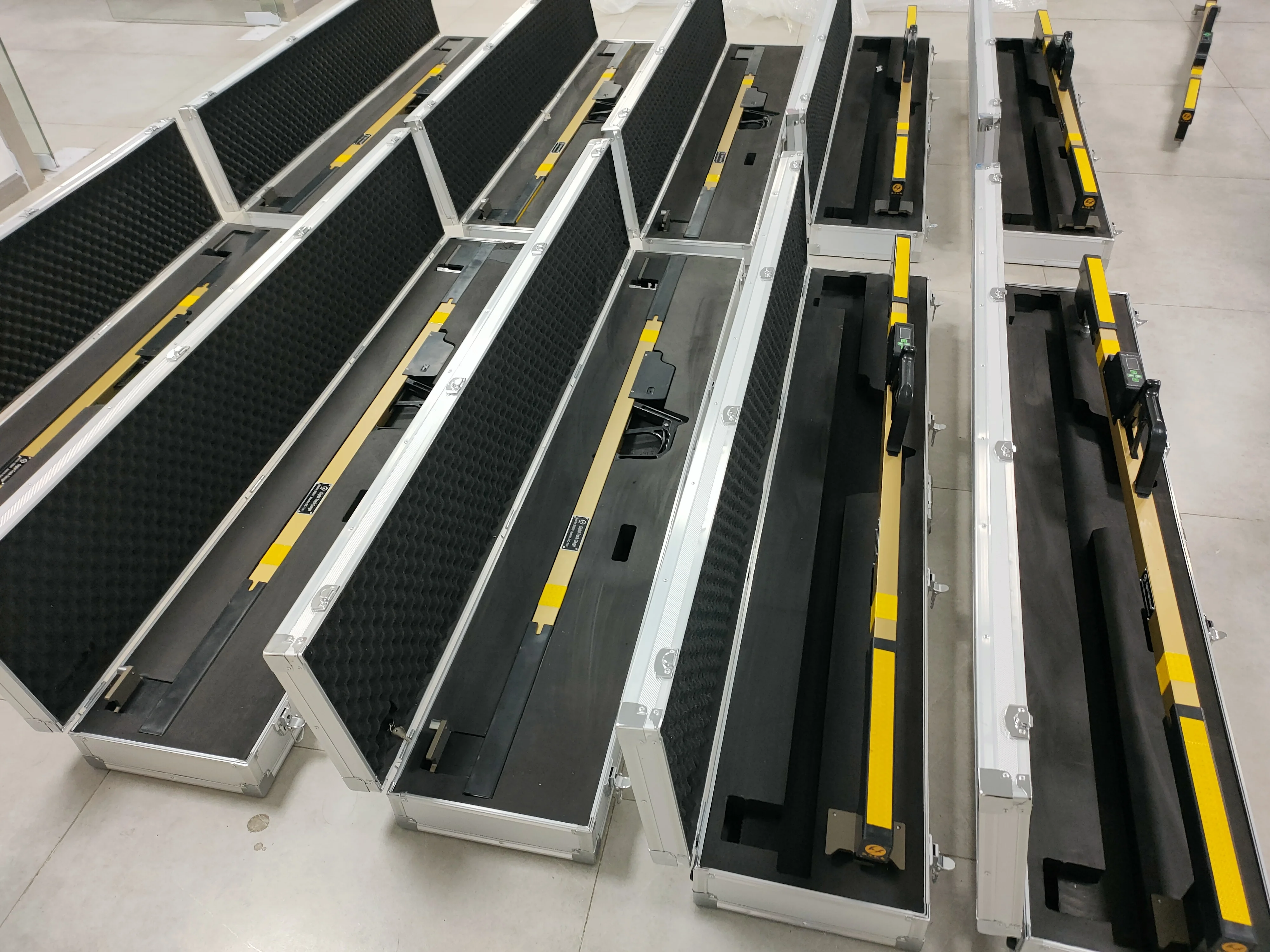

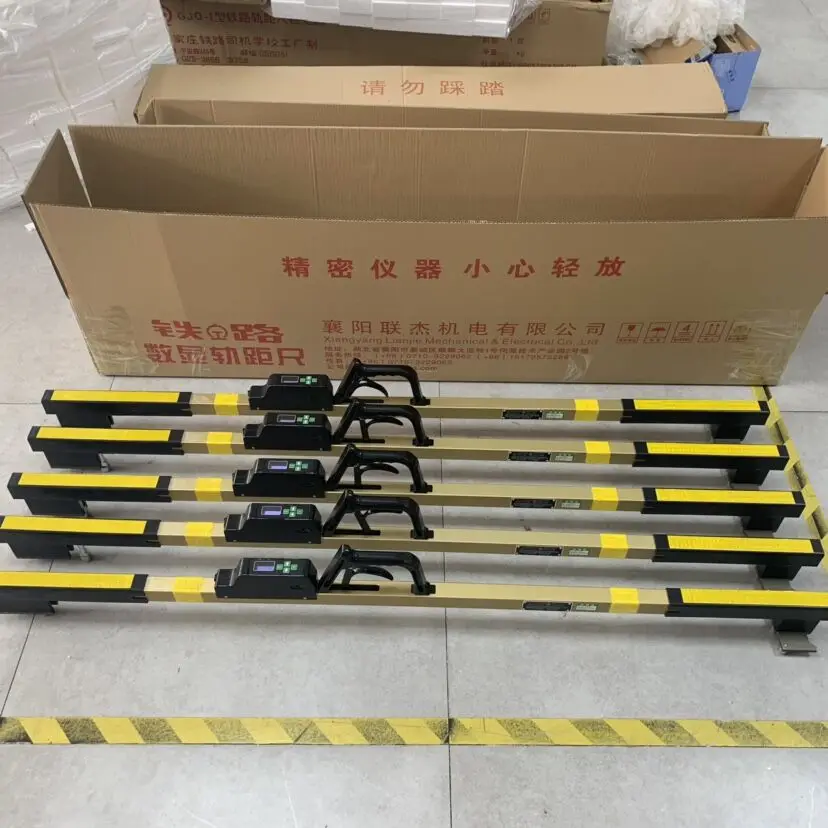

Digital turnout track gauge with aluminum case for shipment to European customers

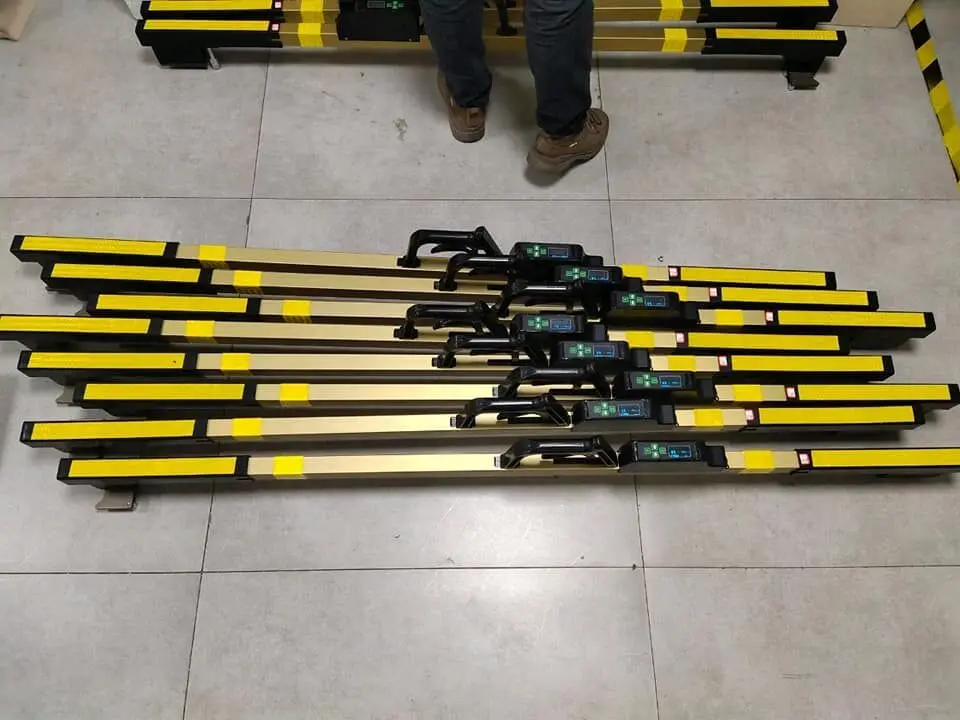

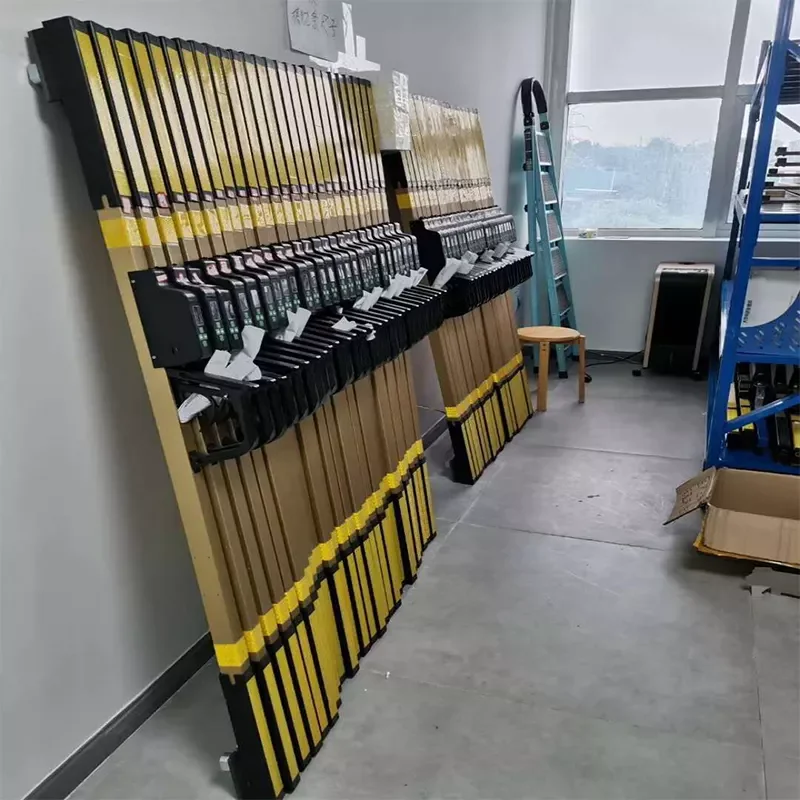

digital turnout track gauge waiting for calibration before send out. We have professional track gauge calibrator for digital track gauge calibration.

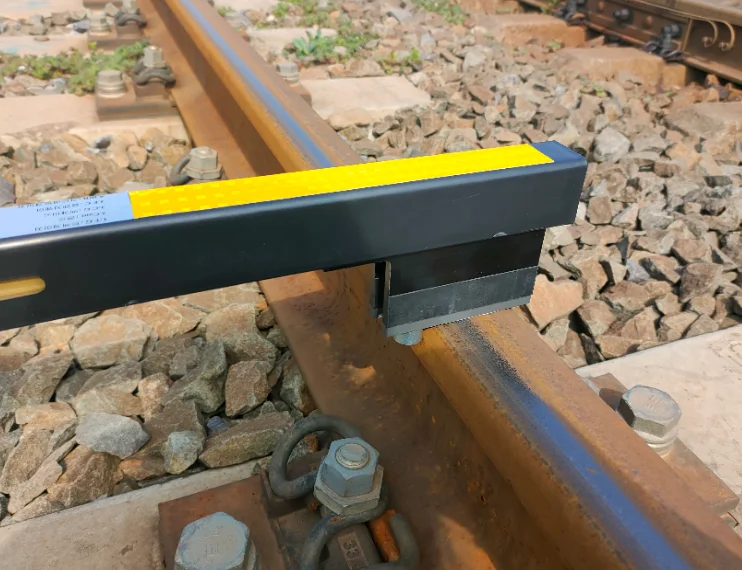

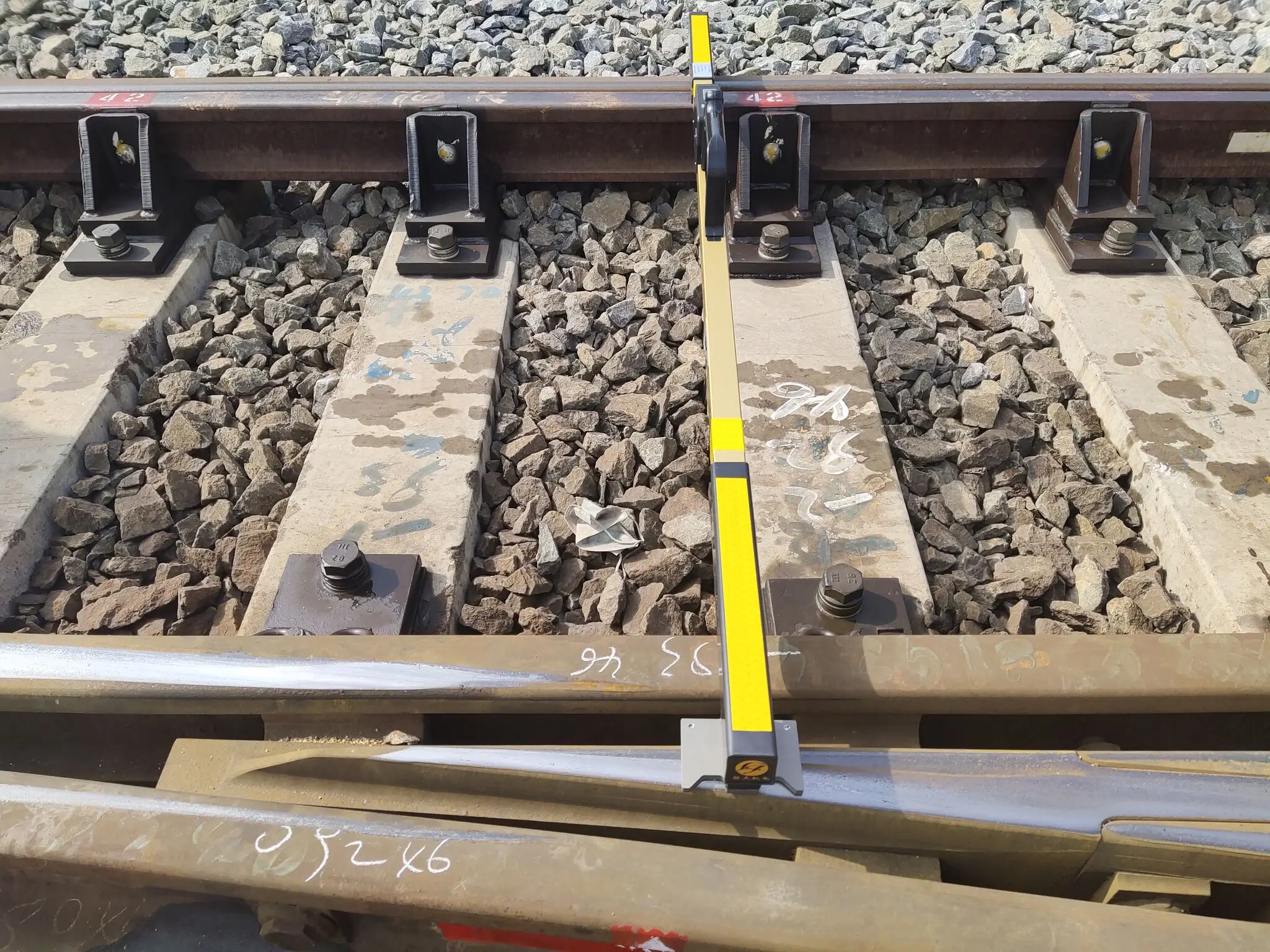

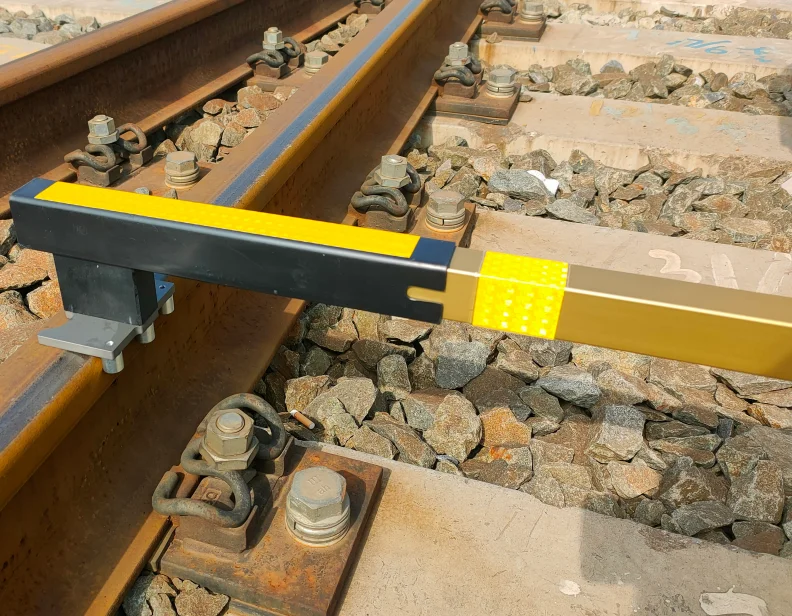

Digital track gauge for track maintenance
Digital track gauge for measuring rail turnout ,the railworker still working in the rainy day.Lianjie digital track gauge best choose for rail maintenance and track inspection

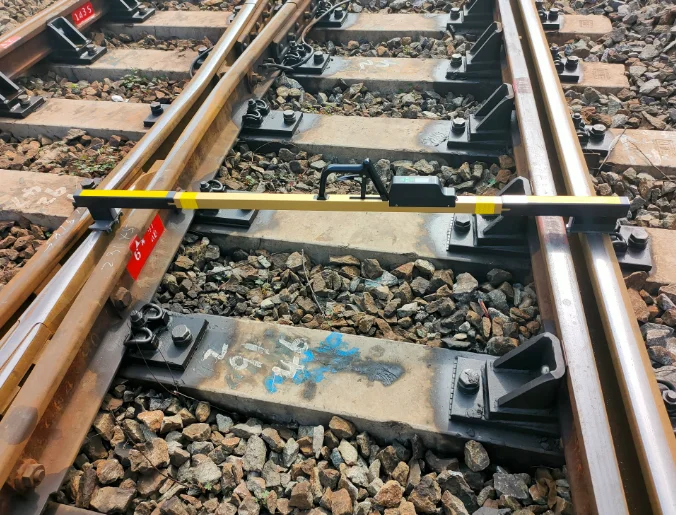

digital switch Track gauge for railway turnout measurement
Harbin railway maintenance department are using Lianjie digital track gauge for normal rail inspection. Digital type is more
convenient to use in cold weather.
convenient to use in cold weather.
Show digital track gauge for customer
Show our digital track gauge to our customer in Xiangyang railway maintenance department. Compare to analogue track gauge,digital
track gauge with high precious.
track gauge with high precious.
Packing & Delivery
pe bag+pe foam+paper carton, 5units/carton , carton size:168*26*28mm G.W: 18KG
