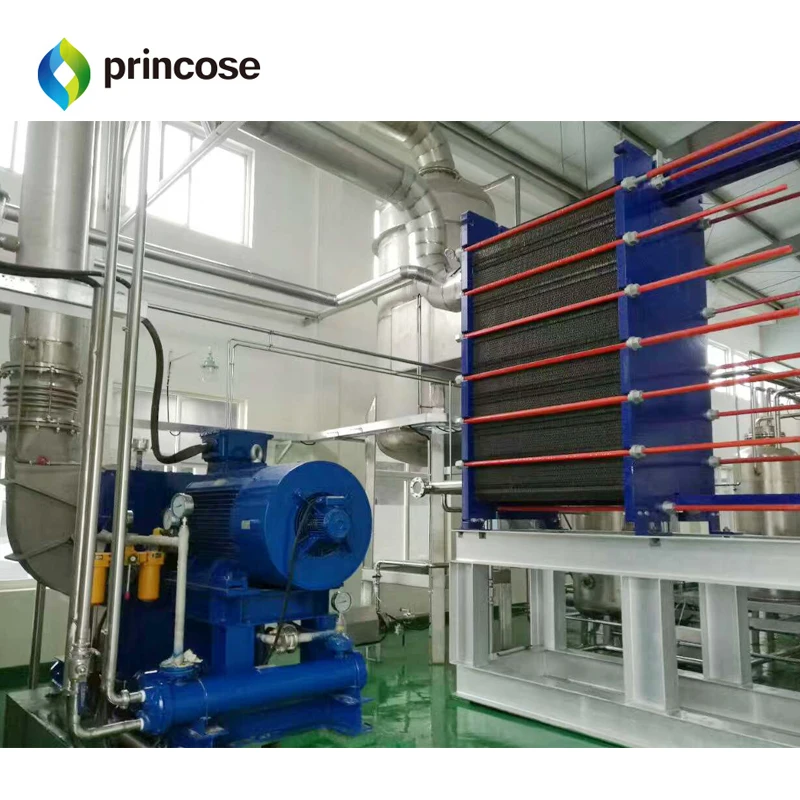

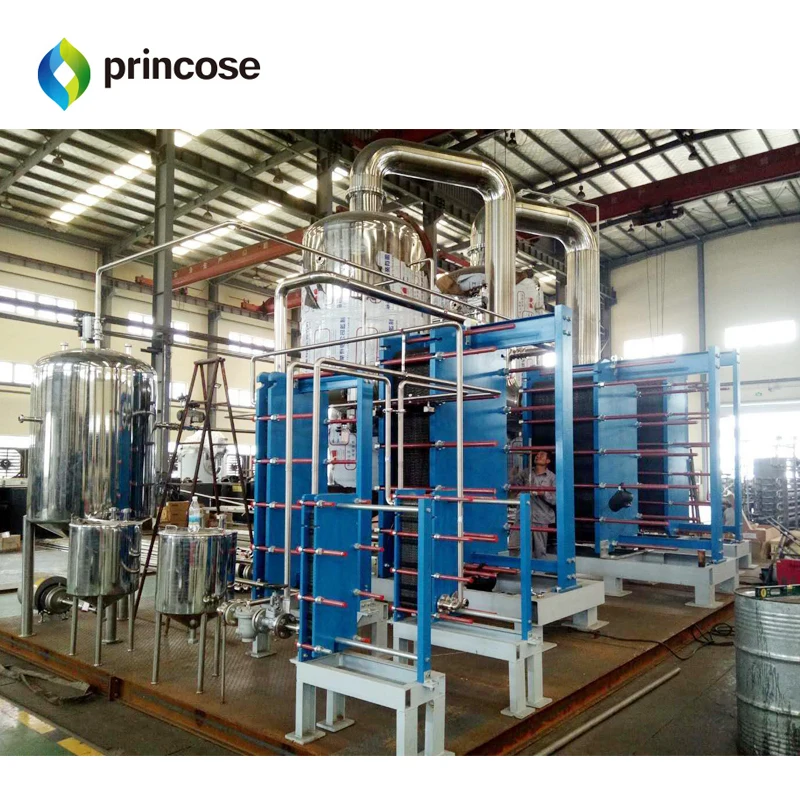

Maltose plate concentration evaporation Falling film evaporator
- Category: Refrigeration & Heat Exchange Equipment >>>
- Supplier: Shanghai Princose Energy Technology Co. Ltd.
Share on (1600629908531):
Product Overview
Description
Product Description
Product details
Maltose plate concentration evaporation Falling film evaporatorThe falling film evaporator is suitable for low-temperature continuous evaporation and concentration in milk, glucose, starch, xylose, pharmaceutical, chemical, biological engineering, environmental protection engineering, waste liquid recovery and other industries. It has high heat transfer efficiency and short heating time of materials. Features.
1. Classification of falling film evaporator:
Single-effect falling film evaporator, multi-effect falling film evaporator (double-effect falling film evaporator, three-effect falling film evaporator, 4-effect falling film evaporator, etc.), MVR falling film evaporator, etc.
2. Scope of application of falling film evaporator:
It is suitable for salt materials with a concentration lower than the saturation concentration value after evaporation, and materials with low heat sensitivity, viscosity, foaming, concentration and good fluidity. Commonly used in milk, glucose, starch, xylose, pharmaceutical, chemical, biological engineering, environmental protection engineering, waste liquid recovery and other industries for low-temperature continuous evaporation concentration, with high heat transfer efficiency, short heating time and other main characteristics.
3. Working principle of falling film evaporator:
Falling film evaporation is to add the feed liquid from the tube box on the heating chamber of the falling film evaporator, and evenly distribute it to each heat exchange tube through the liquid distribution and film forming device. Under the action of gravity and vacuum induction and air flow, it becomes a uniform film. Move from the top. During the flow process, it is heated and vaporized by the shell-side heating medium, and the generated steam and liquid phase enter the separation chamber of the evaporator together. The vapor and liquid are fully separated, and the steam enters the condenser for condensation (single-effect operation) or enters the next-effect evaporator. As a heating medium,

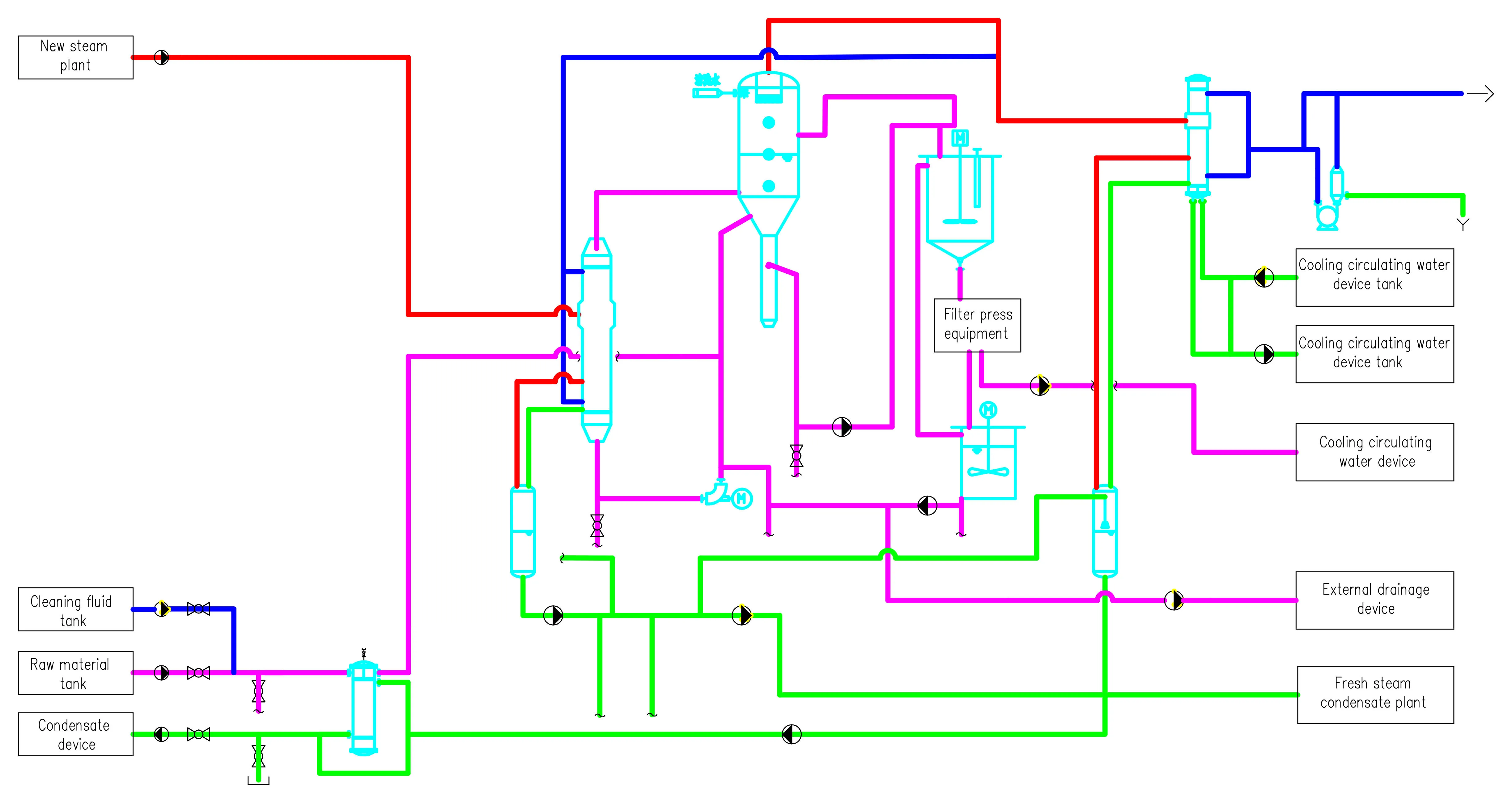

Process schematic diagram

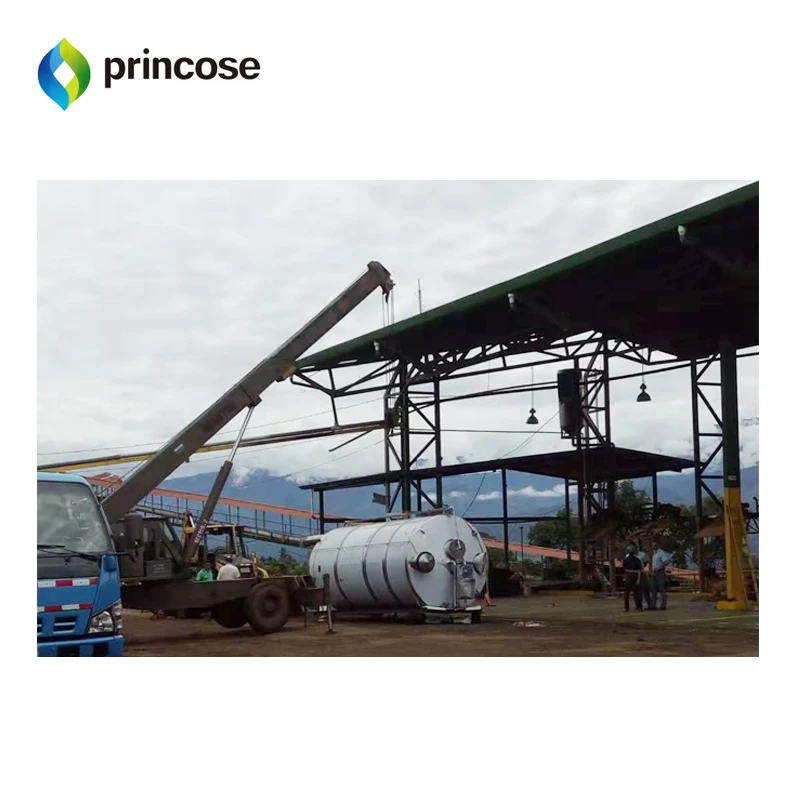

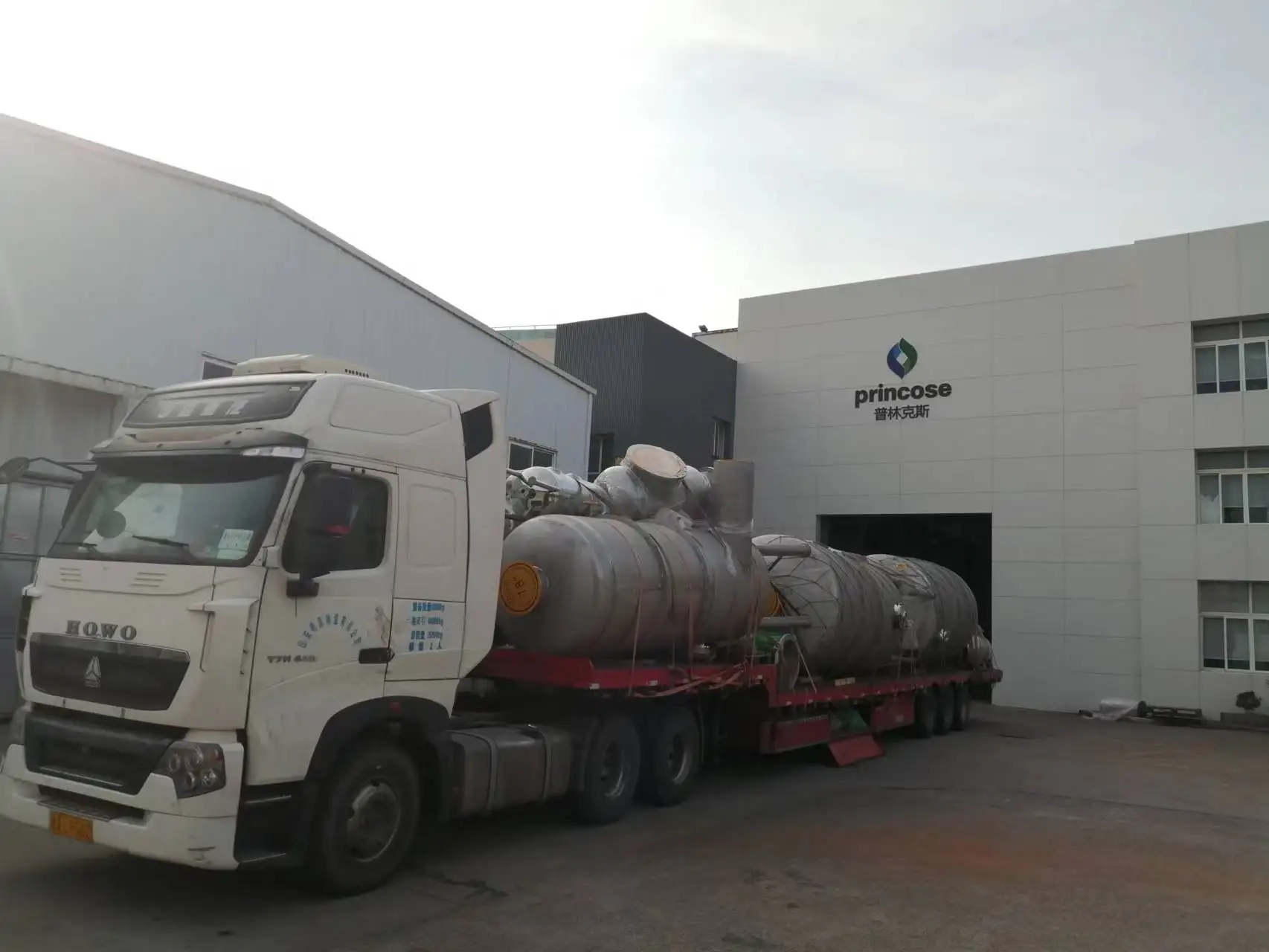

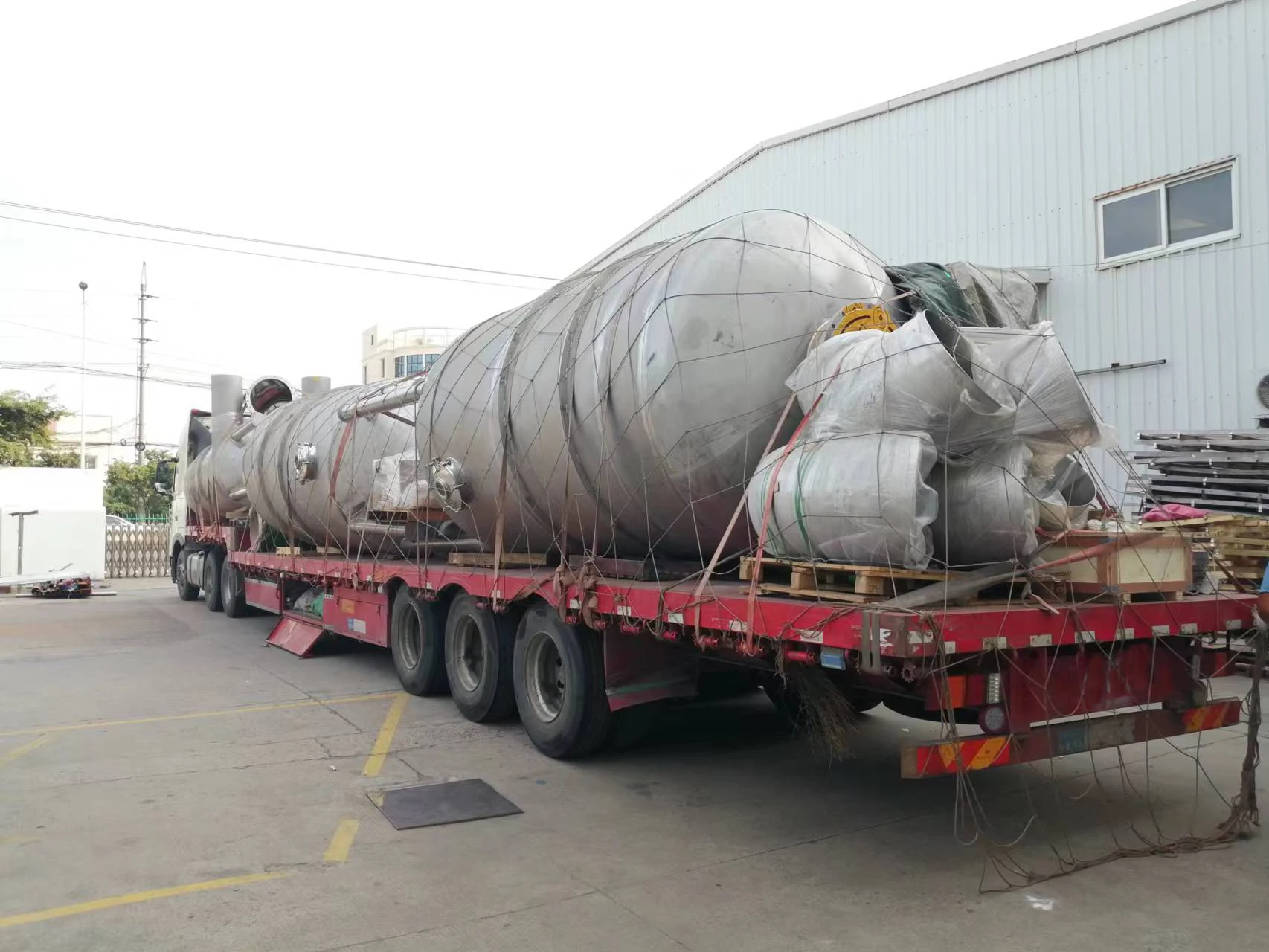

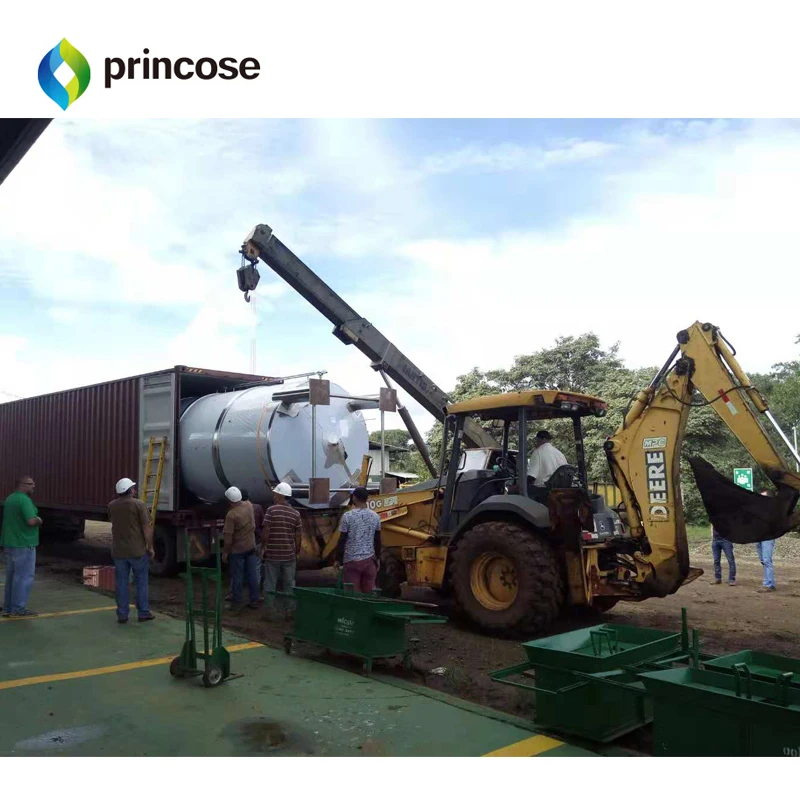

Loading and shipping
Why choose us?
1.With twelve years of experience in evaporation system design and manufacturing, it can quickly determine the problems of the evaporation system during operation, and has a database of actual operation data of hundreds of materials.
1.With twelve years of experience in evaporation system design and manufacturing, it can quickly determine the problems of the evaporation system during operation, and has a database of actual operation data of hundreds of materials.
2. Professionals and R & D teams have complete domestic plate evaporation types to meet the process needs of different industries.
3.Product series, TVR plate and tube combined with evaporator, TVR plate and tube combined with evaporation crystallizer, MVR plate and tube combined with evaporator, MVR plate and tube combined with evaporation crystallizer, gathered all the advantages of evaporation form, respectively in different test data, is an advanced and complete professional company in the field of evaporation.
4. Semi-welded imported plate type evaporator plate type, with leading technology, solves the problem of expensive imported equipment and untimely service.
5. in the starch sugar industry in the plate evaporation system market share ranking first. He has rich overseas project experience in the refined sugar market at home and abroad, and has served the project experience of evaporation system for many countries.
7. Experienced on-site commissioning and after-sales service personnel system, VIP quality customer system, 24-hour after-sales guarantee.
8. Provide quality transformation and technical support services for the evaporation system.
