Surge Protective Device Type Three Phase Surge Protection Device Plastic Parts Surge Protector Dc 220v Spd
- Category: Other Electrical Equipment >>>
- Supplier: Shenzhen Jinxunyuan Technology Co. Ltd.
Share on (1600629949476):
Product Overview
Description
Brand | Leixunyuan | ||||||

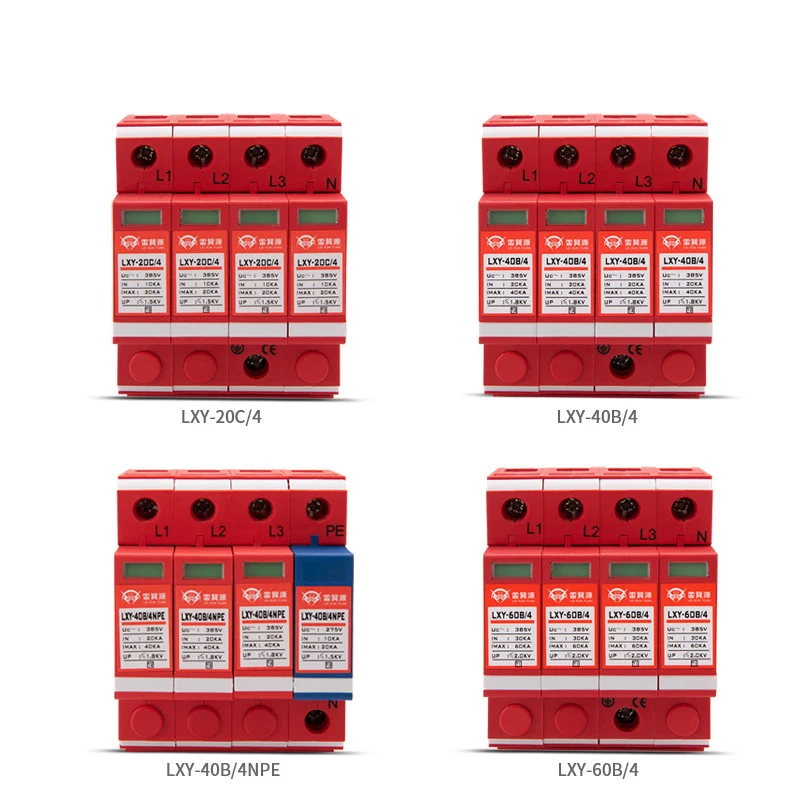

Modle | LXY-20C/4 | LXY-40B/4 | LXY-40B/4NPE | LXY-60A/4 | |||
Nominal Discharge Current | 10KA | 20KA | 20KA | 30KA | |||
Maximum discharge current | 20KA | 40KA | 40KA | 60KA | |||
Operating Voltage | 385V | ||||||
Continuous working voltage | 380V | ||||||
Function | Power Protection | ||||||
Insertion loss | 0.1dB | ||||||
Response time | ＜25ns | ||||||
Working Environment | -40°C +80°C | ||||||
Product Description：
This product is a single-phase parallel connection power surge protector device (called: SPD).This product is designed as modular with artistic outline,easy wire connection and simple installation,simple maintenance,working in a relatively harsh environment and maintaining in a long-term stability.SPD can effectively prevent overvoltage and over current which are induced by lightning or industrial noise and other factors,and other transient surge voltage on the system or equipment or cause permanent damage or momentarily interruption and other hazards..
◆ Apply to third-level power lightning surge protection of lightning protection class C, class D information system.
◆ With work instructions,indicate deterioration module functions,green (normal),red (failure).
◆The product is designed as modular with good tightness, working indictor and degradation indicator.It is convenient for
connecting.
◆With temperature control breaker, build-in over currents fuse protector, completely avoid the fire.
◆With advantage of extremely quick respond, large intake capacity, small leakage power, long work life, simple maintenance.It is especially suitable for harsh lightning environments.
◆Apply to communication, television broadcasting, computer room, automatic control and mechanical equipment and all distribution equipment lightning protection.
◆ Apply to third-level power lightning surge protection of lightning protection class C, class D information system.
◆ With work instructions,indicate deterioration module functions,green (normal),red (failure).
◆The product is designed as modular with good tightness, working indictor and degradation indicator.It is convenient for
connecting.
◆With temperature control breaker, build-in over currents fuse protector, completely avoid the fire.
◆With advantage of extremely quick respond, large intake capacity, small leakage power, long work life, simple maintenance.It is especially suitable for harsh lightning environments.
◆Apply to communication, television broadcasting, computer room, automatic control and mechanical equipment and all distribution equipment lightning protection.
1. SPD is use for to power distribution system third-level lightning protection. It is installed in parallel on into the line side of the total power distribution equipment or the power distribution box in the buildings, with 35mm electrical lead rail, Kevin connections can be used.Cut off the power before installation, strictly prohibit powered operation.

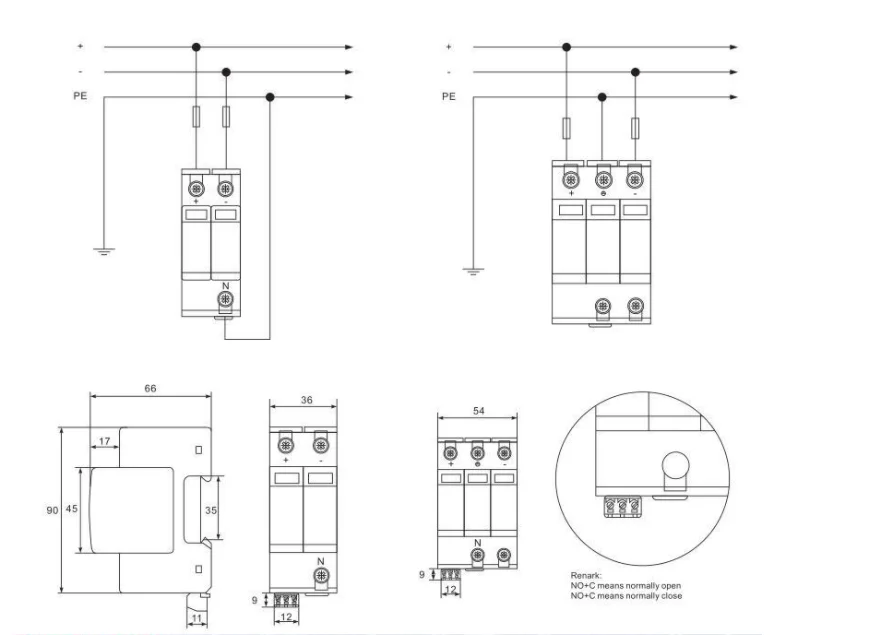

2. Before installation please according to installation diagram of connections,including L is phase line,N is zero line,PE is ground line,please connect correctly.When installation is complete,close the automatic circuit breaker,check the working condition is normal or not.
3. During using lightning protection module,we should monitored and check the status display window regularly,when the display window was red orremote terminal output signal ,it means the lightning protection module failure,it should be promptly repaired or replaced.
4. Apply to indoor operation, such as outdoors installation,you must install waterproof shell.
5. All wiring must be solid and connect by electric. SPD cable: BVR≥2.5mm2, grounding line: BVR ≥ 4mm2, the lead length should be less than 1m and the shorter the better.
6. Lightning proof groundingshould be consistent with lightning protection regulatory requirements, grounding wire should be as thick and short as possible,resistance should be less than 10Ω.
2. Before installation please according to installation diagram of connections,including L is phase line,N is zero line,PE is ground line,please connect correctly.When installation is complete,close the automatic circuit breaker,check the working condition is normal or not.
3. During using lightning protection module,we should monitored and check the status display window regularly,when the display window was red orremote terminal output signal ,it means the lightning protection module failure,it should be promptly repaired or replaced.
4. Apply to indoor operation, such as outdoors installation,you must install waterproof shell.
5. All wiring must be solid and connect by electric. SPD cable: BVR≥2.5mm2, grounding line: BVR ≥ 4mm2, the lead length should be less than 1m and the shorter the better.
6. Lightning proof groundingshould be consistent with lightning protection regulatory requirements, grounding wire should be as thick and short as possible,resistance should be less than 10Ω.
ail installation, standard modular design.
Q1:who are we?
A1:Shenzhen Jinxunyuan Technology Co., Ltd. was established in 2005. Now it has rapidly grown into a leading enterprise in China's lightning protection industry and built the "Leix Xunyuan" brand to enjoy a good reputation at home and abroad.
Q2:Which certificate do you have for your equipment?
A2:We have established a complete quality management, supply chain and after-sales service system. The factory has passed So9001:2000 international quality assurance system certification and CQC, cul, TUV, CE, RoHS and other certifications.
Q3:how can we guarantee quality?
A3:Strict screening and assessment of raw material suppliers, screening and inspection before storage Always a pre-production sample before mass production; Automatic machine +manual double inspection before products are shipped, to ensure product consistency.
Q4:Could I have a sample or small order first for testing?
A4:Of course, sample order and small order are acceptable, especially for new customers under certain condition.
Q5: Is there a discount for larger orders?
A5: For new customers, there is a small discount, but when the value of the order is increased, we will provide a larger discount.For previous customers, we are happy to provide a discount for your loyalty.
Q6:what can you buy from us?
A6:The main product categories of the company include video monitoring lightning protection device, two in one, three in one, data signal lightning protection device, cable TV lightning protection device, network signal lightning protection device, voice signal lightning protection device, antenna feed signal lightning protection device, lightning protection socket, lightning protection box, lightning protection module, optical transceiver, lightning protection pin, etc.
A1:Shenzhen Jinxunyuan Technology Co., Ltd. was established in 2005. Now it has rapidly grown into a leading enterprise in China's lightning protection industry and built the "Leix Xunyuan" brand to enjoy a good reputation at home and abroad.
Q2:Which certificate do you have for your equipment?
A2:We have established a complete quality management, supply chain and after-sales service system. The factory has passed So9001:2000 international quality assurance system certification and CQC, cul, TUV, CE, RoHS and other certifications.
Q3:how can we guarantee quality?
A3:Strict screening and assessment of raw material suppliers, screening and inspection before storage Always a pre-production sample before mass production; Automatic machine +manual double inspection before products are shipped, to ensure product consistency.
Q4:Could I have a sample or small order first for testing?
A4:Of course, sample order and small order are acceptable, especially for new customers under certain condition.
Q5: Is there a discount for larger orders?
A5: For new customers, there is a small discount, but when the value of the order is increased, we will provide a larger discount.For previous customers, we are happy to provide a discount for your loyalty.
Q6:what can you buy from us?
A6:The main product categories of the company include video monitoring lightning protection device, two in one, three in one, data signal lightning protection device, cable TV lightning protection device, network signal lightning protection device, voice signal lightning protection device, antenna feed signal lightning protection device, lightning protection socket, lightning protection box, lightning protection module, optical transceiver, lightning protection pin, etc.
