3~5 Tons Capacity Foundry Continuous Automatic Furan Resin Sand Mixer, Sand Mixing Machine
- Category: Metal Casting Machinery >>>
- Supplier: Qingdao Tianzhuang Casting Machine Industry And Trade Co. Ltd.
Share on (1600630658319):
Product Overview
Description

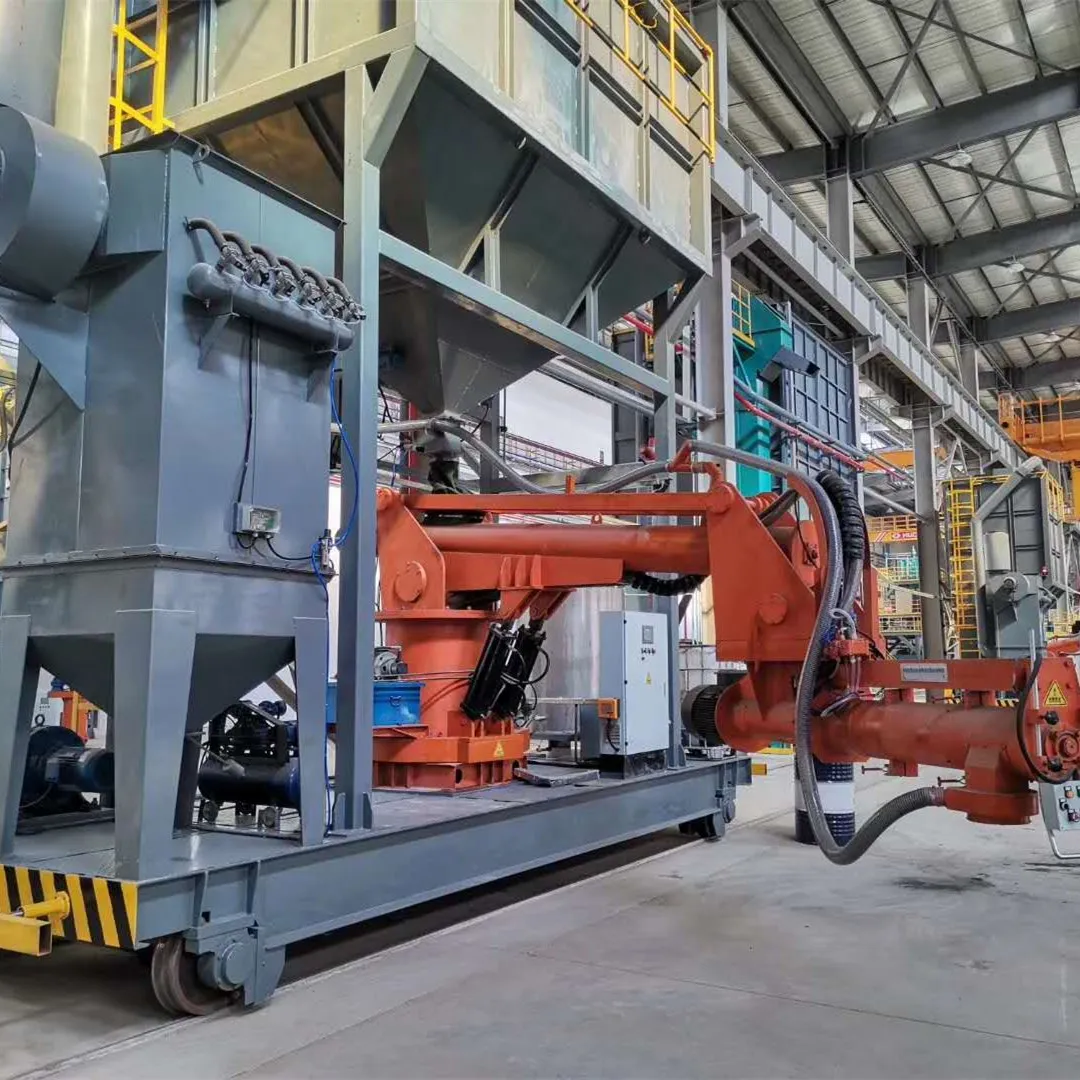

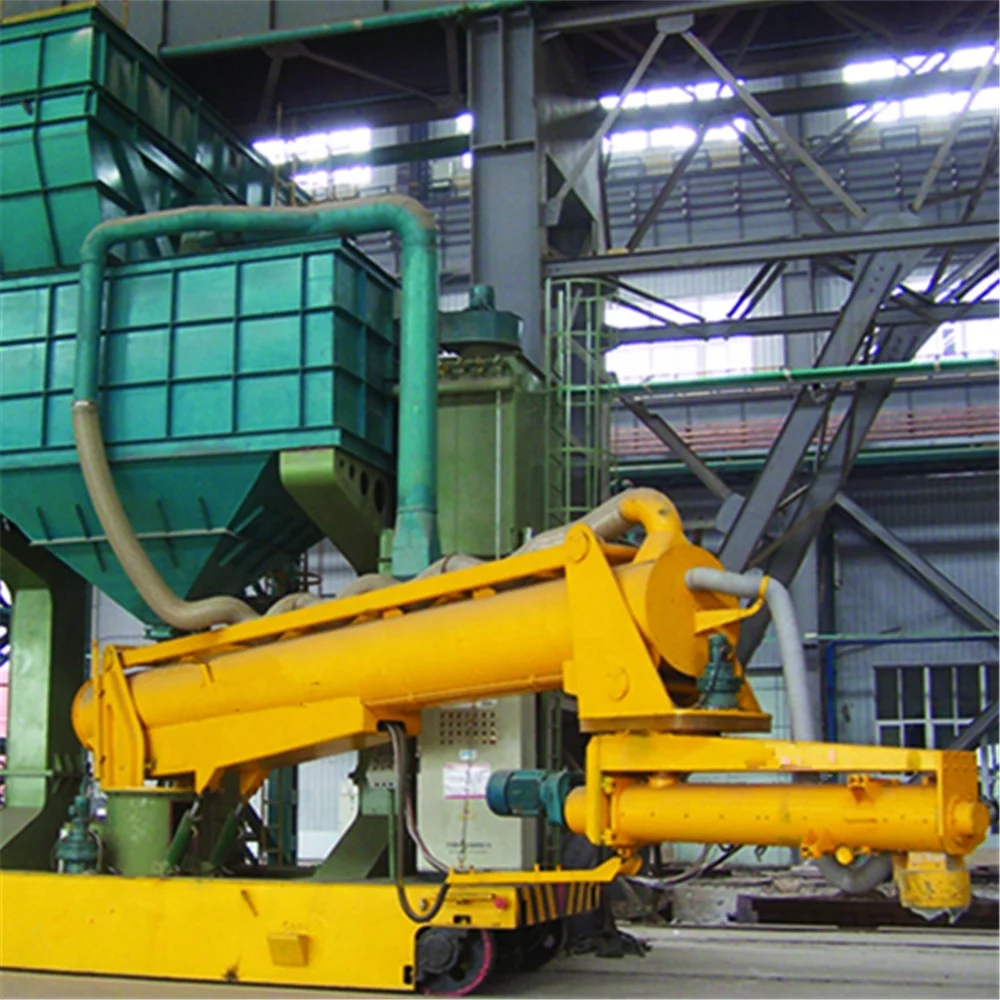

S28 series mobile lifting double-arm
resin sand mixer
resin sand mixer
Application range
S28 series mobile lifting type double-arm resin sand mixer is widely used in the mixing of large-scale cast iron, cast steel and other resin self-hardening sand and water glass sand.
This machine is a movable and adjustable lifting sand mixer with convenient operation and complete functions.It can be adjusted and selected according to different resin sand process characteristics.The machine is mainly composed of sand mixer, moving mechanism, sand hopper, electric control system, dust removal system, etc.
S28 series mobile lifting type double-arm resin sand mixer is widely used in the mixing of large-scale cast iron, cast steel and other resin self-hardening sand and water glass sand.
This machine is a movable and adjustable lifting sand mixer with convenient operation and complete functions.It can be adjusted and selected according to different resin sand process characteristics.The machine is mainly composed of sand mixer, moving mechanism, sand hopper, electric control system, dust removal system, etc.
Model | S2810 | S2820 | S2830 | S2840 | |||
Productivity (t/h) | 10 | 20 | 30 | 40 | |||
Big arm Turning radius(mm) | 3000/4000 | 3000/4000 | Φ203 | Φ219 | |||
Small arm Turning radius(mm) | 1500 | 1800 | 2200 | 2200/2400 | |||
Sand outlet max height(mm) | 1600 | 1800 | 1600-3000 | 1800-4800 | |||
Total power (kw) | 19.8 | 33.5/35.3 | 49/57 | 51/59.5 | |||
Binder quantitative accuracy | <±2% | ||||||

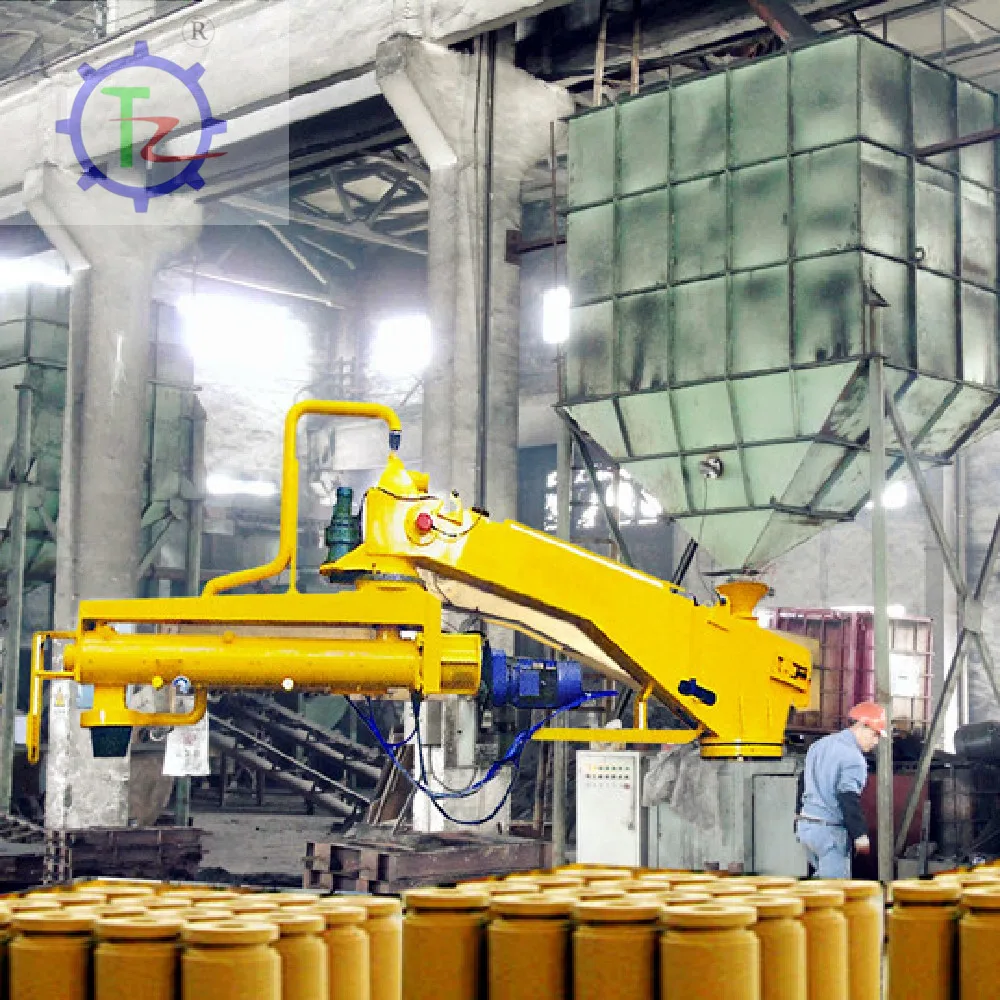

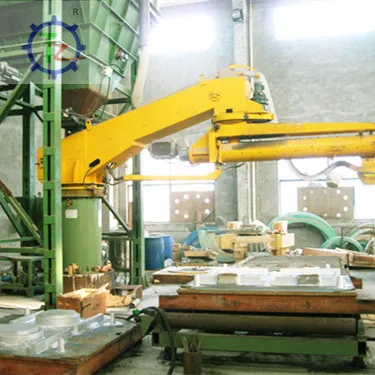

Single-arm resin sand mixer, resin sand mixer is suitable for the mixing of various kinds of self-hardening sand such as resin sand, water glass sand, etc. in the production of cast steel, cast iron, non-ferrous alloys, etc. The requirements of manual modeling can also be configured for use in HR core shooter, mechanized modeling and core production.
Model | S243 | S245 |
Productivity (t/h) | 3 | 5 |
Diameter (mm) | Φ175 | Φ203 |
Rotation rate (r/min) | 960 | 960 |
Motor power (kw) | 3 | 4 |
Gyration radius (mm) | R1500 | R2000 |
Resin pump flow l/h | 2.5 | 6 |
Curing agent pump flow (l/h) | 49 | 75 |
Binder quantitative accuracy | <±2% | <±2% |
Product Description
Technical features of continuous resin sand mixer:
1. The temperature control device, filter, metering pump, automatic liquid material valve, and resin sand automatic control valve are carefully selected according to different process requirements to ensure stable and reliable flow.
2. The liquid material system is equipped with a backflow prevention function, which can avoid the influence of liquid material backflow on the feeding accuracy.
3 The sand port under the boom is equipped with a dust removal port, which can further remove the dust in the sand.
4. The spindle speed is set to low speed, the length of the stirring cage is longer, and the arrangement of the double spiral stirring knife makes the sand mixing more uniform.
5. The stirring knife is inlaid with a hard tungsten steel alloy knife head. The unique positioning structure can ensure the accurate assembly of the angle. When the length of the knife head is adjusted, the angle remains unchanged, and its service life is more than 5000 hours.
2. The liquid material system is equipped with a backflow prevention function, which can avoid the influence of liquid material backflow on the feeding accuracy.
3 The sand port under the boom is equipped with a dust removal port, which can further remove the dust in the sand.
4. The spindle speed is set to low speed, the length of the stirring cage is longer, and the arrangement of the double spiral stirring knife makes the sand mixing more uniform.
5. The stirring knife is inlaid with a hard tungsten steel alloy knife head. The unique positioning structure can ensure the accurate assembly of the angle. When the length of the knife head is adjusted, the angle remains unchanged, and its service life is more than 5000 hours.
Features:
1. The molding sand in the machine is completely drained after the machine is stopped to avoid cleaning difficulties caused by the molding sand hardening.
2. Electricity adopts imported plc control, stable and reliable work, and automatic production.
3. The spindle speed is set to medium speed and the blades are distributed uniquely, making the sand mixing more uniform.
4. The sand-mixing blade is made of tungsten steel cemented carbide with standard steel casting, which is super wear-resistant.
5. The stirring cage adopts a horizontal split structure, which is convenient for cleaning or adjusting the sand mixing blades, and is easy to operate and maintain.
6. Special adhesive feeding system and molding sand discharge port design, with precise control, the sand mixer can realize basically no head and tail sand loss during starting and stopping.
7. Resin is conveyed by gear pump (with stepless speed governor), and curing agent conveying pump is mechanical diaphragm pump imported from Italy.
8, industry terms: resin sand mixer, resin sand mixer, single-arm sand mixer, resin sand equipment
1. The molding sand in the machine is completely drained after the machine is stopped to avoid cleaning difficulties caused by the molding sand hardening.
2. Electricity adopts imported plc control, stable and reliable work, and automatic production.
3. The spindle speed is set to medium speed and the blades are distributed uniquely, making the sand mixing more uniform.
4. The sand-mixing blade is made of tungsten steel cemented carbide with standard steel casting, which is super wear-resistant.
5. The stirring cage adopts a horizontal split structure, which is convenient for cleaning or adjusting the sand mixing blades, and is easy to operate and maintain.
6. Special adhesive feeding system and molding sand discharge port design, with precise control, the sand mixer can realize basically no head and tail sand loss during starting and stopping.
7. Resin is conveyed by gear pump (with stepless speed governor), and curing agent conveying pump is mechanical diaphragm pump imported from Italy.
8, industry terms: resin sand mixer, resin sand mixer, single-arm sand mixer, resin sand equipment
Facade
Backside
Detailed Images
Company Introduction
Qingdao Tianzhuang casting Machine Industry and Trade Co., Ltd is a professional manufacturer of foundry machinery, composed of engineering and technical personnel engaged in the foundry machinery industry for many years. Our company can undertake design,casting, installation, commissioning and other turn-key projects of clay sand, resin sand, water glass sand, lost foam and V method production line machinery and chemical department, as well as various stand-alone and spare parts business.
The company adhering to the concept of 'quality first, customer first', and create brilliant together with colleagues in the
casting industry.
The company adhering to the concept of 'quality first, customer first', and create brilliant together with colleagues in the
casting industry.
Our Services & Strength
1. Before payment
a. Free contact for the most suitable machine.
b. Free professional design for each customer especially.
c.Welcome to visit our factory.
2. After-Sales Service We will send engineers / technicians to make commissioning at buyer’s factory, train the machine works well, and also supply the technical support for free and spare parts at good price always.
3.Guarantee Period One year. During the guarantee period, the seller guarantee to solve all problems may occur due to machine's quality or wrong design, and to provide all necessary spare parts for repair, Seller can send the technician to buyer's factory on seller's account if problem is serious and can't be solved by Buyer.
4. Payment Terms 30% as deposit, 70% after the machine is ready before delivery.
5. Lead Time Our delivery time generally it is 10-30 days if the machines are in stock, or it is 20-45 days if the machines are not in stock, it is according to quantity.
1. Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2. Shipping: Container transport
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
After-sale Service Road Surface Shot Blasting Machine
1. Installation and commissioning issue
We will send 1-3 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
After-sale Service Road Surface Shot Blasting Machine
1. Installation and commissioning issue
We will send 1-3 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
