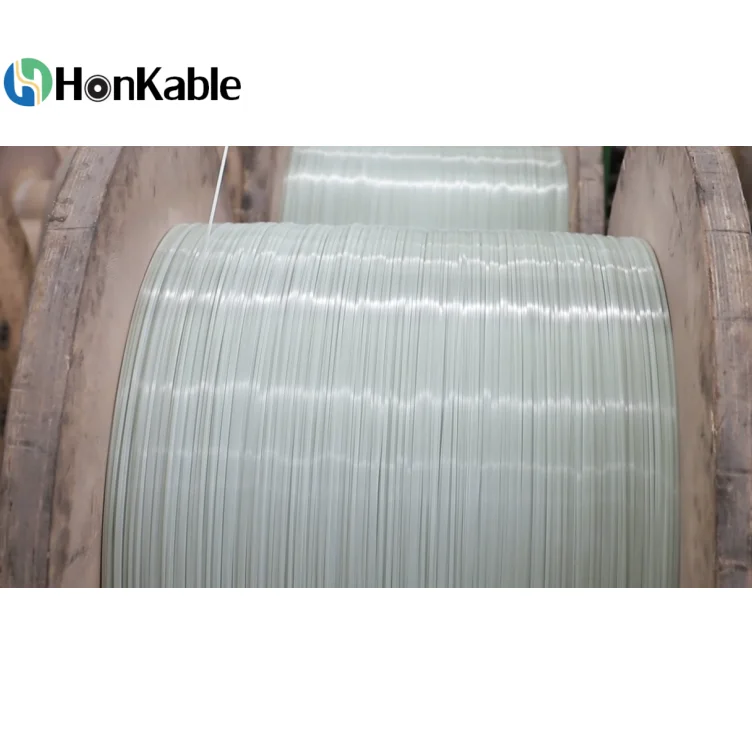

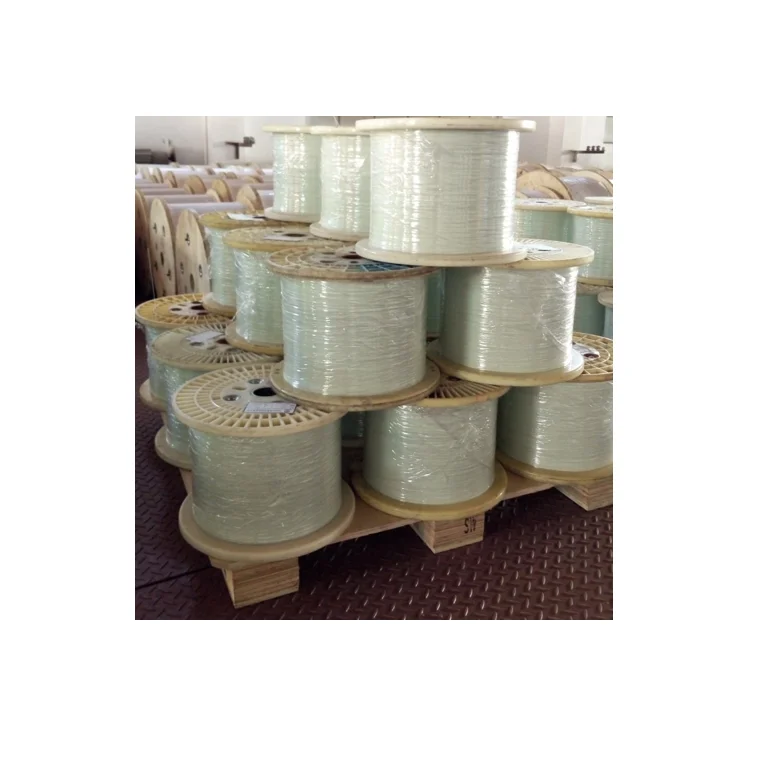

07 mm FRP Rod Strength Member Flexible FRP Rods
- Category: Other Fiberglass Products >>>
- Supplier: Jiangsu Hongbo Communication Technology Co. Ltd.
Share on (1600634898341):
Product Overview
Description
Products Description
FRP Rod Strength Member, a di-electric composite cable strength member widely known as FRP/ GRP rod, is to use vinyl ester resin as foundation combined with the strength of glass fiber through pultrusion technology to produce a new type of high performance non-metallic composite material. Without drawbacks of traditional metallic strength member, FRP strength member features excellent anti-corrosion, electromagnetic interference free, high tensile strength, low weight, saving energy and environmentally friendly, which are now widely used in various optical fiber cables.
FRP Fiberglass Rod Features:
• Light Weight & Excellent Tensile Strength
• Prevent Cable Buckling
• Most Suited for Multi-Loose Tube, Uni Tube, Slotted Core & Ribbon Cable Designs
• Used as Central or Peripheral Reinforcement in Fibre Optic Cables
• Dual Advantage : Reinforcement during Installation as well as Reduce Stress on Signal Carrying Optic Fibre /Conductor
• Prevent Sagging in Aerial Installation
• Cost Effective Solution as a Strength Member
• Prevent Cable Buckling
• Most Suited for Multi-Loose Tube, Uni Tube, Slotted Core & Ribbon Cable Designs
• Used as Central or Peripheral Reinforcement in Fibre Optic Cables
• Dual Advantage : Reinforcement during Installation as well as Reduce Stress on Signal Carrying Optic Fibre /Conductor
• Prevent Sagging in Aerial Installation
• Cost Effective Solution as a Strength Member
Technical Parameter
FRP Test Item | Unit (or Condition) | Technical Parameter |
Ovality | % | <5 |
Appearance | Smooth surface, no bur, no crack | |
Diameter Tolerance | % | ±2 |
Density | g/cm3 | 2.05～2.15 |
Tensile Strength | MPa | ≥1100 |
Elastic Tensile Modulus | GPa | ≥50 |
Bending Strength | MPa | ≥1100 |
Flexural Modulus | GPa | ≥50 |
Elongation at Break | % | 2.5% < x < 4% |
Coefficient of Linear Expansion | 1/°C (-30°C ~ +80°C) | ≤8×10-6 |
Heat Shrinkage | % | 0 |
Water Absorption | % | ≤0.1 |
Minimum Bending Radius | mm (20°C ± 5°C) | 25D |
High Temperature Bending Performance | (50D, 100°C, 120h) | No bur, no crack, no break, smooth surface |
Low Temperature Bending Performance | (50D, -40°C, 120h) | No bur, no crack, no break, smooth surface |
Twisting Test | ±360°/m | Non-disintegration |

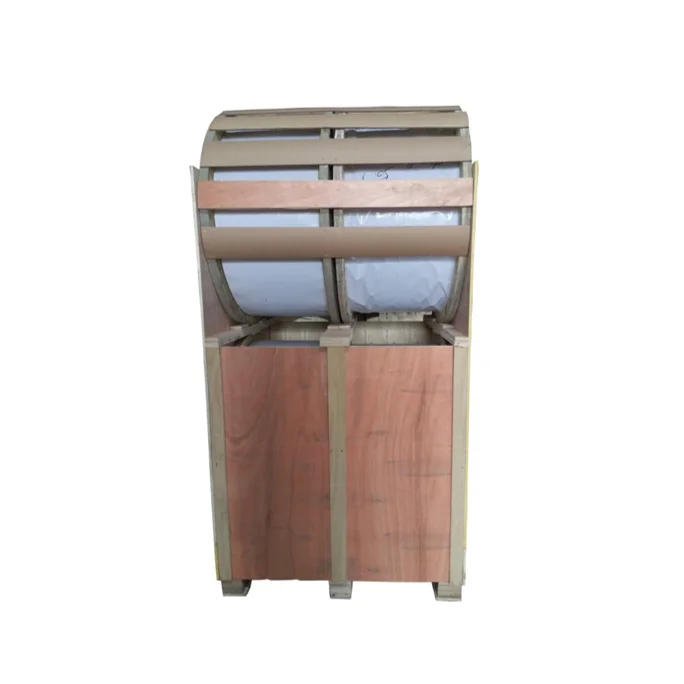

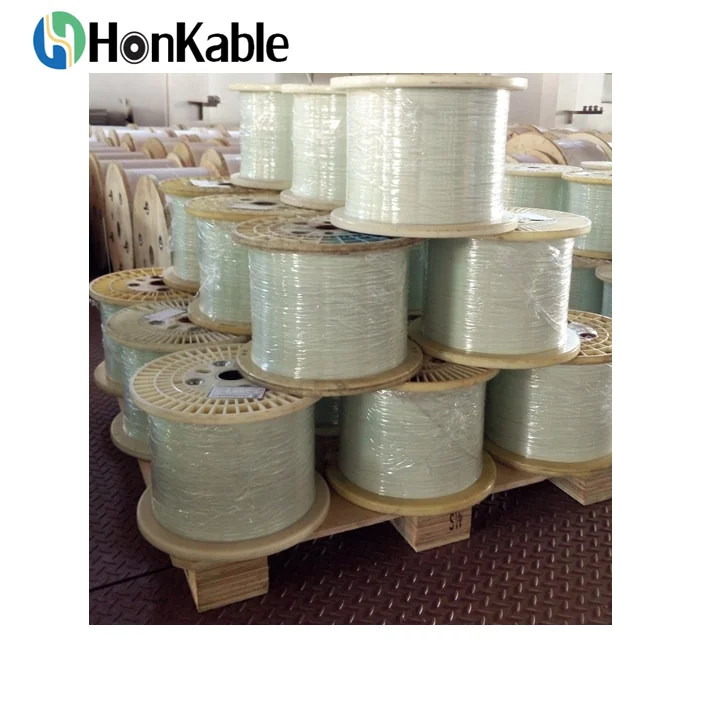

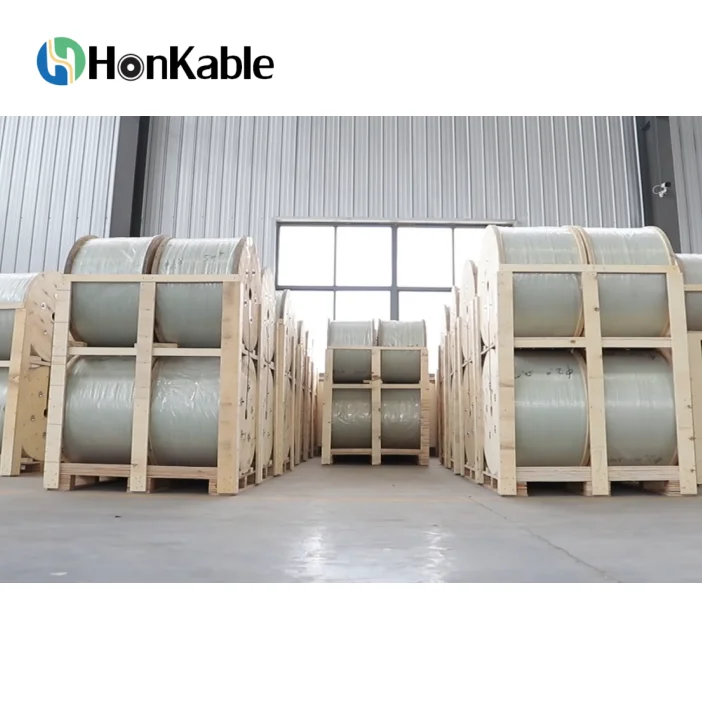

Product packaging

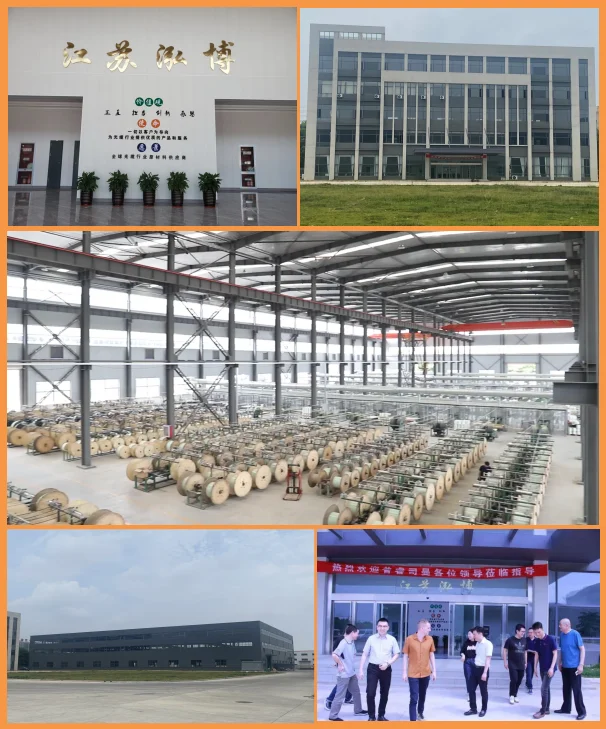

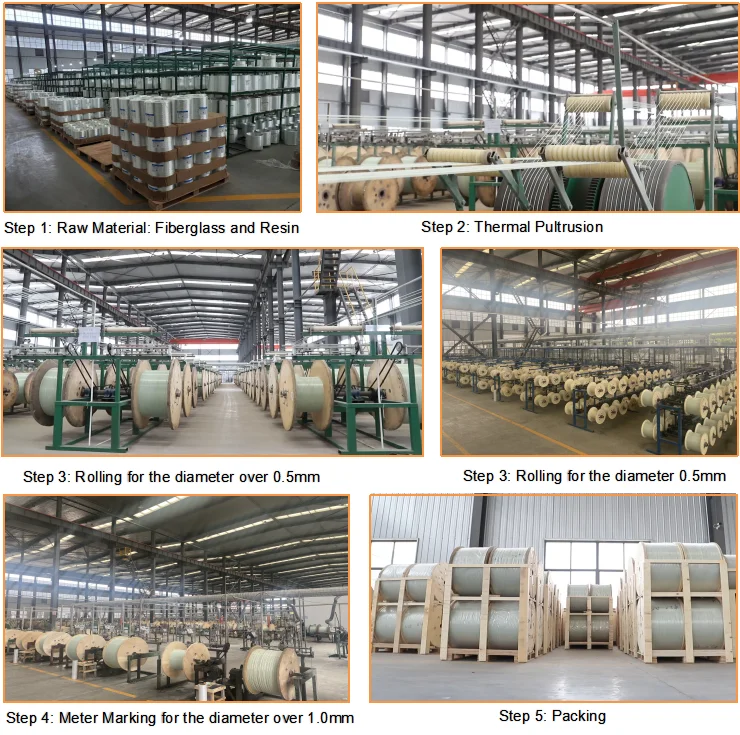

Company Profile

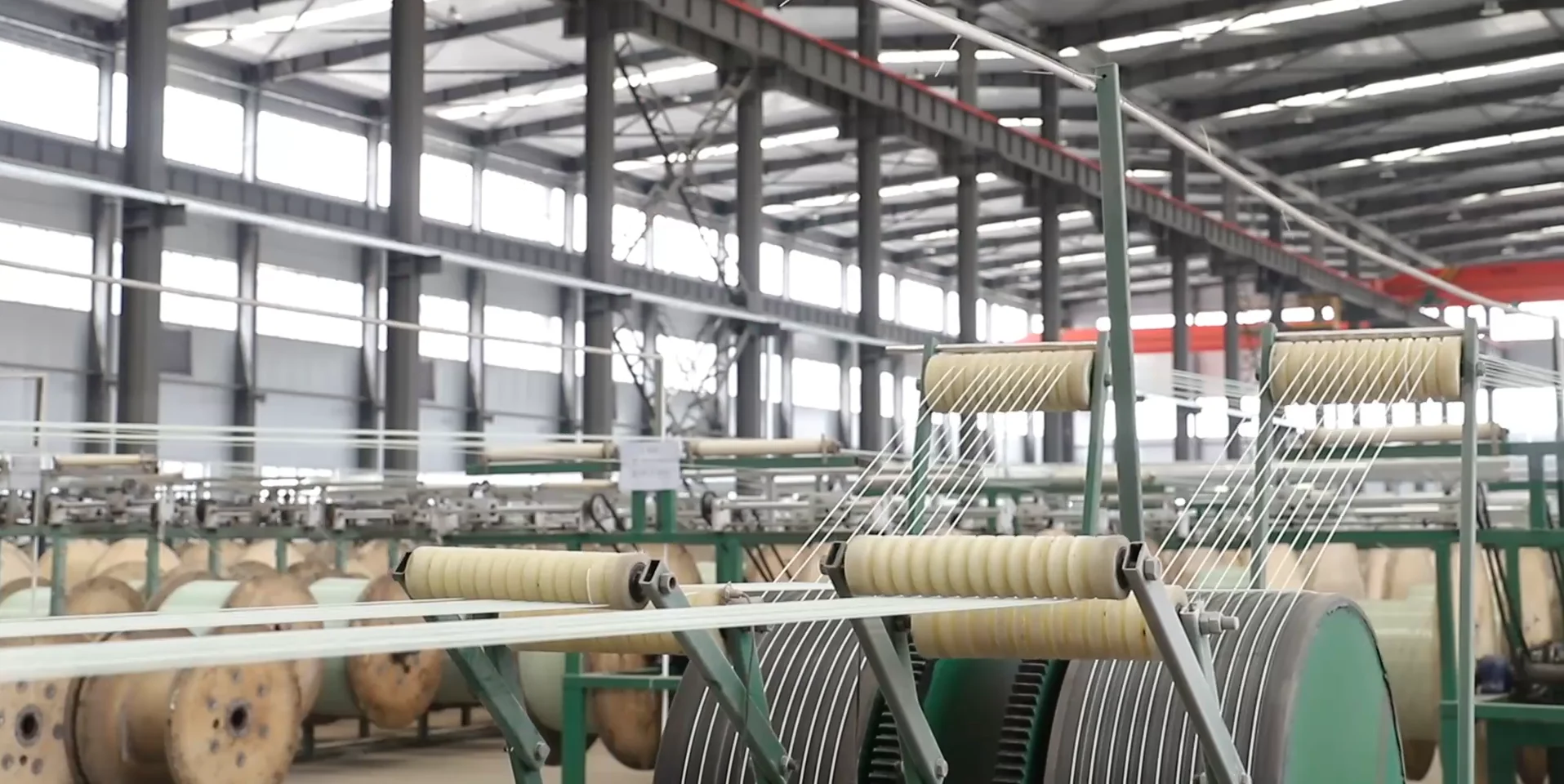

Factory Located in Wuxi City
Only 120 KM from Shanghai City

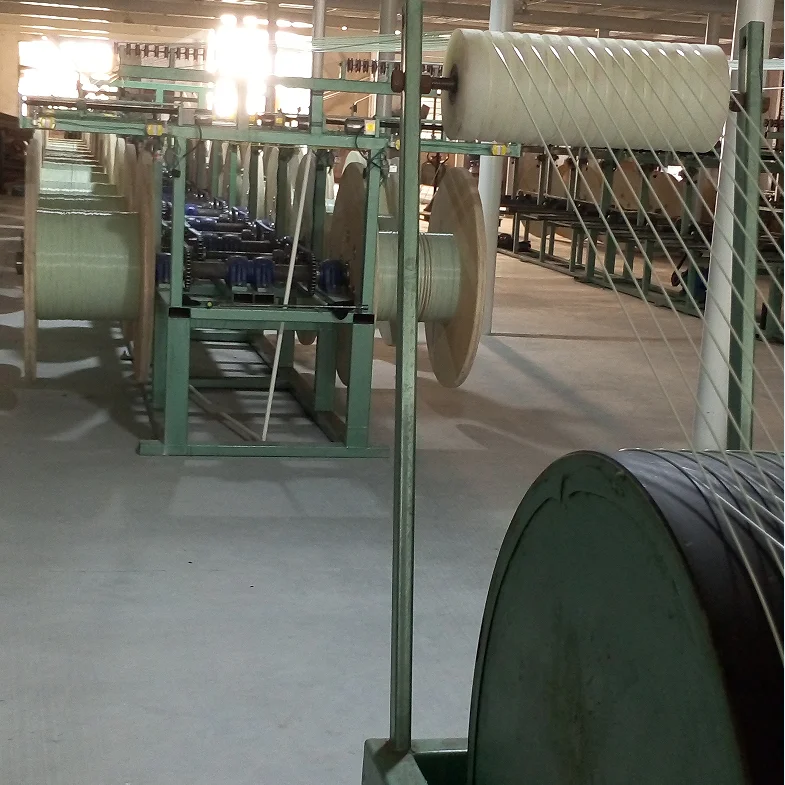

168 Production Lines in Total

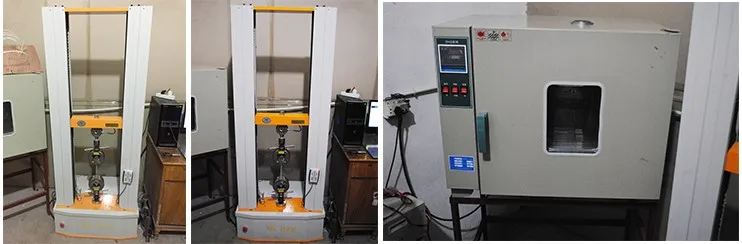

Complete Quality Testing Facilities
Why Choose Us
* Mature Pultrusion Technique and Trouble-free Processing Molding make FRP & ARP rods perfect shaping and sizes
* Strict Quality Control under ISO9001:2015 Quality Management System
* Available to adjust producing technique according to special requirements on FRP products; 168 Production Lines in total
* Tests passed by Wuhan Research Institute of Posts and Telecommunications (WRI)
* Tests passed by Shanghai Electric Cable Research Institute (SECRI)
* Complete Variety and Specifications, Short Delivery Cycle
* Strict Quality Control under ISO9001:2015 Quality Management System
* Available to adjust producing technique according to special requirements on FRP products; 168 Production Lines in total
* Tests passed by Wuhan Research Institute of Posts and Telecommunications (WRI)
* Tests passed by Shanghai Electric Cable Research Institute (SECRI)
* Complete Variety and Specifications, Short Delivery Cycle
Certifications
Contact with us
Jiangsu Hongbo Communication Technology Co., Ltd.
Add.: No.28 Songwentou Road, Yunting Street, Jiangyin City, Jiangsu Province, China
Mobile: 0086-158 6160 2379
Web: www.hongbofrp.com Contact: Ms. Vivian Wang
