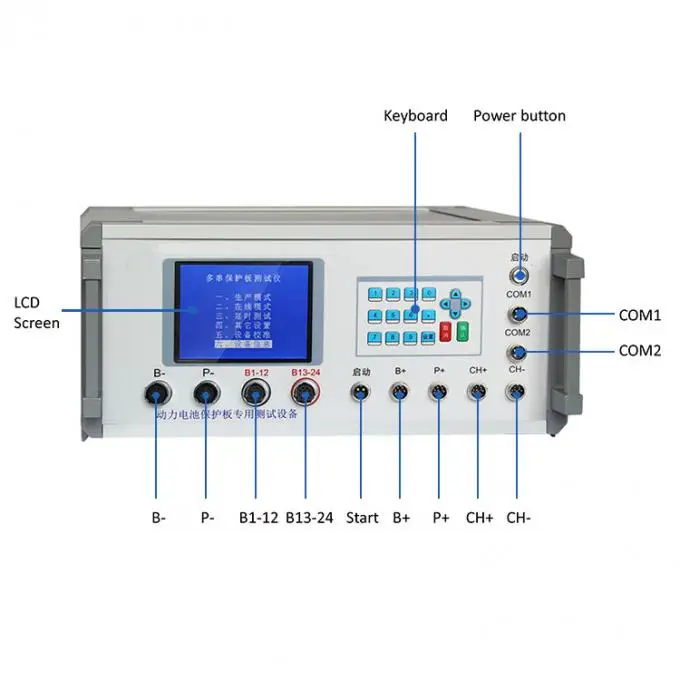

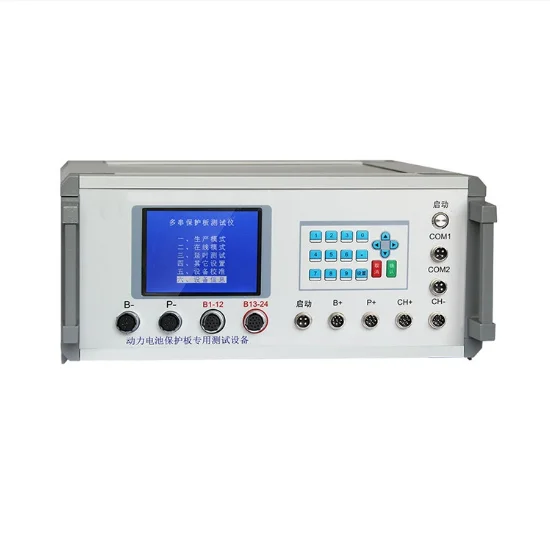

bms li ion battery tester bms 60v For Lifepo4 Battery Pack tester 3s 24s 30a 500a 12v 72v touch display screen accessories
- Category: Battery Testers >>>
- Supplier: Shenzhen Aitop Intelligent Equipment Co. Ltd.
Share on (1600634980177):
Product Overview
Description
Specification
Place of Origin | Guangdong, China | ||
BMS Type | LiFePo4 LicoMnNi02 | ||
High current module | the current level is 200a and the current accuracy is 0.1A | ||
Voltage module | programmable output 0.5-5v, accuracy ± 1mV | ||
Short circuit module | super capacitor, fully simulating pack battery voltage | ||
Number of test strings | 1-24S | ||
Benchmark voltage | 0.5-5V±1mV | ||
Overcharge protection voltage | 0.5-5V±1mV | ±1mV | |
Overcharge protection release | 0.5-5V±1mV | ±1mV | |
Over discharge protection voltage | 0.5-5V±1mV | ±1mV | |
Release of over discharge protection | 0.5-5V±1mV | ±1mV | |
Over discharge current protection value | 1-120A±0.1A | ±0.1A | |
Overcharge current protection value | 1-50A±0.1A | ±0.1A | |
Overcurrent protection delay | 0-8S±1ms | ±1ms | |
Overcharge / discharge protection delay | 0-20S±1ms | ±1ms | |
Balancing opening voltage | 0.5-5V±5mV | ±5mV | |
Balancing opening Current | 0-120mA±1mA | ±1mA | |
Single Cell self power consumption | 0-500uA±1uA | ±1uA | |
Loop internal resistance test | 0-200mΩ±1mΩ | ±1mΩ | |
Short circuit protection (more than 6 strings) | 0-9999uS±1uS | ±1uS | |
Online settings | serial communication RS232 serial port | RS232 serial port | |
Testable type | Hardware protection board and most software boards (special software boards need to be communicated) | ||
Dimension | 850*700*1300mm（W*D*H ） | ||
Weight | 100KG | ||
Channel Qty | 1 | ||
Spare Parts | test pen line, user manual, computer software, etc | ||
