4th axis CNC Rotary table for CNC Machine center TCV 200

Product Overview

Description

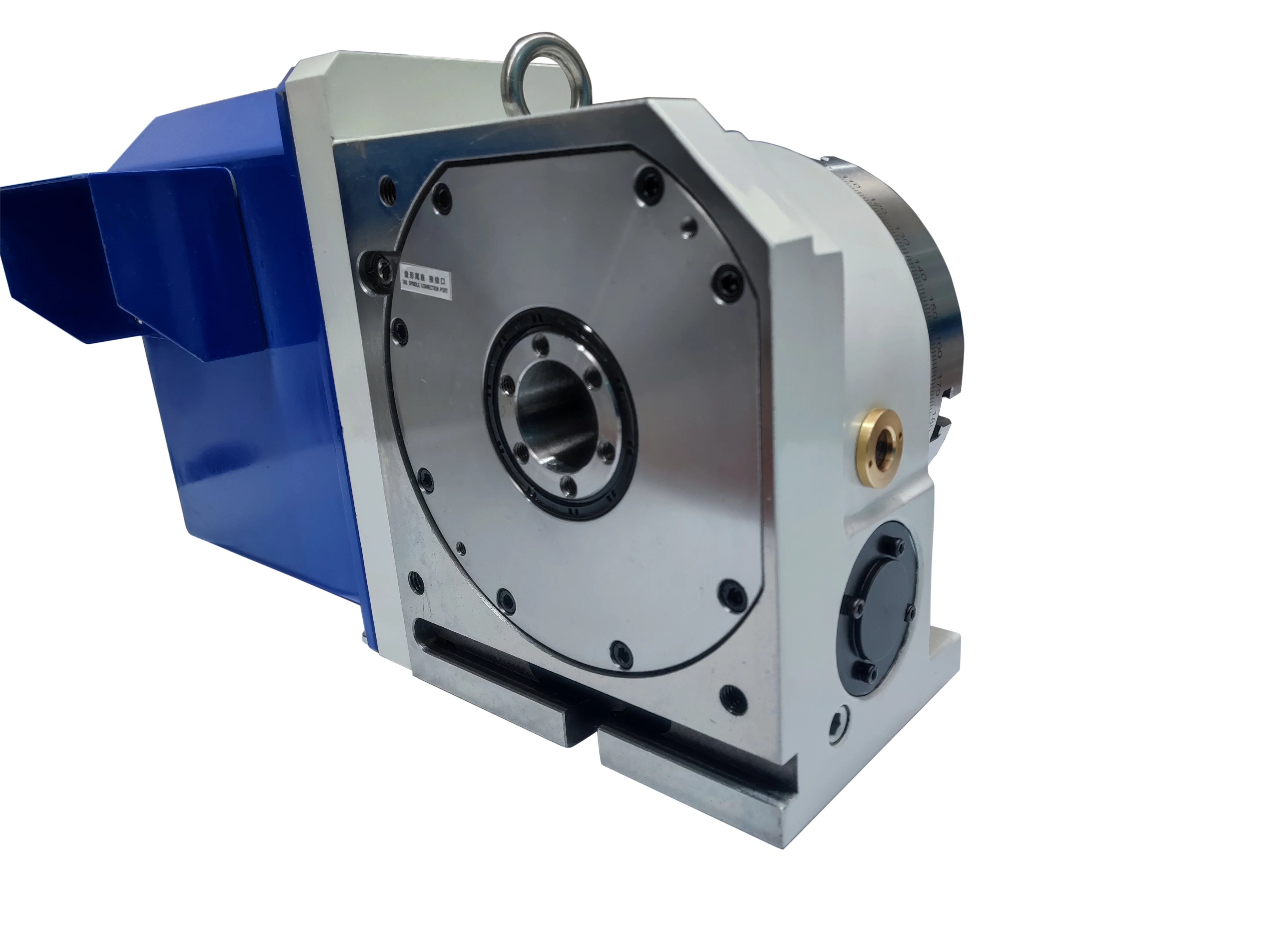

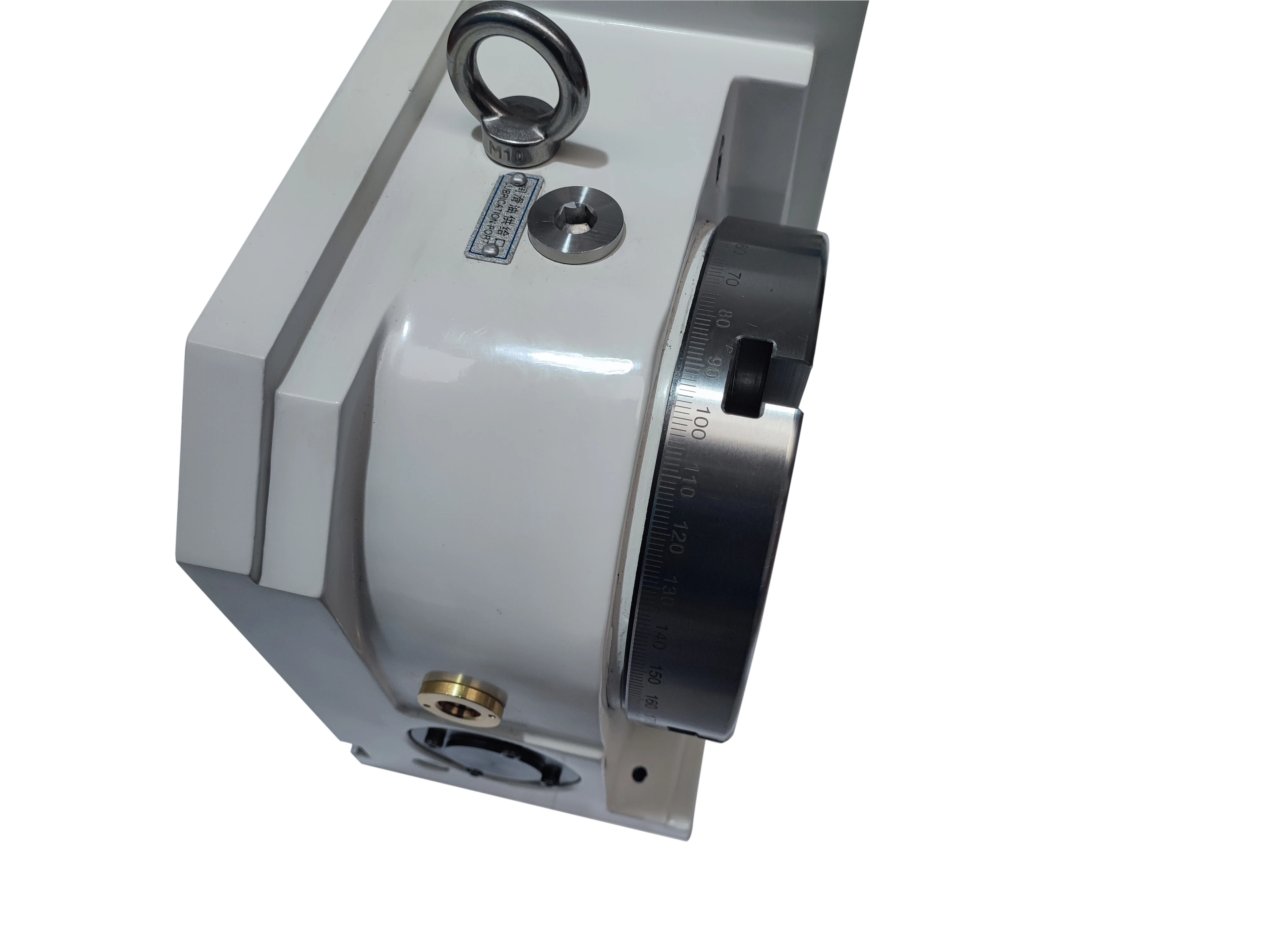

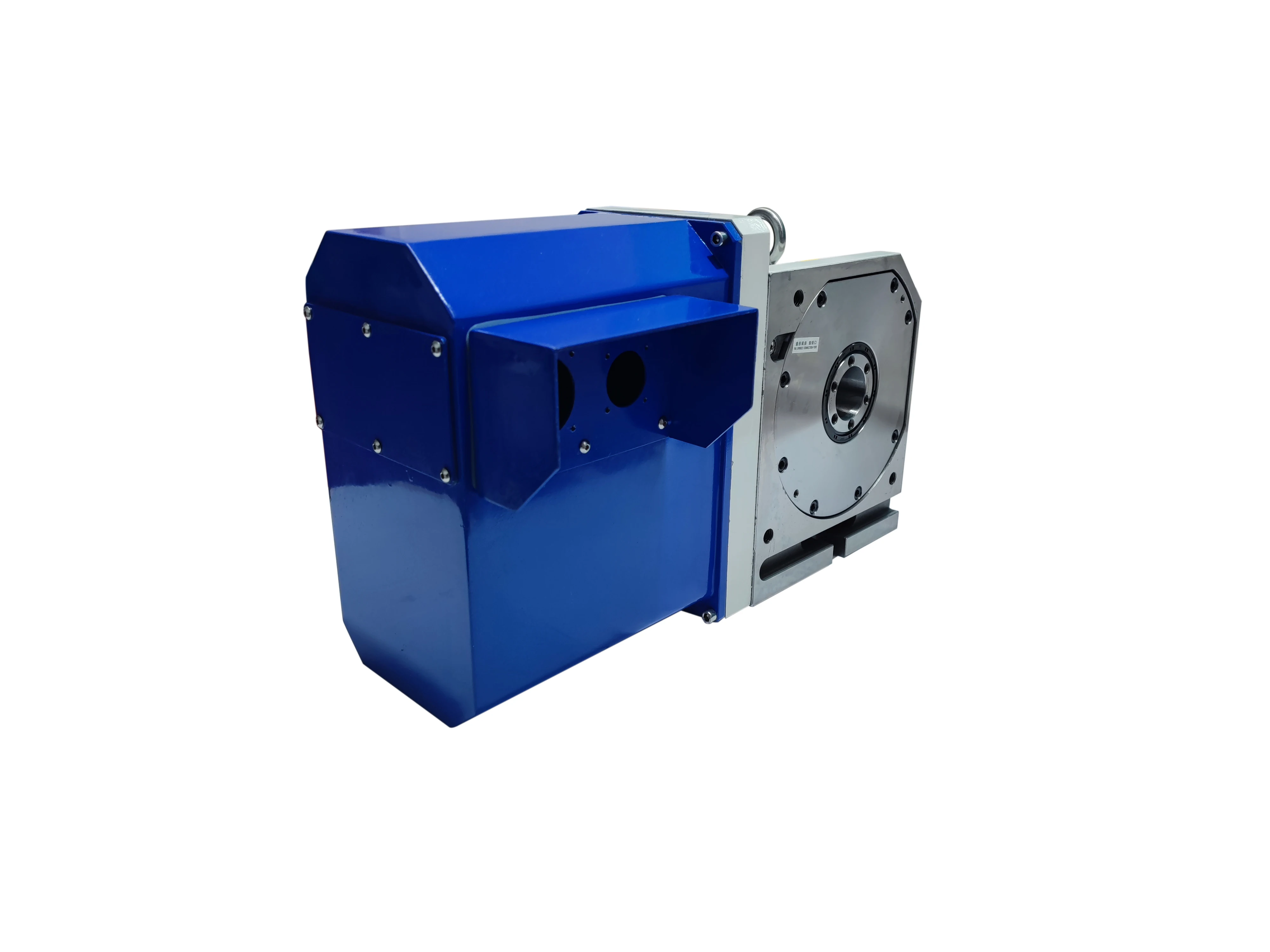

4th axis  CNC Rotary table for CNC Machine center TCV-200





Main features:

1. High precision double lead worm gear adopts Japanese unique formula, high tension, corrosion-resistant and wear-resistant aluminum bronze.

2. Special bearing for turntable is adopted, which can bear heavy cutting in horizontal and vertical directions and has high rigidity. Better than general bearing form.

3. Large bore design can better meet the use needs, and large space is more conducive to fixture and process plannin.

4. After the whole machine is assembled, all the datum surfaces are ground, with high precision and generous appearance.



Optional accessories:

1. 3-jaw chuck and flange

2. Tail stock (Disc type or Centre type)

3. Bridge plage and L block

4. CNC controller

5. Motor

6. PLC



Specification:

Item		Unit	Model
			TCV-170	TCV-200
Dia.of Rotary table		mm	Φ170	Φ200
Dia. of center hole of table		mm	Φ50	Φ50
Inner hole dia. of center sleeve		mm	Φ40	Φ40
Center through hole dia.		mm	Φ40	Φ40
Center height (Vetical)		mm	135	160
Total height of table(Horizontal)		mm	149	149
Width of T-slot of table		mm	12H7	12H7
Width of location key		mm	18	18
Minimum setting unit		deg	0.001	0.001
Dividing accuracy		sec	15	15
Repeat positioning accuracy		sec	4	4
Clamping system (by qneumatic)		Kg/cm²	0.5-0.7	0.5-0.7
clamping torque		N.m	200	200
Servo Motor	FANUC	straight shaft	α4i/β8is	α4i/β8is
	Siemens	straight shaft	1FK7060	1FK7060
Reduction ratio		-	1/90	1/90
(4000rpm)Max.speed		rpm	44.4	44.4
Total weight(without motor)		kg	50	50
