Product Overview
Description

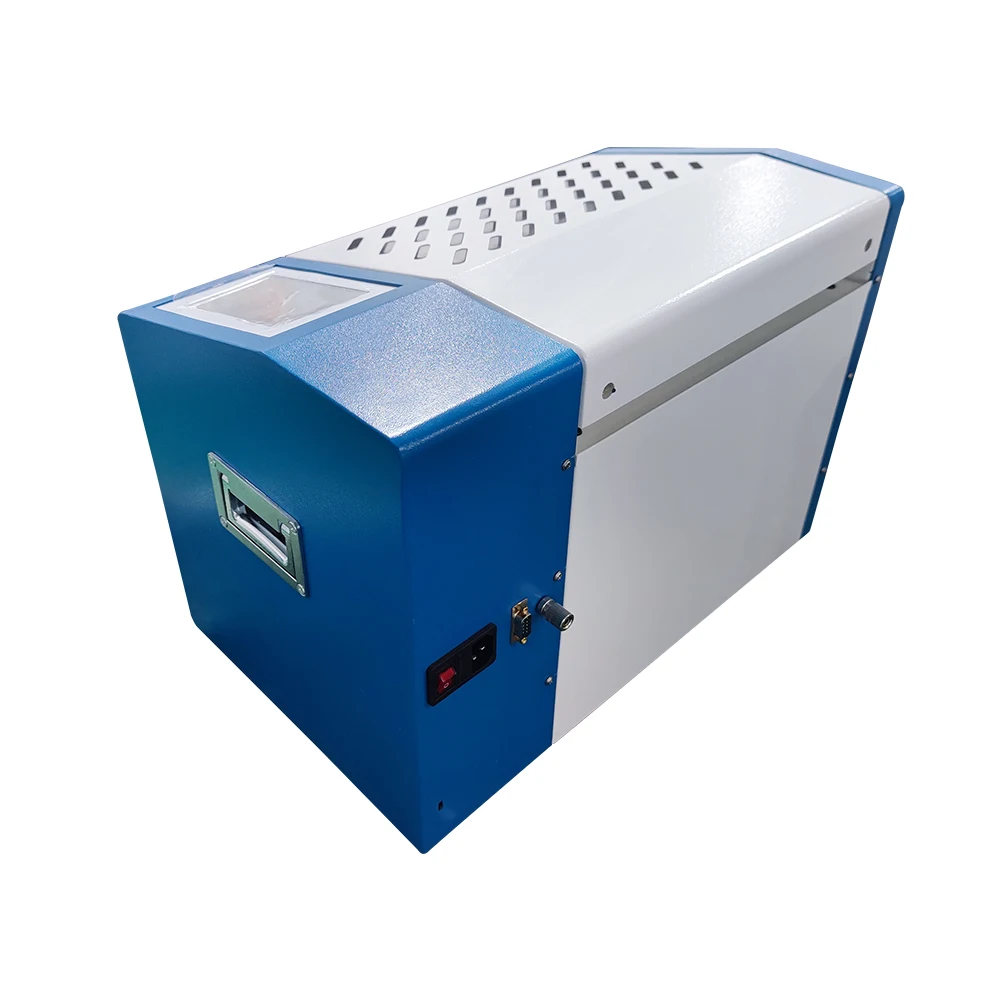

ZWJD111E Automatic insulating oil dielectric strength tester
Oil BDV tester
Parameters
ZWJD111E Insualting Oil BDV Tester | ||||||
Technical Guidance | Booster capacity | 1.5 kVA | ||||
Boost speed | 0.5kV/s-5.0kV/s (adjustable) | |||||
Output voltage | 0 ~ 80kV(optional) | |||||
Voltage distortion rate | < 3% | |||||
Electrode gap | standard 2.5mm | |||||
Test times | 6 times (1-9 times optional) | |||||
Working Condition | Environmental temperature | 0 ~ 45℃ | ||||
Relative humidity | ＜75%RH | |||||
Working power | AC220V±10% | |||||
Power frequency | 50Hz±1 Hz | |||||
Power consumption | < 200w | |||||

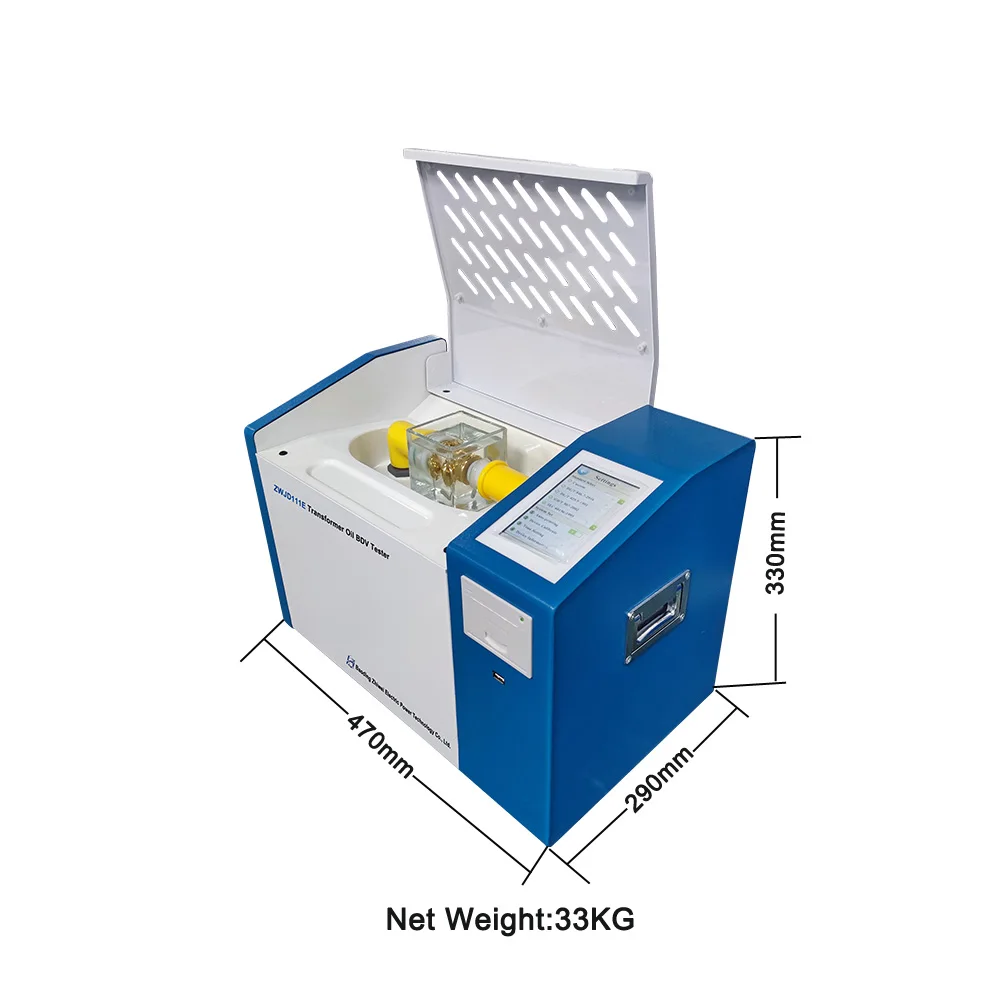

Weight and Dimension | Overall dimension | 460mm×280 mm×320 mm | ||||
Weight | 33 kg | |||||
Functional Characteristics
1. With amicroprocessor, automatically fulfill the withstand voltage test for oil circulation with a range of 0～80KV (including boosting, maintaining, mixing, standing, calculation, printing and other operations)

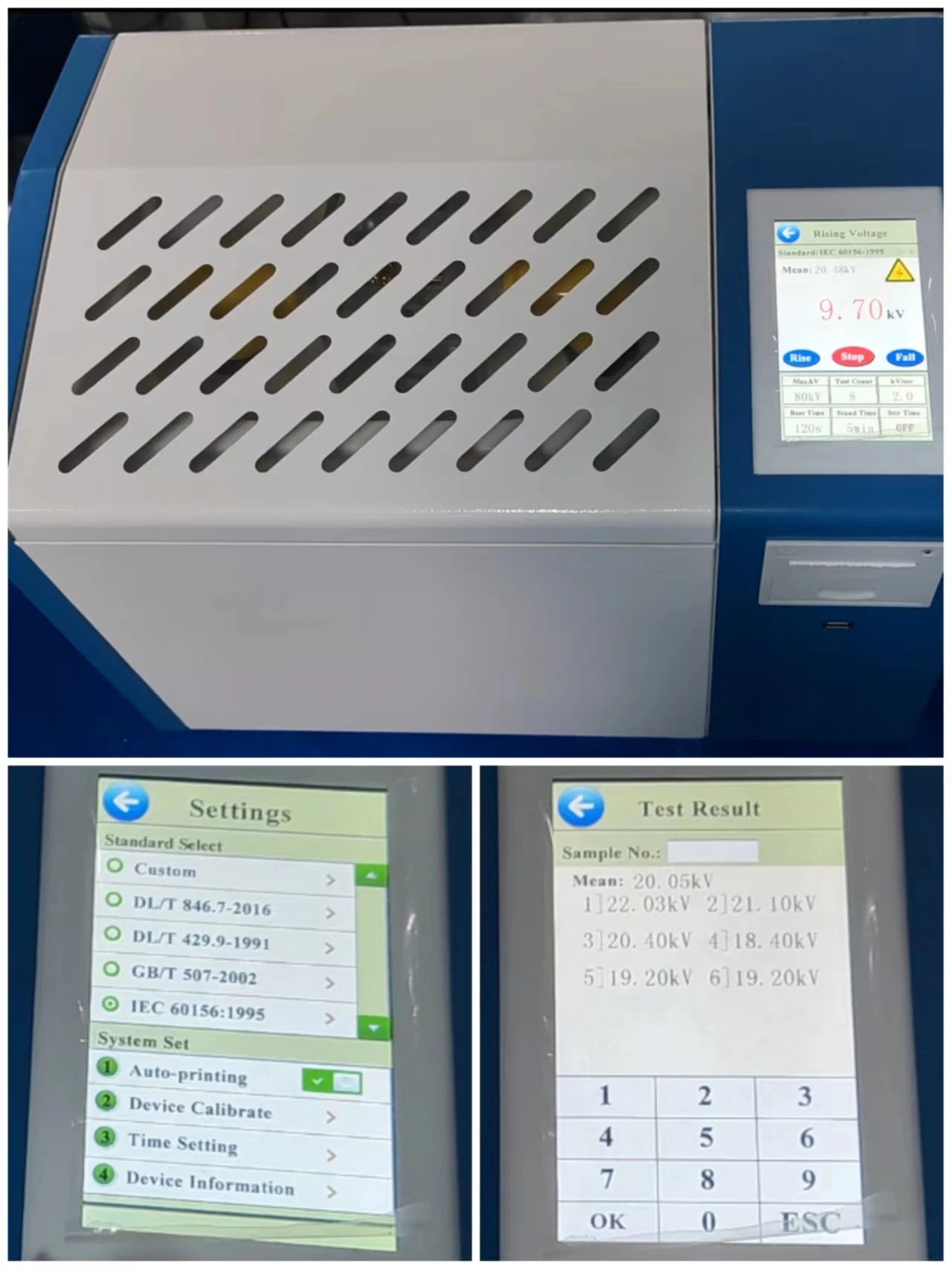

2. Display by large-screenLCD and prompt by Chinese menu

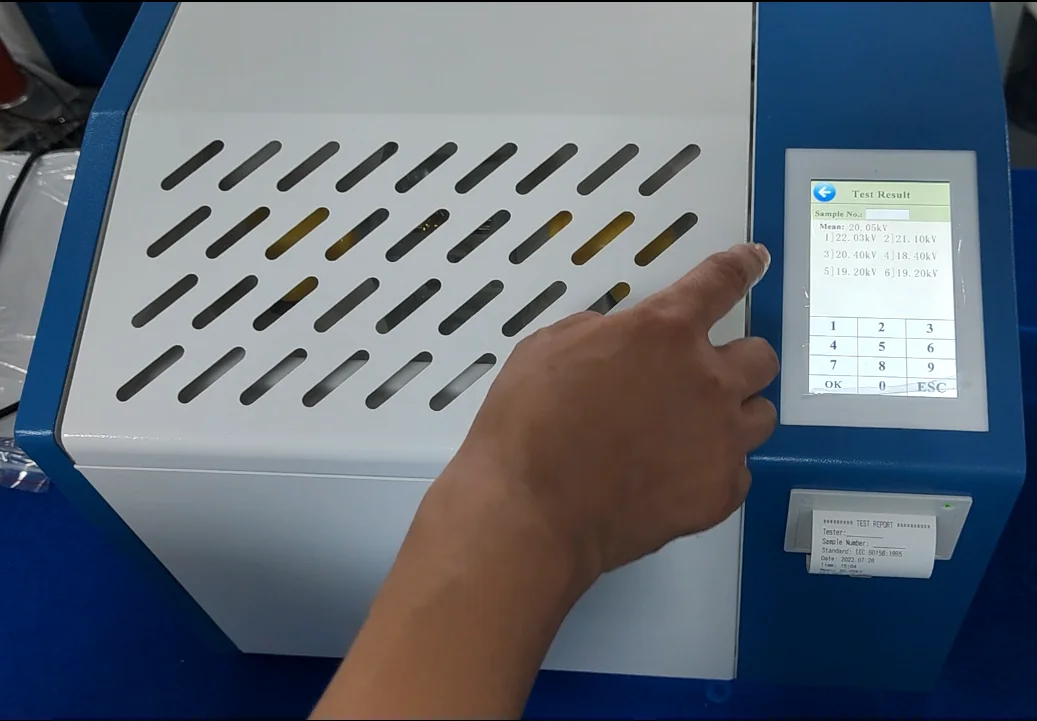

3. Simple operation. The machine will automatically complete the withstand voltage teston one cup of sample oil after simple setting by the operator. Breakdown voltage value of 1 to 9 times and recurrent times will be automatically saved. After the test, the thermal printer will print each breakdown voltage value and average value.
4. Power-down preserv It can save 100 tested results.
5. Adopt a single-chip microcomputerto boost the voltage at an even speed. The voltage is accurate at 50HZ, ensuring the whole process easy for control.
6. Equipped with over-voltage, over-current and limit protections to ensure the safetyof operators.
7. Withthe function of displaying the measured temperature and system clock.
8. Communicate with computer with a standard RS232interface.
9.USB,can export the test data.
2. Display by large-screenLCD and prompt by Chinese menu
3. Simple operation. The machine will automatically complete the withstand voltage teston one cup of sample oil after simple setting by the operator. Breakdown voltage value of 1 to 9 times and recurrent times will be automatically saved. After the test, the thermal printer will print each breakdown voltage value and average value.
4. Power-down preserv It can save 100 tested results.
5. Adopt a single-chip microcomputerto boost the voltage at an even speed. The voltage is accurate at 50HZ, ensuring the whole process easy for control.
6. Equipped with over-voltage, over-current and limit protections to ensure the safetyof operators.
7. Withthe function of displaying the measured temperature and system clock.
8. Communicate with computer with a standard RS232interface.
9.USB,can export the test data.

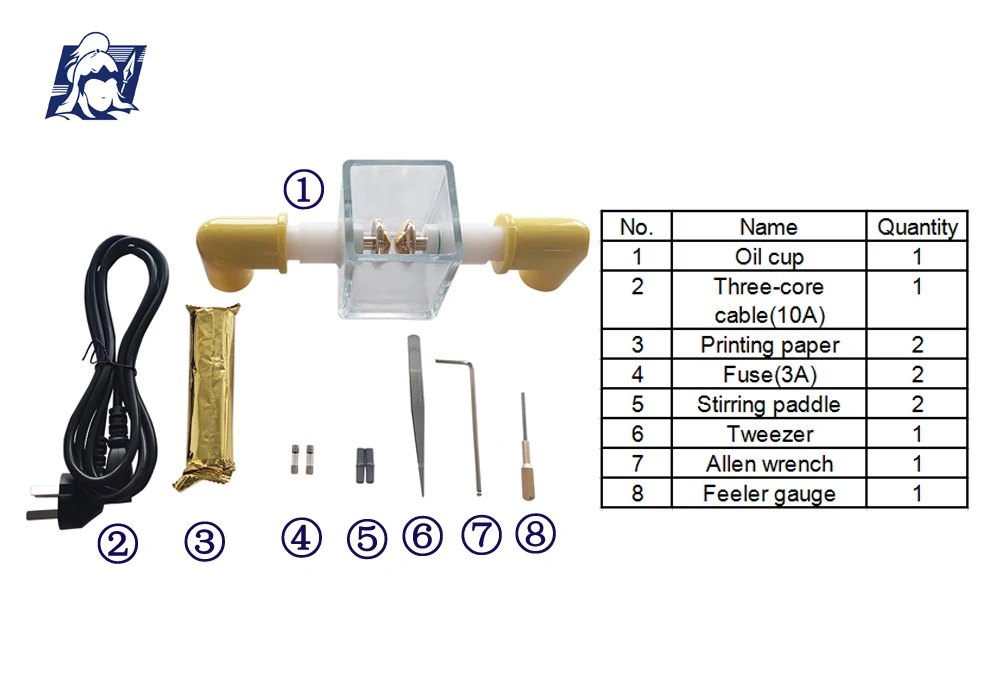

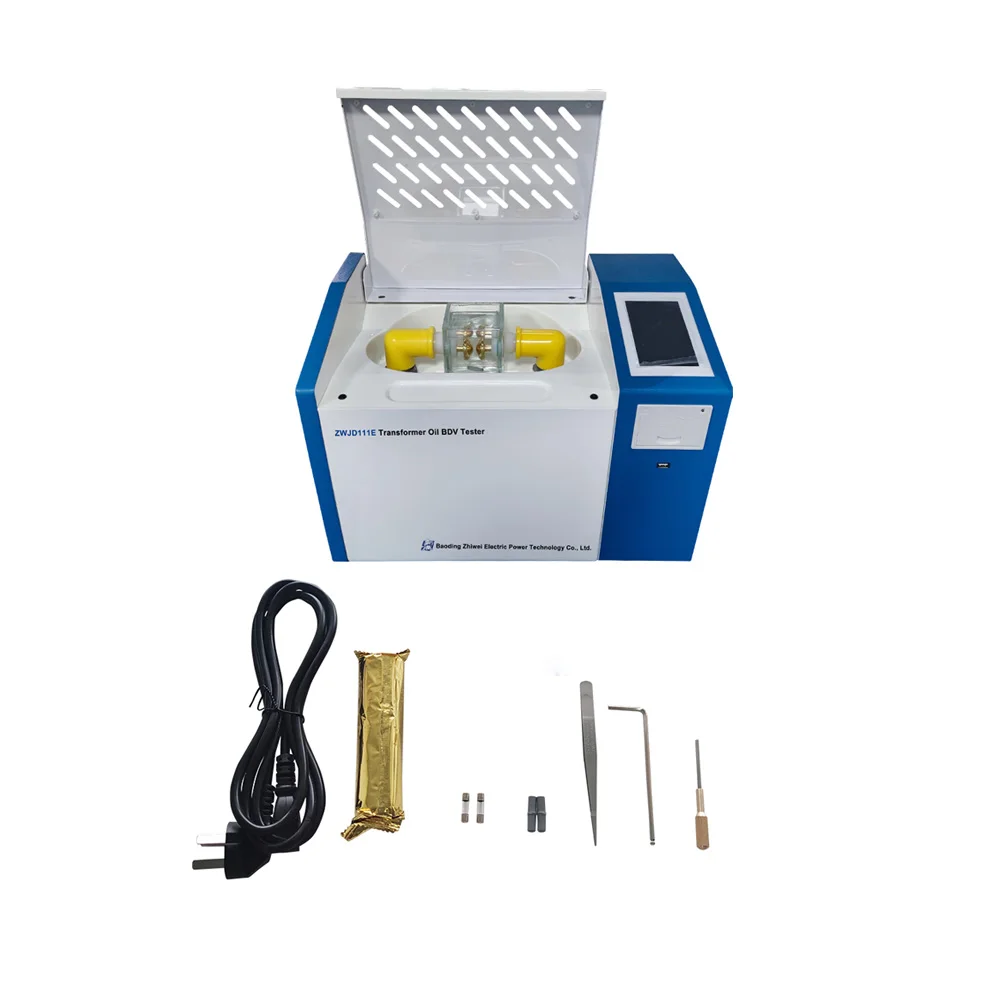

Product Accessories
