Product Overview

Description





Product Description

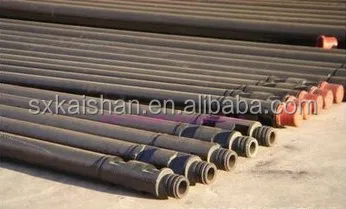

DTH Drill Pipe
DTH drill pipes are widely used in mining,water well drilling,geothermal,oil and all kinds of DTH rock drilling,with high quality low carbon steel to ensure good resistance to strengthen and tensile,friction welded to ensure the adapter and pipe connect tightly as a whole set the cyclic extrusion-compression ensure reliable pipe
Specification:
(2”)50mm DTH drill pipe with API 2 3/8 REG 1000-3000m length
60mm DTH drill pipe with API 2 3/8 REG 1000-3000m length
(3”)76mm DTH drill pipe with API 2 3/8 REG 1500-3000m length
(3 1/2”)89mm DTH drill pipe with NC26( API 2 3/8 REG) 1500-3000m length
(4”)102mm DTH drill pipe with NC31( API 2 7/8 REG) 1500-6000m length
(4 1/4”)108mm DTH drill pipe with NC31( API 2 7/8 REG) 1500-6000m length
(4 1/2”)114mm DTH drill pipe with NC31( API 2 7/8 REG)or NC35 1500-6000m length
(5”)127mm DTH drill pipe with NC38( API 3 1/2 IF) 1500-6000m length




DTH Drill Pipe
No.
Specifications (mm)
Craft
Connection type
Diameter
Length
Thread type
1
50
1000-3000
API 2 3/8 REG
Friction welding
Box/pin
2
60
1000-3000
API 2 3/8 REG
Friction welding
Box/pin
3
76
1500-3000
API 2 3/8 REG
Friction welding
Box/pin
4
89
1500-3000
NC26(2 3/8 IF)
Friction welding
Box/pin
5
102
1500-6000
NC31 (2 7/8 IF)
Friction welding
Box/pin
6
108
1500-6000
NC31 (2 7/8 IF)
Friction welding
Box/pin
7
114
1500-6000
NC31 (2 7/8 IF)or NC35
Friction welding
Box/pin
8
127
1500-6000
NC38(3 1/2 IF)
Friction welding
Box/pin


DTH Drill Pipe with API NC thread
No.
Specifications (mm)
Craft
Connection type
Diameter
Length
Thread type
1
89
1500-3000
NC26(2 3/8 IF)
Friction welding
Box/pin
2
102
1500-6000
NC31 (2 7/8 IF)
Friction welding
Box/pin
3
108
1500-6000
NC31 (2 7/8 IF)
Friction welding
Box/pin
4
114
1500-6000
NC31 (2 7/8 IF)or NC35
Friction welding
Box/pin
5
127
1500-6000
NC38(3 1/2 IF)
Friction welding
Box/pin


Water Well Drill Pipe
Outside diameter
50
60
73
89
102
114
127
Outside diameter of joint(mm)
65
75
105
127
133.4
158.8
168
Thickness(mm)
6.5
7.1
9.19
9.5/10
8.38
8.56
9.19
Length(mm)
1000~4500
1000~4500
1500~9500
1500~9500
3000~9500
1500~9500
5000-9500


Water Well Drill Pipe
Standard
ASTM, BS, JIS, DIN,GB
O.D.
1/2"-24" 10-610mm
W.T.
SCH10--XXS 1.5-60mm
Length
5m-12m
End protection
Plastic caps
Outside Coating
Black painting, anti-corrosion oil, galvanized or
as per required by customers
Packing
Wrapped in bundles by steel strips/bulk
Delivery
By sea container
Production Capacity
5000 tons per month
Delivery time
10-30days depend on your quantity
Tolorance
OD :+1% / -1% WT: +12.5% / -10%
Application
Transportation of oil,gas or fluid,Construction,
Electricity,Machine building industy,
Chemical industy,Petroleum,Traffic.
Main market
Asia, India, Middle East, America, Europe,Africa
