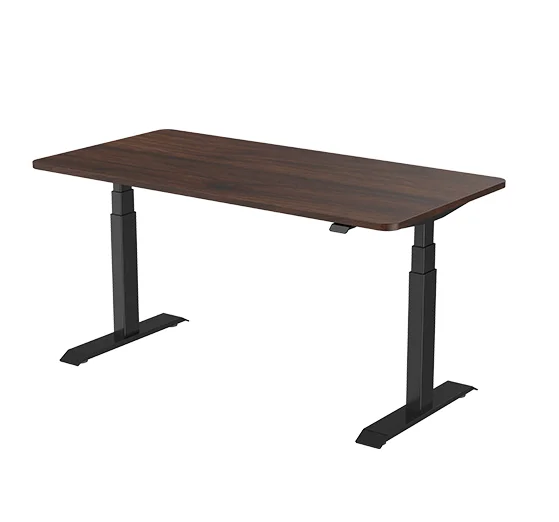

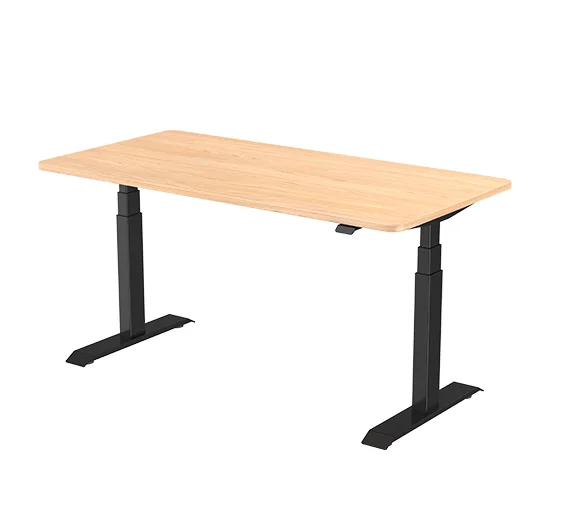

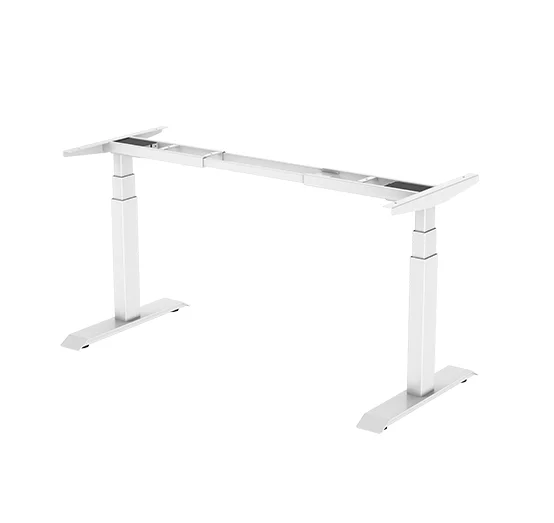

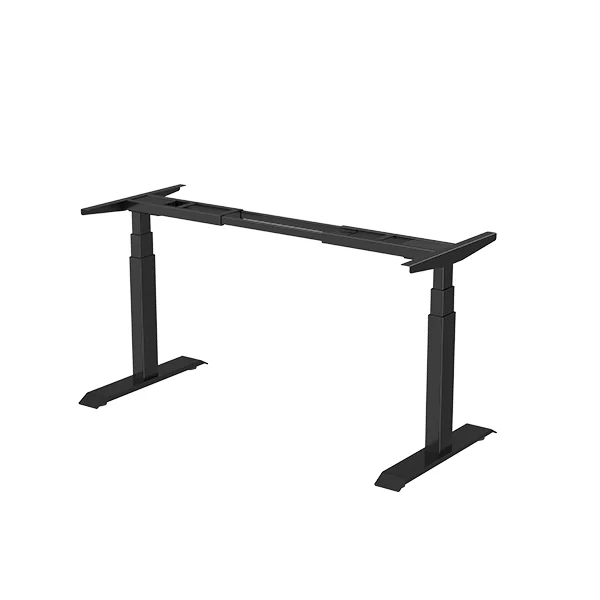

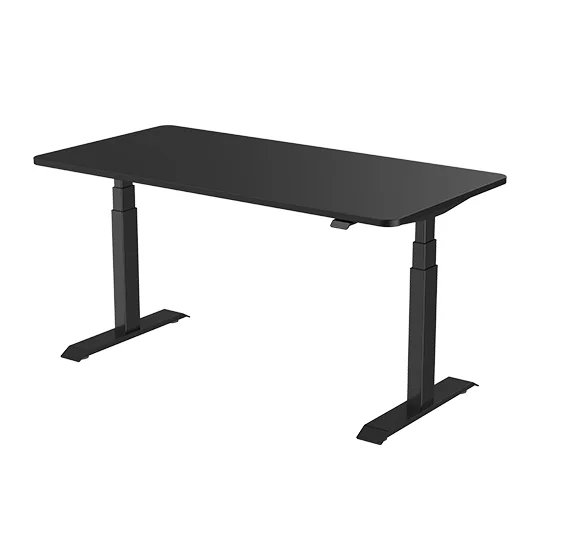

Ningbo Summit TS R13SP Dual Motor 50mm/s Low Noise Height Adjustable Standing Sitting Desk
- Category: >>>
- Supplier: Ningbo Summite Im & Ex Co. Ltd.
Share on (1600637483532):
Product Overview
Description

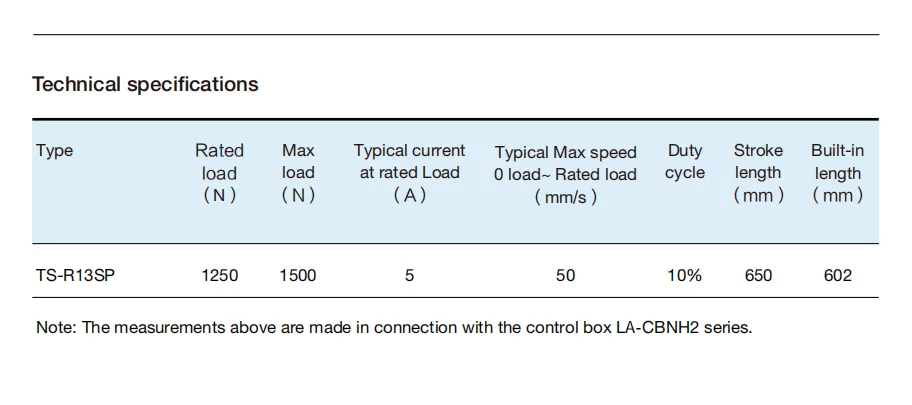

Specification
No hole design
- TS-R13SP system is an upgraded version of the height adjustable desk system, which uses double TS-R13SP columns with rectangular tubes to improve overall performance. Compared with the normal system, the
speed of TS-R13SP system is increased to 50mm/s, the noise is also improved, and the consumer's operating experience is optimized.
- TS-R13SP system is equipped with anti-collision function to ensure the safe operation of the standing desk.
- TS-R13SP system standby power consumption <0.1W, saving energy consumption, in line with sustainable.
speed of TS-R13SP system is increased to 50mm/s, the noise is also improved, and the consumer's operating experience is optimized.
- TS-R13SP system is equipped with anti-collision function to ensure the safe operation of the standing desk.
- TS-R13SP system standby power consumption <0.1W, saving energy consumption, in line with sustainable.
Features
- Use PLUS column
- The tube is no hole design
- Rated load: 1250N
- Max load: 1500N
- Most Speed: 50mm/s
- Noise: ≤48dB
- Max. Bending moment: 150N.m

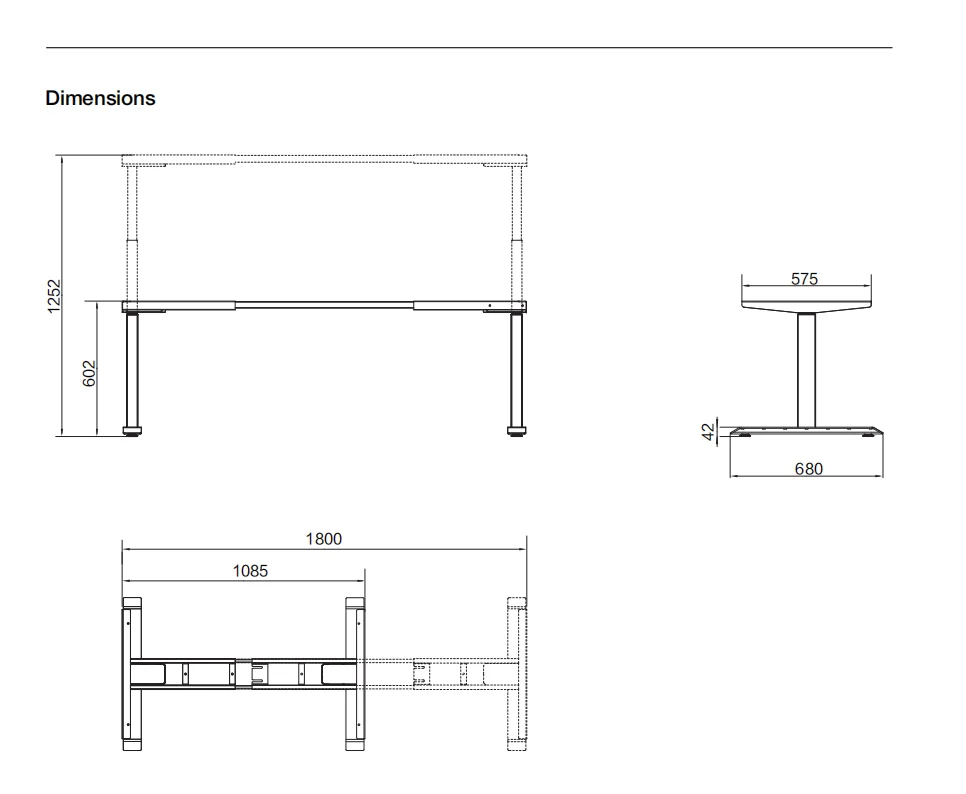

- Standard installation length: 602mm
- Standard stroke length: 650mm
- Column dimensions：rectangular：80X50mm
- Motor: Summit design high power motor
- Hall sensor enabling parallel drive
- Surface: Powder coating with standard color: White (RAL9016), Black (RAL9005), Grey (RAL7045)
- The tube is no hole design
- Rated load: 1250N
- Max load: 1500N
- Most Speed: 50mm/s
- Noise: ≤48dB
- Max. Bending moment: 150N.m
- Standard installation length: 602mm
- Standard stroke length: 650mm
- Column dimensions：rectangular：80X50mm
- Motor: Summit design high power motor
- Hall sensor enabling parallel drive
- Surface: Powder coating with standard color: White (RAL9016), Black (RAL9005), Grey (RAL7045)
- Compatible with Summit control box: LA-CBNH2
- Duty cycle: 10 %, Max. 2 minutes operation/Min. 18minutes rest of continuous use at full load
- Working environment: Indoor
- Storage and transport temperature: -10°C ~ 70°C
- Duty cycle: 10 %, Max. 2 minutes operation/Min. 18minutes rest of continuous use at full load
- Working environment: Indoor
- Storage and transport temperature: -10°C ~ 70°C
Related Products
Assembly
Packing & Delivery
Package information of standing sitting adjustable desk:
The cartons, tray; Accept customized, please inform us in advance.
The cartons, tray; Accept customized, please inform us in advance.

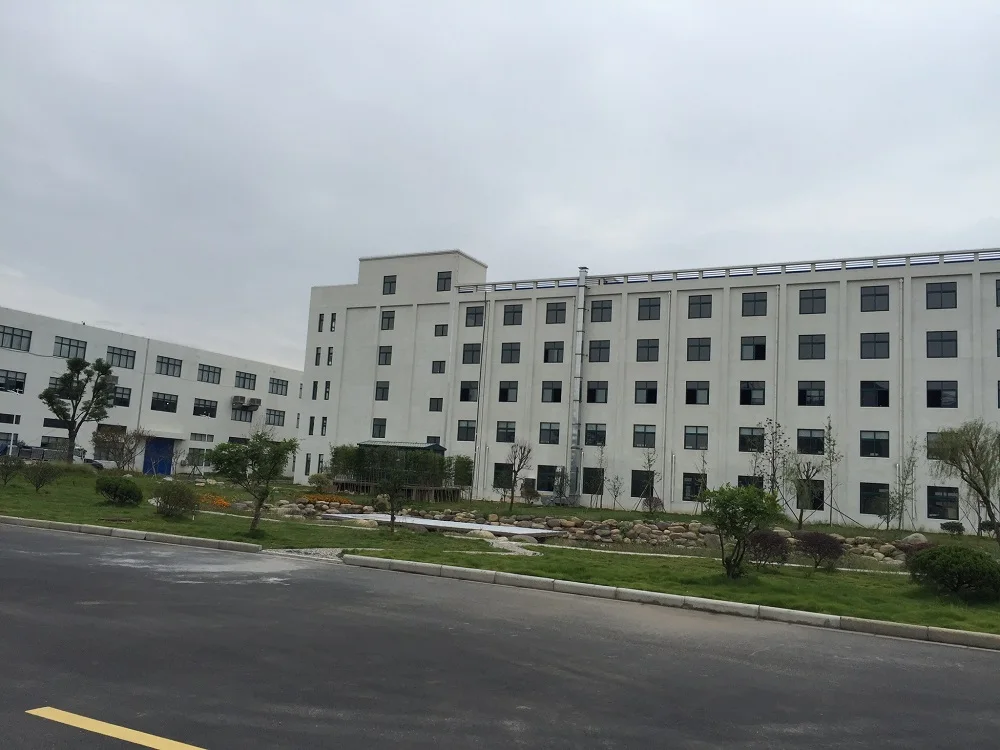

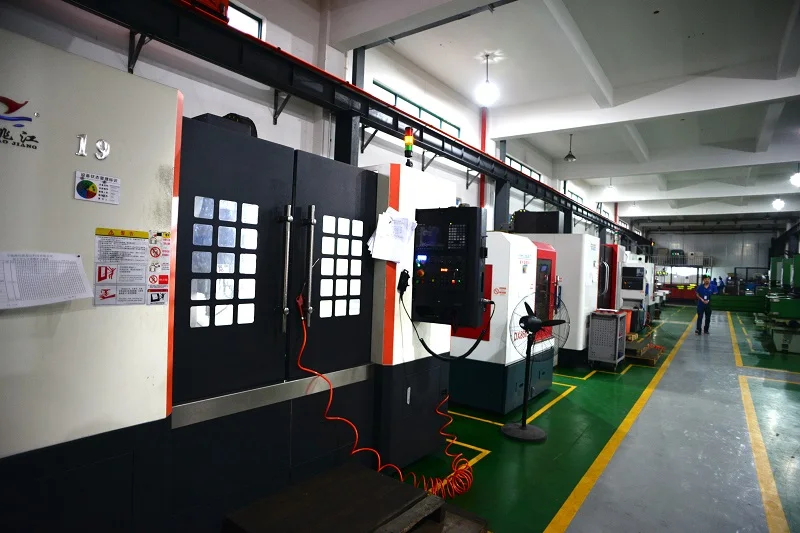

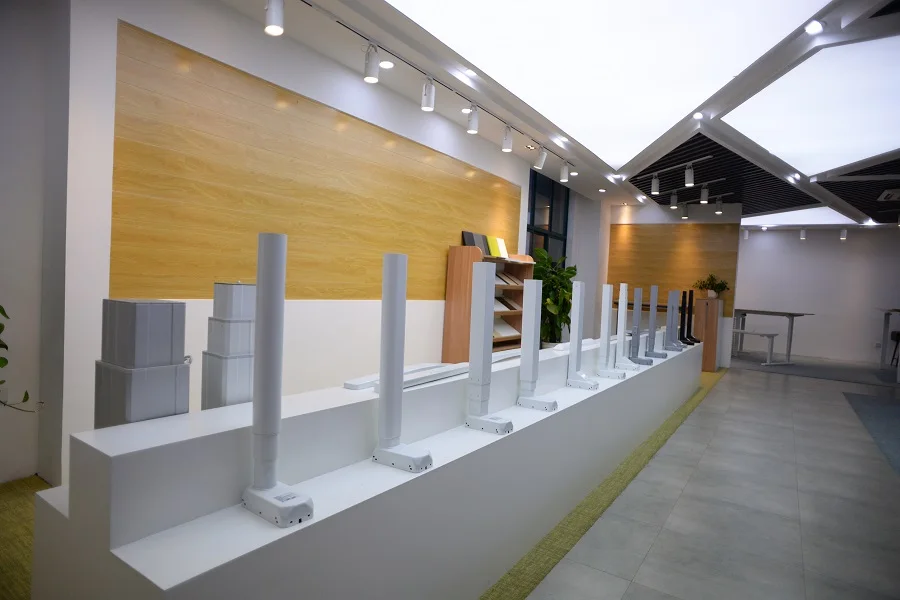

Company Profile
NINGBO SUMMITE IMPORT ANDEXPORT COMPANY was established in 2003. Our company is located in NingBo China.We own the share of the factories in Wenzhou and Wuxi. We are specialized in manufacturing and customizing a great varied of DC linear actuators and Standing desk . Our company offers a full line of standard electric actuators, each specifically designed to meet the needs of light duty, general duty and rugged duty applications. All products are engineered for maintenance-free, long-life service, providing maximum value for our customers. Our electric actuators are engineered and produced using quality components from ISO registered key suppliers.
