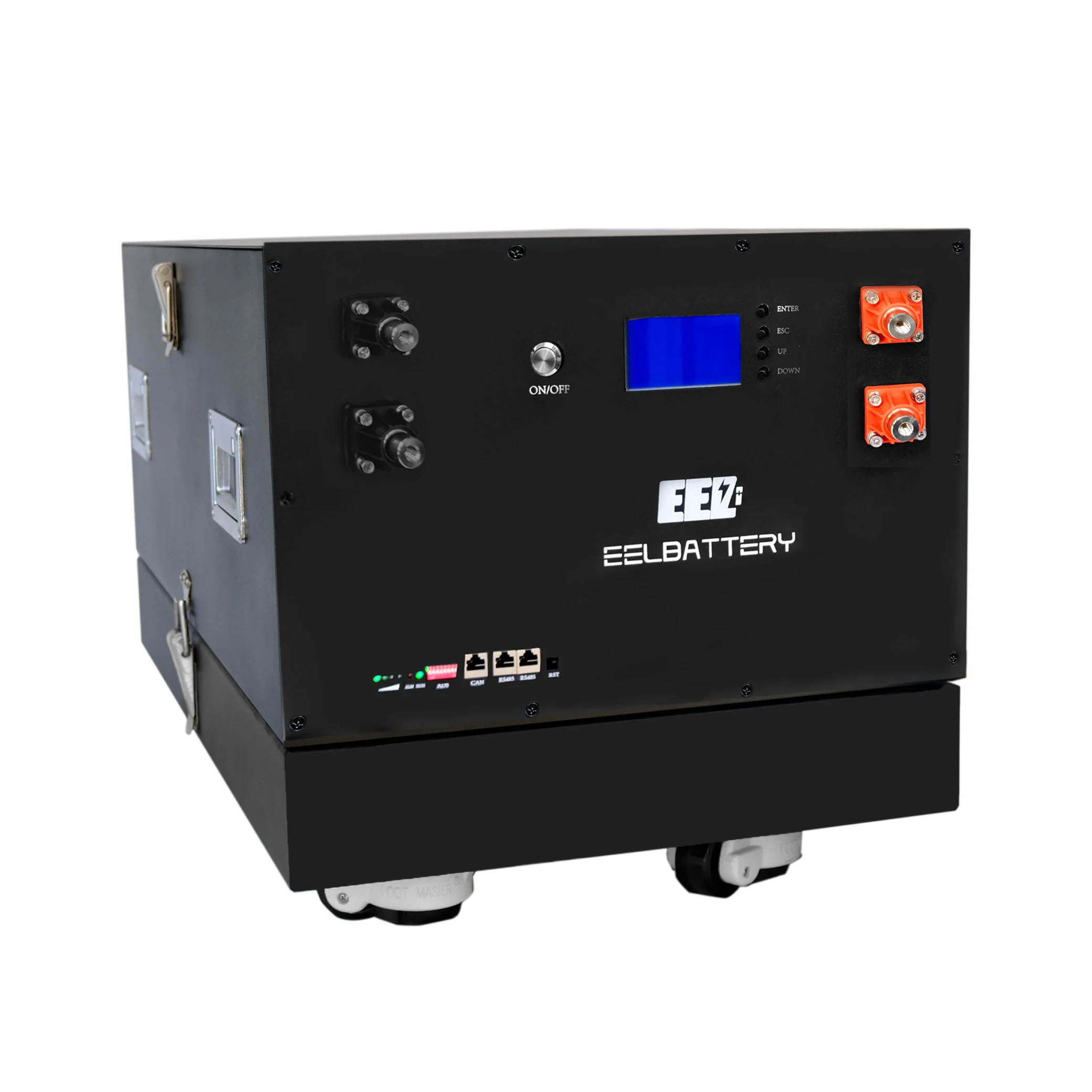

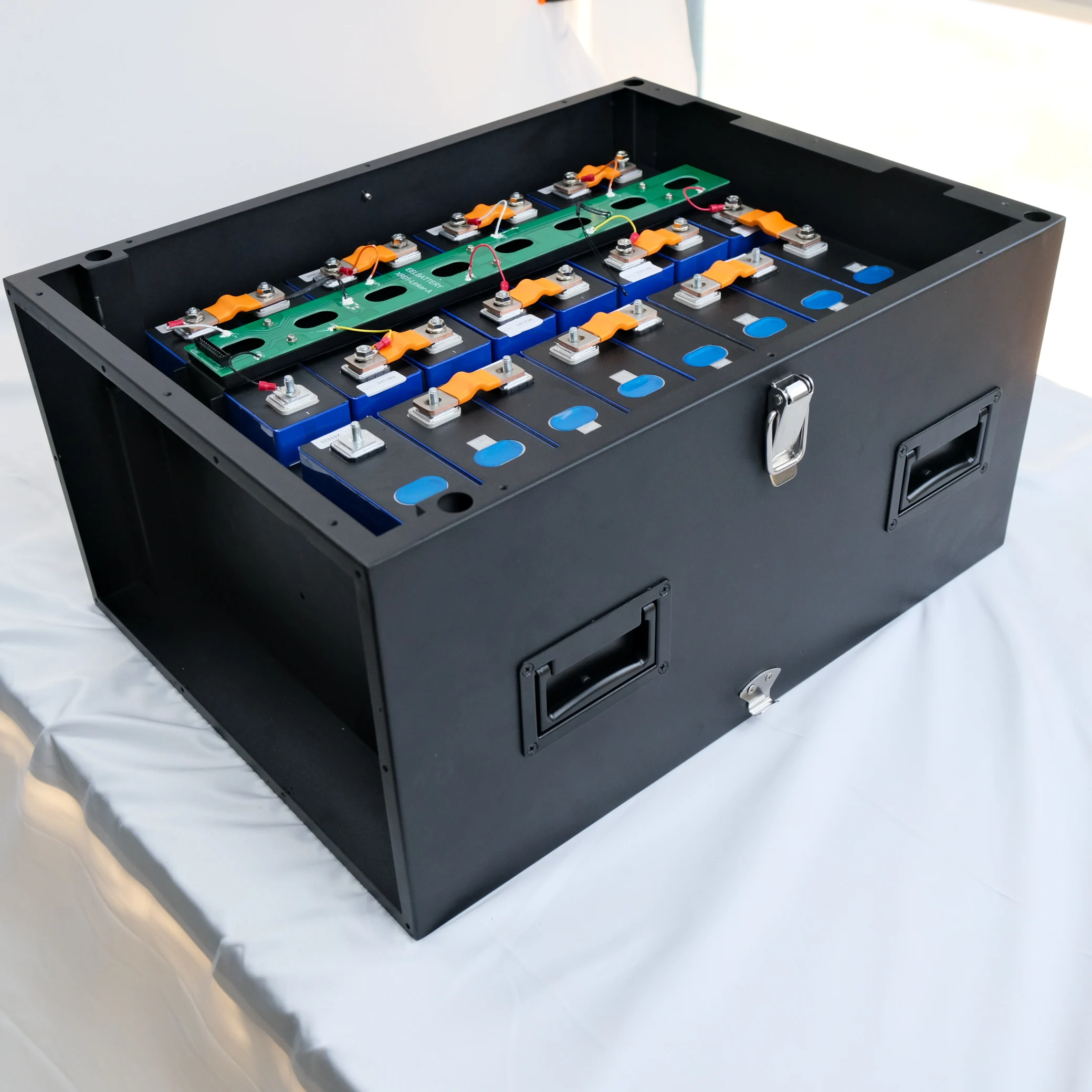

EEL Battery Box 5kwh 10kwh 48V 16S DIY Kit batteries Cell Case for 230Ah 280Ah LiFePO4 battery
- Category: Renewable Energy >>>
- Supplier: Shenzhen Eel Battery Co. Ltd.
Share on (1600638488804):
Product Overview
Description
Product Paramenters
Brand | EEL | ||||||
Model | 48V 16S LFP DIY Kits | ||||||
Application | Solar energy household system | ||||||
Battery type | 230Ah 280Ah 302Ah Lifepo4 battery cell | ||||||
Communication | CANBUS and RS485 | ||||||

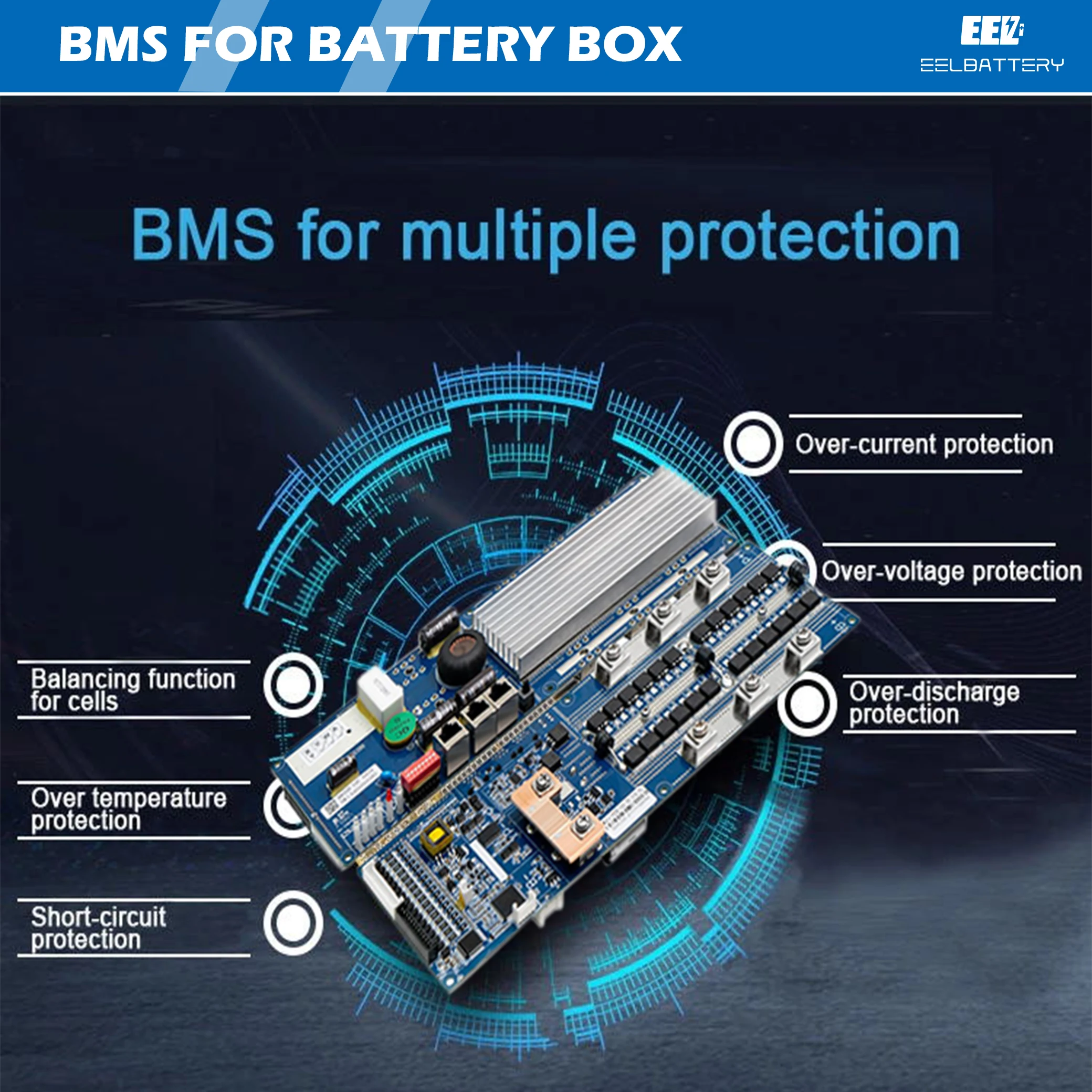

BMS | 48V 16S 100A 150A 200A BMS with bluetooth/USB adapter | ||||||
Weight | 29kg | ||||||
Nominal Voltage | 48V/51.2V | ||||||

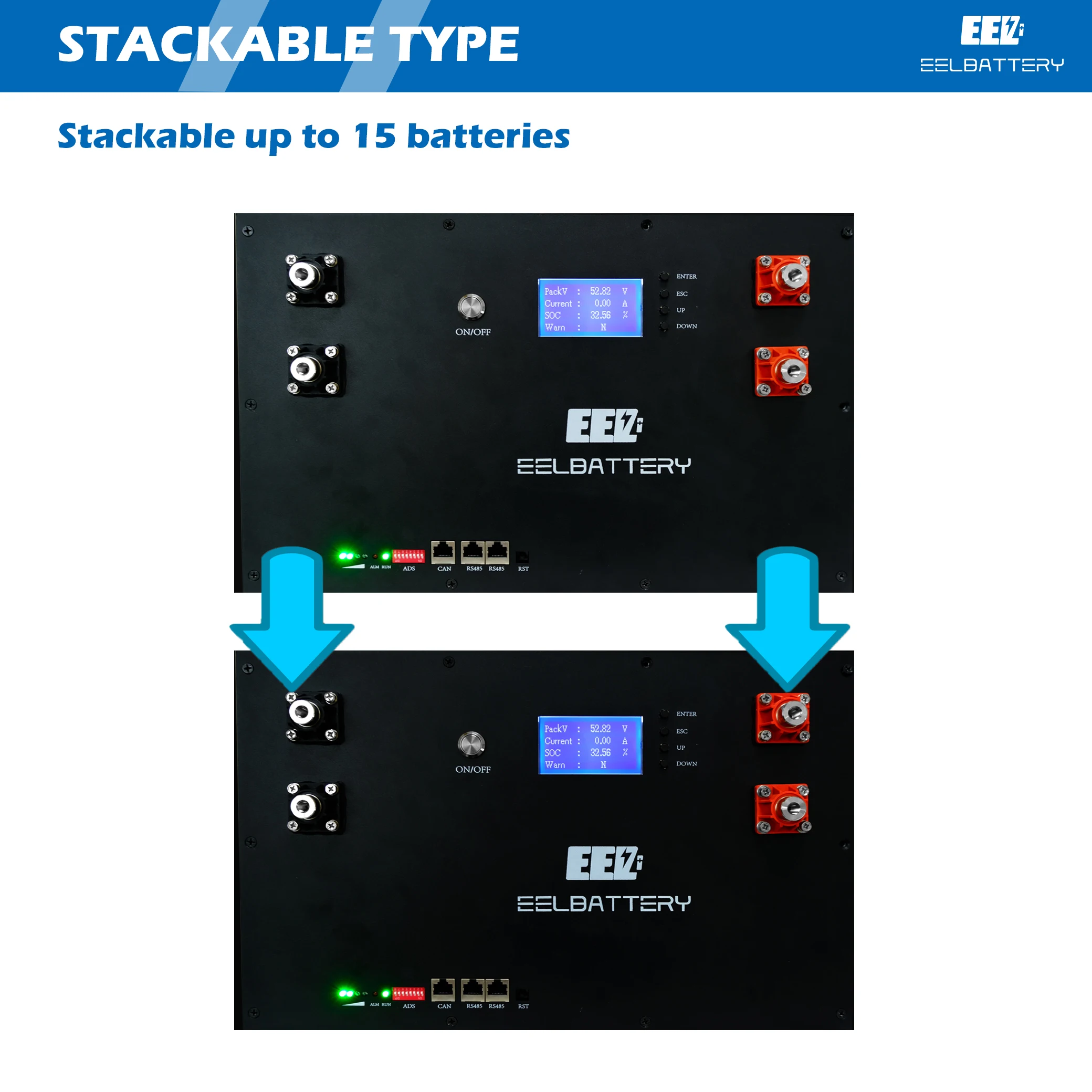

Battery Pack Type | Stackable | ||||||
Continuous current | 300A | ||||||
Material | iron | ||||||

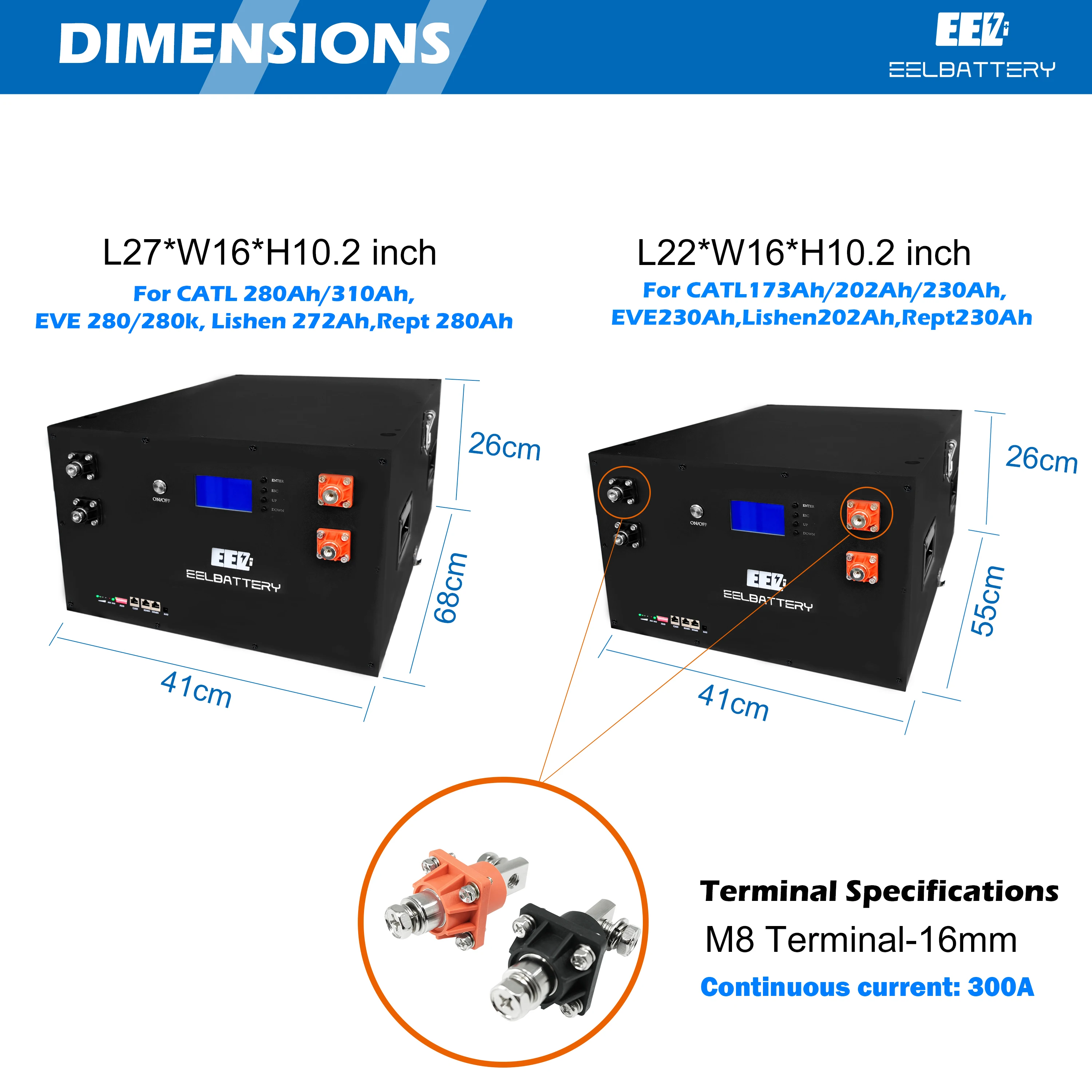

230Ah Size | 410*550*260mm | ||||||
280Ah Size | 410*680*260mm | ||||||
Sample OEM/ODM | Acceptable | ||||||
Shipping trade term | DDP | ||||||
Note!!!! | If Bluetooth and USB adapter are required, corresponding options must be added to the order. Add as many as needed. | ||||||

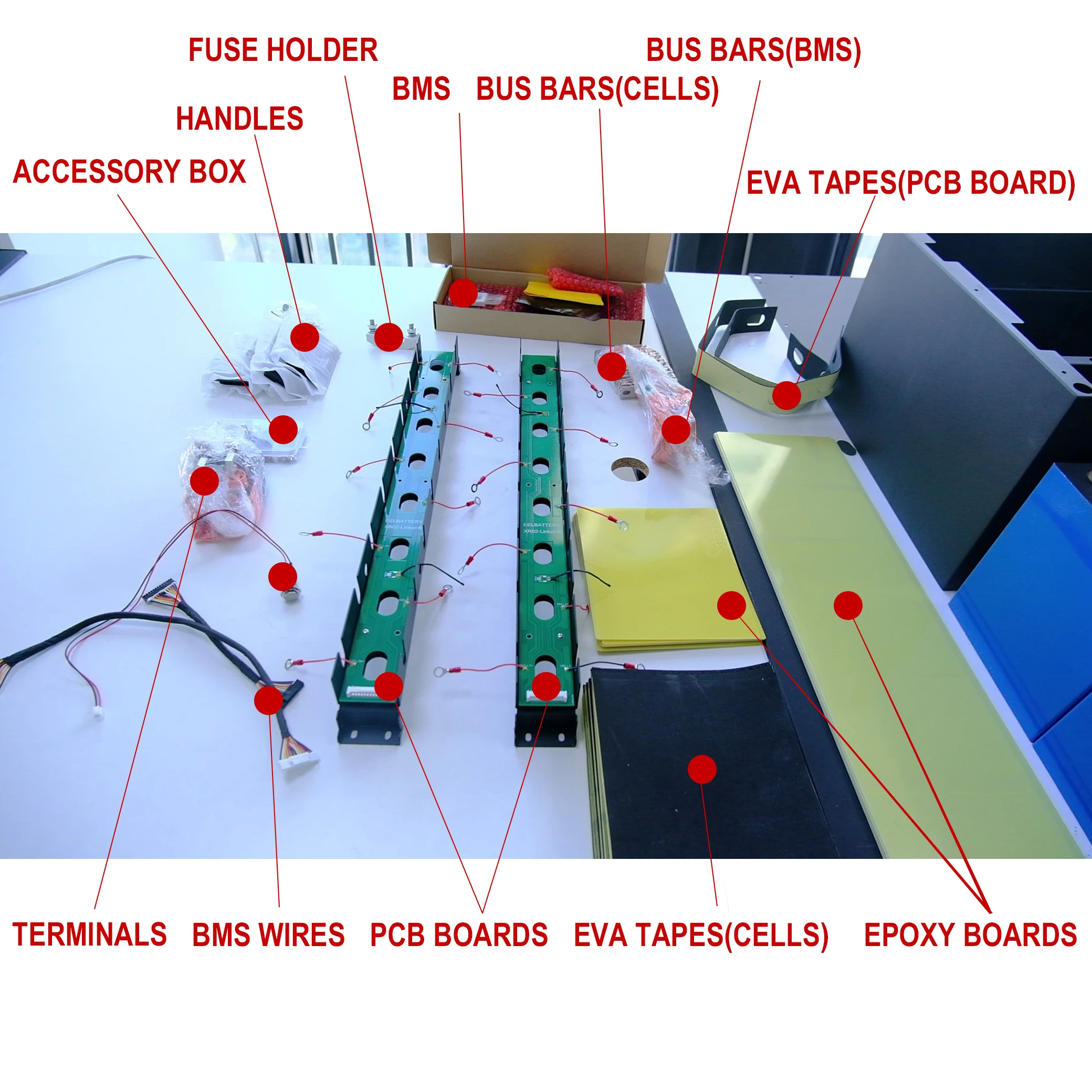

Parts List(does not come with the battery cells)

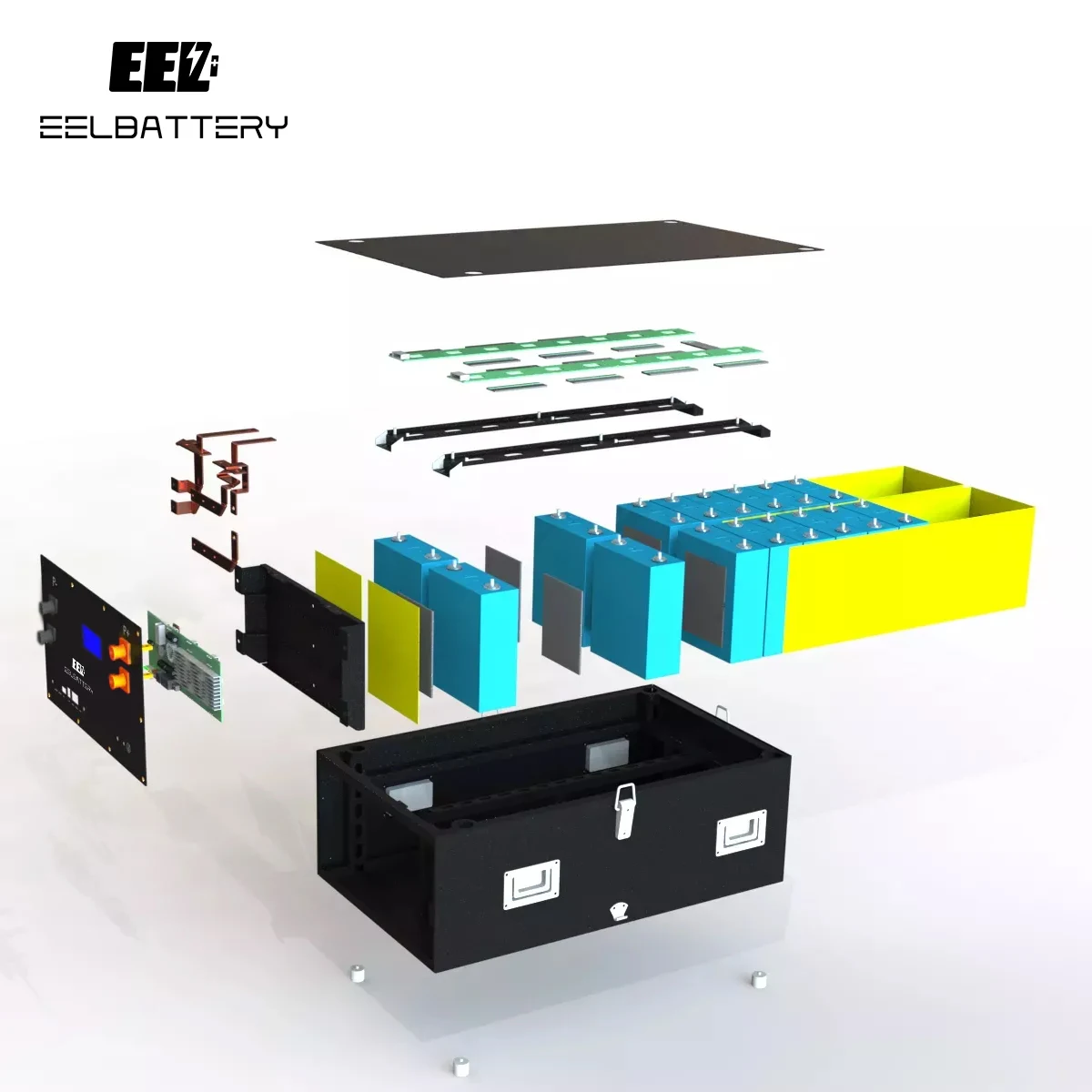

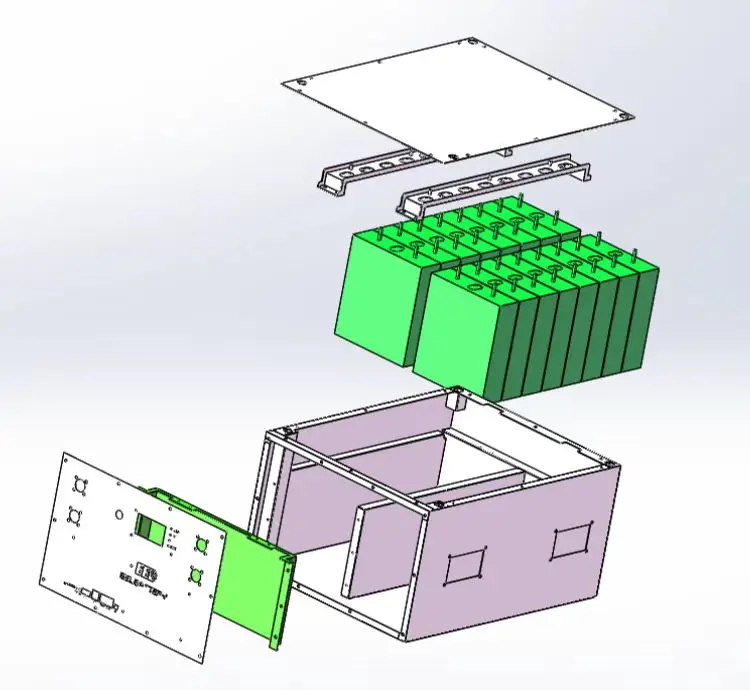

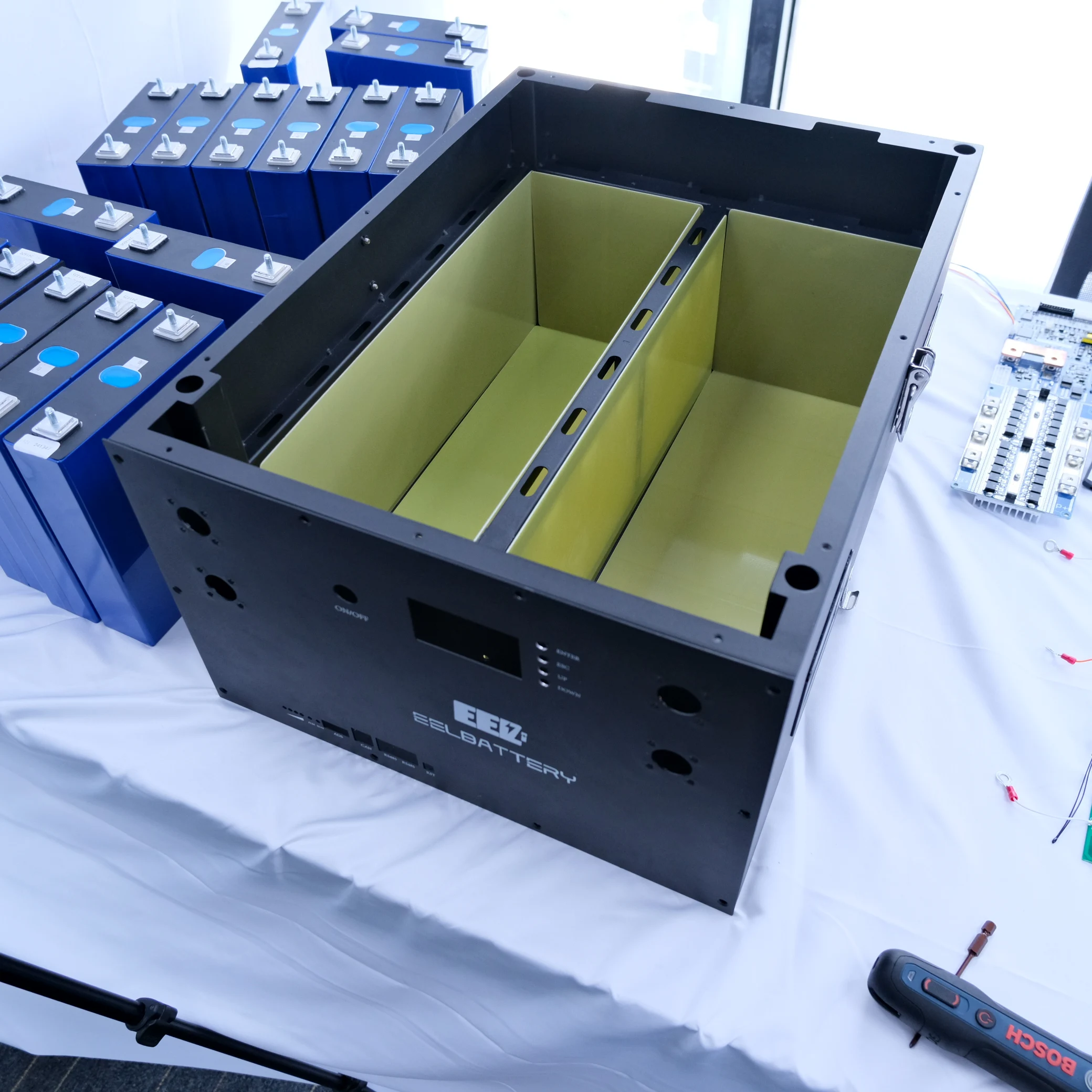

1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)

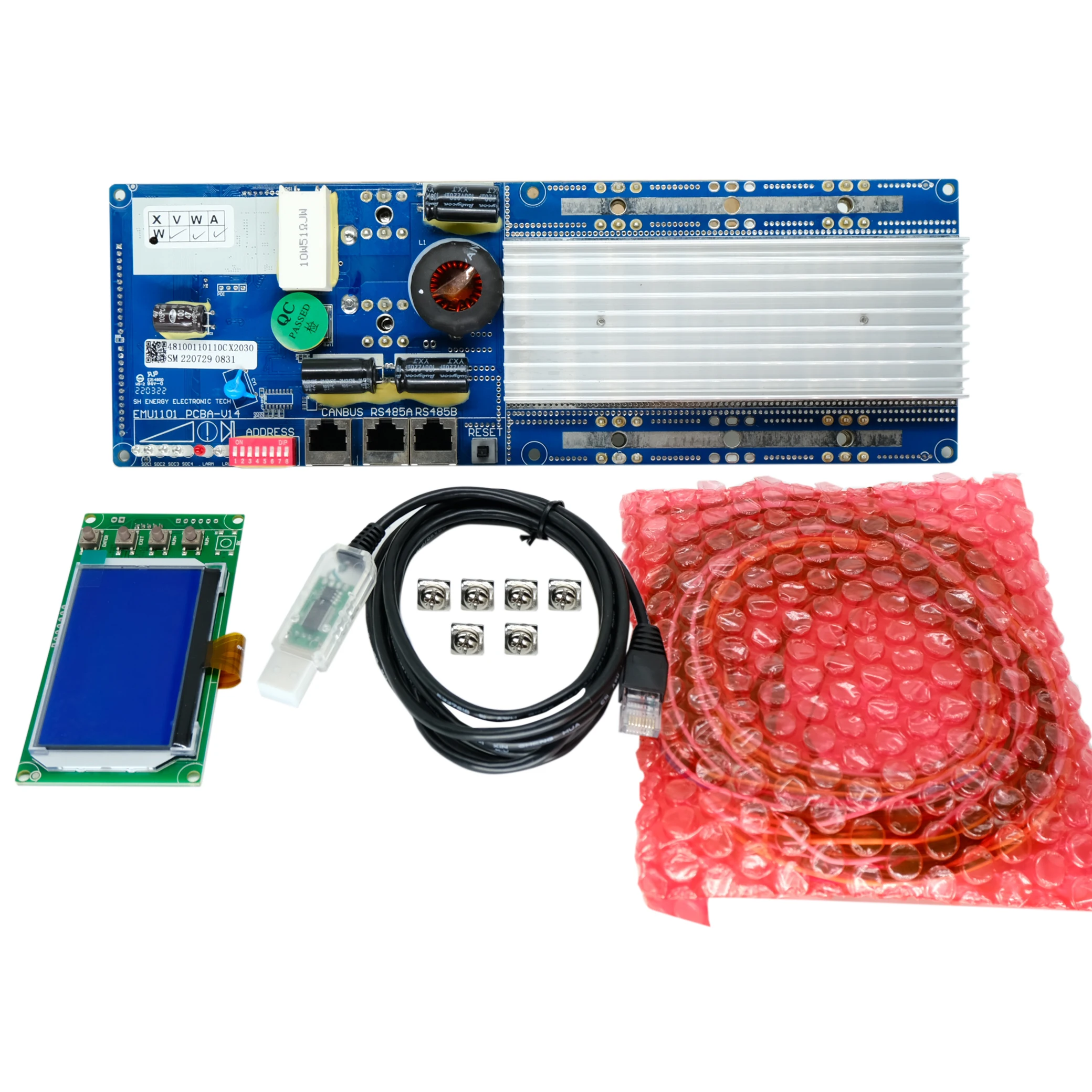

1 * 48V 100/150/200A 16S BMS
1 * Weak electric switch
4 * Handle

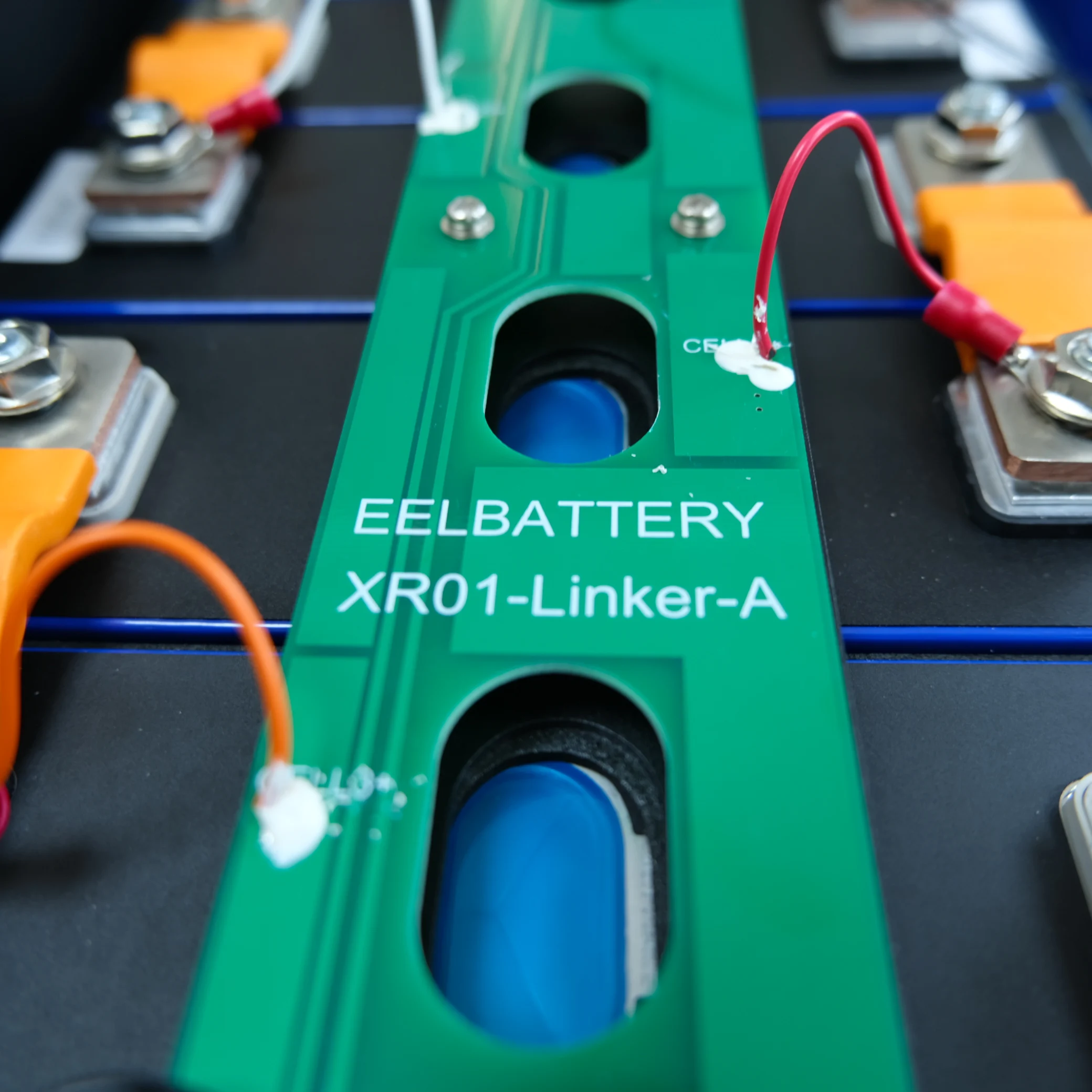

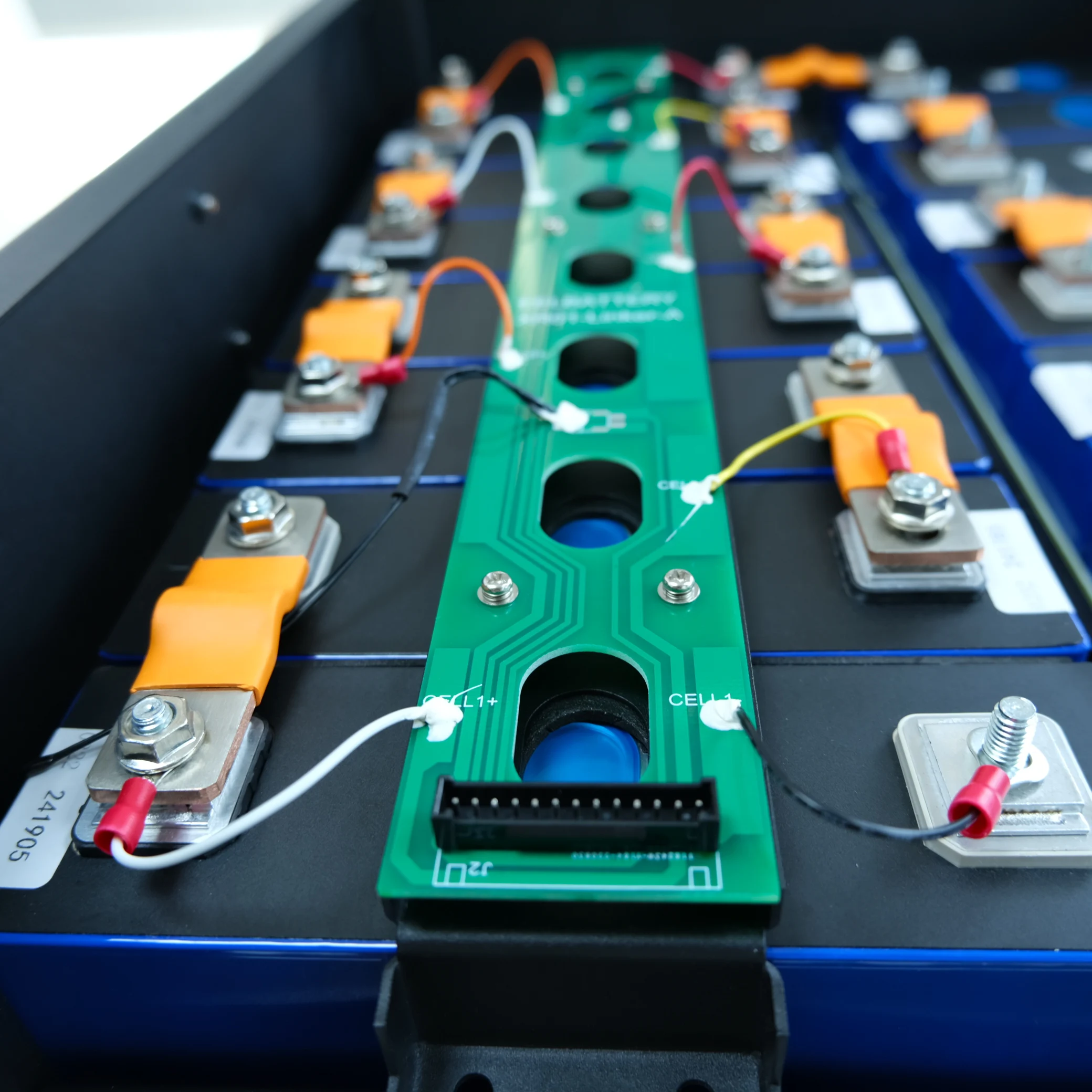

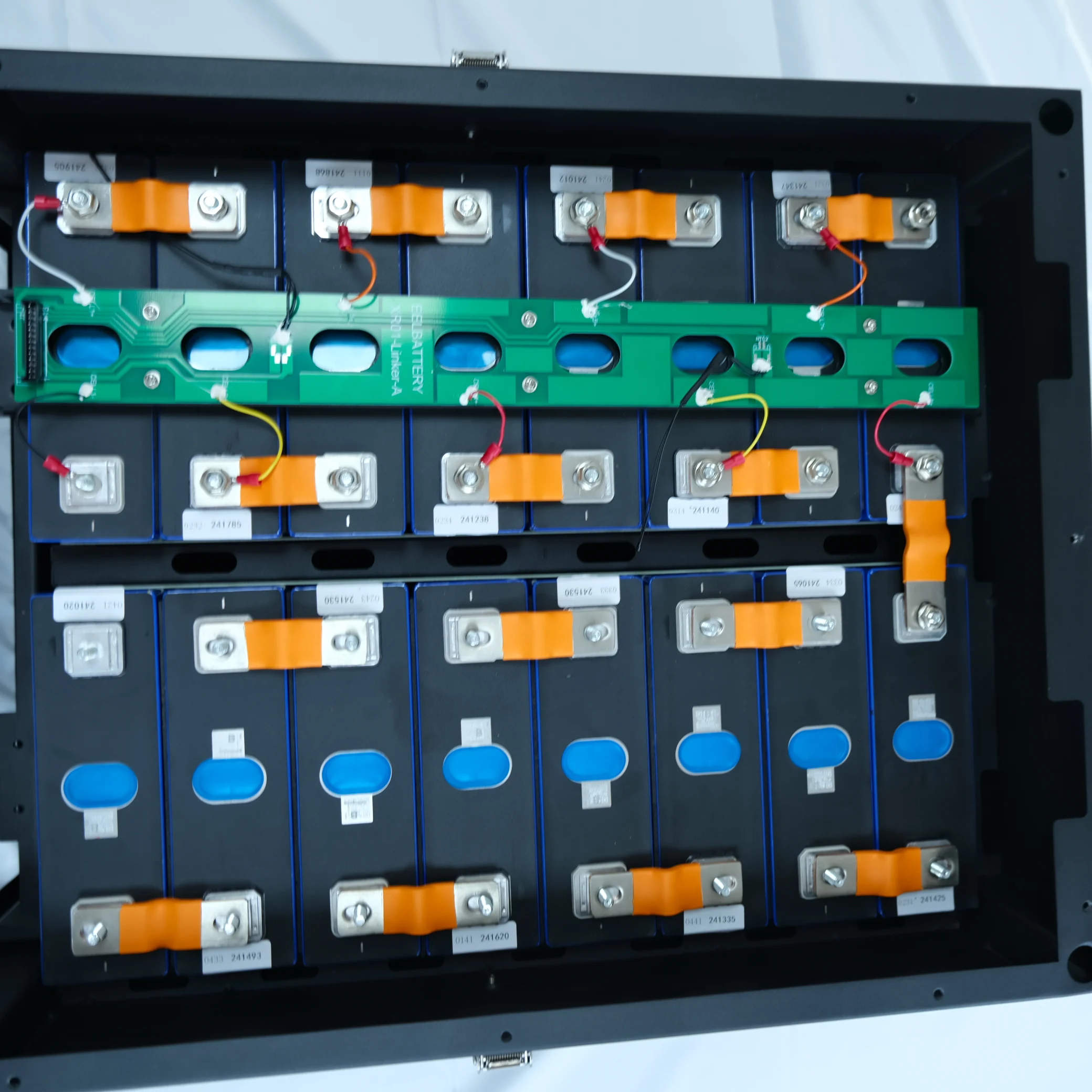

2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock

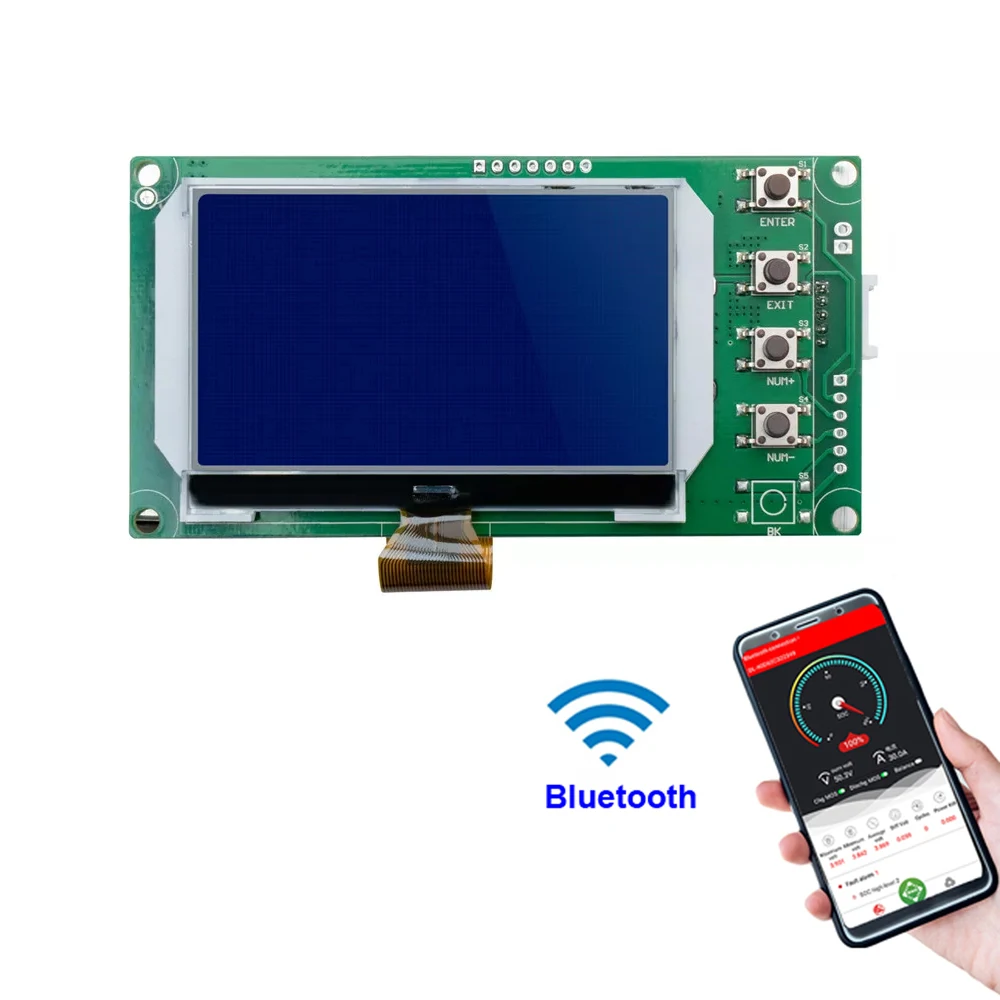

1 * LCD Screen
1 * 48V 100/150/200A 16S BMS
1 * Weak electric switch
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * Fuse
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
4 * Battery Terminals (P+ Terminal and P- Terminal)
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
4 * Battery Terminals (P+ Terminal and P- Terminal)
16 * EVA Boards(for cells)
16 * Epoxy Boards

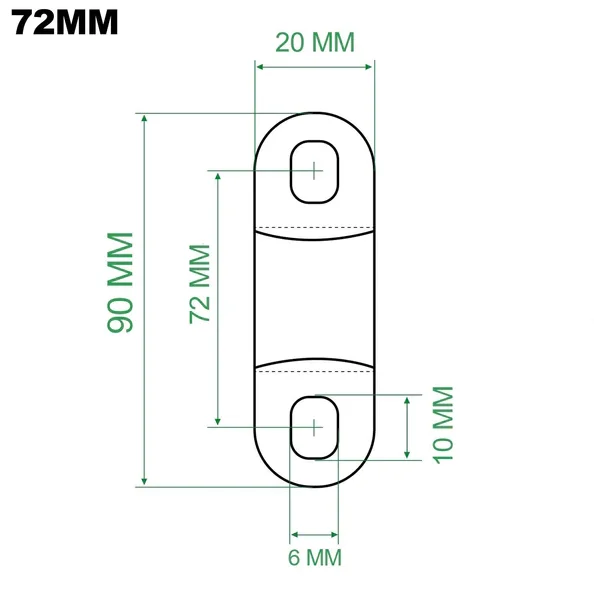

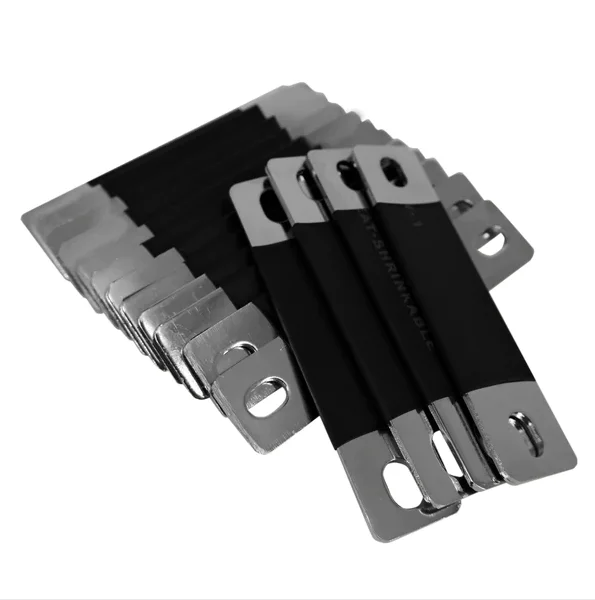

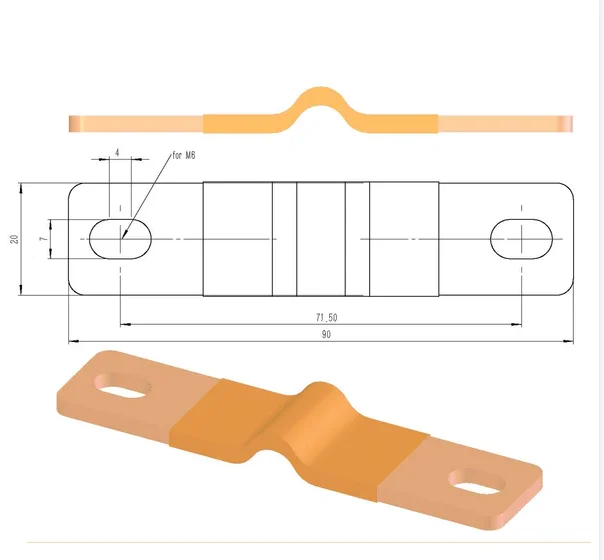

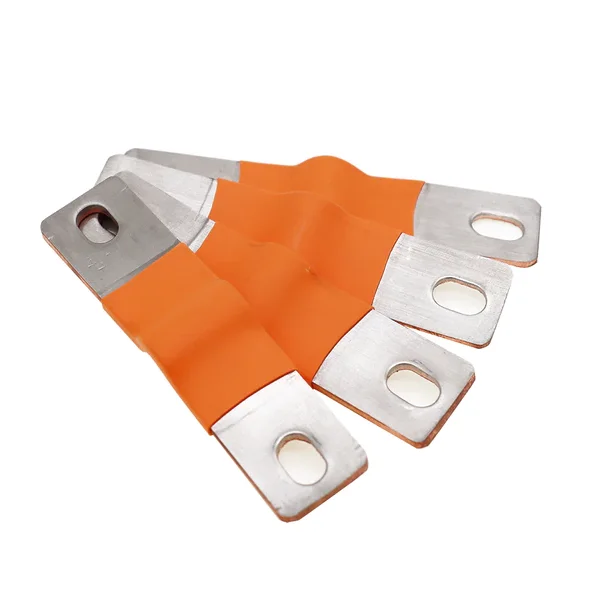

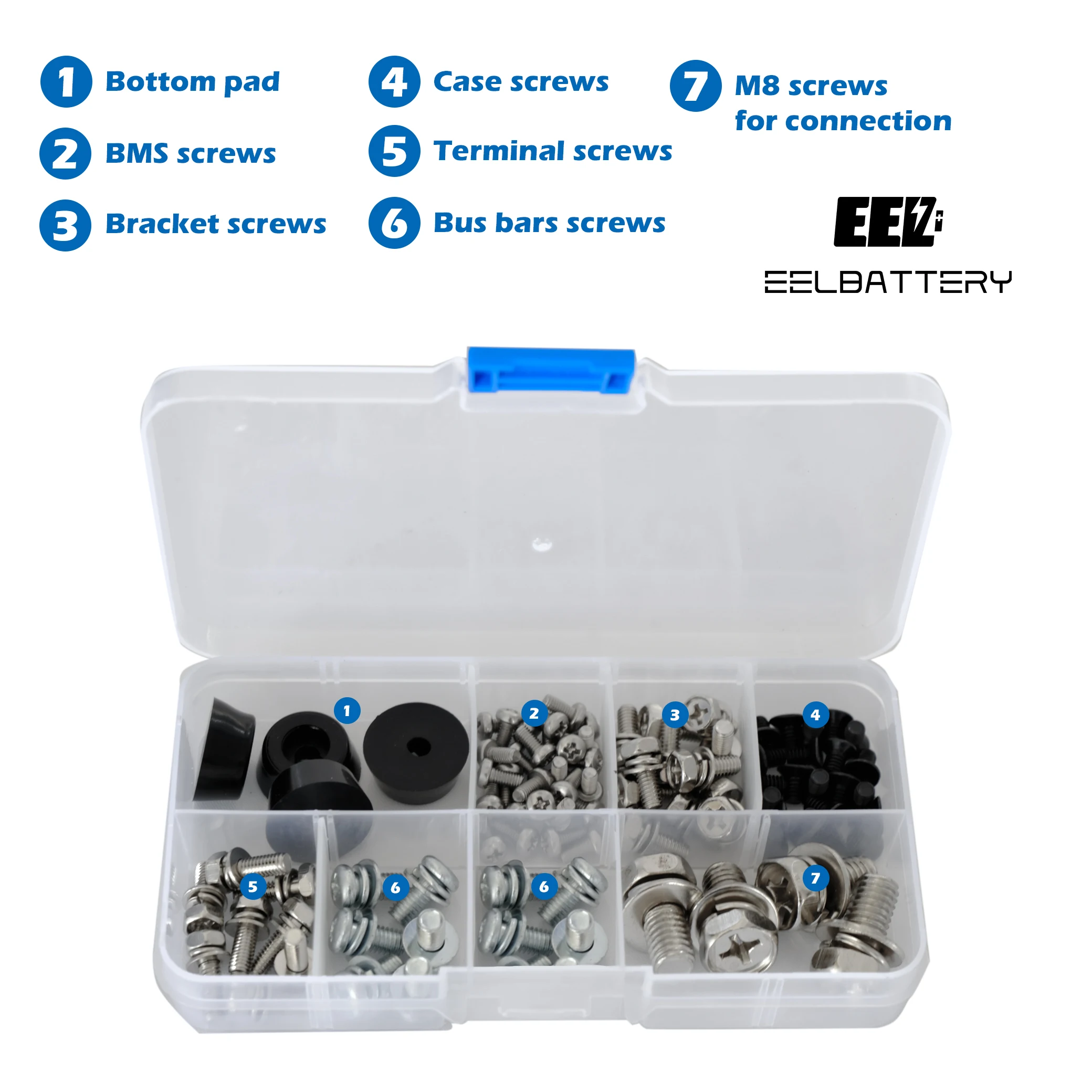

Battery Accessories

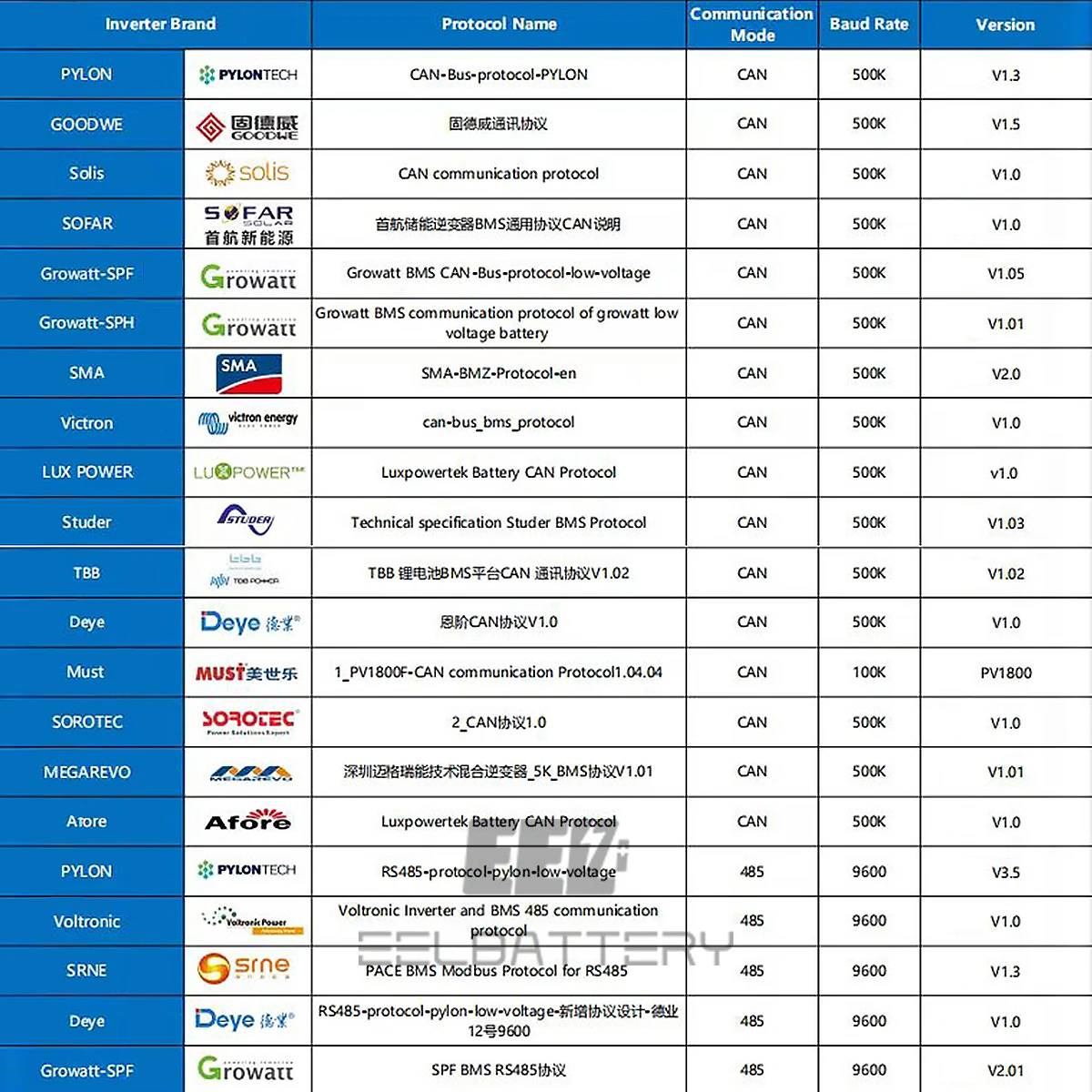

Super compatible application
It is suitable for the common mainstream inverters on the market, and the communication methods include CAN and RS485, with strong compatibility
Packing & Shipping
FAQ
Q： What BMS is in the 48V battery box?
A: We use the 100/150/200A BMS in the box with CAN/RS485 Communications.
Q: Can I only take the battery box without BMS?
A: Yes, the BMS is 200USD/each, we can remove this price for you if you want to place the order.
Q: If I want to build a 48V server rack system, what should I choose?
A: It depends on how much capacity you want, our battery box can be stacked up to 15 sets.
Q: Can I buy the completed 48V server rack battery?
A: Sure, because our battery box does not include the cells, please leave a message to us if you want the completed battery system.
Q: How to set up the system?
A: The battery system can be connected to PC, and you can set and manage the whole system on your computer.
Q: I have my own logo, can I print my logo in the battery pack?
A: Yes, we accept customizing the logo, but need a large amount(>10 sets), if you like a sample, welcome to contact us.
Q:Does the 48V kit contain batteries?
A: Not included, see above for parts list.
Q: What should I do if I don't know how to install the battery box after receiving it?
A: This kit is particularly easy to install and we have a detailed installation video as well as instructions. You can also contact us anytime
Q:Why has my logistics information not been updated?
A:The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
A: We use the 100/150/200A BMS in the box with CAN/RS485 Communications.
Q: Can I only take the battery box without BMS?
A: Yes, the BMS is 200USD/each, we can remove this price for you if you want to place the order.
Q: If I want to build a 48V server rack system, what should I choose?
A: It depends on how much capacity you want, our battery box can be stacked up to 15 sets.
Q: Can I buy the completed 48V server rack battery?
A: Sure, because our battery box does not include the cells, please leave a message to us if you want the completed battery system.
Q: How to set up the system?
A: The battery system can be connected to PC, and you can set and manage the whole system on your computer.
Q: I have my own logo, can I print my logo in the battery pack?
A: Yes, we accept customizing the logo, but need a large amount(>10 sets), if you like a sample, welcome to contact us.
Q:Does the 48V kit contain batteries?
A: Not included, see above for parts list.
Q: What should I do if I don't know how to install the battery box after receiving it?
A: This kit is particularly easy to install and we have a detailed installation video as well as instructions. You can also contact us anytime
Q:Why has my logistics information not been updated?
A:The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
