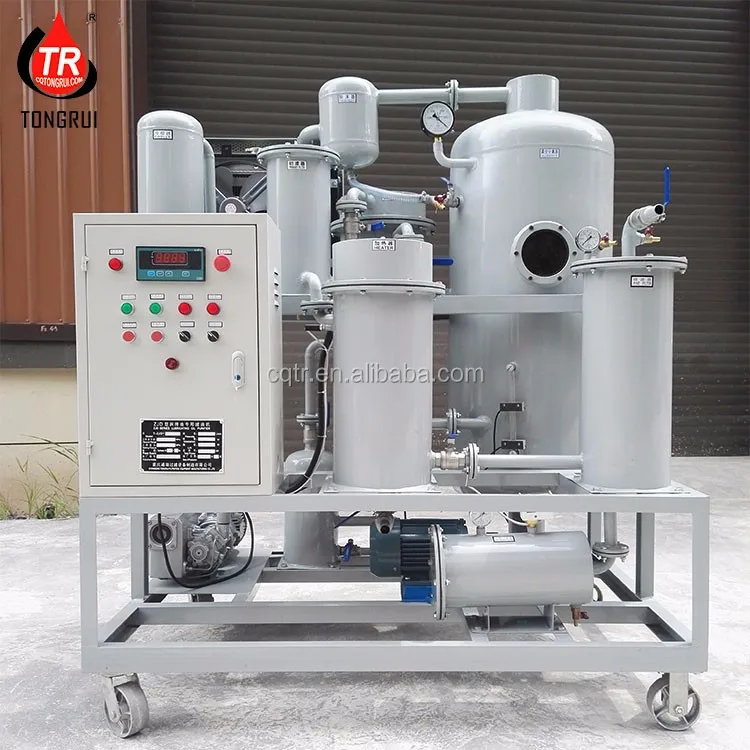

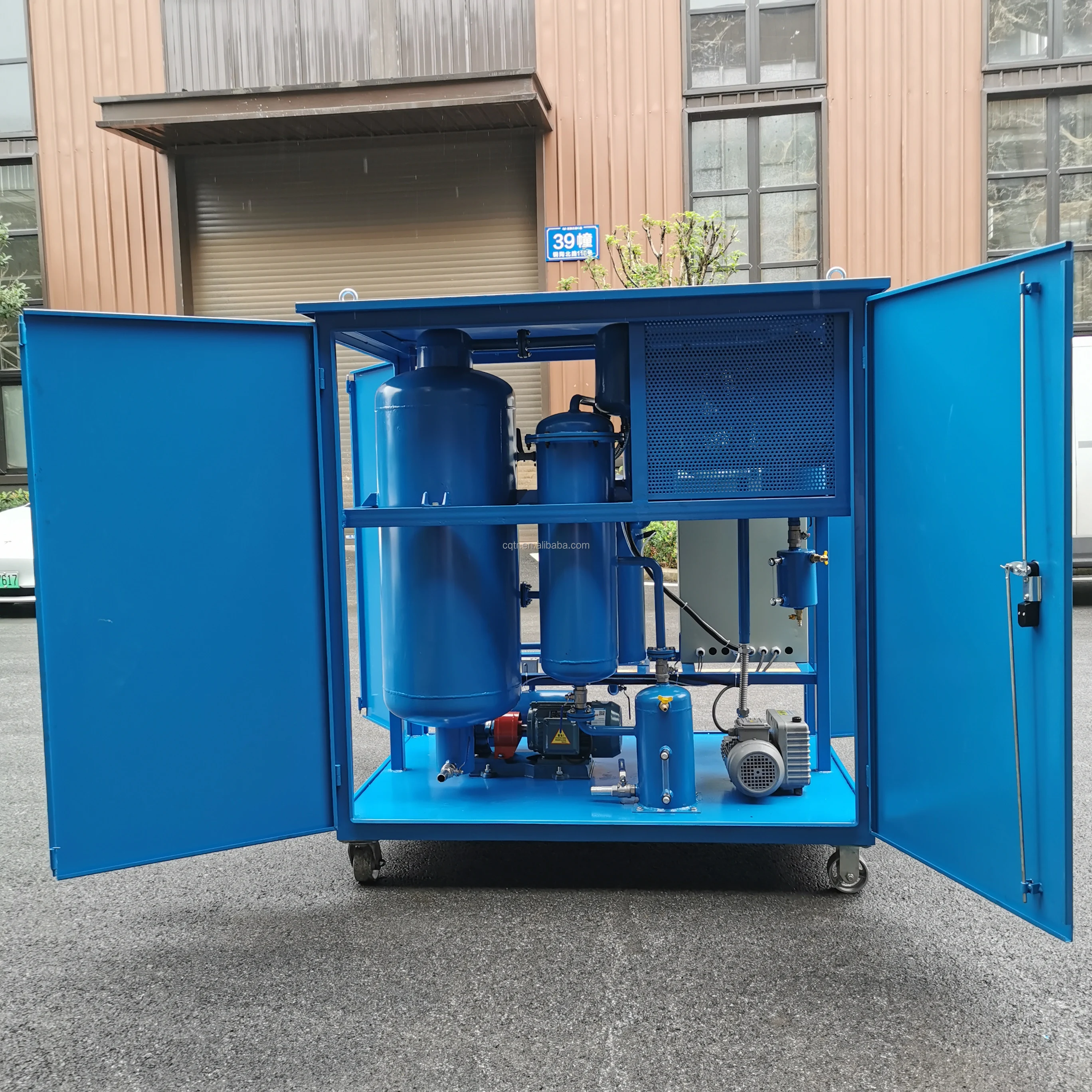

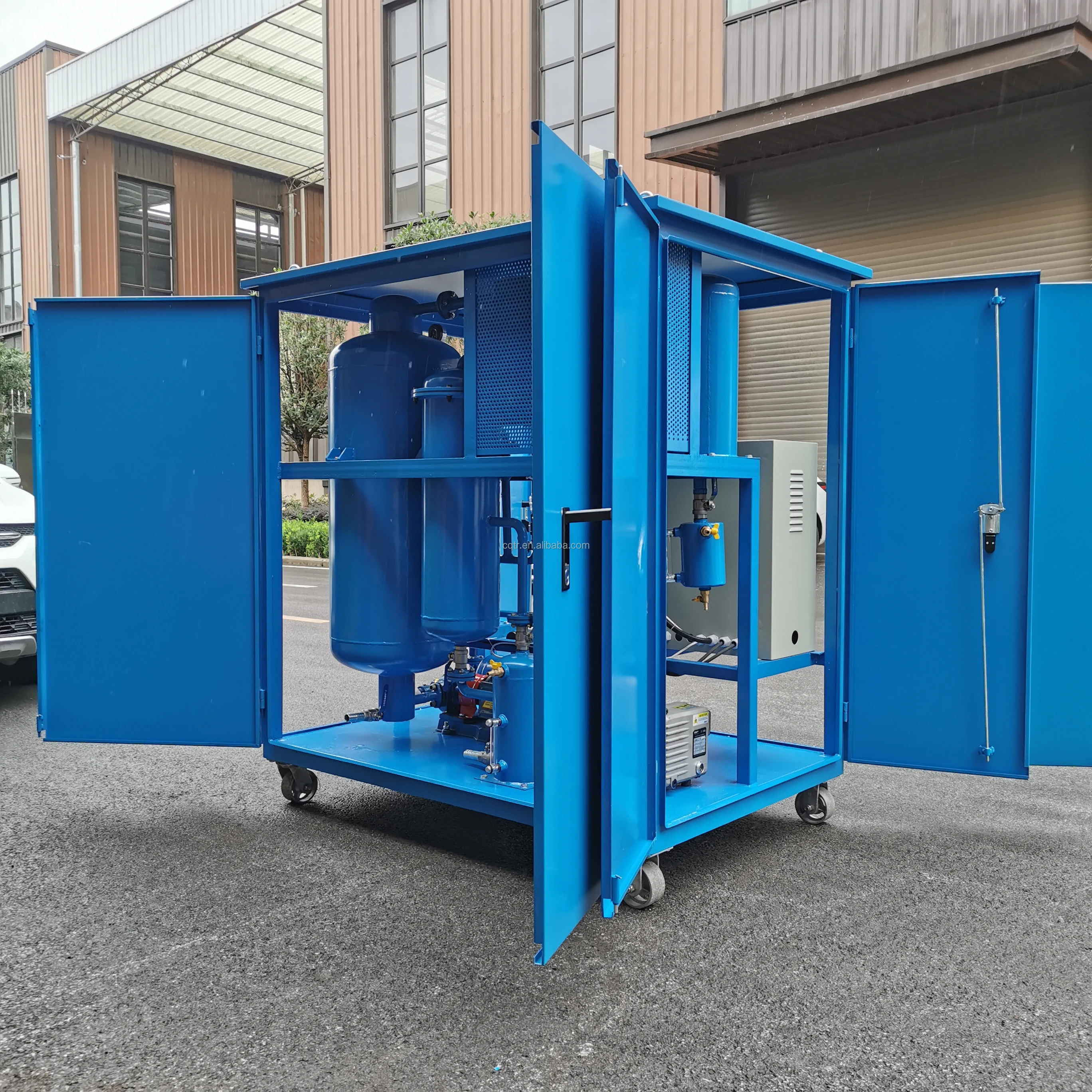

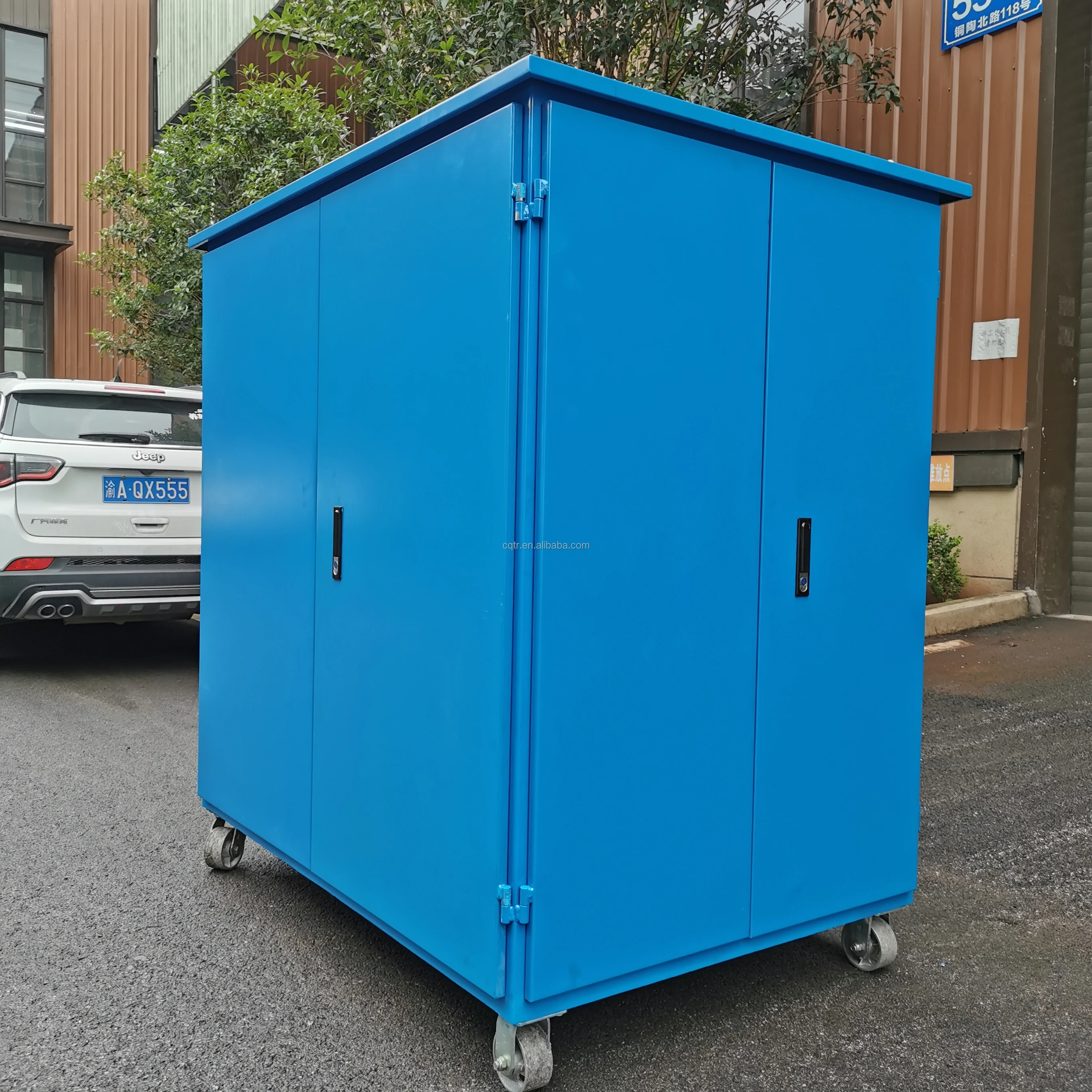

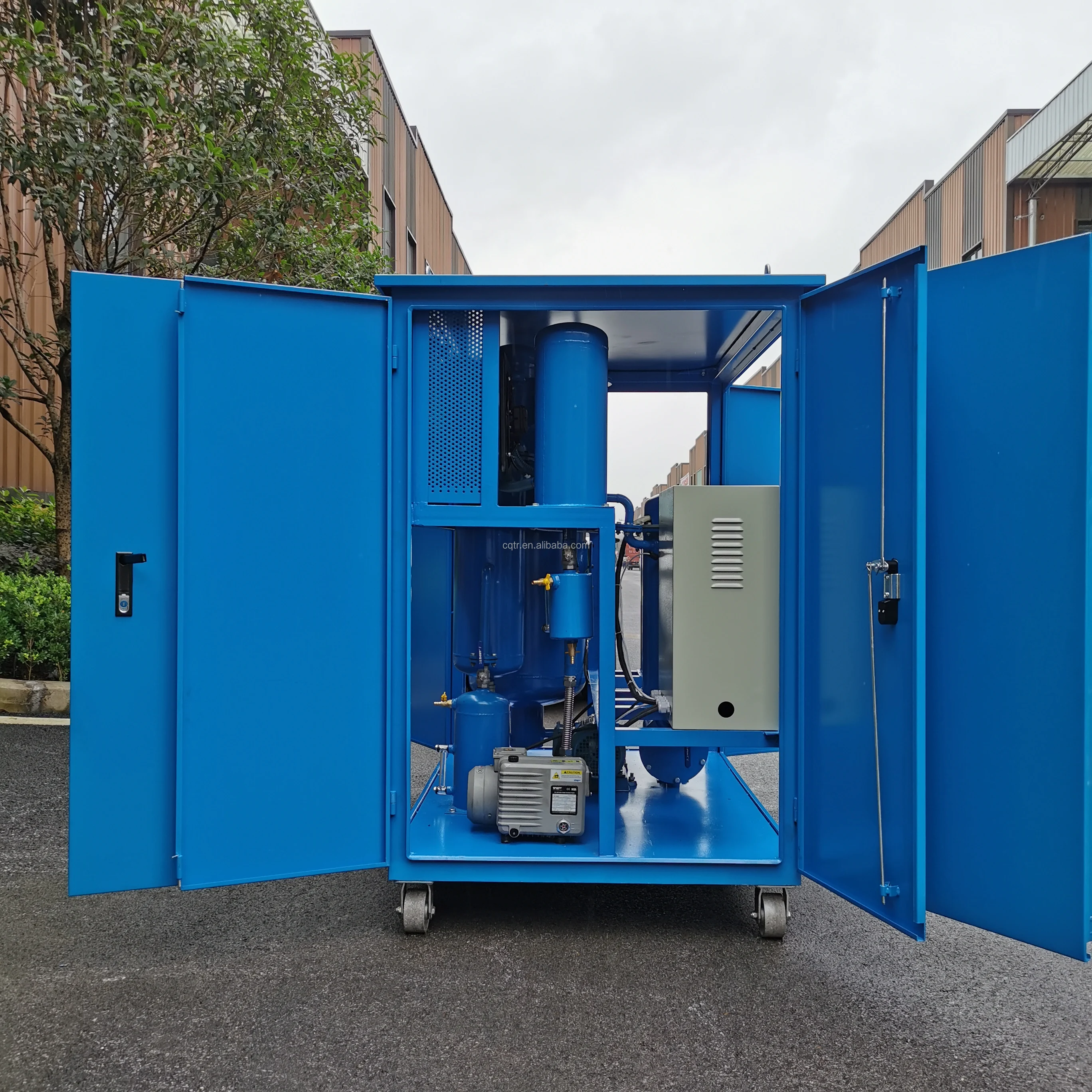

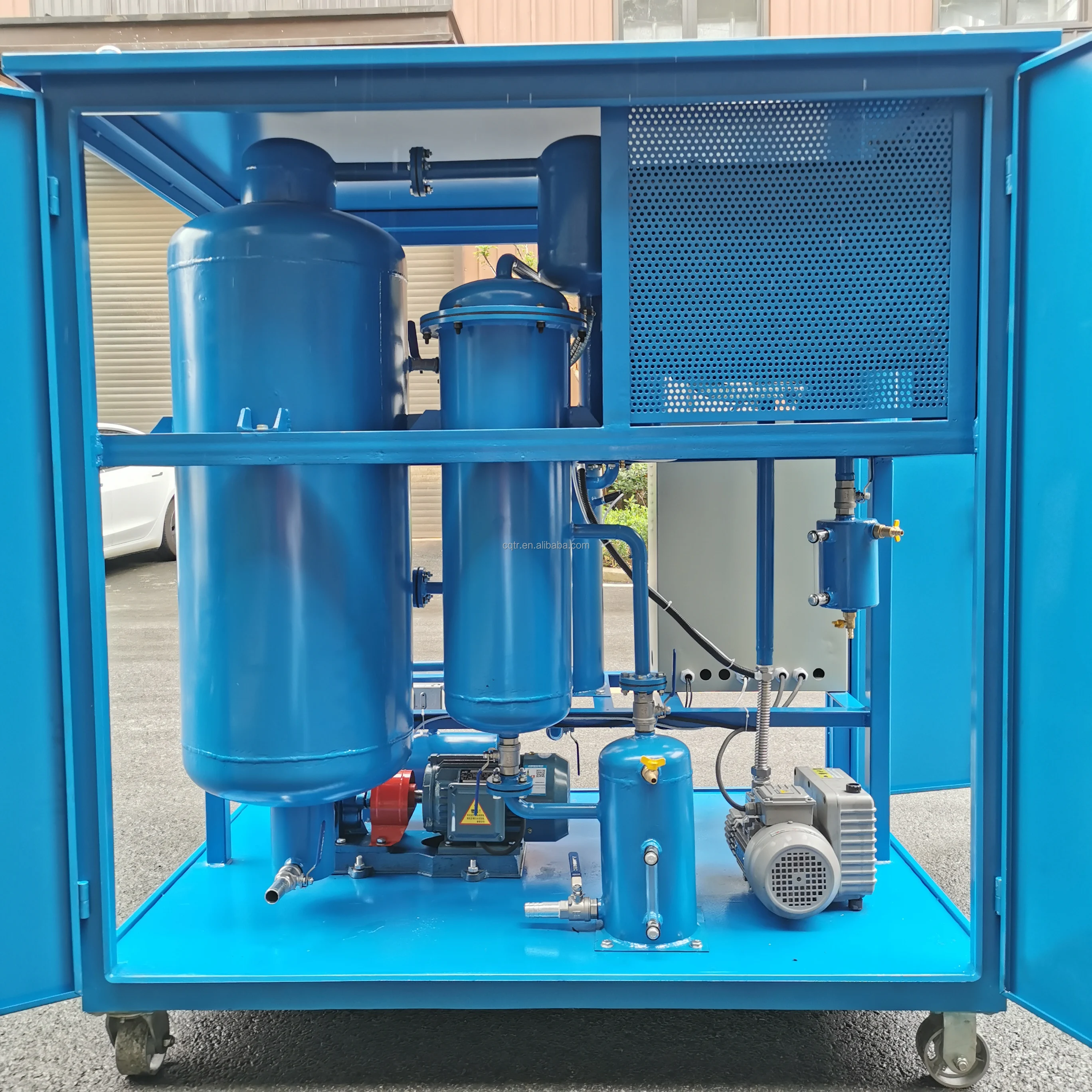

small centrifugal oil filter machine hydraulic oil purifier
- Category: >>>
- Supplier: Chongqing Tong Rui Filtration Equipment Manufacturing Co. Ltd.
Share on (1600640260281):
Product Overview
Description
Product Description
High Efficient Stainless Steel 1 Micron Hydraulic Oil Filter
Applicable scope:
It is widely used in the fields of electric power, metallurgy, mining, machinery, chemical industry, communications, manufacturing, food stuff for purification or regeneration of hydraulic oil, shafting oil, refrigerator oil, machine oil, die-casting oil, air compressor oil, gear oil, heat treating oil, anti-wear hydraulic oil, emulsified oil, high water content oil ect. waste oil or contaminated oil, as well as injection molding oil, cylinder oil, textile knitting oil, high speed machinery oil, high precision lube oil.
Advantages:
1) Combined with coalescence separation and vacuum separation, water separation adopts world advanced coalescence separation technology, which is able to rapidly remove big quantity water and trace moisture from high water content lube oil.
2) High decontaminate ability, big area, deep levels, high precision FH rectangle filtration system is capable of remove metal particles, dust, impurities effectively.
3) H.P.M polymer adsorption material with Tongrui technology, utilizing high quality parts and sealing materials, meeting the requirement that high viscosity oil need high temperature in filtrating, extend ranges and types of oil to be filtrate-able.
4) Stainless steel filter elements with seats form nets are cleanable, economical, and reusable.
5) Heating system utilized optimized piping design, ensures averagely heating, no bypassed area, stable oil temperature.
6) Humanized design, dual infrared liquid level control system, relay protection, overload protection. Overload electric protection control system and oil temperature stabilizing system ensures easy operation and safety.
7) It is suitable for all sorts of lube oil purification and regeneration, to remove moisture, gas, mechanical impurities, acid ect. harmful substance, and ensure the cleanness of oil after treatment, make kinematic viscosity, flash point meet national standard.
8) After processing with this type of machine, the oil have low emulsification value, low water content, can be used in domestic or abroad high precision hydraulic lubricating equipment.
Technical Specification | ||||||
Specification | ZJD-6 (360L/H) | ZJD-10 (600L/H) | ZJD-20 (1200L/H) | |||
ZJD-30 (1800L/H) | ZJD-50 (3000L/H) | ZJD-75 (4500L/H) | ||||
ZJD-100 (6000L/H) | ZJD-150(9000L/H) | ZJD-200 (12000L/H) | ||||
Item | vacuum degree | Mpa | -0.06~-0.095 | |||
working temperature | ℃ | 0~100 | ||||
working pressure | Mpa | less than 0.4 | ||||
power supply | 380V/50Hz | |||||
Oil Index After Treatment | demulsification value | min | less than 15min | |||
gas content | % | less than 0.1% | ||||
water content | % | trace | ||||
cleanness | NAS | less than 6 | ||||
precision | um | less than 5(customized) | ||||

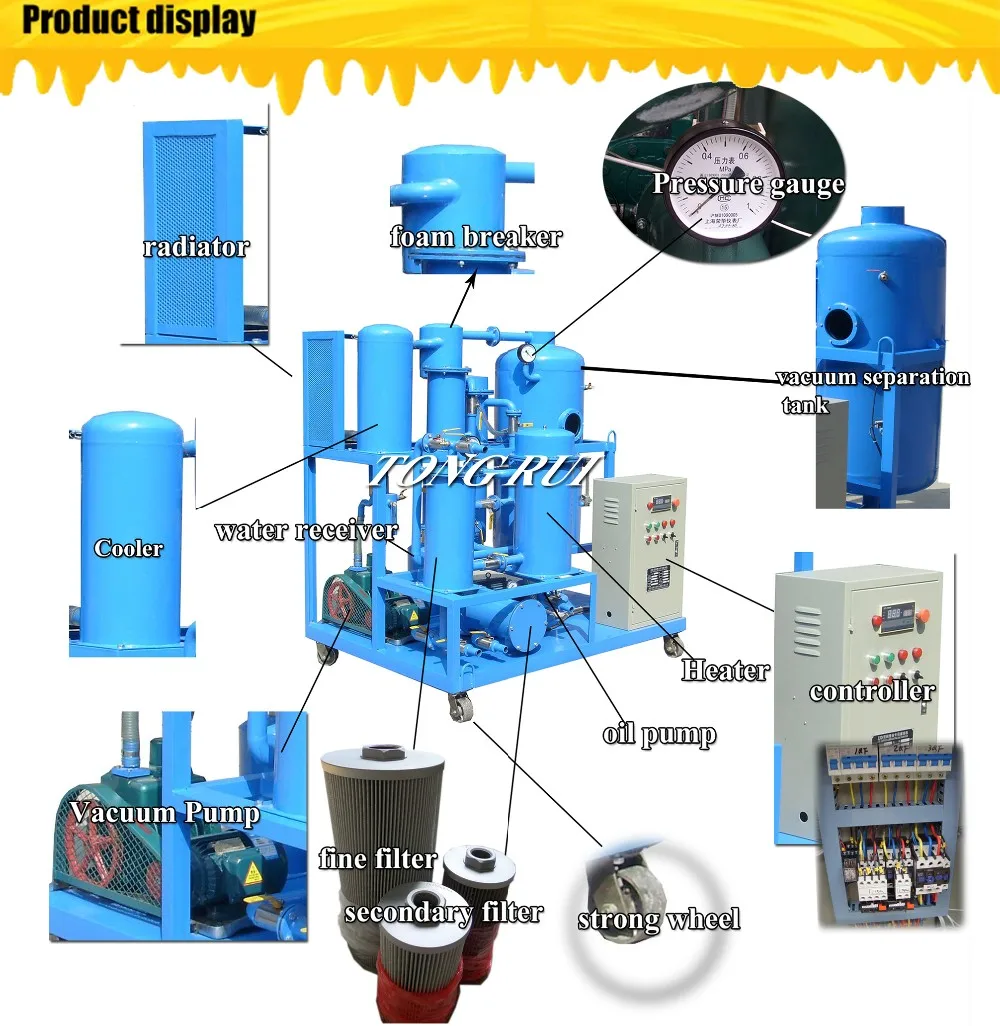

Main parts
Main parts
Used oil tank, Heater, Pre-filter, Water separator, Water receiver, Vacuum separation tank, Oil pump, Oil pump, Secondary filter, Fine filter, Clean oil tank, Foam breaker, Radiator, Water receiver, Vacuum pump, Cooler, Water receiver, Exhaust port.)
Detailed Images
Machine Parts

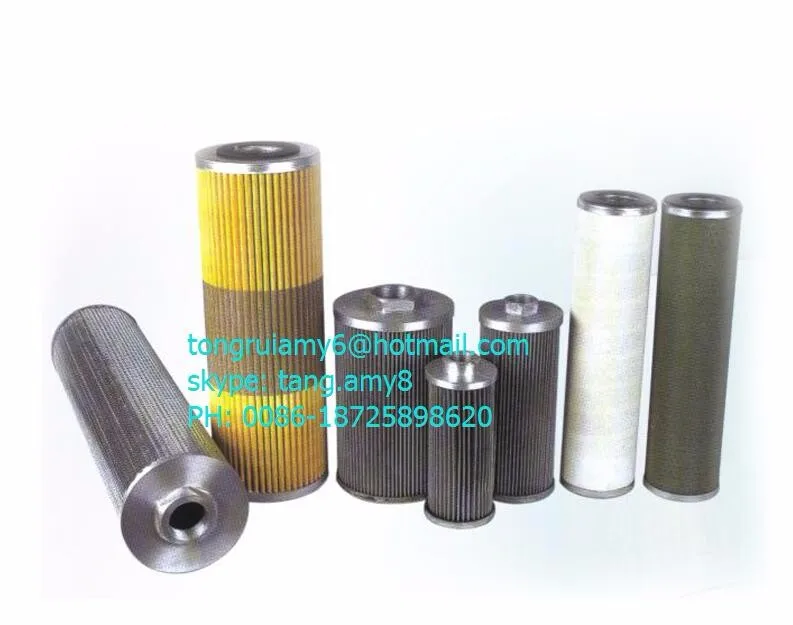

Name: filters
Brand: Tongrui
Original: China, USA, Japan, German
stainless steel material
Main Features
Function: demulsification, remove water, gas, particles
Brand: Tongrui
For:
Used lubricant oil, turbine oil, gear oil, hydraulic oil, air compressor oil, quenching oil and so on kinds of industrial oil
Customized function:
remove lubricant oil color
remove large quantity particles
remove large quantity water more than 50%
remove gas in the oil
improve PH value in the oil
improve oil's functions
Our service
1) If you'd like we can provide overseas service
2)Maintenance and replacement service, when it is necessary
3)tracking service for products for 12 months, lifetime service
2)Maintenance and replacement service, when it is necessary
3)tracking service for products for 12 months, lifetime service
4)lifetime technical assistant service.
5) old customer has more discount, or the customer introduce others to us, which has more discount.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
24hours on line service
After-Sales Service
*Train how to use the machine, provide operation manual
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging( strong wooden case) | ||
Size | 2000 (L) * 1600 (W) * 2100 (D)(according to the machine) | |
Weight | 1000KG | |
Packaging Details | The normal package is wooden case, which is suitable for long time sea delivery. If container is too tigher,we will use film for packing or pack it according to customers special request. | |
Packaging( strong wooden case) | ||
Size | 2000(L)* 1600*2100 | |
Weight | 1000KG | |
Packaging Details | Wooden Cases: strong wooden cases, suitable for long distance ocean freight transportation and changing climate, good resistance to moisture and shocks | |
