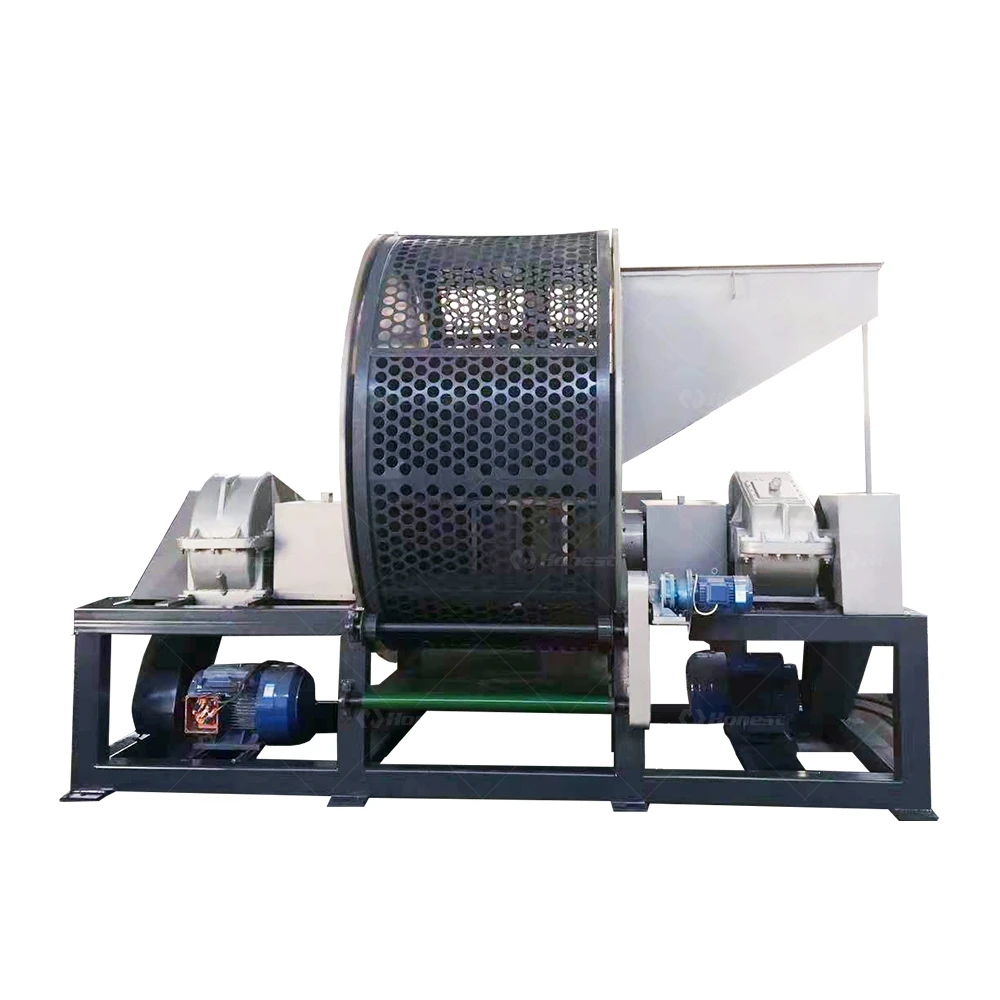

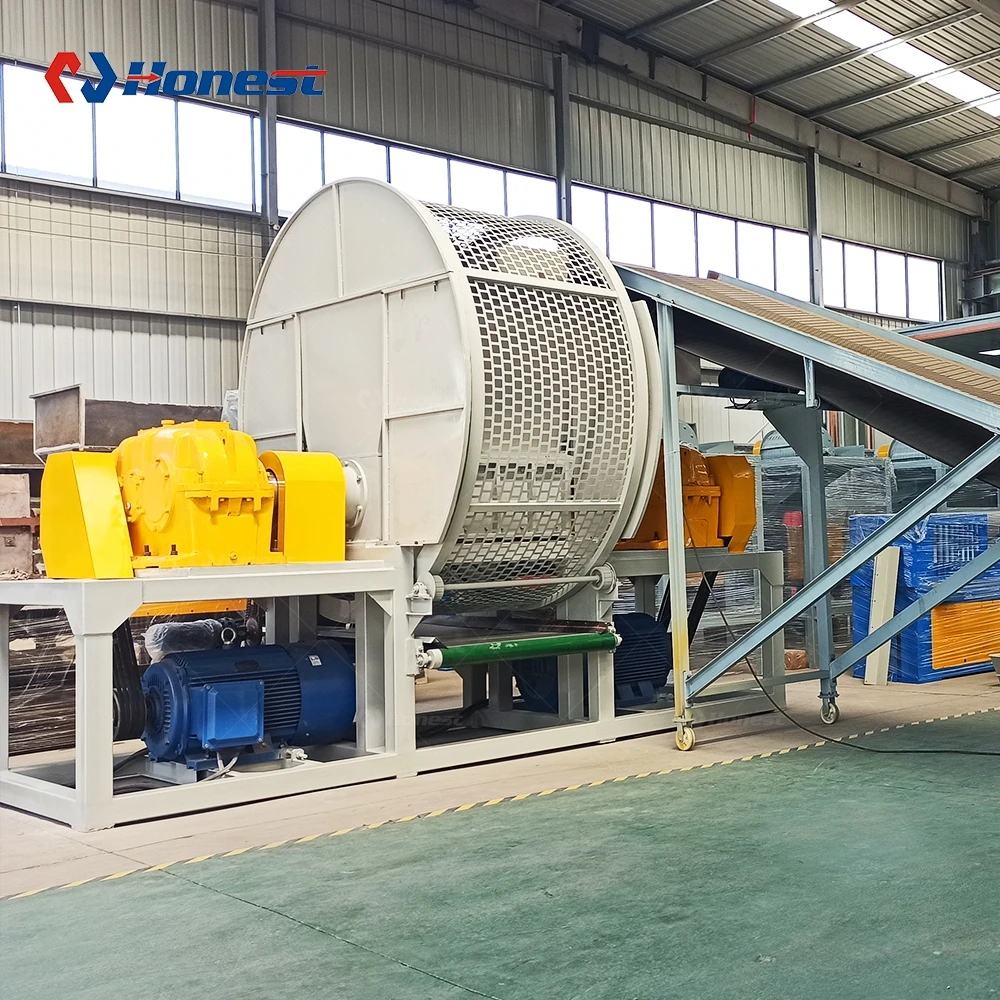

Asphalt Mixing Plant Used Rubber Chips And Rubber Blocks Tire Shredder is the preprocessing equipment, the pre-sorted material to be chopped is fed into the two shafts whose rotors are moving slowly in opposite directions (therefore dust and noise free).

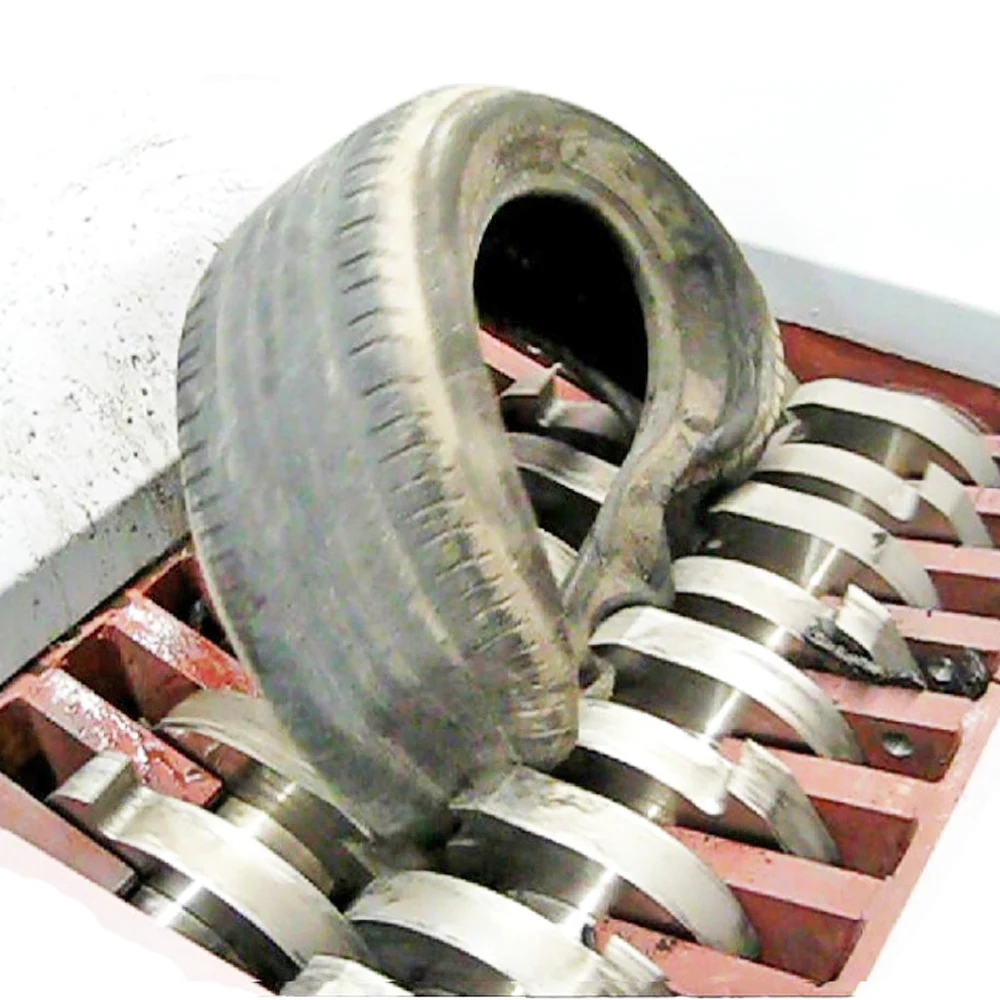

The cutting discs are plugged on the shaft. This double shaft shredder is designed for longevity; The number of the knives or their width respectively determines the size of the output material.
| Model | HNWT1000 | HNWT1200 | HNWT1500 | HNWT1900 | HNWT2600 |
| Motor Power | 30*2 Kw | 75*2 Kw | 90*2 Kw | 110*2 Kw | 160*2 Kw |
| Capacity | 1-1.5 T/H | 2-3 T/H | 4-5 T/H | 6-8 T/H | 8-12 T/H |
| Blade Number | 26 Pieces | 30 Pieces | 26 Pieces | 32 Pieces | 42 Pieces |
| Output Size | 3-8 cm | 3-8 cm | 3-8 cm | 3-8 cm | 3-8 cm |
| Input Opening Size | 1200*1000 mm | 1500*1200 mm | 2000*1500 mm | 2500*2000 mm | 3000*2500 mm |
| Dimension L/W/H | 3.5*2.2*3.5 m | 4.6*2.3*3.5 m | 5.1*2.4*3.5 m | 6.5*2.5*3.5 m | 8.2*4.0*3.5 m |
| Weight | 8.5 T | 13 T | 15 T | 17.5 T | 36 T |
We design single or multi-hook blades with different thickness for different materials.

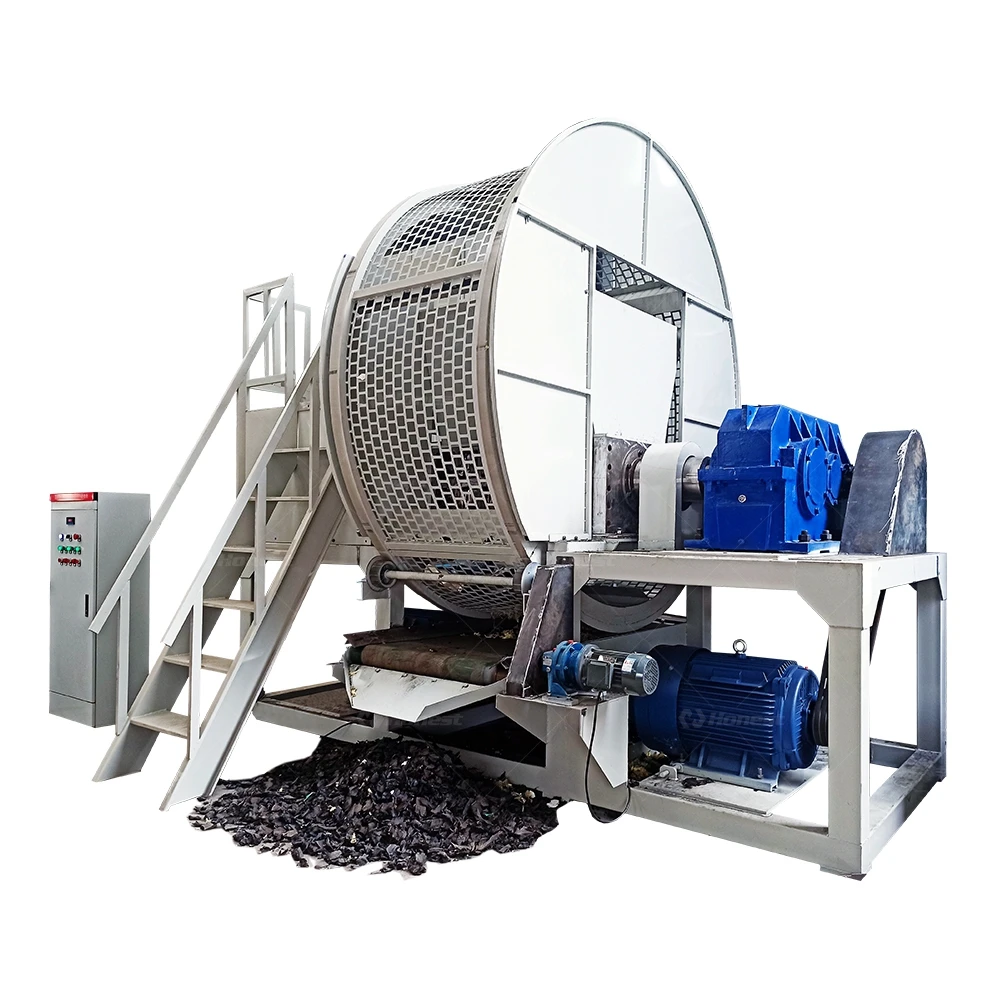

Asphalt Mixing Plant Used Rubber Chips And Rubber Blocks Tire Shredder is mainly composed of feed hopper, double shaft cutting system, PLC control system, discharging conveyor system and power system, etc;

The rotary sieve structure can control the output size easily, is convenient for maintenance.

Steel plate of crushing chamber is very thick, so very strong and durable, long service life.

Blade materials include 9CrSi, Cr12MoV, SKD-II, D2, DC53, etc. It also can be customized.

The speed reducer can adopt hard tooth surface reducer, high precision, high transmission efficiency.

Feed hopper can be designed according to different raw materials, suitable for different materials.

Button control, easy to operate, start, stop,forward, reverse, overload protection, etc.
