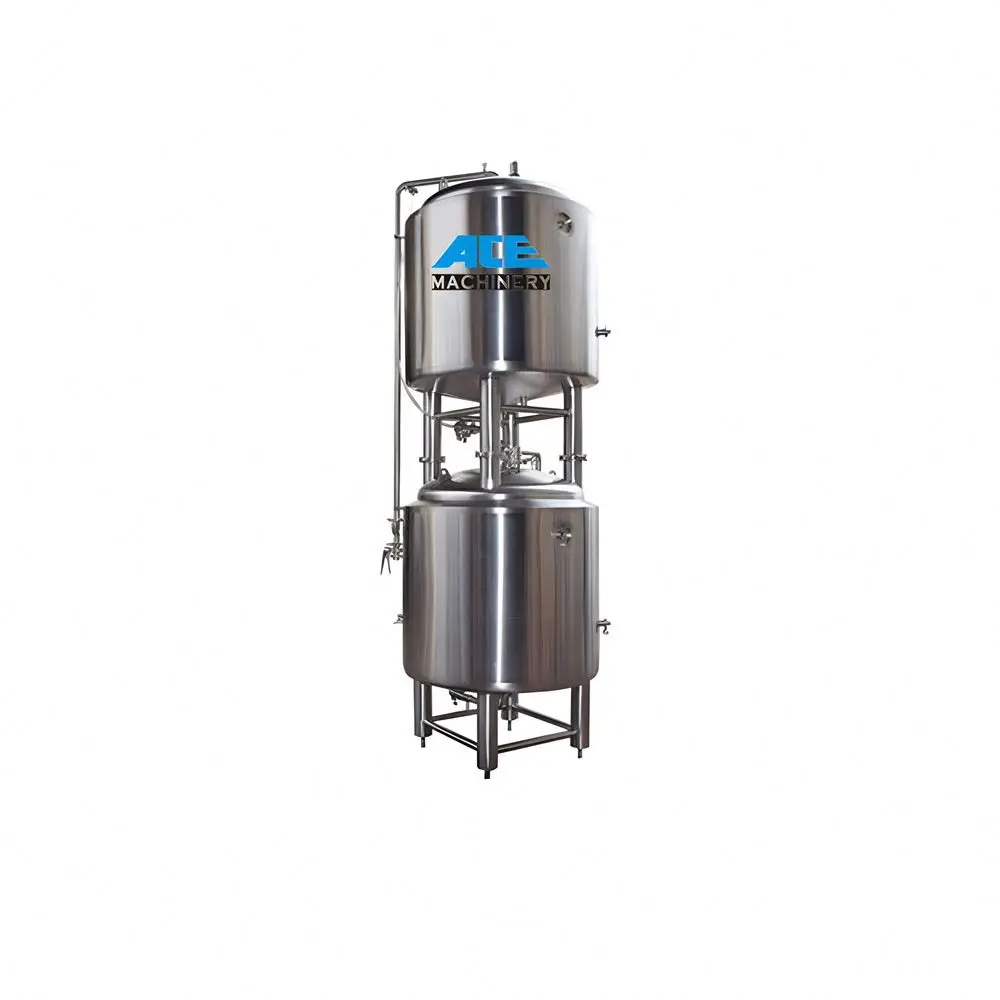

Коническая ферментационная емкость объемом 1200 л оборудование для брожения пива изоляционный контейнер резервуар
- Category: >>>
- Supplier: Wenzhou Ace Machinery Co. Ltd.
Share on (1600640448679):
Product Overview
Description
1200L Conical Fermentation Tank Beer Fermenting Equipment Insulation Container Brite Tank
20 Years Of Experience. Reasonable Price And Best Service.Advanced Technology.Please Contact us for the offer.
Video
Products Description

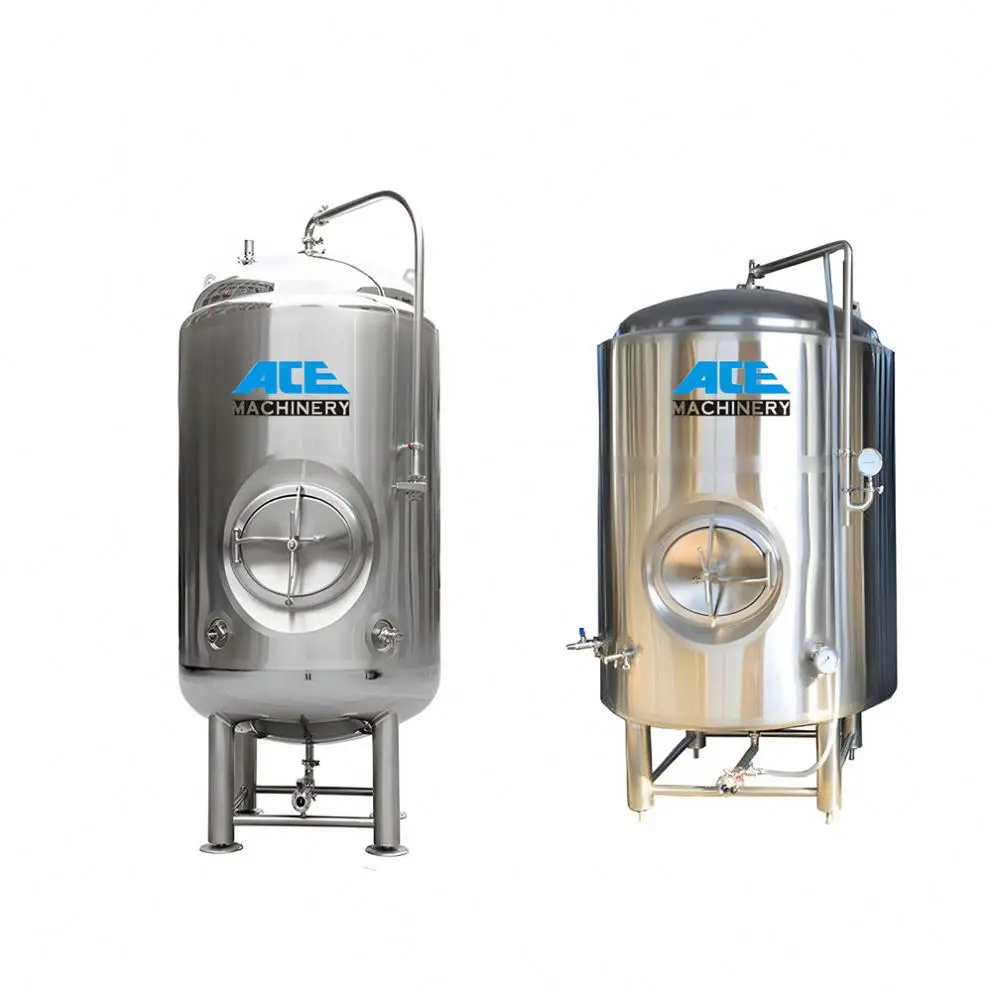

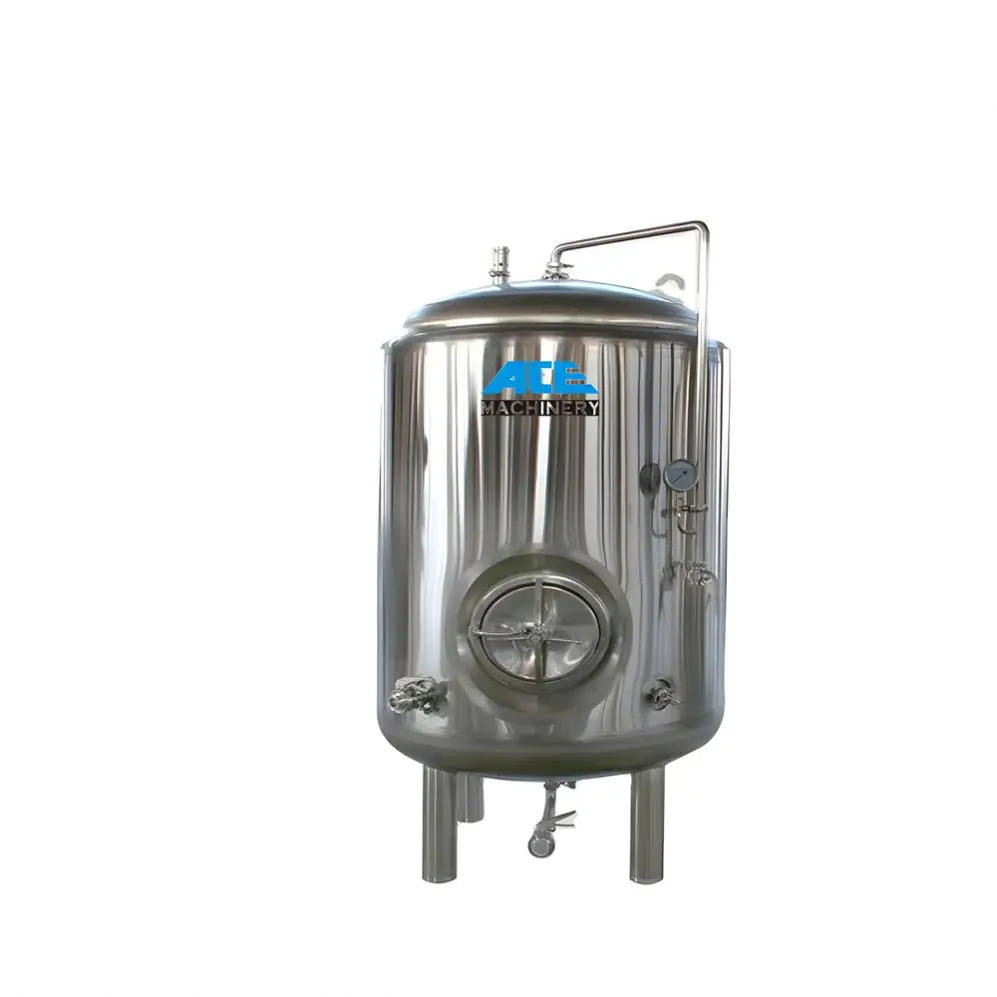

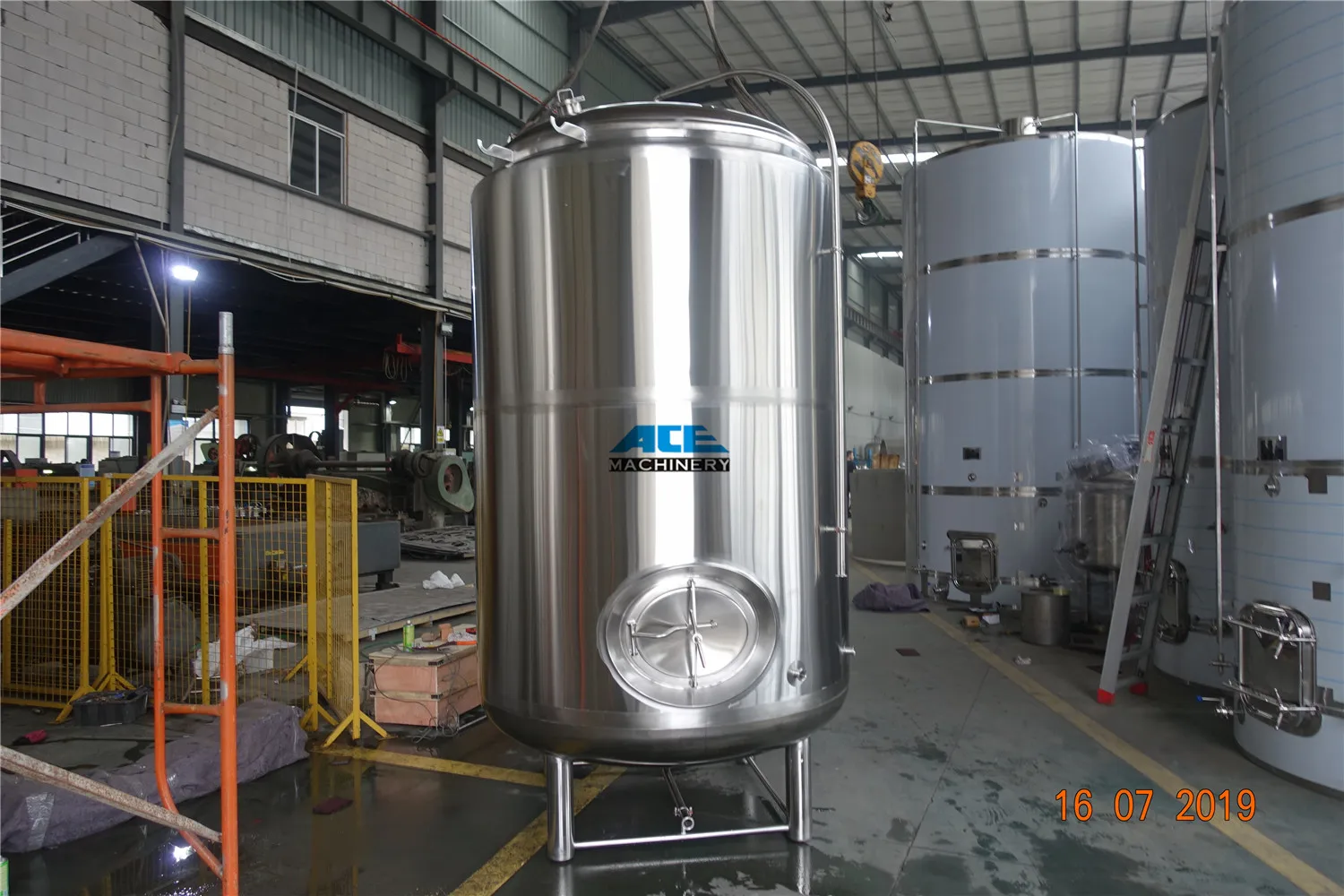

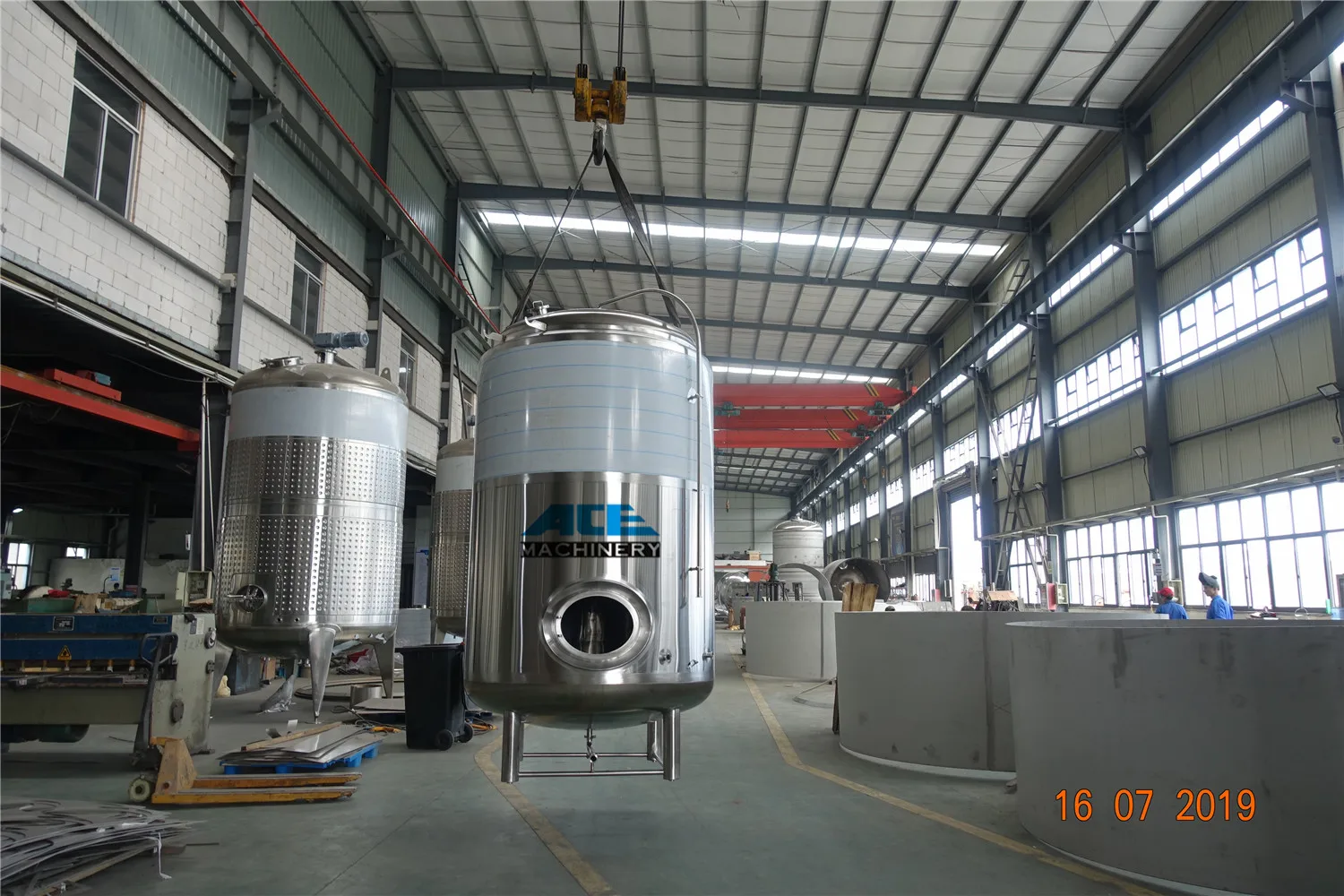

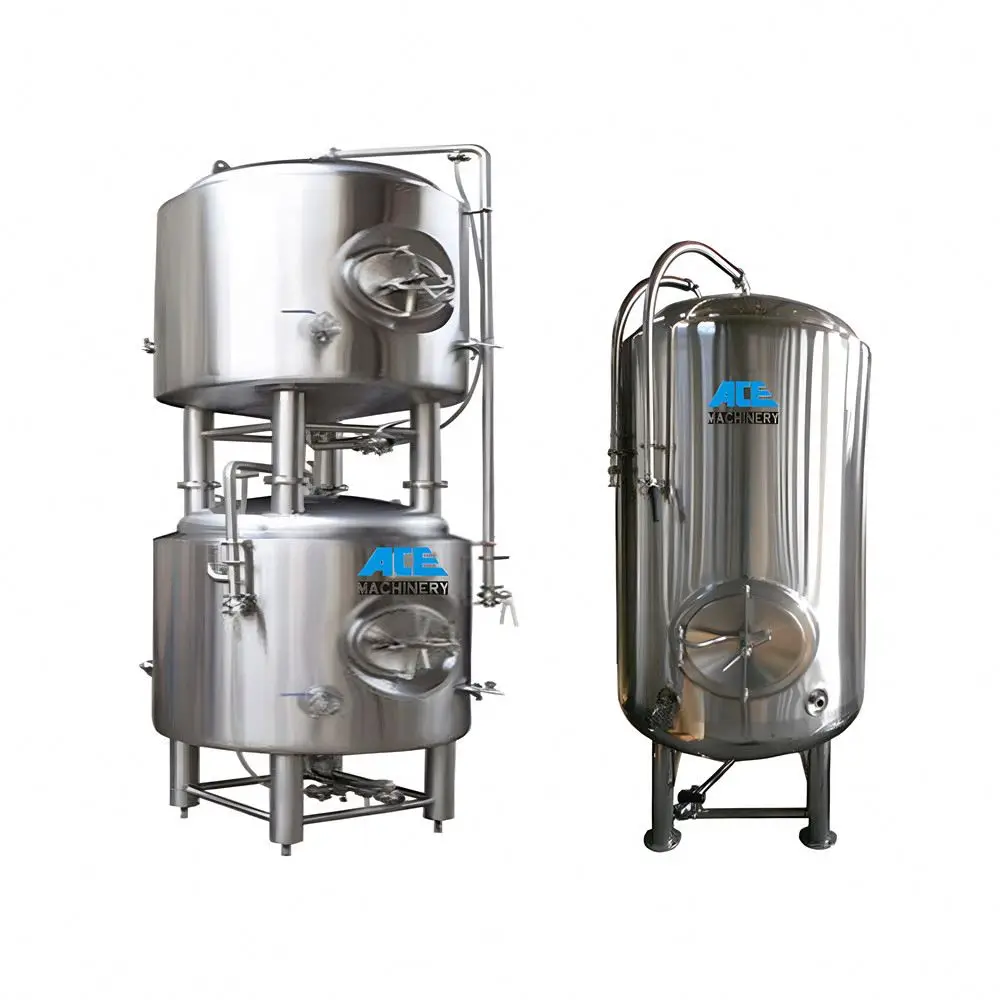

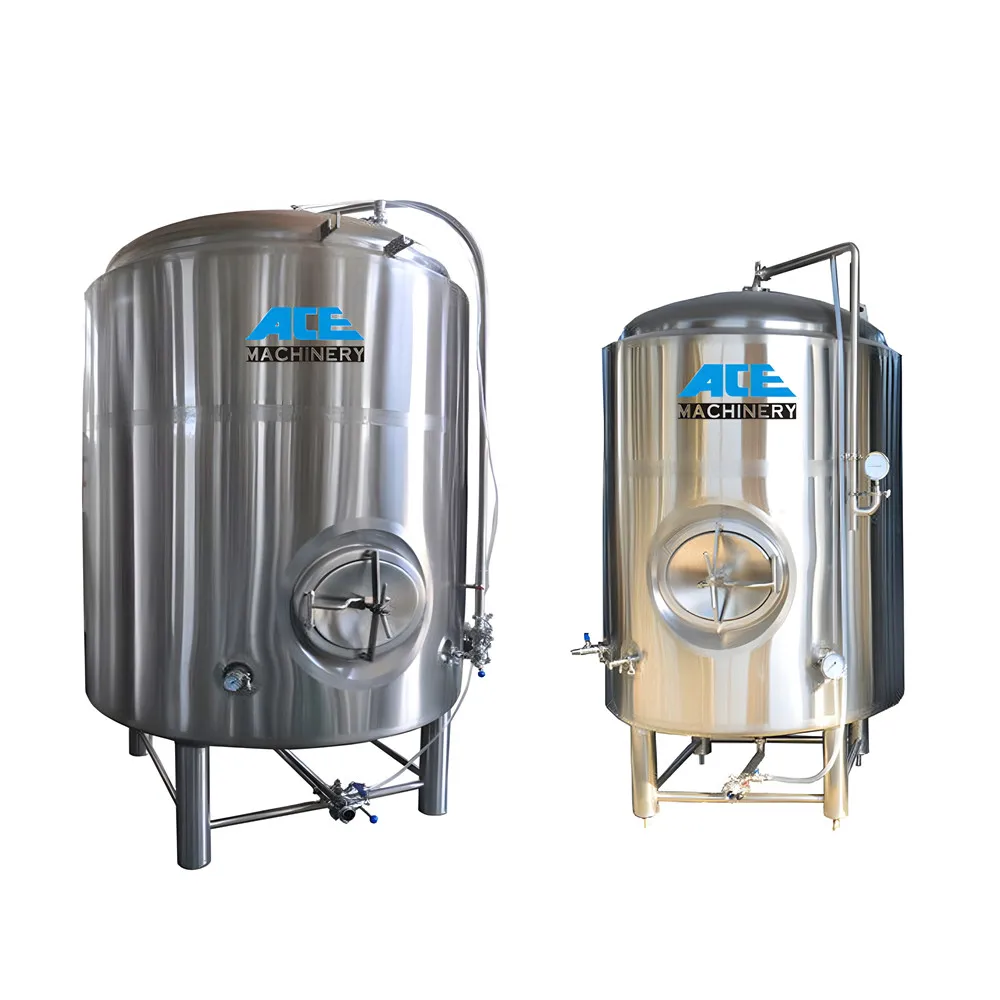

Bright tank
The bright beer tank is a tank of store beer, so people also called it a storage tank. They are most applying in the beer industry, Why they call it a “bright beer tank”?someone also calls it brite beer tank. In fact, after beer fermented and mature, then need to filter and wipe off the mixed and yeast from the fermentation liquid, make beer clarify and shine. At last, the fermentation liquid finished filtering is bright beer. This is also the last step of the brewing process, then beer bottling.
How long does beer stay in the brite beer tank?
If you are bottling, canning, or kegging a brewery will normally have a beer bright tank for every 4-5 fermentors. Beer will usually spend two days in a brite beer tank to clarify and adjust carbonation levels while most fermenters hold the beer for 10-20 days.
How to calculate the volume of the brite beer tank?
The bright beer tank calculation coefficient ratio is the same as the fermentor, their effective volume is 0.8 of total effective. Then You will usually get yield 100% of the beer in a beer bright tank which helps you plan to pack.
A conical fermenter tank will always leave some portion of the beer behind as you are normally drawing from the racking arm and the yeast sediment levels will vary. You never know exactly how much beer you will get from it. Because of the known volumes, the beer bright tanks can also be handy for tax, packing fee shipping determination, etc.
Is a beer brite tank required for brewing equipment, and some home brewers?
Most of the brewers will use it to often paired with conical fermentors, thus enabling higher batch conversion rates in more expensive fermentors, resulting in cost savings. Therefore, for the business brewery and factory they are helpful and beneficial, they often use stainless steel brite beer tanks, these tanks can be reused indefinitely, produce no odor or discoloration, and are easy to disinfect.
As for home brewers, that was necessary. They can move beer more easily, don’t need to fill from the dip tube, and the meantime also avoid oxidation.

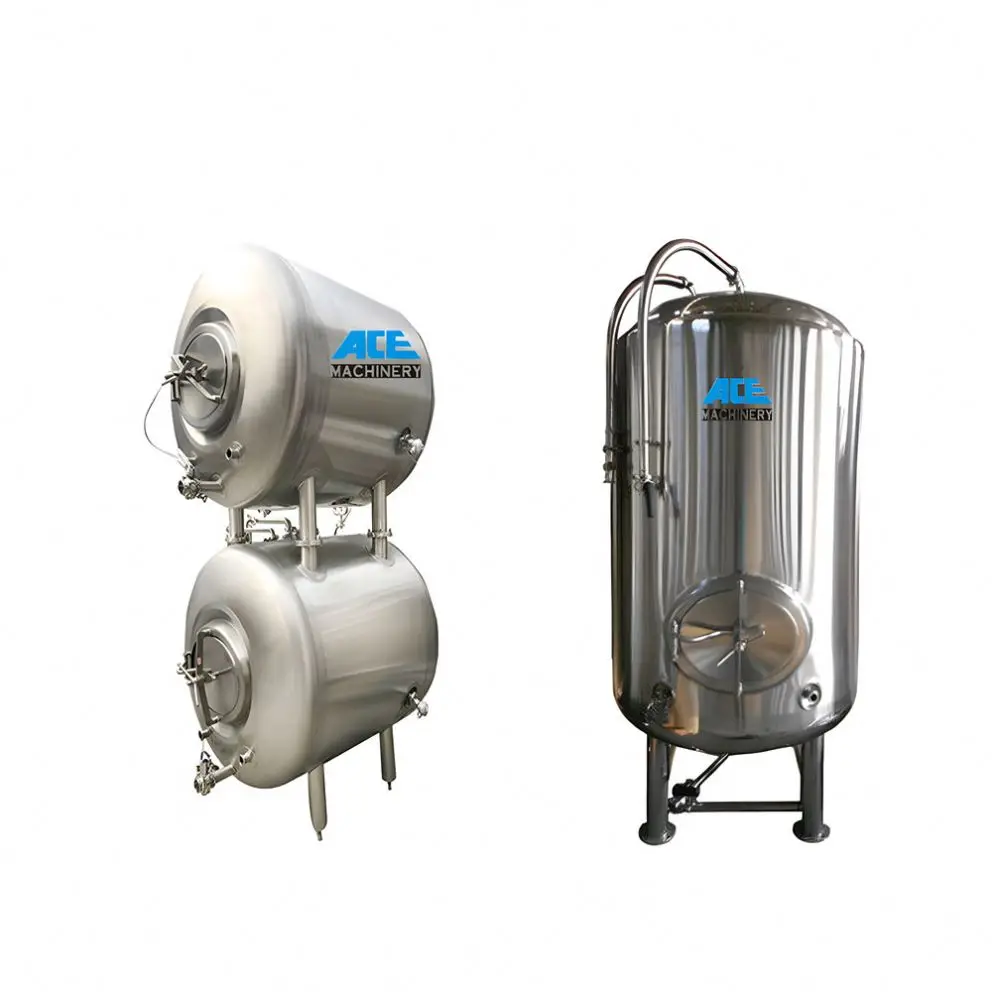

The differences in using vertical and horizontal brite beer tanks
1.the vertical bright beer tank
a. Due to the pressure requirements, the diameter of the bright beer tank is generally limited, so that the capacity of the vertical brite tank can not be made too large, otherwise, it will be very higher, it is difficult to place and move.
b.The liquid level height of the vertical tank is 2-3 times larger than that of the horizontal tank. Therefore, when the beer is put into the brite tank, it is necessary to overcome the pressure larger than that of the horizontal tank (about 0.0098mpa pressure needs to be increased for every 1 m height increase), which correspondingly increases the pressure required for the filtration process.
If the filtered beer is sent in by compressed air, it will increase the pressure on the storage tank. However, on the contrary, it is because the brite tank has a relatively high liquid pressure, so that the beer can be put into the tank more smoothly. When filling, a smaller delivery pressure can be used.
c. The maximum contact surface of the beer in the vertical brite tank with compressed air (oxygen) is the cross-sectional area of the tank, which is relatively much smaller than the horizontal bright beer tank, so that the degree of dissolution and oxidation effective is better in the bright beer tank.
2.The horizontal bright beer tank
a. The volume can be made very large. It is also very convenient to clean, including manual cleaning or CIP device (transportable). Since the diameter is generally less than 2.5m, the pressure condition is slightly better. And can be done very long diameter of the tank.
b. The horizontal bright beer tank’s height is equal to the diameter, and the liquid level pressure will not exceed 0.3 MPa. Therefore, the tank pressure can be smaller, and the post fermenter pressure can be lower, but when the brite beer enters the tank (especially at the stage of filtration) When the filtration speed is faster. It is easy to produce swell and foam. The amount of compressed air consumed during filling is also more.
If you are bottling, canning, or kegging a brewery will normally have a beer bright tank for every 4-5 fermentors. Beer will usually spend two days in a brite beer tank to clarify and adjust carbonation levels while most fermenters hold the beer for 10-20 days.
How to calculate the volume of the brite beer tank?
The bright beer tank calculation coefficient ratio is the same as the fermentor, their effective volume is 0.8 of total effective. Then You will usually get yield 100% of the beer in a beer bright tank which helps you plan to pack.
A conical fermenter tank will always leave some portion of the beer behind as you are normally drawing from the racking arm and the yeast sediment levels will vary. You never know exactly how much beer you will get from it. Because of the known volumes, the beer bright tanks can also be handy for tax, packing fee shipping determination, etc.
Is a beer brite tank required for brewing equipment, and some home brewers?
Most of the brewers will use it to often paired with conical fermentors, thus enabling higher batch conversion rates in more expensive fermentors, resulting in cost savings. Therefore, for the business brewery and factory they are helpful and beneficial, they often use stainless steel brite beer tanks, these tanks can be reused indefinitely, produce no odor or discoloration, and are easy to disinfect.
As for home brewers, that was necessary. They can move beer more easily, don’t need to fill from the dip tube, and the meantime also avoid oxidation.
The differences in using vertical and horizontal brite beer tanks
1.the vertical bright beer tank
a. Due to the pressure requirements, the diameter of the bright beer tank is generally limited, so that the capacity of the vertical brite tank can not be made too large, otherwise, it will be very higher, it is difficult to place and move.
b.The liquid level height of the vertical tank is 2-3 times larger than that of the horizontal tank. Therefore, when the beer is put into the brite tank, it is necessary to overcome the pressure larger than that of the horizontal tank (about 0.0098mpa pressure needs to be increased for every 1 m height increase), which correspondingly increases the pressure required for the filtration process.
If the filtered beer is sent in by compressed air, it will increase the pressure on the storage tank. However, on the contrary, it is because the brite tank has a relatively high liquid pressure, so that the beer can be put into the tank more smoothly. When filling, a smaller delivery pressure can be used.
c. The maximum contact surface of the beer in the vertical brite tank with compressed air (oxygen) is the cross-sectional area of the tank, which is relatively much smaller than the horizontal bright beer tank, so that the degree of dissolution and oxidation effective is better in the bright beer tank.
2.The horizontal bright beer tank
a. The volume can be made very large. It is also very convenient to clean, including manual cleaning or CIP device (transportable). Since the diameter is generally less than 2.5m, the pressure condition is slightly better. And can be done very long diameter of the tank.
b. The horizontal bright beer tank’s height is equal to the diameter, and the liquid level pressure will not exceed 0.3 MPa. Therefore, the tank pressure can be smaller, and the post fermenter pressure can be lower, but when the brite beer enters the tank (especially at the stage of filtration) When the filtration speed is faster. It is easy to produce swell and foam. The amount of compressed air consumed during filling is also more.
Thickness | Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304) thickness: 2.0mm | |
Material | Stainless steel 304 | |
Cooling way | Dimple jacket plate | |
Cleaning way | CIP in situ cleaning, with rotary spray cleaning ball | |
Insulation | Polyurethane-thickness: 100mm | |

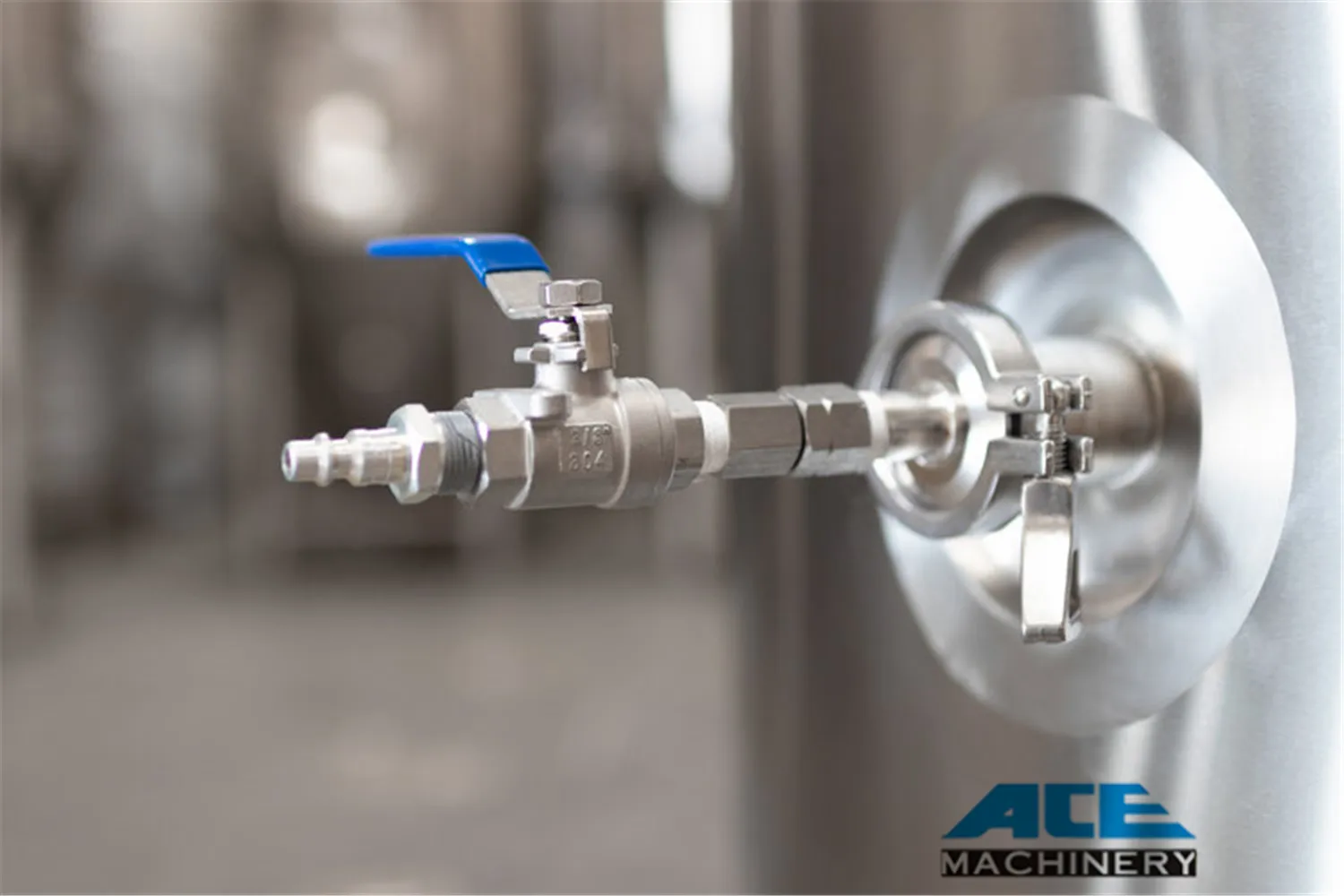

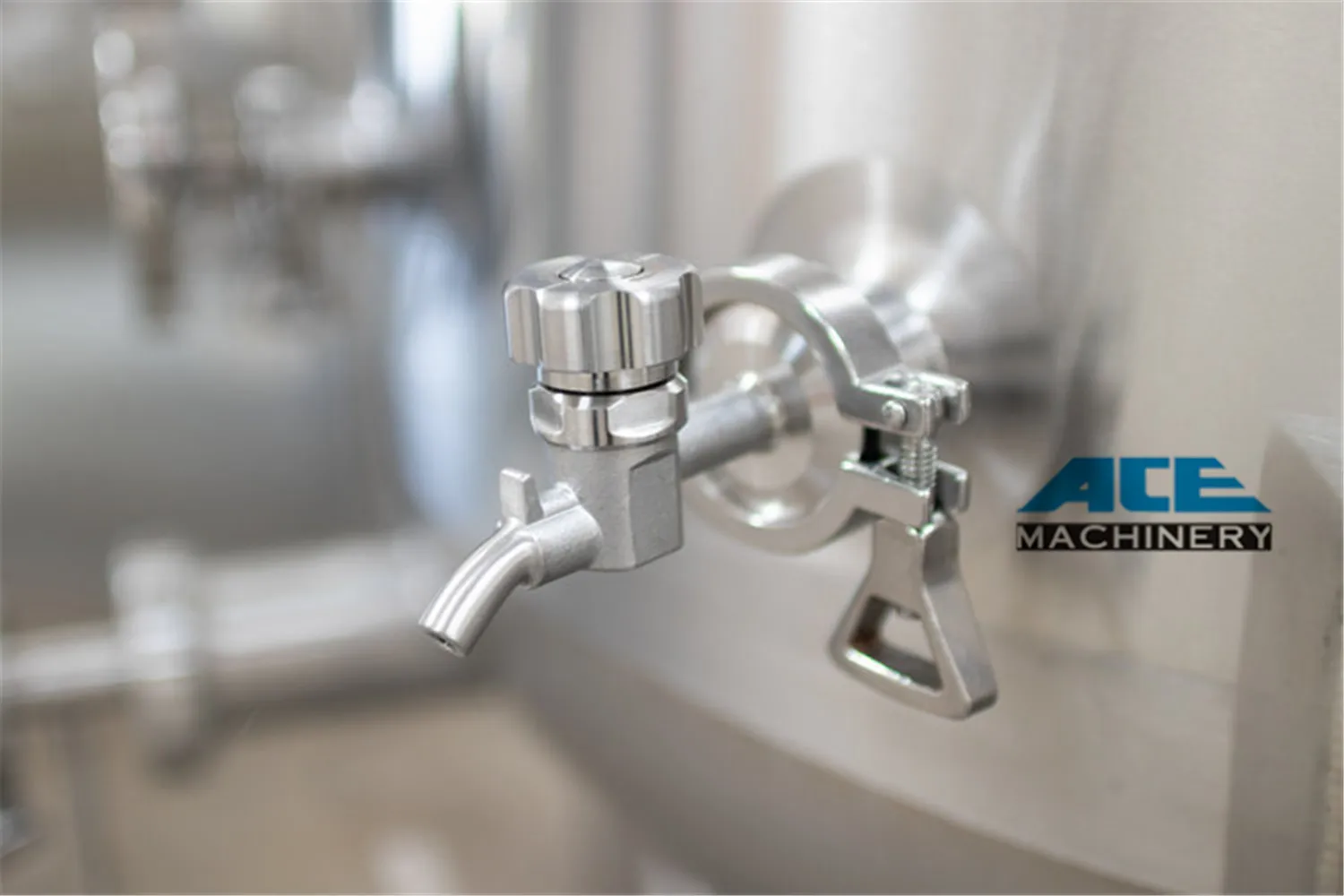

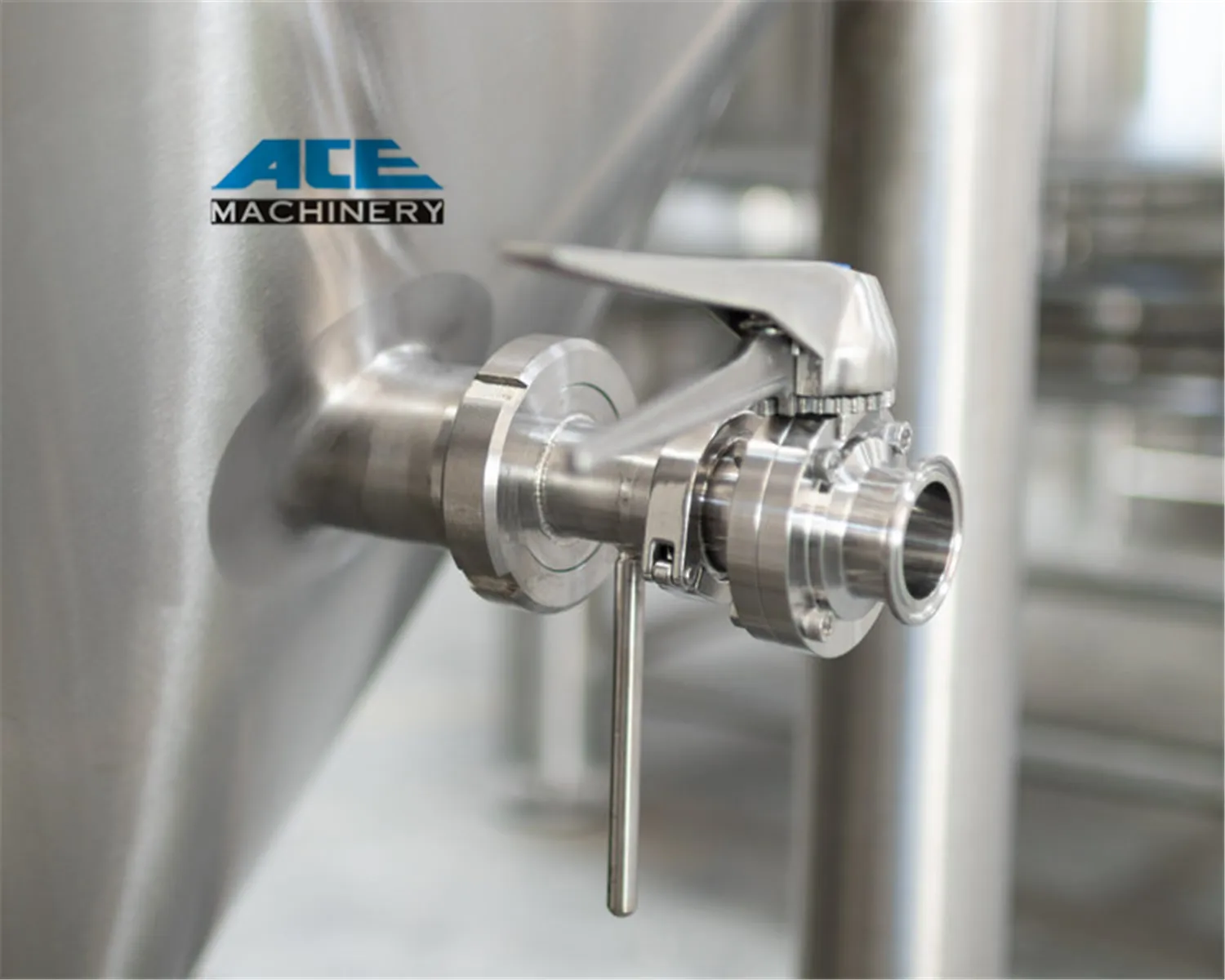

Accessories | Sample valve, Pressure gauge, Breath valve, Temperature gauge, Top manhole, Washing ball, Butterfly valves, CIP , Titanium rod,Arm, Hop port, Discharge arm and so on. | |
We can customize the Brewing equipment according to customer requirements. | ||

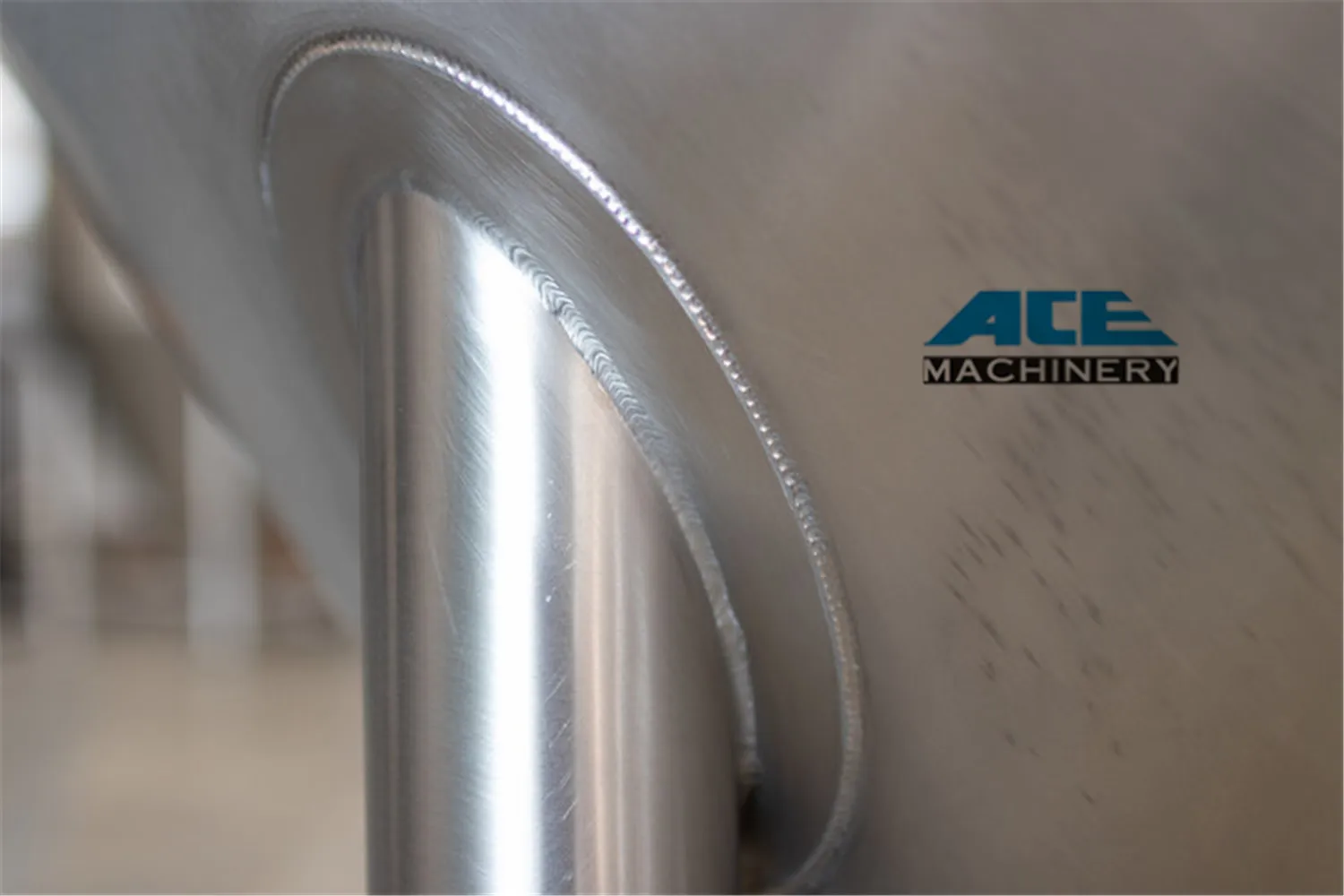

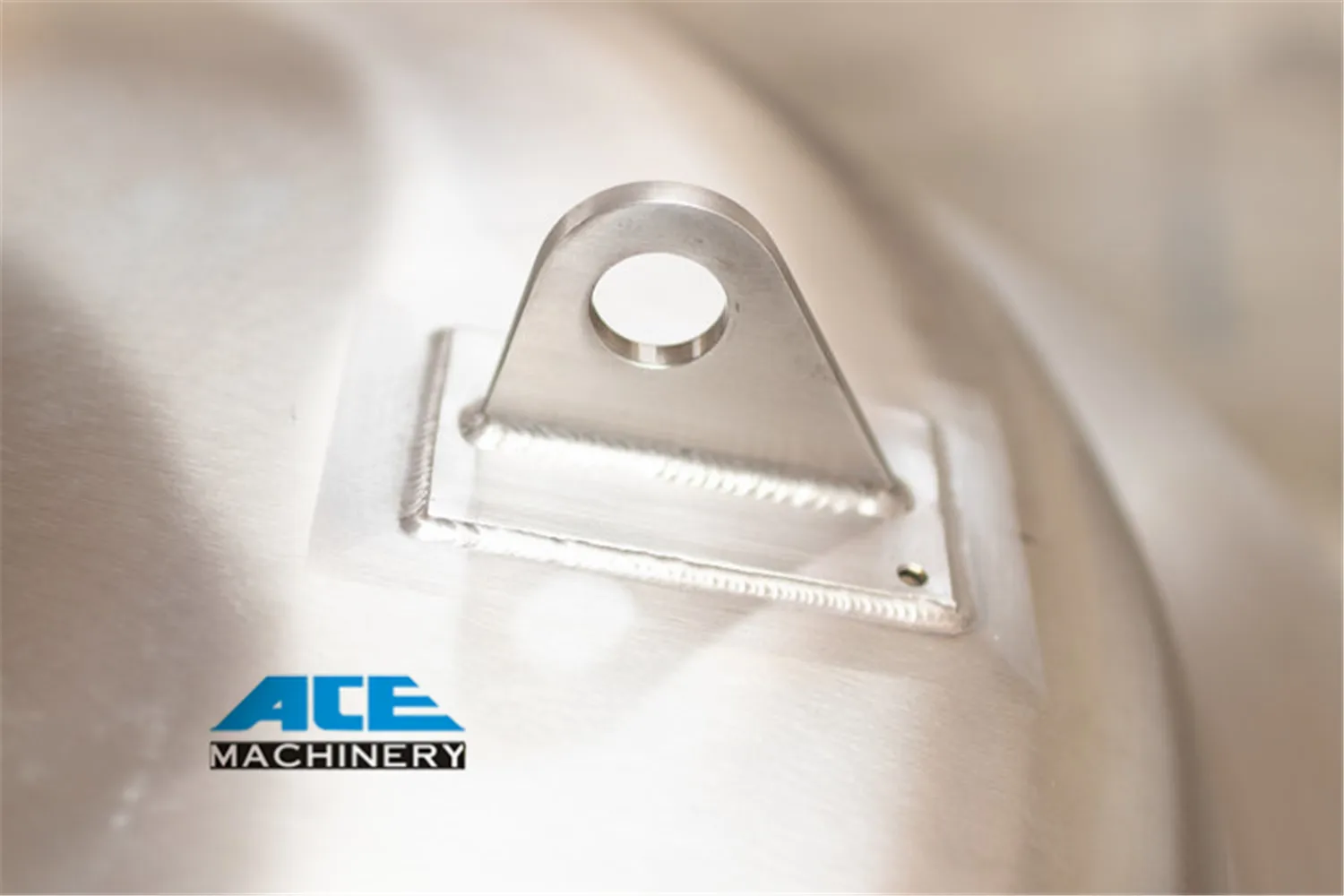

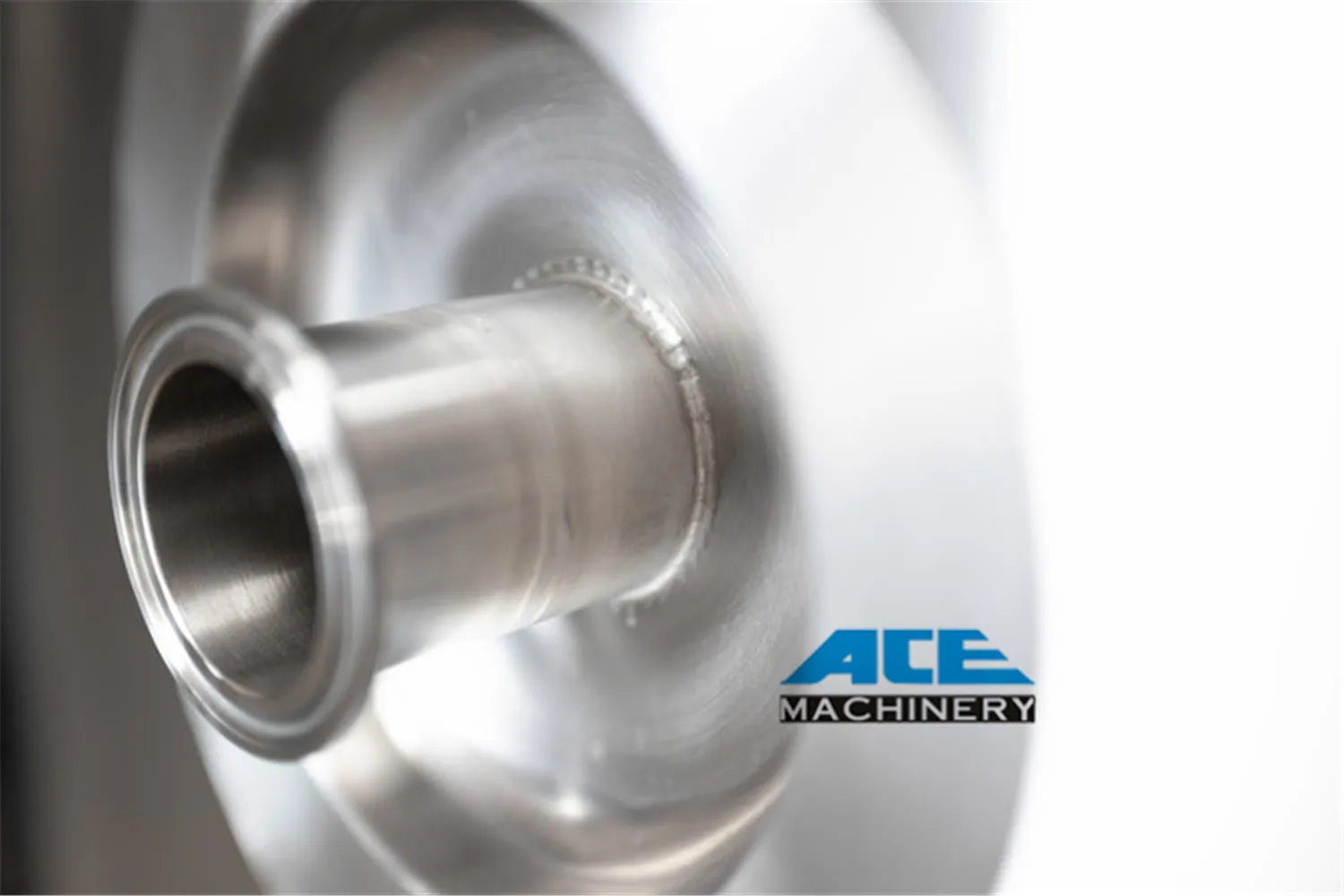

Details Images
Advantage:
1. Highly competitive price, more than 20 years production and manufacturing experience
2. ISO9001, CE (2014/68 / EU) PED certification
3. Strictly quality control, meet the European quality standard, take 3 times water pressure test during production.
4. Accept customized, professional engineers will provide design solutions for you
5.Use high-quality 304 stainless steel, ensure the thickness of the material
6. Dimple plate cooling jacket, better cooling effect and longer service life

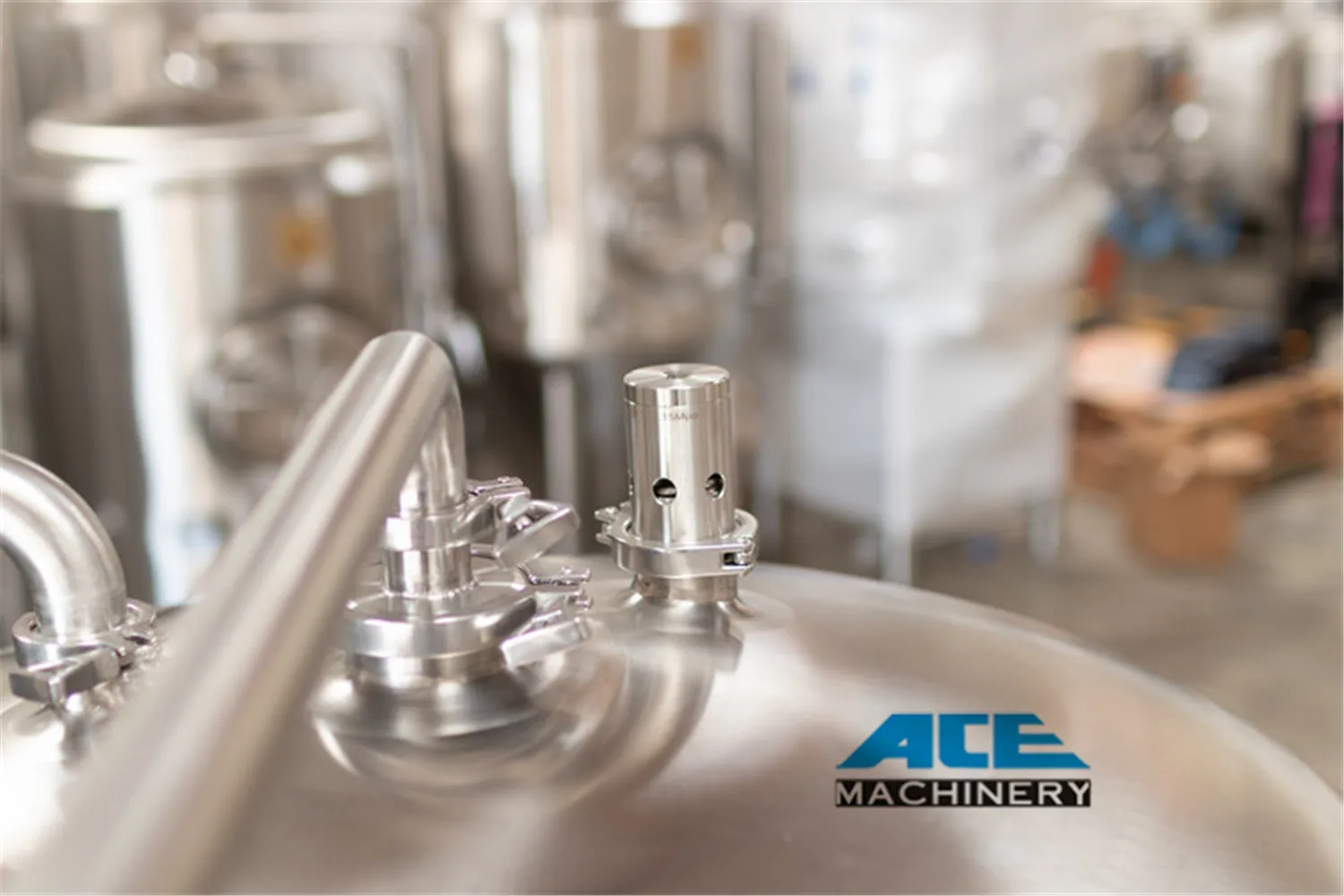

7. Equipped with safety valve, water-sealed pressure valve, to ensure the safe operation of the fermentation tank
Brewing equipment

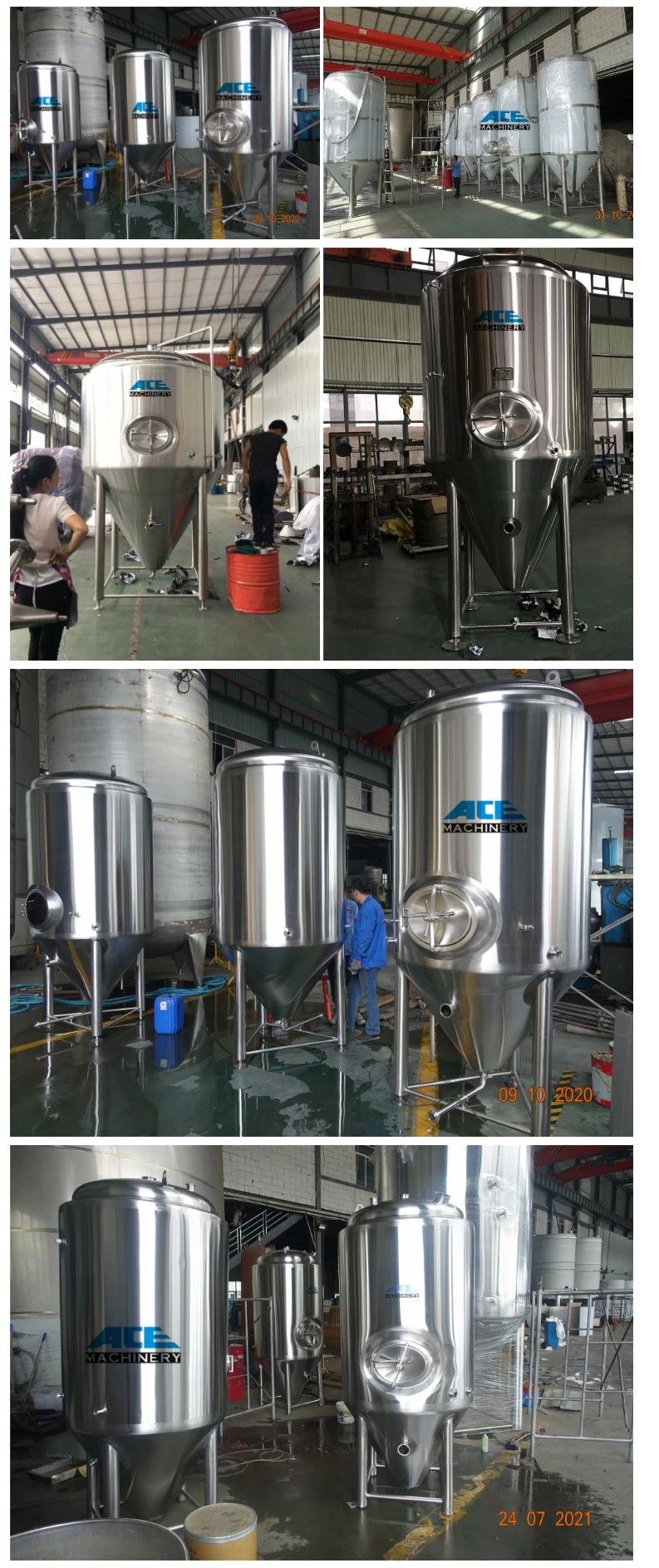

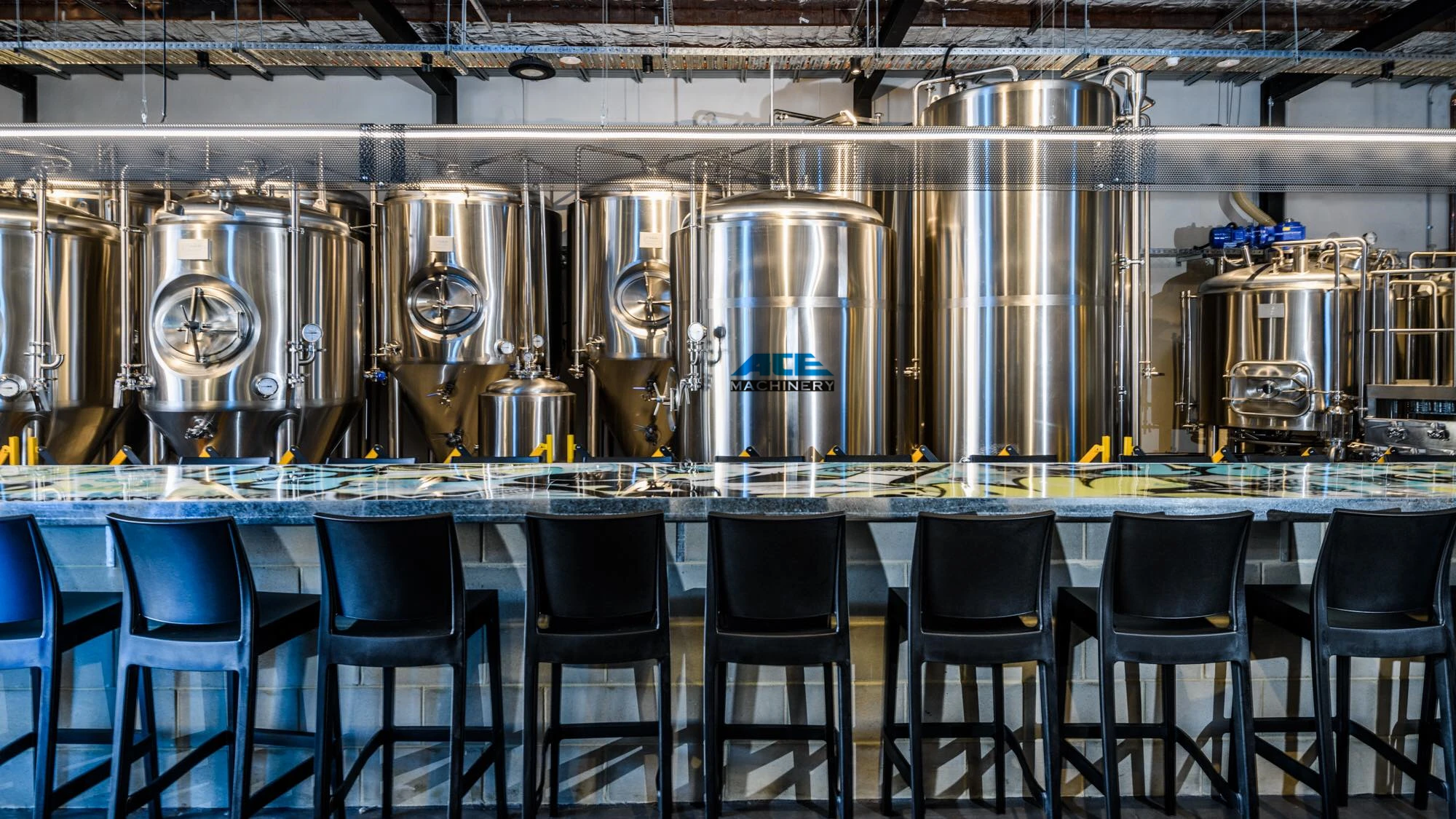

Fermentation Tank
• Beer Fermentation Tank has 200L and 30,000L and otherpecifications, according to the actual requirment of customers.
• Cone bottom shape, cooling jacket using dimple jacketjacketed outside covered with insulation, thermal insulationmaterial for polyurethane (cold).
• Connector using tri-clamp, inner tank using SS304 or S316L the inner surface mirror polishing Ra≤0.4um-0.6um. Outersurface can be polished, wiredrawn, sandblasted according tocustomers requirement.
• Cone bottom shape, cooling jacket using dimple jacketjacketed outside covered with insulation, thermal insulationmaterial for polyurethane (cold).
• Connector using tri-clamp, inner tank using SS304 or S316L the inner surface mirror polishing Ra≤0.4um-0.6um. Outersurface can be polished, wiredrawn, sandblasted according tocustomers requirement.
Stainless steel beer fermenter | ||
Structure: | 1.Volume from 100L-30000L,could be customized according to customer needs. | |
2.Material use sanitary stainless steel. | ||
3.Three layer structure:Inner body,Jacket and isolation.Isolation layer filled with insulation material. | ||
4.Inner wall fineness less than 0.6um,outside finish could be matt or mirror polish | ||
5.Conical bottom shape,cooling jacket could adopt dimple jacket,arched and corrugated access jacket. | ||
6.All pipes are all ISO or DIN sanitaty pipe,internal and external adopt food grade mirror polish | ||
7.PLC control system,which could achieve automatic,semi automatic control,to ensure the accurately and effectively of parameters and experimental results. | ||
Parts(optional): | 1.Manhole 2.Aseptic breather 3.Thermometer(As customer request) 4.CIP Spray ball 5.Bacterial access port 6.Agitator 7.Adjustable leg 8.Jacket(Dimple or full jacket as customer request) | |
Advantage:
1. Highly Competitive Price, More Than 10 Years Production And Manufacturing Experience
2. Iso9001, Ce (2014/68 / Eu) Ped Certification
3. Strictly Quality Control, Meet The European Quality Standard, Take 3 Times Water Pressure Test During Production.
4. Accept Customized, Professional Engineers Will Provide Design Solutions For You
5.Use High-Quality 304 Stainless Steel, Ensure The Thickness Of The Material
6. Dimple Plate Cooling Jacket, Better Cooling Effect And Longer Service Life
7. Equipped With Safety Valve, Water-Sealed Pressure Valve, To Ensure The Safe Operation Of The Fermentation Tank

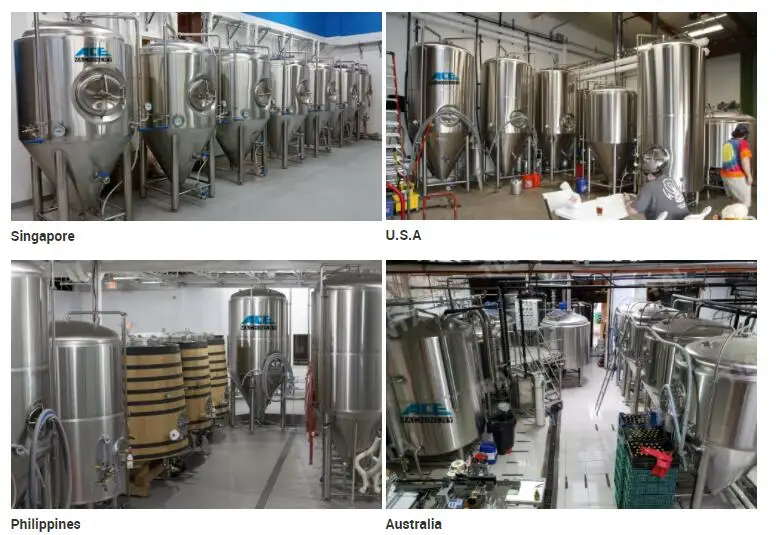

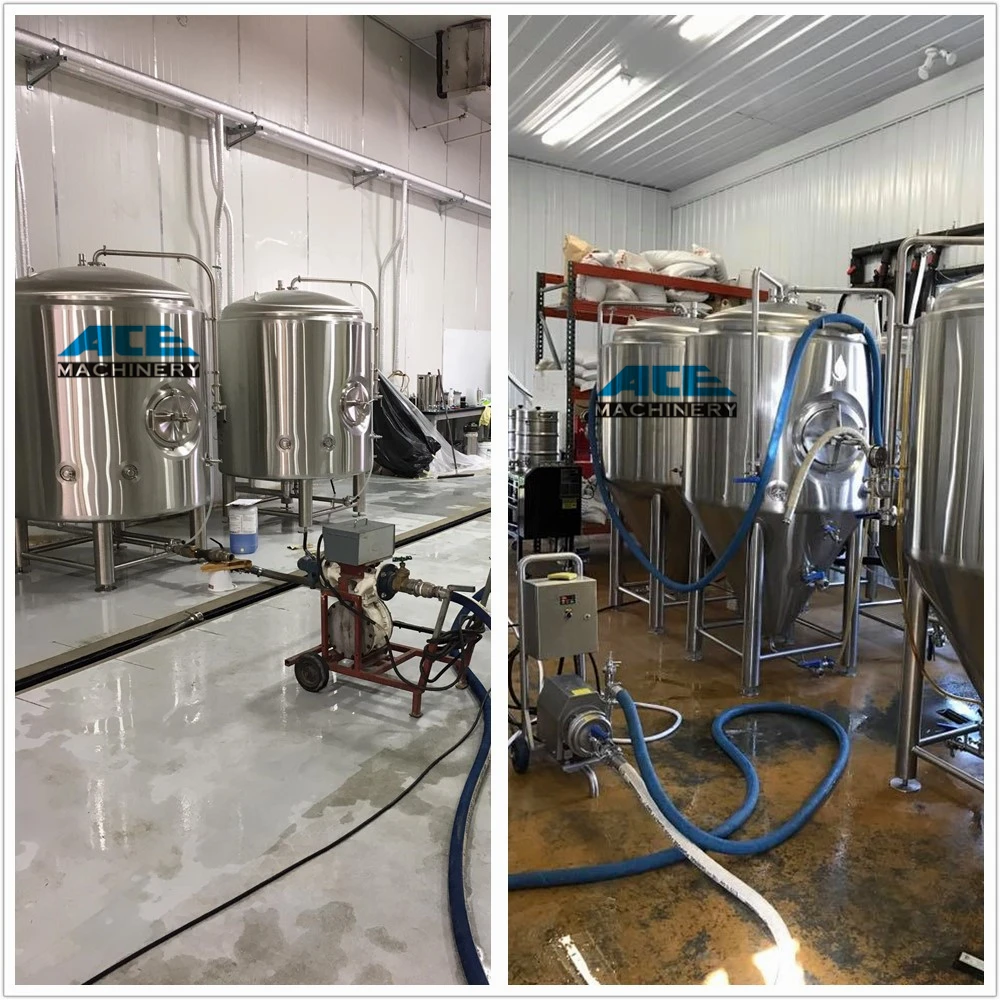

Customer cases: we have customer cases in the United States, Japan, South Korea, Australia, the Philippines, the United Kingdom,Mexico, Spain Singapore and Canada.
1. Highly Competitive Price, More Than 10 Years Production And Manufacturing Experience
2. Iso9001, Ce (2014/68 / Eu) Ped Certification
3. Strictly Quality Control, Meet The European Quality Standard, Take 3 Times Water Pressure Test During Production.
4. Accept Customized, Professional Engineers Will Provide Design Solutions For You
5.Use High-Quality 304 Stainless Steel, Ensure The Thickness Of The Material
6. Dimple Plate Cooling Jacket, Better Cooling Effect And Longer Service Life
7. Equipped With Safety Valve, Water-Sealed Pressure Valve, To Ensure The Safe Operation Of The Fermentation Tank
Customer cases: we have customer cases in the United States, Japan, South Korea, Australia, the Philippines, the United Kingdom,Mexico, Spain Singapore and Canada.

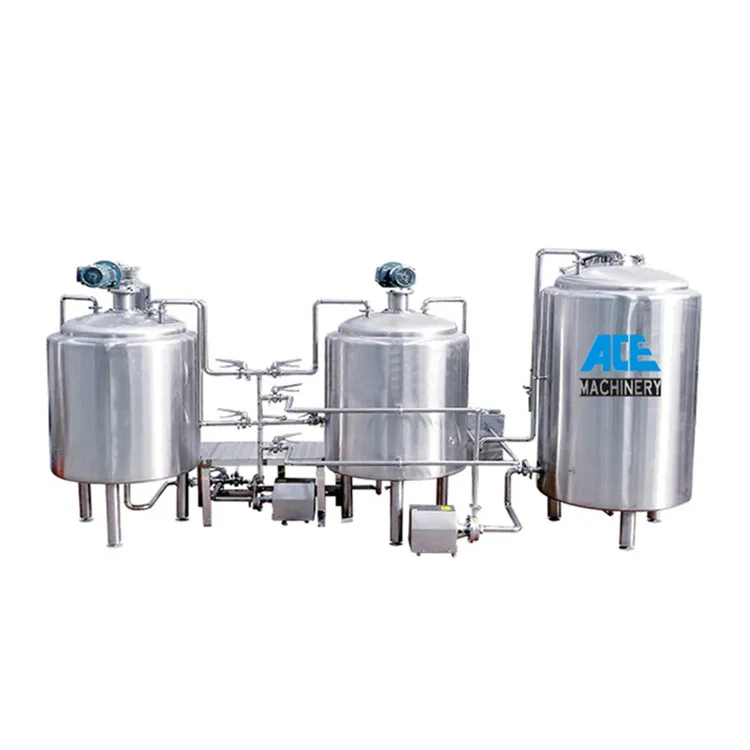

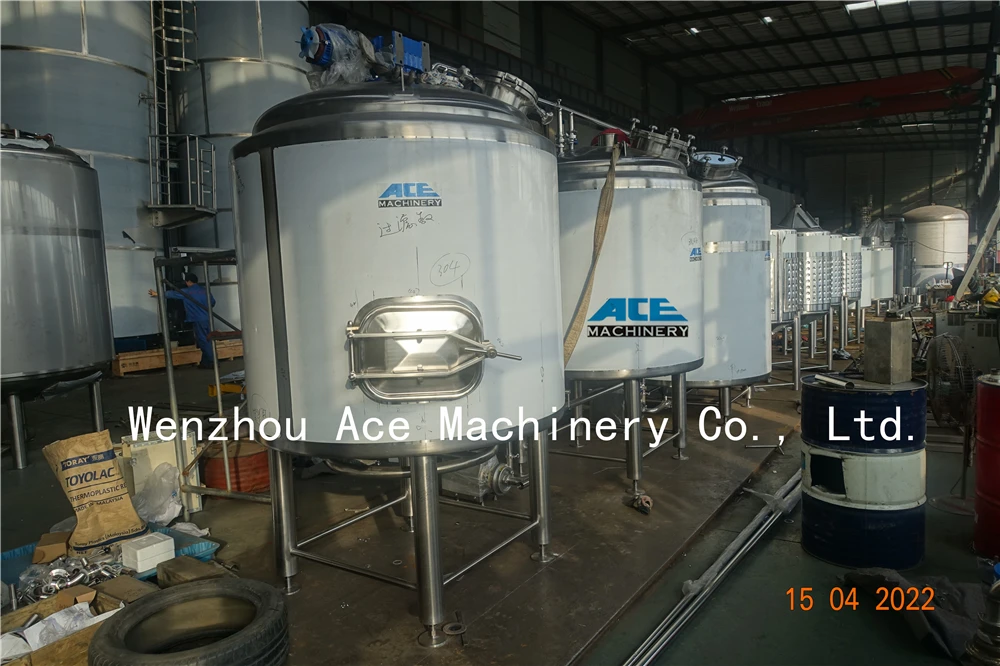

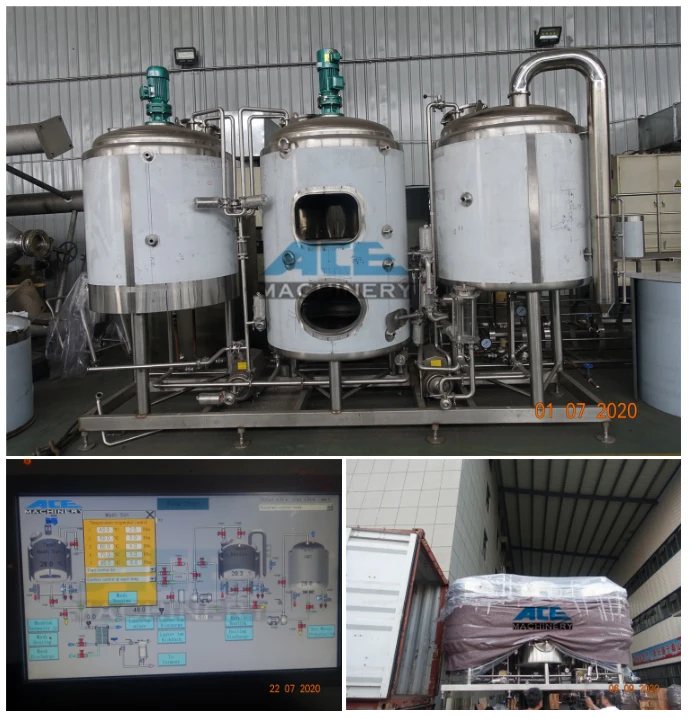

Brewing System
craft beer equipment is consisted of Malt milling system, Mash system, Fermentation system, Refrigeration system, Control system and CIP cleaning system. The tank of the system all adopts SS 316L and S.S 304,and the system also have high automatic control capacity.Simple operation ,PLC automatic control system ,PLC semi-automatic control system.Equipments characteristics: Small investment, quick effectiveness, high quality, lower prices, the investment repayment is fast, the service life of equipment is long, easy operation, lower cost. Strong technical force.
At the same time if you have requirements, we could design and produce the products you need!
At the same time if you have requirements, we could design and produce the products you need!
Beer Brewhouse | Combination | Two Vessel Brewhouse | Mash/Lauter , Boiling/Whirlpool Tun or Customized | |||
Three Vessel Brewhouse | Mash, Lauter, Boiling/Whirlpool Tun or Customized | |||||
Four Vessel Brewhouse | Mash,Lauter, Boiling,Whirlpool Tun or Customized | |||||
Heating Method | Steam Heating Method | It need extra steam boiler. | ||||
Direct Fire Heating | Fire room install under the bottom of kettletank | |||||
Electric Heating | Mostly for small brewhouse. | |||||
Process | 100%TIG welding. | Outter, Polish to 0.2~0.4μm. Inner, do acid wahsing and passivation. | ||||
Thickness | Interior Shell:3mm, Exterior Shell 2mm | |||||
Basic Configuraton | All accessory use good quality brand products.The Raker is most important, design for most famours brand all over world. | |||||
Material | SUS304, SUS316, Red Copper etc | |||||

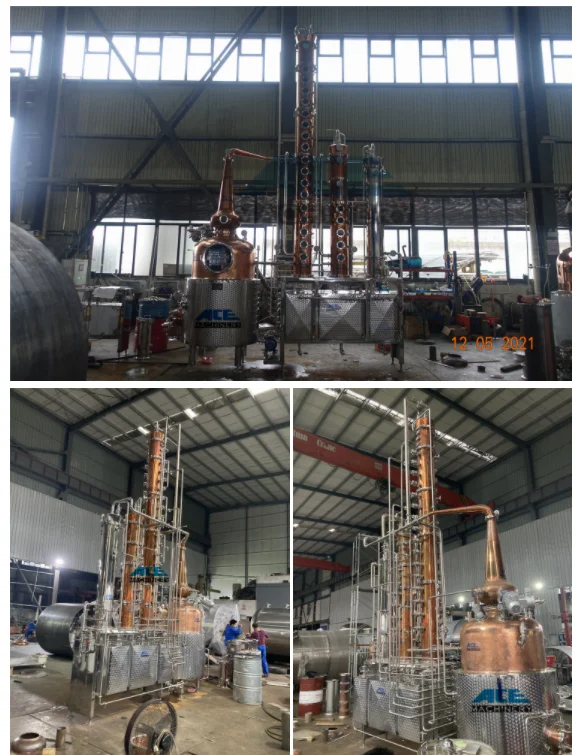

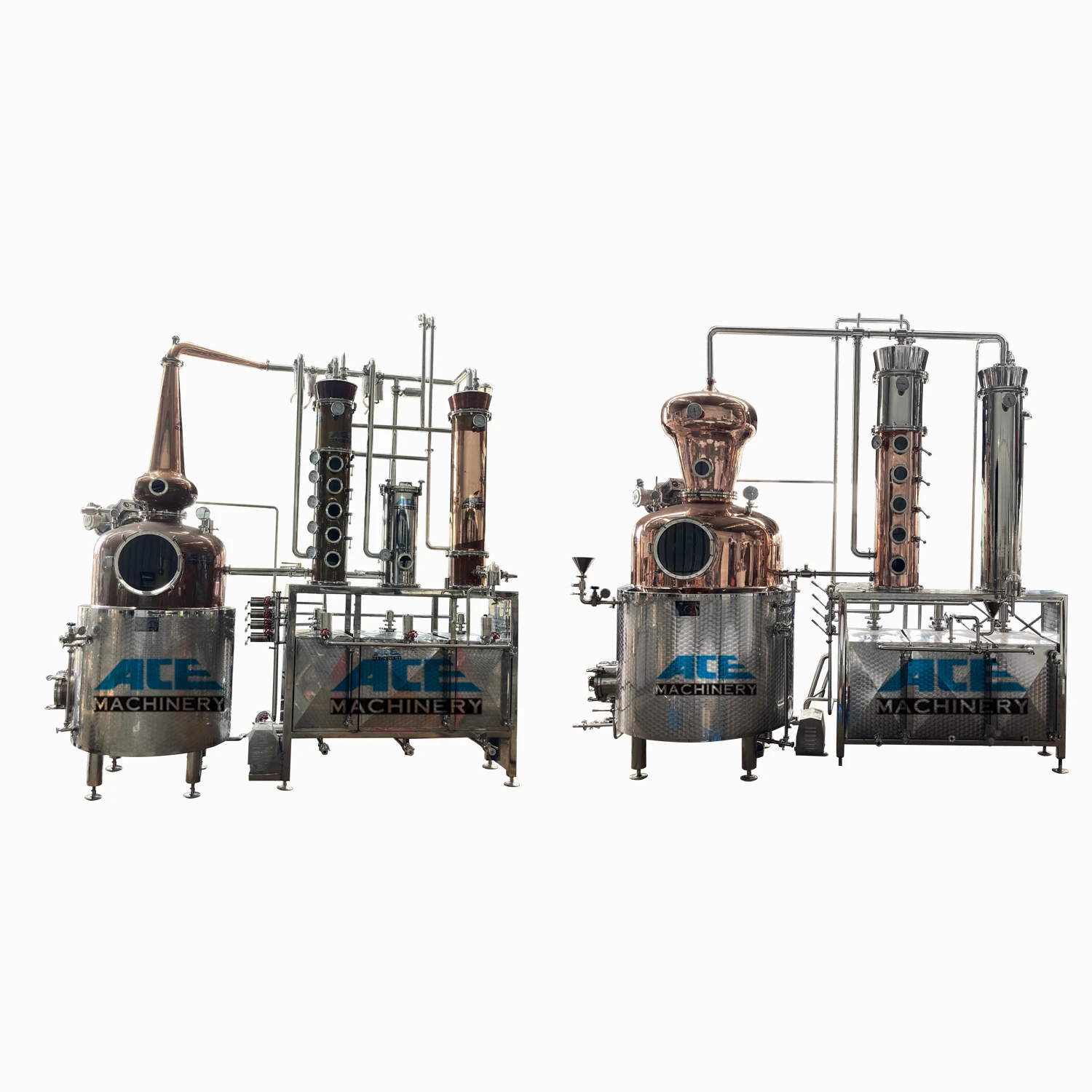

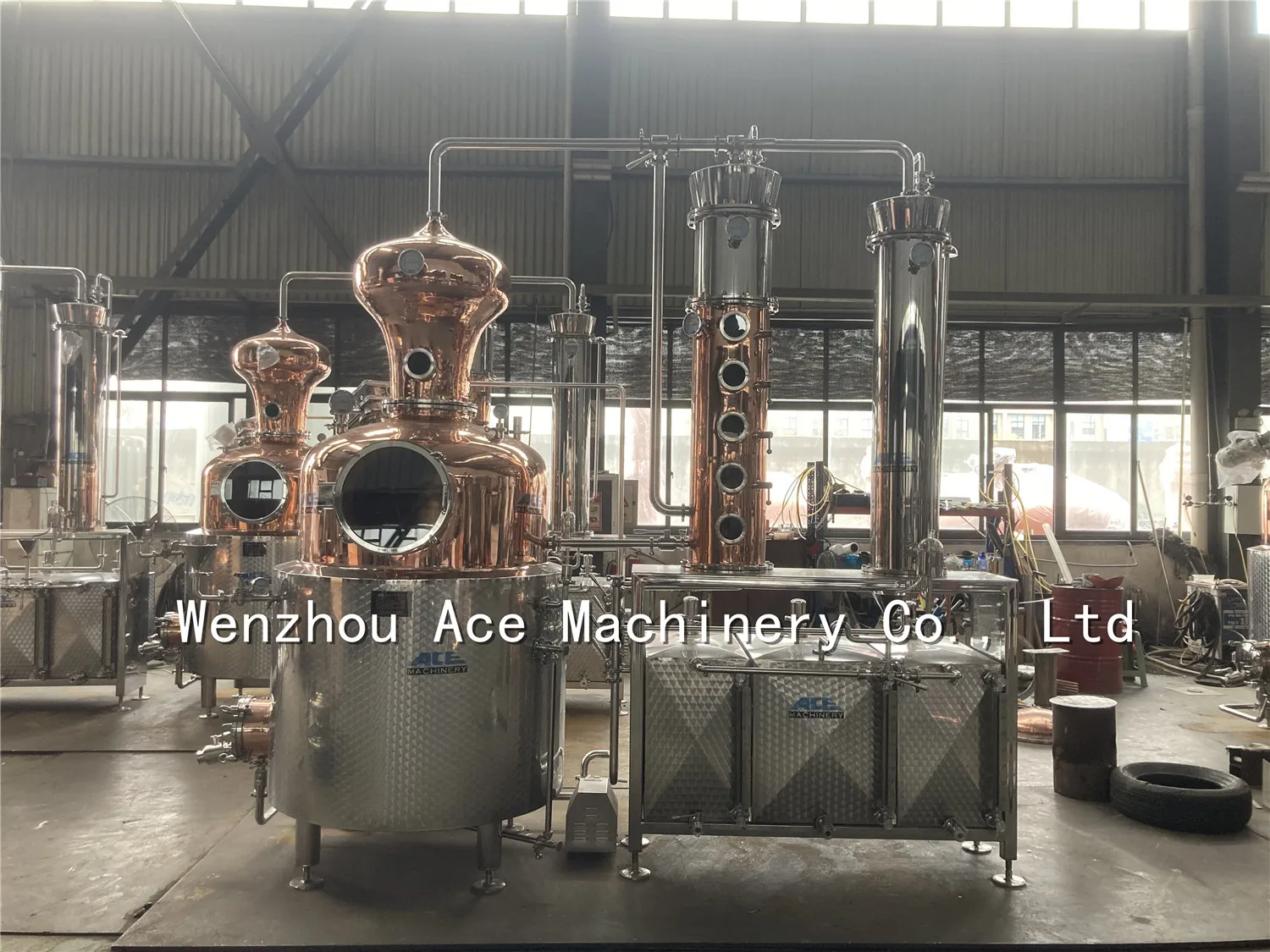

Multifunctional distiller
1. Is easy to operate and use, easy to clean and occupies a small area.
2. High safety, high work efficiency, long service life,low energy consumption, good quality and low price.
3. Provide customized services, technical and drawing support
4. Can steam heating, electric heating (direct and indirect type) or direct fire heating
5. Apply to whiskies, gins, tequilas, rums and bourbons etc
6. Efficient CIP spraying ball for 360-degree cleaning.
7. Italy brand gear box, NEMA standard for North American
Market
8. Explosion proof motor, be CE, UL, CSA approved
2. High safety, high work efficiency, long service life,low energy consumption, good quality and low price.
3. Provide customized services, technical and drawing support
4. Can steam heating, electric heating (direct and indirect type) or direct fire heating
5. Apply to whiskies, gins, tequilas, rums and bourbons etc
6. Efficient CIP spraying ball for 360-degree cleaning.
7. Italy brand gear box, NEMA standard for North American
Market
8. Explosion proof motor, be CE, UL, CSA approved
Packaging & Shipping
Certifications
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
