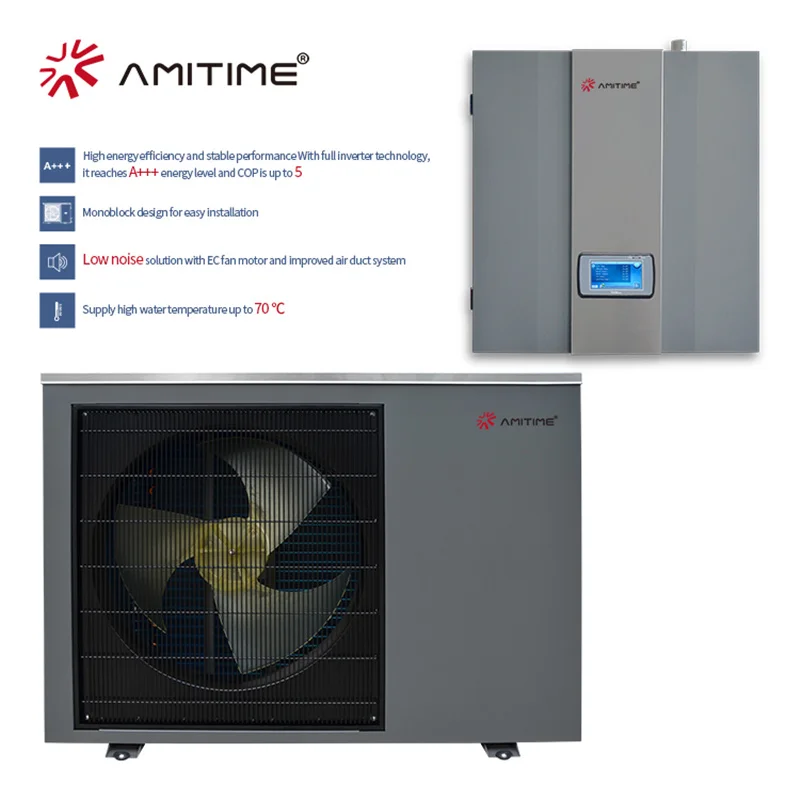

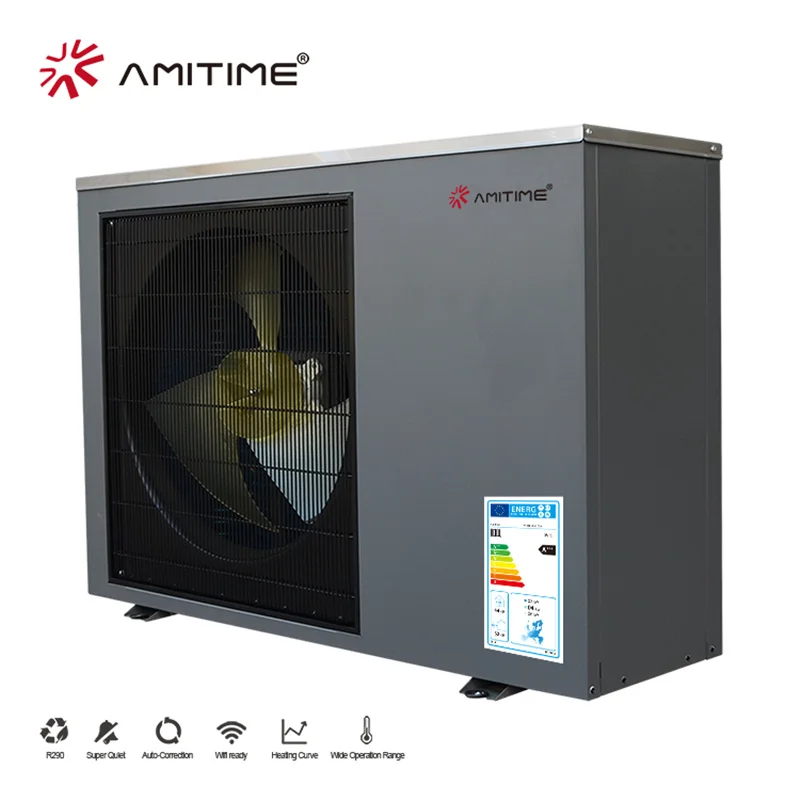

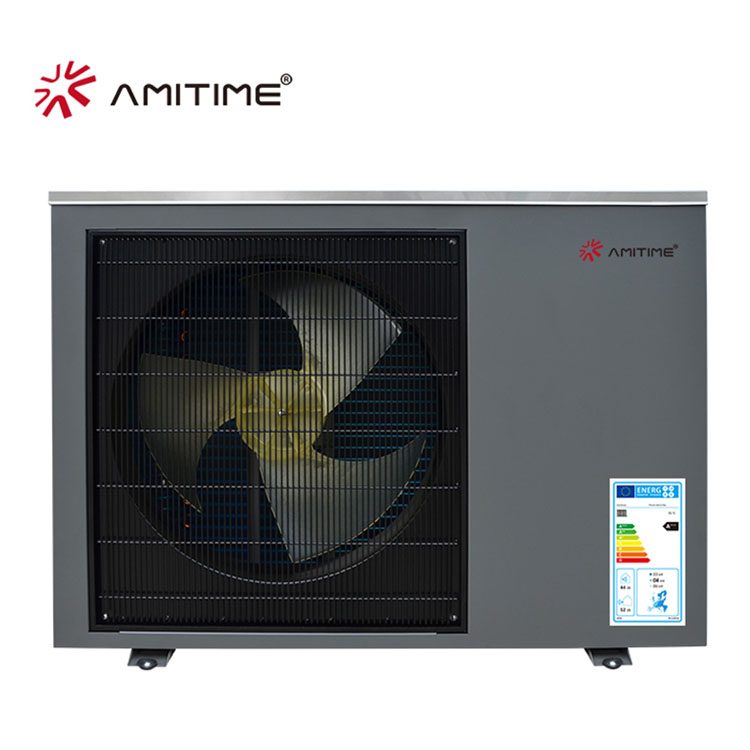

A низкий уровень шума, поддержка Wi Fi, воздушный и водный моноблочный Инвертор постоянного тока, воздушный и водный 12 кВт, тепловой насос R290 для домашнего использования
- Category: >>>
- Supplier: Zhongshan Amitime Electric Co. Ltd.
Share on (1600640729326):
Product Overview
Description
Product Paramenters
Model | PAVH-12V1GMA | |||
Power Supply / Refrigerant | V/Hz/Ph | 220-240/50/1 - R290 | ||
Energy class （35℃ SCOP） | A+++ | |||
Max. Heating Capacity (1) | kW | 12.32 | ||
C.O.P (1) | 4W/W | 4 | ||
Heating Capacity Min./Max.(1) | kW | 6.01/ 12.32 | ||
Heating Power Input Min./Max.(1) | W | 1200 / 3094 | ||
C.O.P Min./Max.(1) | W/W | 4.0/ 5.0 | ||
Max. Heating Capacity(2) | kW | 11.4 | ||
C.O.P (2) | W/W | 3.3 | ||
Heating Capacity Min./Max.(2) | kW | 5.4 / 11.4 | ||
Heating power input Min./Max.(2) | W | 1450/ 3511 | ||
C.O.P Min./Max.(2) | W/W | 3.3/3.8 | ||
Max. Cooling Capacity (3) | kW | 10.05 | ||
E.E.R (3) | W/W | 3.65 | ||
Cooling Capacity Min./Max.(3) | kW | 4.04/10.05 | ||
Cooling Power Input Min./Max.(3) | W | 1010/1726 | ||
E.E.R Min./Max.(3) | W/W | 3.83/4.0 | ||
Max. Cooling Capacity (4) | kW | 8.03 | ||
E.E.R (4) | W/W | 2.7 | ||
Cooling Capacity Min./Max.(4) | kW | 4.1/8.03 | ||
Cooling Power Input Min./Max.(4) | W | 1460/1945 | ||
E.E.R Min./Max.(4) | W/W | 2.72/3.0 | ||
Noise Level (sound power) | dB(A) | 44/53 | ||
Note: (1) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; | ||||
(2) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; | ||||
(3) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB 35℃/WB 24℃; | ||||
(4) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB 35℃/WB 24℃; | ||||
(5) The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. | ||||
Details Images
Project Cases

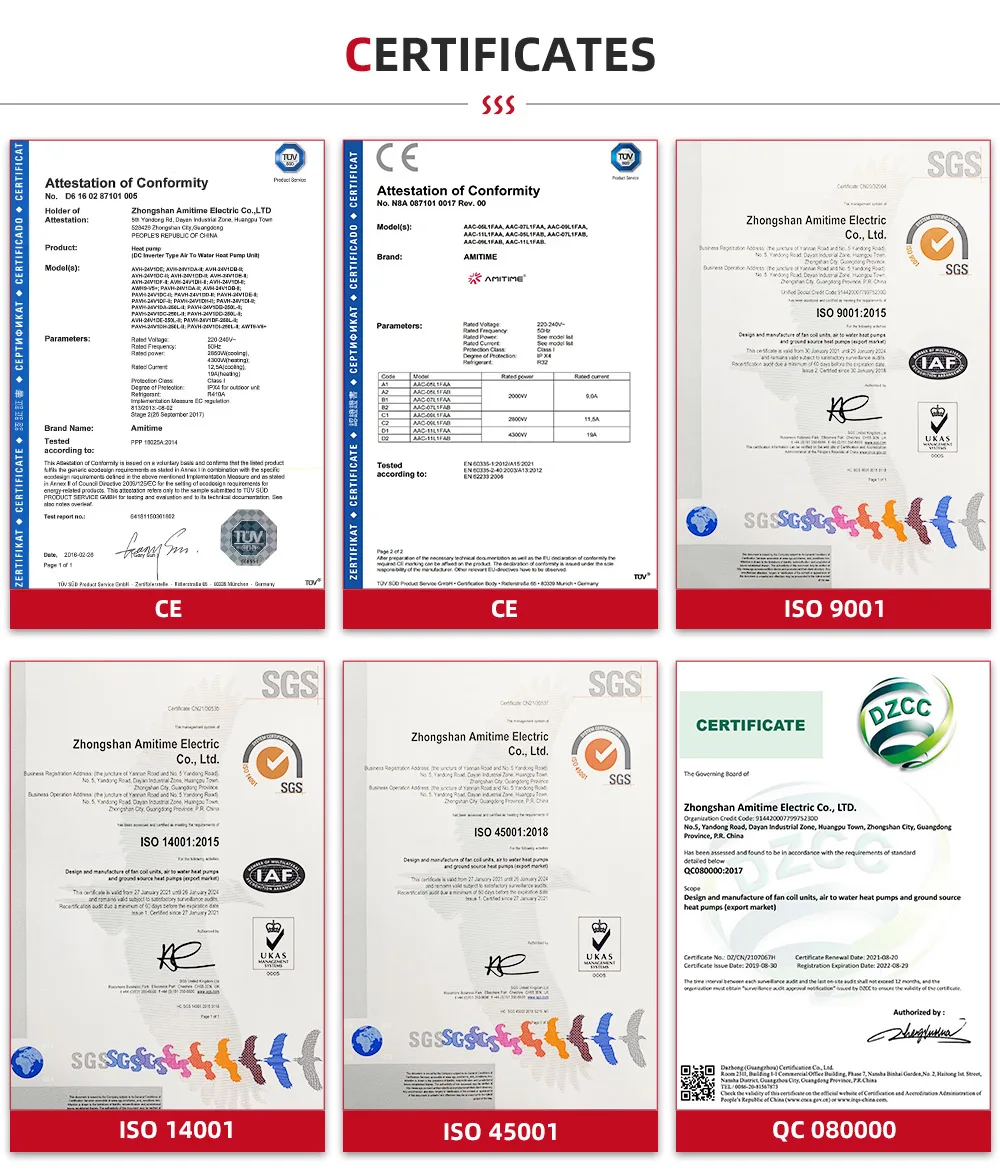

Certifications
