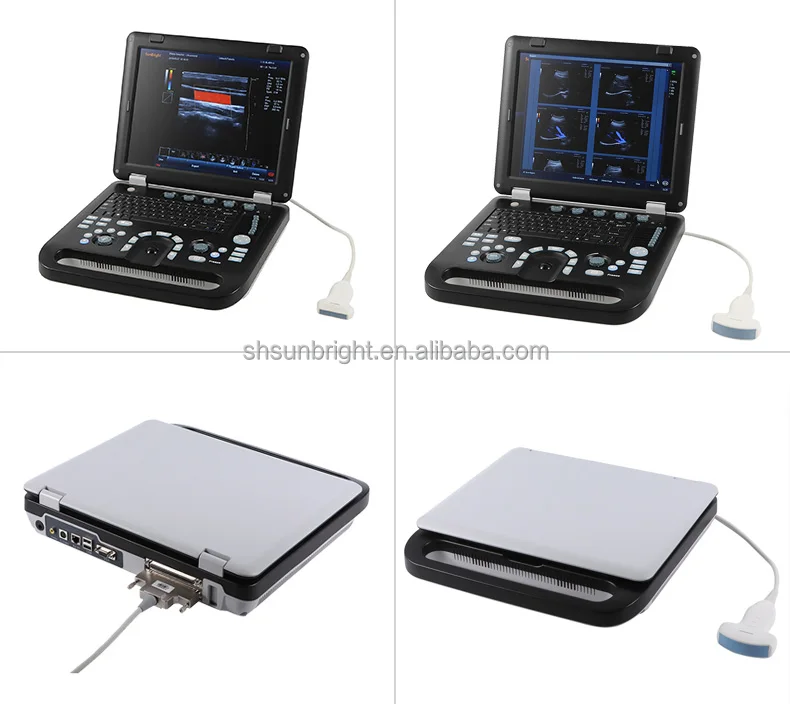

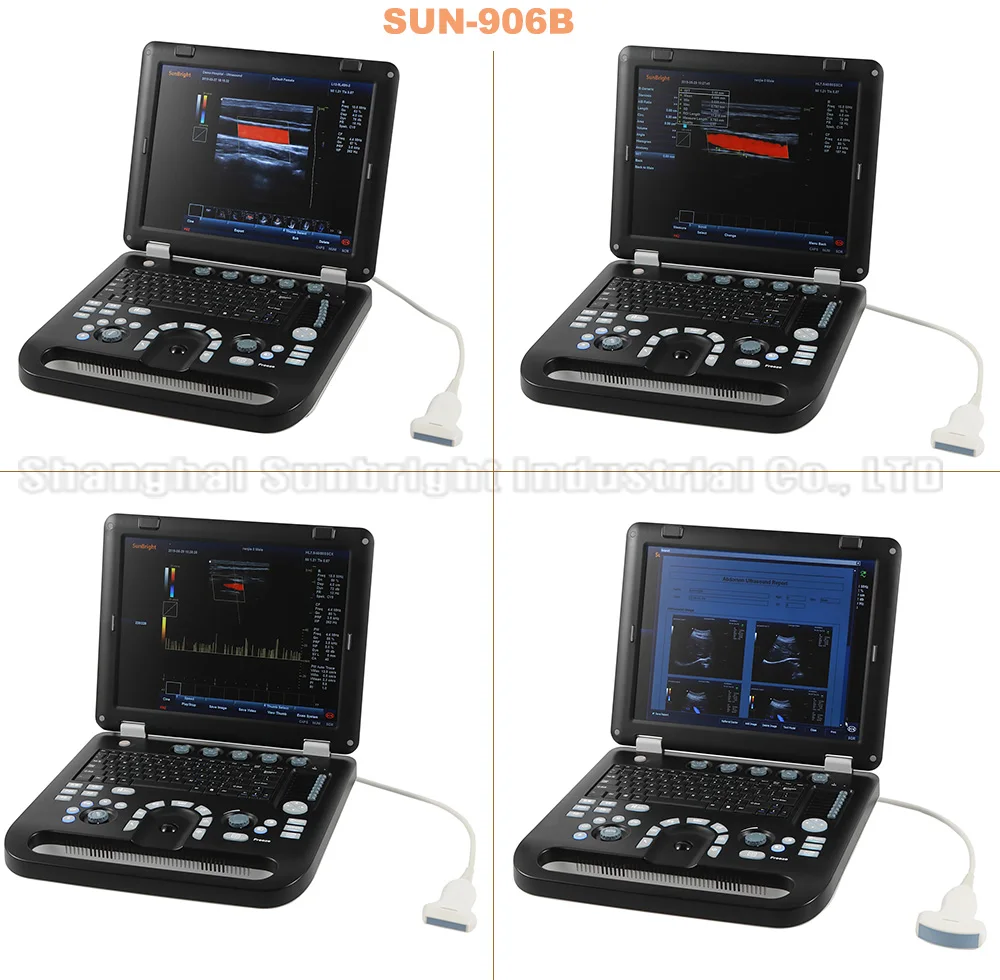

Portable Color Doppler Ultrasound Machine Price Medical Echocardiography with Phased Array Probe
- Category: Professional Medical Devices >>>
- Supplier: Shanghai Sunbright Industrial Co. Ltd.
Share on (1600640944247):
Product Overview
Description
Product Description
Fast description:
Portable Color Doppler Ultrasound Machine Price Medical Echocardiography with Phased Array Probe

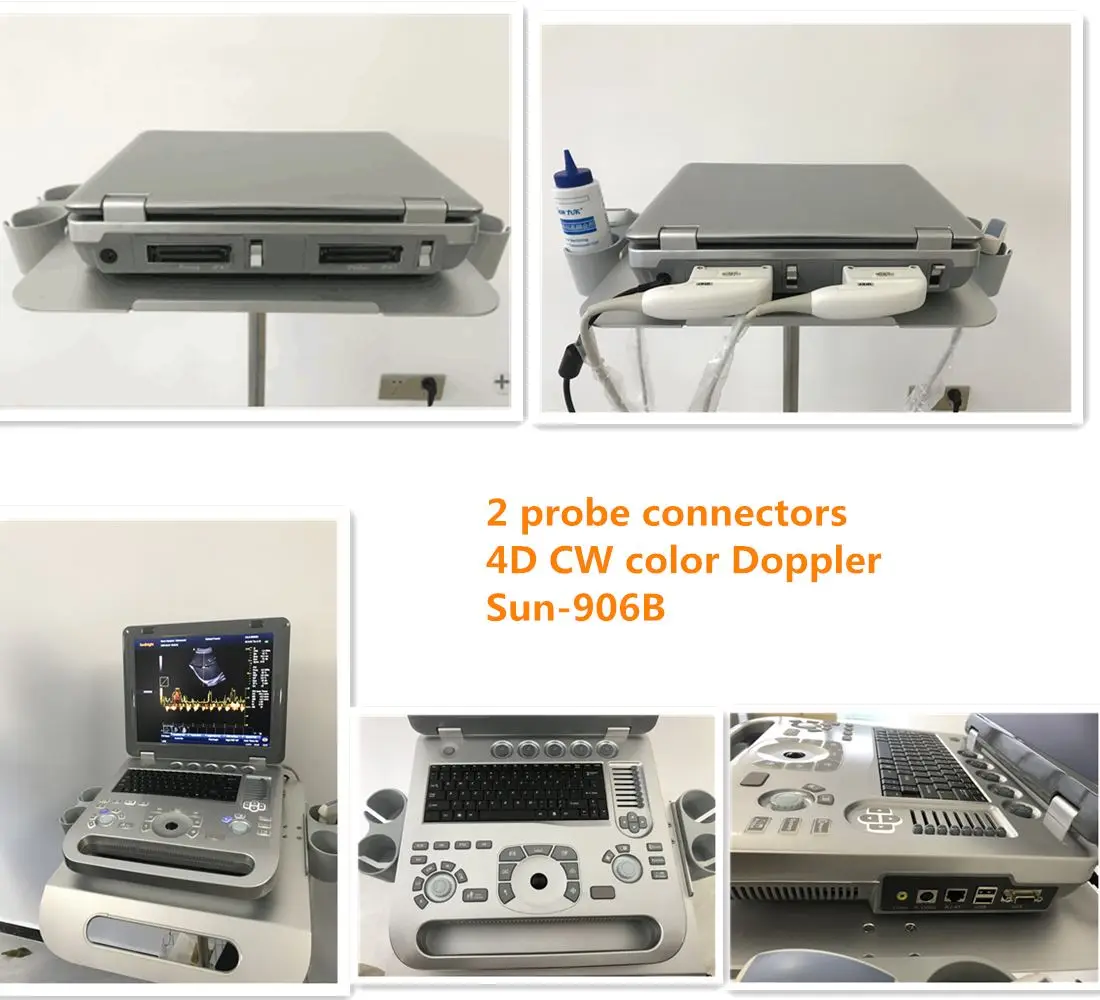

1.Large 15 inch LED color display real Doppler function USB ports and VGA port and 2 probe connectors.
2. Built-in battery,which can be contentiously worked at least 3 hours when power off.
3.Main Application: Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics/Musculoskeletal and so on
4. IMAGING MODES:B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D,CF+B model simultaneously,PDI Color, Dual Color, Simultaneous2D/3D Color Compound, PW Duplex/Triplex, CFM, CDE, PD, Directional PD, CD . Anatomy M, Color M mode
5. PC-based Color Doppler with Windows system, which can connect with any printers in any brands. Printed area are adjustable,which can be pictures, reports or picture+report, etc.
6. Built-in DICOM 3.0 protocol
7. Multi-languages function: English, Chinese, Spanish, and Portuguese, Russian, Arabic, French, Vietnamese, Indonesian,German,Persian, Thai and so on.
Physical Specifications:
Equipment size | 375mm*360mm*75mm |
Equipment weight | 5.5kg |
Packing size | 490mm×270mm×490mm |
Packing weight | 10kg |
Connectivity/Media/Peripherals
Transducer Ports | 2 |
USB Ports | 2 |
Hard Disc | 128GB (SSD), 120G/200GB SSD (Optional) |
Printing Area | Image, report, Image+report |
Ethernet Port | 2(100Mb/1000Mb) |
External Display | VGA, HDMI, |
Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
Hardware Specification
LED Monitor
Size (Diagonal) | 15" |
Contrast Ratio | 800:1 |
Resolution | 1024*768 pixels |
Brightness | 230 cd/m2 |
Color Depth | 24bit |
Rotate Angle | ± 90° |
Grey Levels | 256 |
DICOM Connectivity
DICOM3.0 Compliant
3D Software
Built-in 3D software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
USB Flash Drive
General Performance: | Digital Broadband | 12288 channels |
Beam-former | Re-programmable | |
Transmit Voltage | Adjustable (15 steps) | |
Beam-former Frequency Range | 1~40 MHz |

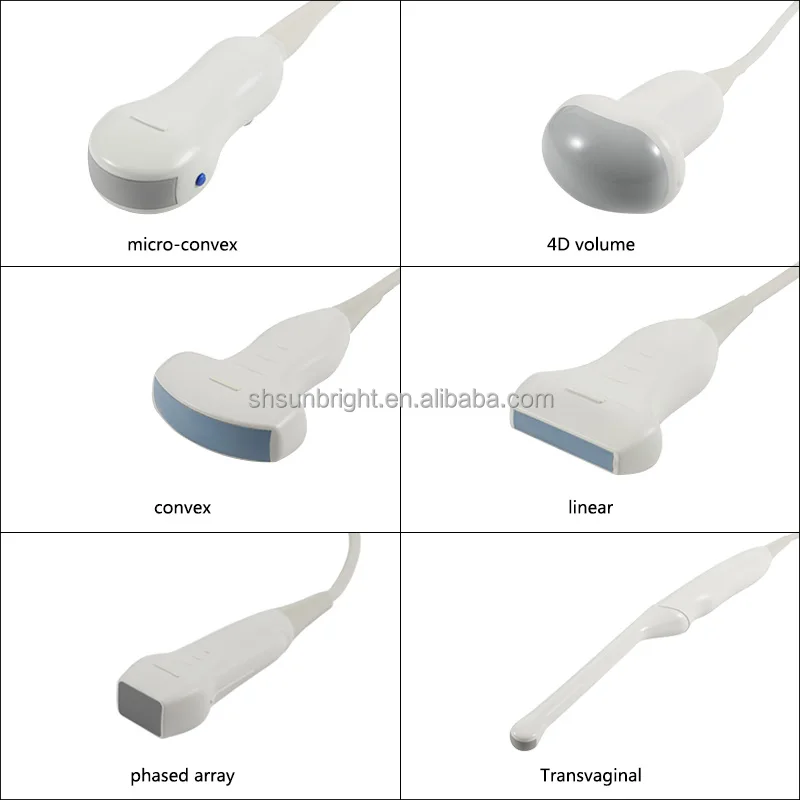

Transducers:
User Interface:
User Permission setting
Intuitive Windows-based operating principles
User-centric control panel with Home Base layout and control customization
On/Off task light and back-lit illumination of control panel
Variable brightness indicates active state of function keys
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu
On line attention function, tell the user how to operate in the next step

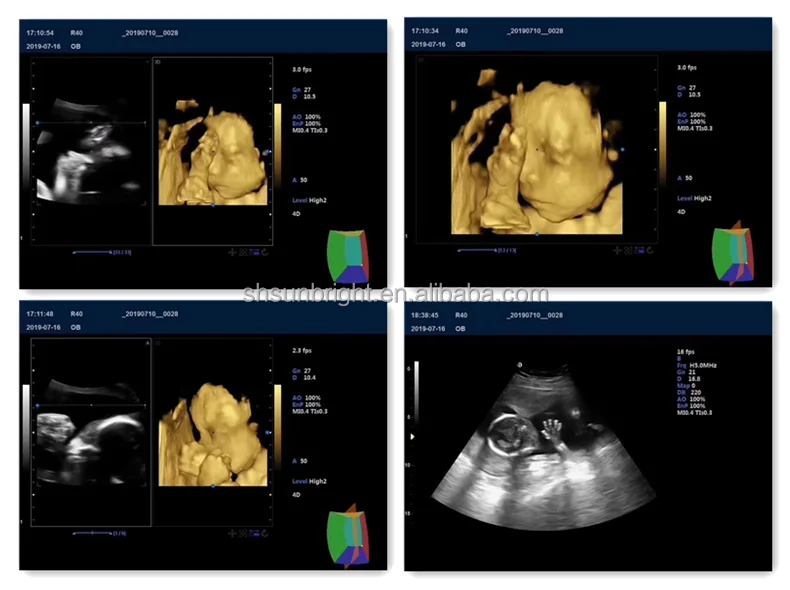

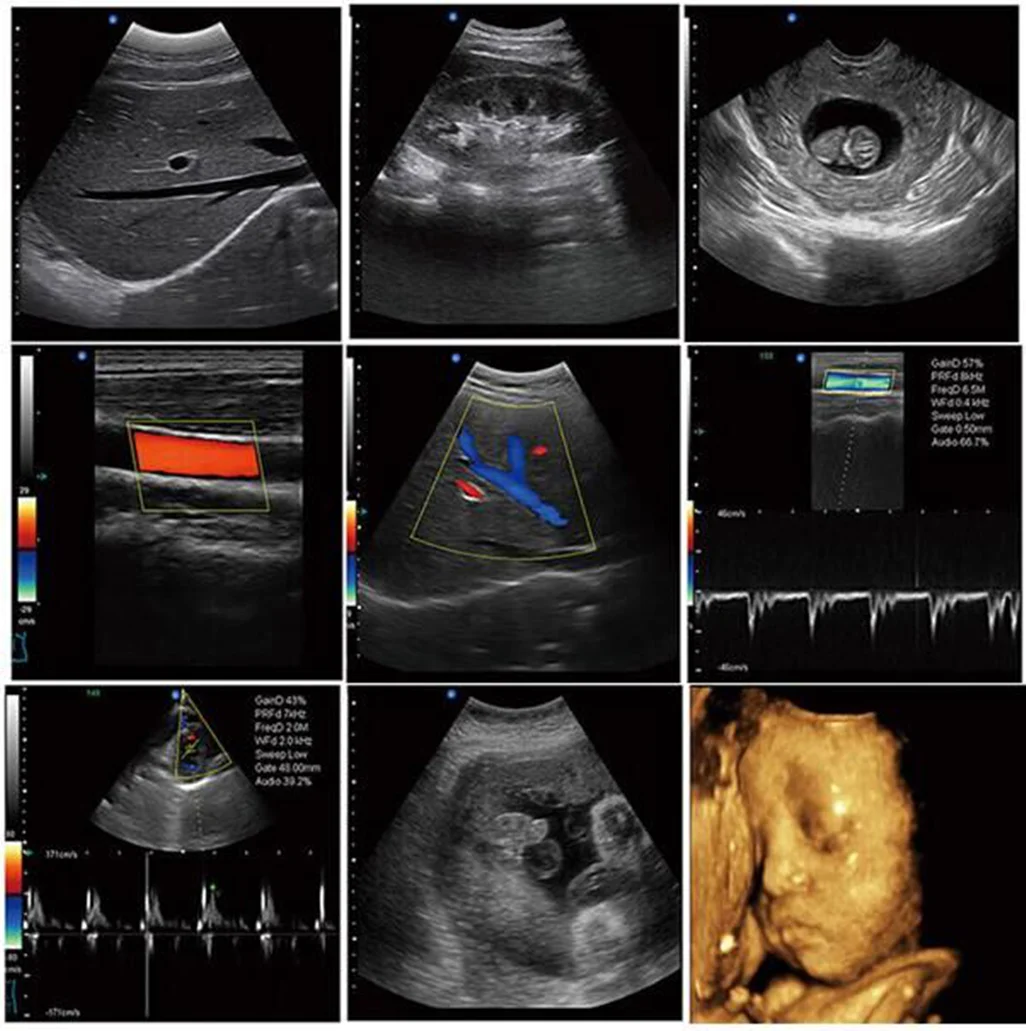

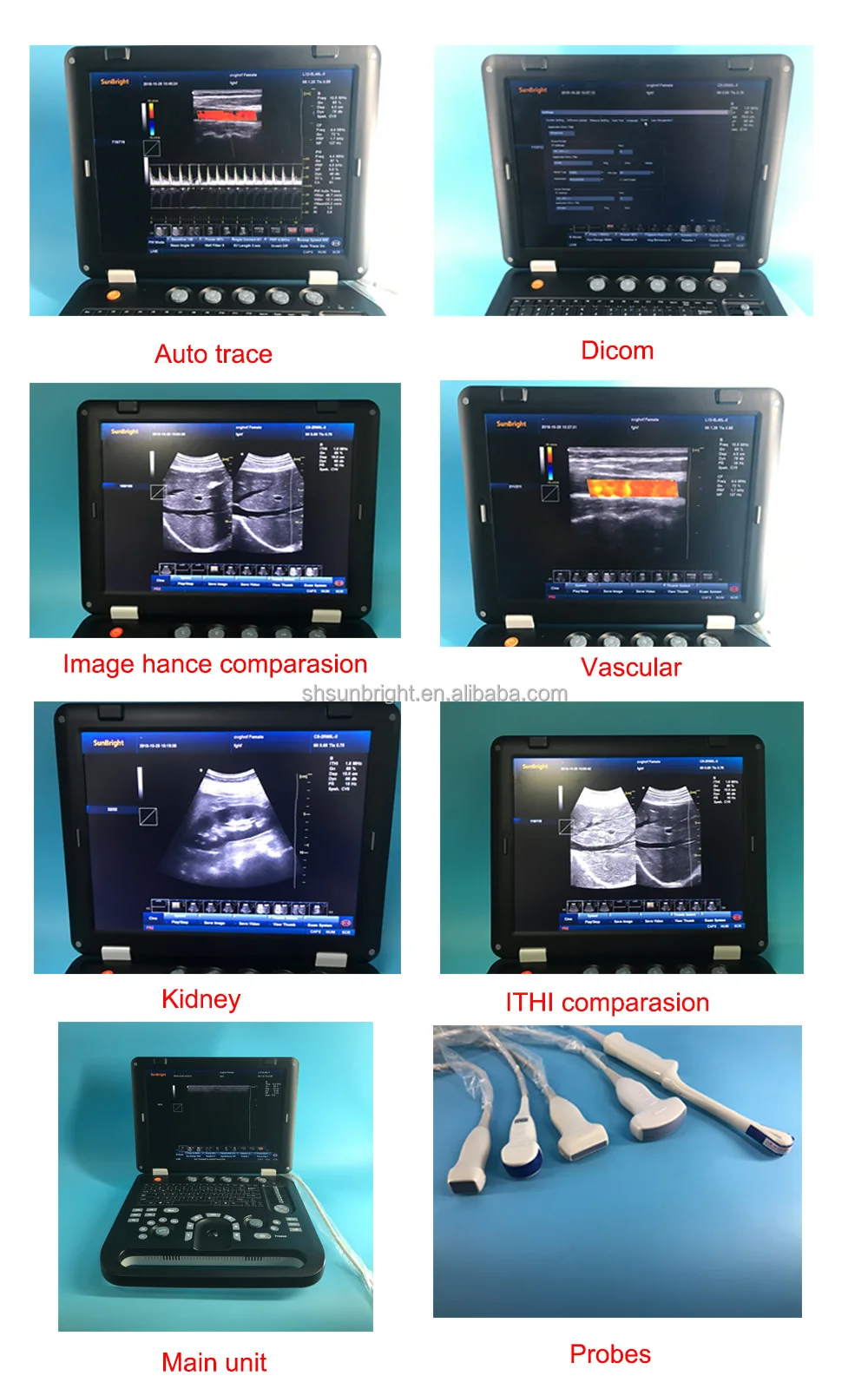

Scanning images
Standard Congfiguration:

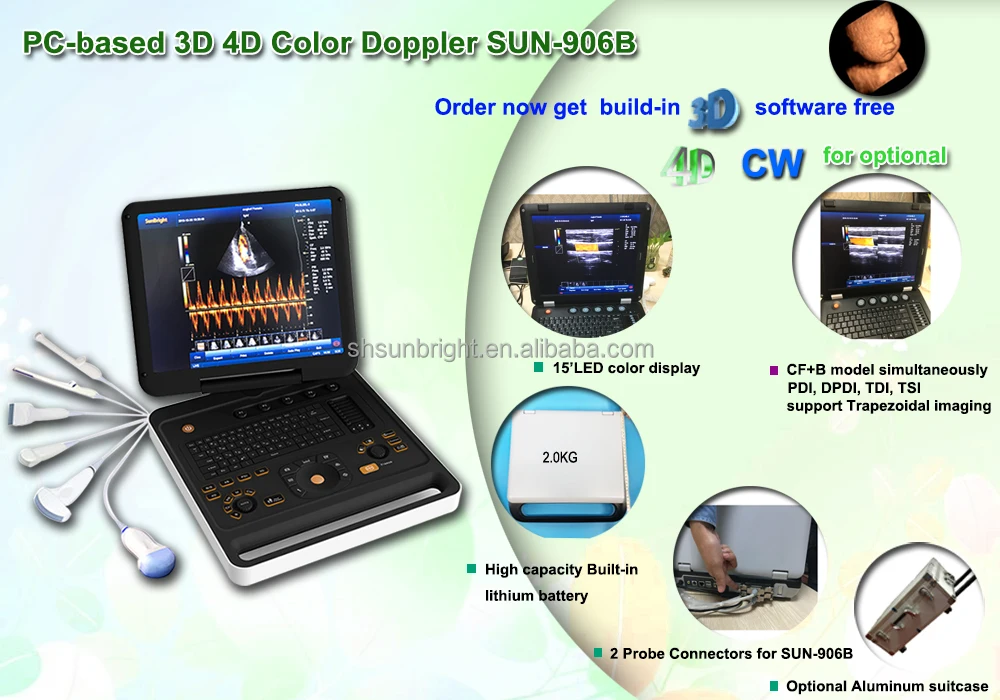

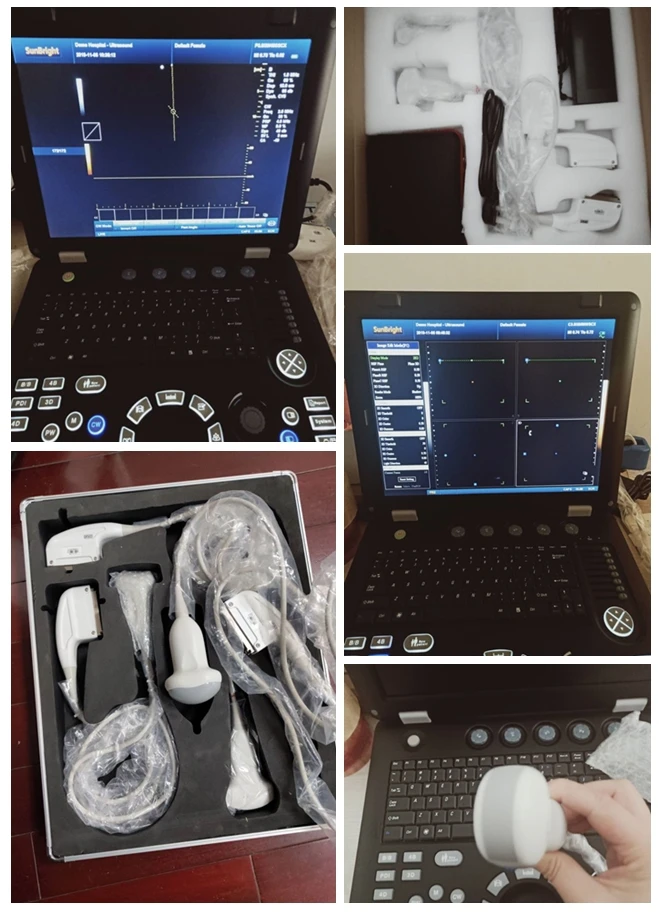

906B color Doppler 3D 4D main unit+one convex probe(128 elements)+lithium battery
15"LCD with high resolution
3D/4D software
CW and PW function
Two USB ports

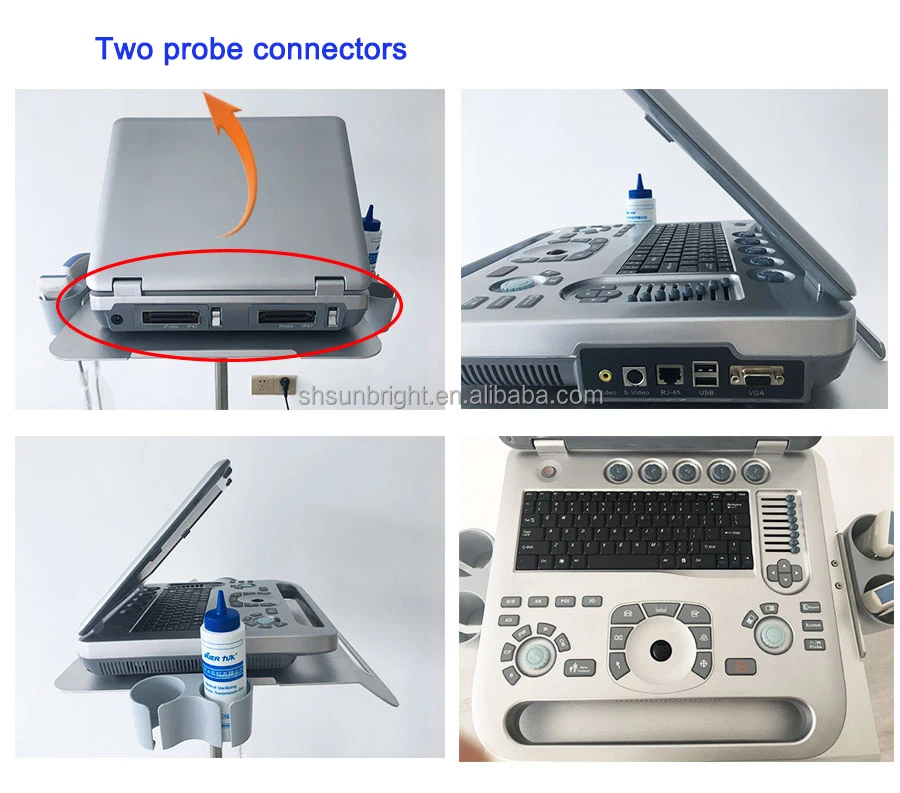

Two probe connectors
One s-video out port
One video port
One power inlet
One convex probe(3.2M R50)
One VGA video converter

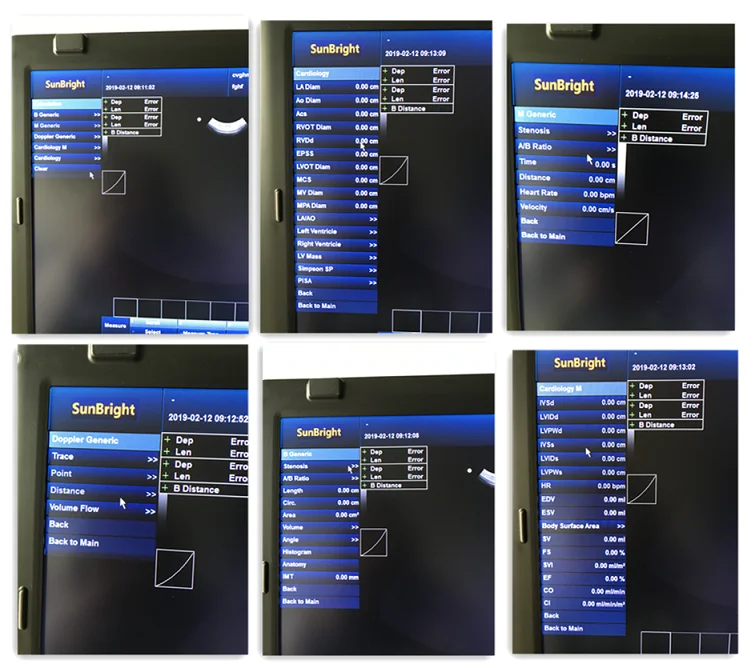

Plenty of measurement & calculation software packages
24 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
906B color Doppler 3D 4D main unit+one convex probe(128 elements)+lithium battery
15"LCD with high resolution
3D/4D software
CW and PW function
Two USB ports
Two probe connectors
One s-video out port
One video port
One power inlet
One convex probe(3.2M R50)
One VGA video converter
Plenty of measurement & calculation software packages
24 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
