China Factory Top Seller t125 Mini Micro Limit Switch for home appliance G5S05 Series
- Category: Switches >>>
- Supplier: Huizhou Unionwell Sensing & Control Electronics Co. Ltd.
Share on (1600643145180):
Product Overview
Description

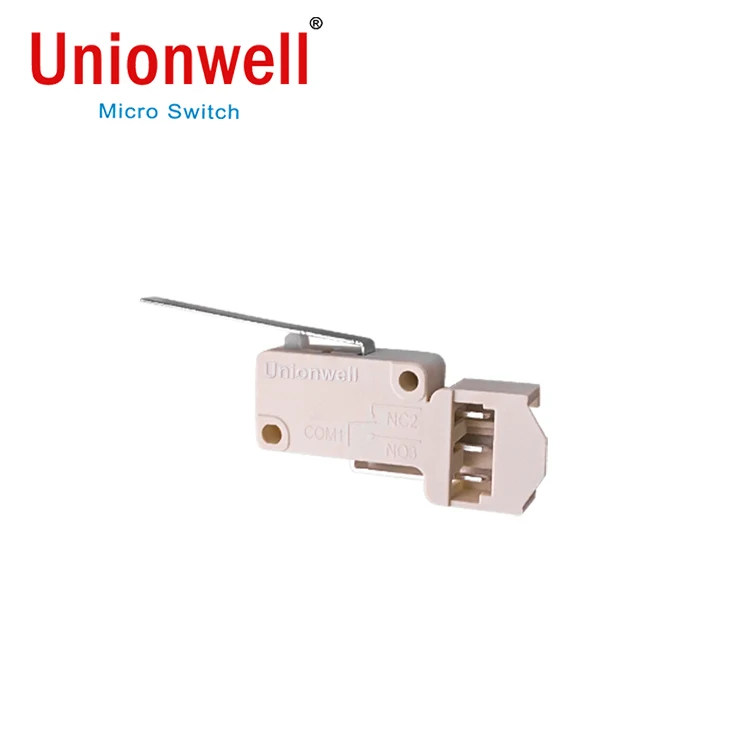

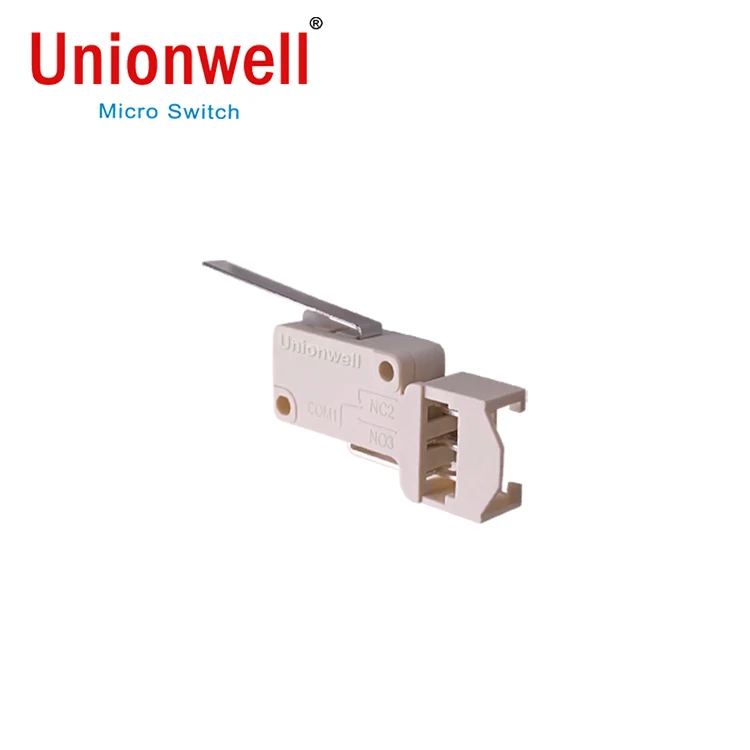

Unionwell Mini Micro Limit Switch G5S05
Product Description
Feature:
- Long Life, High Reliability
- Global Safety Approvals
- Wide Range Operating Force(7gf~600gf For Choose)
- Wide Range Temperature Grade(25T85,25T125,25T150 For Choose)
- Wide Optional PTI Grade(175V,250V,600V For Choose)
Parameters:
| Operating Speed | 0.1mm-1m/s( Related With Actuator Forms) | |
| Operating Frequency | Mechanical 60 cycles/min; Electrical 15 cycles/min. | |
| Insulation Resistance | 100MΩ (500VDC) Min | |
| Contact Resistance | 100mΩ (Initial value) Max | |
| Test Voltage | Between Each Terminals Of The Same Polarity | AC1000V,50/60HZ, 1min. |
| Between Current-Carrying Metal Part And Ground.And Between Each Terminal And Non-current-carrying metal parts | AC1500V, 50/60HZ, 1min. | |
| Vibration Resistance | 10-55HZ,1.5mm Double Amplitude | |
| Shock Resistance | Destruction: OF>1N:1000m/s2 (approx.100G)max. OF≤1N:400m/s2 (approx.40G)max. | |
| Malfunction: OF>1N:200m/s2 (approx.20G)max. OF≤1N:100m/s2 (approx.10G)max. | ||
| Service Life | Mechanical: Over 10,000,000 cycles or 1,000,000 cycles | |
| Electrical: Over 50,000 cycles or 100,000 cycles | ||
| Weight | Approx 6.2g(No Lever) | |
Product Uses
Certifications
company information
Unionwell Advantages
1. ISO9001 & IATF16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
Packaging & Shipping
Package List
Business partners
Trade Records
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What's the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A) Yes, free samples could be provided within 2-5 days.
Q5, What 's the lead time of mass production?
A : About 2-4 weeks.
Q6. What's the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
