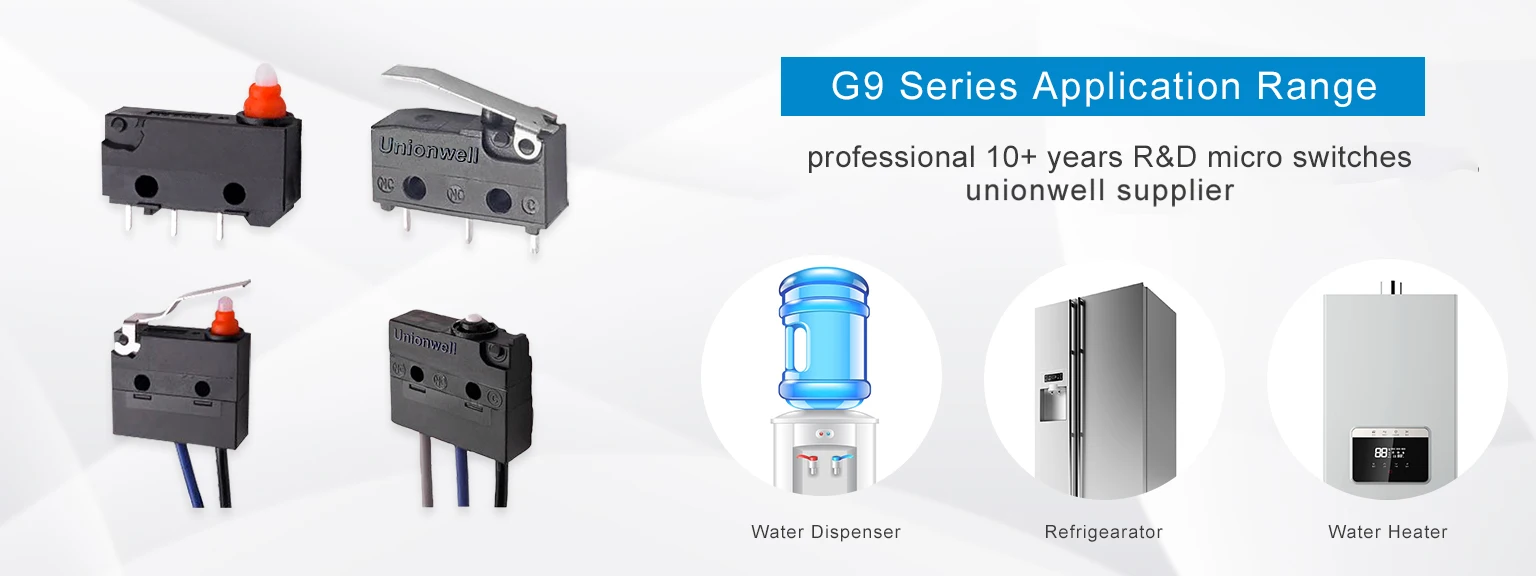

China supplier Unionwell 20T120 IP67 Water Proof Mini Micro Switch G905

Product Overview

Description

Unionwell G905 Water Proof  Mini  Micro Switch 20T120

Features



1. Design New C2 Lever


2. Long Life, High Reliability


3. Small Compact Size


4. Dust And Water Proof(IP67) Design


5. Widely Used In Auto Control, Appliance, And Other Industry Control.







Parameters





Rating	p1	0.1A 125/250VAC 48VDC/Gold Plated Contact Optional
	05	UL:5A 125/250VAC
		ENEC:6A 125/250 1E4;3A 125/250VAC 30VDC 5E4 µ 25T120
Operating Frequency	Electrical	10~30 Cycles/Minute
	Mechanical	120 Cycles/Minute
Contact Resistance(Initiative)		100mΩ Max/It depends on the wire length for the type of wire
Insulation Resistance (at 500VDC)		100MΩ Min
Dielectric Strength		AC1,000V RMS (50~60Hz)
Storage Temperature		-25°C~+120°C
Storage Humidity		85%RH Max
Service Life	Electrical	10,000~100,000 Cycles/Depend on part NO.
	Mechanical	500,000 Cycles







Package List



Shipping





Greetech Advantages

1. ISO9001 & IATF16949 qualified

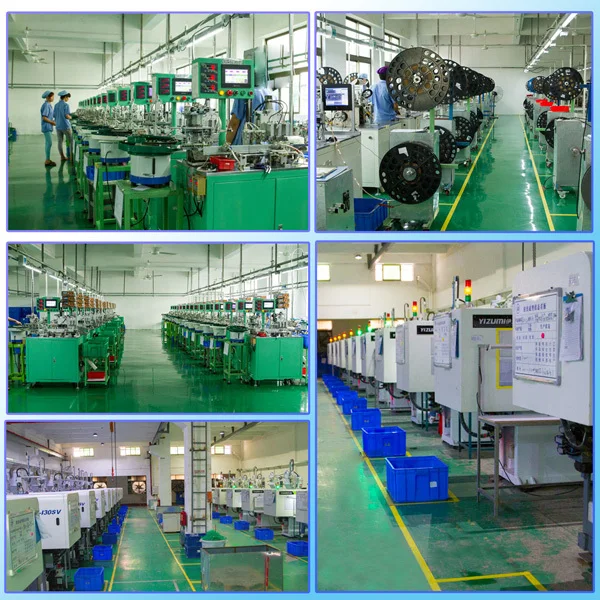

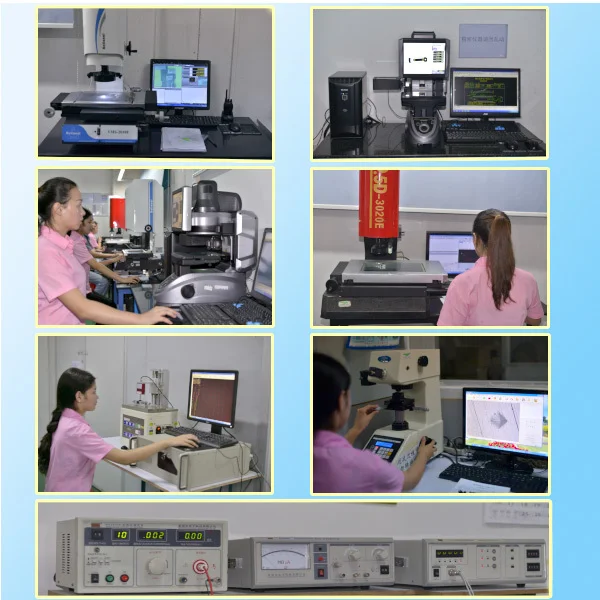

2. Most products are produced & tested by automatics

3. Automatic machines are designed and assembled by our own team

4. Awarded as National Innovative Technology Company

5. Strong R&D team, authorized over 30 patents



Certificates



Business Partners





Q1. Are you a trading company or manufacturer?

A: Yes. We are a manufacturer specializing in switches over 30 years.



Q2. What is your MOQ?

A : Normally, MOQ=500pcs.



Q3. What’s the warranty time?

A: 1 - 2 years.



Q4. Could you offer us free samples?

A: Yes, free samples could be provided within 2-5 days.



Q5. What ‘s the lead time of mass production?

A : About 2-4 weeks.



Q6. What’s the capacity per month?

A :   Over 8 million pieces per month for micro switch series.

       Over 20 million pieces per month for keyboard switch series.



Q7. Where is your plant?

A:  Located in Huizhou city, Guangdong province, China.

     About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.



Q8 . Could you accept OEM or ODM?

A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
