Pet Strap Extruder Pet Strapping Band Making Machine
US $0.06-$0.16
pet strap extruder pet strapping band making machine
- Category: >>>
- Supplier: Qingdao Jinfuxin Plastic Machinery Co. Ltd.
Share on (1600649994011):
Product Overview
Description
Product Overview
Plastic PET Strap Belt Extrusion Line
Main feauters of the pet strap extrusion line
------Using100% recycled pet bottle flakes
------Can produce 9-32mm strap, 1/2/3/4/6/8 lines
------Close-loop control & speed synchronization system
------High tension force according to your needs
-----Low energy consumption, high production capability.
------Easy to operate ,save manpower
------Close-loop control & speed synchronization system
------High tension force according to your needs
-----Low energy consumption, high production capability.
------Easy to operate ,save manpower
Final Products
PET straps are widely use for industrial packaging, like metal packaging, stone packaging, cotton packaging, etc.
PRODUCT SPECIFICATIONS
II. Main Technical Parameters for PET strap extrusion machine
NO | Machine Model | Machine Capacity | Strap lines |
1 | SJ75 | 60-70kg/h | 1 line |
2 | SJ90 | 150-200kg/h | 1-2 lines |
3 | SJ110 | 200-300kg/h | 2-3 lines |
4 | SJ120 | 300-400 kg/h | 3-4 lines |
5 | SJ135 | 400-500 kg/h | 5-6 lines |
6 | SJ150 | 700-750 kg/h | 7-8 lines |
Machine Pictures & Details

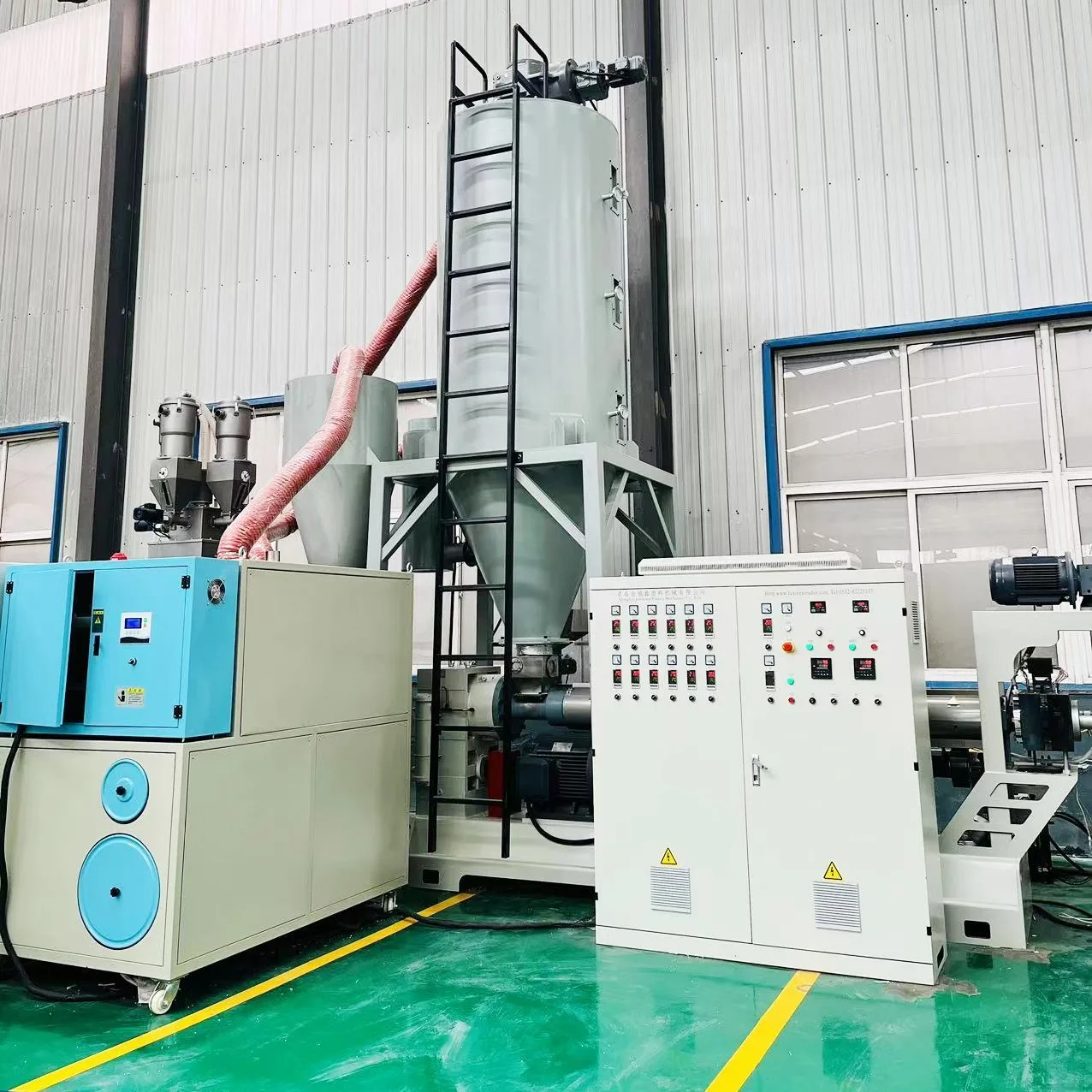

1. Material drying and dehumidifying system & single screw extruder
---Using 100% pet bottle flakes
----close-loop control system
2. Material filter, Melt pump & Extrusion Mould
---large filter area
---different moulds according to different dimension
---1/2/3/4/6/8 lines according to machine capacity and strap dimension

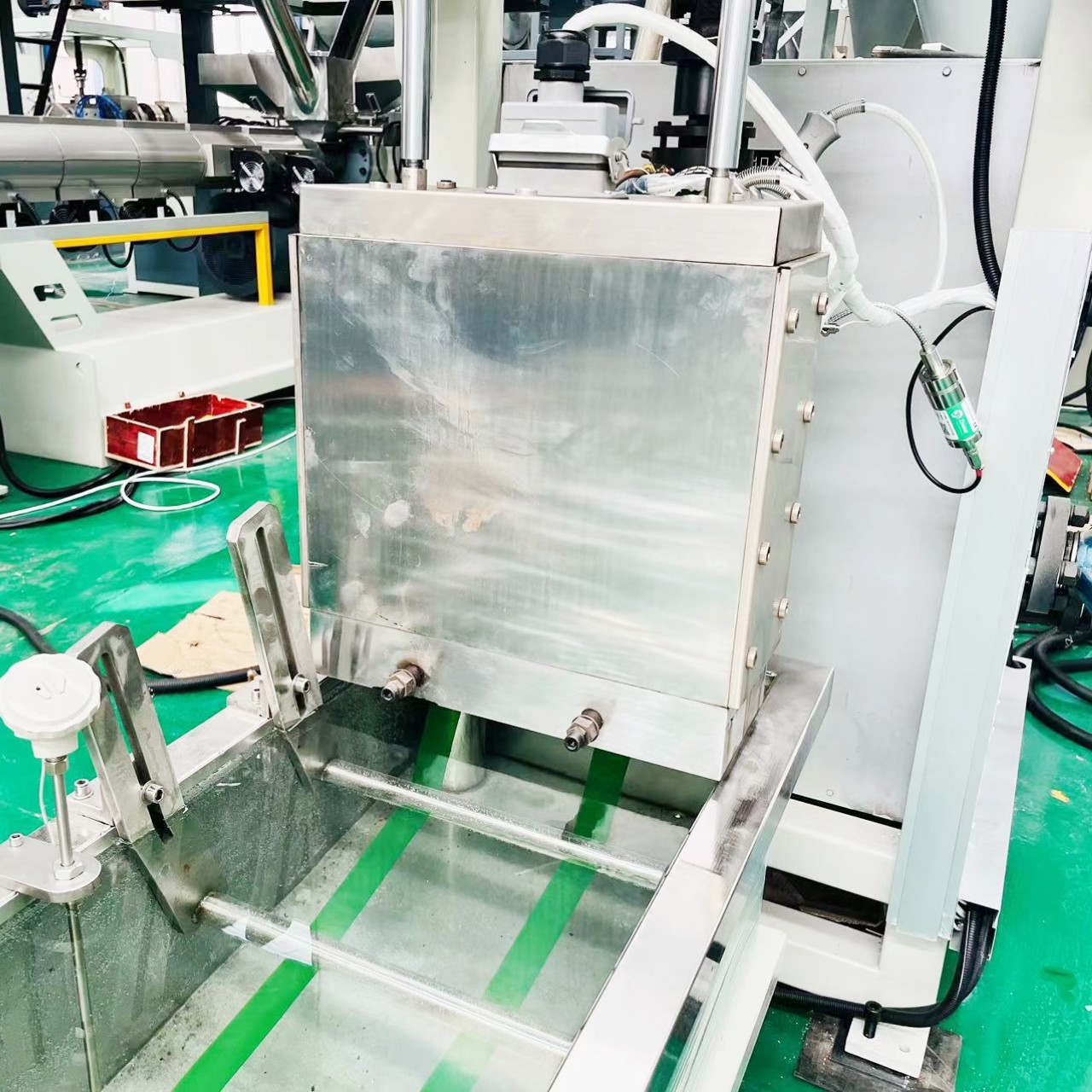

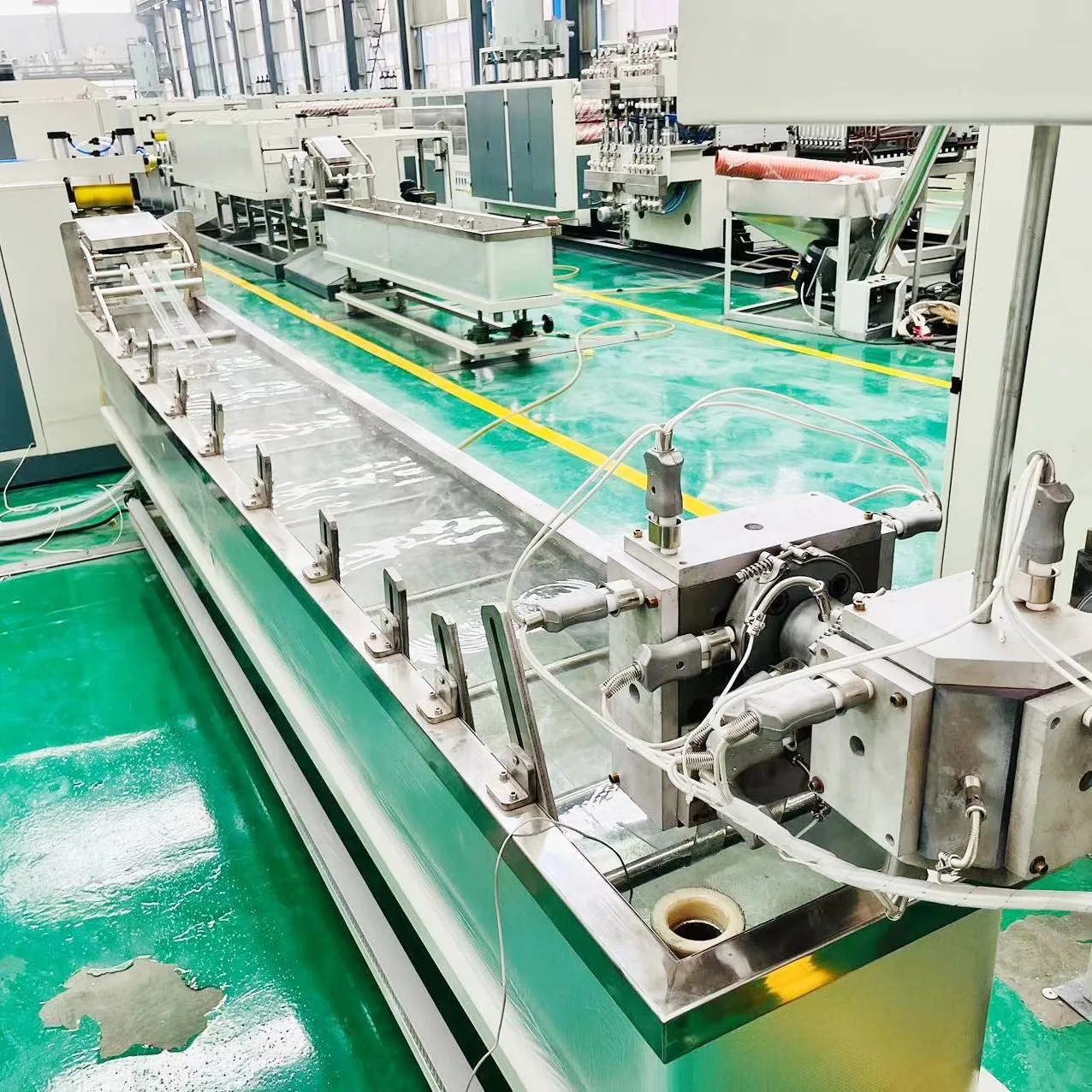

3. Cooling tank
----made by 304 stainless steel

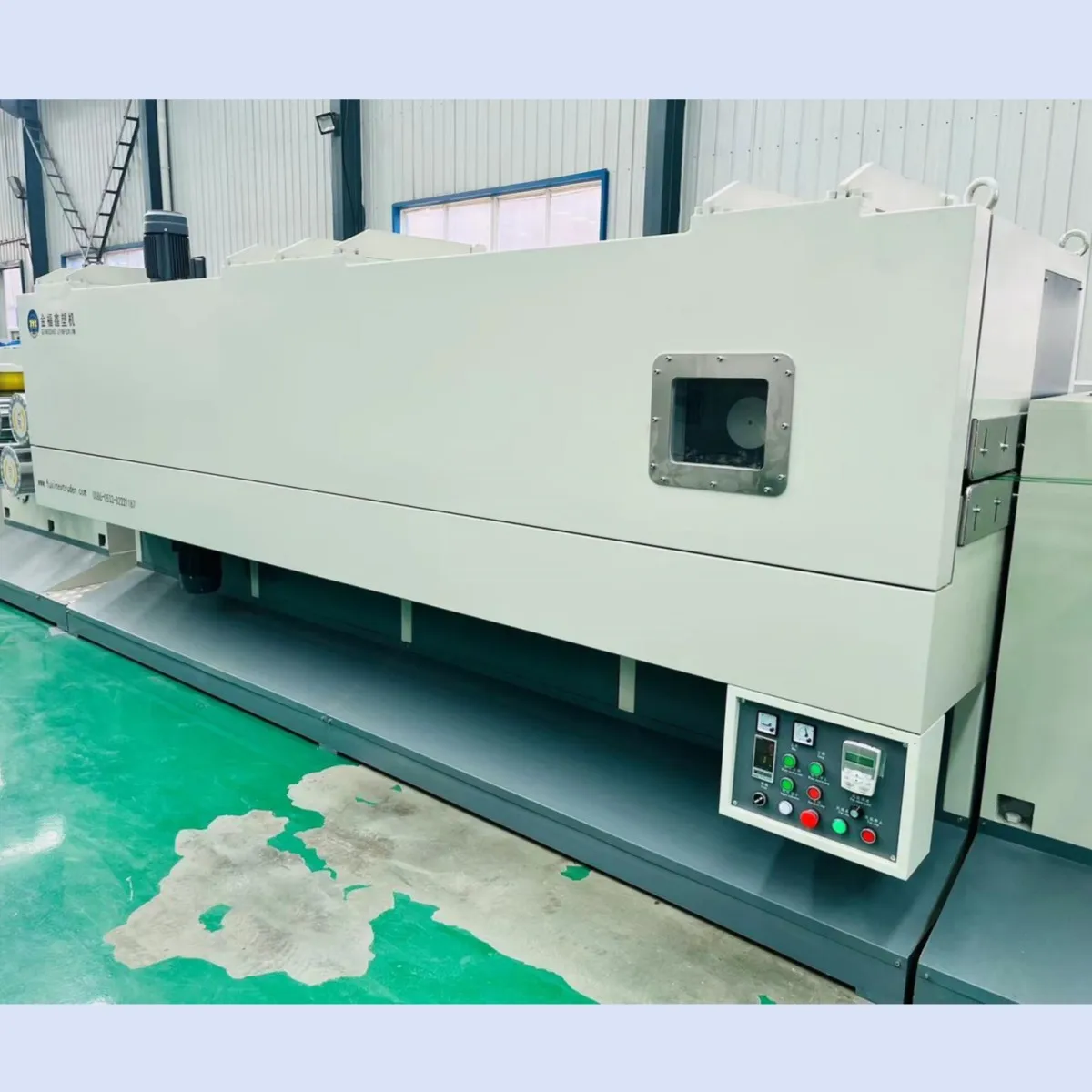

4. Air Oven
---forced blowing system
---good heat-preservation

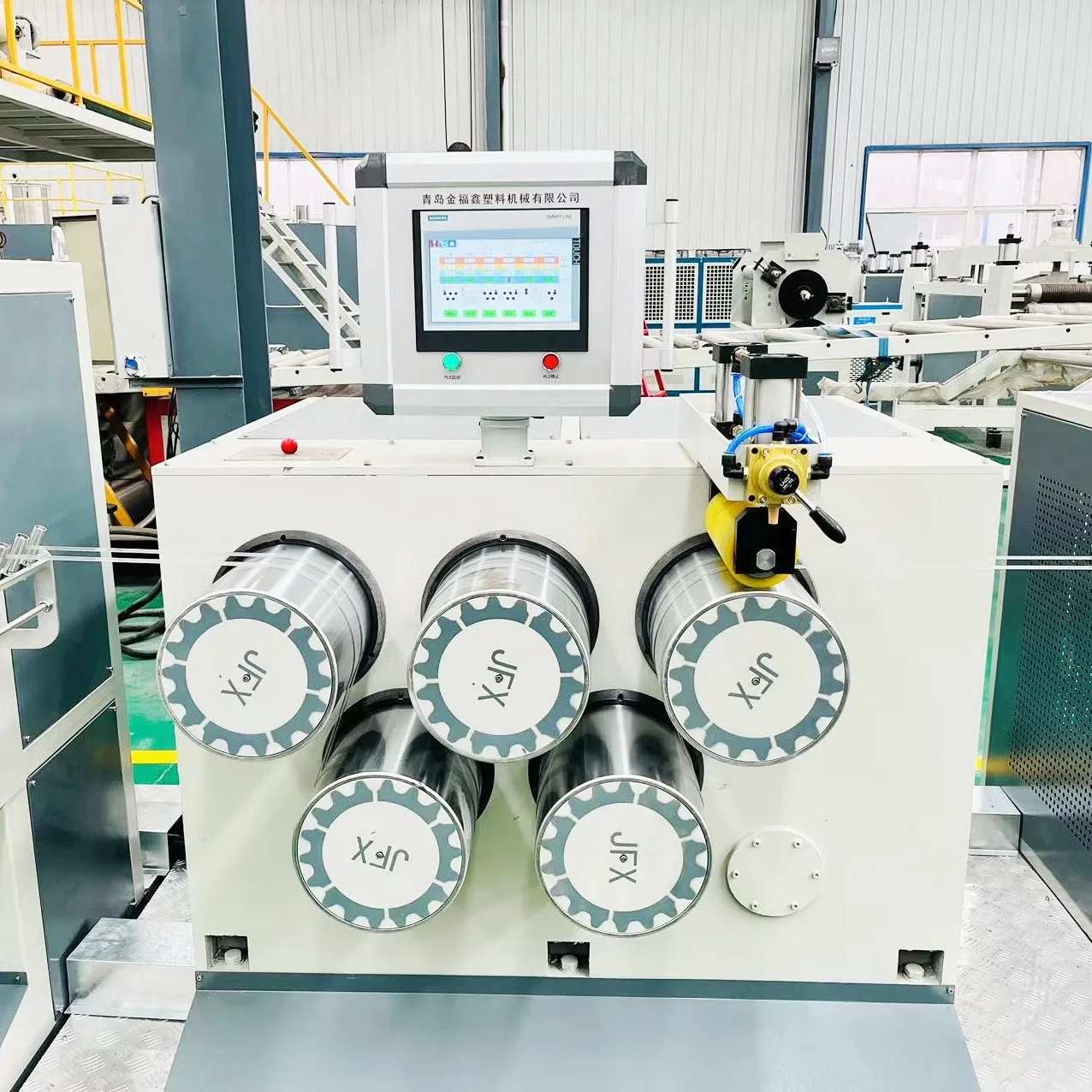

5. Stretching & Hual-off Rollers
---PLC speed synchronization system
---gear transimmision
---casted gear box structure
6. Embossing system & shaping oven
---hydraulic controlled embossing system
---forced blowing system
---good heat-preservation
---water tank made by 304 stainless steel

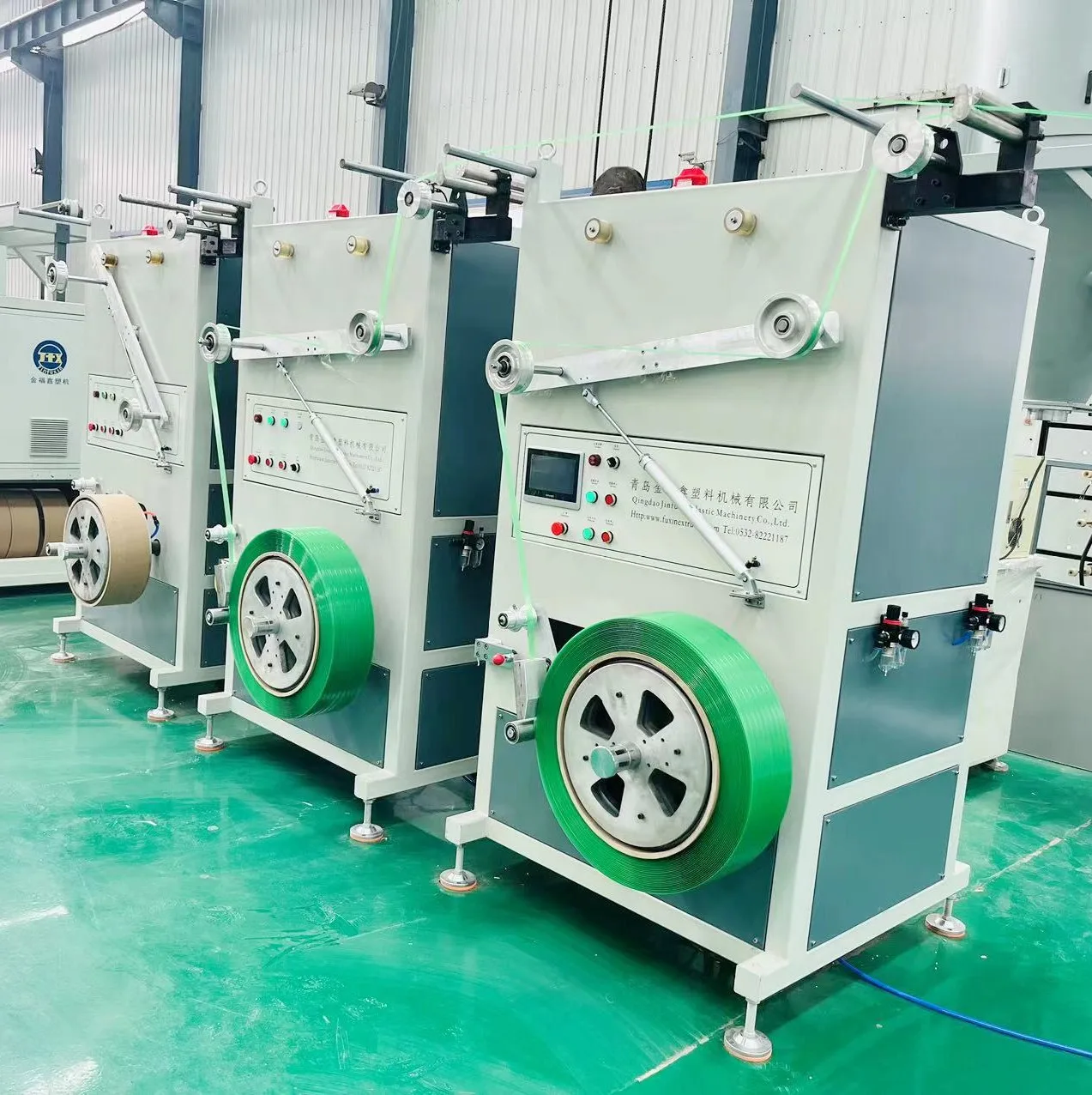

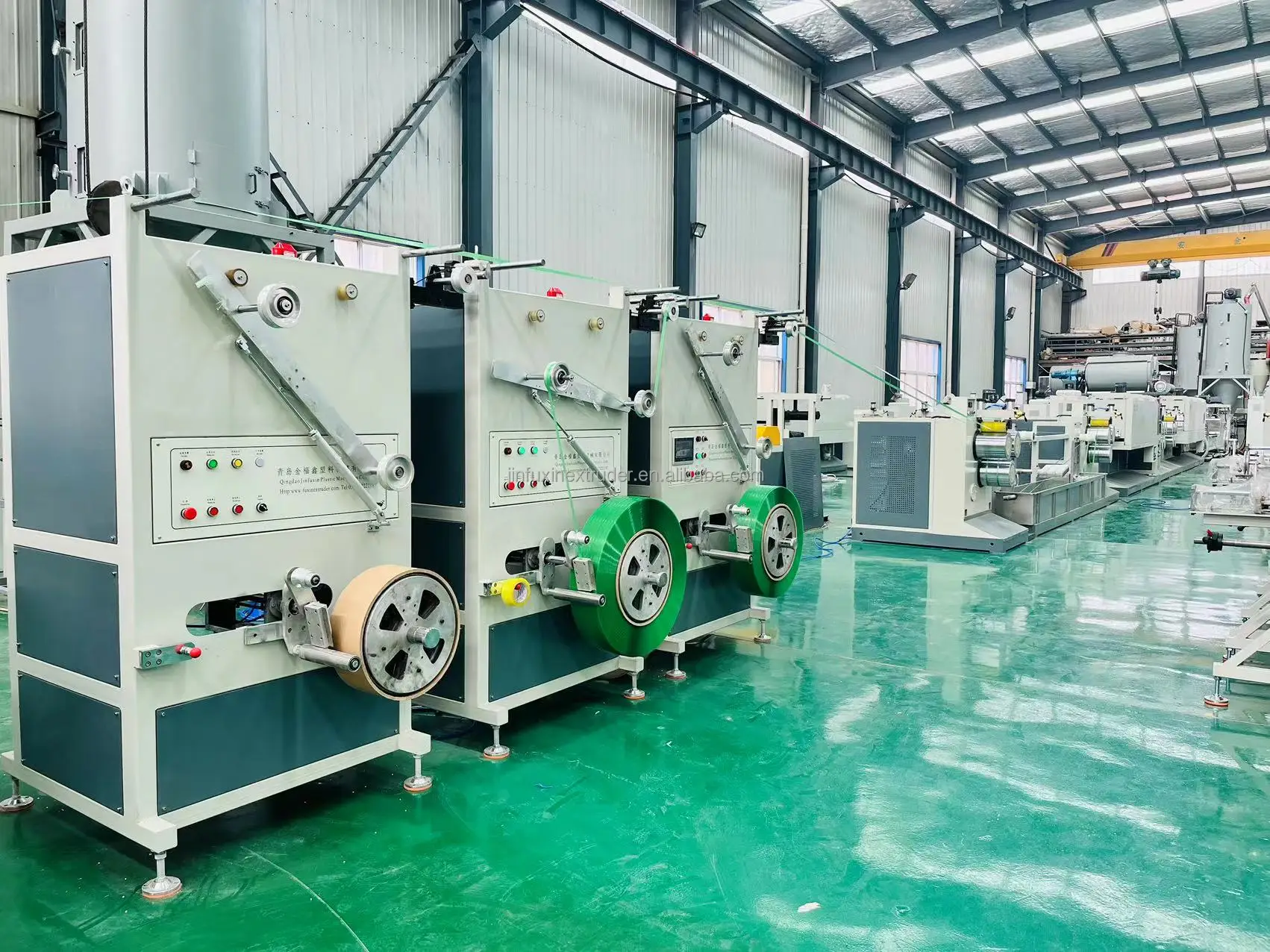

7. Winding machine
Optional:
---Torque motor winding machine
---PLC winding machine
---Torque motor winding machine
---PLC winding machine
---Full automatic winding machine
---winding evenly
---good strap straightness
Machine packaging & Delivery
Company Profile

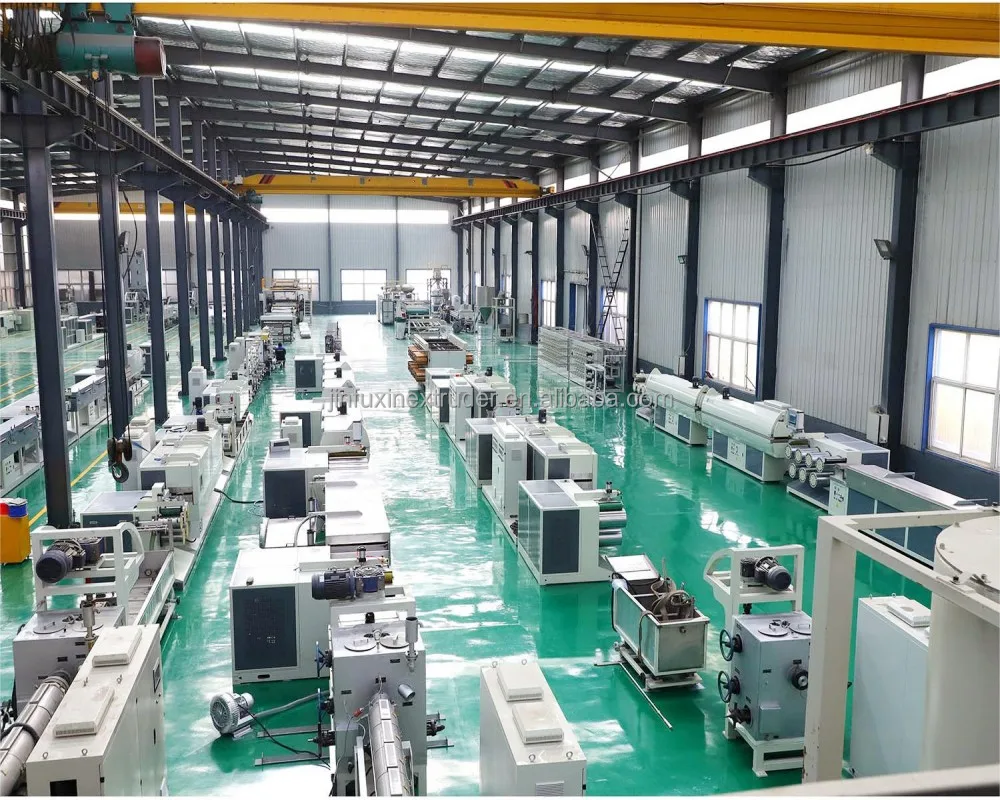

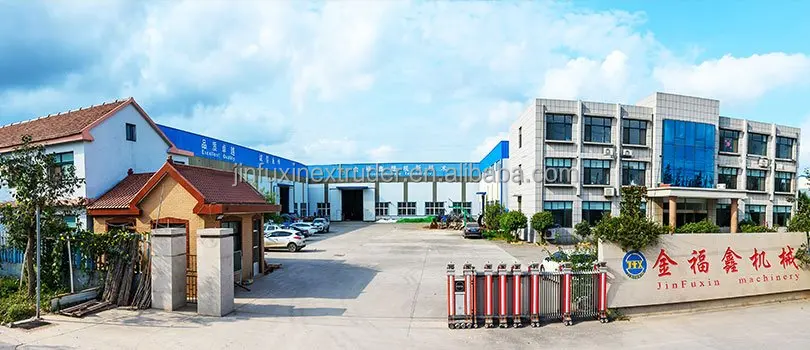

Qingdao Jinfuxin Plastic Machinery Co., Ltd is one professional plastic strap & plastic monofilament extrusion machinery facotry in QINGDAO, CHINA. It was founded in 2002, covers an area of 15000 square meters.
QINGDAO JINFUXIN PLASTIC MACHINERY CO., LTD is engaged in Plastic Extrusion Machinery design, research and production. But the main products are Plastic PET/PP/HDPE/PVC Monofilament Extrusion Line, Plastic PET/PP Strap Extrusion Line.
80% of machines are for exportation, including USA, Mexico, Brazil, India, Russia, South Africa, South Korea, etc.
QINGDAO JINFUXIN PLASTIC MACHINERY CO., LTD is engaged in Plastic Extrusion Machinery design, research and production. But the main products are Plastic PET/PP/HDPE/PVC Monofilament Extrusion Line, Plastic PET/PP Strap Extrusion Line.
80% of machines are for exportation, including USA, Mexico, Brazil, India, Russia, South Africa, South Korea, etc.
