1 ton mini excavator high quality Mini digger machine 1 Ton China compact Mini Excavator earth moving machine for sale
- Category: Excavators >>>
- Supplier: Walle Machinery Shanghai Ltd.
Share on (1600651566481):
Product Overview
Description
Product Description

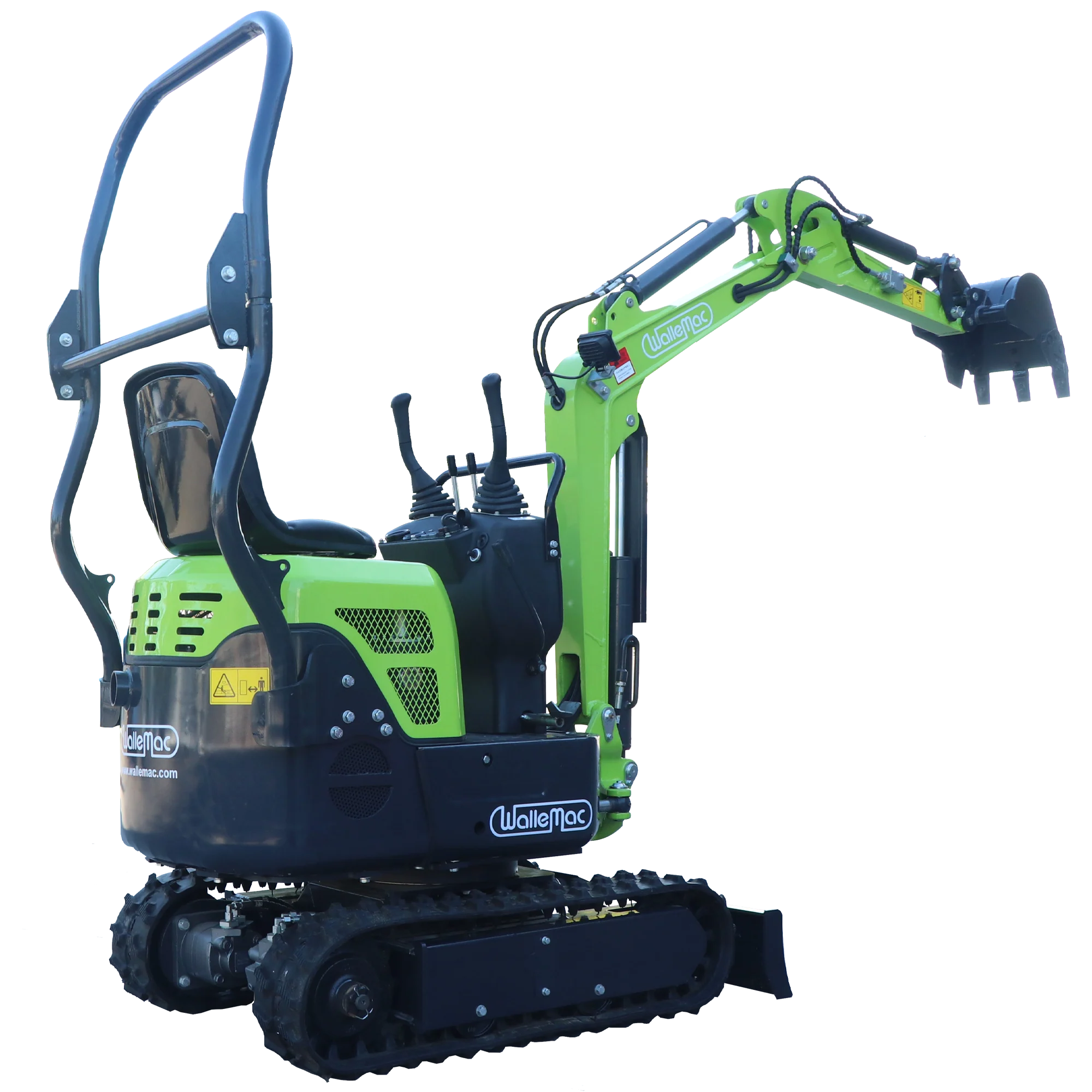

Design and build for performance, safety, durability and maneuverability, Wallemac WE10 series mini excavator is a super compact but robust machine for operation at various job sites with powerful digging force, espacily in very tight spaces, such as insider building or small demolition, plant setting in the garden, landscapeing, infrastructure and foundation building, farm working, etc.
The WE10 series features many upgrades for enhancement of efficiency, reliability and durability as well, provides variety of power, attachment and undercarrier options for each of your specific job.
Powerful and clean engines:
Reliable and durable EPA petro engine or Euro V desiel engine from top manufacturers provide exactly the right digging force.
Super compact

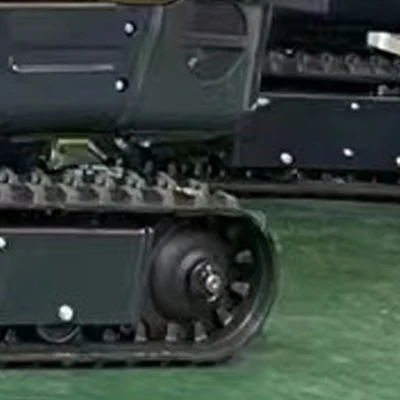

Very short tail design and extendable variable undercarriage (optional) provides maxiumum versatility it terms of size and stability, allows ease of access to narrow spaces and ensures stable workability.
Safety:
Foldable ROPS (Rollover Protective Structure) ensures operation safety, makes easy transporting and storage of the machine. FOPS (Falling Object Protective Structure) canopy provides reasonable protection for the operator against accidental falling objects
Durability
Reinforced high strength body and components, protected boom cylindres, in boom hydraulic hoses, and several technical solutions provide enhanced sturdiness and reliability.
Easy access for operating and maintenance
A full-open bonnet and new engine layout makes daily inspection and maintenance of essential components a snap. Both features now provide you with easy access to
battery, coolant, fuel filter.
Variety choices of attachments and implements
Single-way hydraulic auxiliary valve and mechnical quick coupler (optional) ensures the easy and quick installaion of attachments such as bucket, demolition breaker, auger, riper, grapple etc.
| Model | WE10G | WE10D | ||
| Engine | Model | B&S 25T2 | KOOP KD192 | |
| Gross Power @3600rpm | HP (kw) | 13.5 (9.9) | 11.7 (8.7) | |
| Displacement | cu.in (cc) | 25.7 (420) | 30.5 (499) | |
| Fuel capacity | gal (ltr) | 1.7 (6.5) | 1.5 (5.5) | |
| Oil capacity | gal (ltr) | 37 (1.1) | 0.45 (1.7) | |
| Operating Performance | Operating Weigh | lb (kg) | 2200 (1000) | |
| Standard Bucket Capacity | cu.ft (cu.m) | 0.78 (0.022) | ||
| Max. Arm Digging Force | lb (kg) | 1460 (663) | ||
| Max. Bucket breakout Force | lb (kg) | 2550 (1157) | ||
| Swing Speed | rpm | 11 | ||
| Drivetrain | Max Travel Speed | mph (km/h) | 2.4 (3.8) | |
| Ground Pressure | psi (kpa) | 4.9 (0.35) | ||
| Track width | ft. in. (mm) | 7.1" (180) | ||
| Track Type | Rubber | |||
| Dimensions | A Overall Transportation Length | ft. in. (mm) | 8'7" (2600) | |
| B Track Width Extended | ft. in. (mm) | 2'9" (850) | ||
| C Transporting height | ft. in. (mm) | 4'10" (1480) | ||
| D Blade Width | ft. in. (mm) | 2'10" (860) | ||
| E Track center distance | ft. in. (mm) | 2'3" (680) | ||
| F Max. Dig Height | ft. in. (mm) | 8'6" (2580) | ||
| G Max. Dump Height | ft. in. (mm) | 6' (1830) | ||
| H Max. Dig Depth | ft. in. (mm) | 6'7" (2000) | ||
| I Max. Vertical Dig Depth | ft. in. (mm) | 5'3" (1600) | ||
| J Max. Reach | ft. in. (mm) | 9'4" (2850) | ||
| K Front Swing Radius | ft. in. (mm) | 4'3" (1290) | ||
| L Max. Digging Radius @groud | ft. in. (mm) | 8'10" (2700) | ||
| M Blade Height | ft. in. (mm) | 6.3" (160) | ||
| N Blade Dig Depgth | ft. in. (mm) | 7.5" (190) | ||
| Marterial and specifications are subject to change without notice | ||||
Company Information
Wellemac is an one-stop compact and light duty equipment provider for industries including landscaping, garden, agricultural, Forrest, utility and municipal, as well as general constructions, which means we can offer a package solution for any jobs in these application - whether you need small digging machines and small track dumper or a mini trencher or wood chippers, we will provide you the best fit and cost effective machines for your needs. A variety of compact and maneuverable machines with easy-to-use attachments will definitely assure you the total cost savings .
We strive to make a safe and a green world by investing on technology and design innovation, smart manufacturing and new energy solutions.
FAQ
1. Q: How can I make the payment?
A: Sample orders 100% T/T in advance. If mass order, T/T L/C are acceptable.
2. Q:How to install our mini crawler excavator?
A: we can provide detailed installation video/pictures, or send engineers team.
3. Q: Any other good service your company can provide?
A: Yes,we can provide good after-sale and fast delivery.
4. Q: Can I order mix order?
A: Yes. of course.
5. Q: How long of the warranty period?
A: All our products have a 1 year warranty after sale; if any one breaks when it is still under warranty,please just contact us. We'll solving problems properly.
6. Q: How can i believe you and your factory?
A:Since it is not the little thing to purchase machine, you can come to China to visit us for an inspect, and we will welcome you enthusiasm. so we can establish good cooperation with each other.
reply you in 24 hours, if you are urgent, we can reply you soonest
