Алмазная гусеничная пила, гидравлическая бетонная настенная пила для резки стен
- Category: Engineering & Construction Machinery >>>
- Supplier: Guangdong Team-D Group Co. Ltd.
Share on (1600655907532):
Product Overview
Description
Products Description
Blade Diameter arrange（mm） | 600-1800mm （Max diameter 2000mm） |
Max Cutting Depth（mm） | 830 （Max Diameter 930mm） |
Main Hydraulic Motor Model | HM-23/HM-44 |
Blade Center Hole（mm） | Φ60 |
Blade Center Fixing Hole（mm） | Φ8.5/Φ9/Φ10 |
Cutting Flange Cutting Mode | 6 Screws Connected |
Cutting Flange And Blade Connecting Hole | 6 Countersunk Head Screws |
Main Drive Mode | Gear Drive |
Transmission Ratio | 1：2 |
Feed Drive Mode | Hydraulic |
Provide Cooling Water To Saw Blade | From Center Hole To The Flange |
Drive Power | 20/30KW |
Max Working Pressure | 300 bar |
Oil Flow（L/min） | 36/60 |
Max. Speed（R/min） | 1047/1363 |
Saw Arm Rotate Range | 360° |
Walking Track Operate Mode | Gear Wheel & Roller |
Hand Grip | 2 |
Eccentricity Clamping Device | 2 |
Weight | 40KG |
Size | 520*325*400mm |

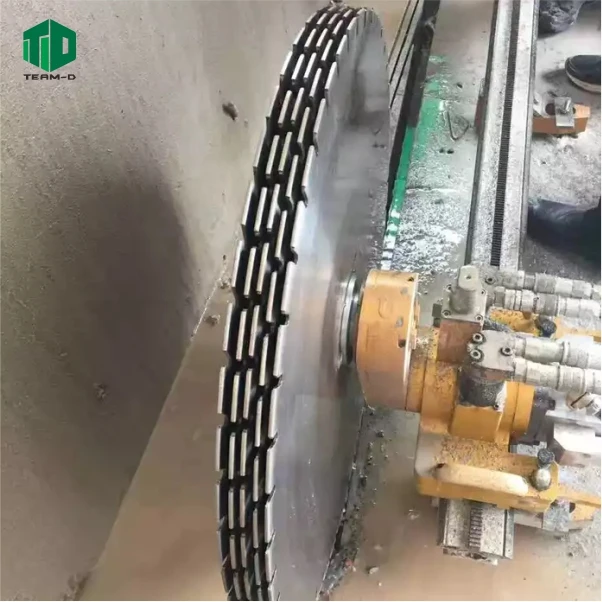

Details Images
Product packaging
Customer Photos
Exhibition
Team-D Group is a professional manufacturer of driling and cutting equipment,with more than ten branches. Our company has dozens of patents for drilling and cutting equipment, with over 10 years of reinforced concrete drlling cutting and quarry stones cutting experience，Providing customization for global driling cutting, diamond consumables, diamond wire saw industries. We can provide customers with all aspects of drilling and cutting solutions and underwater cutting in the fields of marine, aviation，nuclear power，mining technology and so on.
