Hot Popular 1.5INCH P AD 1 8NPT 0 160PSI WITH516 VIBRAL SEAL SINGLE NEEDLE ABS PLASTIC CASE AIR PRESSURE GAUGE
- Category: Test Instruments >>>
- Supplier: Ningbo Weka Instrument Co. LTD
Share on (1600657435355):
Product Overview
Description

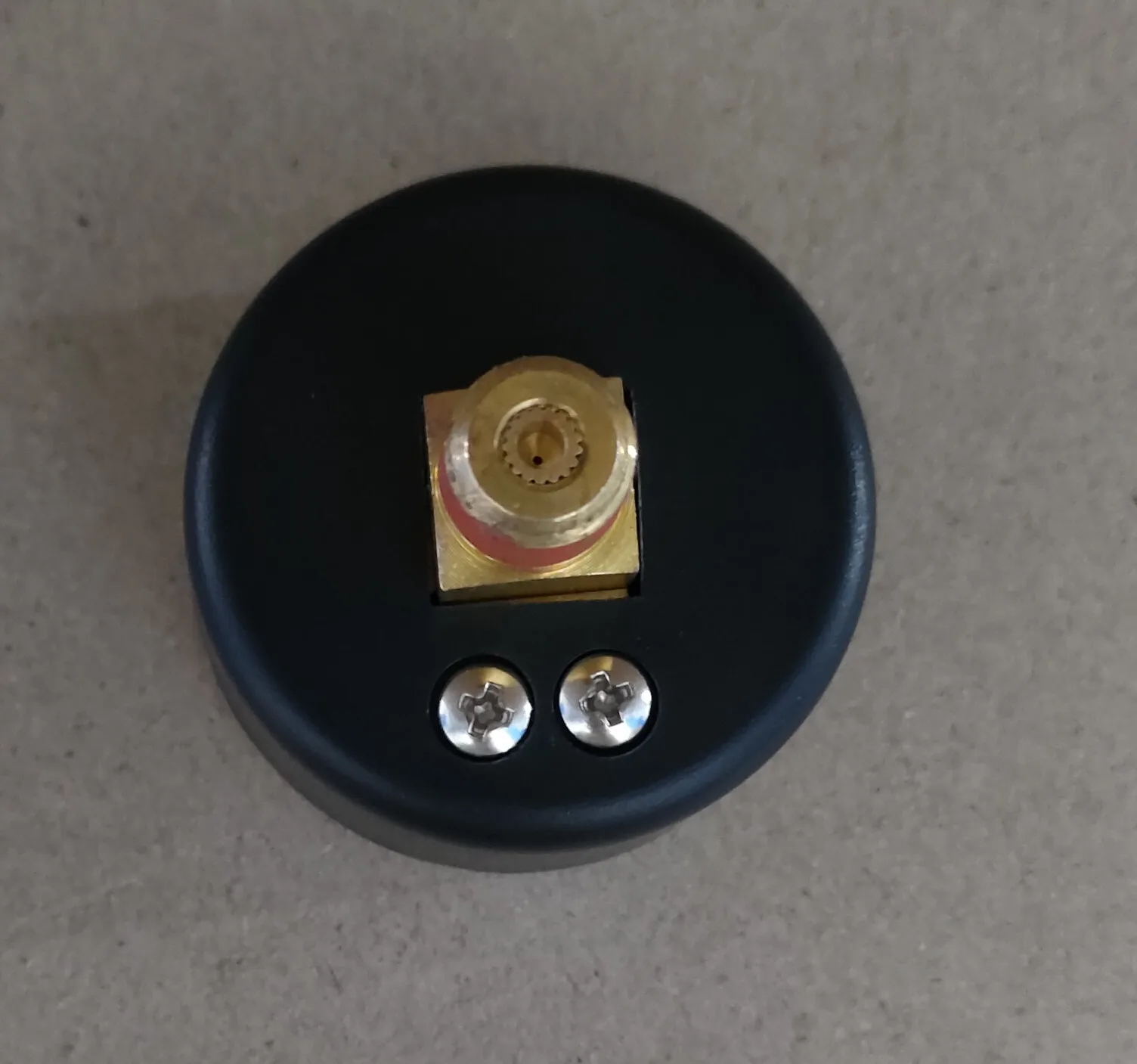

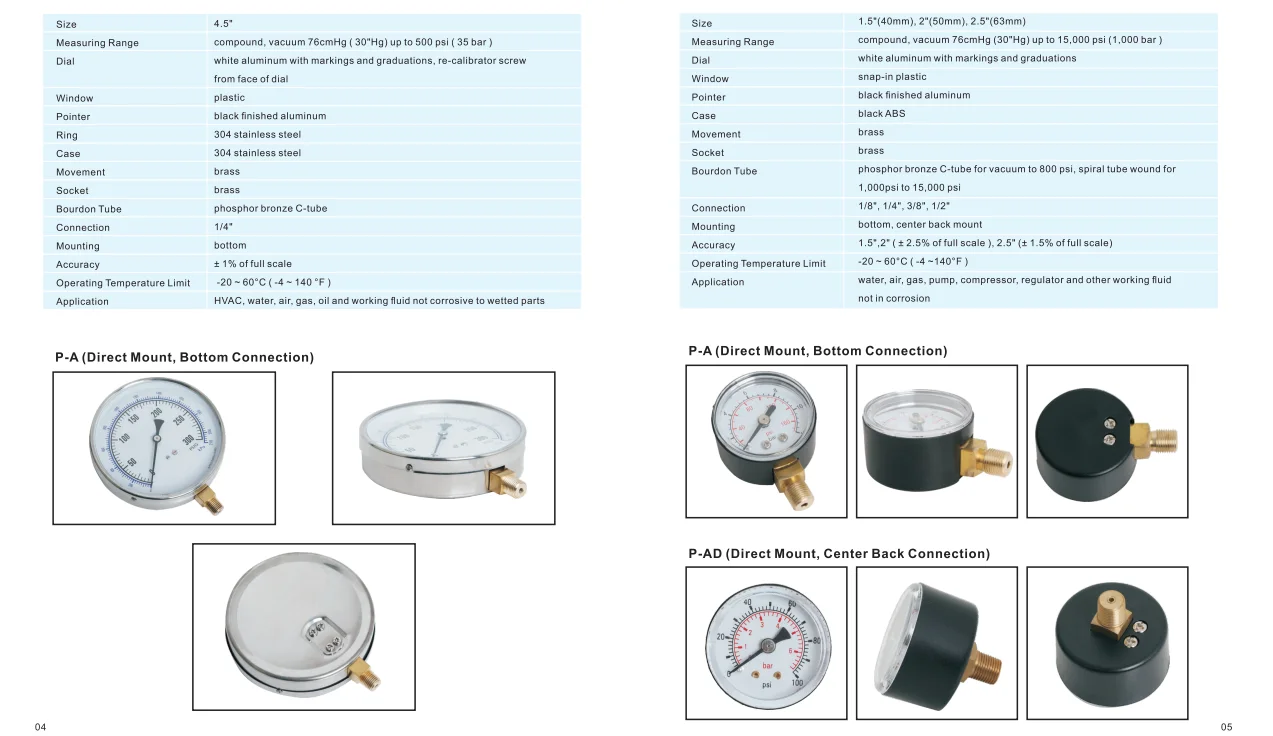

Description The plastic case utility gauges is rust resistance as the case is ABS and snap-in plastic lens. The gauge is suitable for working media not corrosive to brass or phospher bronze. Connection types: P-A type (bottom mount) P-AD type (center back mount) Optional with red pointer Application: water, air, gas, pump, compressor, regulator and other working fluid not in corrosion. | Specification Size: 1”(25mm), 1.5”(40mm), 2”(50mm), 2.5”(63mm) , 3”(75mm) Measuring Range: compound, vacuum 76cmHg (30"Hg) up to 15,000 psi (1,000 bar) Dial: white aluminum with markings and graduations Window: snap-in plastic Pointer: black finished aluminum Case: black ABS Movement: brass Socket: brass Bourdon Tube: phosphor bronze C-tube for vacuum to 1,000 psi, spiral tube wound for 1,000 psi to 15,000 psi Connection: 1/8", 1/4", 3/8", 1/2" PT, NPT, BSP thread Mounting: bottom, center back Accuracy: 1"(+/-3% of full scale), 1.5", 2"(+/-2.5% of full scale), 2.5", 3"(+/-1.5% of full scale) Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F) |
1.Before we received the first order, please afford the sample cost and express fee.
We will return the sample cost back to you within your first order.
2.Existing items: Within 10~15 days.
3.We can print your Logo on both the products and the packages if you can meet our MOQ. OUR MOQ 500PCS.
We will return the sample cost back to you within your first order.
2.Existing items: Within 10~15 days.
3.We can print your Logo on both the products and the packages if you can meet our MOQ. OUR MOQ 500PCS.
