Photovoltaic Combiner Box IP65 Outdoor Solar Panel DC String Distribution Box PV Combiner
Photovoltaic Combiner Box IP65 Outdoor Solar Panel DC String Distribution Box PV Combiner
Photovoltaic Combiner Box IP65 Outdoor Solar Panel DC String Distribution Box PV Combiner
Photovoltaic Combiner Box IP65 Outdoor Solar Panel DC String Distribution Box PV Combiner
Photovoltaic Combiner Box IP65 Outdoor Solar Panel DC String Distribution Box PV Combiner
Photovoltaic Combiner Box IP65 Outdoor Solar Panel DC String Distribution Box PV Combiner
Photovoltaic Combiner Box IP65 Outdoor Solar Panel DC String Distribution Box PV Combiner

Photovoltaic Combiner Box IP65 Outdoor Solar Panel DC String Distribution Box PV Combiner

Share on (1600657498121):


Price:$88.80

Quantity:


Product Overview

Description





Products Description

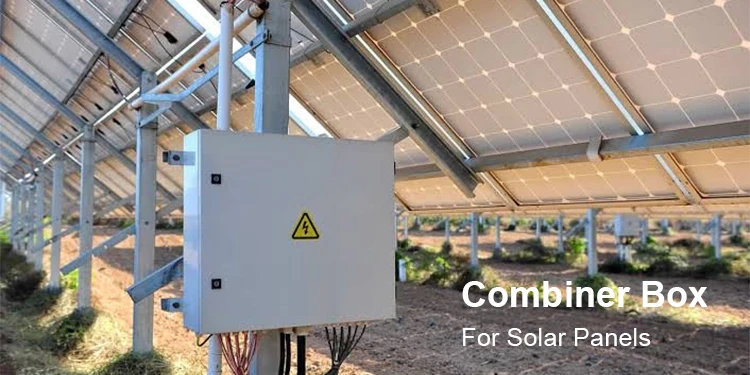

1. The PV combiner box is suitable for photovoltaic grid-connected and off-grid power generation systems.
2. It is configured with photovoltaic dedicated high-voltage lightning arrester, DC fuse and circuit breaker to provide short circuit fault protection and lightning protection.
3. It has protect function of over-voltage and over-current so as to avoid damage to photovoltaic panels and inverters when the fault occurs.




4. It’s also used to reduce the connection of the photovoltaic array to the inverter,optimize the system structure, improve the reliability and maintainability of the system, make the photovoltaic system at its best.
5. IP65 design, waterproof, anti dust and anti ultraviolet.
6. Strict test for high and low temperature, used widely.
7. The simple installation,the simplified system wiring, the convenient wiring.




Product Parameters


Product Name
DC combiner box
Model Code
MDJB-PV6/1
Rated Voltage
500V~600V
Operation
10A
Input
6strings
output
1string
Temperature range
-25℃~+60℃
Enclosure
IP Protection Class(IEC60529)
IP65
Materials
Polycarbonate/ABS
Spec
UV resistance and Flame retardant
DC Circuit Breaker
Rated Voltage
500V~600V
Rated Current
63A
DC SPD
Max Operating Voltage
1000V
Max Discharge Current
40KA
Nominal discharge current
20KA
DC Fuse
Rated Volitage
1000V
Fuse link
15A 10*38mm²
Finger safe touch
YES


Cooperation Case




Certifications




Certification & Standards
Our company has passed ISO14001 environmental management system, ISO9001 quality management system and ISO45001 occupational health and safety management system certification.

All products have passed CE, CQC certification, excellent quality, safe and reliable.
