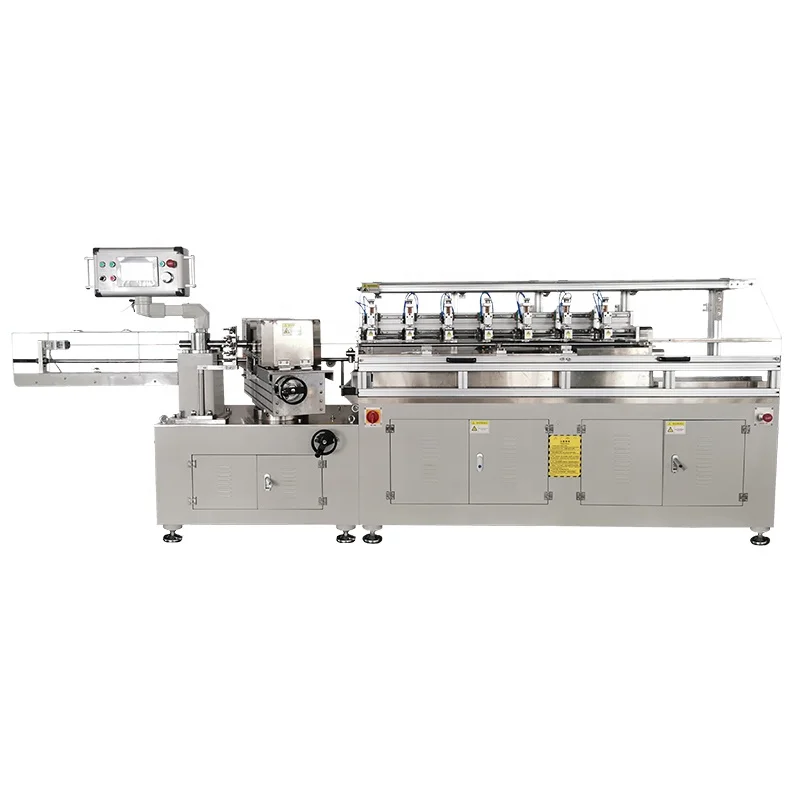

China Gaoda high speed multi blades no glue paper straw making machine popular sale in Korea
- Category: Home Product Manufacturing Machinery >>>
- Supplier: Wenzhou Gaoda Paper Tube Machinery Co. Ltd.
Share on (1600660389911):
Product Overview
Description
Product Description
GDM-20 No glue：
Working Principle and short instruction：
Working Principle and short instruction：

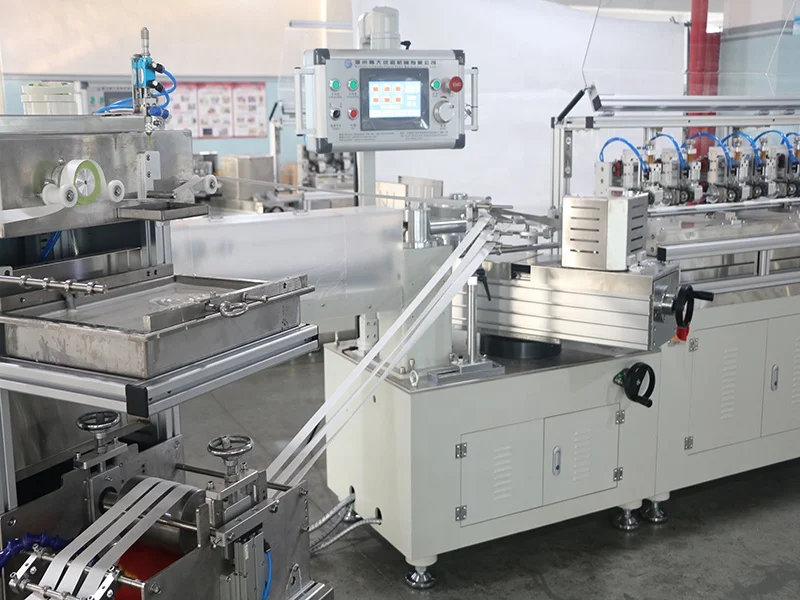

Winding/spiraling different layers paper strip into paper tube with no glue heating device.
Multi-cutting knife system, by servo tracking, cut paper tube into small piece of paper drinking straws.
* Material: food grade white craft paper and No glue heating device;
Sub-raw material: may need oil for lubrication and cooling. White mineral oil.
Standard electric power: 380V/ 3phase/ 50Hz, could change by special requirement, like 60Hz or 220V/ 3 phase.
Electric consumption: Rated power, 6.15KW/h
FLA( Full load amp): 13.5A
Capacity:
How many pieces straw per minute. For example: 60m/min, making 6*197mm straws. Consider some waste, we use 200mm for calculating.
60*1000/200=300 pcs/minute.
Multi-cutting knife system, by servo tracking, cut paper tube into small piece of paper drinking straws.
* Material: food grade white craft paper and No glue heating device;
Sub-raw material: may need oil for lubrication and cooling. White mineral oil.
Standard electric power: 380V/ 3phase/ 50Hz, could change by special requirement, like 60Hz or 220V/ 3 phase.
Electric consumption: Rated power, 6.15KW/h
FLA( Full load amp): 13.5A
Capacity:
How many pieces straw per minute. For example: 60m/min, making 6*197mm straws. Consider some waste, we use 200mm for calculating.
60*1000/200=300 pcs/minute.
Advantage of GDM-20 No Glue:
1. Higher Speed，max 95m/min input, 70m/min out put.

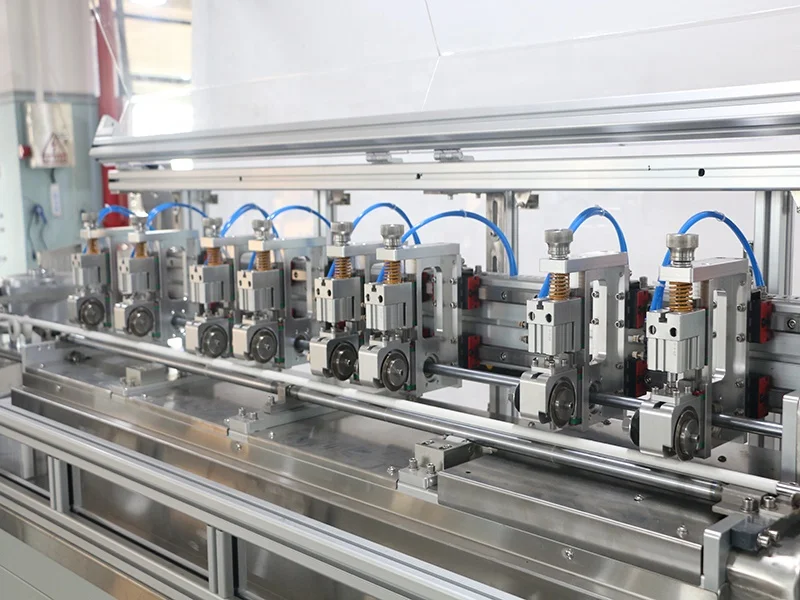

2. 8cutting-knife system, new structure of cutting cylinder. Easier to adjust air cylinder up and
down when making different diameter paper straws.
3. 5 sets servo motor for spiraling roller, cutting system moving left & right, supporting roller
and cutting knifes.
4. Auto paper roll connecting function hanging bracket, auto splicer,4 layers. Other brand paper straw making machine paper roll
hanging bracket is only 3 layers.
5. Auto feeding function glue station.
6. Auto lubrication grease feeding system for cutting system.

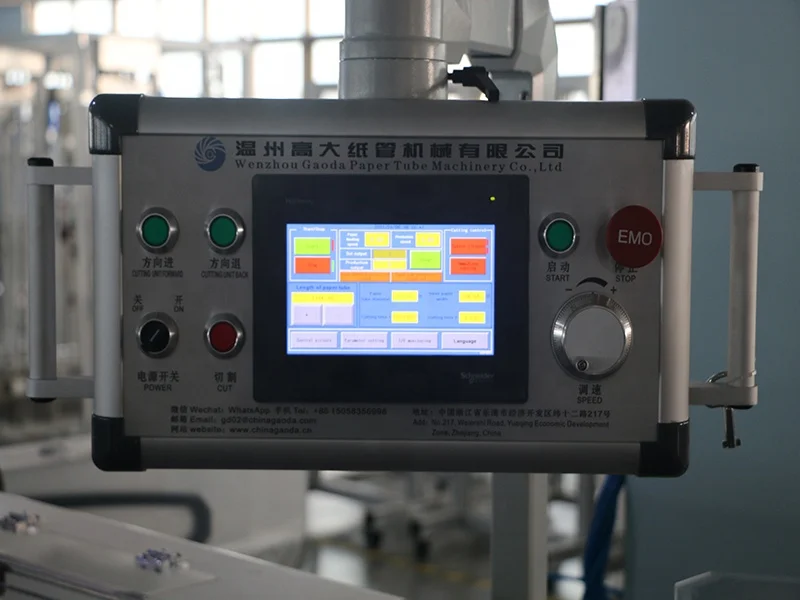

7. Main electric parts choose famous brand,Schneider. Like main servo motor, servo motor driver, frequencyconverter, touch screen
.
2. 8cutting-knife system, new structure of cutting cylinder. Easier to adjust air cylinder up and
down when making different diameter paper straws.
3. 5 sets servo motor for spiraling roller, cutting system moving left & right, supporting roller
and cutting knifes.
4. Auto paper roll connecting function hanging bracket, auto splicer,4 layers. Other brand paper straw making machine paper roll
hanging bracket is only 3 layers.
5. Auto feeding function glue station.
6. Auto lubrication grease feeding system for cutting system.
7. Main electric parts choose famous brand,Schneider. Like main servo motor, servo motor driver, frequencyconverter, touch screen
.

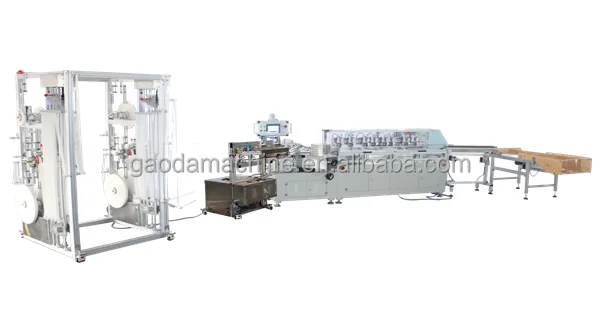

Paper roll hanging bracket with connecting function
1.Help paper straw making machine no stop working.
2.Use auto detection: When the paper roll is going to use out, the mechanism will cut the tail ends of old paper roll and connect
new paper roll automatically.3.Smaller dimension, easy delivery and moving to adjust paper feeding angle.
4.Construction simpleness. If paper break, no need to stop to route the paper up and down complicated.
5.Constant unwinding force for the paper rolls, to let paper feeding more smoothly.
6.Our own patent for this connecting mechanism, not copy from others, especially European brands, so no patent problem.
7.Optional choose: 4 layers connecting mechanism.
2.Use auto detection: When the paper roll is going to use out, the mechanism will cut the tail ends of old paper roll and connect
new paper roll automatically.3.Smaller dimension, easy delivery and moving to adjust paper feeding angle.
4.Construction simpleness. If paper break, no need to stop to route the paper up and down complicated.
5.Constant unwinding force for the paper rolls, to let paper feeding more smoothly.
6.Our own patent for this connecting mechanism, not copy from others, especially European brands, so no patent problem.
7.Optional choose: 4 layers connecting mechanism.

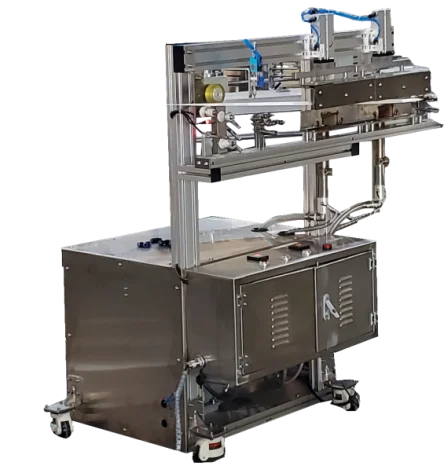

No glue heating device
Preheat device;
Heat up gradually;
Cover a small floor area;
Rapid heat dissipation.
Heat up gradually;
Cover a small floor area;
Rapid heat dissipation.
Conveyor&Collector
Conveyor:The aluminum frame;Height adjustable;Smooth operation, speed can be adjusted;
Specification
Place of Origin | China |
Zhejiang | |
Brand Name | GAODA |
Condition | New |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Layer of paper | 3-4layers |
Max.diameter | 12mm |
Min.inner diameter | 2.9mm |
Max.thickness | 1mm |
Min.thickness | 0.2mm |
Min.lenght | 70mm |
Max.lenght(between 2 blades) | 1380mm |
Output speed | 3-70m/min |
Cutting way | 8 knives pneumatic |
Joint Type | With Heated and Coated Paper |
Core Components | PLC, Motor |
Voltage | AC 380V 3phase |
Power | 6.5Kw |
Weight | 1350 |
Warranty | 1 Year |
Raw material | paper |
Application | Used for paper straw production |
Product Name | GDM-20 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services
will be provided.
will be provided.
Company Profile
Gaoda Paper Tube Machinery Co., Ltd. is located at Wenzhou city of China. We are a leading supplier of paper straw machine and equipment integrating the R&D, manufacture, marketing and service.
Our company has a strong ability to design and develop new products, specializing in the manufacture and sale of paper straw machine, straw packing machine, paper slitting machine, paper color printing machine. Products are exported to all parts of the country and overseas countries and regions.
Gaoda Machinery has always adhered to the "high quality" business philosophy, to provide customers with quality products, reasonable prices and excellent service, so that our customers are satisfied with our products.
Our company has a strong ability to design and develop new products, specializing in the manufacture and sale of paper straw machine, straw packing machine, paper slitting machine, paper color printing machine. Products are exported to all parts of the country and overseas countries and regions.
Gaoda Machinery has always adhered to the "high quality" business philosophy, to provide customers with quality products, reasonable prices and excellent service, so that our customers are satisfied with our products.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(80.00%),North America(5.00%),South Asia(4.00%),Northern Europe(4.00%),Southeast Asia(2.00%),Western Europe(2.00%),South America(1.00%),Africa(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Drinking Straw Machine,Paper Packing Straw Machine,Paper Slitting Machine,Paper Flex Printing Machine,Paper Tube Machine
4. why should you buy from us not from other suppliers?
Gaoda is a leading supplier of paper drinking straw machinery and equipment integrated with R&D, production, sales and service in China. We have a history with paper tube machines for more than 10 years, and our technical and service team are experienced.
5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(80.00%),North America(5.00%),South Asia(4.00%),Northern Europe(4.00%),Southeast Asia(2.00%),Western Europe(2.00%),South America(1.00%),Africa(1.00%),Southern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Drinking Straw Machine,Paper Packing Straw Machine,Paper Slitting Machine,Paper Flex Printing Machine,Paper Tube Machine
4. why should you buy from us not from other suppliers?
Gaoda is a leading supplier of paper drinking straw machinery and equipment integrated with R&D, production, sales and service in China. We have a history with paper tube machines for more than 10 years, and our technical and service team are experienced.
5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
