Tecflame 250 Waste gas incineration burner After burning of waste heat boiler Waste gas burner
- Category: Heating Equipment >>>
- Supplier: Shanghai DYD Industrial Equipment Co. Ltd.
Share on (1600660820971):
Product Overview
Description
FEATURES AT A GLANCE
Capacity range: 105kw-5300kw
Regulation ratio 50:1
Applicable maximum combustion chamber Temperature 1540 ℃
Maximum flame speed 150m/s
Preheating combustion air can be used
Low CO and NOx emissions
Direct ignition with spark plug
Applicable to natural gas and LPG
Regulation ratio 50:1
Applicable maximum combustion chamber Temperature 1540 ℃
Maximum flame speed 150m/s
Preheating combustion air can be used
Low CO and NOx emissions
Direct ignition with spark plug
Applicable to natural gas and LPG

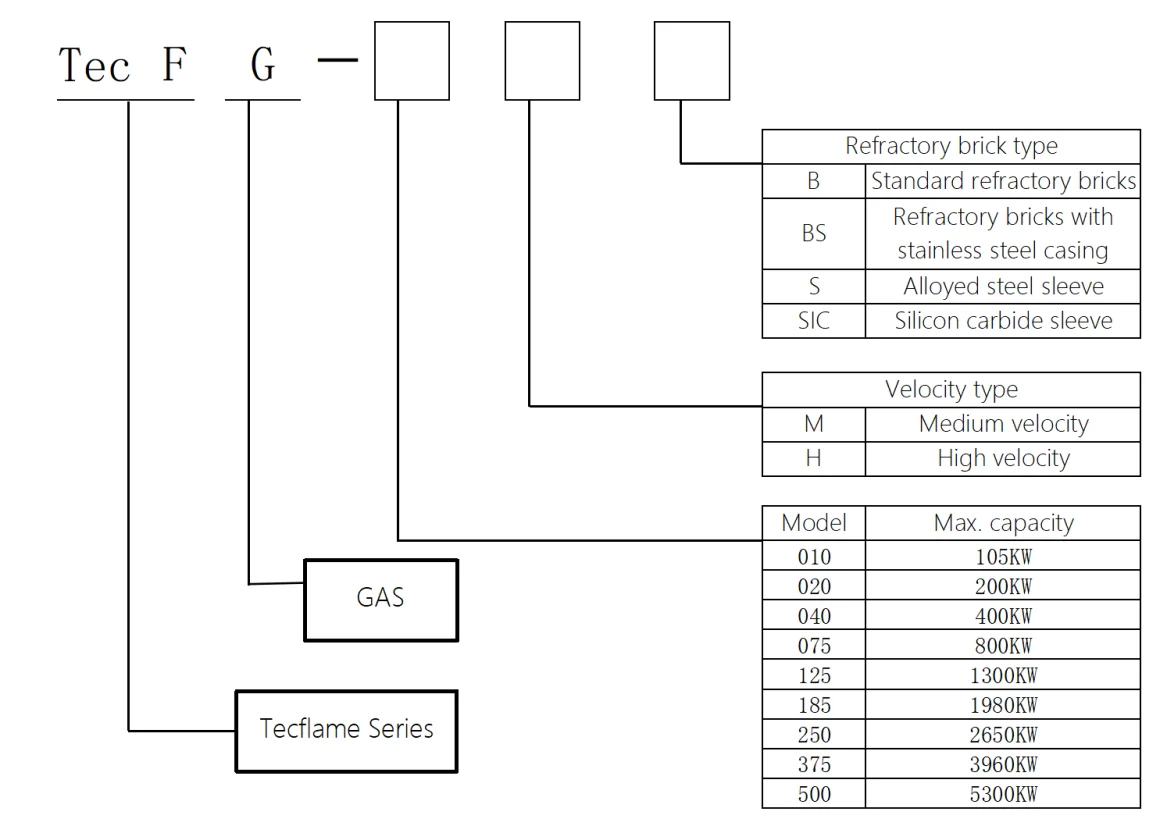

Description of model selection：
A）Medium speed / high speed selection:
Medium speed: the flame length is long and the air pressure difference of combustion air is low
High speed: the flame length is short and the pressure difference of combustion air is high, which can form a temperature field
with smaller temperature difference and higher temperature uniformity in the furnace.
It is suggested that the medium speed burner should be preferred under the condition of meeting the requirements of flame size and
without high temperature control accuracy.
A）Medium speed / high speed selection:
Medium speed: the flame length is long and the air pressure difference of combustion air is low
High speed: the flame length is short and the pressure difference of combustion air is high, which can form a temperature field
with smaller temperature difference and higher temperature uniformity in the furnace.
It is suggested that the medium speed burner should be preferred under the condition of meeting the requirements of flame size and
without high temperature control accuracy.
Description of model selection：

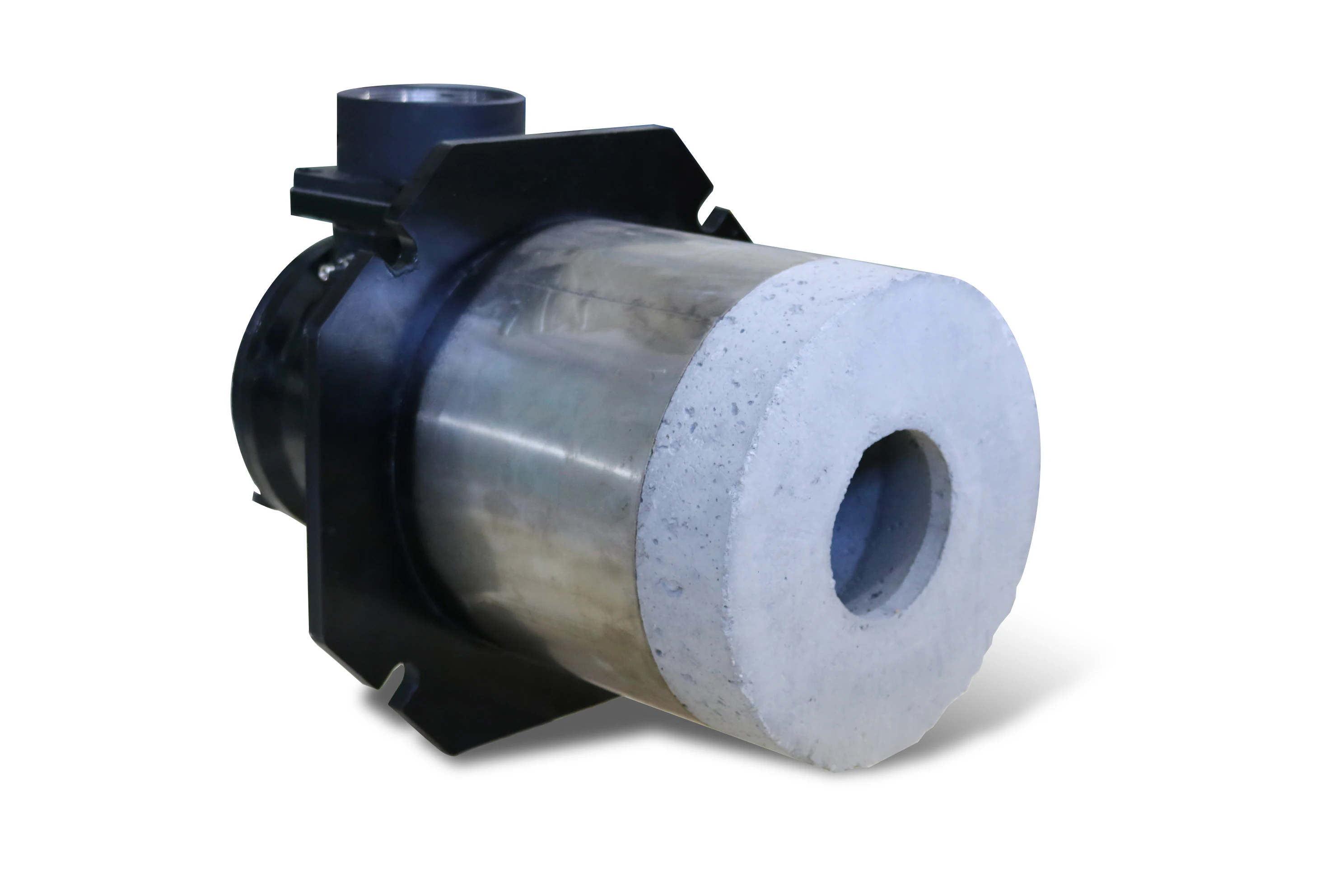

B）Selection of refractory brick type:
Refractory brick: combustion chamber temperature ≤ 1540 ℃
Refractory brick with steel sleeve: combustion chamber temperature ≤ 1540 ℃, fiber light furnace wall (the temperature of any
contact point between metal steel sleeve and furnace wall must be lower than 750 ℃)
Silicon carbide sleeve: combustion chamber temperature ≤ 1200 ℃
Alloyed steel sleeve: combustion chamber temperature ≤ 950 ℃ and combustion air temperature ≤ 300 ℃
B）Selection of refractory brick type:
Refractory brick: combustion chamber temperature ≤ 1540 ℃
Refractory brick with steel sleeve: combustion chamber temperature ≤ 1540 ℃, fiber light furnace wall (the temperature of any
contact point between metal steel sleeve and furnace wall must be lower than 750 ℃)
Silicon carbide sleeve: combustion chamber temperature ≤ 1200 ℃
Alloyed steel sleeve: combustion chamber temperature ≤ 950 ℃ and combustion air temperature ≤ 300 ℃
Description of model selection：
C）Flame monitoring type selection:
UV is suitable for all burners.
Flame rod can be used for tecfg-40.20.10 models (and the combustion air is lower than 150 ℃)
UV is suitable for all burners.
Flame rod can be used for tecfg-40.20.10 models (and the combustion air is lower than 150 ℃)
PRODUCT CONFIGURATION

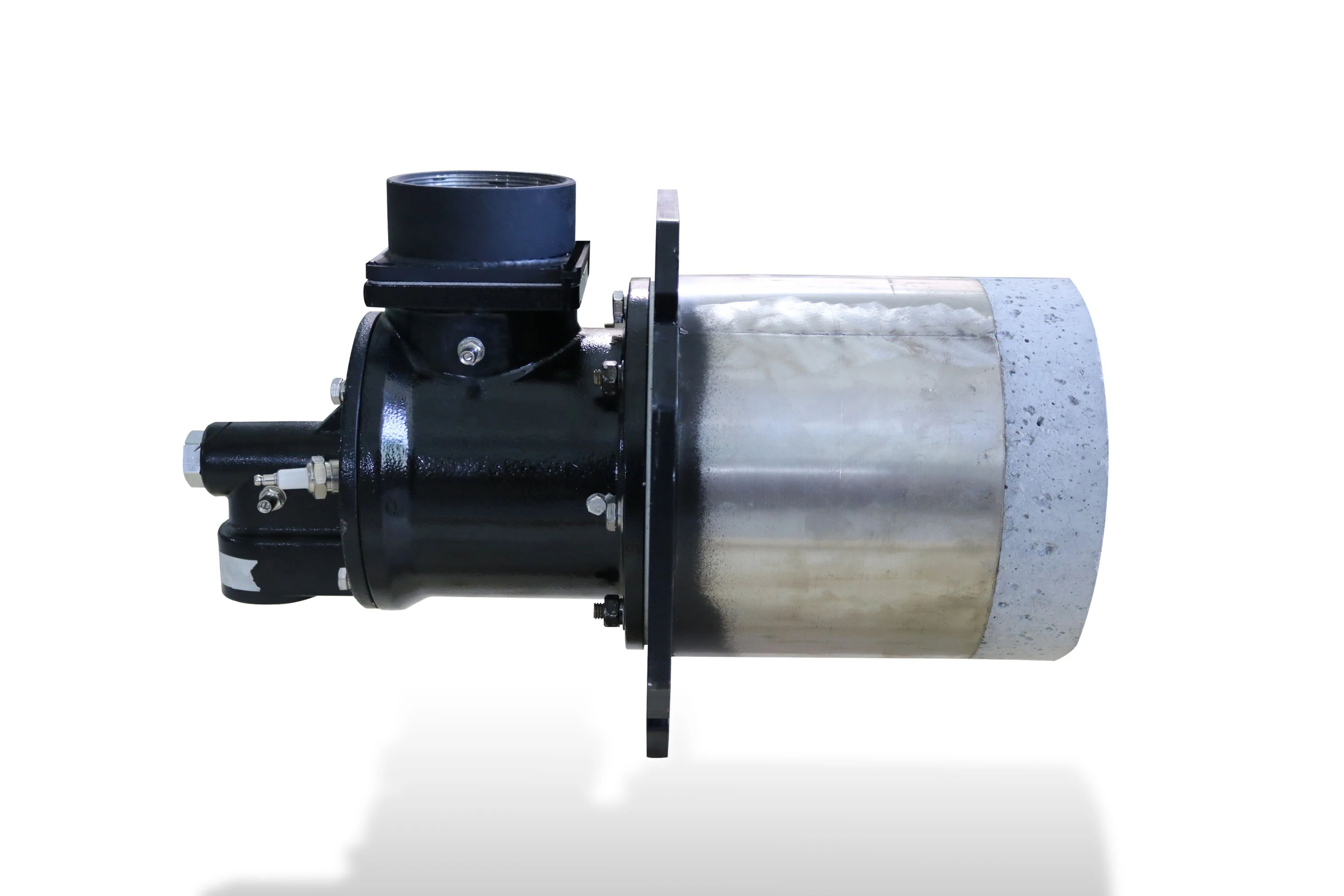

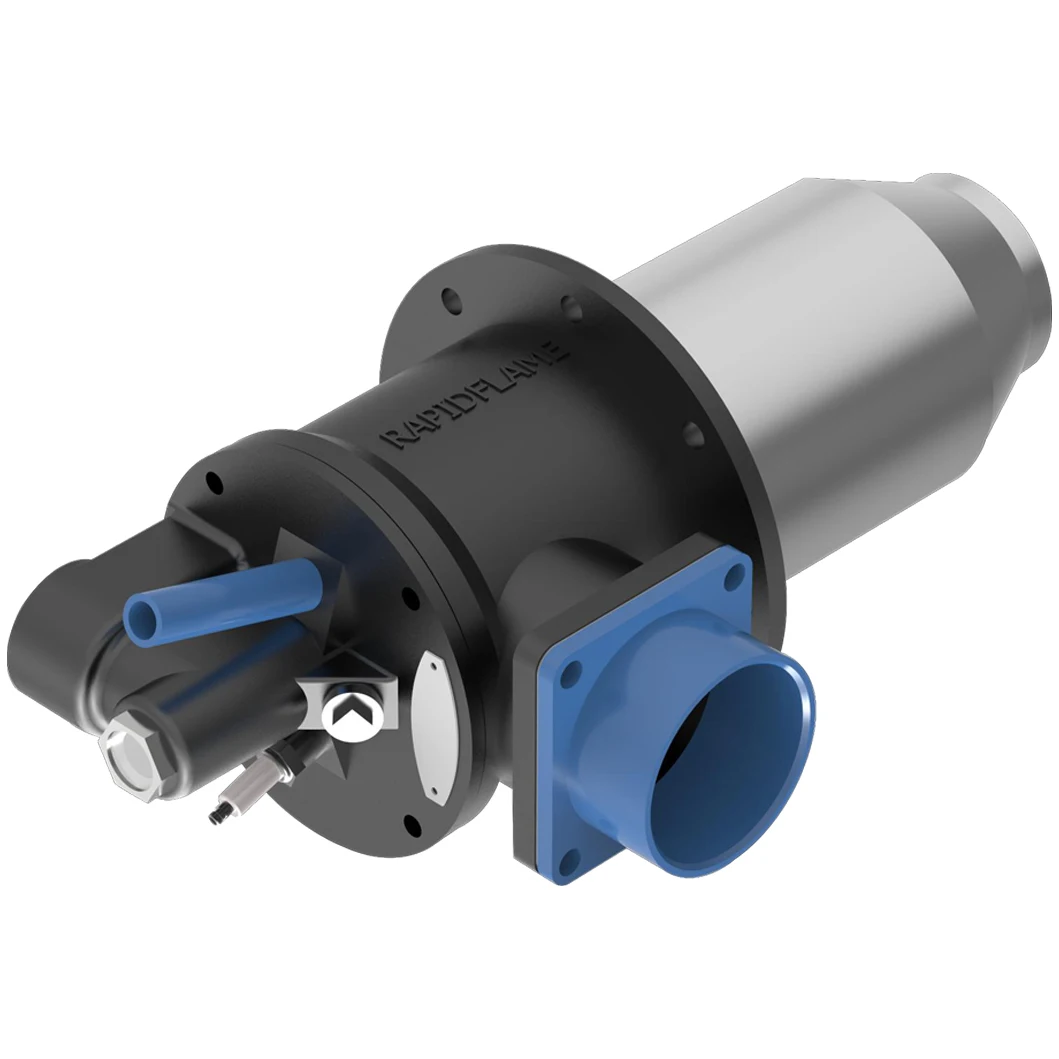

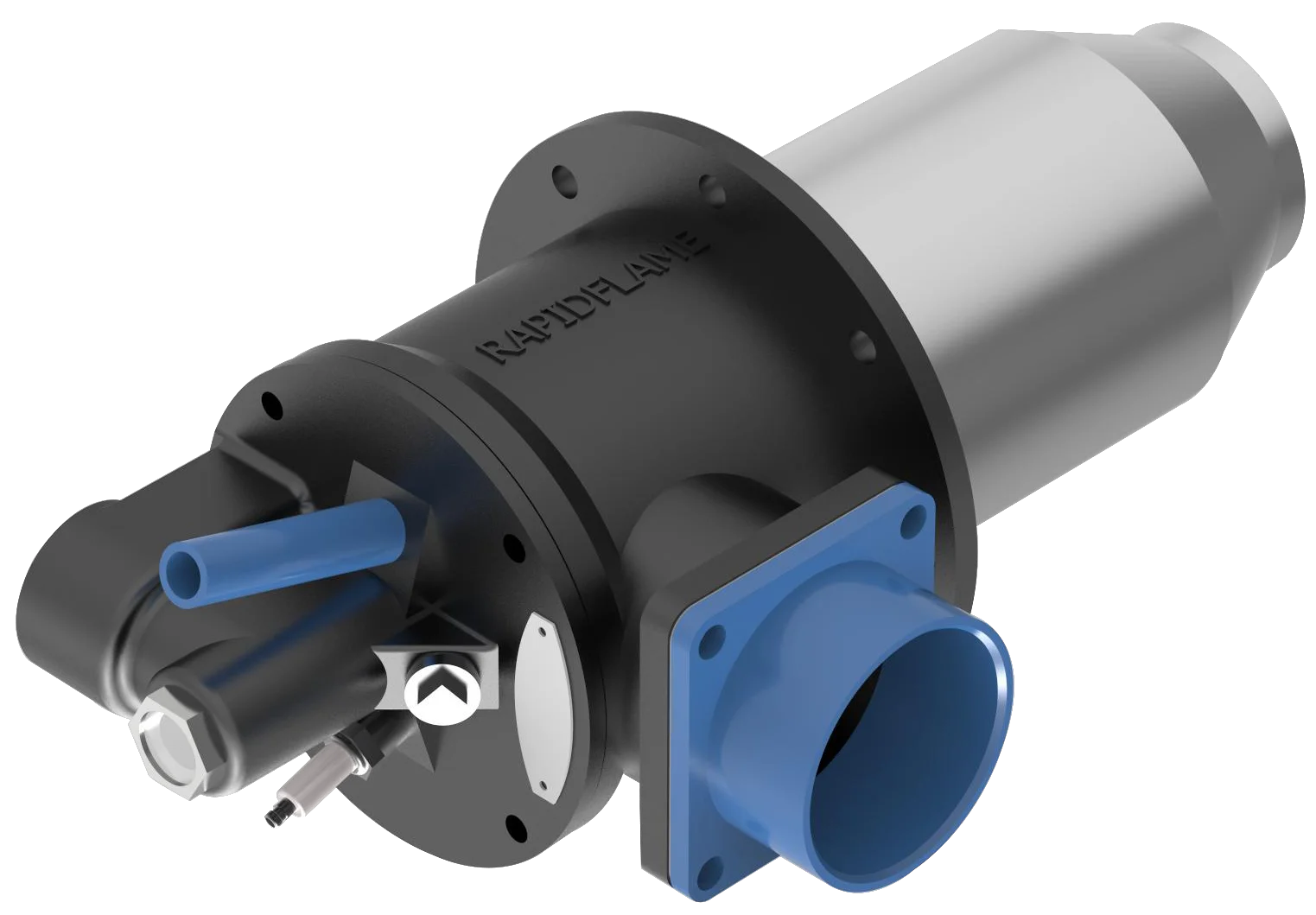

TECFG BURNER
TECFG Gas Burner is a high-precision temperature control burner designed by DYDTEC for medium and high temperature industrial applications.
Tecflame is a nozzle mixing burner with the character istics of high flame velocity, ultra wide power regulation range, sufficient and stable combustion and high heat transfer efficiency.

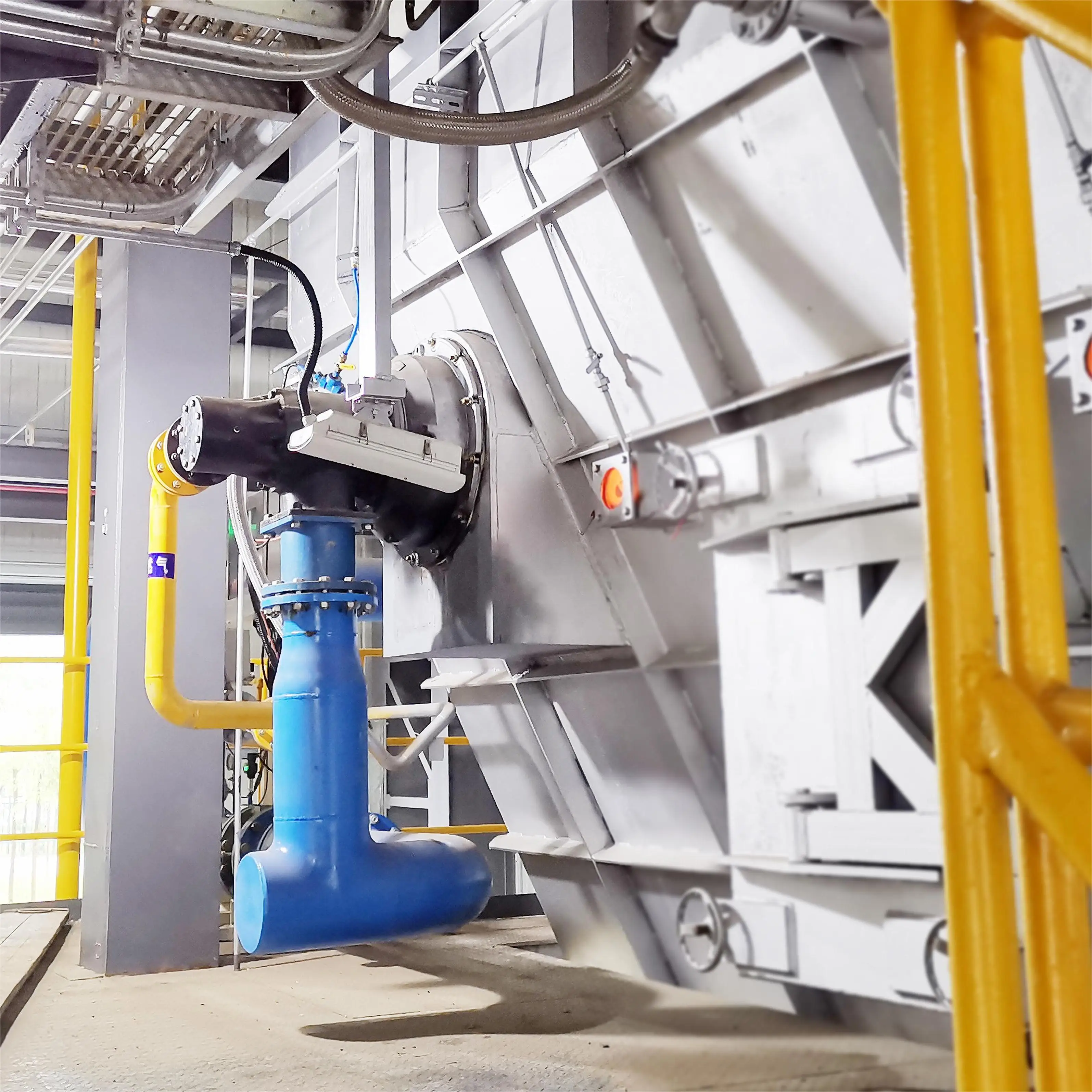

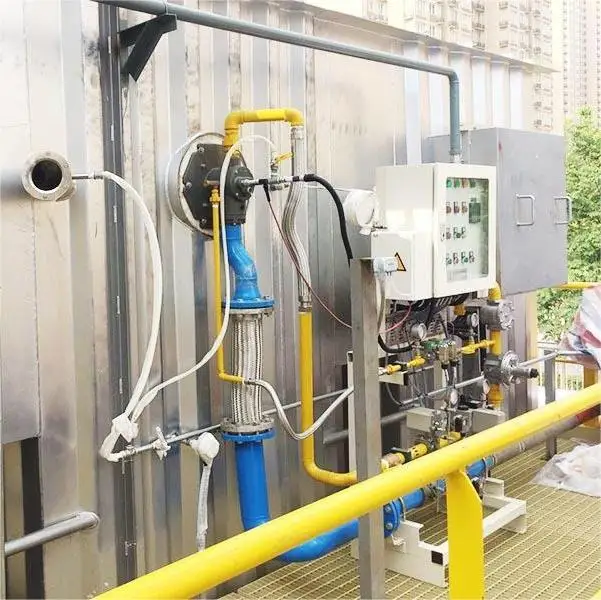

It is widely used,such as ceramic shuttle kiln,glass tempering furnace, tempering furnace,quenching furnace,annealing furnace,RTO,thermal oxidation furnace, drying furnace, preheating furnace, etc.
Capacity Range | 105kw-5300kw | |
Regulation ratio | 50:1 | |
Maximum flame velocity | 150m/s | |
Preheating combustion air can be used | ||
Low CO and NOx emission | ||
Direct ignition with spark plug | ||
Applicable max combustion chamber temperature 1540℃ | ||
Applicable to natural gas andLPG | ||

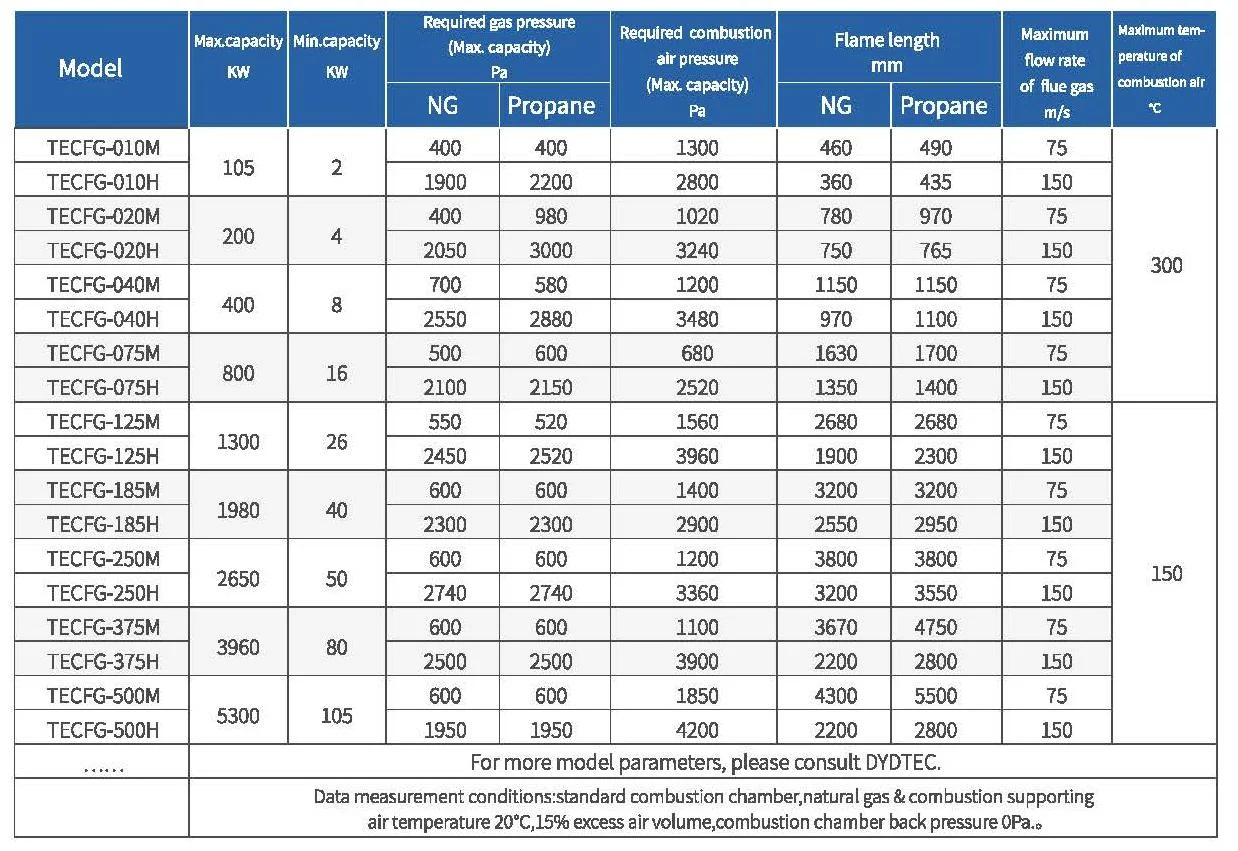

Parameter

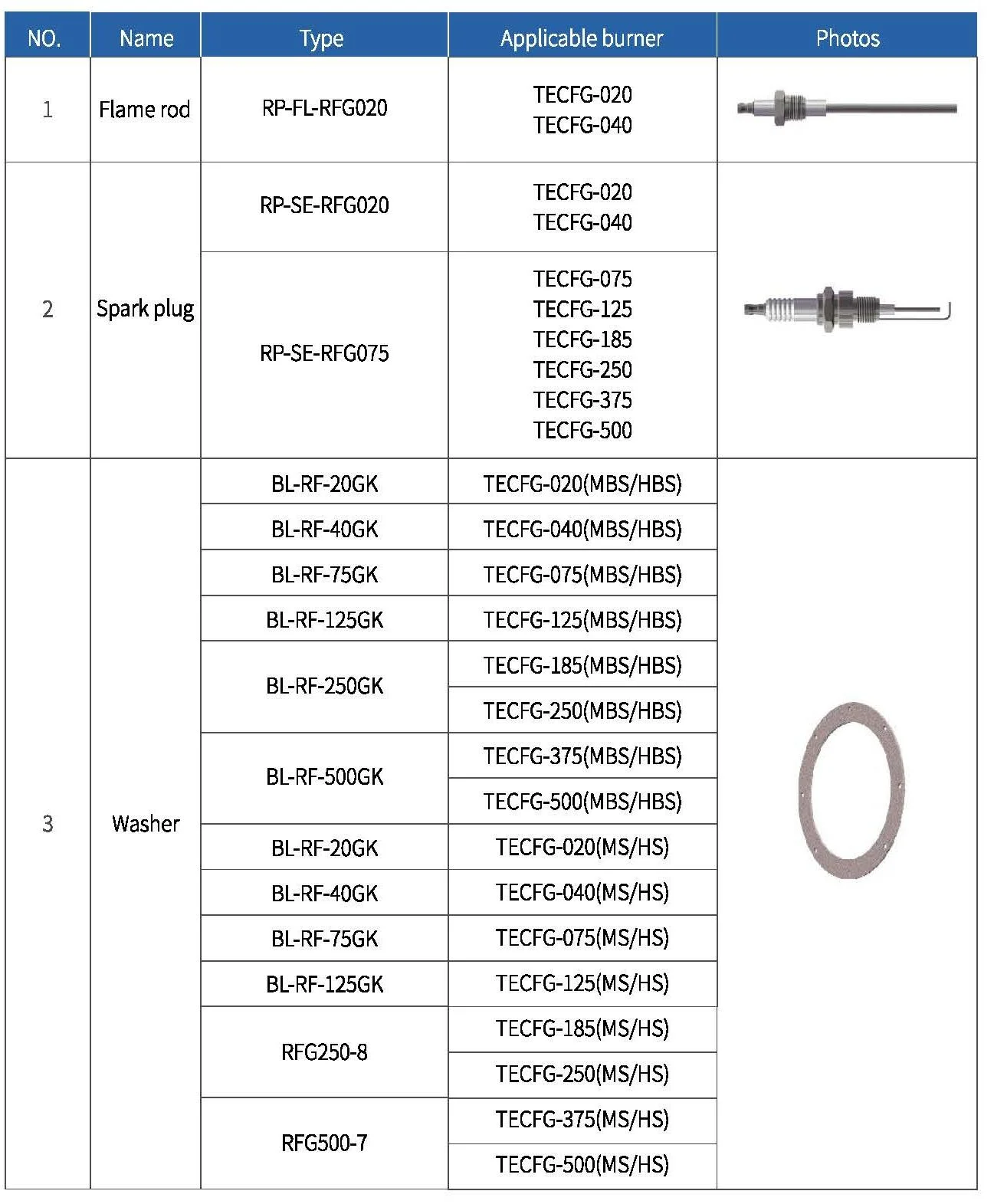

Accessories
More products

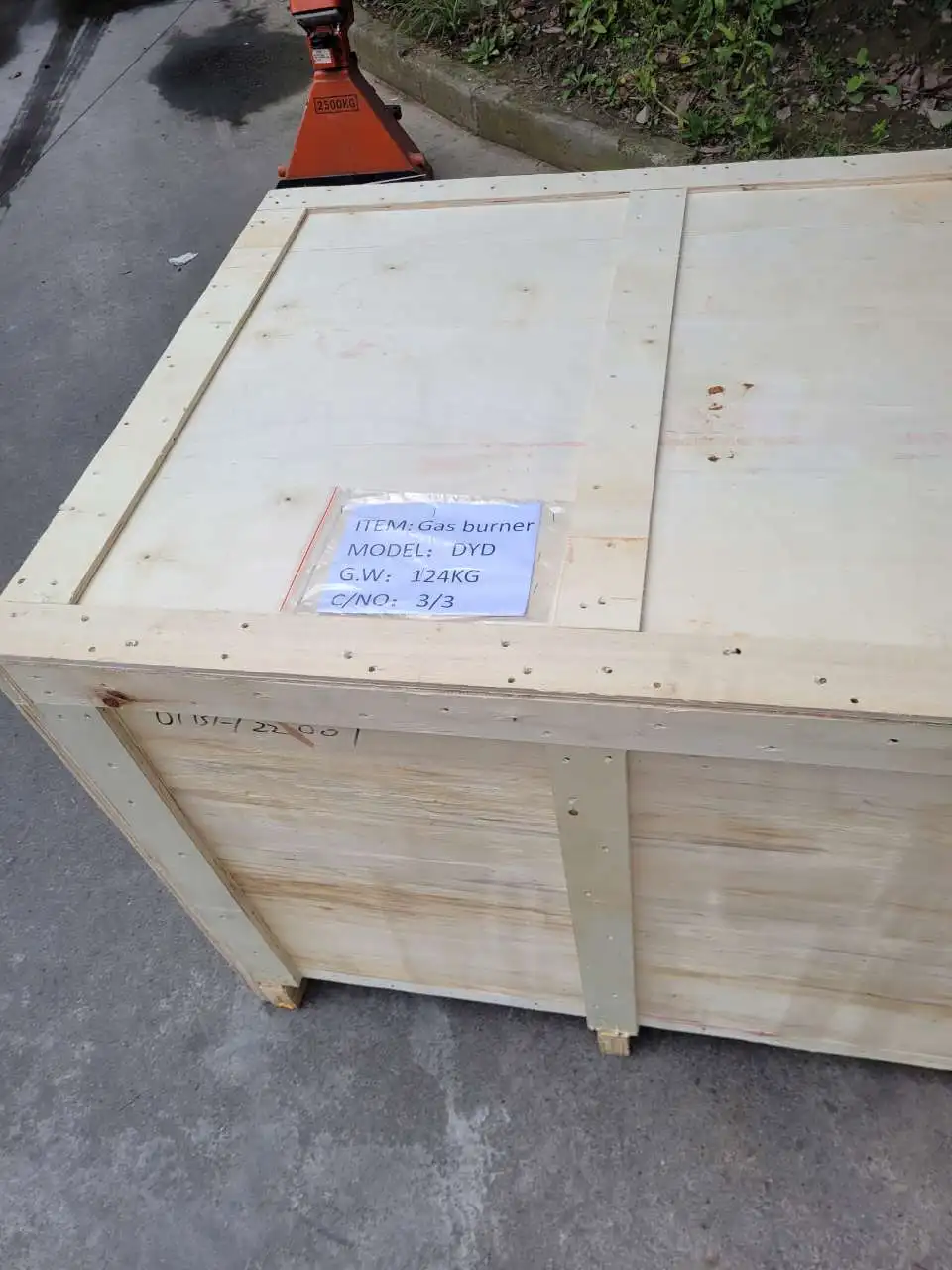

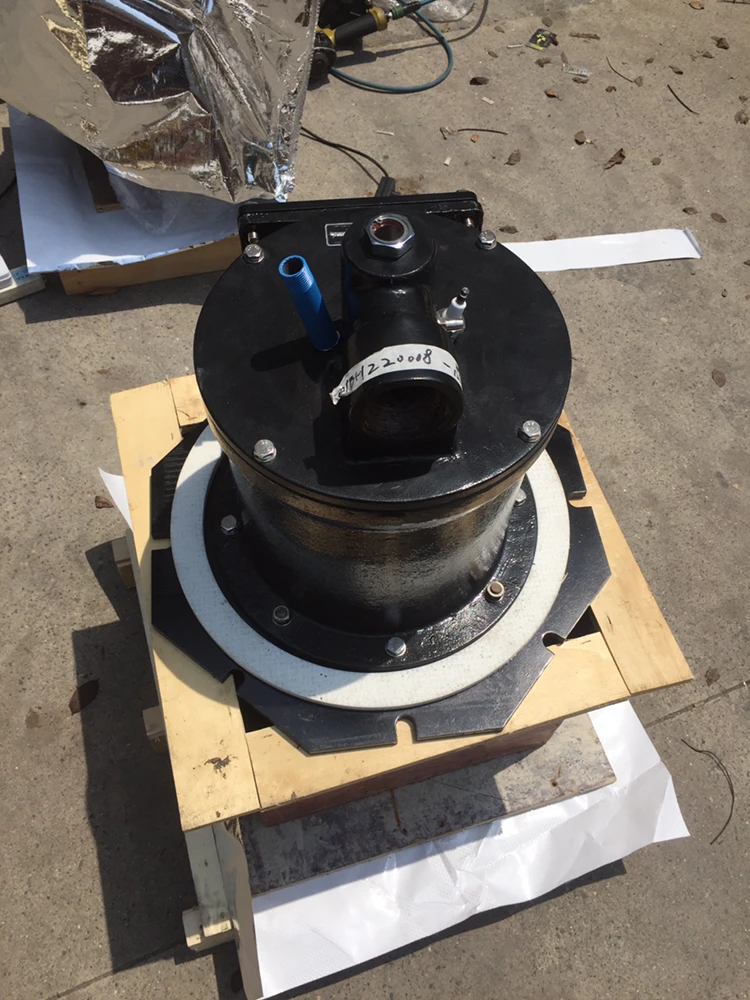

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
