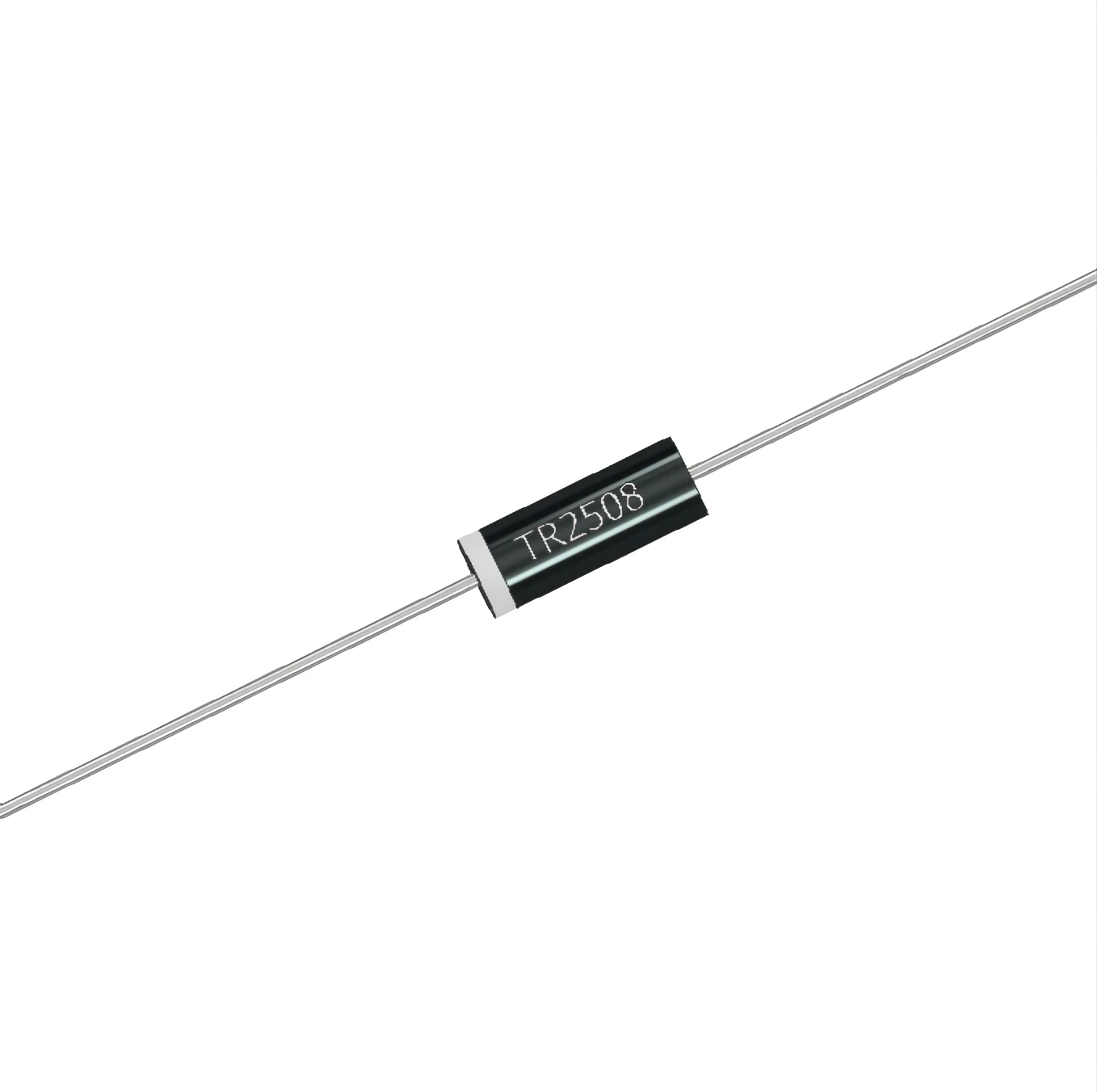

Fast Recovery High Voltage Diode TR2508 8KV 25mA 100ns
- Category: Diodes >>>
- Supplier: Yangxin Huantai Technology Co. Ltd.
Share on (1600660944982):
Product Overview
Description
Product Description
▼Fast Recovery High Voltage Diode
TR2508
Type | Repetitive peak reverse voltage | Average forward current | Surge(Non-repetitive) forward current | Peak reverse current(Ta=25°C) | Peak forward voltage | Reverse recovery time | Size |
VRRM | IF | IFSM | IRRM | VFM | trr | ||
KV | mA | A | µA | V | ns | mm | |
TR2506 | 6 | 25 | 3 | 0.2 | 19 | 100 | ∅3.0x8.0 |
TR2507 | 7 | 25 | 20 | ∅3.0x8.0 | |||
TR2508 | 8 | 25 | 23 | ∅3.0x8.0 | |||
TR2510 | 10 | 25 | 24 | ∅3.0x8.0 | |||
TR2512 | 12 | 25 | 25 | ∅3.0x10.0 | |||
TR2515 | 15 | 25 | 27 | ∅3.0x10.0 | |||
TR2520 | 20 | 25 | 36 | ∅3.0x12.0 | |||
TR2525 | 25 | 25 | 42 | ∅3.0x12.0 | |||
TR2530 | 30 | 25 | 50 | ∅3.0x12.0 |
▼Features
● High reliability
● High speed switching
● Surface corrosion resistance
▼Applications
● X light Power supply
● Voltage dubler circuit
● Microwave emission power
● Voltage dubler circuit
● Microwave emission power
