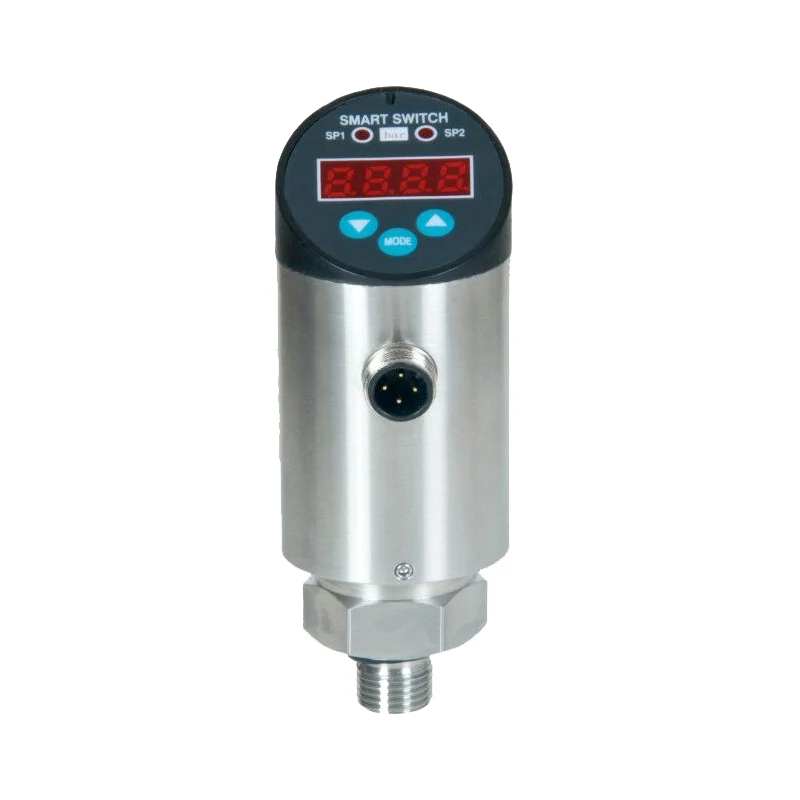

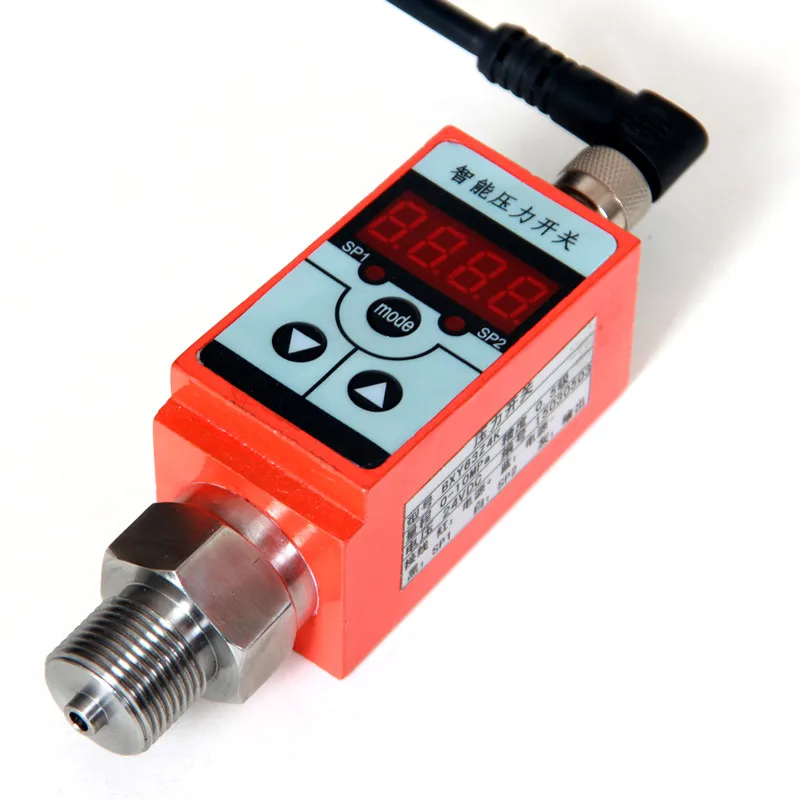

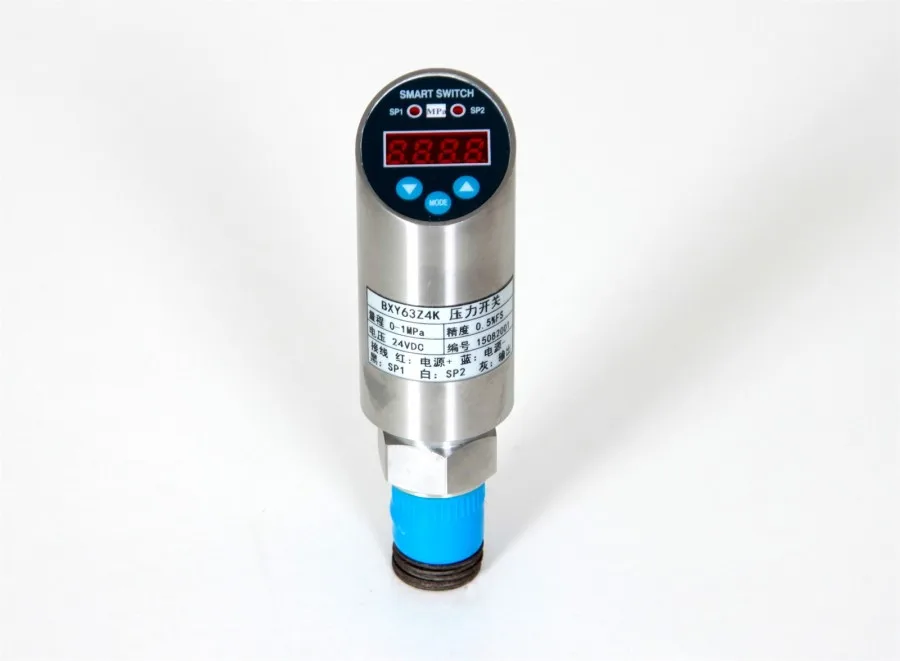

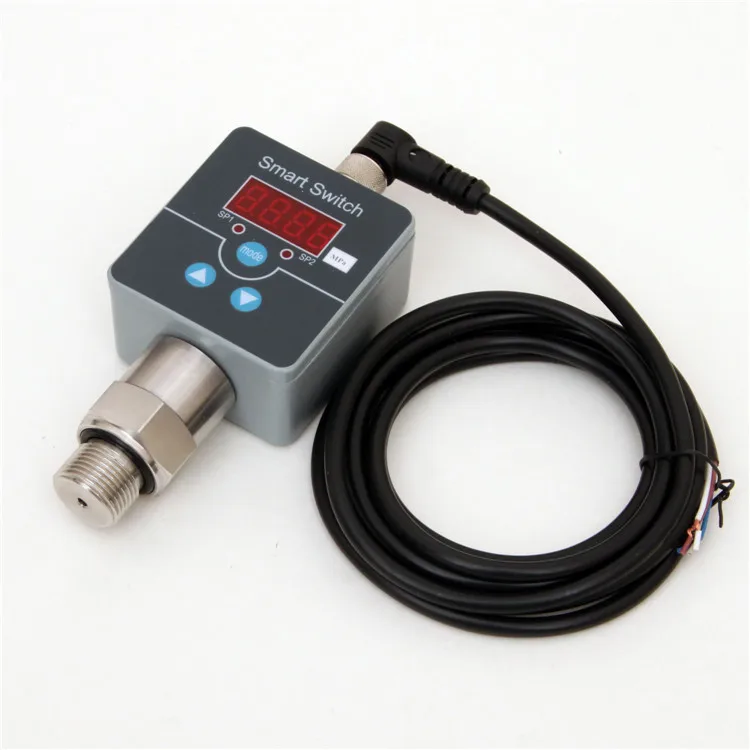

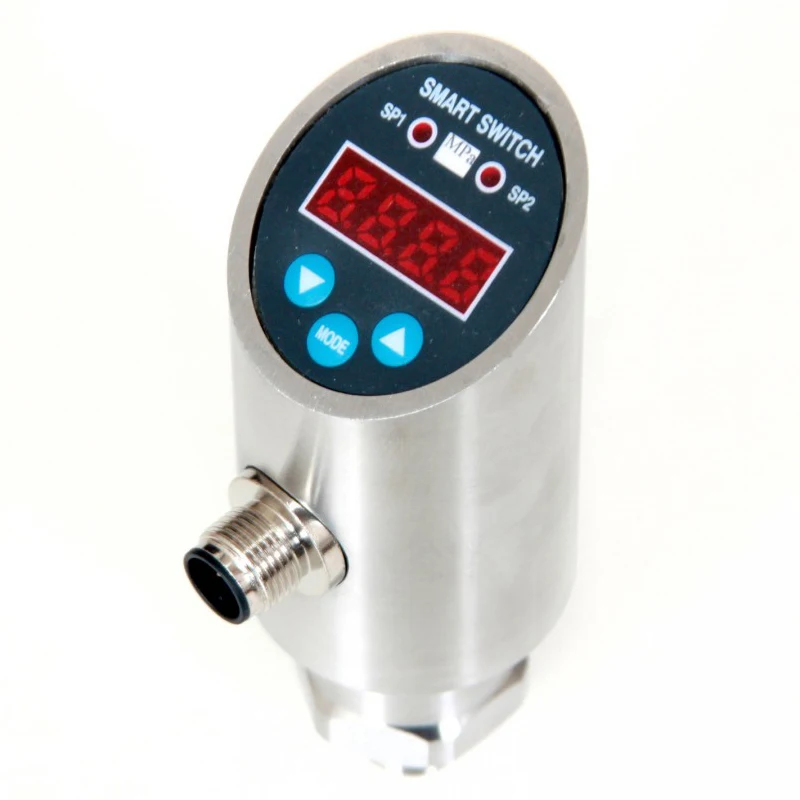

Tianxiang TXZS LED display pressure range from 0.1~100 MPa Digital pressure controller
Tianxiang TXZS LED display pressure range from -0.1~100 MPa Digital pressure controller
Tianxiang TXZS LED display pressure range from -0.1~100 MPa Digital pressure controller
Tianxiang TXZS LED display pressure range from -0.1~100 MPa Digital pressure controller
Tianxiang TXZS LED display pressure range from -0.1~100 MPa Digital pressure controller
Tianxiang TXZS LED display pressure range from -0.1~100 MPa Digital pressure controller
Tianxiang TXZS LED display pressure range from -0.1~100 MPa Digital pressure controller

Tianxiang TXZS LED display pressure range from 0.1~100 MPa Digital pressure controller

Share on (1600661714123):


Price:$79.00 - $99.00

Quantity:


Product Overview

Description



Product Description


This product is an intelligent digital pressure measurement and control product integrating pressure measurement, display, output and control. The product is of full electronic structure, and the front end adopts oil filled pressure sensor with isolation membrane or ceramic piezoresistive sensor. The output signal is amplified and processed by a high-precision, low temperature drift amplifier, and sent to a high-precision A/D converter, which is converted into a digital signal that can be processed by a microprocessor. The signal processed by operation controls two switches to measure and control the pressure of the control system. The product is flexible in use, simple in operation, easy in debugging, safe and reliable. It is widely used in hydropower, tap water, petroleum, chemical industry, machinery, hydraulic and other industries to measure, display and control the pressure of fluid medium.




◆ 4-digit LED digital tube display
◆ Pressure preset switching point and delay switching output
◆ The shell is equipped with node action LED for easy observation
◆ Key adjustment and on-site setting of various parameters are convenient for operation
◆ 1-2 channel switching value output, with load capacity of 1.2A, and the switching value can be set arbitrarily between zero
point and full scale
◆ Three types of switches are available: PNP type, NPN type and relay type, and analog output (4~20mA) is optional


Specification


Basic parameters
measuring range
-0.1~0.1~100MPa
Withstand voltage
1.5%（FS）
accuracy
≤0.5%FS
Power supply
18V~30VDC
switch type
PNP、NPN、Relay (optional)
Load capacity
＜24V/1.2A
Maximum power consumption
＜3W
Display range
-1999~1999
Long term stability
≤±0.3%/Year
Hysteresis
±0.3%FS
working temperature
-30℃~70℃
Storage temperature
-40℃~80℃
Switching current
1.2A（MAX)
Switch response
＜100ms
Switch delay
0S~180S
Degree of protection
IP65
relative humidity
0%~80%
Pressure sensing film sheet
316LSS
Electrical connection
M12 round plug, Hesmann connector, aviation connector


Packing & Delivery

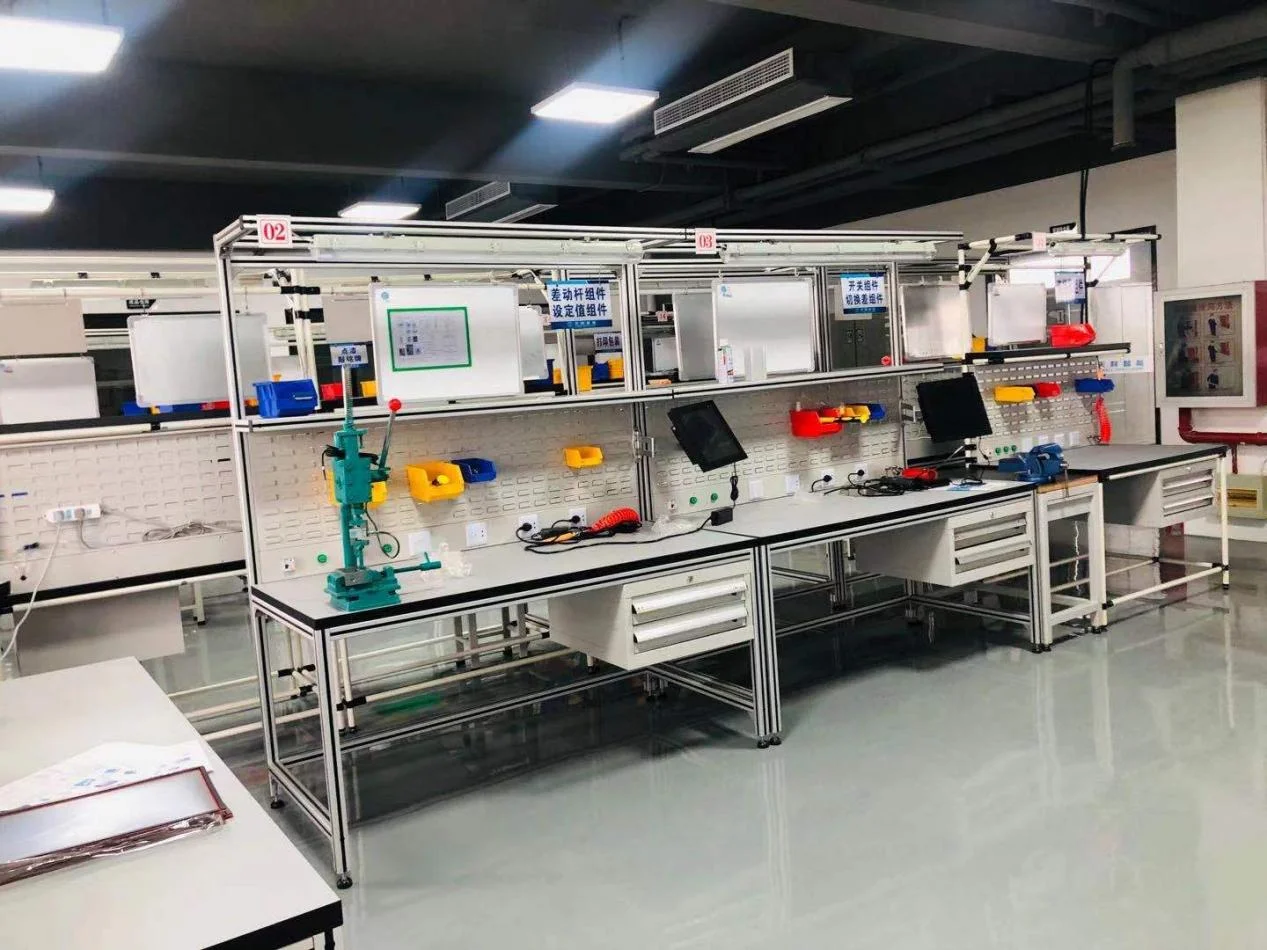

Company Profile
