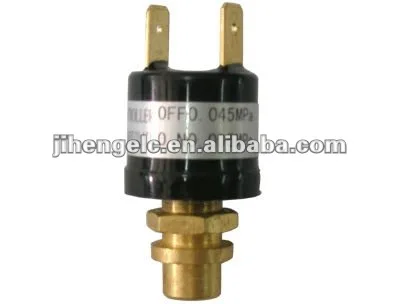

pressure switch (265195908)

Share on:


Price:$2.80 - $3.00
Price in USD:Details

Quantity:


Product Overview

Description


 This type product  is special used on the air-conditioning cooling system,when the water pressure is too low,it can control the water lever, and the machine will stop.


The series pressure controller technique is as following:





























































Ordinal number



Name



The technique request



1



The pressure value sets the scope



3-667PSl / 0.02-4.6Mpa



2



The pressure value business trip scope



1.45-14.5PSl / 0.01-0.1Mpa



3



Touch some form



NC (H)    NO (L)



4



Contact capacity



AC240V 3A   AC120V 6A



5



Contact resistance



« 50mΩ



6



Insulate the electric resistance



» 100mΩ Connect the line carries with a » 100mΩ



7



The anti-electricity strength



The AC1500V last the 1 min clock and did not broke through and gleam



8



Biggest blow up the pressure



At the « 5000PSl of («34.5Mpa) blows up the pressure under the 1min clock did not burst the phenomenon



9



Air tightness



The 4.8Mpa/ 1 min no leakage



10



Adapt the temperature



The environment temperature  -30 ~ +80°C


Lie the quality temperature -50 ~ +120°C
