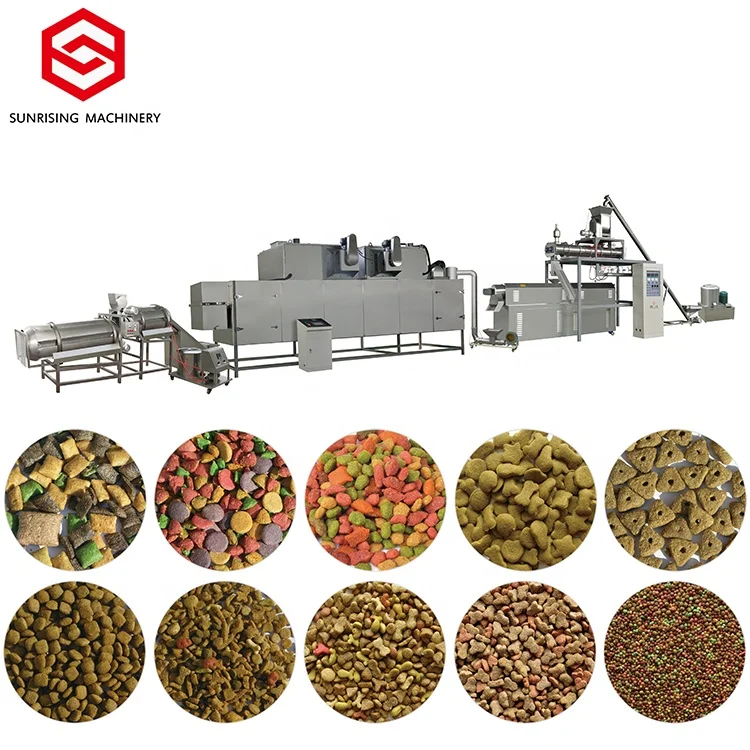

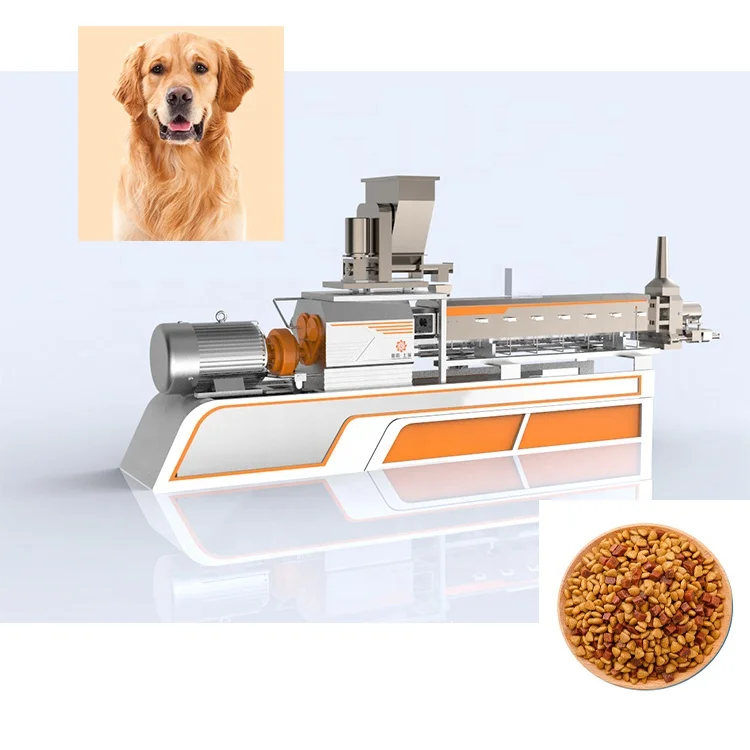

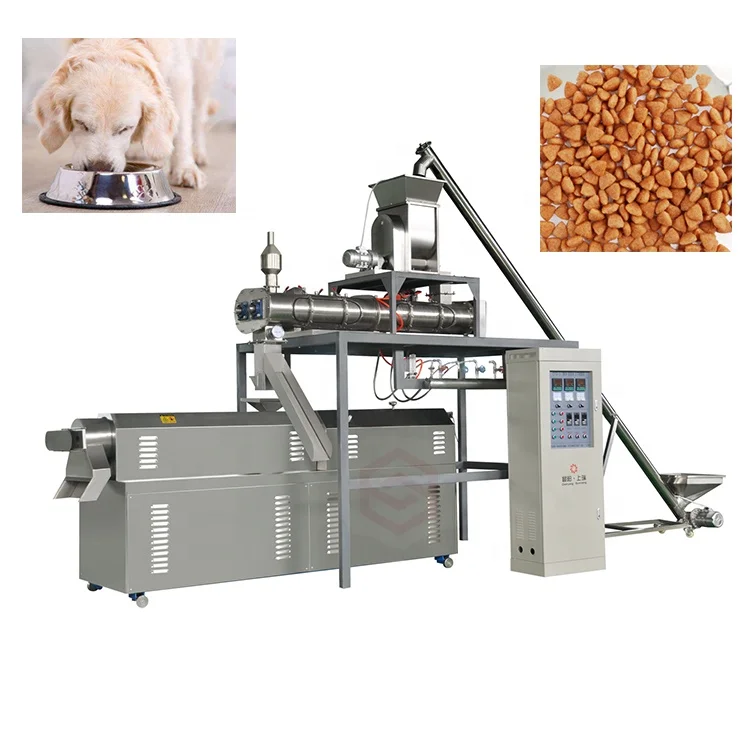

Full production line cold extrusion 200kg/h 6000kg/h dry pet dog food production machine
- Category: Agricultural Machinery & Equipment >>>
- Supplier: Jinan Sunrising Machinery Co. Ltd.
Share on (1600664653514):
Product Overview
Description
Products Description
What is cat food production line?
Dog food making machine uses meat meal, fish meal, corn powder, soya meal and other grains powder as main materials to make the pet food, like dog, cat, fish, bird food etc. with different shapes and taste by changing the dies, formulations. The pet foods are made under high temperature condition, and popular to the pet food market.
Raw Material:
Meat meal, fish meal, corn powder, soya meal and other grains’ powder.
Meat meal, fish meal, corn powder, soya meal and other grains’ powder.
Products:
Make the pet food, like dog, cat, fish, bird food etc.
Work Flow:

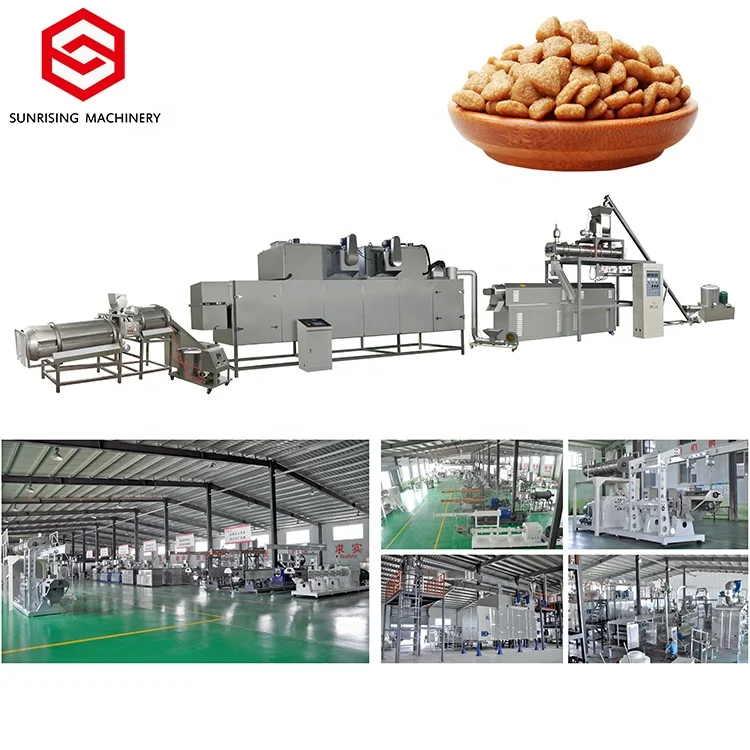

Mixer---Screw conveyor---Extruder---Air conveyor---Dryer---Flavoring
Work Flow:
Mixer---Screw conveyor---Extruder---Air conveyor---Dryer---Flavoring
Advantages Of Machine
Advantage of pet food machine:
1). All pet food equipment are made of stainless steel.
2). The pet food whole line fully continuous and automatic.
3). Our company provide basic pet food formula according to your require.
4). The final pet food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the pet feed production line (depending on your demand).
2). The pet food whole line fully continuous and automatic.
3). Our company provide basic pet food formula according to your require.
4). The final pet food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the pet feed production line (depending on your demand).

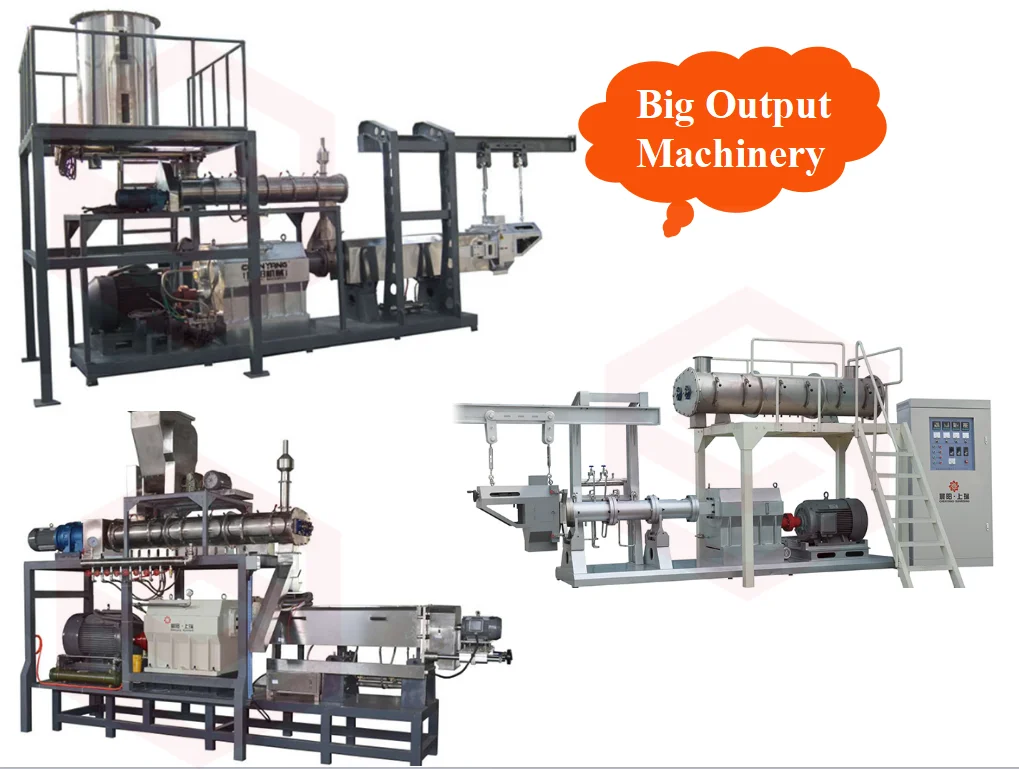

Equipment Display

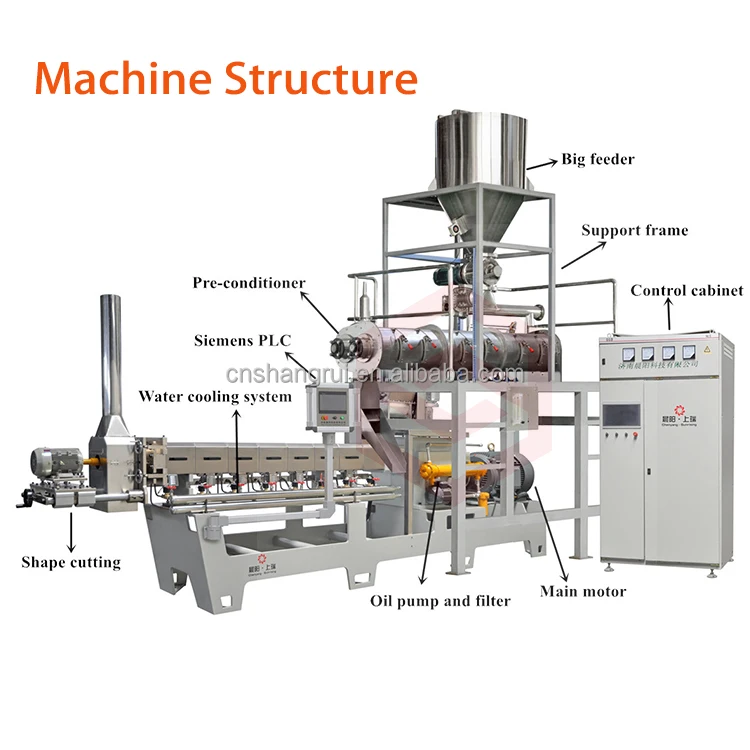

Main Accessories | Function |
Anti-blocking feeder | Makes sure the even feeding and stable discharge of materials. |
Double shaft preconditioner | Enables the materials stay longer in the preconditioner and evenness in precondtioning, improves the precure degree and increases the capacity. |
Gearbox | Processed by internationally advanced process technology, ensuring the machines run in long time without malfunction. |
Lubrication and cooling system | Adopts refined filtration forced cooling, creating best working conditions for the bearings. |
The feeding system | Adopts double spiral forced feeding, feeding uniformly and widely. |
The screw | Segmented combined screw, suitable for a wide range of raw materials. With self-cleaning function. |
The rotary cutting device | Adopts a suspended mold (knife) assembly and a linear bearing tool adjusting device to adjust the tool safely, accurately and quickly. |
Key highlights of Sunrising dryer：
◆ Unique structure, high utilization rate of heat energy, high efficiency,environmental protection and energy saving;
◆ Circulation drying process, the moisture difference of the dried product is small, and the drying
effect is good.
◆ Horizontal overall layout, simple structure, reliable control, convenient and intuitive operation.
◆ The frequency motor controls the speed of the mesh belt, and the drying quality can be adjusted
flexibly.
◆ The food contact part is all stainless steel, corrosion resistant.
◆ Energy can be gas heating and steam heating.
effect is good.
◆ Horizontal overall layout, simple structure, reliable control, convenient and intuitive operation.
◆ The frequency motor controls the speed of the mesh belt, and the drying quality can be adjusted
flexibly.
◆ The food contact part is all stainless steel, corrosion resistant.
◆ Energy can be gas heating and steam heating.
Name | Driving power | Heating Power | Output | Size |
Single drum Flavoring machine | 0.75kw | ------ | 100-150kg/h | 3500x1500x2000mm |
Double drum Flavoring machine | 4.8kw | 9kw | 250-350kg/h | 6500x2000x2800mm |
Octagonal drum | 8kw | ------ | 150-200kg/h | 5000x1500x2000mm |
Company & Certifications
About Jinan Sunrising Machinery Co.,ltd
Jinan Sunrising Machinery Co.,ltd is a professional manufacturer and the model company for advanced and high quality extrusion food machinery in this field. Our company congregates an expert team with ten years experiences in the extrusion machinery industry, not only working hard to constantly researching extrusion technology, but also exploring food processes in order to benefit our clients producing creative food.
Packing and Delivery
For Large capacity pet food machine cat food production line
* Inside package is plastic film, outside is wooden or plywood case.
(the production packaging based on the customers' need)
* Only plastic film nude packing with wooden pallet.
* We can supply fumigation package and certificate.
* Shipping, train, express or upon clients' demands.
(the production packaging based on the customers' need)
* Only plastic film nude packing with wooden pallet.
* We can supply fumigation package and certificate.
* Shipping, train, express or upon clients' demands.
FAQ
1. Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check it.
2. Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
3. Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
4.Q: If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
5.Q:Do you supply packing machine?
A: We have long-term cooperation packing machine supplier, we will help to contact them.
A: we are a manufacturer, welcome to visit our factory and check it.
2. Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
3. Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
4.Q: If the power supply is not 3ph 380V 50HZ, could you offer the suitable machine?
A: Yes, we can offer the suitable machine according to your power supply, for example 3ph 380V 60HZ, 3ph 415V 60 HZ, 3ph 220V 60HZ and so on.
5.Q:Do you supply packing machine?
A: We have long-term cooperation packing machine supplier, we will help to contact them.
