Automatic Plastic Washing Line PET Bottle Washing Line Plastic Film Hot Washing Line
- Category: Plastic Recycling Machinery >>>
- Supplier: Yuyao Wutian Machine Equipment Co. Ltd.
Share on (1600667367883):
Product Overview
Description

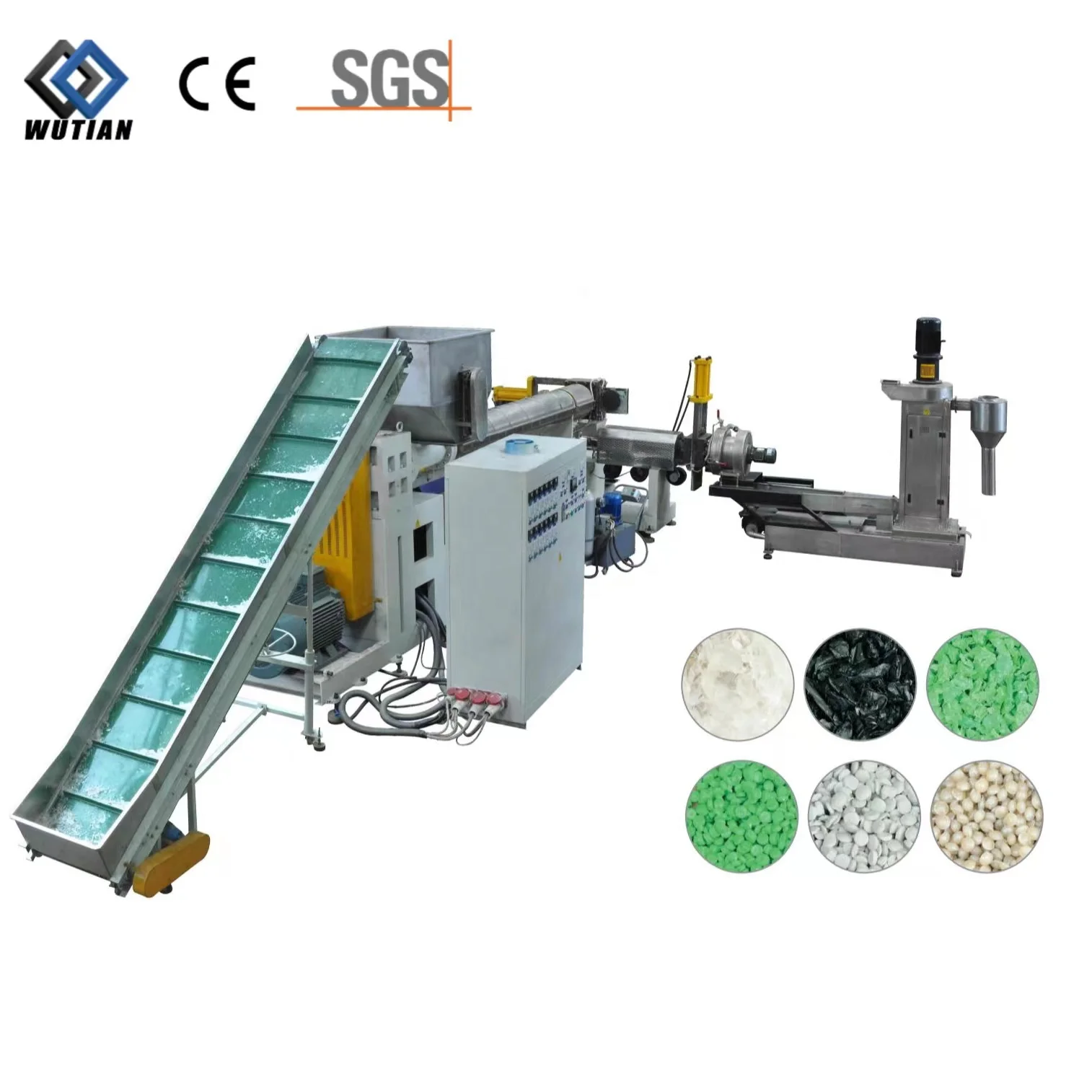

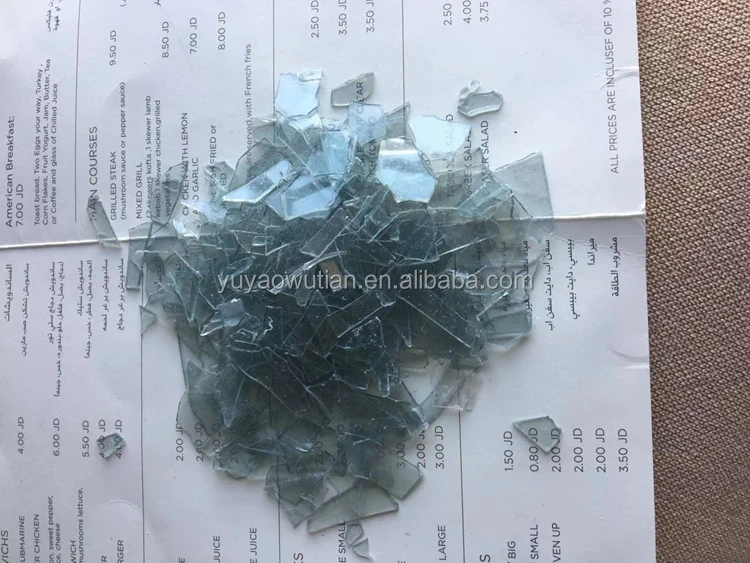

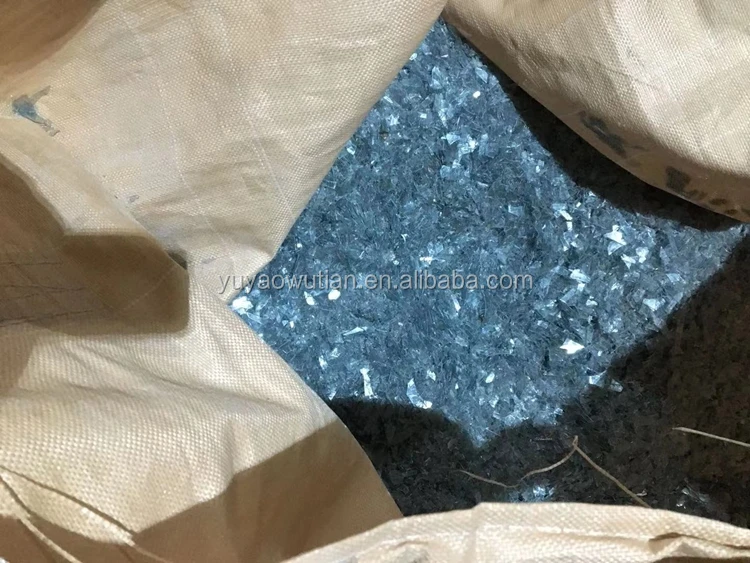

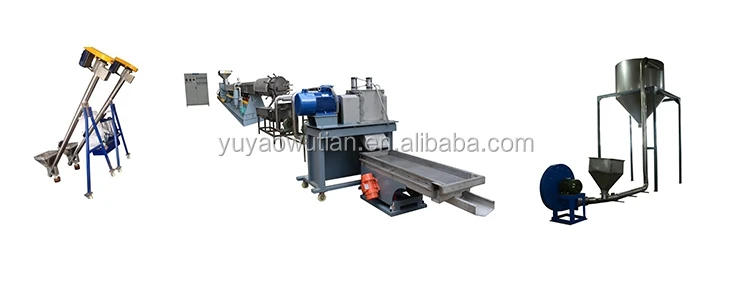

This Plastic Washing Line is used for Rigid Plastic scraps/flakes of Chimney/Disc/Bottles, Soft Plastic Film, Bags, Rope and etc. This plastic washing line is composed of conveyor belt, Shredder, Washing Machine, Rinse Tank. and Dryer.
The production line can be customized according to the quality of the raw material and special needs of the customer.
1.The raw material is sent to the feeder through the conveyor belt/screw feeder.
2.Then it is fed into the shredder/crusher.
3.Washed by the rinse tank/washing tank
4. Dehydrated by blowers.
5. Label/Cap Remover is optional.
6.Screened by vibration sieve.
2.Then it is fed into the shredder/crusher.
3.Washed by the rinse tank/washing tank
4. Dehydrated by blowers.
5. Label/Cap Remover is optional.
6.Screened by vibration sieve.
The complete production line is/has:
1. Highly automatic, user-friendly control, high efficiency, environmental protection and energy saving.
1. Highly automatic, user-friendly control, high efficiency, environmental protection and energy saving.
2. Fully Cutomized based on individual's needs.
Screw Feeder:
Transport raw materials to the granulator. This machine can avoid manual feeding in order to reduce labor intensity, cost savings and to improve work efficiency.\t

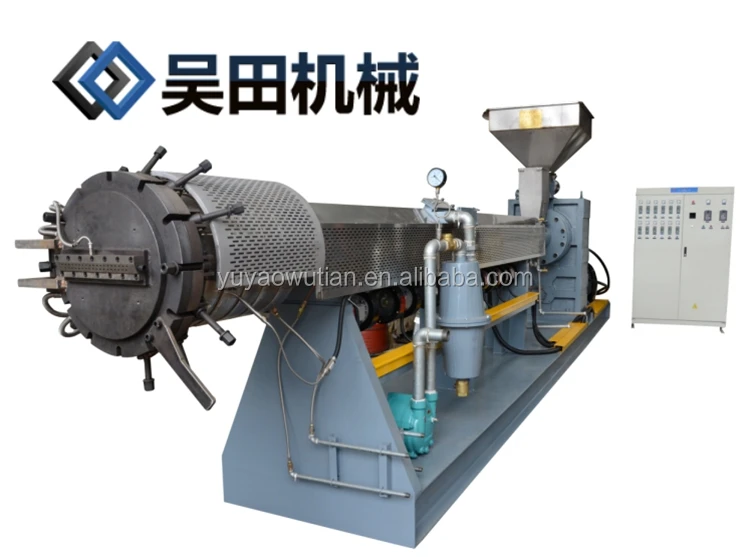

With natural exhaust and vacuum system, it can remove water inside the material effectively. This machine uses ceramic heating ring, which is durable and easy to maintain.
Different quality of the finished product can be produced through different mesh filters. Stainless steel 304 net can be used. It doesn’t need to be changed frequently.
Different quality of the finished product can be produced through different mesh filters. Stainless steel 304 net can be used. It doesn’t need to be changed frequently.

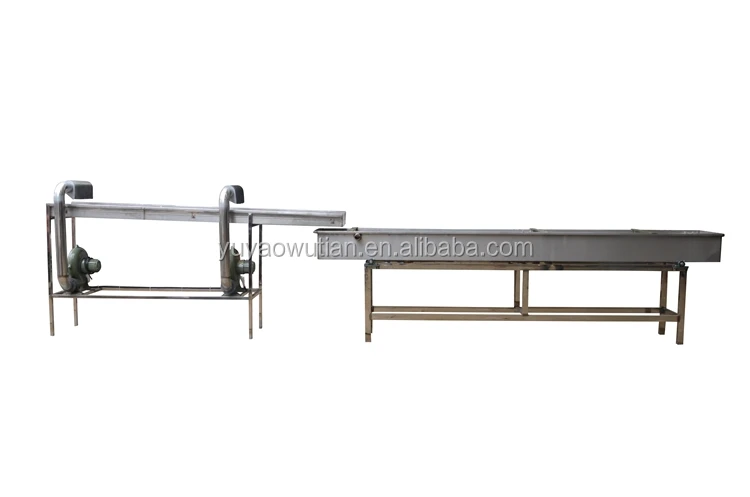

Water Tank + Supporting bracket with rack and blowers: Water tank is mainly used to cool down the plastic strips and to maintain its shape. The blowers are used to dehydrate.

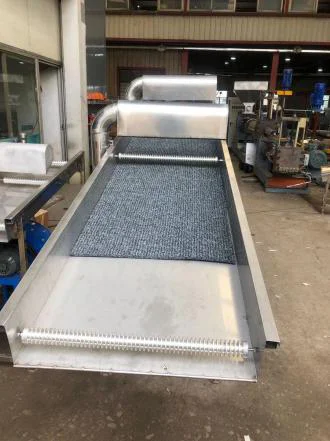

There is a layer of material that is water-absorbing on the supporting bracket. This design improves the efficiency of dehydrating and avoids the scene of water splash to everywhere.
There is a layer of material that is water-absorbing on the supporting bracket. This design improves the efficiency of dehydrating and avoids the scene of water splash to everywhere.
The pelletizer/cutting machine is made of stainless steel. It has frequency control of motor speed.
This machine sorts out unqualified products, makes particle size uniform and good looking. The Vibration Sieve has three different sizes of mesh, which can divide particles into three sizes in the same time. This is time-saving and cos-saving.

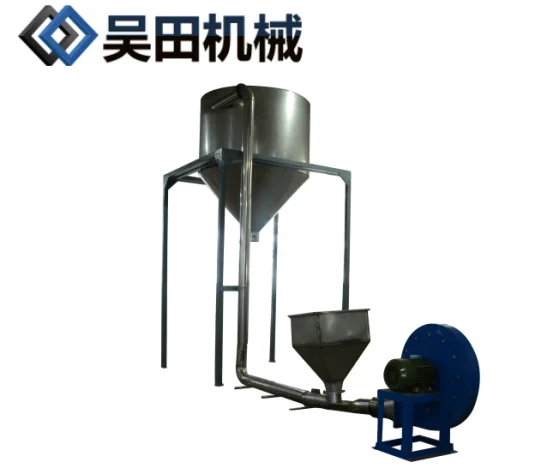

The air feeding blower is high efficient, which ensures high speed feeding, improves work efficiency.
There are two layers of sound insulation materials on the inside of the storage hopper, which reduces noise level effectively. The storage hopper’s capacity is 500 kg, which is suitable for general situations.
There are two layers of sound insulation materials on the inside of the storage hopper, which reduces noise level effectively. The storage hopper’s capacity is 500 kg, which is suitable for general situations.

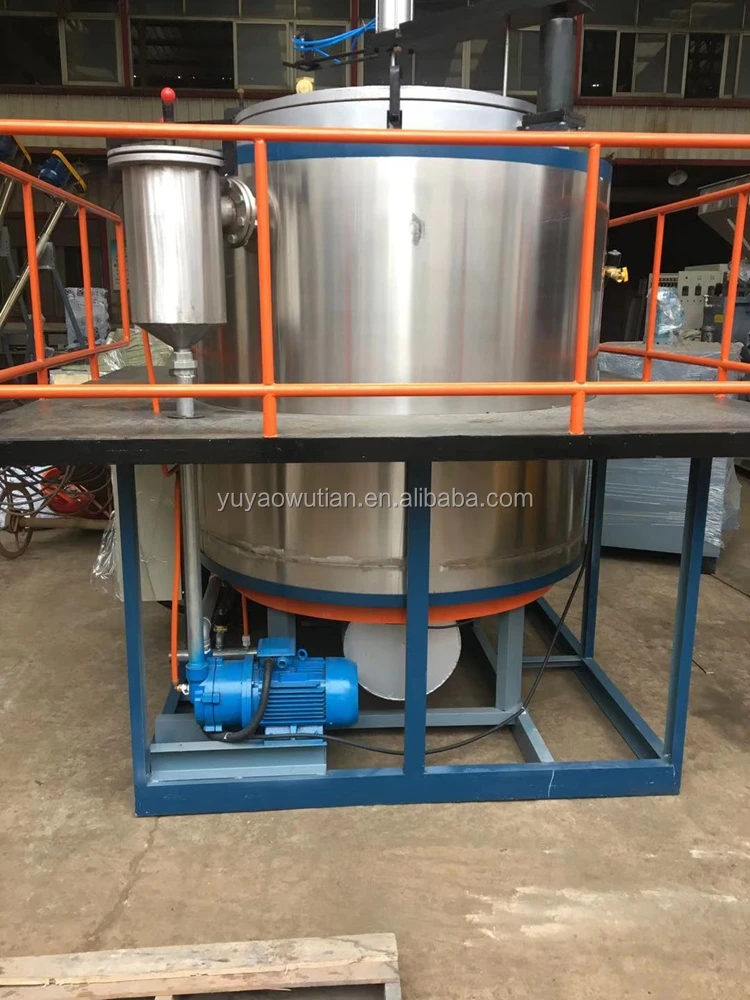

This filter cleaner has two components, vacuum heating furnace and high pressure cleaning pump. This cleaner is used to clean the filter screen, which allows the filter screen to be used up to three times. This special design is cost saving.
Technology Parameter | ||||||||||||||
Model | CFL100 | CFL110 | CFL120 | CFL130 | CFL140 | CFL150 | ||||||||
Output(kg/h) | 150-220 | 180-290 | 200-350 | 300 - 400 | 400-450 | 450 - 600 | ||||||||
Length(mm) | 18500 | 19000 | 19000 | 21000 | 22000 | 22500 | ||||||||
Width(mm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | ||||||||
Height(mm) | 2000 | 2000 | 2200 | 2300 | 2500 | 2500 | ||||||||
1. For PC, PA: Screw Feeder For PET: U-shaped Screw Feeder | Power(KW) | 2.2 | 2.2 | 2.2 | 5.5 | |||||||||
Diameter(mm) * Screw Feeder *U-shaped | φ133 φ200 | φ200 | ||||||||||||
2. Water Tank | Size(mm) | 300 x 500 x 2500 | 300 x 500 x 2500 | 300 x 500 x 2500 | 300 x 500 x 4000 | 300 x 500 x 4000 | 300 x 500 x 4000 | |||||||
3. Bracket Supporting Rack With Blower | Power(KW) | 1.1 | 1.1 | 2.2 | 1.5 x 2 Two Blowers | 1.5 | ||||||||
4. Plastic Cutting Machine | Size(mm) | φ200 x 200 | φ200 x 200 | φ200 x 300 | φ200 x 300 | φ200 x 300 | ||||||||
Power(KW) | 4 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | ||||||||
5. Vibration Sieve | Vibrator Power(KW) | 0.08 | 0.08 | 0.08 | 0.15 | 0.25 | ||||||||
6. Particle Blower Feeder | Power(KW) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | |||||||
Capacity(kg) | 500 | 500 | 500 | |||||||||||
7. Single Screw Granulator with Feeder & Screen Changer (Stainless Steel Mesh Head) | Diameter of Screw (mm) | φ100 | φ110 | φ120 | φ130 | φ140 | φ150 | |||||||
7. Granulator with Feeder & Screen Changer (Chemical Fiber Mesh Head) | Power of Granulator (KW) | 55 | 75 | 90 | 90 | 110 | 132 | |||||||
Power of Feeder (KW) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | |||||||||
8. PLC | OPTIONAL | |||||||||||||
9. Filter Cleaner | Vacuum Heating Furnace | |||||||||||||
Power of High Pressure Cleaning Pumps (KW) | 3 | 3 | 3 | |||||||||||
Technology Parameter | ||||||||||
Model | CFL160 | CFL170 | CFL190 | CFL220 | ||||||
Output(kg/h) | 500 - 900 | 700-1200 | 1200-1500 | 1300-1700 | ||||||
Length(mm) | 24000 | 26000 | 28000 | 29000 | ||||||
Width(mm) | 1500 | 1500 | 1500 | 1500 | ||||||
Height(mm) | 3000 | 3000 | 3300 | 3500 | ||||||
1. For PC, PA: Screw Feeder For PET: U-shaped Screw Feeder | Power(KW) | 5.5 | 5.5 | 5.5 | 5.5 | |||||
Diameter(mm) * Screw Feeder *U-shaped | φ133 φ200 | φ200 | ||||||||
2. Water Tank | Size(mm) | 300 x 500 x 4000 | 300 x 500 x 5000 | 300 x 500 x 5000 | 300 x 500 x 6000 | |||||
3. Bracket Supporting Rack With Blower | Power(KW) | 1.5 | 2.2 | 1.5 x Two Blowers | 1.5 x Two Blowers | |||||
4. Plastic Cutting Machine | Size(mm) | φ200 x 200 | φ200 x 300 | φ200 x 300 | φ200 x 300 | |||||
Power(KW) | 15 | 15 | 22 | 22 | ||||||
5. Vibration Sieve | Vibrator Power(KW) | 0.08 | 0.08 | 0.15 | 0.25 | |||||
6. Particle Blower Feeder | Power(KW) | 4 | 4 | 5.5 | 5.5 | |||||
Capacity(kg) | 500 | 500 | 500 | 500 | ||||||
7. Single Screw Granulator with Feeder & Screen Changer (Stainless Steel Mesh Head) | Diameter of Screw (mm) | φ100 | φ120 | φ140 | φ220 | |||||
7. Granulator with Feeder & Screen Changer (Chemical Fiber Mesh Head) | Power of Granulator (KW) | 220 | 250 | 315 | 375 | |||||
Power of Feeder (KW) | 1.5 | 2.2 | 2.2 | 2.2 | ||||||
8. PLC | OPTIONAL | |||||||||
9. Filter Cleaner | Vacuum Heating Furnace | |||||||||
Power of High Pressure Cleaning Pumps (KW) | 3 | 3 | 3 | 3 | ||||||
