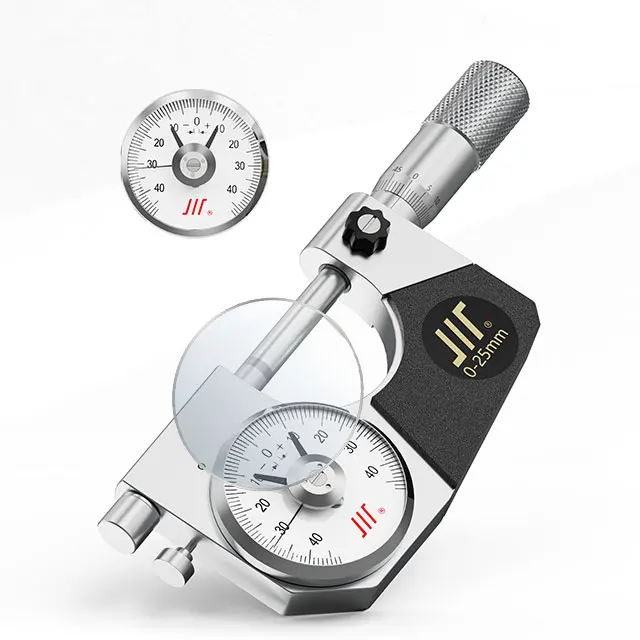

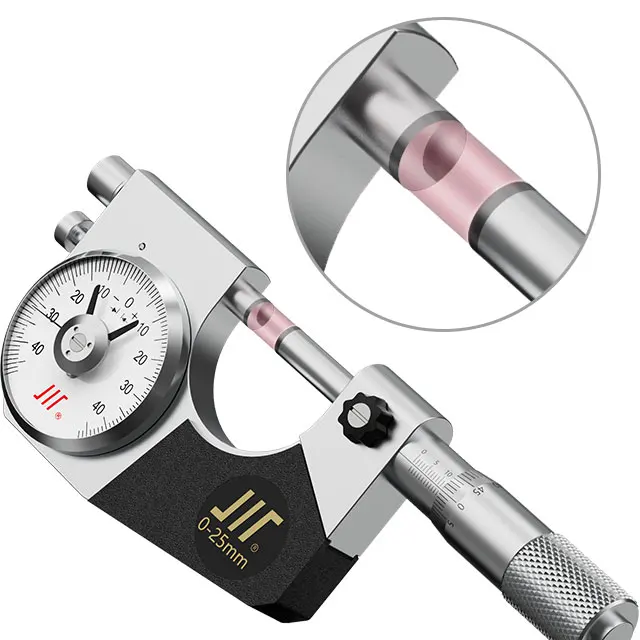

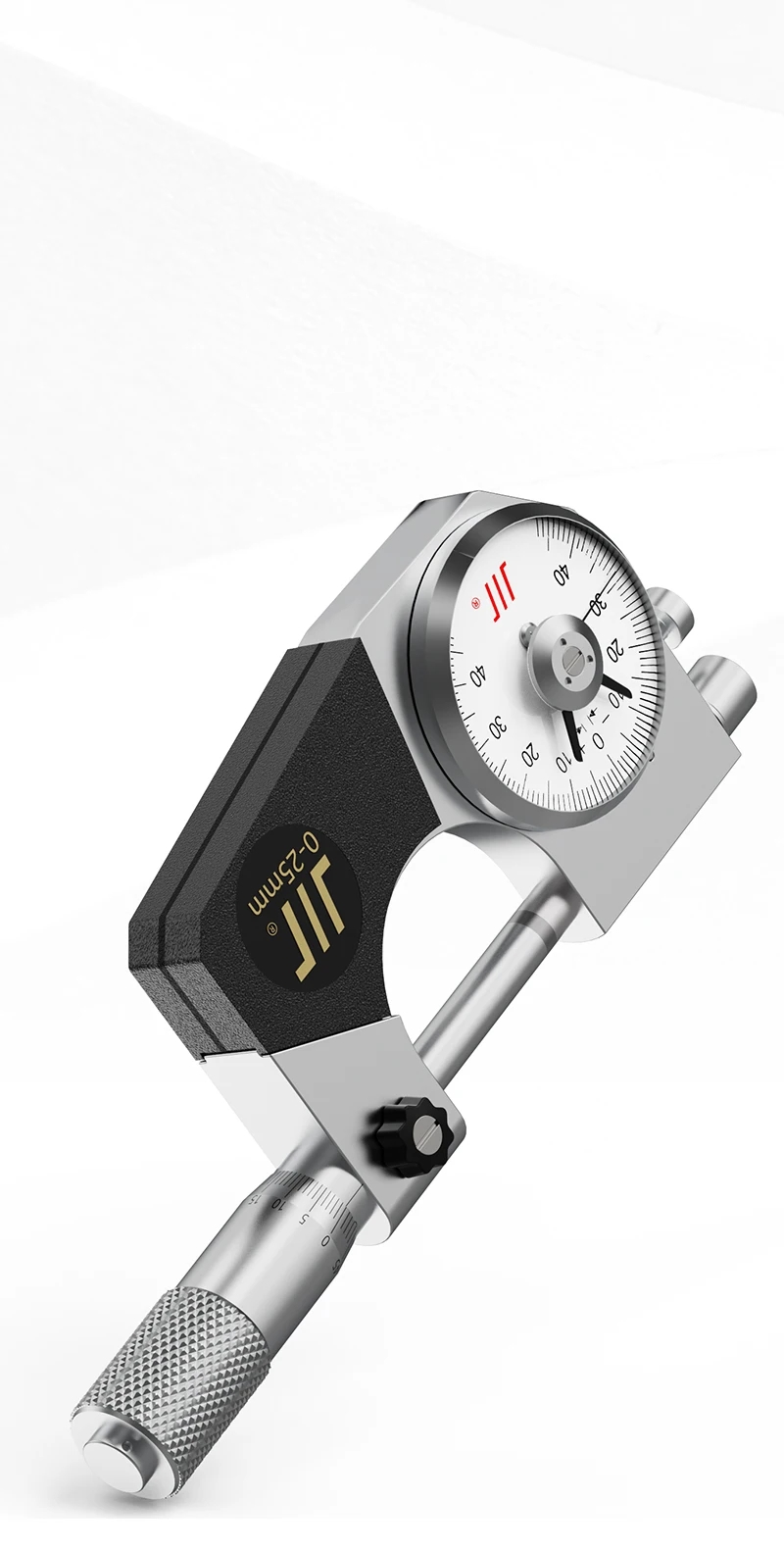

High Performance Indicating Dial Snap Micrometer Level Micrometer Measuring Tool 0 25mm 25 50mm 50 75mm 75 100mm
- Category: Micrometers >>>
- Supplier: Chengdu New Chengliang Tools Co. Ltd.
Share on (1600667982016):
Product Overview
Description
Product Description
Type: | Micrometer | Standard form: | GB/T8061-2004 | |||
Name: | Indicating micrometer | Line Engraving process: | Laser engraving line | |||
Surface treatment : | Dark chrome electroplating | Packaging method: | Plastic Box | |||
Applications: | Widely applied in the precise measurement of outer diameter (direct measurement + comparative measurement) | |||||

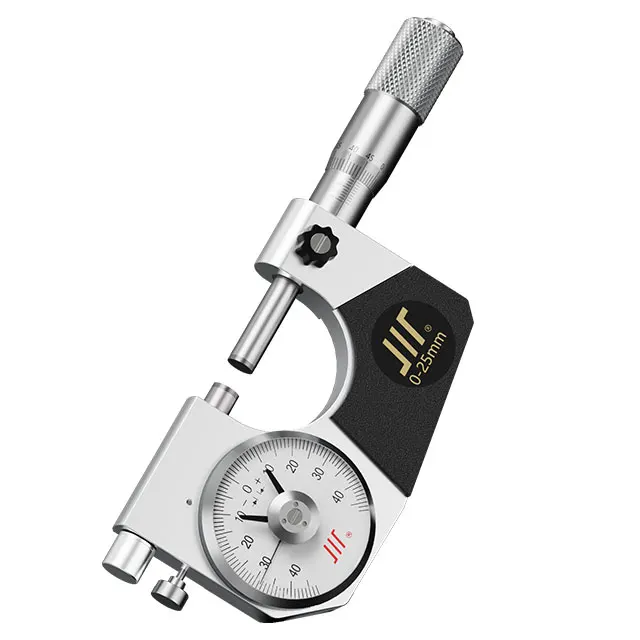

Detailed description: In adoption of powder metallurgy holder (excluding the 50-75mm, 75-100mm steel holder), the surface of the product is specially electroplated with chrome; With the quenching micrometric screw and hard alloy measuring surface, it boasts high abrasive resistance and stable structure and is easy to use; Its movable gauge button is connected to a high-precision "dial gauge", which is suitable for direct measurement and comparative measurement; The surface of fixed tube and microdrum is electroplated with dark chrome and processed through high-precision laser reticle, of which reticle and mark is clear, mellow and wear-resisting, with high precision and easy reading; The product is verified in strict accordance with the national verification standard to ensure the accuracy of measurement. | ||||||
1、The holder is made of powder metallurgy materials (excluding the 50-75mm, 75-100mm steel holder), whose surface is electroplated
with dark chrome, with light weight, good rigidity and beautiful appearance.
2、Laser reticle, precise calibration, easy reading

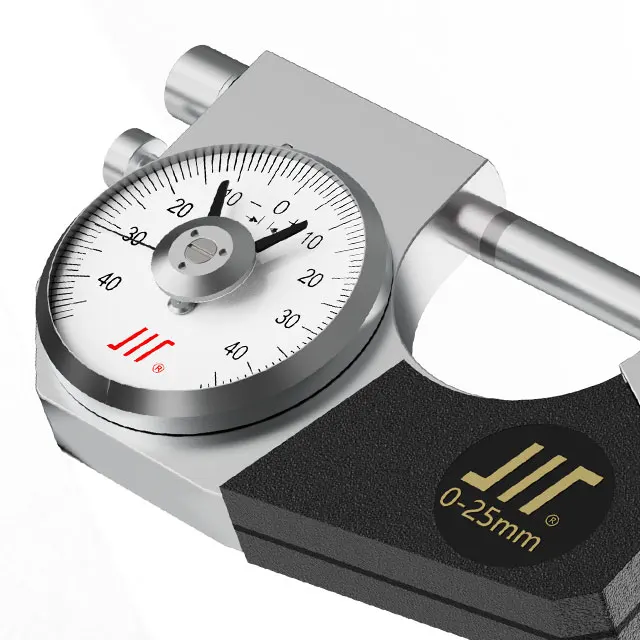

High-end Acrylic guard plate: thermal insulation, insulation
Widely used in the precision measurement of external dimensions
Measurement of the moving object is not allowed, with indexing value 0.01mm
Standard：
GB/T8061-2004

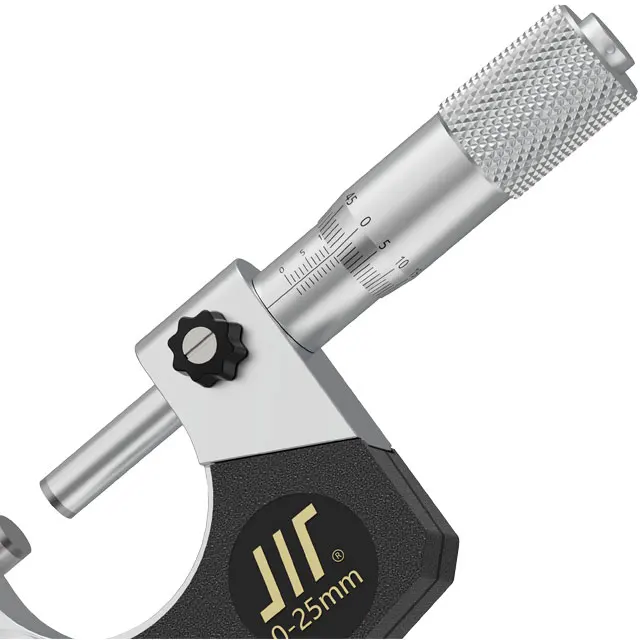

the quenching micrometric screw

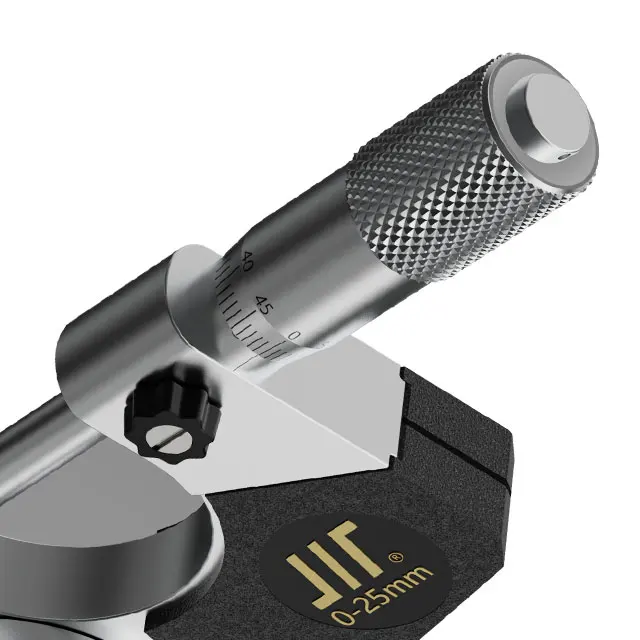

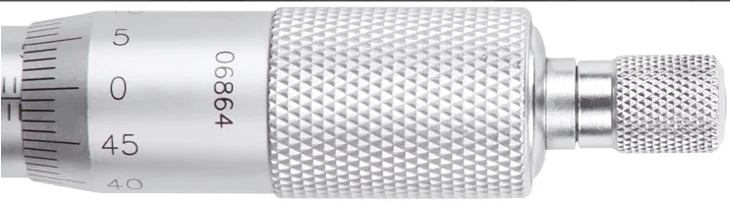

Laser engraving lines, clear and round
Except for indicating micrometer of 0-25mm, all the other indicating micrometers are equipped with high-precision "calibration measuring rod" to ensure their accuracy of measurement.
Brand-new package, featuring beautiful appearance and good shock resistance

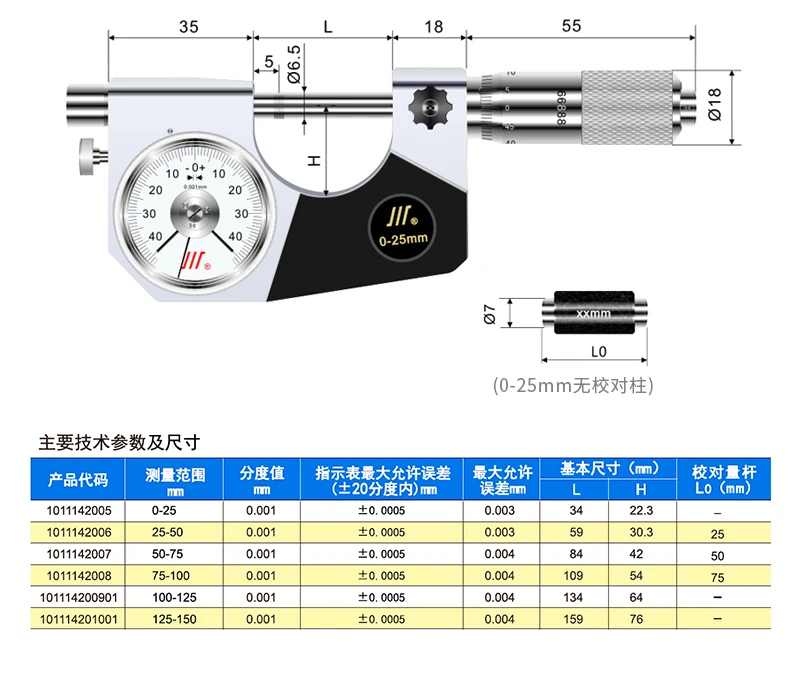

Product Code | Measuring Range mm | Division Value mm | Precision μm | Basic Size（mm） | Calibration Rod L0 (mm) | ||||
L | L | H | |||||||
1011142005 | 0-25 | 0.001 | ±0.0005 | 34 | 31.4 | 22.3 | - | ||
1011142006 | 25-50 | 0.001 | ±0.0005 | 59 | 56.4 | 30.3 | 25 | ||
1011142007 | 50-75 | 0.001 | ±0.0005 | 84 | 81.4 | 42 | 50 | ||
1011142008 | 75-100 | 0.001 | ±0.0005 | 109 | 106.4 | 54 | 75 | ||
PRECAUTIONS
1.It is strictly forbidden to measure a moving object with the outside micrometer to avoid scratching the measuring surface or imprecise measurement.
2.Before use, wipe the measuring surface carefully, and check or adjust the zero to a correct position. The range of measurement should be controlled within the stroke of the measuring rod.
3.Method for checking the zero correctness and adjusting: rotate the microdrum to the zero, when the pointer should be rotated perpendicularly to the center line of the movable gauge button and coincided with the zero scale line of the dial plate; If it fails to coincide with the zero scale line, rotate the zeroing mechanism on the dial shell with a screwdriver to rotate the dial plated for coinciding. The rotation range of the dial plate zero scale line is with ±10 divisions of the vertical direction of the center line of the movable gauge button, beyond which the trial stability of is deemed as ultra-poor.
Adjusting method for comparative measurement: rotate the microdrum to the nominal dimension of measured parts, tighten the locking device, put the gauge block group (equal to the nominal dimension) between two measuring surfaces, and press the button for a few times. When the pointer is stable, rotate the zeroing mechanism. The measurement can be started when the dial plate zero scale line coincides with the pointer and keeps stable for a while. Always check the correctness of the zero during measurement, and readjust it in time in case of deviation.
4.On condition that the micrometer moves poorly with large axial or radial clearance, unscrew the "micrometric screw" (microdrum), use a "wrench" (product accessory) to cover the "adjusting nut" (blackened part) and rotate it back and forth to adjust the clearance of the micrometer screw pair to eliminate or reduce the axial and radial clearance.
5.Try to protect the micrometer from violent vibration, collision, corrosion and moisture.
6.Operation in special environment (high temperature, low temperature and high pressure) may lead to the inaccuracy of
measurement.
7.For long-term preservation, please put the micrometer into the product box after rust prevention treatment.
2.Before use, wipe the measuring surface carefully, and check or adjust the zero to a correct position. The range of measurement should be controlled within the stroke of the measuring rod.
3.Method for checking the zero correctness and adjusting: rotate the microdrum to the zero, when the pointer should be rotated perpendicularly to the center line of the movable gauge button and coincided with the zero scale line of the dial plate; If it fails to coincide with the zero scale line, rotate the zeroing mechanism on the dial shell with a screwdriver to rotate the dial plated for coinciding. The rotation range of the dial plate zero scale line is with ±10 divisions of the vertical direction of the center line of the movable gauge button, beyond which the trial stability of is deemed as ultra-poor.
Adjusting method for comparative measurement: rotate the microdrum to the nominal dimension of measured parts, tighten the locking device, put the gauge block group (equal to the nominal dimension) between two measuring surfaces, and press the button for a few times. When the pointer is stable, rotate the zeroing mechanism. The measurement can be started when the dial plate zero scale line coincides with the pointer and keeps stable for a while. Always check the correctness of the zero during measurement, and readjust it in time in case of deviation.
4.On condition that the micrometer moves poorly with large axial or radial clearance, unscrew the "micrometric screw" (microdrum), use a "wrench" (product accessory) to cover the "adjusting nut" (blackened part) and rotate it back and forth to adjust the clearance of the micrometer screw pair to eliminate or reduce the axial and radial clearance.
5.Try to protect the micrometer from violent vibration, collision, corrosion and moisture.
6.Operation in special environment (high temperature, low temperature and high pressure) may lead to the inaccuracy of
measurement.
7.For long-term preservation, please put the micrometer into the product box after rust prevention treatment.
Company Profile

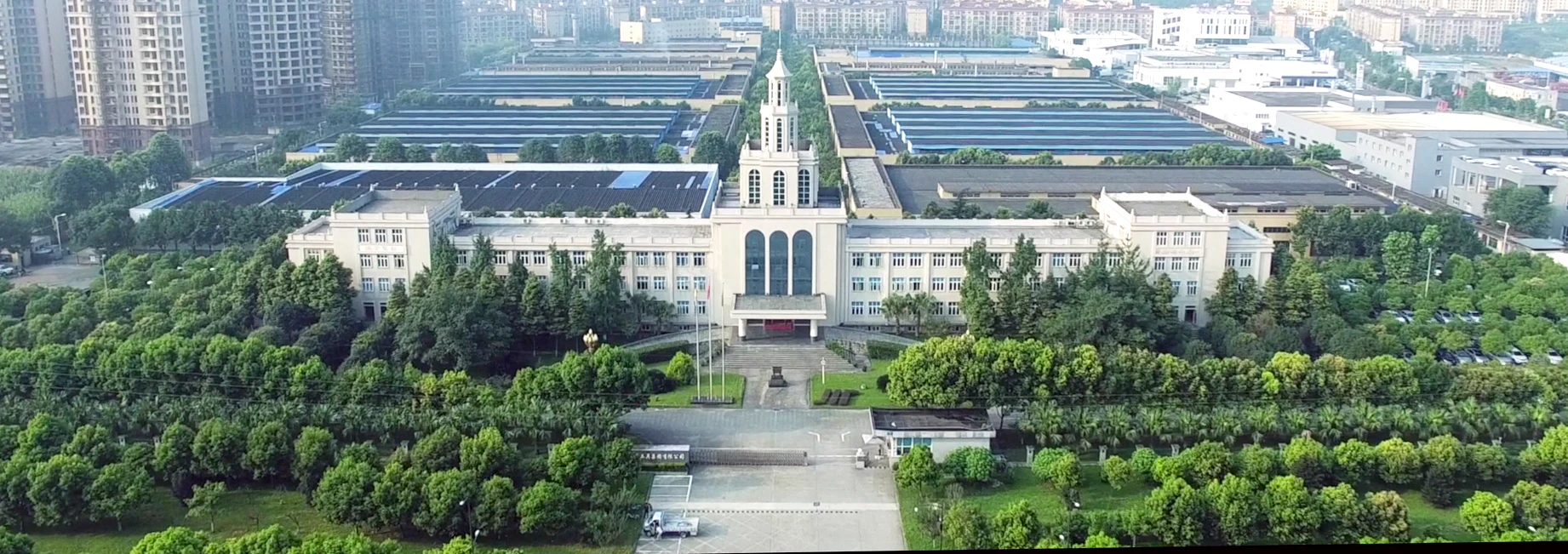

CHENGDU NEW CHENGLIANG TOOLS CO., LTD was found in 1956.it's the nation's key measuring tools manufacturer and export base. Being a modern enterprise occupying over 248 mu ,the company has a total asset of almost 1 billion Yuan ,more than 1500 employees, including over 350 engineering technicians and professional managers .The company is a high-tech enterprise and a state-level large-scale backbone enterprise. Within domestic measuring tools industry, the sales scales is always on top.
Chengliang is specialized in developing and manufacturing measuring tools, HSS cutting tools, CNC tools, carbide cutting tools, CNC, precision measuring instruments to the gauges for automobiles and motorcycles, which cover five major categories,600 varieties for tens of thousands of items.
Production room
Exhibition
Partner

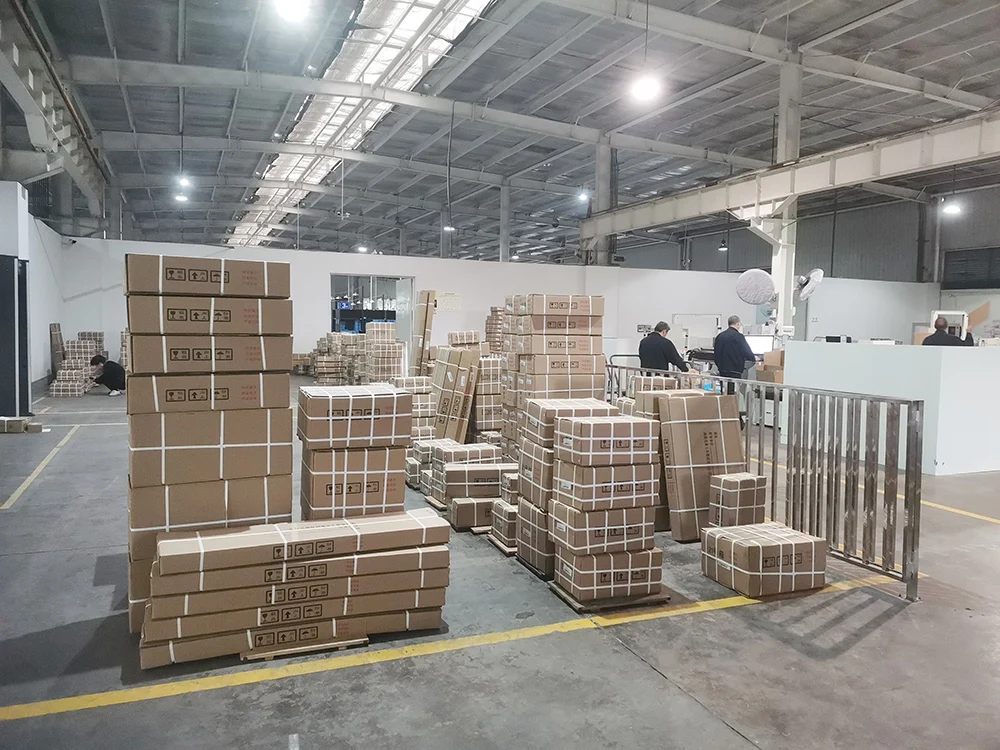

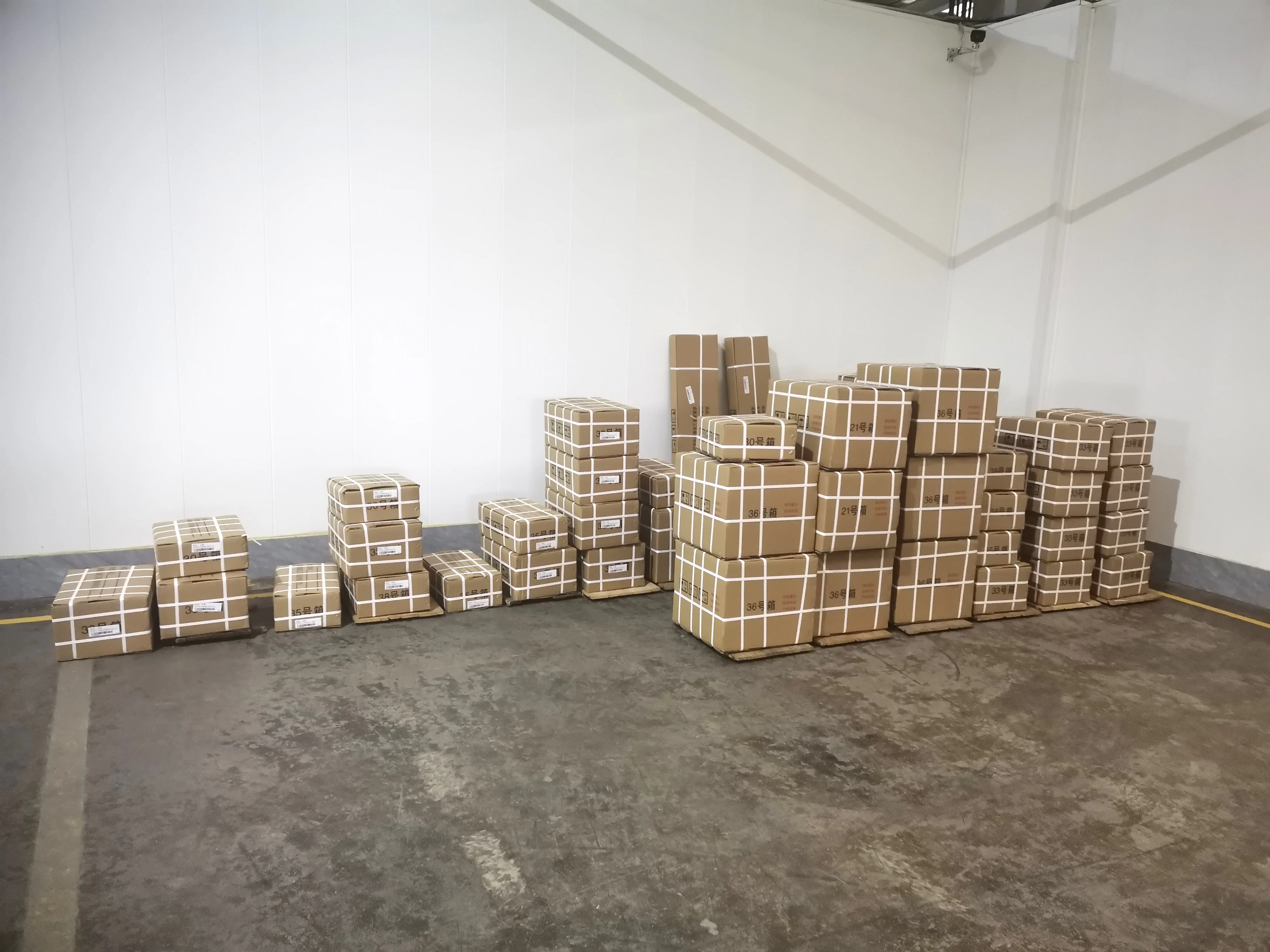

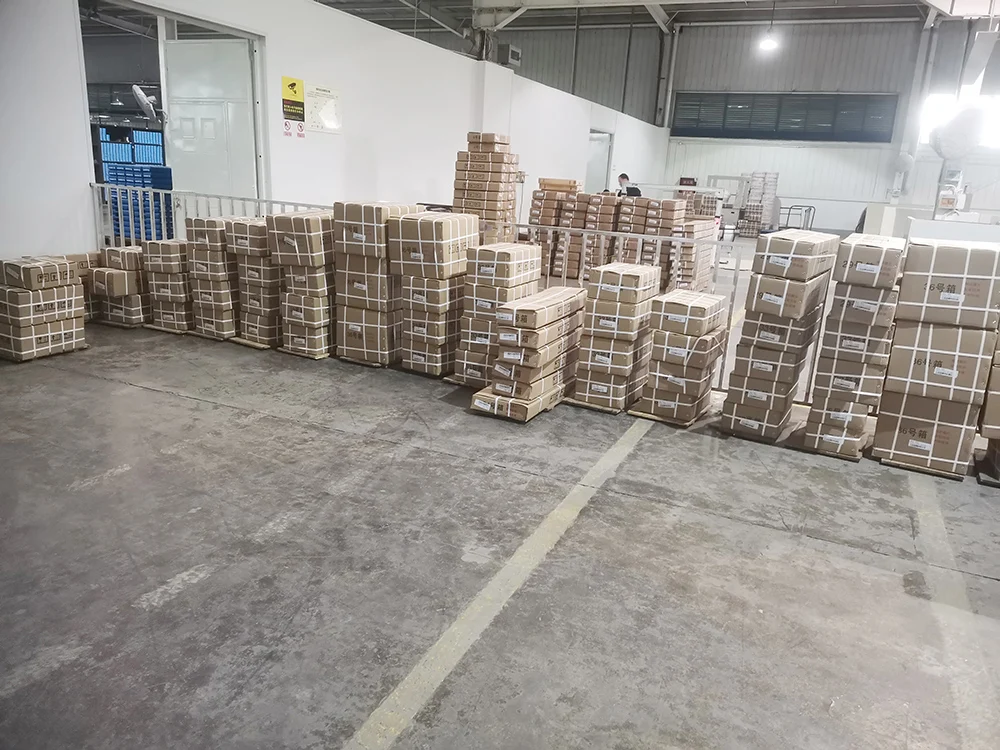

Packaging & Shipping
