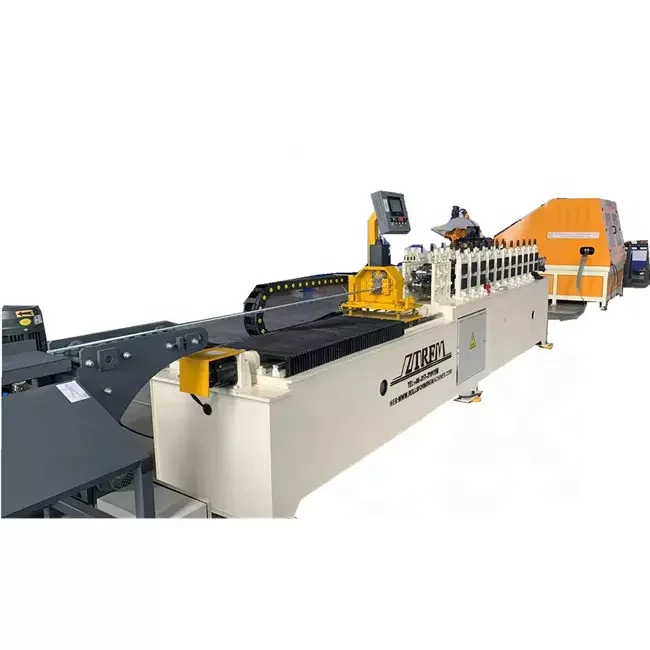

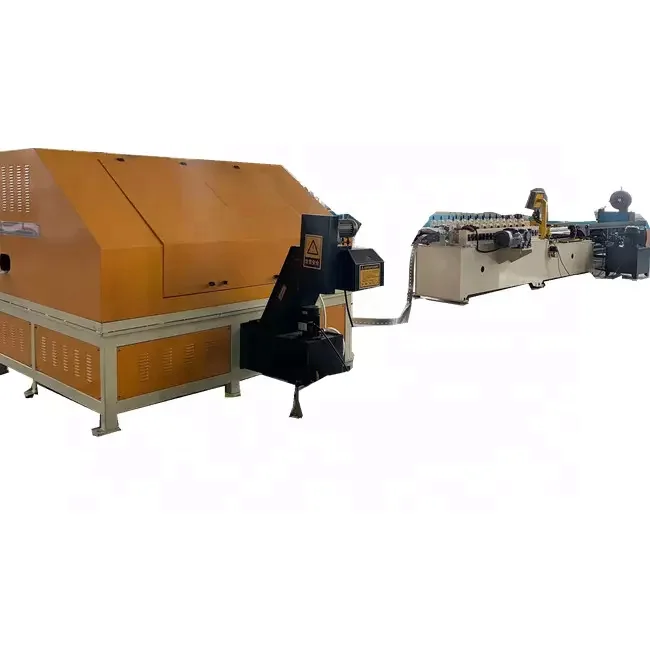

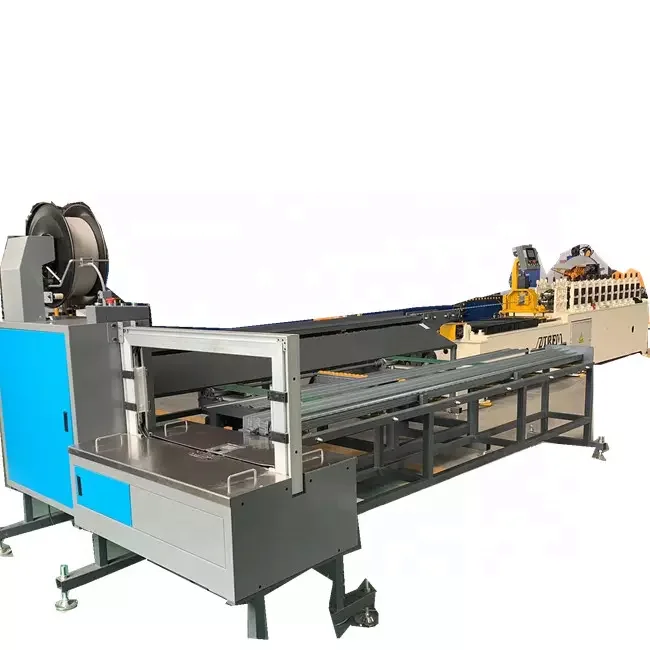

ZTRFM ISO CE High speed Rotary punching Resilient Furring Channel omege roll former RC 1 RC 2 roll forming machine
- Category: >>>
- Supplier: Cangzhou Zhongtuo International Trade Co. Ltd.
Share on (1600669594802):
Product Overview
Description
Product Description

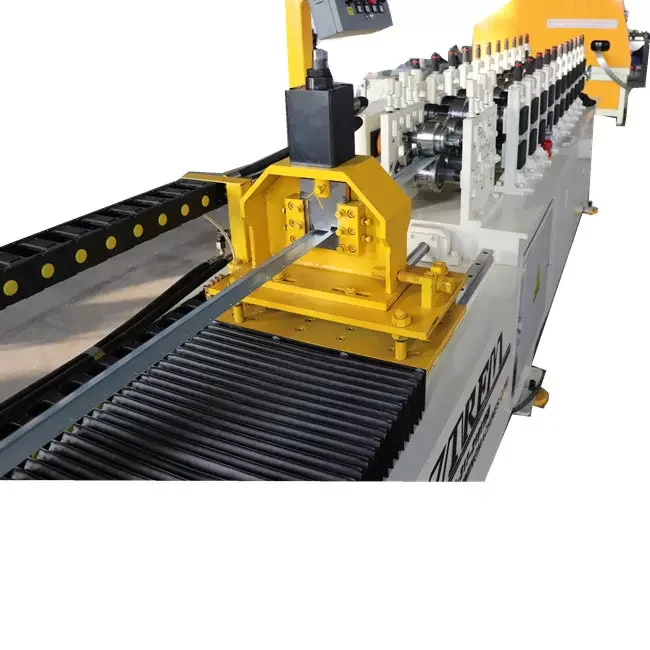

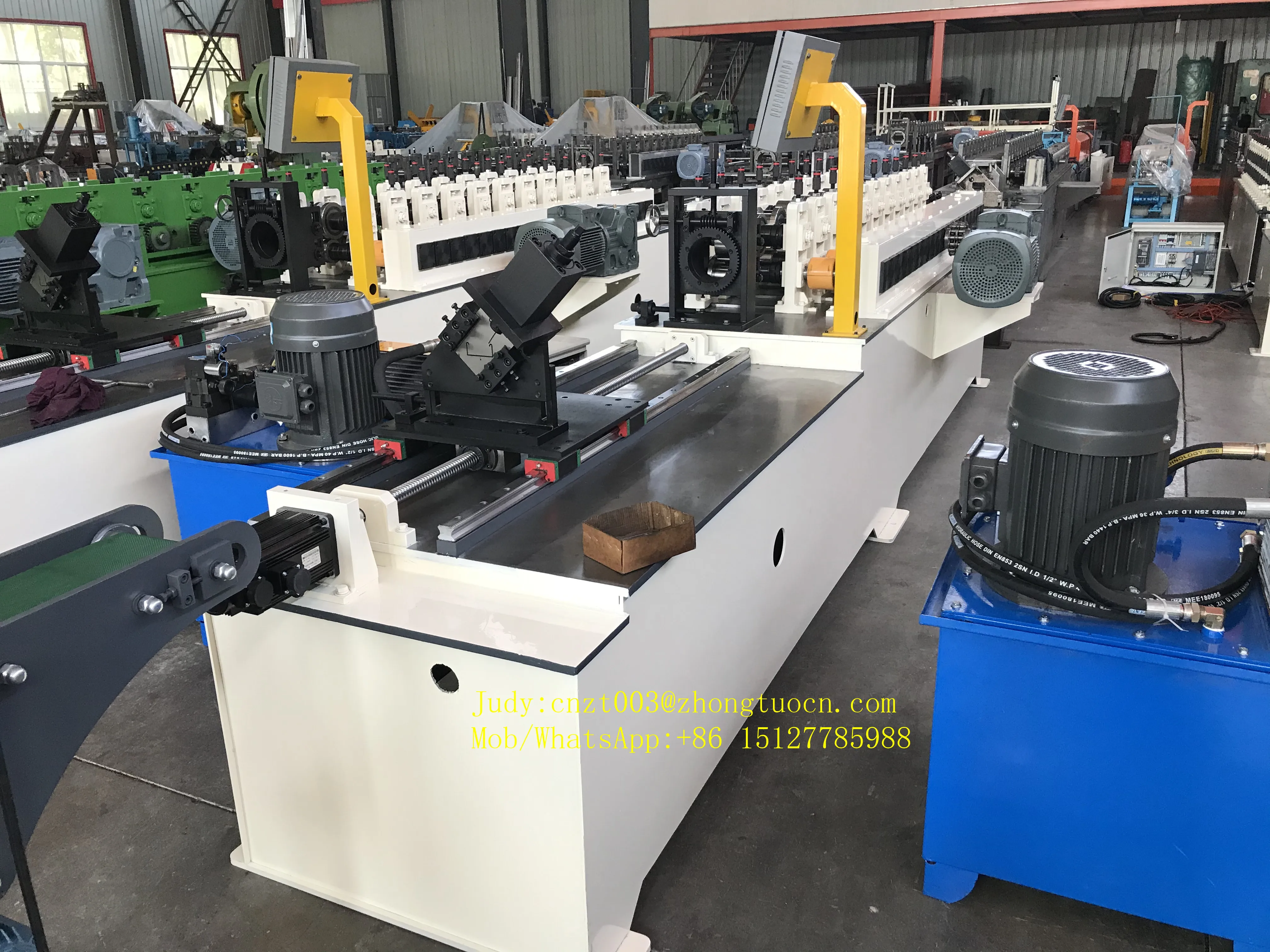

RC-1 RC-2 High speed Resilient Furring Channel roll forming machine with Rotary punching device
RC-1 RC-2 High speed Resilient Furring Channel roll forming machine with Rotary punching device is to produce the Resilient furring channel in very high speed,the max speed can reach to 70m/min including punching holes.
Advantages of RC-1 RC-2 High speed Resilient Furring Channel roll forming machine with Rotary punching device
1. High speed. The speed can be up to 70m/min.
Normal speed machine's speed is around 20-25m/min and 40-45m/min
2. High durable. Our rollers adopt the Cr 12 with quenched treatment,this is the best material for rollers.
3. High automatic. high speed C/U/Omega stud roll forming machine adopts PLC systerm.
User can set production quantity, production speed on control cabinet.
Advantages of RC-1 RC-2 High speed Resilient Furring Channel roll forming machine with Rotary punching device
1. High speed. The speed can be up to 70m/min.
Normal speed machine's speed is around 20-25m/min and 40-45m/min
2. High durable. Our rollers adopt the Cr 12 with quenched treatment,this is the best material for rollers.
3. High automatic. high speed C/U/Omega stud roll forming machine adopts PLC systerm.
User can set production quantity, production speed on control cabinet.

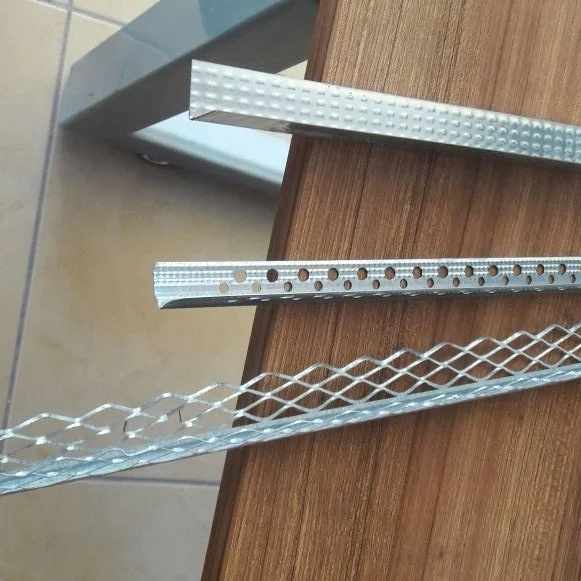

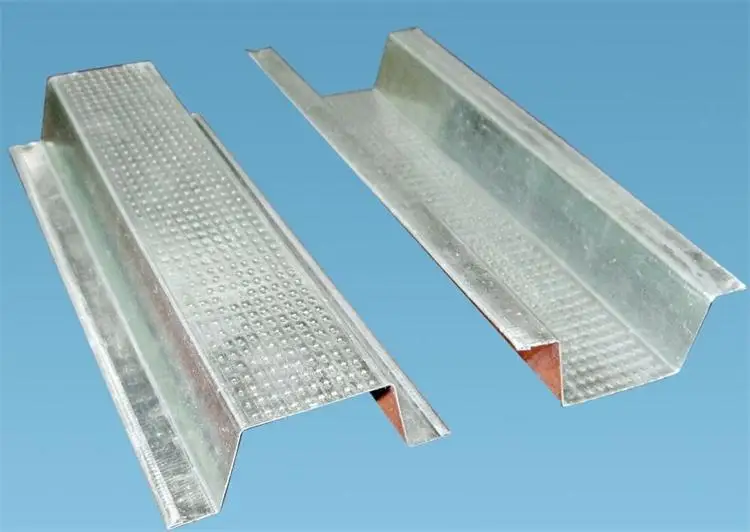

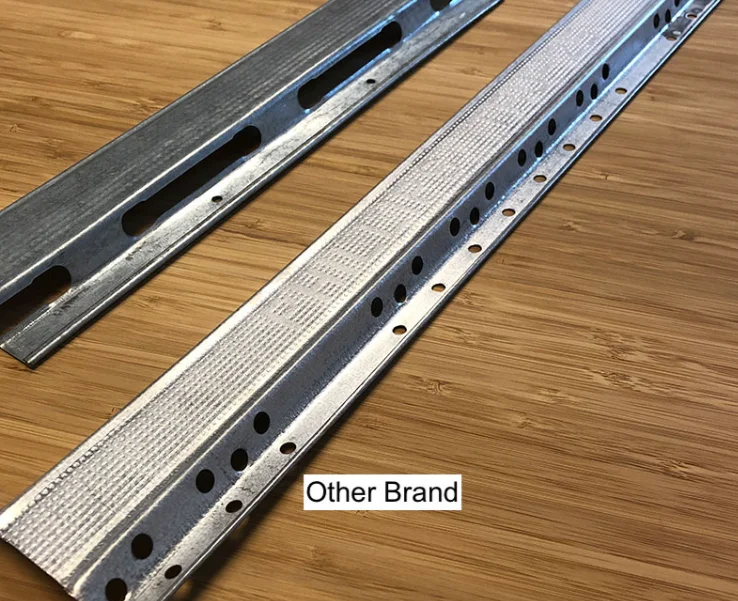

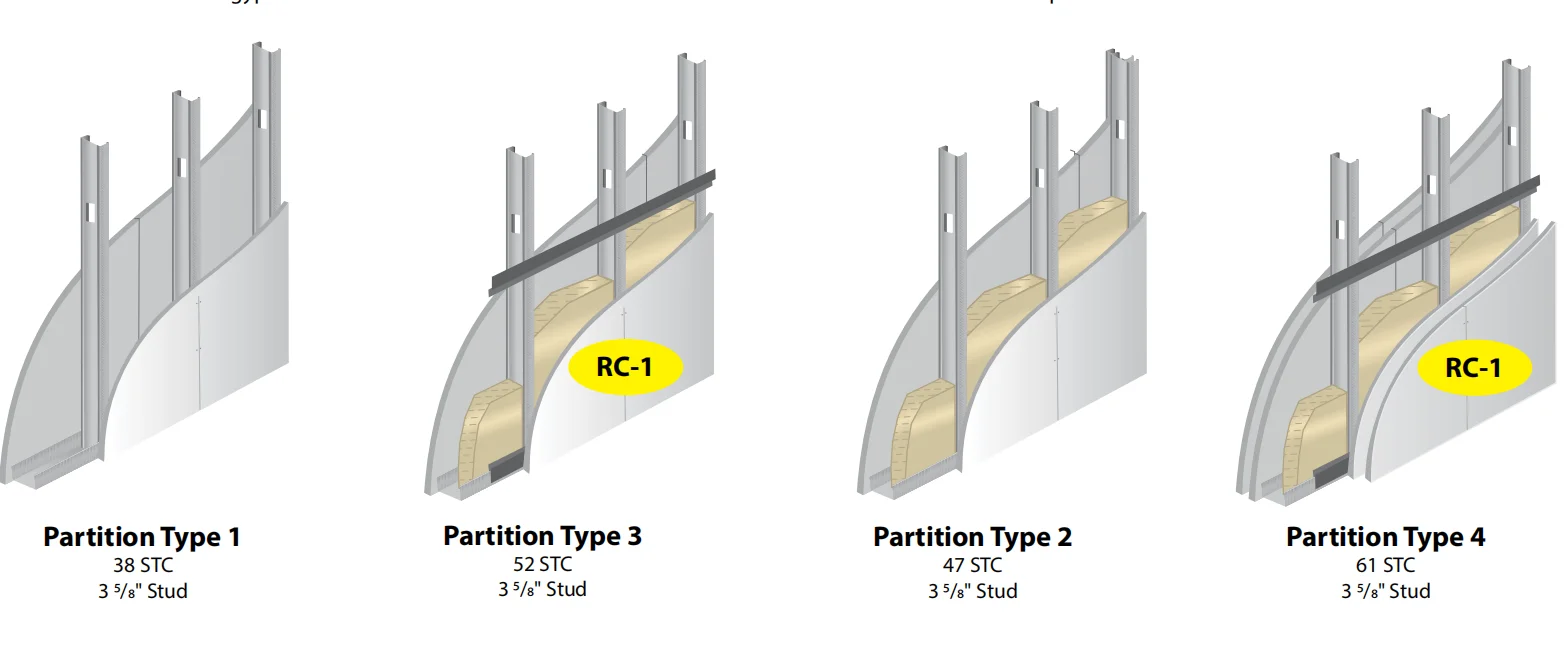

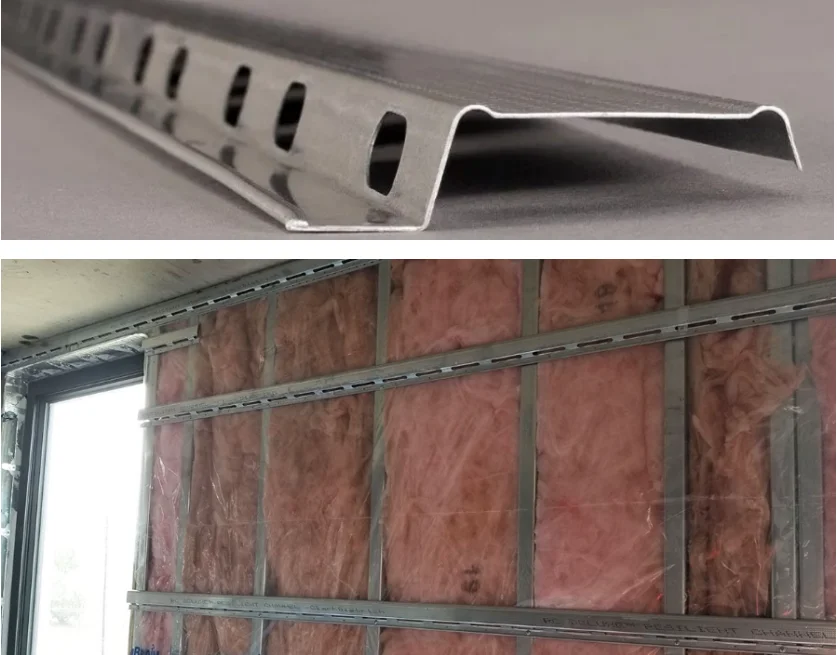

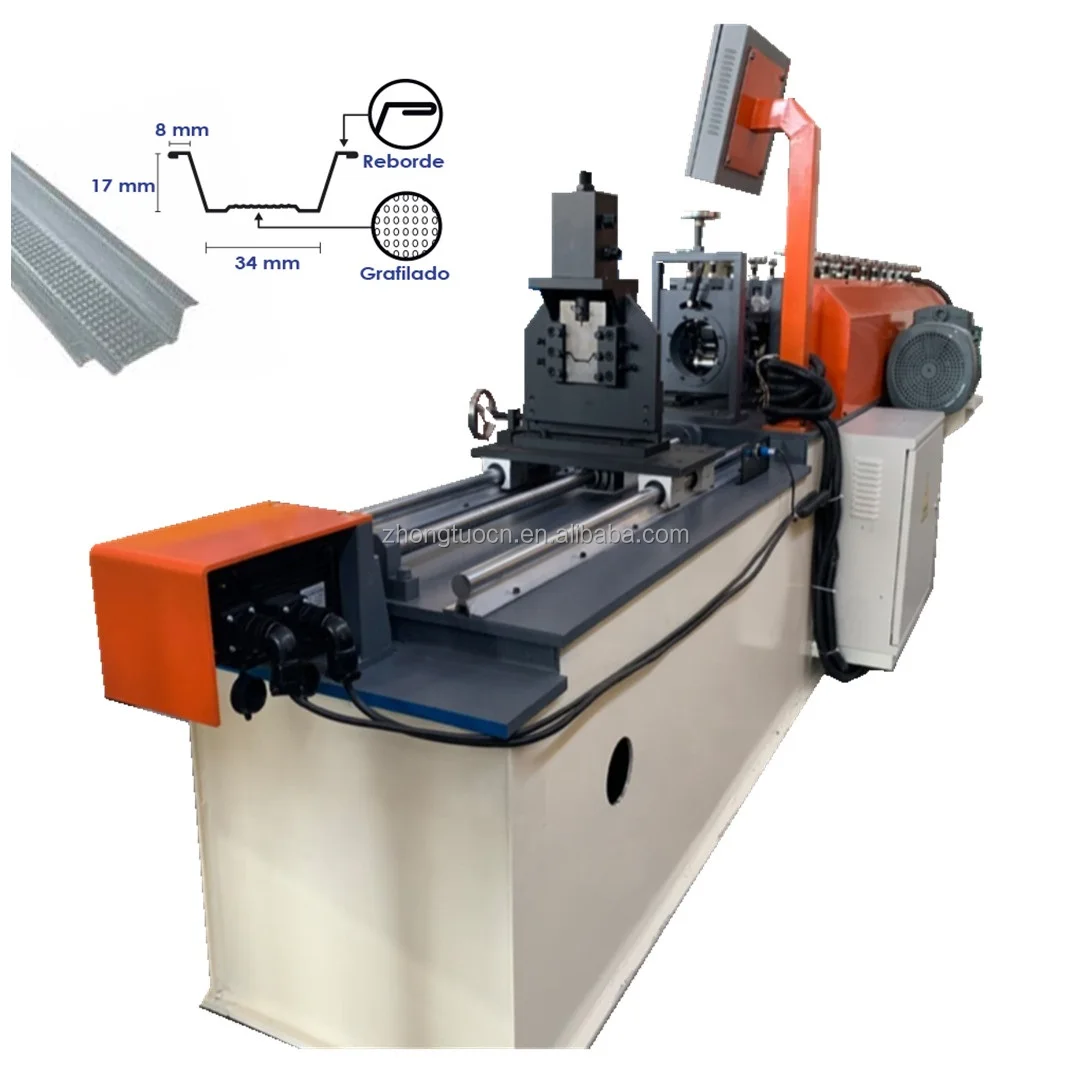

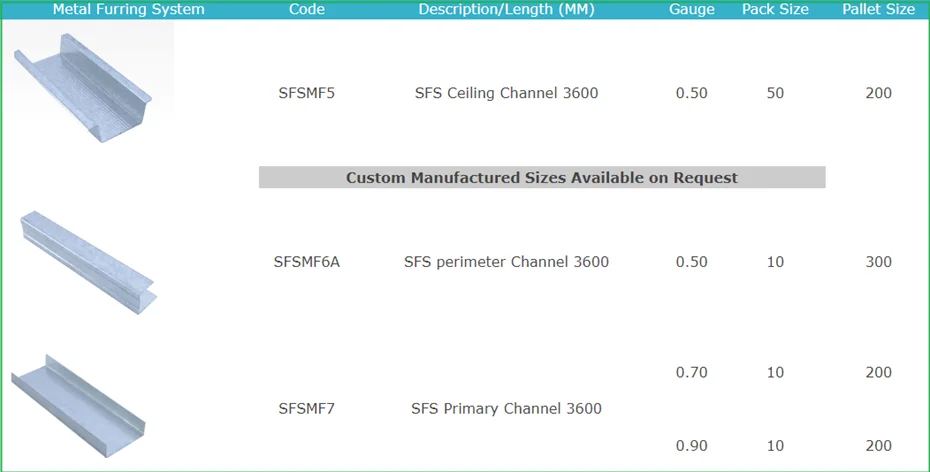

Finished product picture and installation:
More installation pictures:
RC-1 RC-2 High speed Resilient Furring Channel roll forming machine with Rotary punching device | ||||||||
1.Formed Material | GI/GL | Thickness:0.4-0.8mm | ||||||
2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||||||

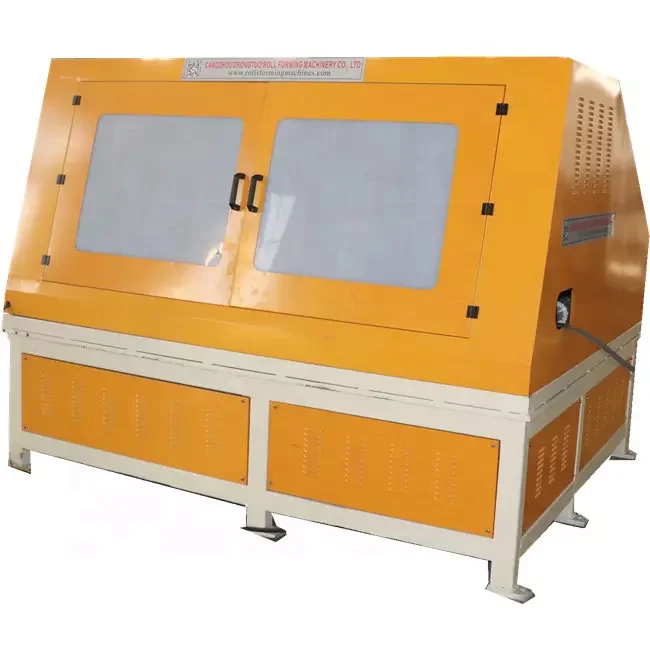

3.Punching device | Punching type | High speed rotary punch | ||||||

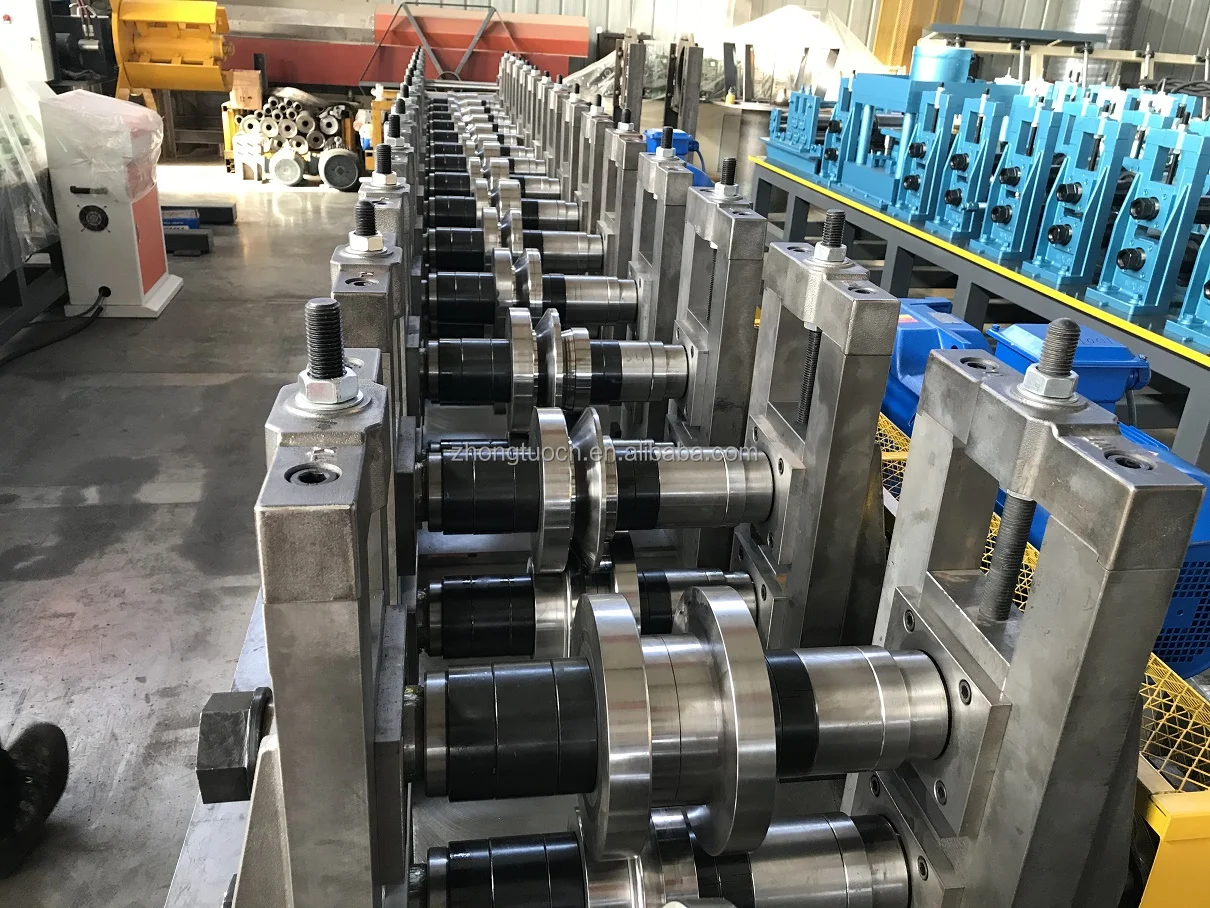

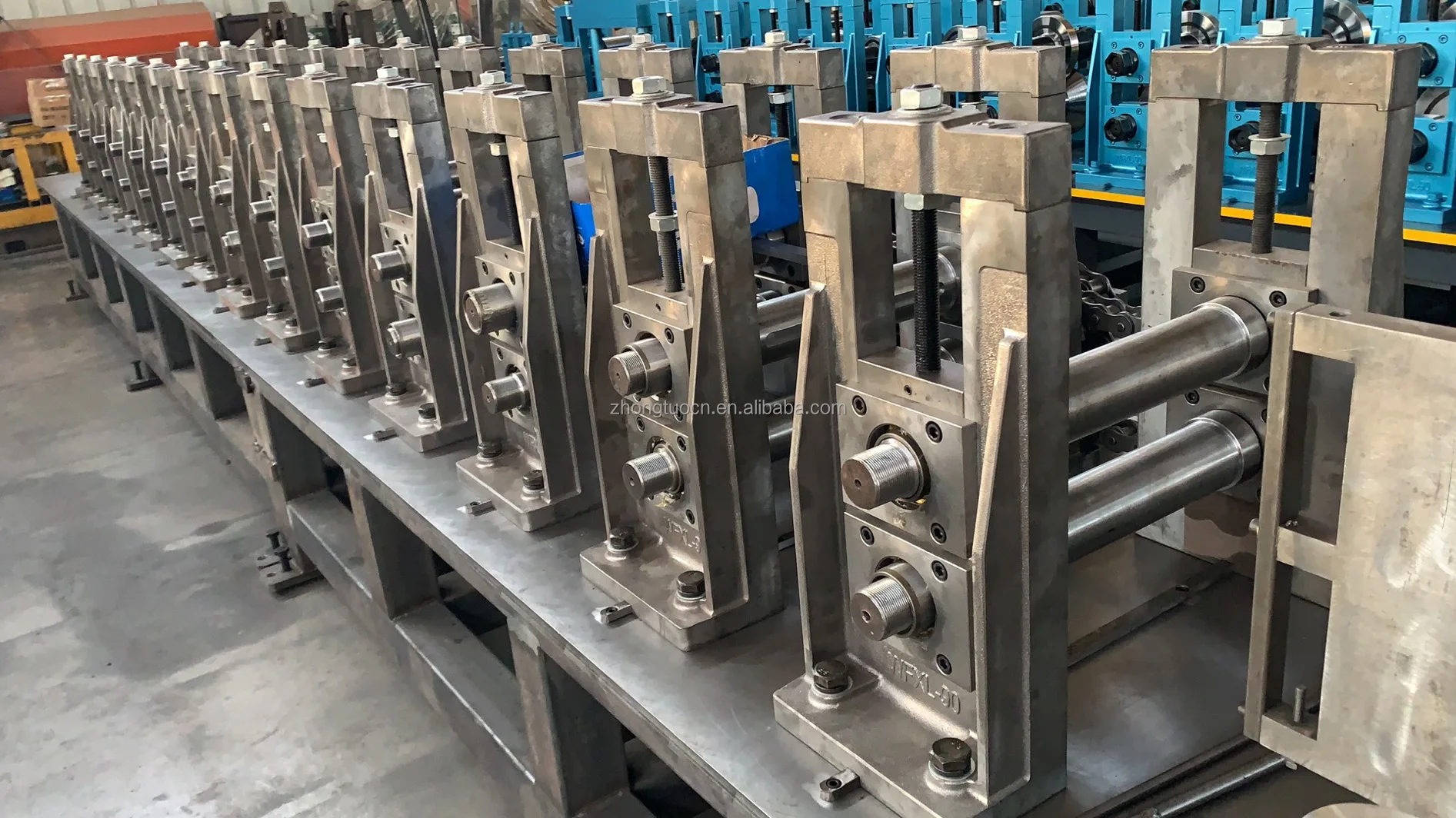

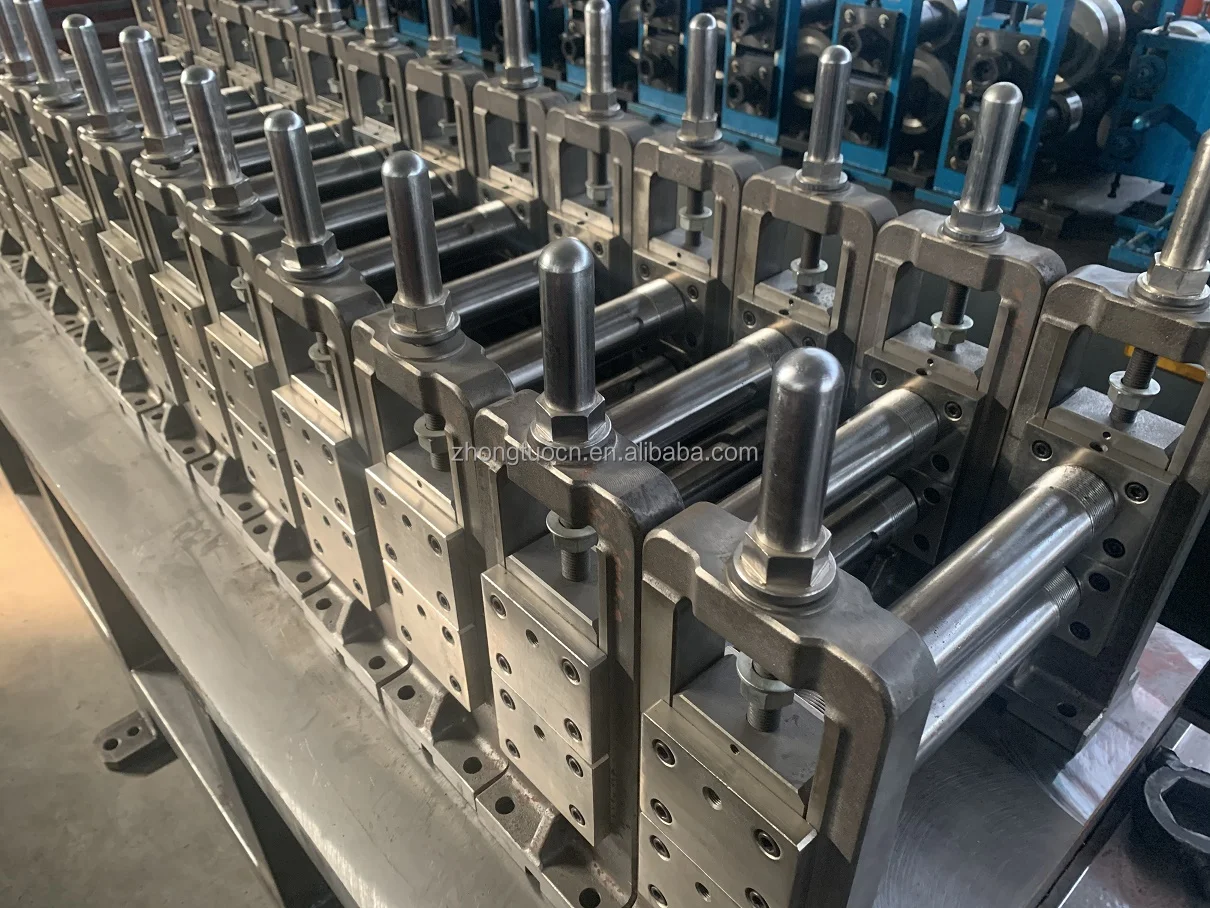

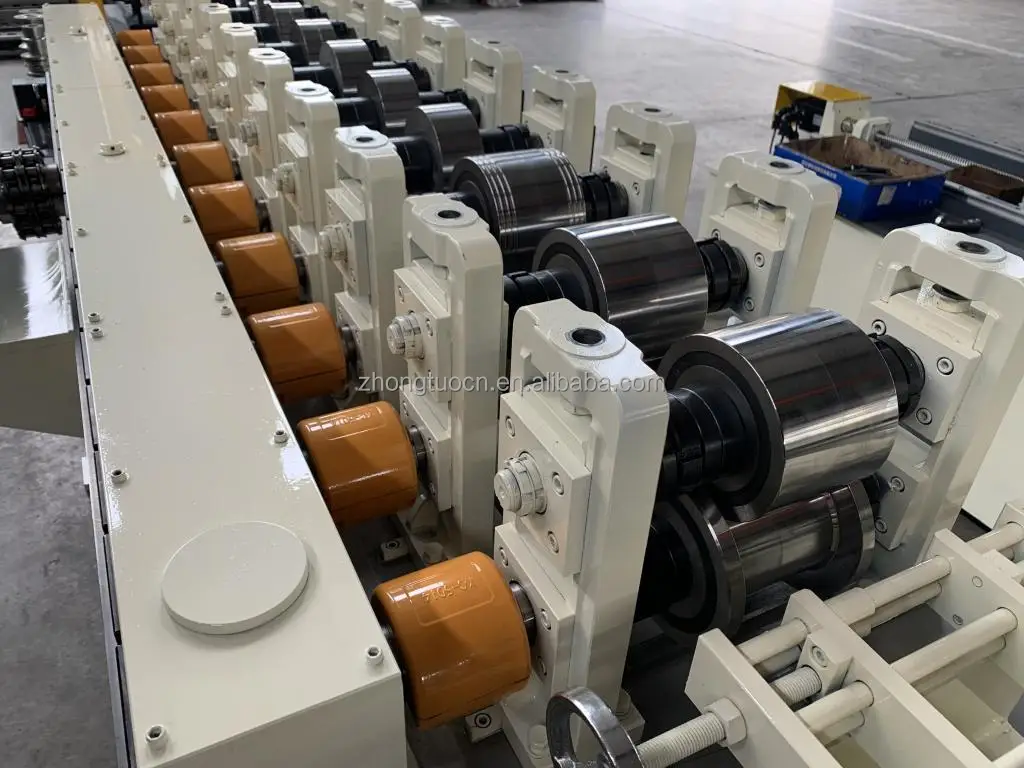

4.Main body | Roller station | 12 rows(As your requirement) | ||||||
Diameter of shaft | 50mm solid shaft | |||||||

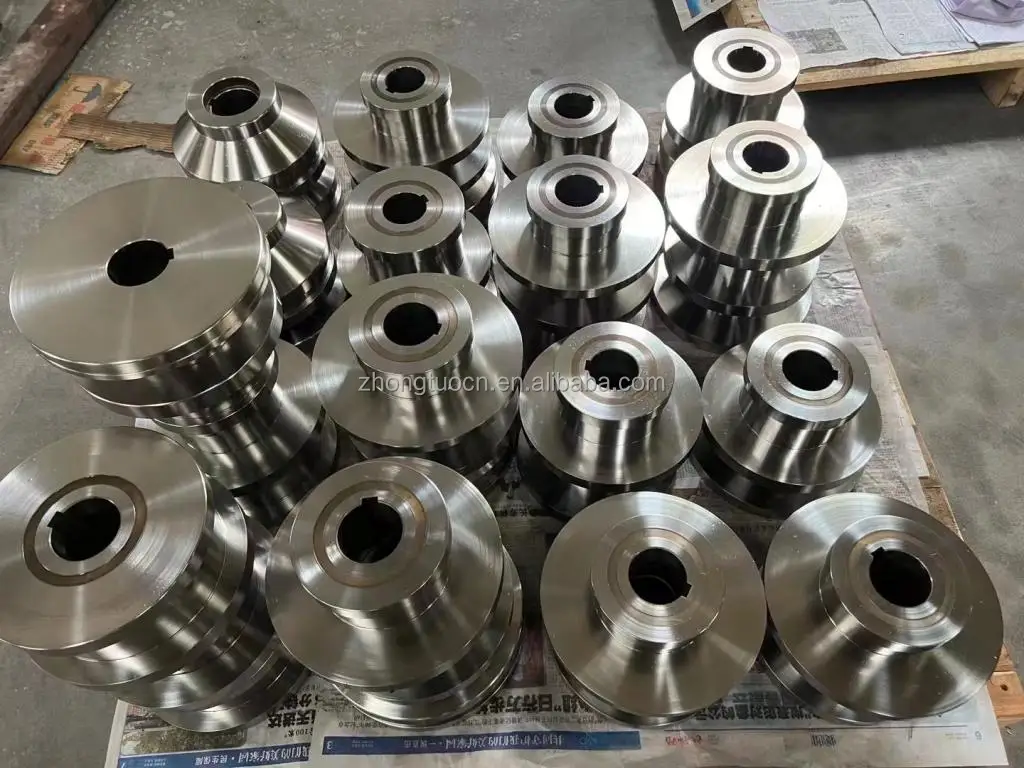

Material of rollers | 45# steel, hard chrome plated on the surface | |||||||
Machine body frame | Metal steel welded | |||||||
Drive | Gearbox transmission | |||||||
Dimension(L*W*H) | 5500*800*1200(customize) | |||||||
Weight | About 3T | |||||||

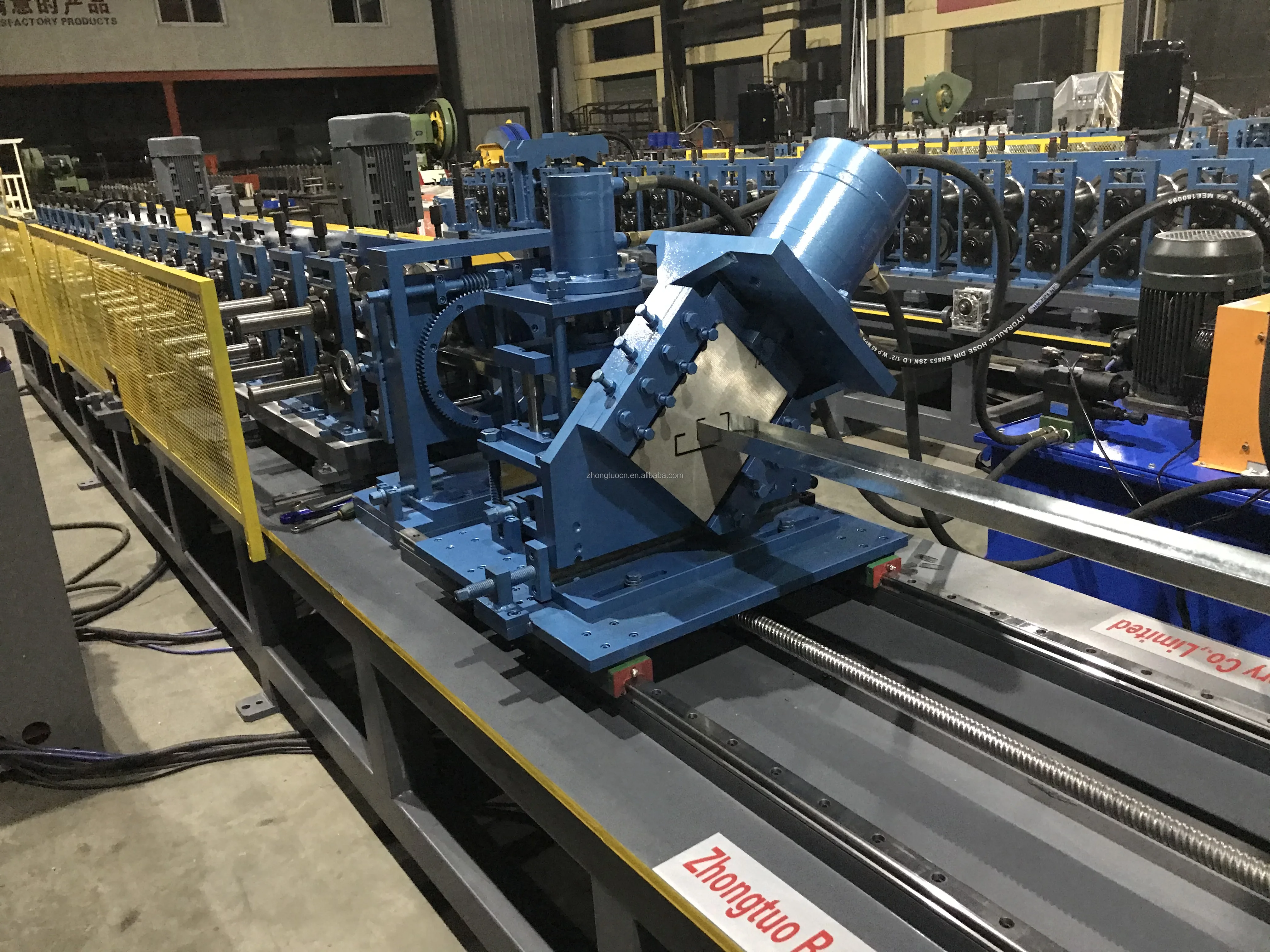

5.Cutting device | Cutting type | Hydraulic servo motor drived flying shear | ||||||
6.Power | Motor Power | 7.5KW*2 sets | ||||||
Hydraulic system power | 7.5KW | |||||||
7.Voltage | 380V 50Hz 3Phase | As your requirement | ||||||
8.Control system | Electric Box | Customized(famous brand) | ||||||
Language | English(Support multiple languages) | |||||||

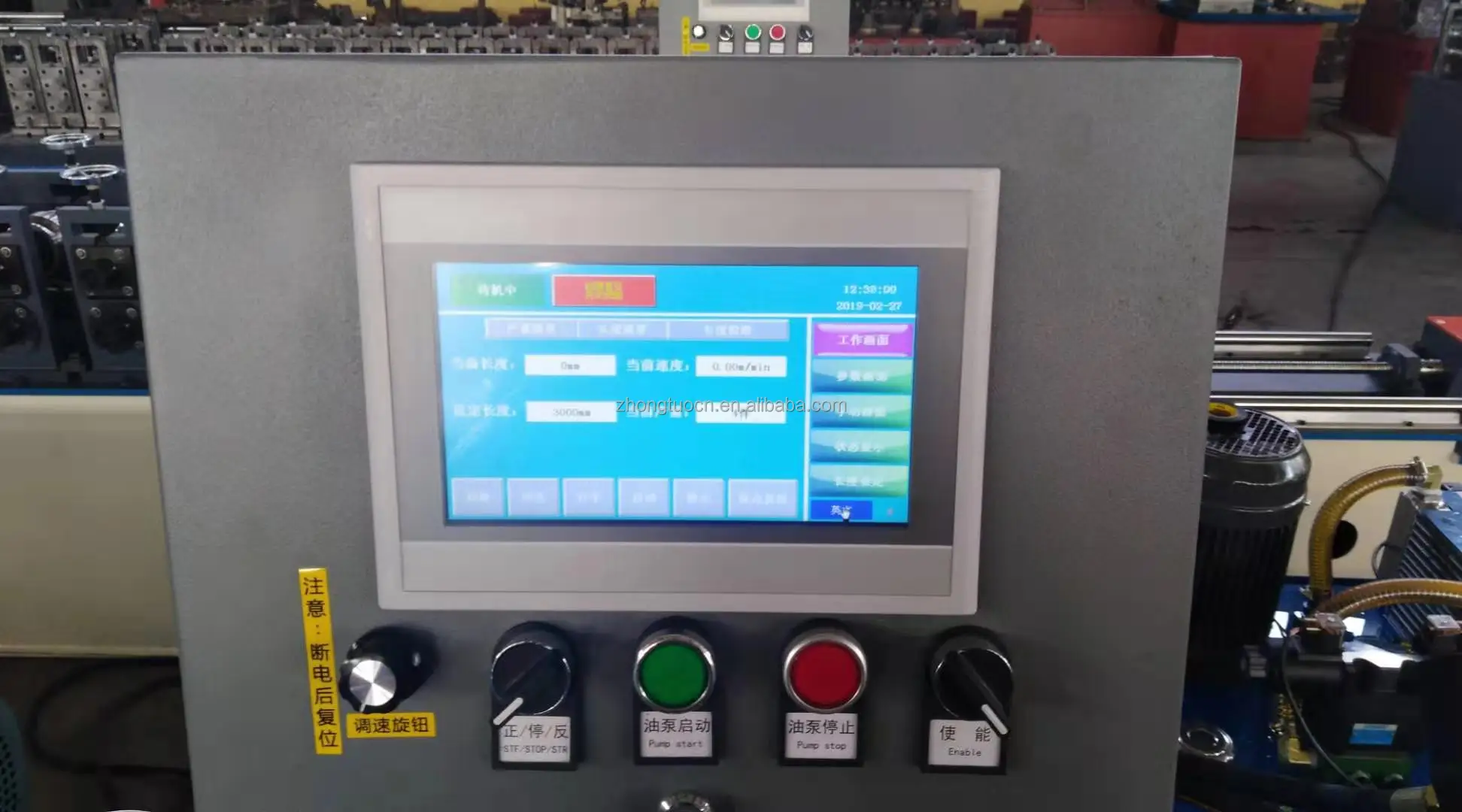

PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||||||
9.Forming Speed | max 70m/min include punching holes | Speed is adjustable according to customer's request | ||||||
Cooperated brand

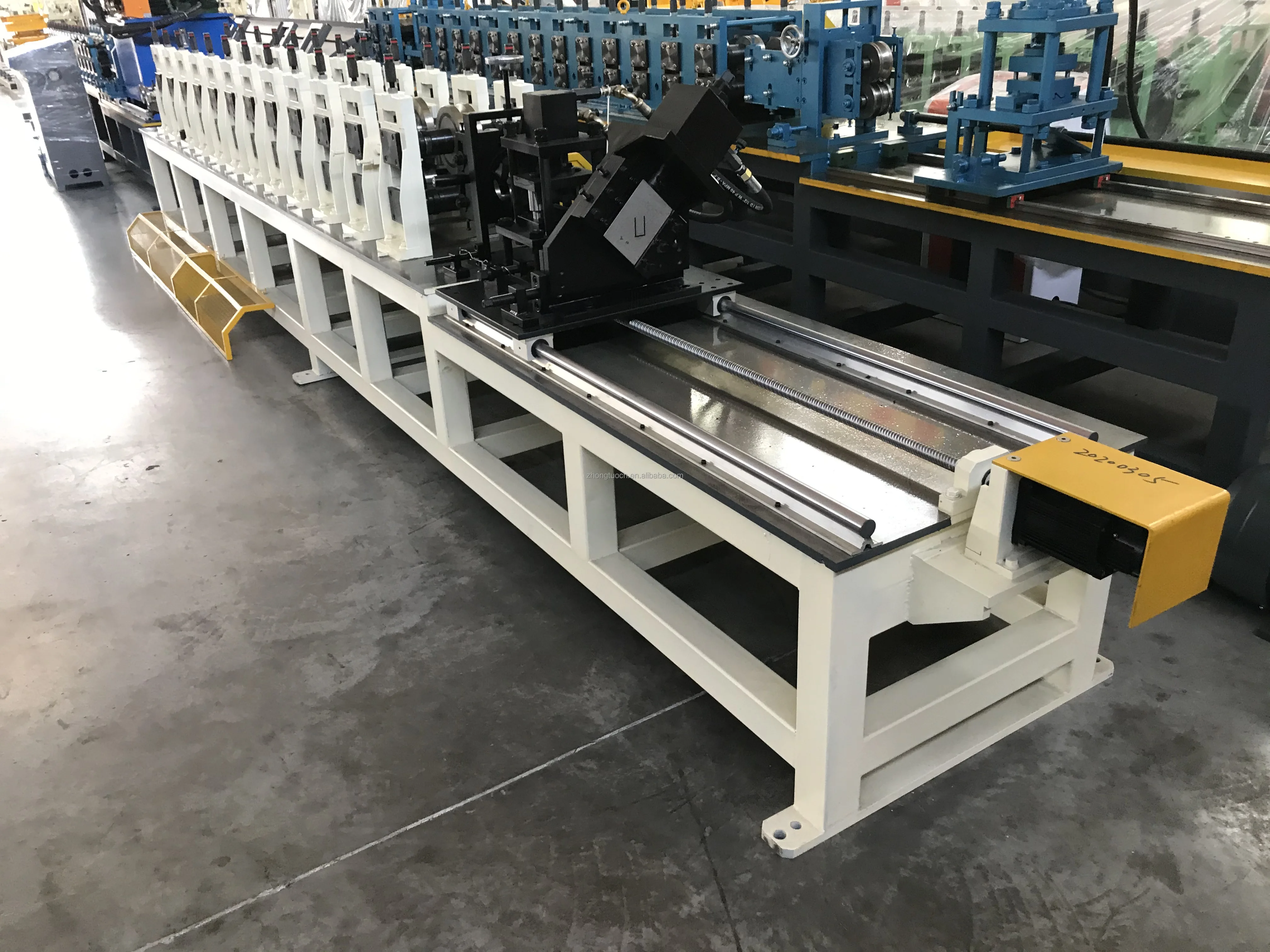

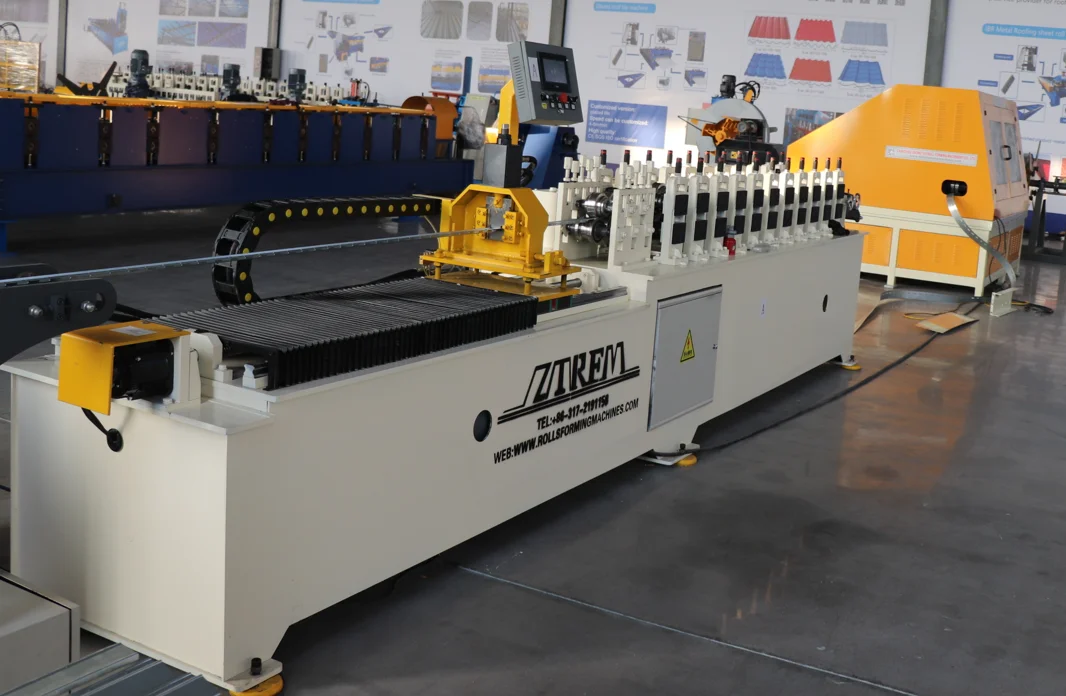

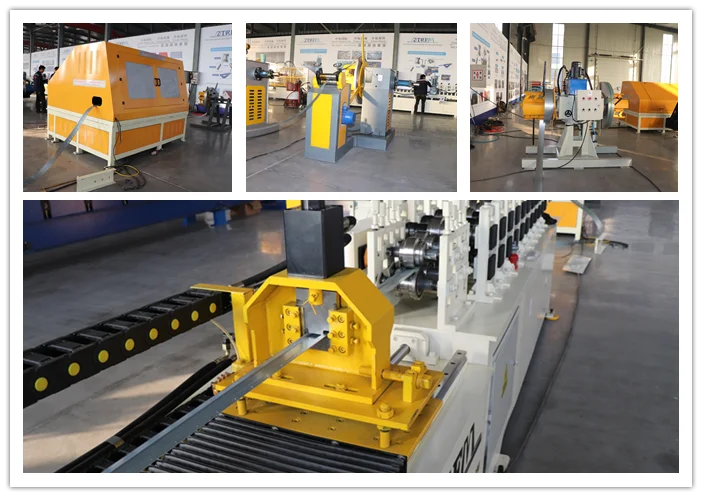

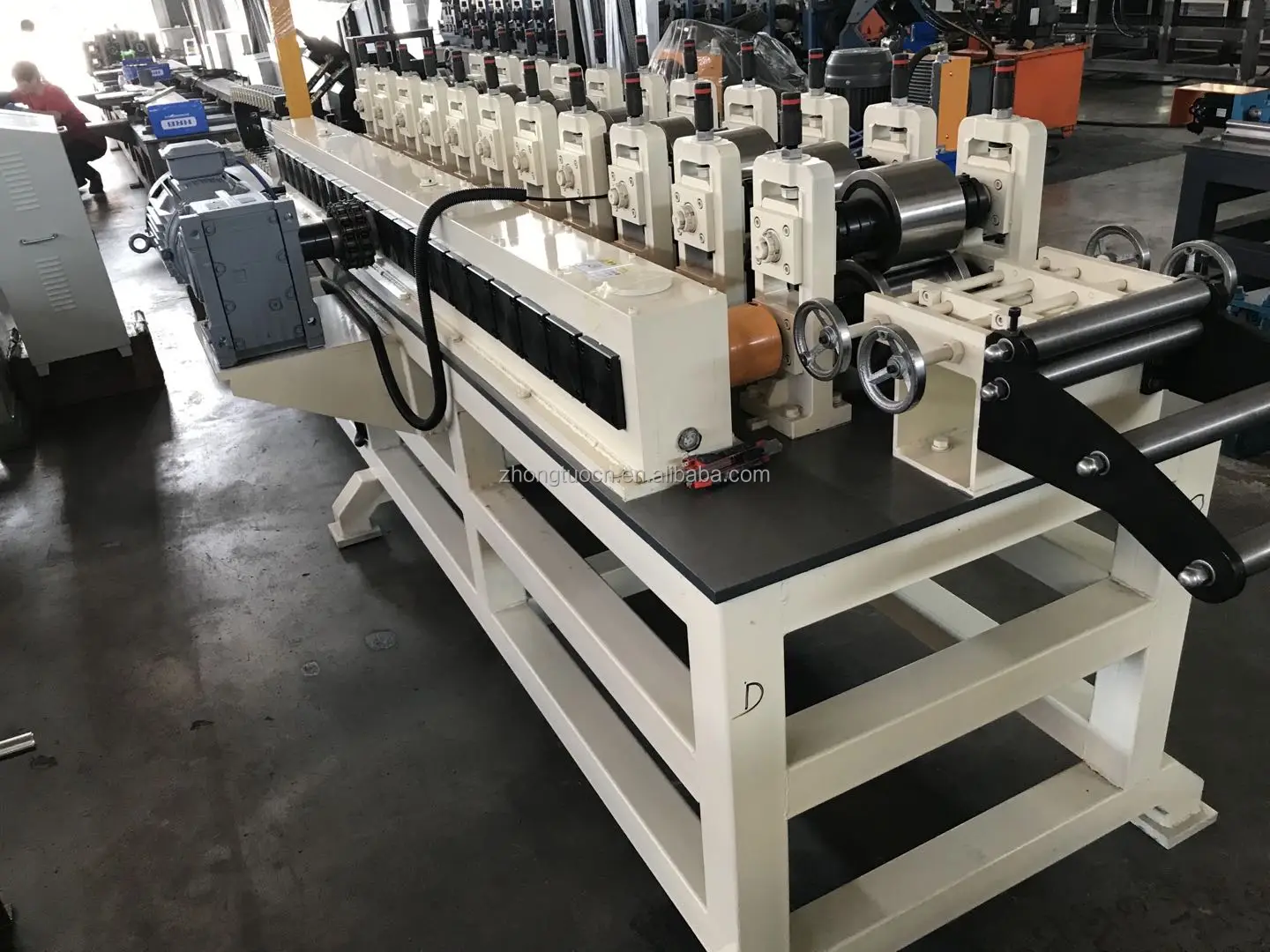

Products Display
Production process

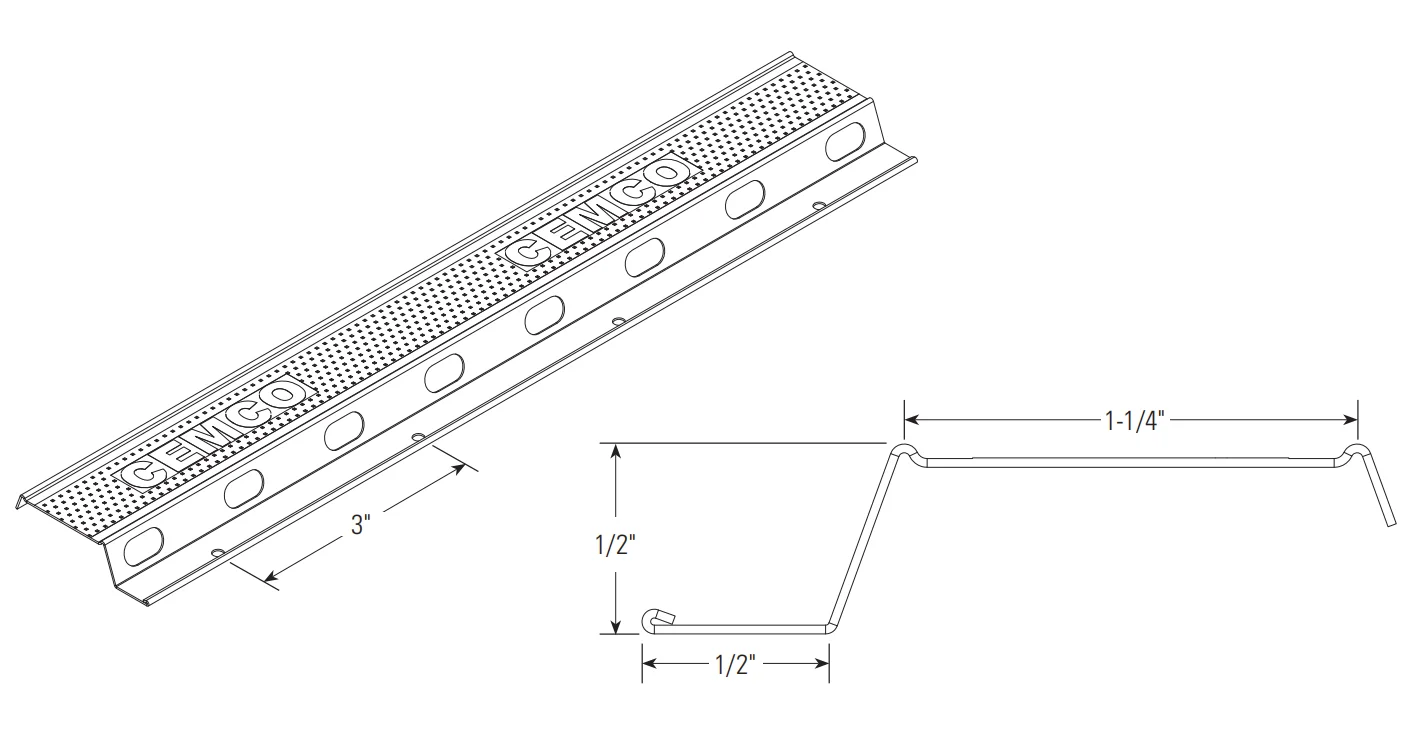

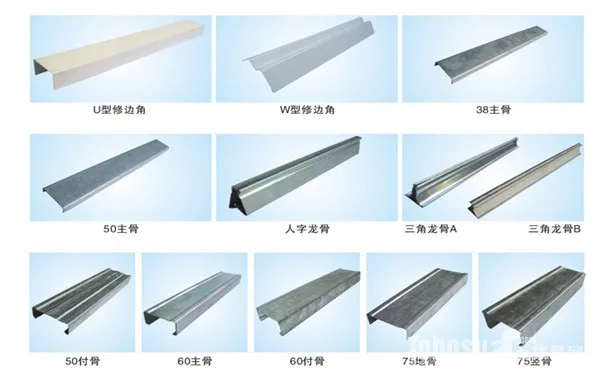

Machines are customized as your drawing,here hot sale drawing profiles for your reference.
