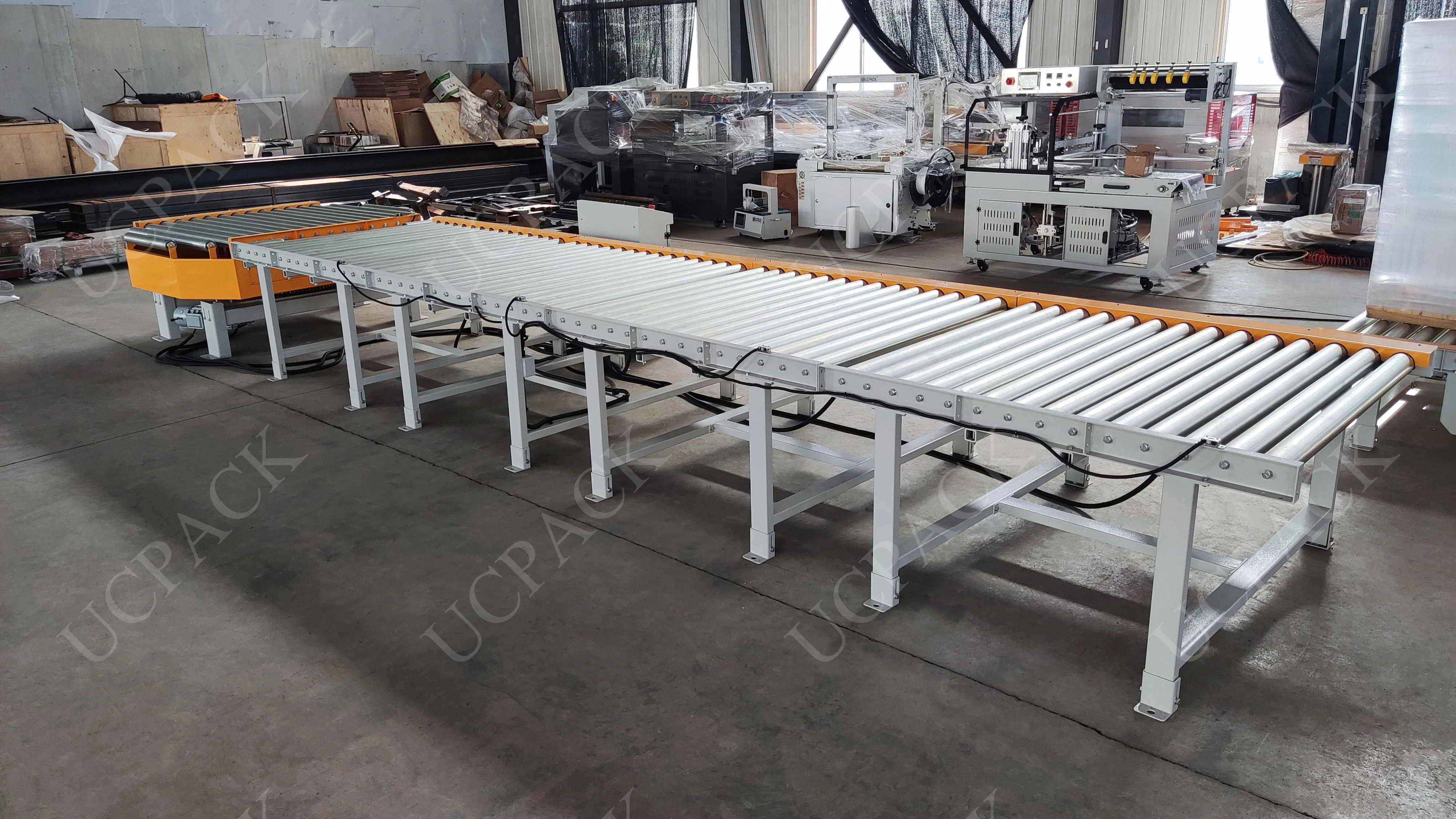

Pallet 90 Degree Powered Rotation Roller Conveyor Turntable Manufacturer
- Category: Conveyors >>>
- Supplier: Qingdao Youchuang Packaging Equipment Co. Ltd.
Share on (1600673589765):
Product Overview
Description
Product Description
Turntable Provides a Method of Changing Pallet Travel Direction by Rotating the Pallet Through any Angle from 90° Up to 180° when Pallet Handling Lines Intersect or Change Directions. Unlike Chain Transfer Conveyor, Turntable Maintain Product Orientation Through an Intersection. They can also be Used to Reverse the Orientation of a Product or Allow a Pass Through Depending on Application Requirements.

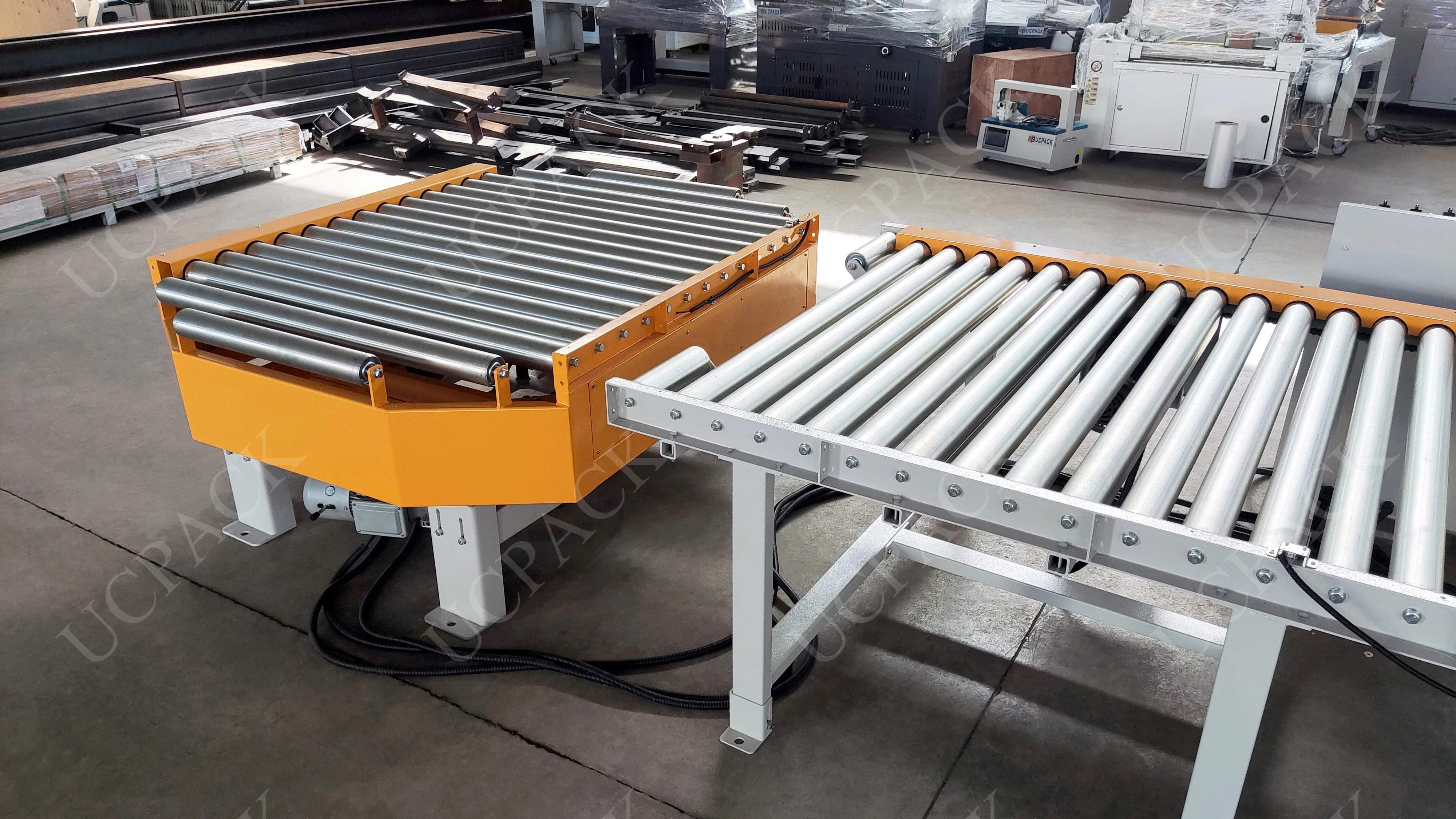

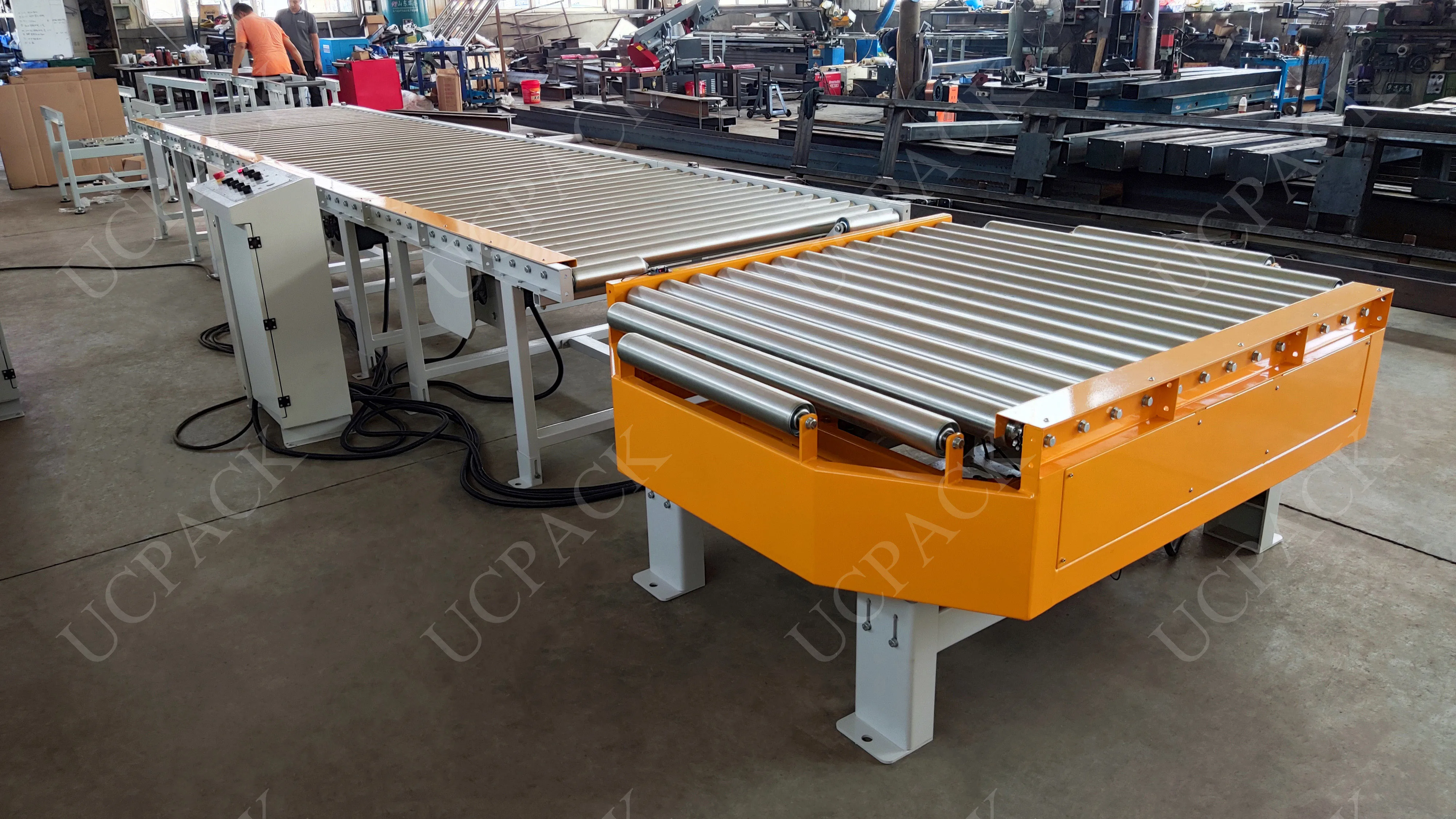

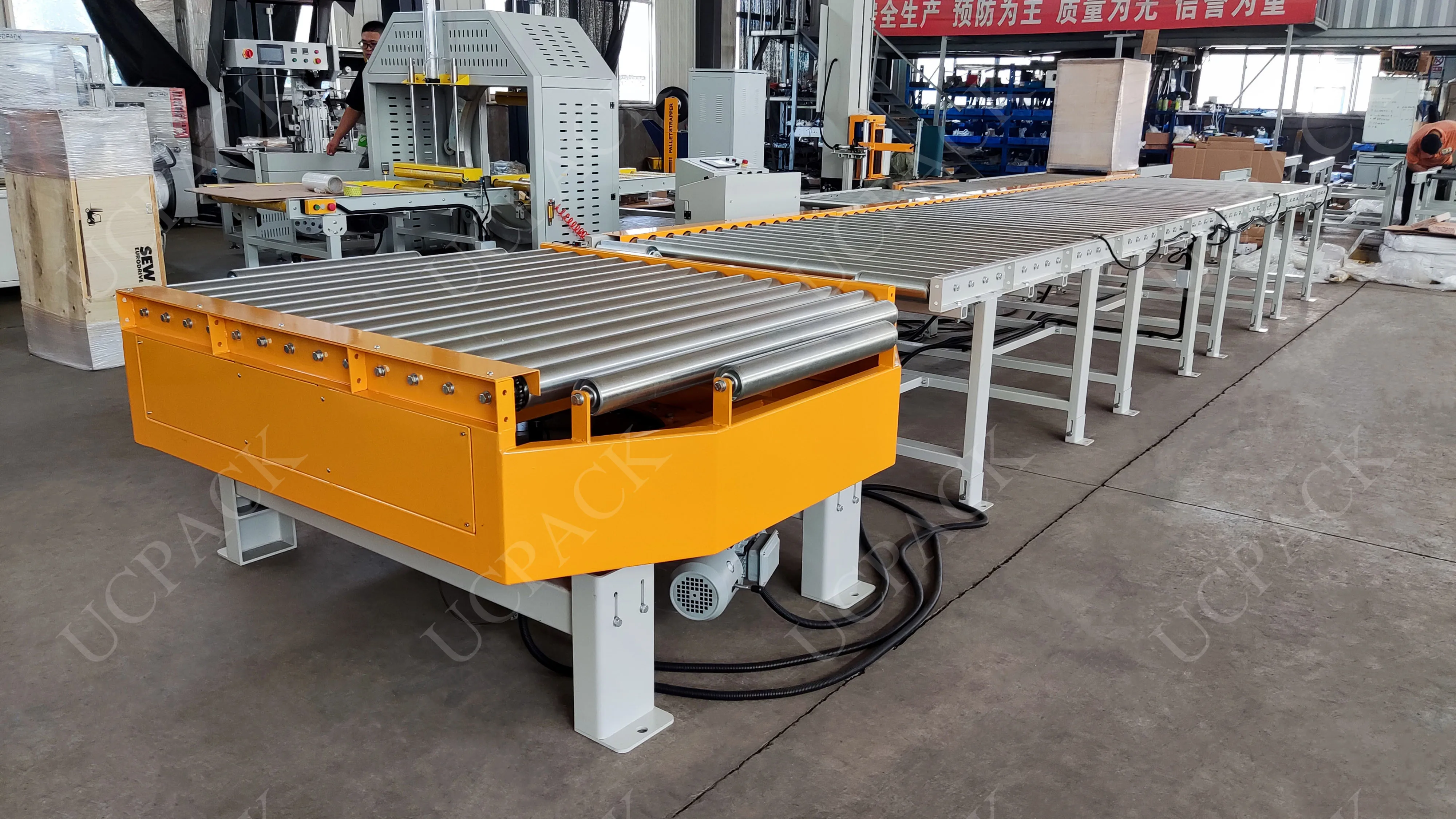

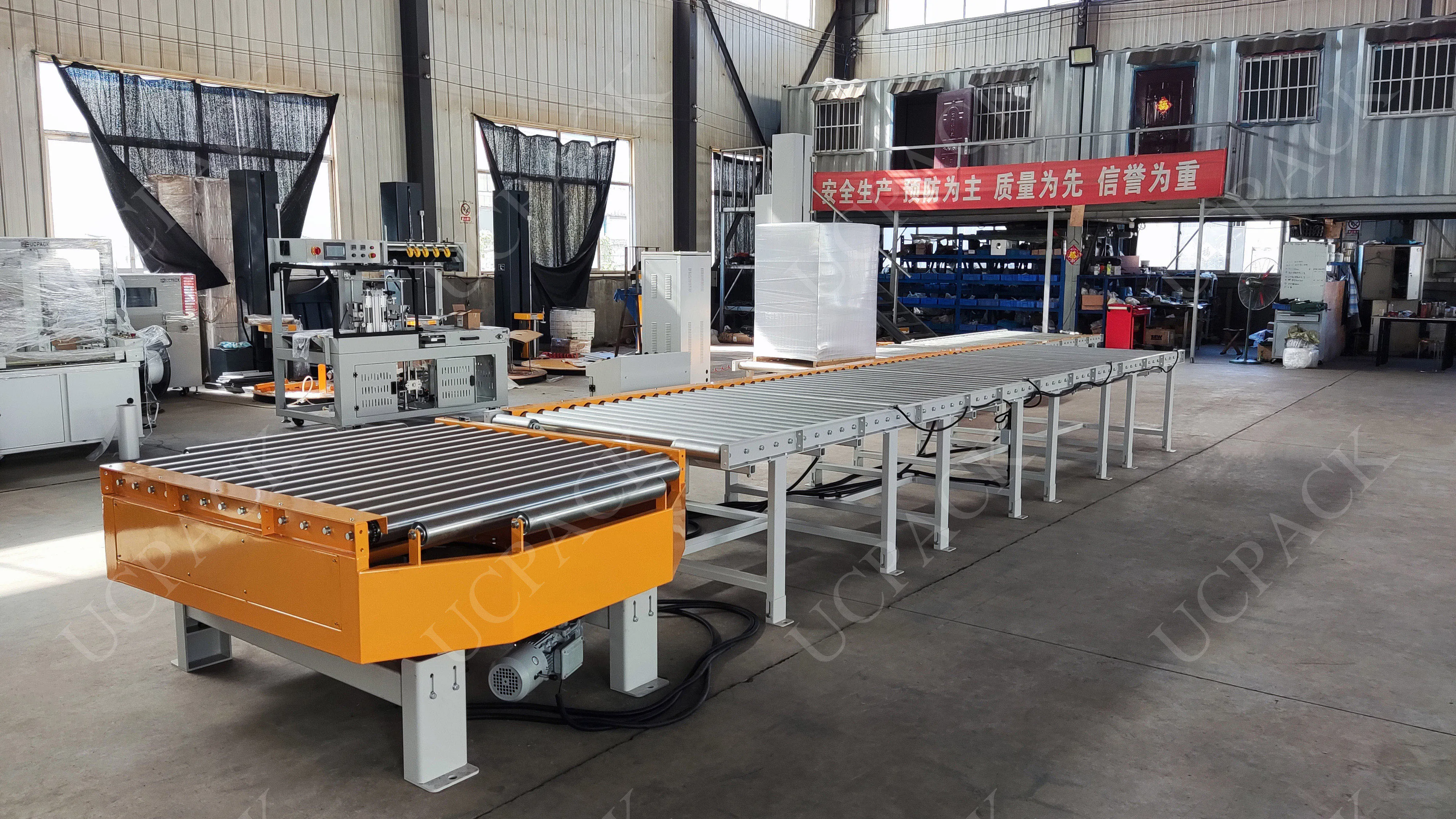

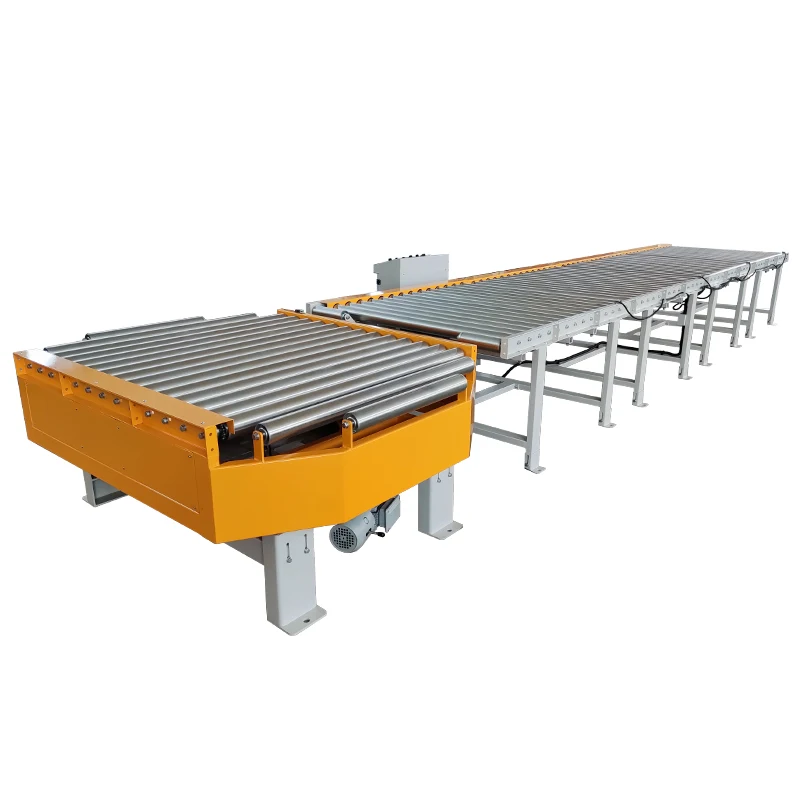

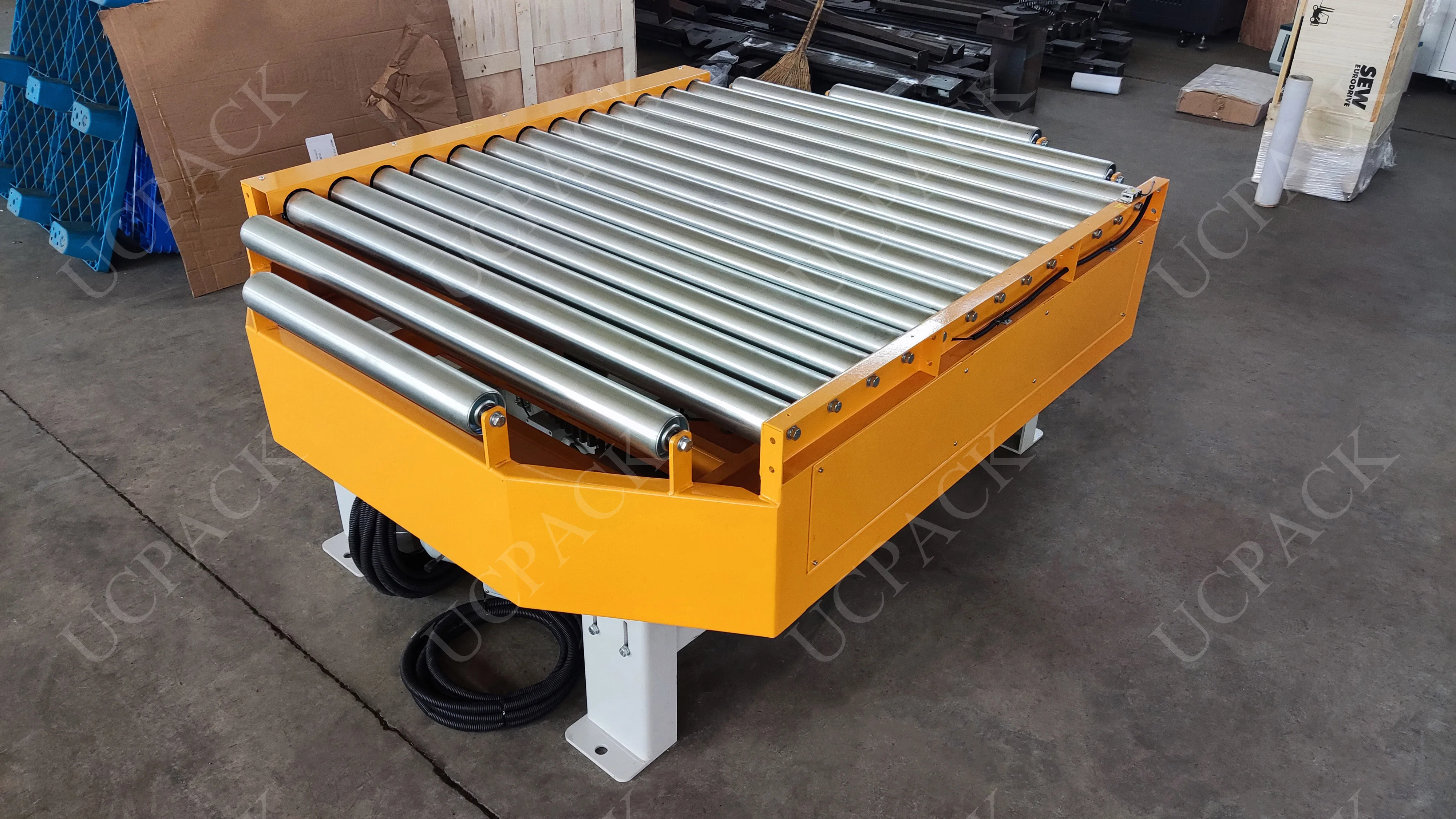

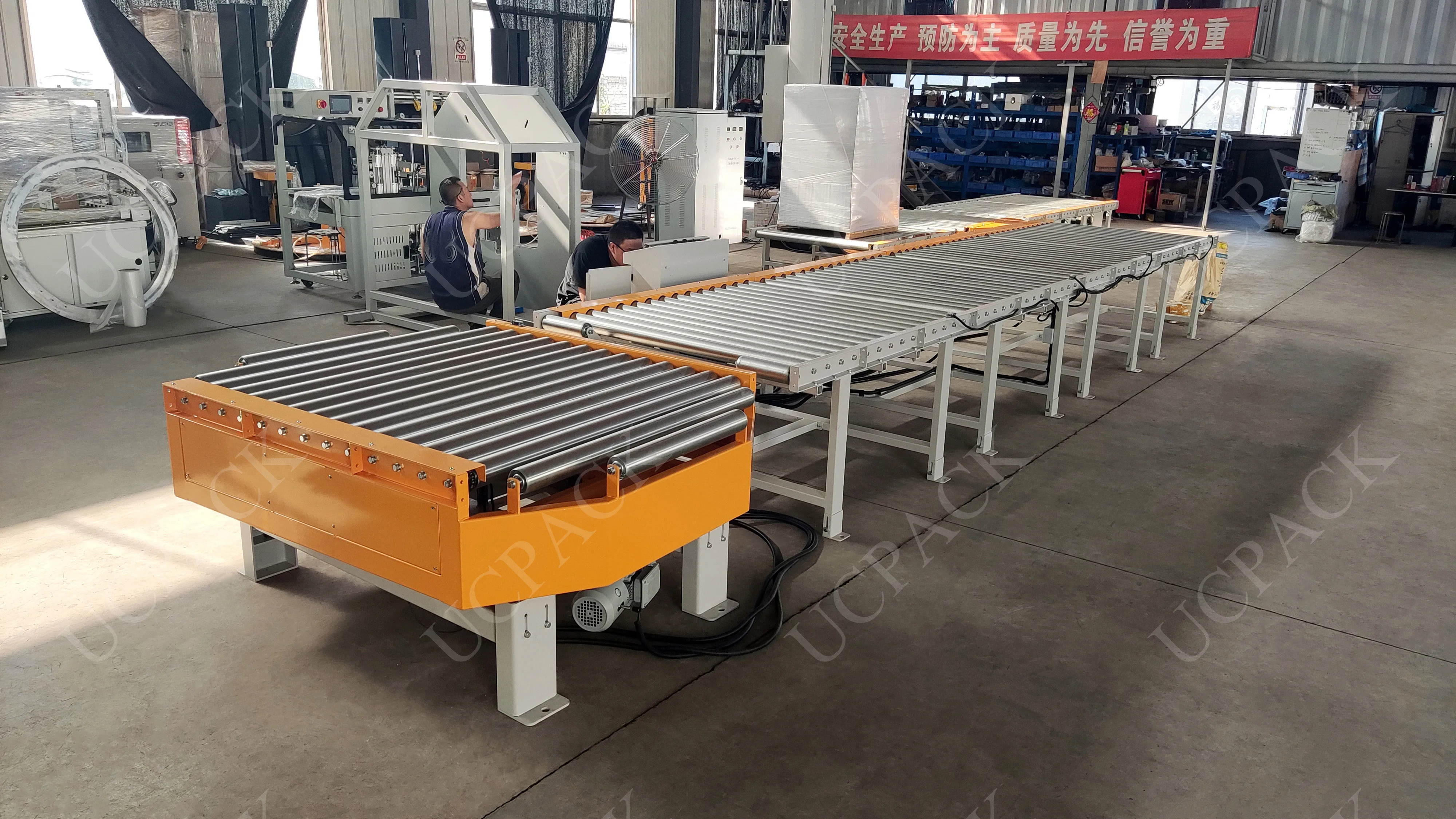

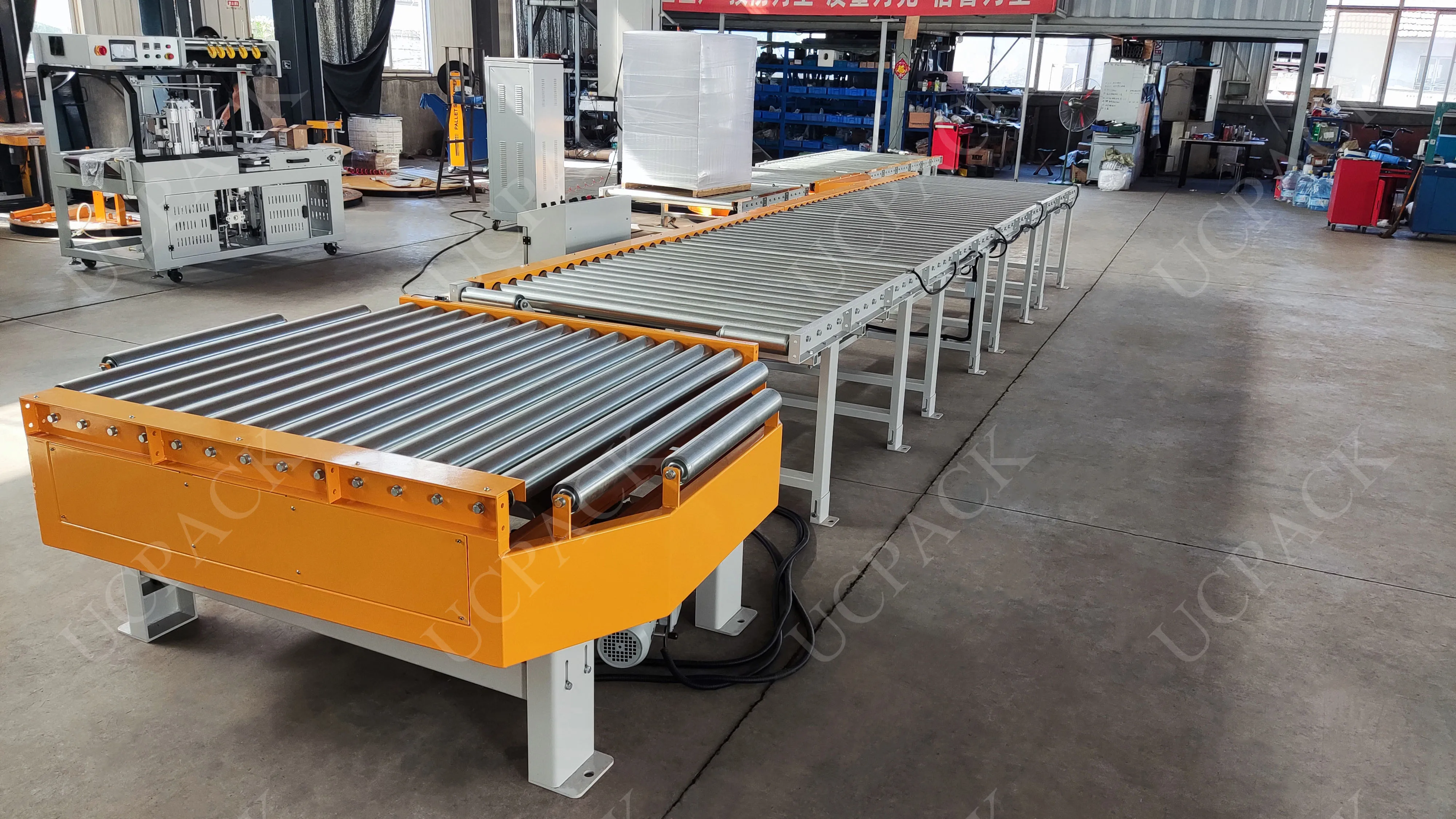

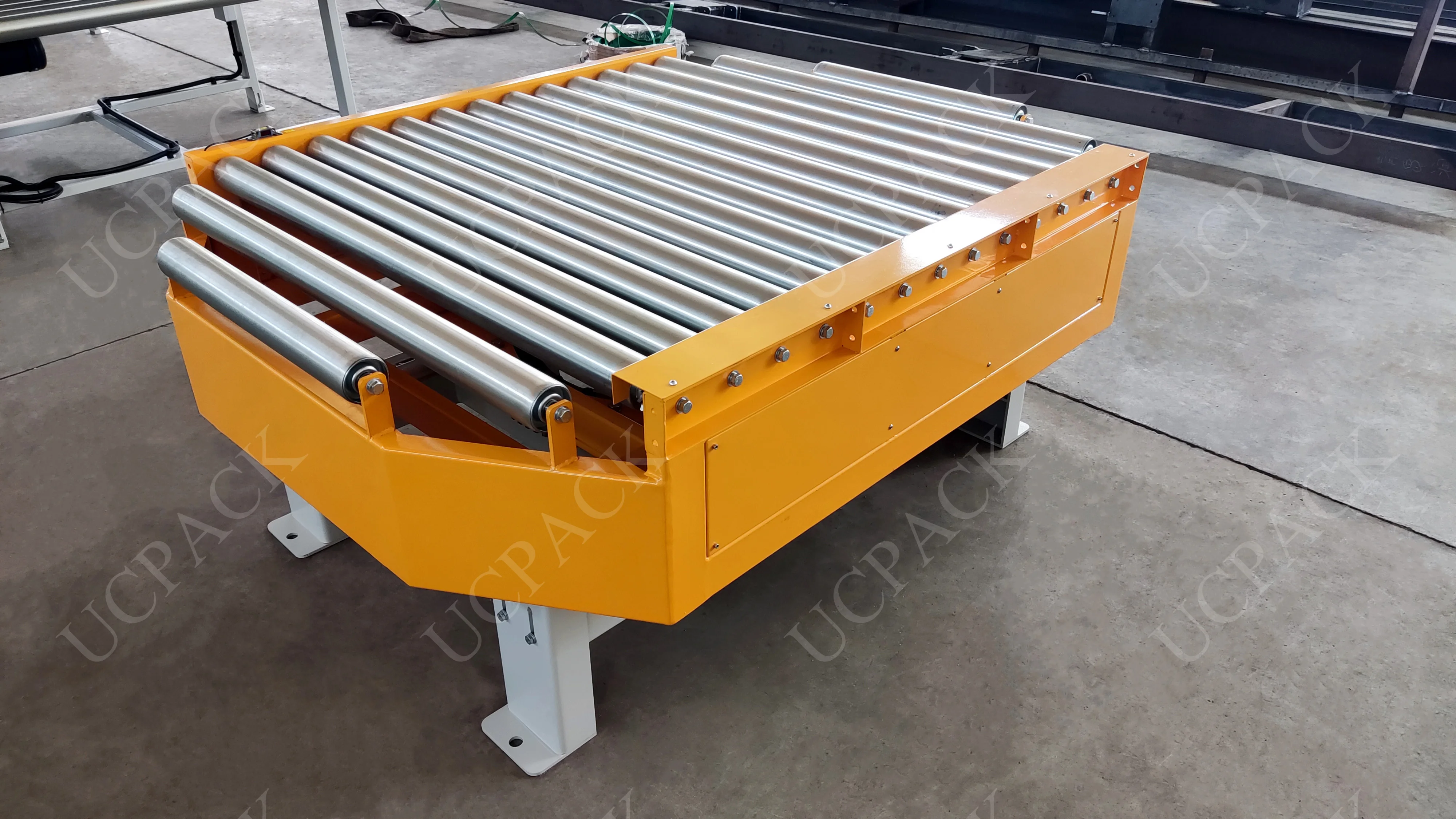

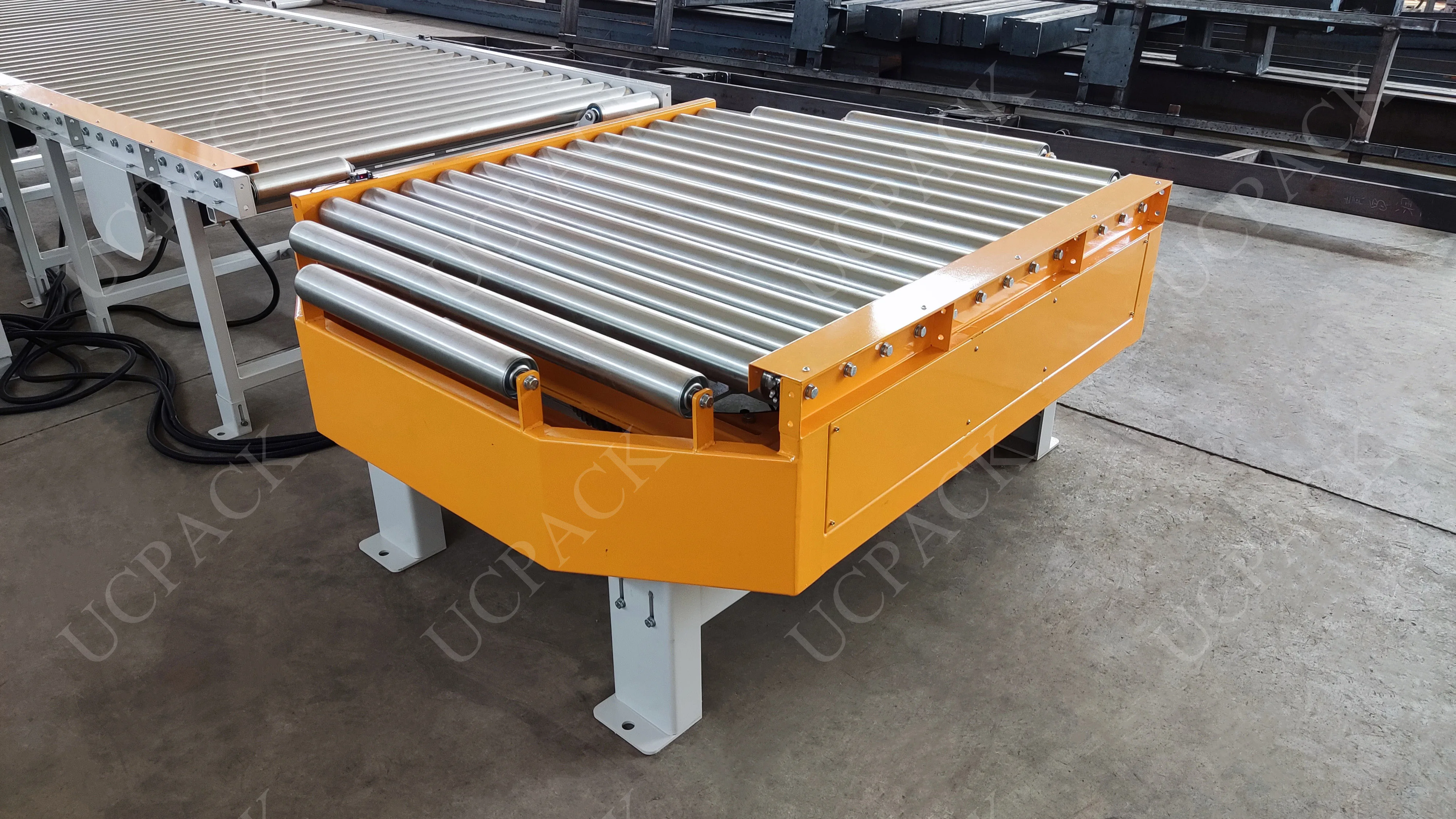

UTC90 Pallet 90 Degree Powered Rotation Roller Conveyor Turntable
UTC90 Turntable Conveyor is Used to Rotate Products Up to 90 Degrees. Rotation of the Turntable is Powered by a 0.55 kw Bottom Shaft Mounted Brake Gearmotor Complete with Inverter for Soft Start / Stop and has Proximity Switches Mounted on the Base to Sense Position and Control the Rotation. Convey Section of the Turntable is Powered by a 0.75 kw Side Mounted Gearmotor Complete with Chain Driven Live Roller Table Top that with Dia. 76 mm x 3.0 mm Wall Thickness Galvanized Steel Rollers on 135 mm Centers and Operates at 10 m/min.
Specifications
Model | UTC90 | ||
Length (L) | 2000 mm | ||
Effective Width (EW) | 1300 mm | ||
Overall Width (OAW) | 1449 mm | ||
Height (H) | 500 mm with 50 mm Heavy Duty Adjustable Feet | ||
Rotation | Std. 90 Degree (Opt. 180 Degree) | ||
Double Sprocket Rollers | Roller Diameter | Ø 76 mm | |
Tube Wall Thickness | 3.0 mm | ||
Tube Material | Galvanized Steel | ||
Axle Diameter | Ø 20 mm | ||
Axle Retention | Female Thread Retained (Using with M12 Bolts) | ||
Roller Centers | 135 mm | ||
Turntable Rotation Speed | 3 - 5 rpm, Soft Start/Stop and Variable by Inverter | ||
Roller Table Conveying Speed | 10 m/min, Constant | ||
Driven Type | Rotation Driven by Slewing Bearing Roller Table Driven by 10A Roller Chain | ||
Voltage | 220 VAC 1 ph / 380 VAC 3 ph, 50/60 Hz | ||
Motor | Rotation: 0.55 kw DELI Braked Gear Motor Roller Table: 0.75 kw GPG / GPG Motor | ||
Inverter | DELTA | ||
Frame Finish | Powder Painted (Std. RAL 7035, Other RAL Colors Optional) | ||
Load Capacity | 2000 kg | ||
Features
For Max. 1200 mm x 1200 mm Pallets with 2000 kg Load Capacity
Length 2000 mm;
Effective Width 1300 mm;
Height 500 mm;
Load Capacity Up to 2000 kg;

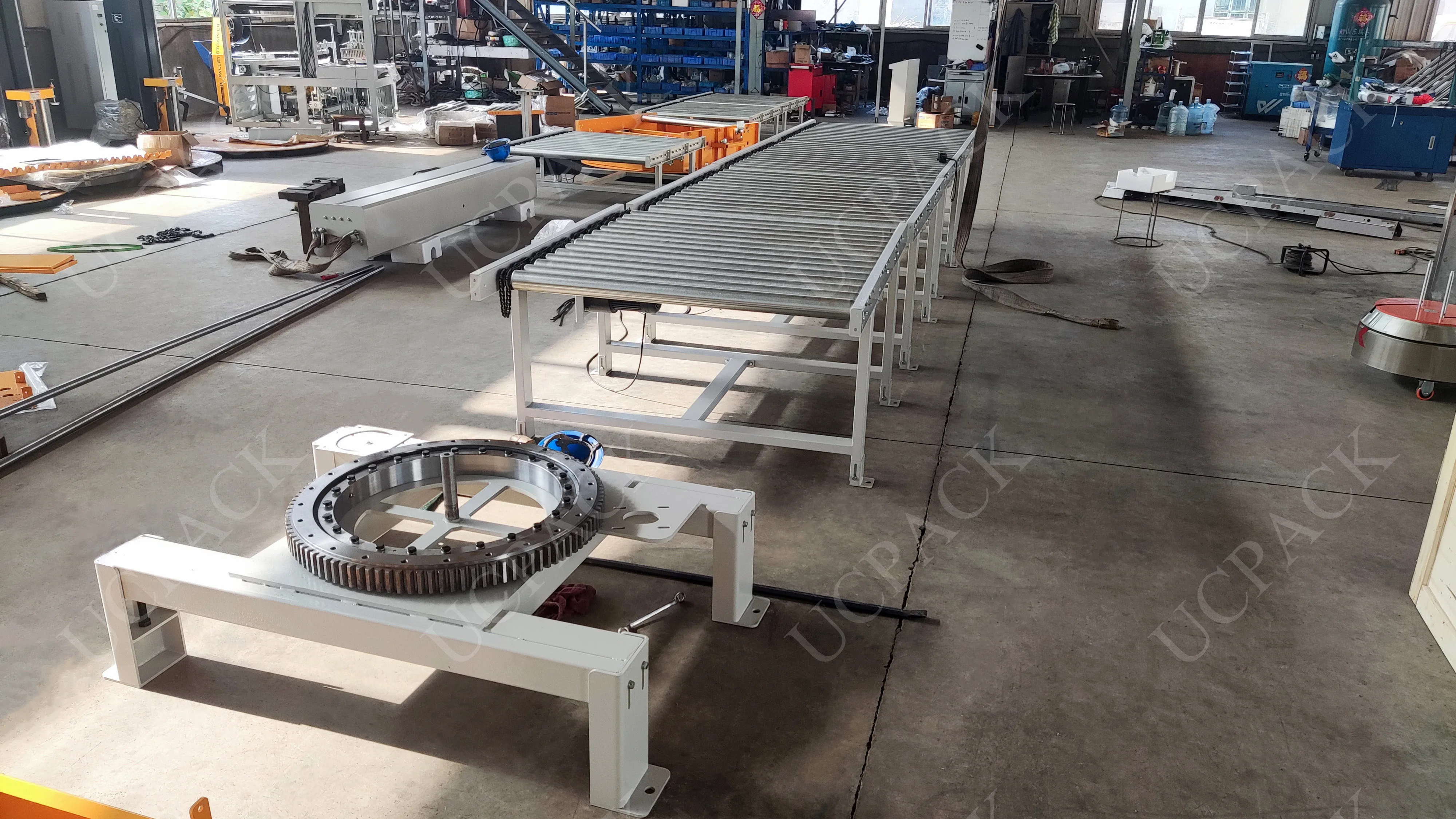

Driven by Slewing Bearing
Rotation of the Turntable is Driven by Heavy Duty Slewing Bearing;

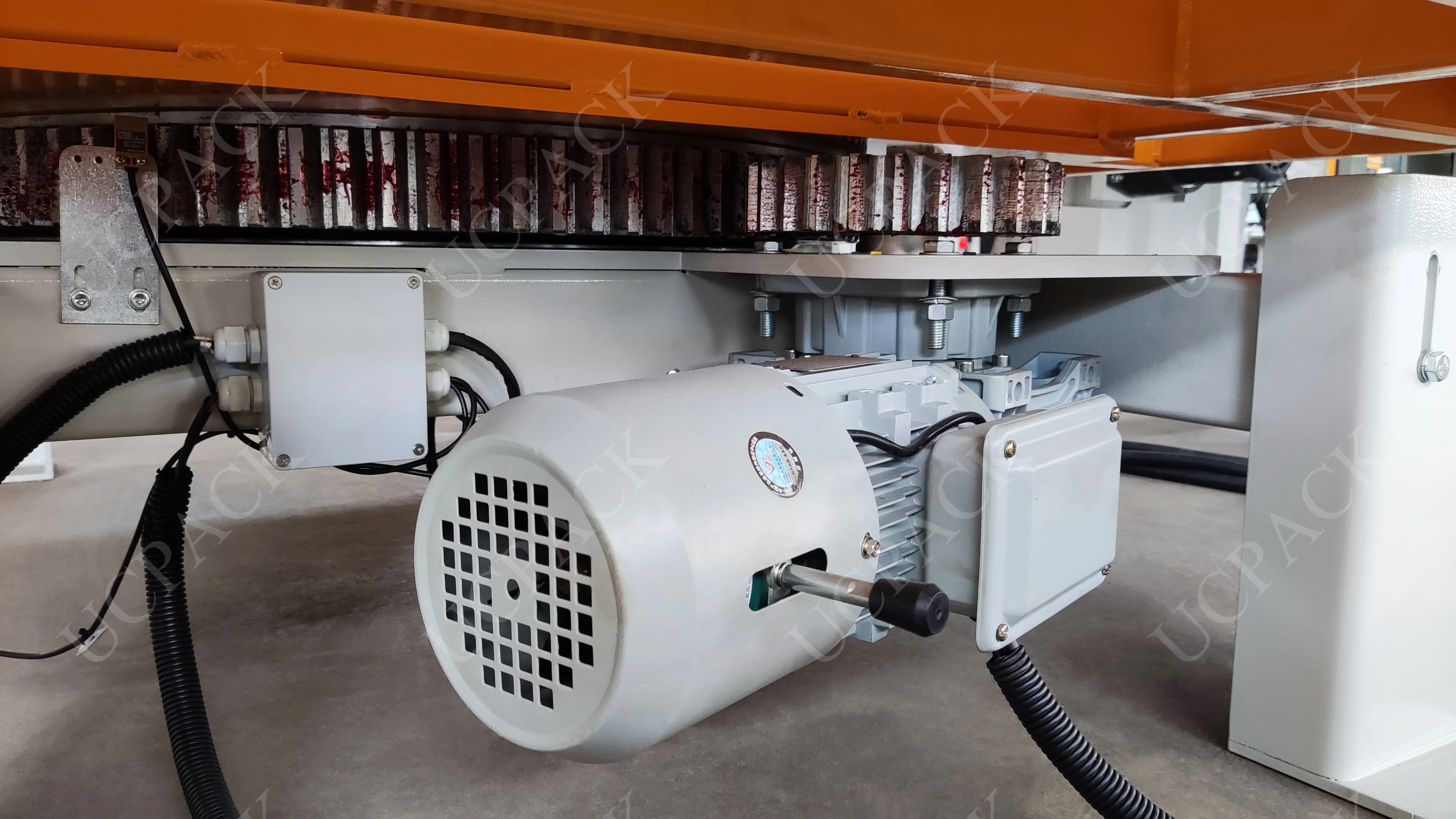

Powered 0.55 Kw Brake Gear Motor
Rotation of the Turntable is Powered by a 0.55 kw Bottom Shaft Mounted Brake Gearmotor Complete with Inverter for Soft Start / Stop and has Proximity Switches Mounted on the Base to Sense Position and Control the Rotation.
Std. 90 Degree, Opt. 180 Degree.

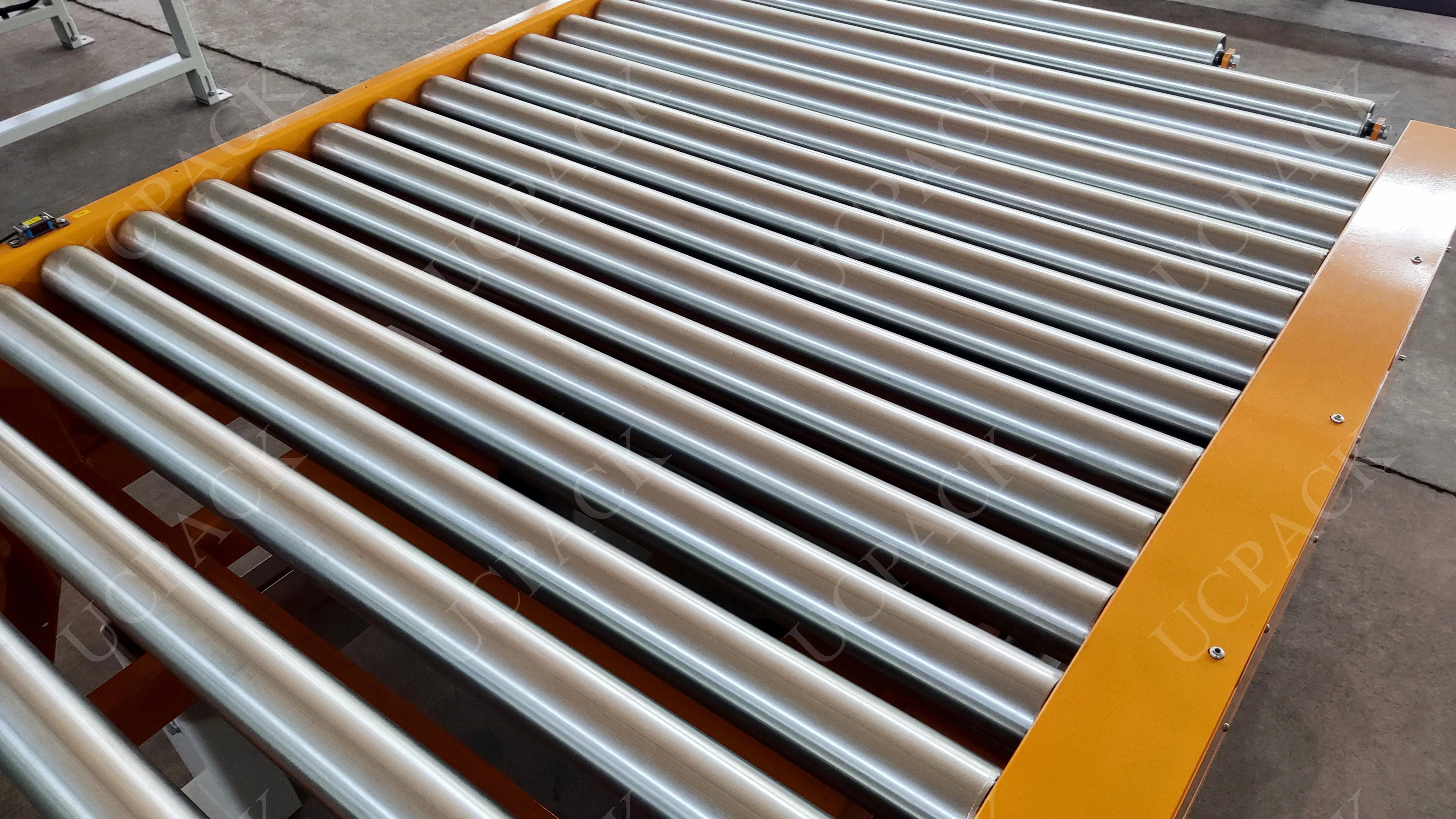

Std. Chain Driven Live Roller Conveyor Table
Roller Diameter: Ø 76 mm;
Roller Tube Wall Thickness: 3.0 mm;
Axles: 20 mm;
Roller Tunbe Material: Galvanized Steel;
Roller Centers: 135 mm;
Conveyor Speed: 10 m/min, Constant;
Opt. Chain / Slat Conveyor Table;

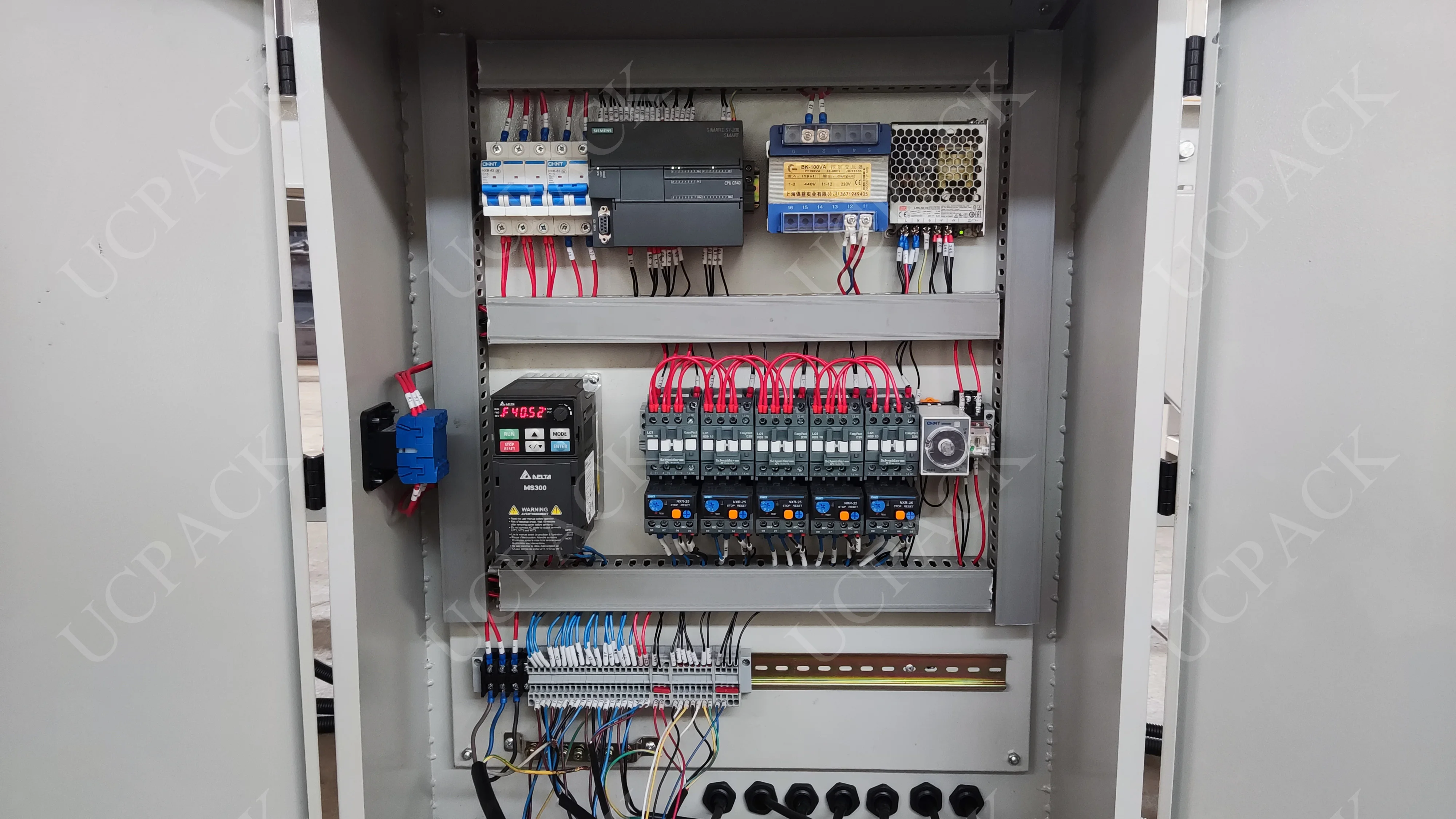

Stand-Alone MCC Cabinet
Siemens PLC;
DELTA Inverter;
0.55 Kw DELI Brake Gear Motor;
0.75 Kw GPG/CPG Motor;
SICK Sensors;
Options
* Length and Effective Width Based on Pallet Size;
* Height Based on Conveyor Line;
* Rotation Degree;
* Load Capacity;
* Power Supply Based on Country of Destination;
* Motor, Electric Component and Bearing Brand;
* Rotation Degree;
* Load Capacity;
* Power Supply Based on Country of Destination;
* Motor, Electric Component and Bearing Brand;

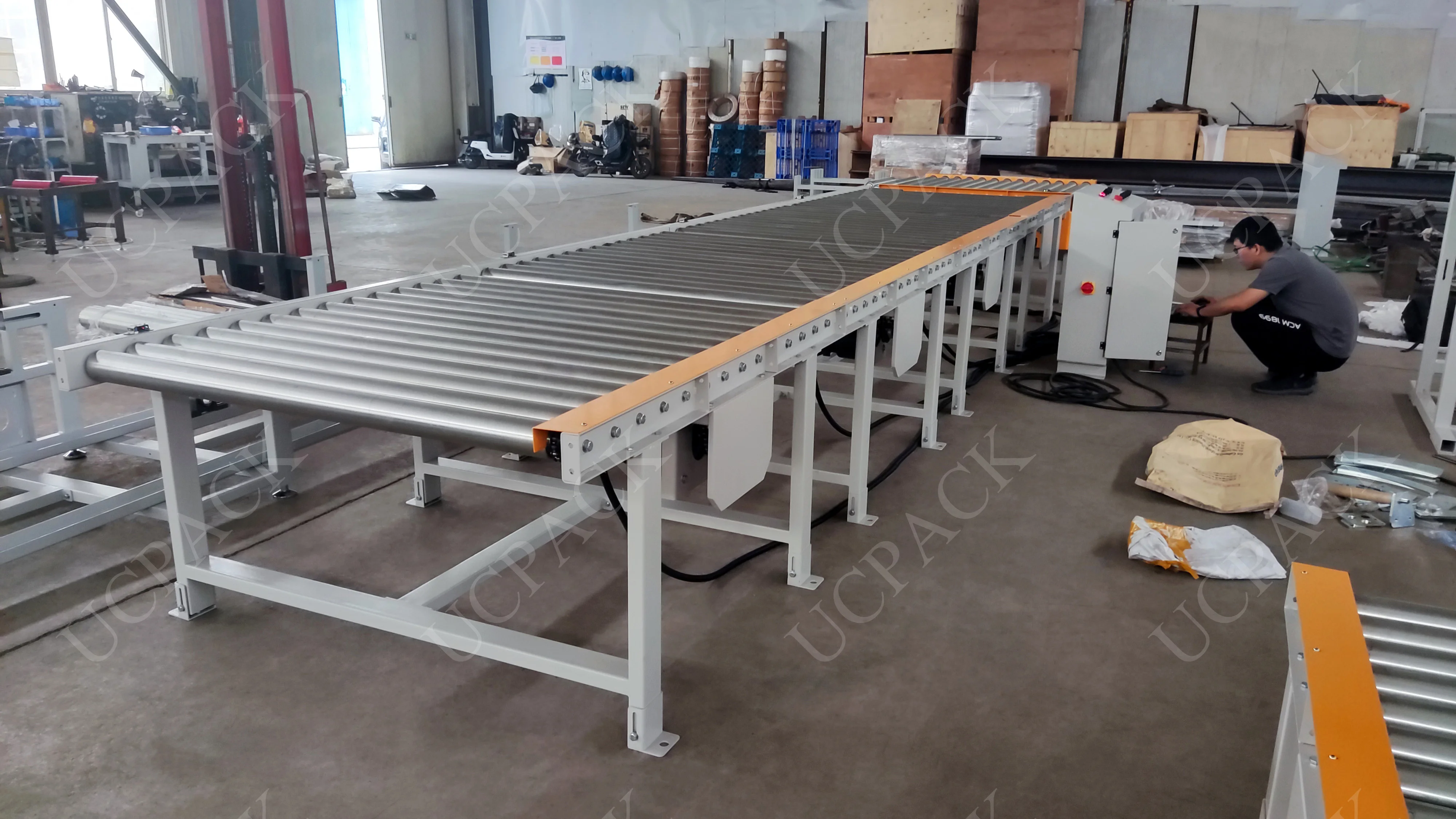

Gallery

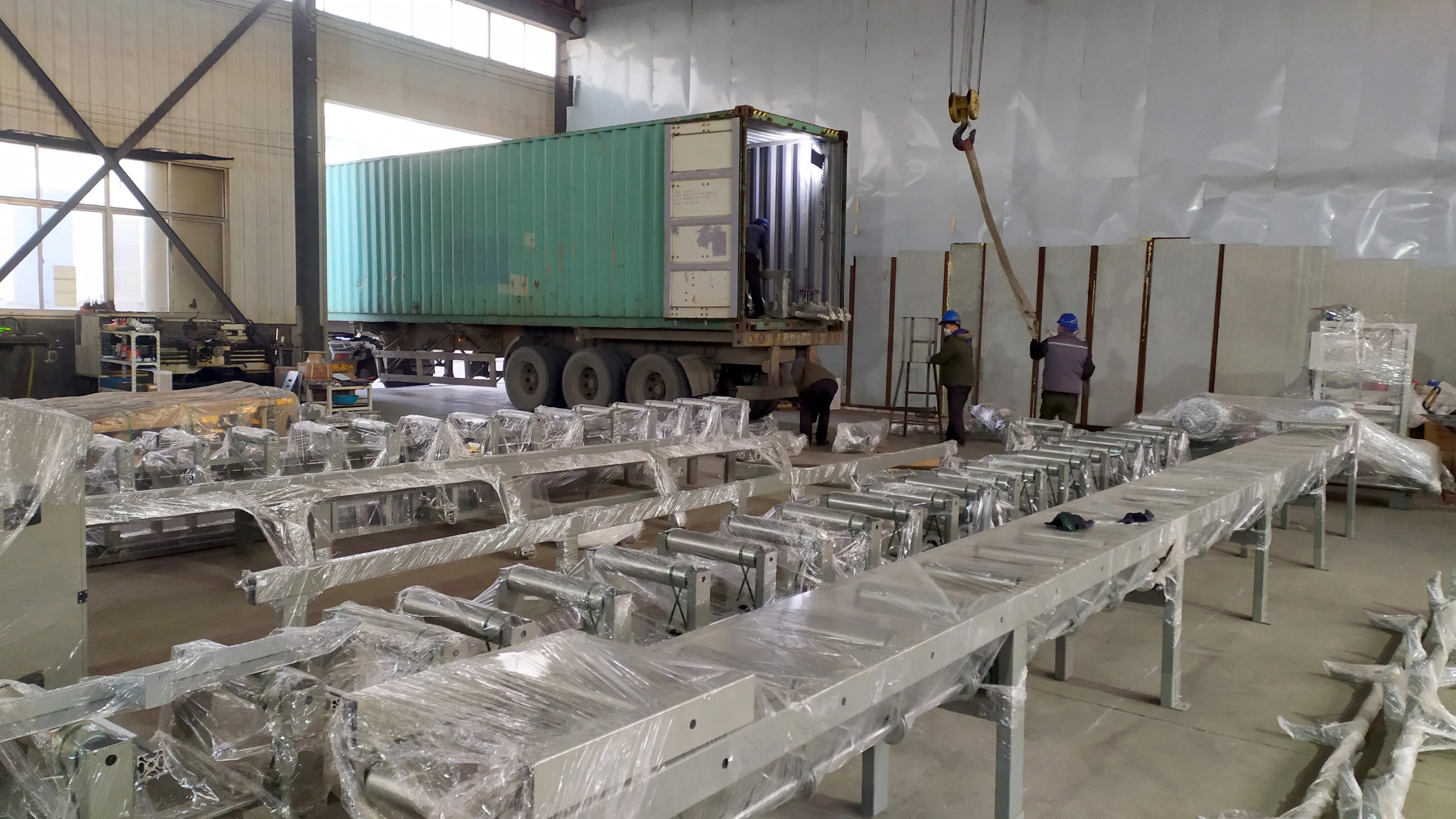

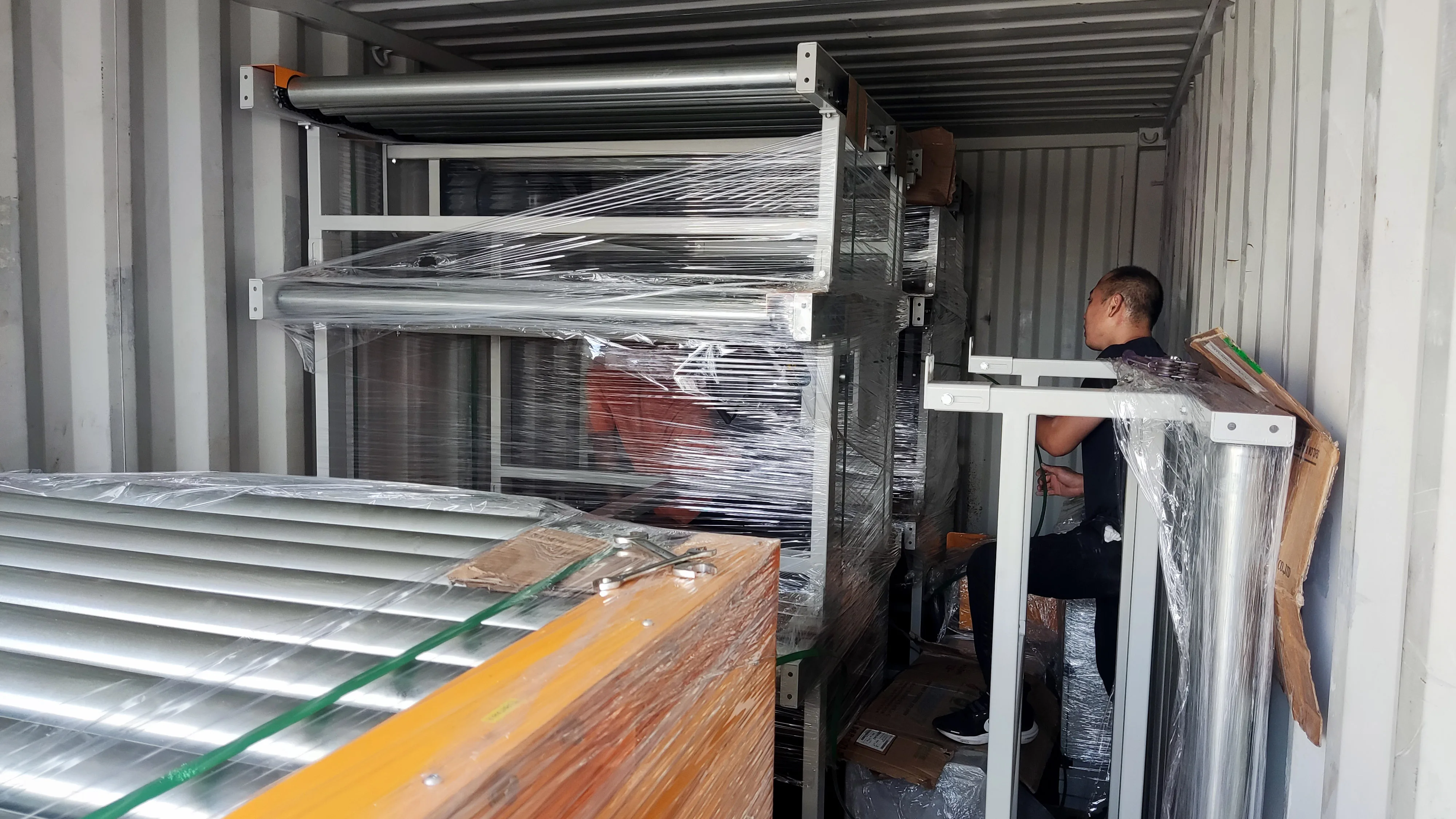

Packaging & Shipping
Plywood Seaworthy Wooden Pallet / Steel Pallet for LCL;
Stretch Wrapping and PET Strap Reinforce for FLC;
Certifications
1. Source Factory with More Than 10 Years of Manufacturing and Solution Experience;
2. National High-Tech Enterprise with Multiple Patents, Strong Technical Strength;
3. All Our Machines with CE Norms;
4. Excellent Pre and After-sales Team for 7 x 24 Hours OnlineService;
5. Gold Supplier of Alibaba, Factory SGS Field Certification, Capital Security is Guaranteed;
2. National High-Tech Enterprise with Multiple Patents, Strong Technical Strength;
3. All Our Machines with CE Norms;
4. Excellent Pre and After-sales Team for 7 x 24 Hours OnlineService;
5. Gold Supplier of Alibaba, Factory SGS Field Certification, Capital Security is Guaranteed;
About Us
Established in 2015 and located in seaside city of Qingdao, Qingdao Youchuang Packaging Equipment Co., Ltd. was specialized in the design, development and manufacturing of packaging machinery as well as automation packaging solutions.
With the continuous growth, we can now offer more than 100 kinds of machines in 8 series including Pallet Wrapper, Shrink Wrapper, Strapper, Case Erector, Case Sealer, Vacuum Packing Machine, Palletizer and Conveyor System. Especially in the area of Shrink Wrapping, Pallet Handling and Timber Handling, we are experienced and knowledgeable to provide customization overall solutions to meet the various needs of customers.
All our machines have passed CE certification and benefit from our experienced engineer team, we have obtained
a number of patented technologies in Shrink Wrapper and Conveyor System. Reply on our excellent product quality and service, we have won lots of customer in the market of North America, Europe, Australia etc.
a number of patented technologies in Shrink Wrapper and Conveyor System. Reply on our excellent product quality and service, we have won lots of customer in the market of North America, Europe, Australia etc.
From the beginning of our company, we believe People Make the Difference, and without our highly trained sale team and experienced engineer team we would not be able to provide you with the excellent service which we are known for in the past years.
Commit to the highest standards in both our product and our staff, we are eager to please, so please let us know how we can help.
