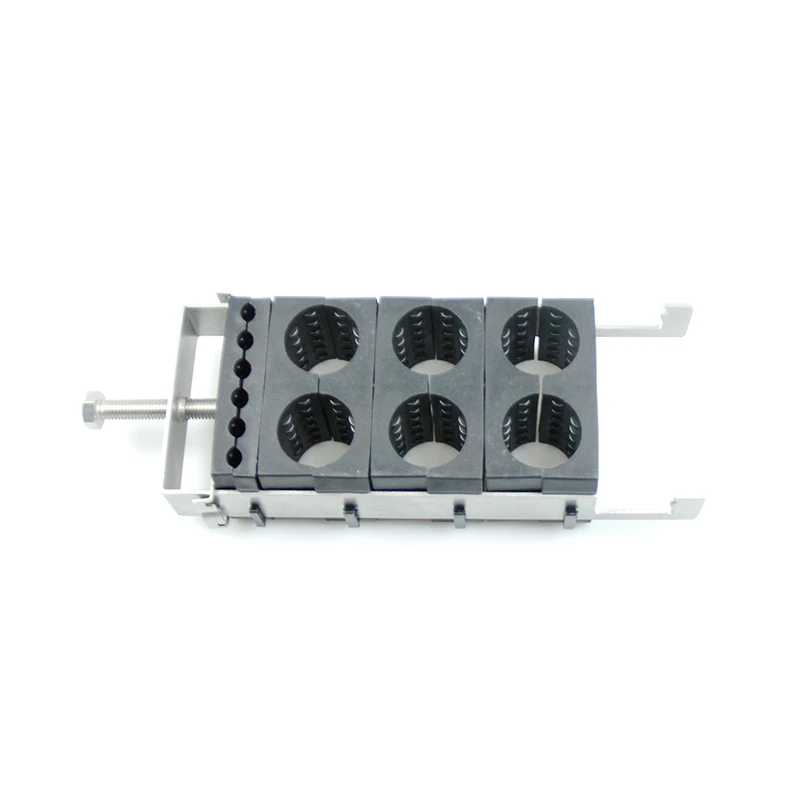

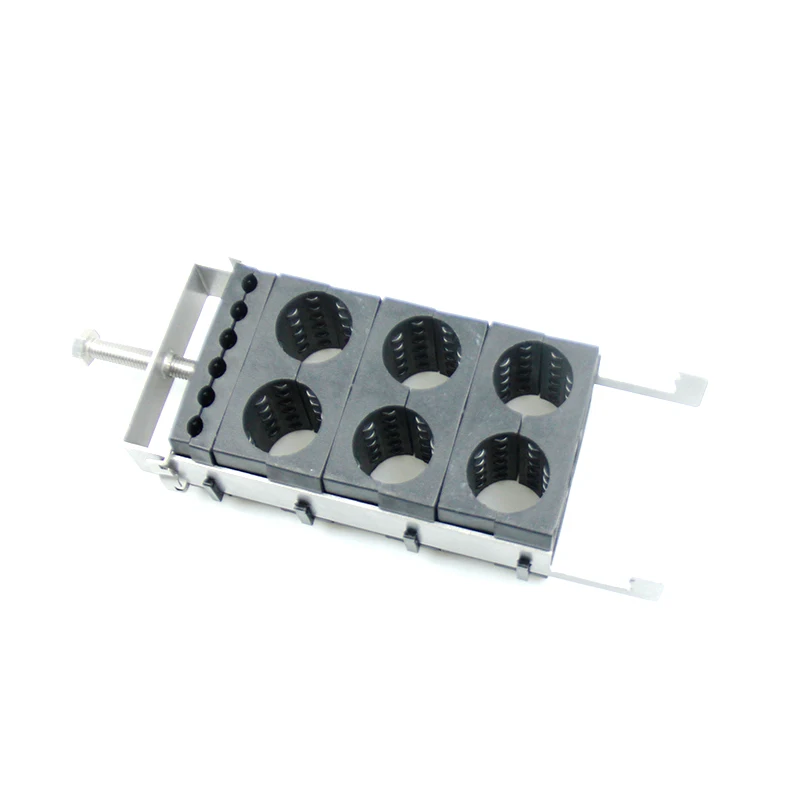

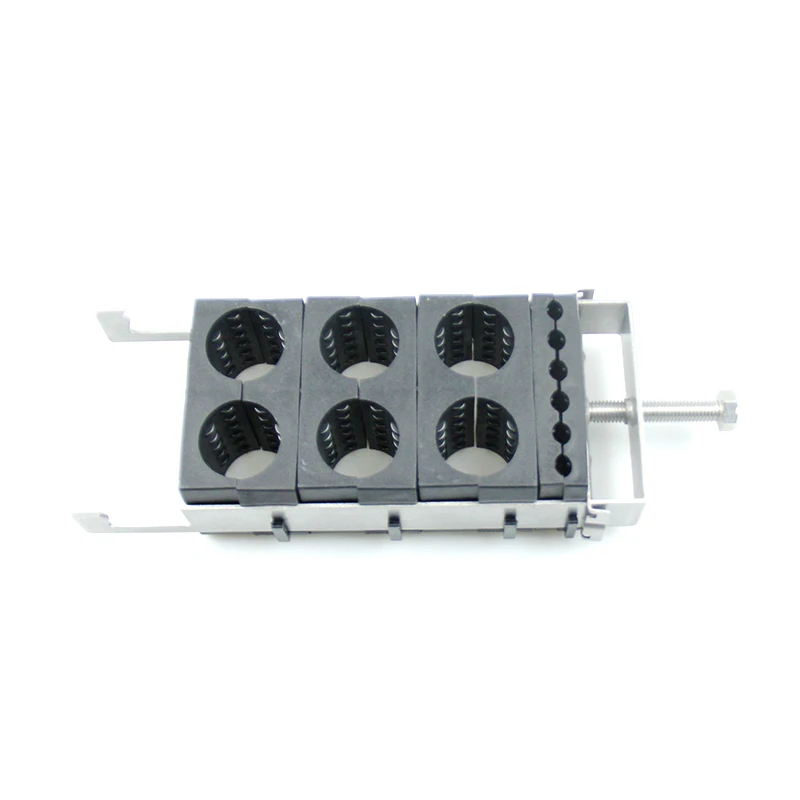

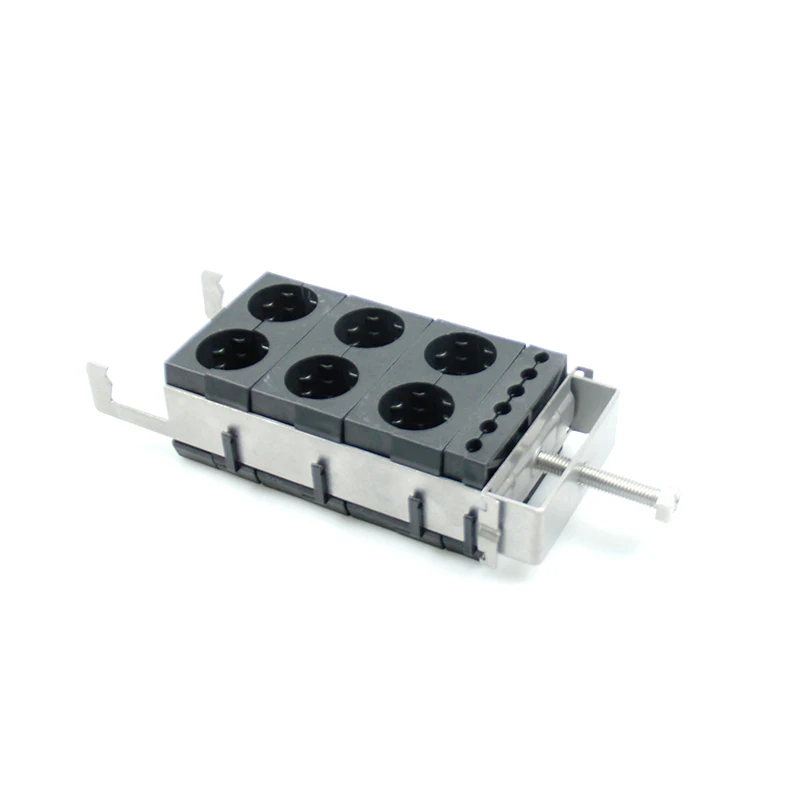

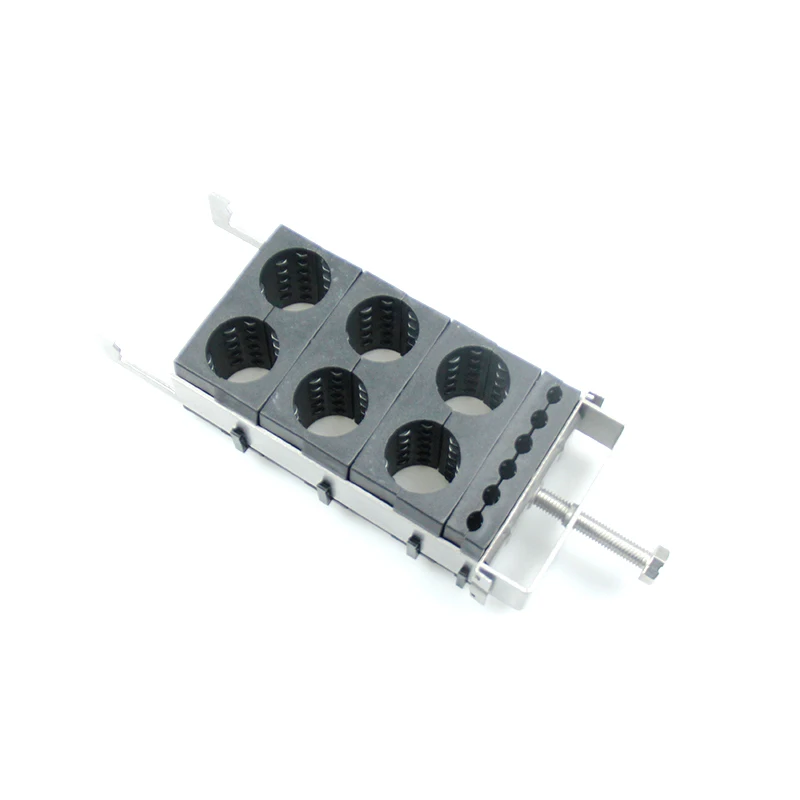

Easy Installed Self Lock Hooked Telecommunication Hybrid Coax Surface Treatment Wind Loaded Cable Feeder Clamp Size 1/2 And 7/8
- Category: Telecom Parts >>>
- Supplier: Jiangsu Maxdao Technology Limited
Share on (1600675904764):
Product Overview
Description
Product Description
Hook Type Feeder Clamps

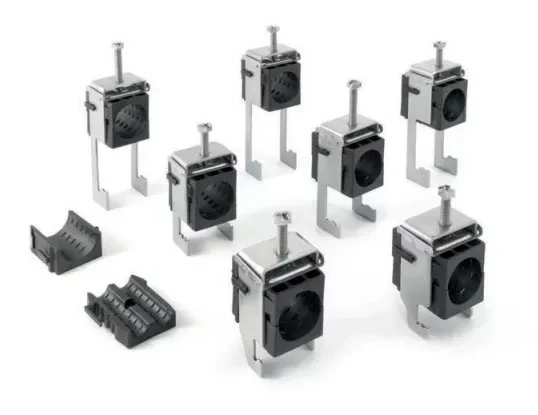

Self-locking Feeder Clamps are the optimal solution for an easy and quick fastening to various supports of:coaxial cables, waveguides and fiber optic cables.
The cables are firmly secured, without danger of deformation, by calibrated saddles which hold them without crushing.
The installer can visually control the pressure exerted by the screw.
Between 1 and 12 cables can be fastened with the same clamp. The calibrated saddles, secured by a clip, can be inserted either frontally or laterally in the bow.

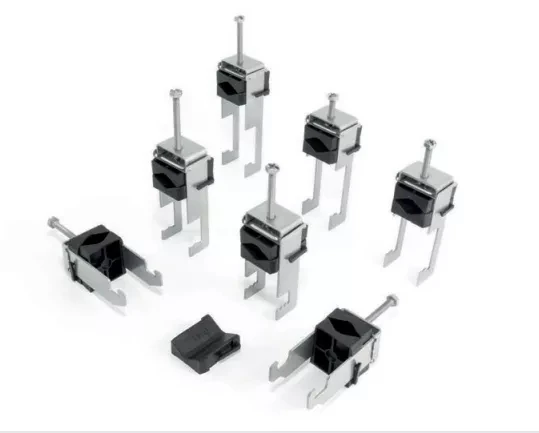

Another Self-locking Feeder Clamps are provided with “V” profile saddles, and suitable for a large range of cable diameters.
The cables are firmly secured, without danger of deformation, by calibrated saddles which hold them without crushing.
The installer can visually control the pressure exerted by the screw.
Between 1 and 12 cables can be fastened with the same clamp. The calibrated saddles, secured by a clip, can be inserted either frontally or laterally in the bow.
Another Self-locking Feeder Clamps are provided with “V” profile saddles, and suitable for a large range of cable diameters.
Main Features
Simple and strong structure
Selected high quality materials
Secured components with easy mounting
Resistance to atmospheric factors(U.V. rays, salty air, a.s.o.)
High resistance to temperature variations (from -30°C to +120°C)
Absolute safety for cables and installers
Easy and quick installation
Simple and strong structure
Selected high quality materials
Secured components with easy mounting
Resistance to atmospheric factors(U.V. rays, salty air, a.s.o.)
High resistance to temperature variations (from -30°C to +120°C)
Absolute safety for cables and installers
Easy and quick installation
Parts of Hook Type Feeder Clamp
Hook
Type: A3, A4, A5, B, C, E, M.
Material: SUS304.
A: 25mm.
B: 12mm, 22mm, 34mm, 46mm, 58mm, 70mm.
C: 30-228mm, according to the number of cables.
A: 25mm.
B: 12mm, 22mm, 34mm, 46mm, 58mm, 70mm.
C: 30-228mm, according to the number of cables.
Screw & Plate
Screw Material: SUS304.
Screw: M6, M8.
Length of Screw: 30mm, 45mm, 55mm, 70mm, 90mm.
Plate Material: SUS304.
Plate Size: Suitable for Hook.
Screw: M6, M8.
Length of Screw: 30mm, 45mm, 55mm, 70mm, 90mm.
Plate Material: SUS304.
Plate Size: Suitable for Hook.
Saddles
Type: Single Run Calibrated Saddle, Double Run Calibrated Saddle, Three Run Calibrated Saddle, Six Run Calibrated Saddle, Elastic Coax Blocks.
Material: PA6, PP, POM.
V Profile Saddles
Type: Single Run V Profile Saddle, Double Run V Profile Saddle, Three Run V Profile Saddle without Hook.
Material: PA6, PP.
Color: Black.
Color: Black.

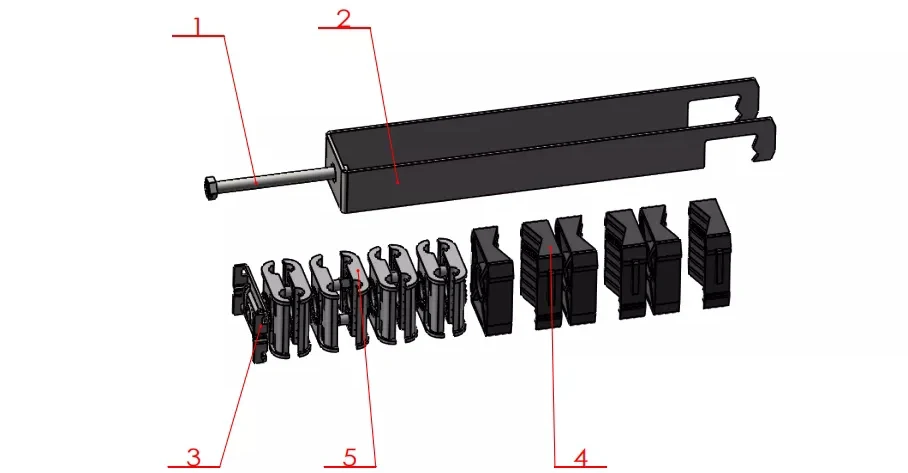

Components
1 | 2 | 3 | 4 | 5 |
Screw | Hook | Plate | Elastic Coax Blocks | V Profile Saddles |
Product Certificates
IS09001
RoHS
