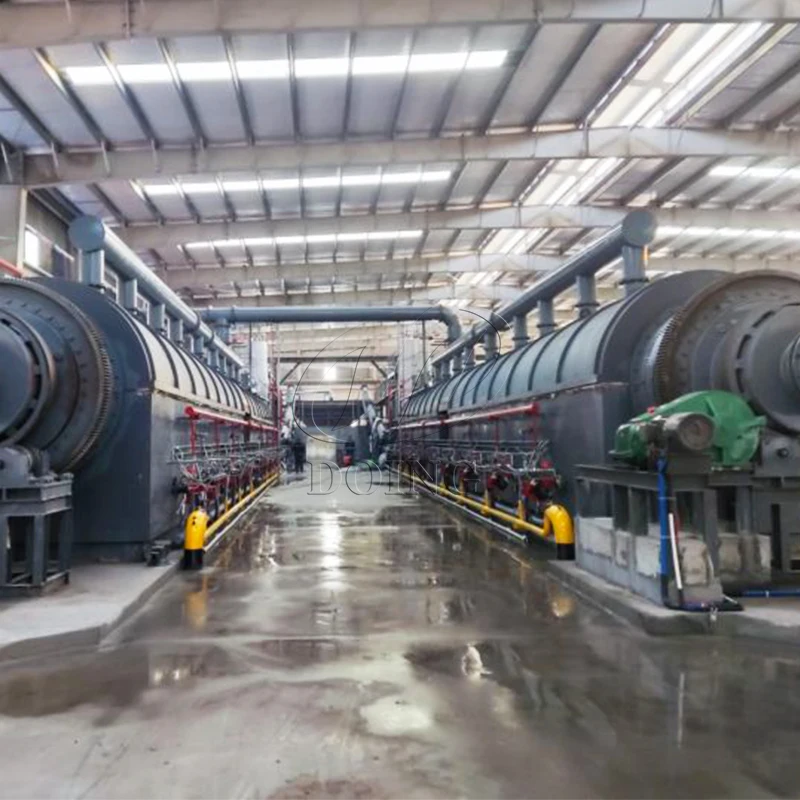

Best Quality 1 50TPD Waste oil sludge pyrolysis plant sludge to fuel oil/Diesel Recycling Treatment Machine
- Category: Rubber Recycling Machinery >>>
- Supplier: Xinxiang Doing Renewable Energy Equipment Co. Ltd.
Share on (1600677774682):
Product Overview
Description
Product Parameters

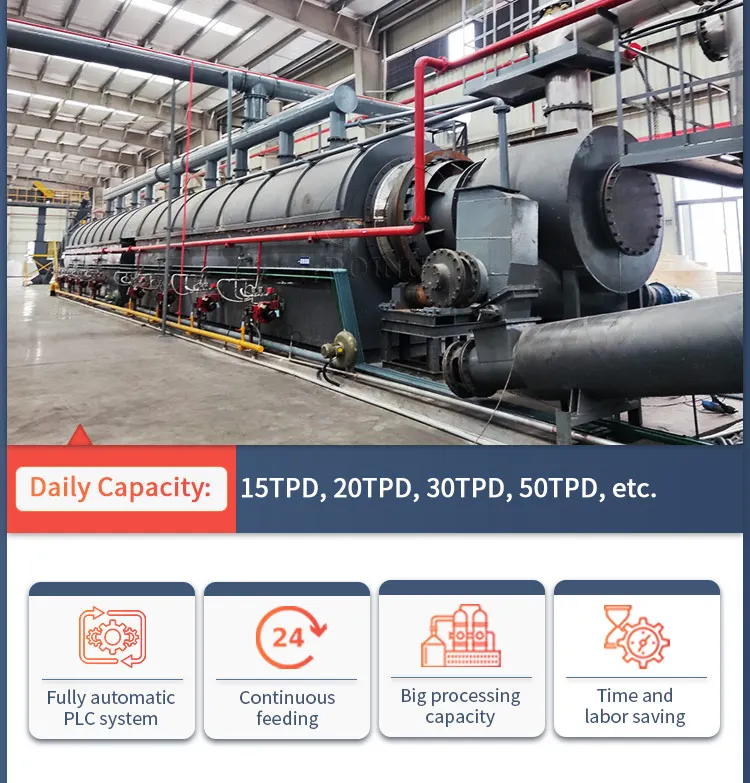

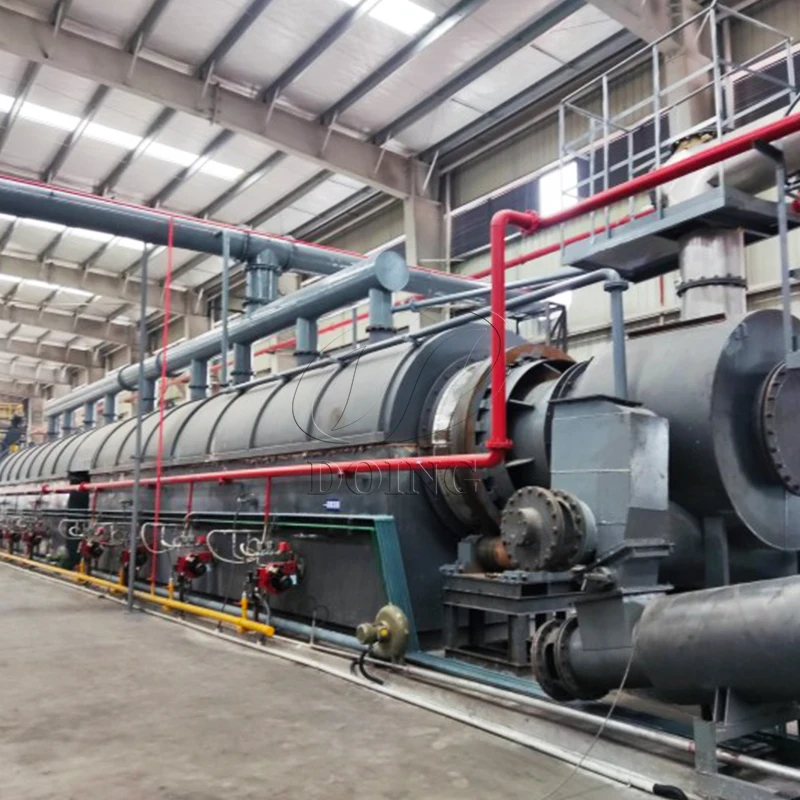

Scheme 1: New design continuous type pyrolysis plant
Item | Continuous Pyrolysis Plant | ||||
Model | DY-C-30 | DY-C-50 | DY-C-100 | ||
Cpacity | 30T/D | 50T/D | 100T/D | ||
Power | 65Kw | 80Kw | 120Kw | ||
Working type | Continuous | ||||
Reactor deisgn | Mutiple reactors (The quantity and size depends on the raw material condition) | ||||
Rotating | Internal rotating | ||||
Cooling system | Recycled waster cooling | ||||
Reactor material | Q245R/Q345R boiler plate | ||||
Heating method | Indireact hot air heating | ||||
Heating fuel | Fuel oil/gas | ||||
Feedstock | Waste tire/plastic/rubber | ||||
Output | Fuel oil, carbon black | ||||

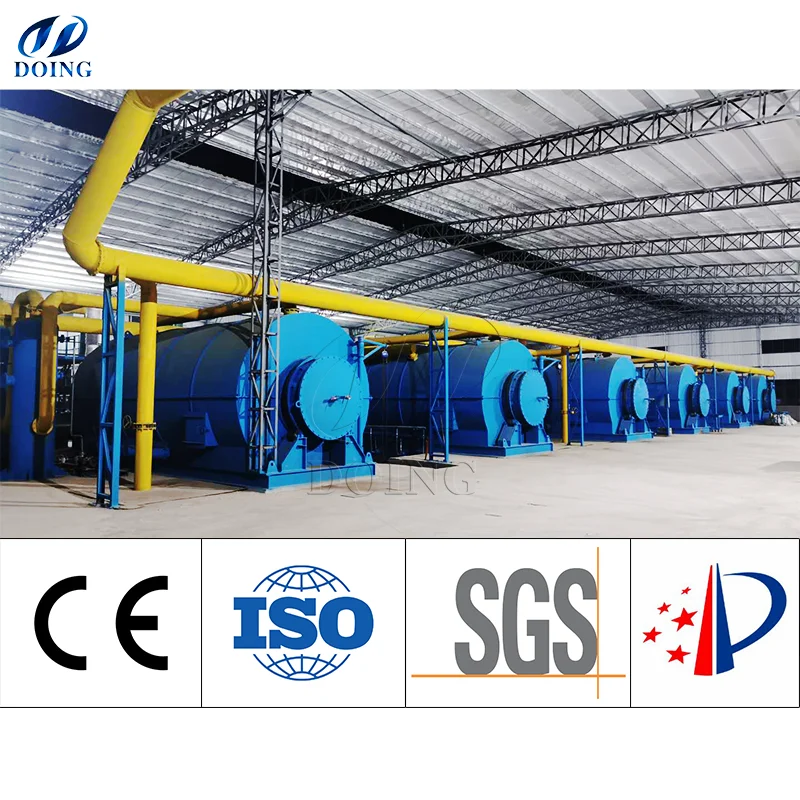

Scheme 2: Cost-effective batch type pyrolysis plant
Items | Batch Pyrolysis Plant | ||||
Equipment type | DY-1-6 | DY-1-10 | DY-1-12 | ||
Raw material | Waste plastics, tyres | Waste plastics, tyres | Waste plastics, tyres | ||
Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation | ||
24-hour Capacity | 6 ton | 10 ton | 12 ton | ||
Oil yield | 2.7-3.3ton | 4.5 -5.5ton | 4.8 -6.6ton | ||
Operating pressure | Normal | Normal | Normal | ||
Material of pyrolysis Reactor | Q245R | Q245R | Q245R | ||
Thickness of pyrolysis Reactor | 16mm | 16mm | 16mm | ||
Rotate speed of pyrolysis Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute | ||
Total power | 15KW | 15KW | 15KW | ||
Mode of cooling | Water cooling | Water cooling | Water cooling | ||
Cooling area of condenser | 100sqm | 100sqm | 100sqm | ||
Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive | ||
Noise dB(A) | ≤85 | ≤85 | ≤85 | ||
Size of Reactor(D×L) | 2200×6000 | 2600×6600 | 2800×6600 | ||
Working form | Intermittent operation | Intermittent operation | Intermittent operation | ||
Delivery time | 20days | 20days | 20days | ||
Weight | 27T | 32T | 35T | ||

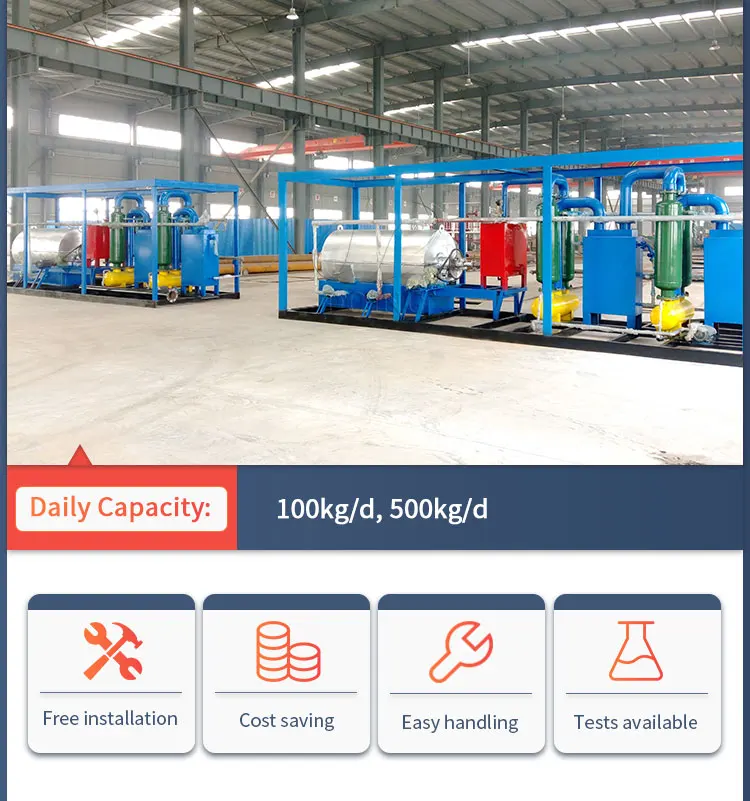

Scheme 3: Free installation small scale pyrolysis plant unit

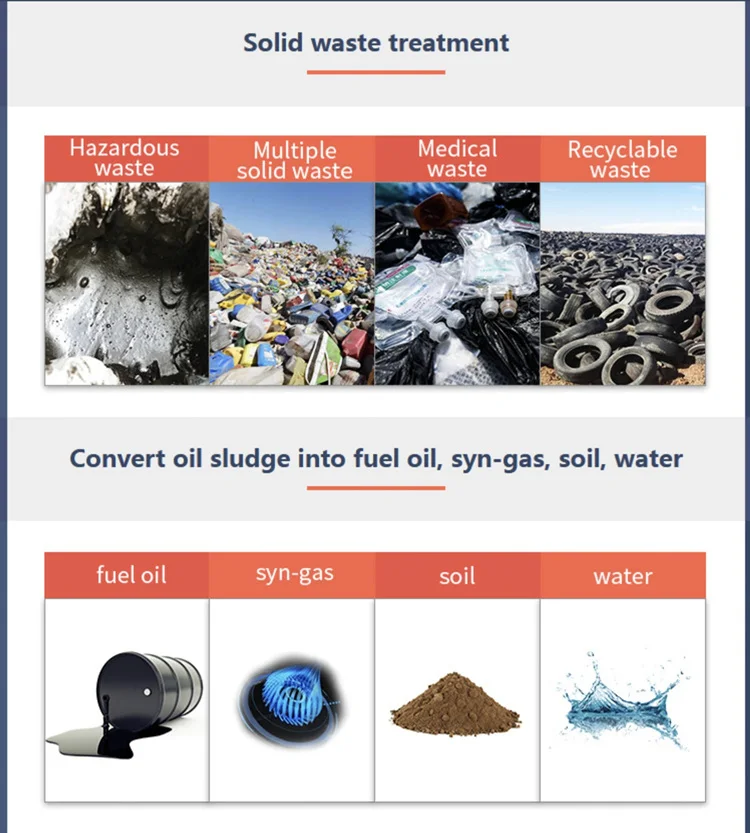

Raw Materials & Oil Yields

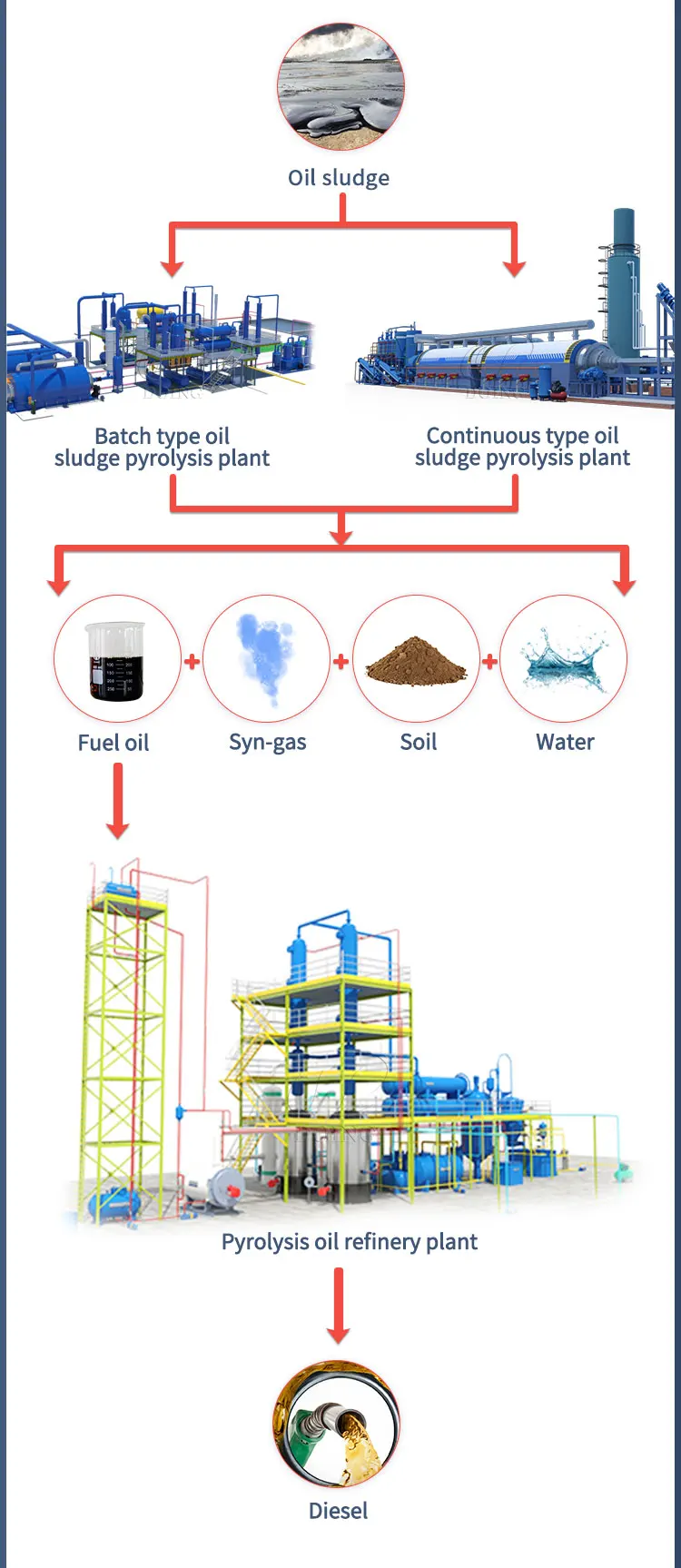

Waste oil processing process

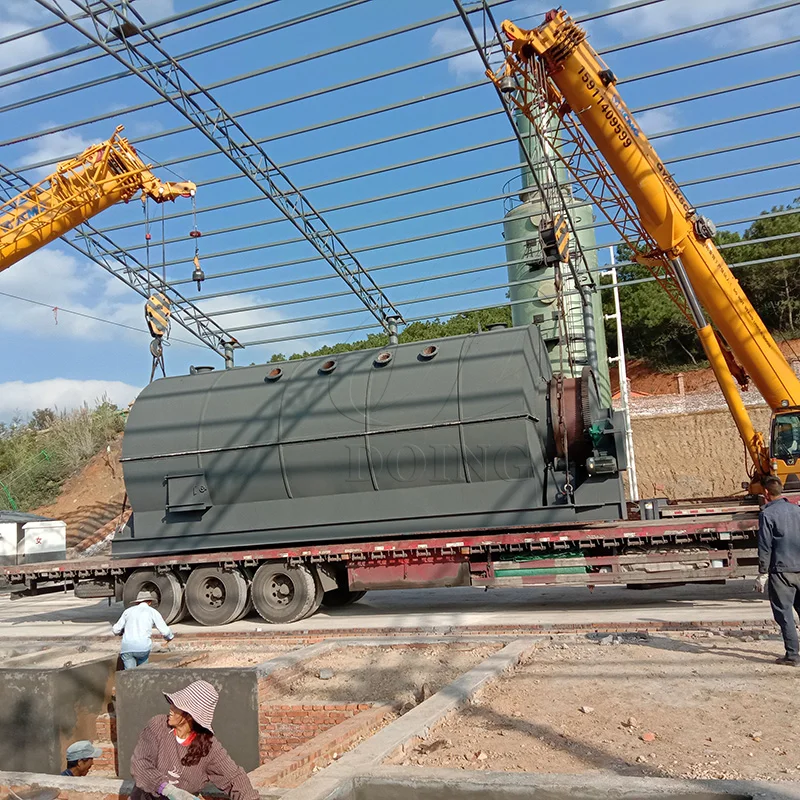

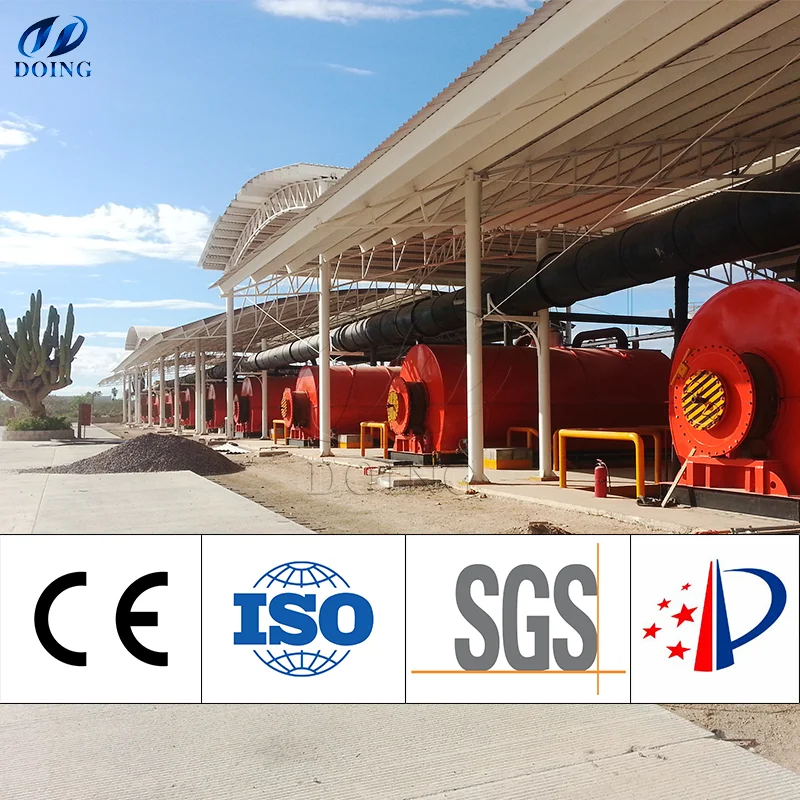

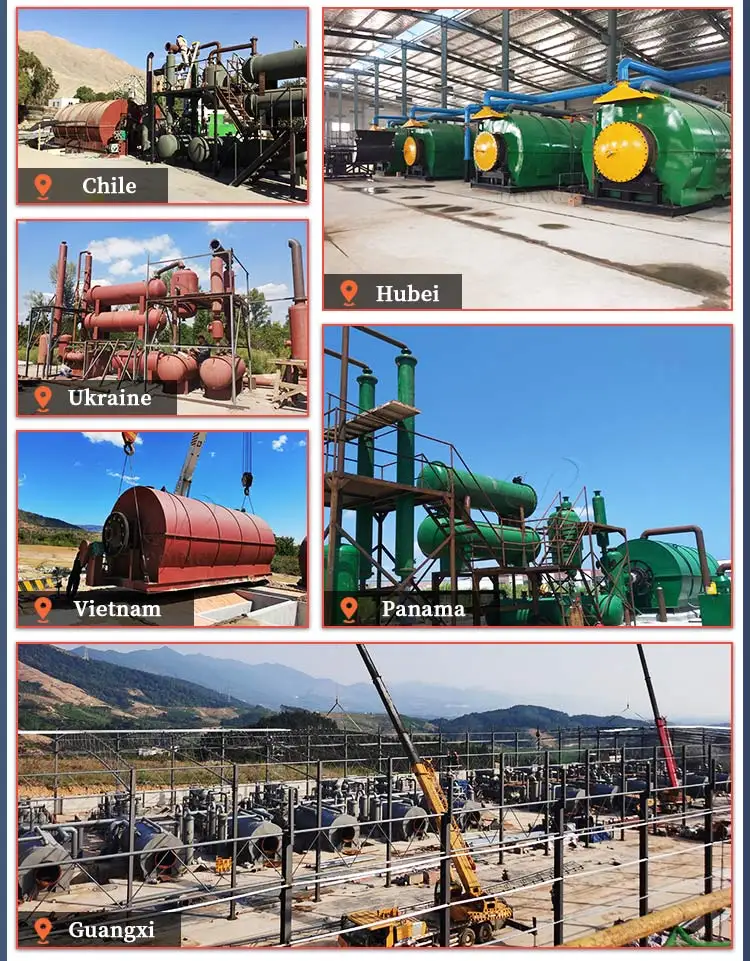

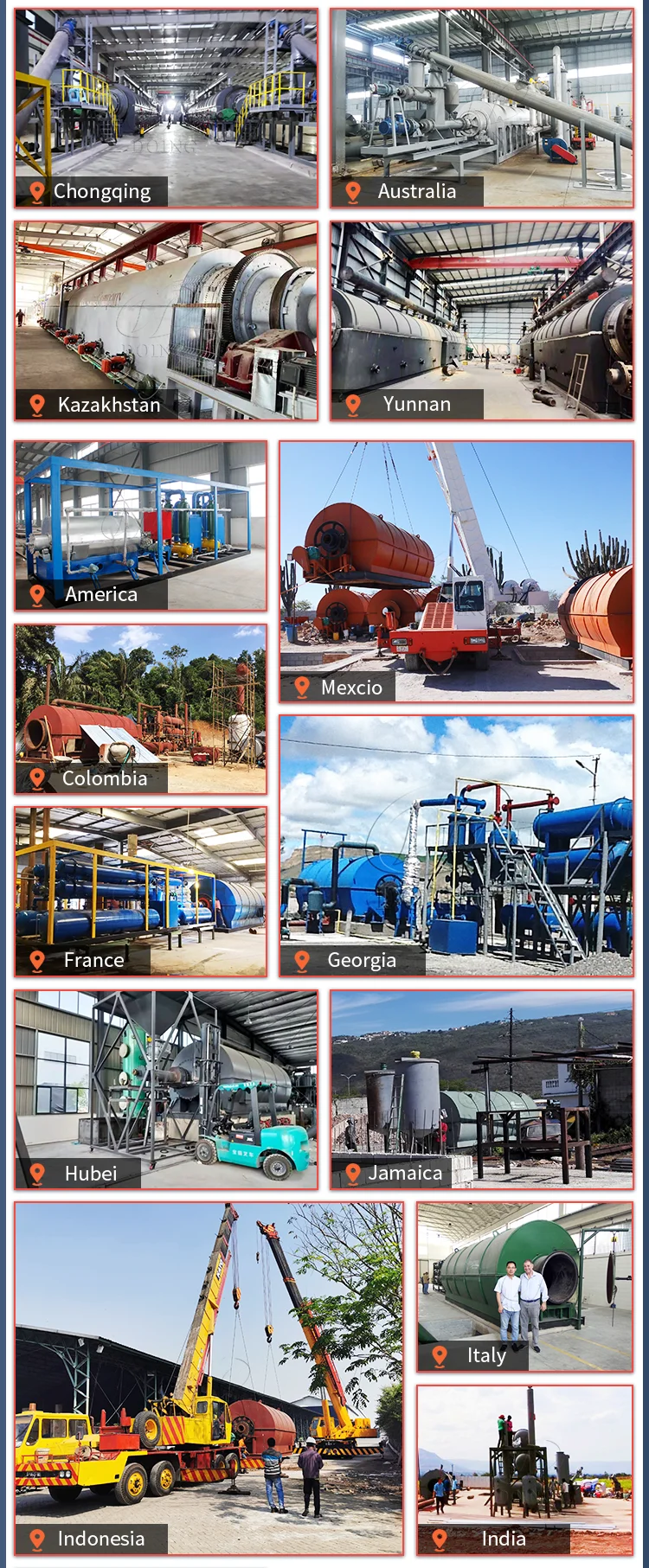

Project Case

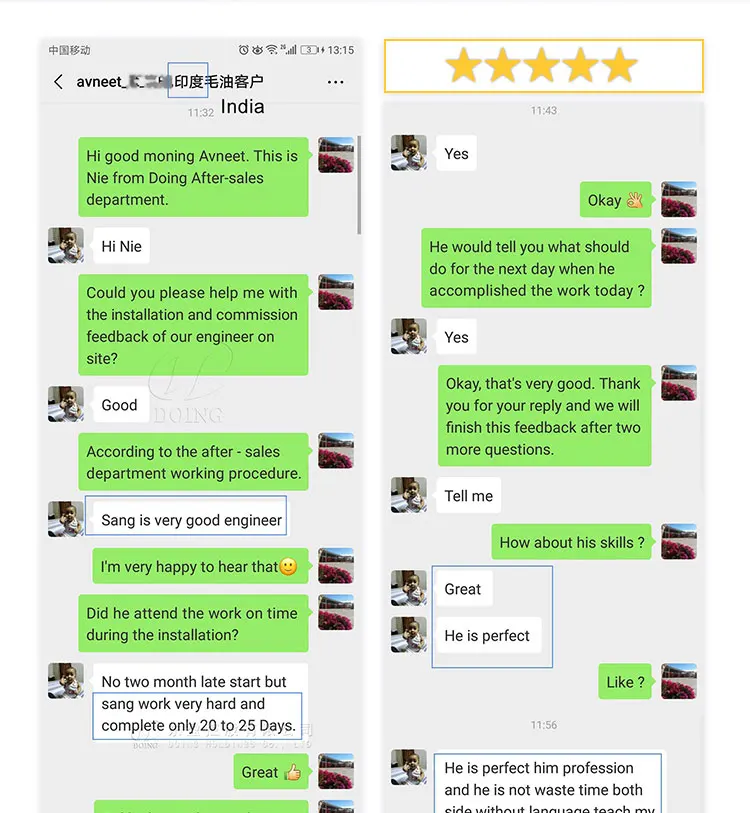

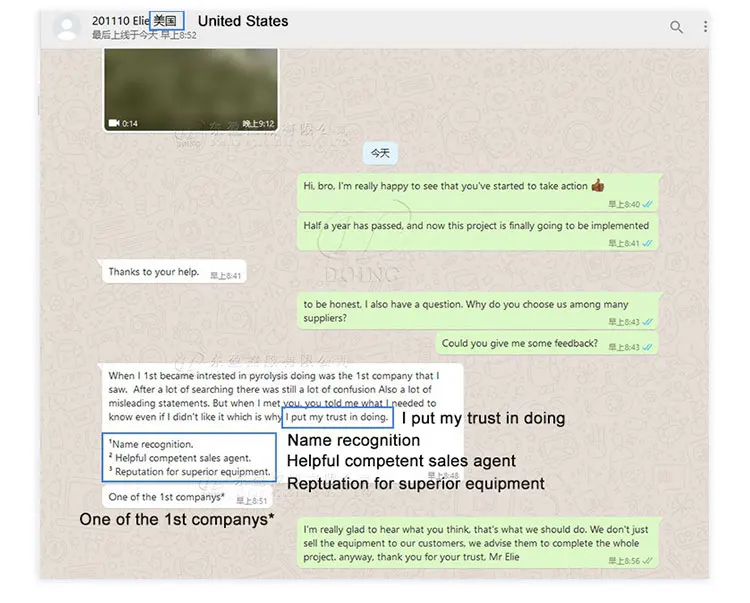

Customer Feedback
Our services
Company Profile
DOING HOLDINGS CO., Ltd
Henan Doing Environmental Protection Technology Co., Ltd, the subsidiary company of Doing Holdings Co., LTD, is a comprehensive environmental equipment manufacturer integrating technological design, research and development, machine production, sales and after-sales service in one.
Our main business: solid waste and hazardous waste treatment equipment, waste tire/plastic/rubber/oil sludge/ aluminum plastic pyrolysis plant, pyrolysis oil /used oil to diesel distillation plant, and related environmental protection devices. Now, our products sells well in 90+ countries and regions around the world.
