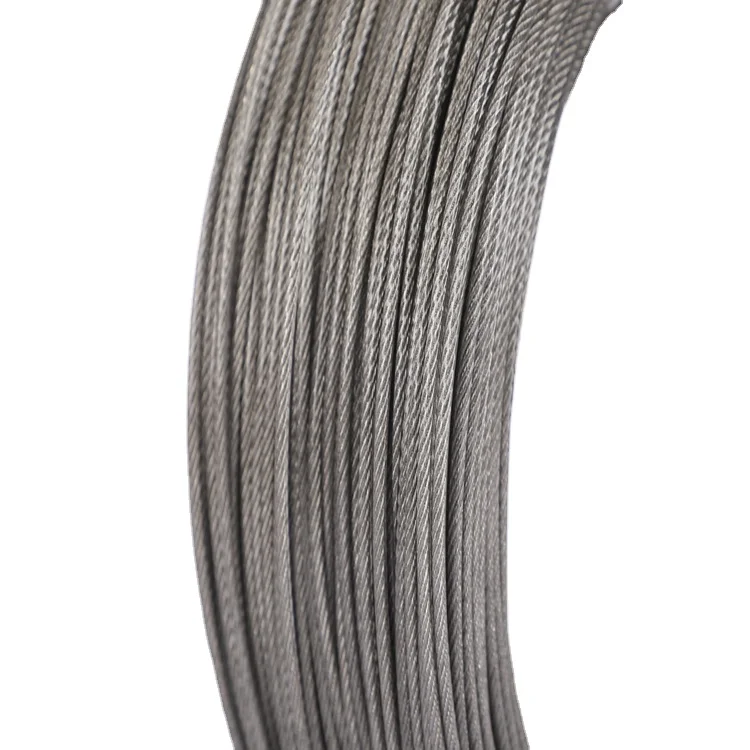

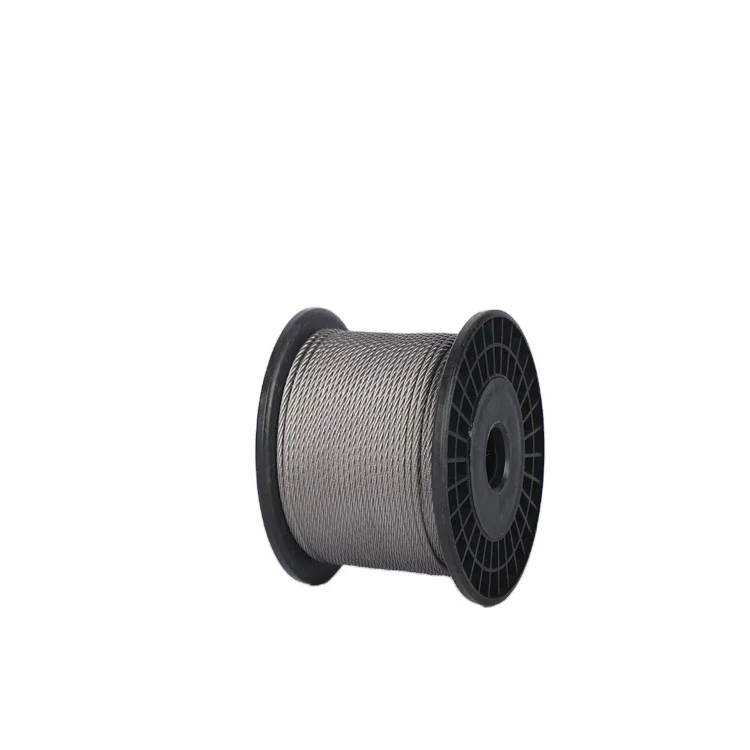

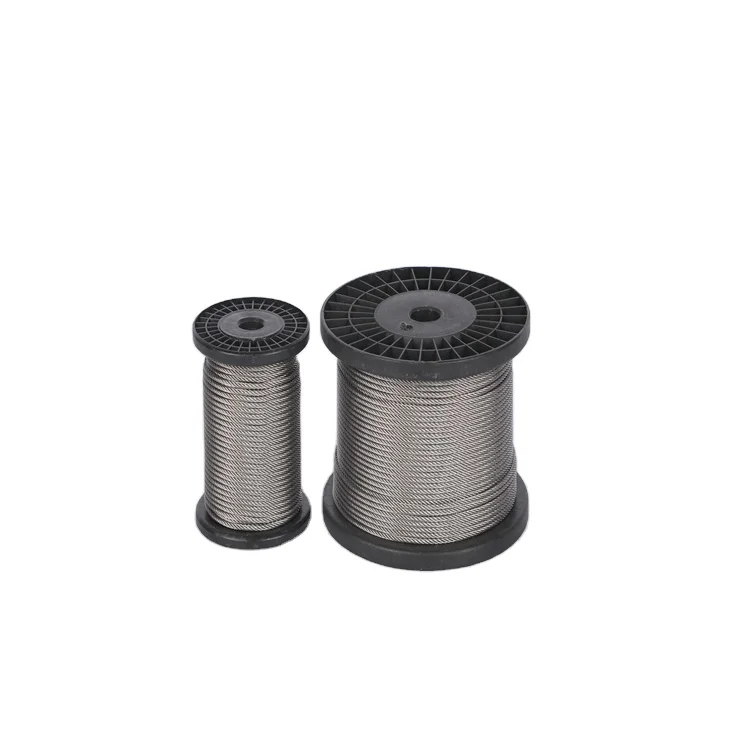

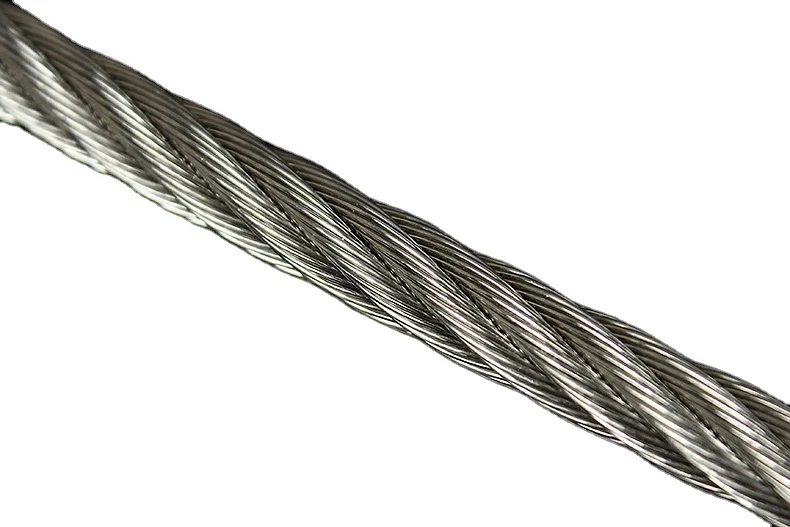

1X19 304 316 1.5mm Operating Stainless Steel Wire Rope
1X19 304 316 1.5mm Operating Stainless Steel Wire Rope
1X19 304 316 1.5mm Operating Stainless Steel Wire Rope
1X19 304 316 1.5mm Operating Stainless Steel Wire Rope
1X19 304 316 1.5mm Operating Stainless Steel Wire Rope
1X19 304 316 1.5mm Operating Stainless Steel Wire Rope

1X19 304 316 1.5mm Operating Stainless Steel Wire Rope

Share on (1600678908678):


Price:$0.23 - $0.26

Quantity:


Product Overview

Description





Steel Wire Rope Property Sheet:


Product Name
Coated Stainless Steel Wire Rope
Grade
SS304、SS316、SS316L
Diameter Range
1-10mm
Specifications
7x7、12+1、3x7
Coated
Nylon、PVC、Teflon
Magnetic
Magnetic or Non-magnetic
Applications
It is widely used in high-speed rail connecting line, guardrail curtain wall, fishing, automobile brake line, clothes hanger and other fields.




Specification For Stainless Steel Wire Ropes
CONTURCTION COMPACTED STRAND 3x7
Product Code
Diameter (mm)
Min.Breaking Load (kn)
Weight Kg/100m
1570/mm²
1770/mm²
1960/mm²
SS01(3x7)
1.00
0.860
0.973
1.080
0.50
SS12(3x7)
1.20
1.240
1.401
1.550
0.72
SS15(3x7)
1.50
1.940
2.190
2.420
1.13
SS18(3x7)
1.80
2.800
3.150
3.490
1.62
SS20(3x7)
2.00
3.450
3.890
4.310
2.00
SS22(3x7)
2.20
4.180
4.710
-
2.42
CONTURCTION COMPACTED STRAND 7x7
Product Code
Diameter (mm)
Min.Breaking Load (kn)
Weight Kg/100m
1570/mm²
1770/mm²
1960/mm²
SS01(7x7)
1.00
0.520
0.590
0.650
0.36
SS15(7x7)
1.50
1.170
1.330
1.460
0.81
SS20(7x7)
2.00
2.080
2.350
2.600
1.44
SS25(7x7)
2.50
3.260
3.670
4.070
2.25
SS30(7x7)
3.00
4.690
5.290
5.860
3.24
SS40(7x7)
4.00
8.340
9.400
10.400
5.76
SS50(7x7)
5.00
13.030
14.700
16.300
9.00
CONTURCTION COMPACTED STRAND 12+1
Product Code
Diameter (mm)
Min.Breaking Load (kn)
Weight Kg/100m
1570/mm²
1770/mm²
1960/mm²
SS15(12+1)
1.00
1.050
1.220
1.350
0.49
SS20(12+1)
1.20
1.500
1.570
1.600
0.70
SS25(12+1)
1.40
2.010
2.090
2.250
0.95
SS30(12+1)
1.50
2.340
2.390
2.420
1.09
SS40(12+1)
1.60
2.510
2.590
2.630
1.24
SS50(12+1)
1.80
3.150
3.580
3.640
1.56


Why Choose Us:



Beautiful appearance
It does not affect the vision. Compared with the old guardrail, it has no cage feeling, is invisible and beautiful, and can hardly see the steel wire 15 meters away.



Security
The 5cm safe space effectively protects children and the elderly from the danger of being in tall buildings, and also prevents your pet from escaping out of the window.



Quality Assurance
The wire rope has strong tension, good flexibility and strong corrosion resistance, and is the preferred configuration of anti-theft net.


MORE PRODUCTS




COMPANY PROFILE






CERTIFICATE




With ISO9002 as the standard, the company has established a quality system and operated effectively. Stainless steel wire rope products are widely used in operation, railway, bridge, construction, decoration, high lift tower crane, crane, conveyor belt, aviation and other important places. Enterprises with its quality products, to the international market.


Packing & Delivery




Normal packaging: wooden shaft or plastic shaft shall be used and placed on the tray.
If the customer has customized packaging requirements, it can be packaged according to the customer's requirements



Trade terms
FOB, EXW, CIF, DDU, DDP
Payment terms
T/T, L/C, Negotiable
MOQ
1000m
Supply capability
100000 pieces per month
Lead time
15-30 days
Shipment
Express, air, sea
Port
Shanghai, Ningbo, Shenzhen
Sample availability
Yes
Sample time
3-7 days
Packaging
Plastic shaft or wooden shaft & Pallet
Special: Customized packing
