Cold Rolled Steel DC01 DC02 DC03 DC04 DC05 DC06 SPCC cold rolled steel plate/sheet/coil/strip manufacturer
- Category: Carbon Steel >>>
- Supplier: Foshan Wukuang Steel Co. Ltd.
Share on (1600914931281):
Product Overview
Description
Products Description
Product Details
Grade | Yield Strength ,Mpa | Tensile Strength,Mpa | Elongation, % A80mm | ||||||||||
<0.3mm | 0.3-0.5mm | 0.5-0.7mm | 0.7-1.0mm | 1.0-1.6mm | ≥1.6mm | ||||||||
DC01 | 140-280 | ≥270 | ≥24 | ≥26 | ≥28 | ≥30 | ≥32 | ≥34 | |||||
DC03 | 140-240 | ≥270 | / | ≥30 | ≥32 | ≥34 | ≥35 | ≥36 | |||||
DC04 | 130-210 | ≥270 | / | ≥34 | ≥36 | ≥38 | ≥39 | ≥40 | |||||
DC05 | 120-180 | ≥270 | / | ≥35 | ≥38 | ≥40 | ≥40 | ≥41 | |||||
DC06 | 110-170 | ≥260 | / | ≥37 | ≥39 | ≥41 | ≥42 | ≥43 | |||||
DC07 | 100-150 | ≥250 | / | ≥40 | ≥42 | ≥44 | ≥44 | ≥44 | |||||
Grade | Yield Strength, Mpa | Tensile Strength, Mpa | Elongation, % L0=50mm, b=25mm | ||||||||||||
<0.25 mm | 0.25-0.3 mm | 0.3-0.4 mm | 0.4-0.6 mm | 0.6-1 mm | 1.0-1.6 mm | ≥1.6 mm | |||||||||
SPCC | / | ≥270 | ≥25 | ≥28 | ≥31 | ≥34 | ≥36 | ≥37 | ≥38 | ||||||
SPCD | 240 | ≥270 | ≥27 | ≥30 | ≥33 | ≥36 | ≥38 | ≥39 | ≥40 | ||||||
SPCE | 220 | ≥270 | ≥29 | ≥32 | ≥35 | ≥38 | ≥40 | ≥41 | ≥42 | ||||||
SPCF | 210 | ≥270 | / | / | ≥37 | ≥40 | ≥42 | ≥43 | ≥44 | ||||||
SPCG | 190 | ≥270 | / | / | / | ≥42 | ≥44 | ≥45 | ≥46 | ||||||
Substrate | Brand | C (Wt%) | Si (Wt%) | Mn (Wt%) | P (Wt%) | S (Wt%) | Alt (Wt%) | Ti (Wt%) | Nb (Wt%) |
Cold rolled sheet | DC51D+Z, DC51D+ZF | ≤0.10 | / | ≤0.50 | ≤0.035 | ≤0.035 | / | / | / |
DC52D+Z, DC52D+ZF | ≤0.08 | / | ≤0.45 | ≤0.030 | ≤0.030 | / | / | / | |
DC53D+Z, DC53D+ZF | ≤0.08 | / | ≤0.40 | ≤0.030 | ≤0.030 | / | / | / | |
DC54D+Z, DC54D+ZF | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | ≤0.020 | ≤0.015 | ≤0.10 | / | |
DC56D+Z, DC56D+ZF | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | ≤0.020 | ≤0.015 | ≤0.10 | ≤0.10 | |
Hot rolled sheet | DD51D+Z | ≤0.10 | / | ≤0.50 | ≤0.035 | ≤0.025 | / | / | / |
DD54D+Z | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | ≤0.020 | ≤0.015 | ≤0.10 | / |

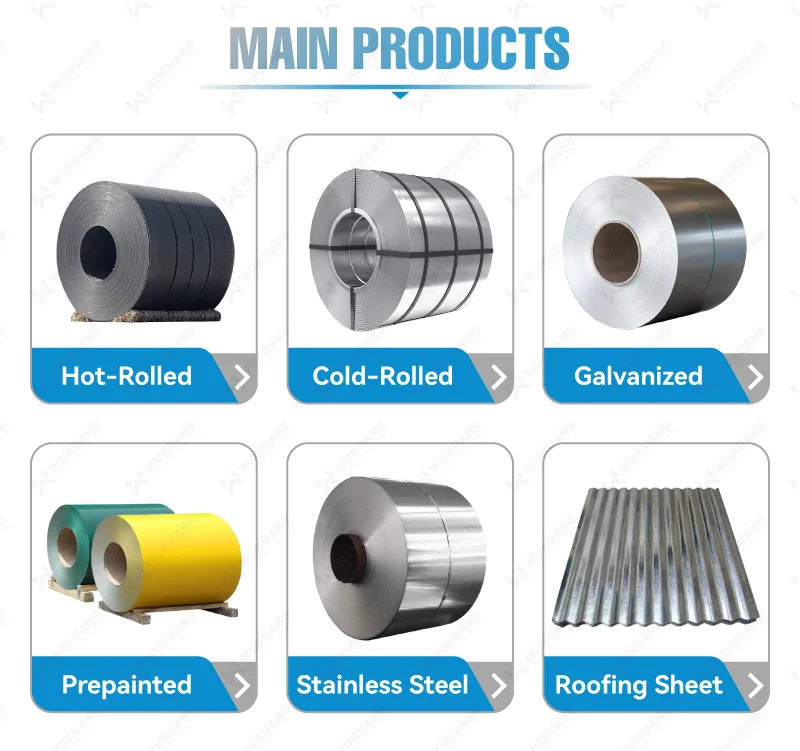

Main Products
Applications
Company Profile
FAQ
FAQ
Q1: Can you offer free samples?
A: We will return the sample fee once getting the mass production order.
Q2: What is the delivery time?
A: Fast delivery in 5 days, up to order quantity.
Q3: What is your terms of payment ?
A: 30% T/T in advance ,balance before loading or LC at sight.
Q4: Do you provide custom made Products service?
A: Yes,custom made is acceptable.
Q5: Can I go to your factory to visit?
A: Of course, welcome to visit our factory anytime.
Q6: What product information do I need to provide?
A: Please kindly tell us what’s the steel grade, specification (thickness, length, width), surface treatment requirement do you have and quantities you need to purchase.
Q7: It's my first time to import steel products, can you help me with it?
A: We will do our best to give the solution and help you on the business.
Q8: If products not comply with the contract demands, what will you do?
A: We will compensate the customer for all the loss without any hesitation.
