Product Overview
Description
Product Description
Product Parameters
Model | S-ISOH-40-1 | S-ISOH-40-2 | S-ISOH-40-3 | S-ISOH-40-3 | S-ISOH-40-5 | ||||
Main loop parameters | 1 | 2 | 3 | 4 | 5 | ||||
Number of string | 1500V DC | ||||||||
Max DC voltage | 40A | ||||||||
Max DC current | 1500V26A,1000V40A,600V40A | ||||||||
Parameters | MC4 | ||||||||
Control loop parameters | |||||||||
Power supply type | AC single phase | ||||||||
Nominal voltage | 230V AC | ||||||||
Operating voltage | 100-270 VAC | ||||||||
Nominal frequency | 50Hz | ||||||||
Operating frequency | 47-53 Hz | ||||||||
Nominal Current | 30 mA | ||||||||
Max current | 300 mA | ||||||||
AC connector | Plug-in | ||||||||
Product parameters | |||||||||
Protection degree | IP65 | ||||||||
Protection level | Class II | ||||||||
Certification | CE | ||||||||
Switch according to | EN 60947-3 | ||||||||
Number of operations | >10000 | ||||||||
N. of operations under load | >1500 | ||||||||

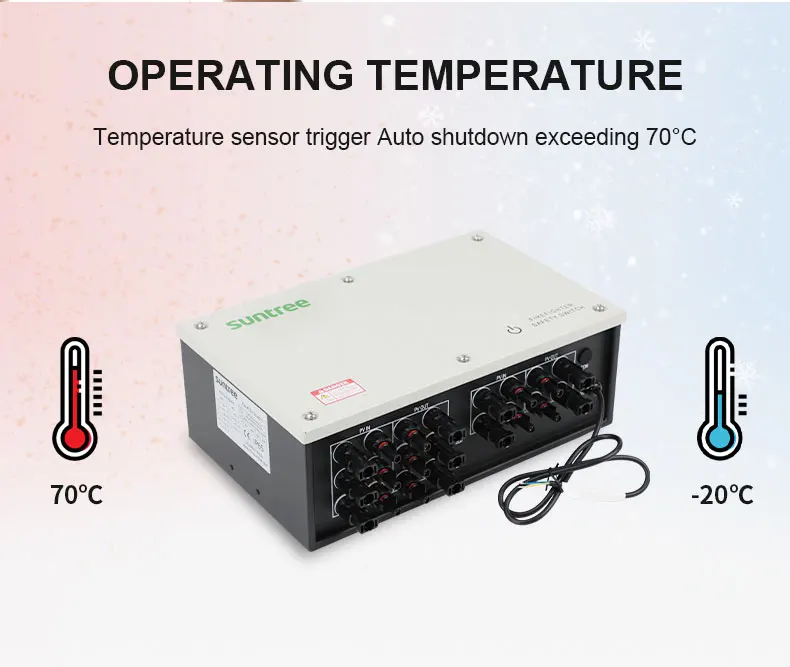

Operating temperature | -20℃~70℃ | ||||||||
Temperature sensor trigger | 70℃ | ||||||||
Warranty | 5 years | ||||||||
Dimensions(L*W*H) | 265*280*115 | 300*280*115 | 350*280*115 | 348*270*137 | |||||
Weight | 2950g | 3130g | 3440g | 3950g | 4700g | ||||
FEATURE
• 1~10 STRINGS AVAILABLE APP REMOTE CONTROL
• UP TO 40A
• SHUTDOWN FEEDBACK SIGNAL
• UP TO 1500V AUTO SHUTDOWN EXCEEDING 70 ℃
• CE CERTIFICATION
•10000 MECHANICAL LIFE CYCLES
• IP65 PROTECTION & ANTI UV
• LSOLATOR WITH CE,CB,TUV,SAA
• 1~10 STRINGS AVAILABLE APP REMOTE CONTROL
• UP TO 40A
• SHUTDOWN FEEDBACK SIGNAL
• UP TO 1500V AUTO SHUTDOWN EXCEEDING 70 ℃
• CE CERTIFICATION
•10000 MECHANICAL LIFE CYCLES
• IP65 PROTECTION & ANTI UV
• LSOLATOR WITH CE,CB,TUV,SAA
Company Information
Product packaging
FAQ
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 24hours.
Q:What's the difference between you and other suppliers?
A: Components inside of combiner box are manufactured by ourselves and approved SAA, TUV, CE, IEC, CE certificate.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q:How's the warranty of combiner box?
A:18 month.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
