Product Description

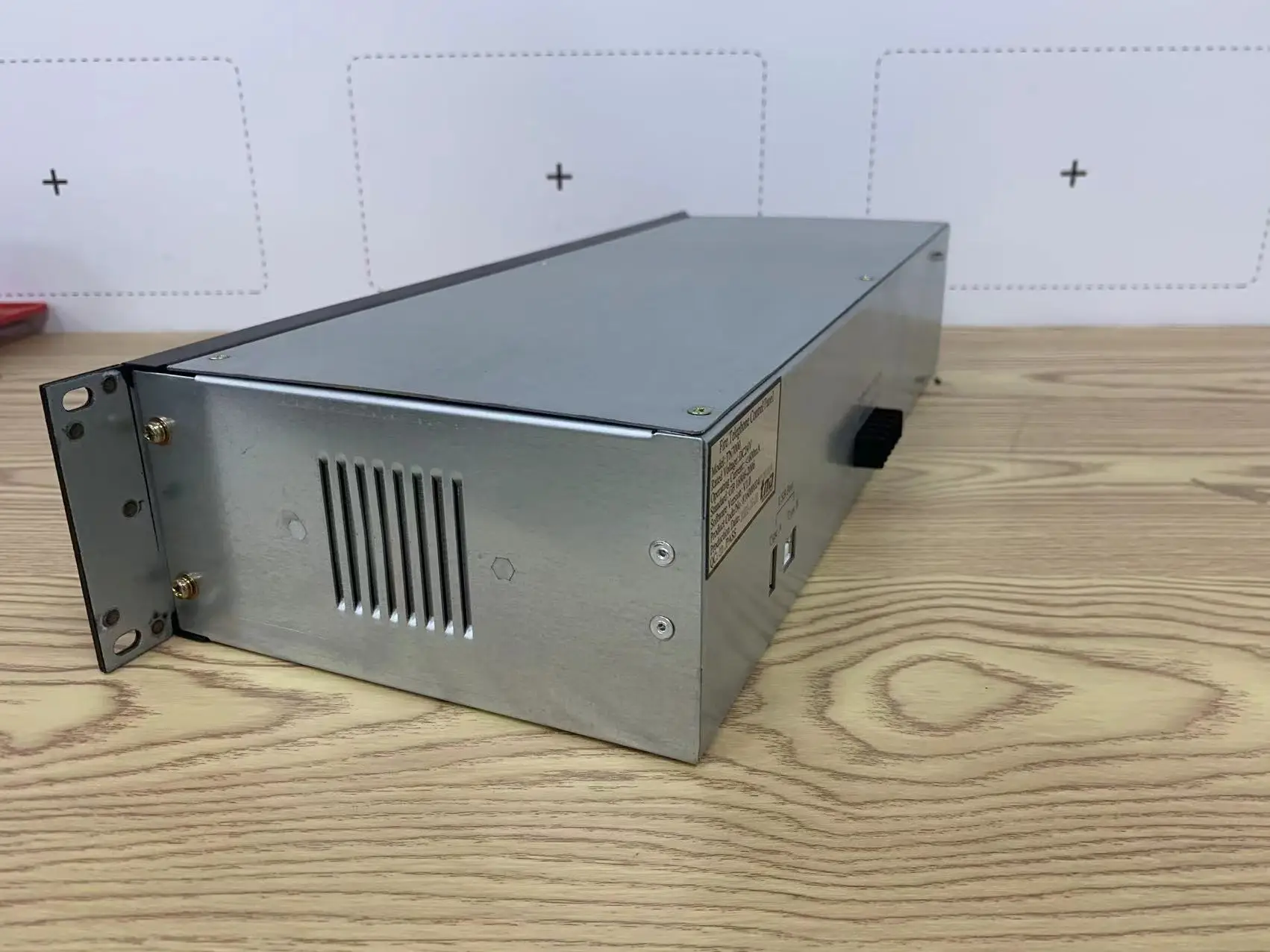

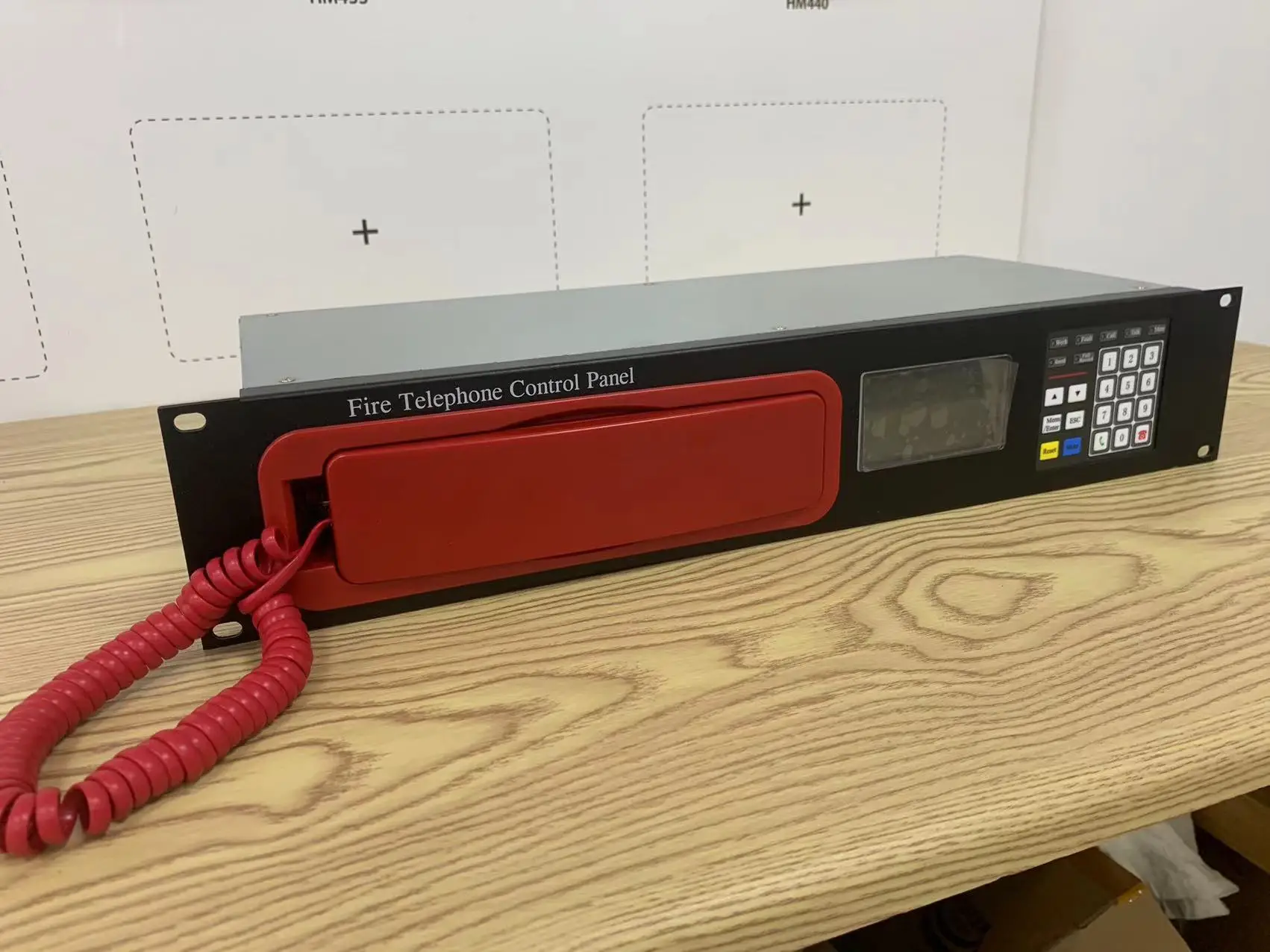

TN7000 Fire Telephone Control Panel

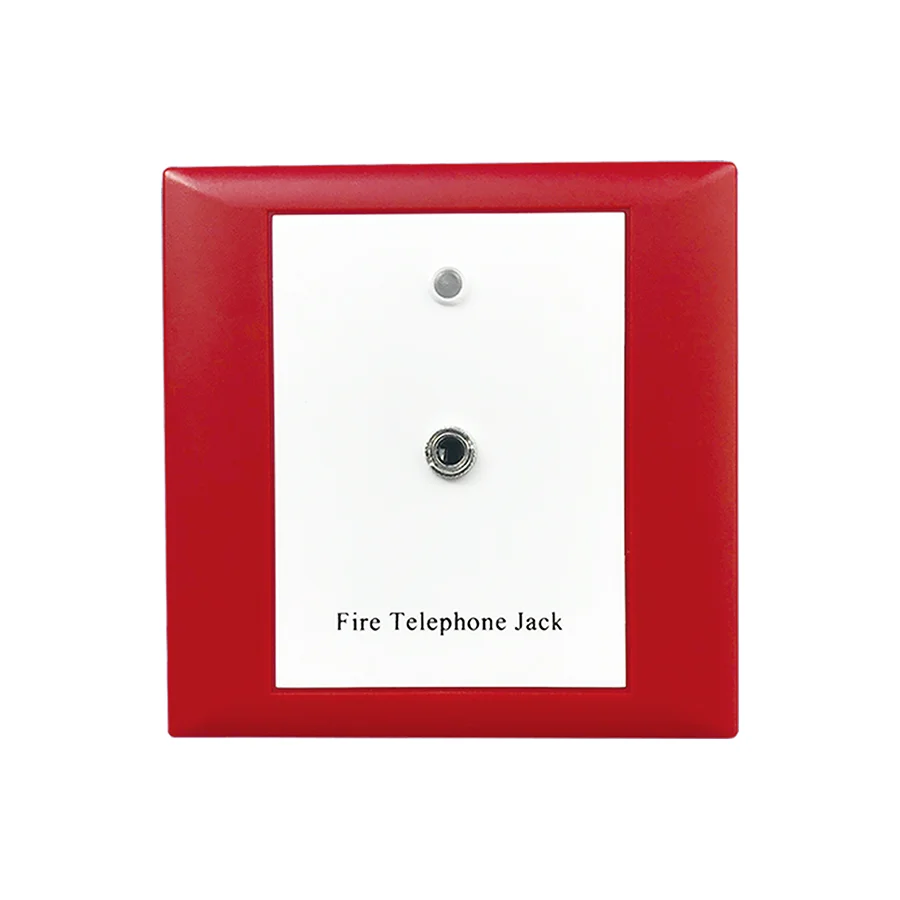

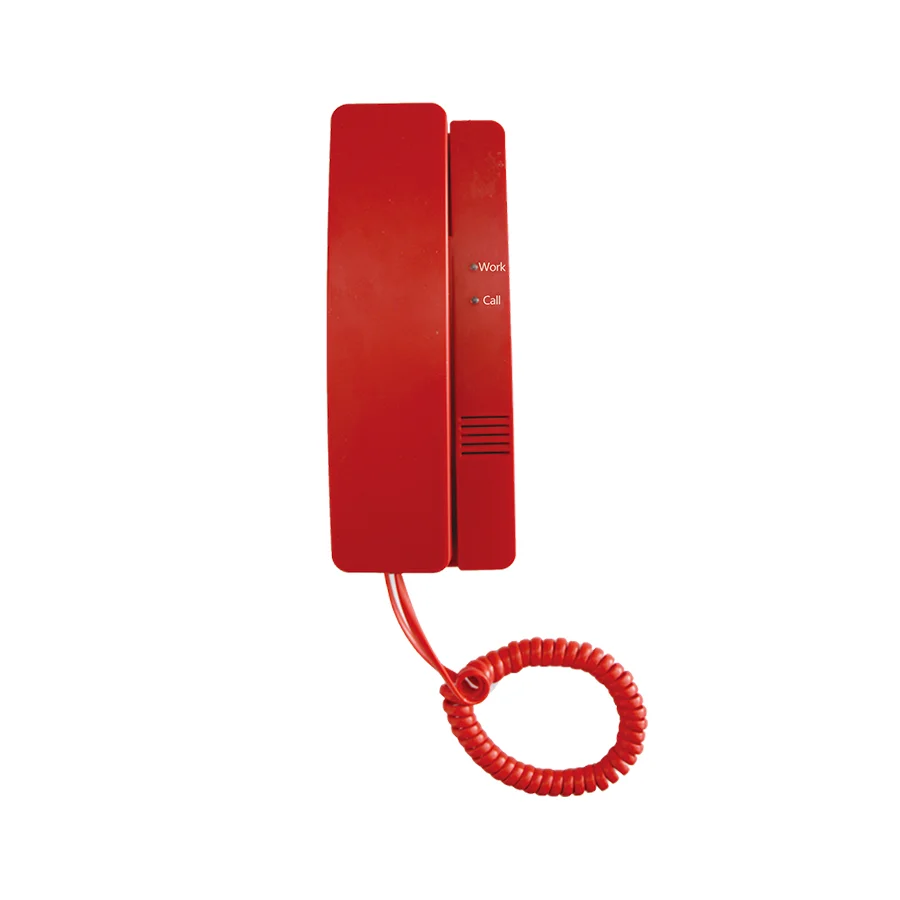

TN7000 Fire Telephone Control Panel is new-developed complying with Chinese National Standard GB 16806-2006 Automatic Control System for Fire Protection. TN7000 Fire Telephone Control Panel can constitute a fire telephone system together with TN7100 Addressable Fire Extension Telephone and TN7300 Addressable Fire Telephone Jack Socket.




Feature and Benefits
* Non-polarized two-wire for communication and talk, cost effective for wiring
* Connect up to 100 TN7100 Addressable Fire Extension Telephone, talk with maximum 3 extension telephones simultaneously
* Support up to 9-hour recording of talk
* Provide 999 different kinds of messages which can be searched by type or time
* Black and white 128×64 LCD, displaying 64 characters
* Support offline programming by software, edit Fire telephone installation location
* Support for offline programming and exporting history using usb flash drives


Specification


item
value
Place of Origin
Guangdong
Brand Name
TNA
Model Number
TN7000
Product Name
Addressable fire telephone control panel
Rated Voltage
24VDC（20VDC~28VDC）
Operating Current
＜600mA
Capacity
100 address points（1~100）
Voice Frequency
300Hz～3400Hz
Crosstalk Level
＜-60dB
Transmission Loss
＜5dB
Loop Resistance
＜300Ω
Communication Distance
＜1000m


Packing & Delivery


Standard carton package

Dimension Lx W x H: 483.0 mm x 200.0 mm x 88.5 mm

Weight: 3.0 Kg
