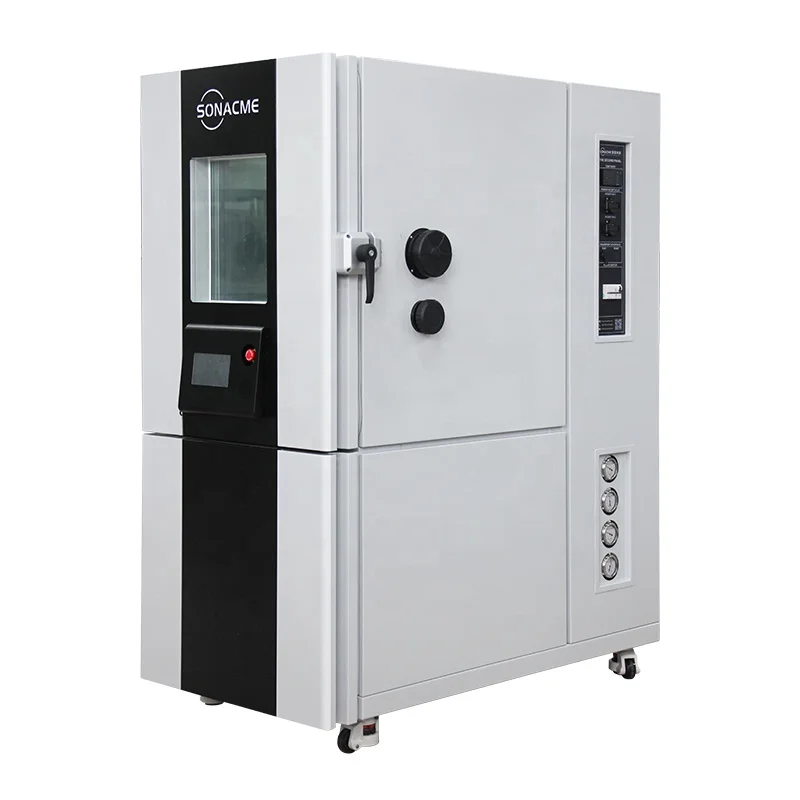

SONACME High Quality Popular Rapid Temperature Change Climatic Test Chamber For Electronic Industry
SONACME High Quality Popular Rapid Temperature Change Climatic Test Chamber For Electronic Industry
SONACME High Quality Popular Rapid Temperature Change Climatic Test Chamber For Electronic Industry
SONACME High Quality Popular Rapid Temperature Change Climatic Test Chamber For Electronic Industry
SONACME High Quality Popular Rapid Temperature Change Climatic Test Chamber For Electronic Industry
SONACME High Quality Popular Rapid Temperature Change Climatic Test Chamber For Electronic Industry
SONACME High Quality Popular Rapid Temperature Change Climatic Test Chamber For Electronic Industry

SONACME High Quality Popular Rapid Temperature Change Climatic Test Chamber For Electronic Industry

Share on (1600685367157):


Price:

Quantity:


Product Overview

Description



Products Description




Product Paramenters


Model
SR/1000/70/25(H)
System
Temperature and Humidity Balance Control (BTHC) System
Test area capacity
1000L
Test area load-bearing capacity
100 KG
Internal dimensions W×H×D mm
1000*1000*1000
Dimensions
W×H×D mm
1450*2050*2450
Weight
1400 kg
Power
1φ220V AC&50/60Hz，24A  or  3φ380V AC&50/60Hz，10A
Temperature performance
Temperature & Humidity Range
 -70～＋100℃ (+150℃/+180℃) / 10～98%rh
Temperature & Humidity Fluctuations
±0.3°C / ±2.5%rh
Temperature uniformity
1.5°C
Space temperature change
−70 to +150℃: 1.5K, +150.1 to +180℃: 2.0K
Allowable heat load
est area temperature +20°C：5000 W
Temperature performance
Temperature change rate (Heating rate)
25K/min（ nonlinear ）
Temperature change rate (Cooling rate)
25K/min（ nonlinear ）
Extreme temperature reach time (Heating time)
 +20℃ to +180℃ 7min.
Extreme temperature reach time (Cooling time)
 +20℃ to −70℃ 7min.
Structure
Appearance material
Using 1.5mm thick FC advanced electrolytic plate + spray anti-corrosion
Test area material
1.2mm thick SUS304 stainless steel
Heater
Finned Nichrome Explosion-Proof Heater
Humidifier
Stainless Steel Sheathed Humidifier (Steam Humidification)
Condenser
Air-cooled condenser
Air circulator
Centrifugal fan
Water supply
Standard water tank
10 L
Refrigeration unit
System
Mechanical single-stage compression cooling
Compressor
Scroll/Piston Compressor
Refrigerant
R404A [R449A available on request]
Power
40 Kw
Noise level
72dB
*1 Performance values based on IEC60068-3-5:2001 and IEC60068-3-6:2001； Performance data is given at +23°C ambient temperature,
65±20%rh relative humidity, rated voltage and no samples in the test area. *2 Minimum temperature attainable at ambient
temperature +5 to +30°C. *3 When the temperature inside the chamber is +20℃.
