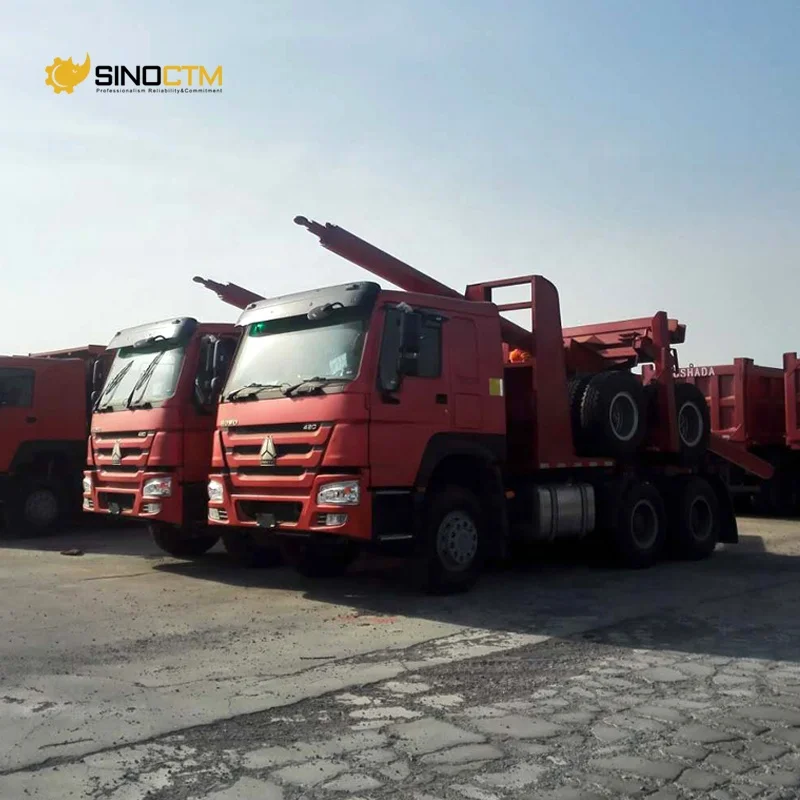

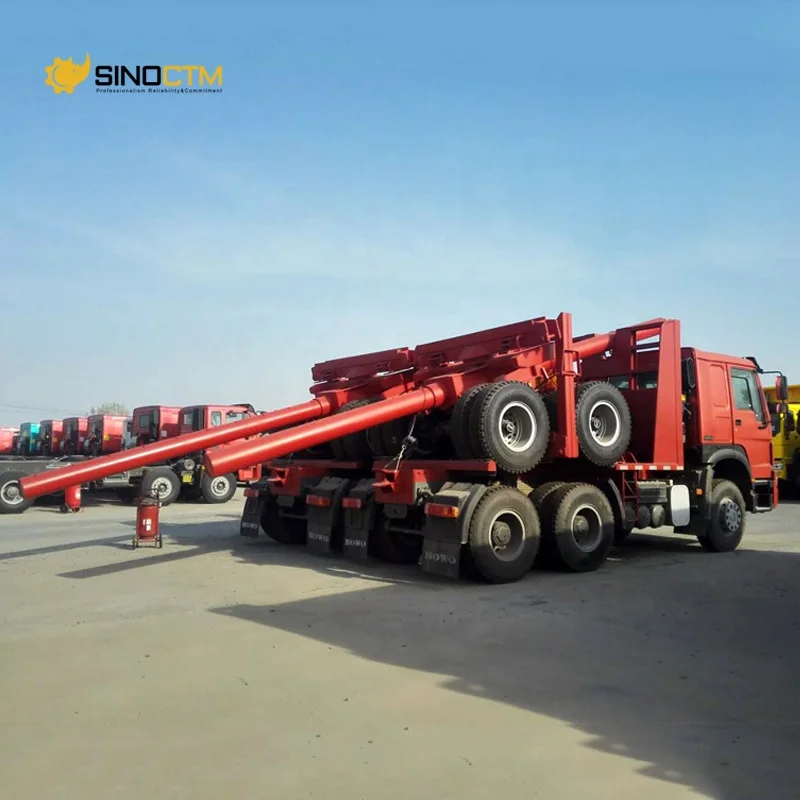

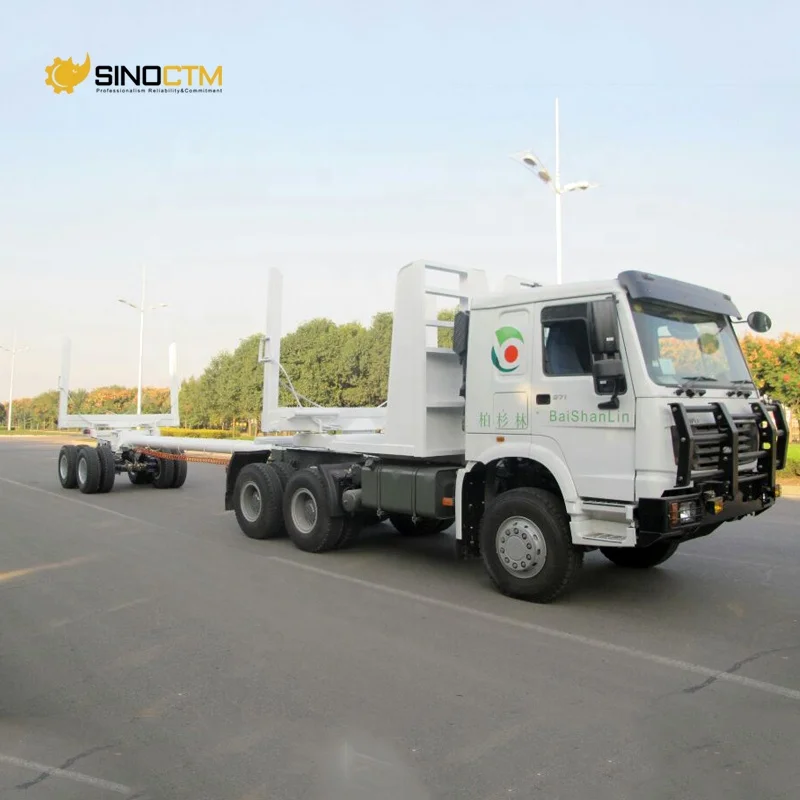

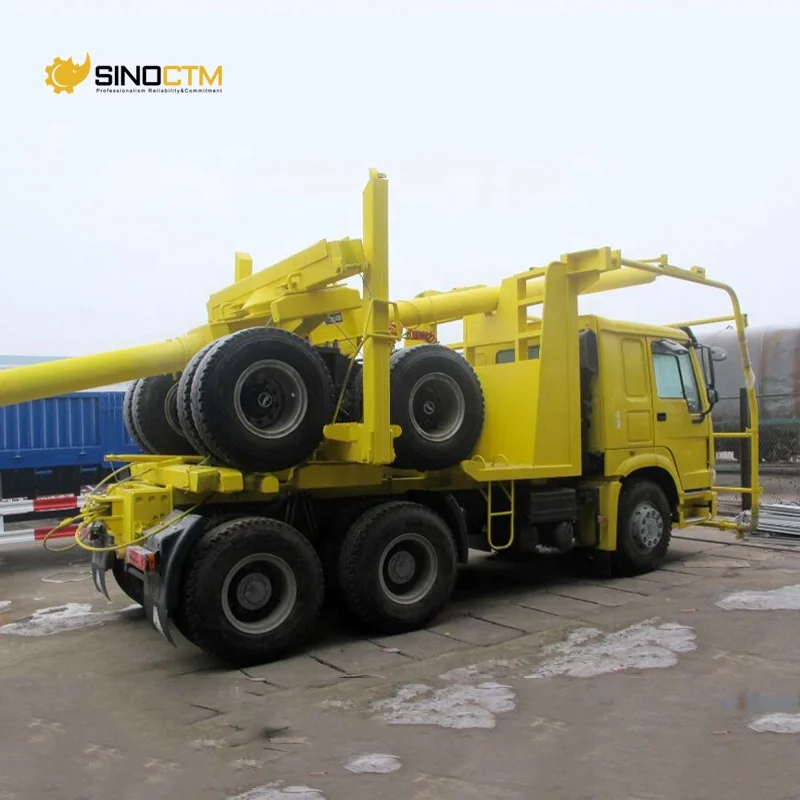

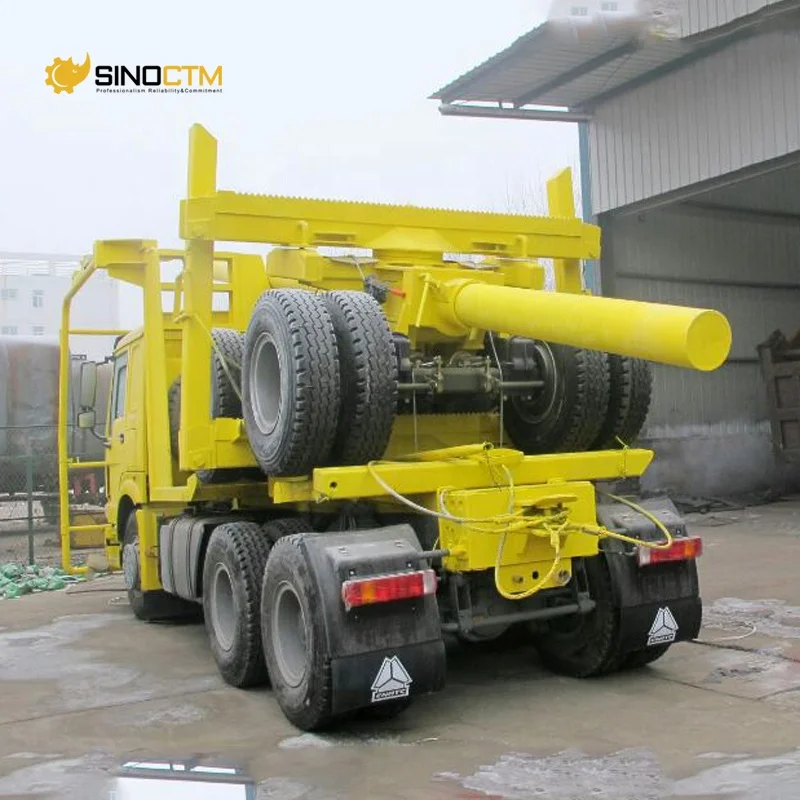

Sinotruk 6x6 8x4 Off road howo log trucks with loaders for sale
- Category: >>>
- Supplier: Jinan Quanyu Import And Export Co. Ltd.
Share on (1600685753253):
Product Overview
Description
Sinotruk New Design Cement Bulker Semi Trailer
Our Main Products Heavy Trucks and Construction Machinery. include Howo tractor trucks, dump trucks, trailer truck,Fire trucks, water tank trucks, concrete mixer trucks, special trucks,truck parts and Motor grader,wheel loader, roller loader. we can supply these for our clients with good quality and competitive price.
Product Description
Specification
SINOTRUK LOG SEMI TRAILER | ||||||
Drag bar size | 8750*270*12(mm)（Log length 13000mm） | |||||
U type log Bracket | 2 sets(Inside width 2800mm,Column high 2000mm) Rear U type log Bracket | |||||
Front baffle | Front baffle high 1500mm,thickness 8mm | |||||
Axles | 16T*/per*2 ,FUHUA Brand | |||||
Tir | 12.00R20 radial tyre | |||||
Rim | 8.5-20 | |||||
Suspension | Single-point suspension | |||||
SINOTRUK HOWO 6x6 TRACTOR TRUCK | ||||||
Truck Model | ZZ4257S3557A(Left Hand Drive ) | |||||
Truck Brand | SINOTRUK-HOWO | |||||
Dimension (LxWxH) (unloaded)mm | 10500×3550×3950 | |||||
Approaching angle/ Departure angel (°) | 32/74 | |||||
Overhang (front/rear) (mm) | 1578/700 | |||||
Min Turning Radius(m) | ＜9m | |||||
Wheel base (mm) | 3500+1400 | |||||
Max. Driving speed (km/h) | 95 | |||||
Front axle loading capacity (kg) | 7000 | |||||
Rear axle loading capacity(kg) | 2*16000 | |||||
Curb weight (kg) | 15500 | |||||
Traction weight (kg) | 55000 | |||||
Cab Model | SINOTRUK HW76 Lengthen cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,Front protection grille. | |||||
Engine Model | Model | WD615.47(EURO II),371hp,6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||||
Rated Power(kw/rpm) | 273/2200 | |||||
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71℃ opening begin, Rigid fan Engine protection. | ||||||
Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||||
Transmission | Model | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | ||||
Brake system | Service brake | Dual circuit compressed air brake | ||||
Parking Brake (emergency brake) | Spring energy, compressed | |||||
Steering system | Model | ZF8118 Steering Gear Box ,hydraulic steering with power assistance. (Left hand driving) | ||||
Front axle | SINOTRUK STR steering drive Front Axle with drum brakes. | |||||
Transfer case | 2000 | |||||
Rear axle | SINOTRUK 2*16000kg Double Reduction Drive Axle, Pressed axle housing, central single reduction with planetary wheel reduction and with differential locks between wheels and axles,ratio:4.8; strengthened design, loading capacity and reliability have been increased greatly. | |||||
Wheels &Tire | Rims:8.5-20 10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire. | |||||
Electrical system | Electrics Operating voltage | 24V,negative grounded | ||||
Starter | 24V,7.5 Kw | |||||
Alternator | 3-phase,28V,1500 W | |||||
Batteries | 2x12 V,165 Ah | |||||
horn,headlamps,fog lights,brake lights,indicators and reverse light。 | ||||||
Oil Tank | 400L fuel tank | |||||
Fifth | 90#(3.5 inch) | |||||
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |||||
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||||||
1 Factory price, more competitive than agent price.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
2 Quality: With SINOTRUK group inspection system, a series inspections are well done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
Recommend Products
About Product Description

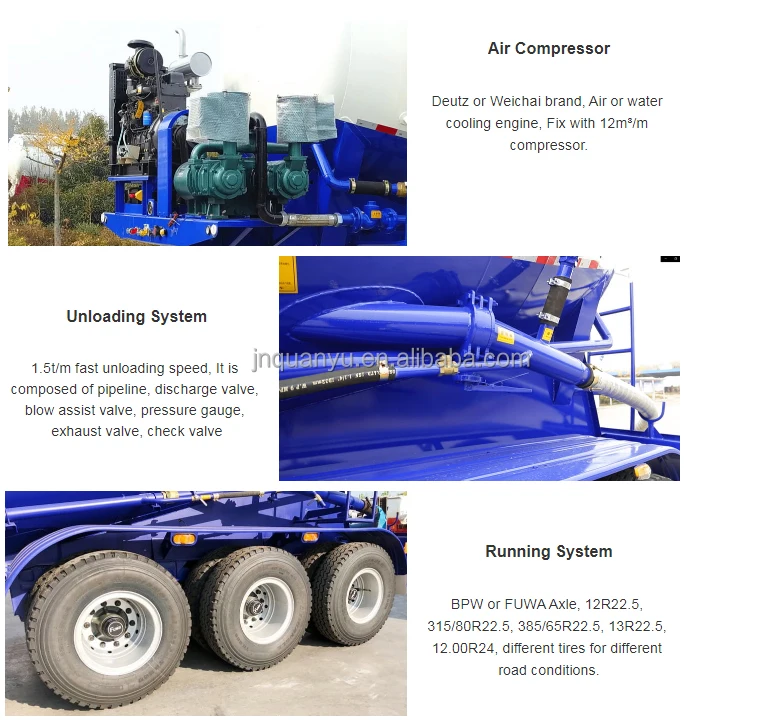

1. Loading rate >98% fully filling
2. Residual rate <0.2%
3. Delivery height >25m suitable most silo
4. Faster unloading>1.5ton/min save fuel
Company Profile
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced the steyr technology using on engine and axle from Austria.Later,sinotruk established cooperation withGerman man group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an
annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of
goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading
goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of
goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading
goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Packing & Delivery
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so
sometimes, we have to use container ship.
Main Products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Semi Trailer
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Semi Trailer
Certifications
FAQ
Q: Are you Dealer or Factory ?
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q. How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.
Q. How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q: What is your payment terms?
A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
