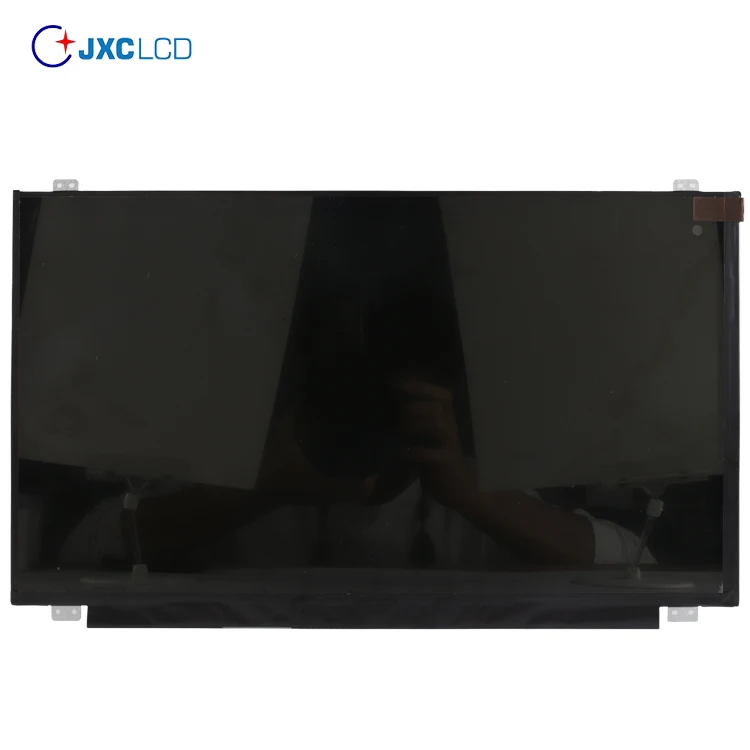

BOE NT156WHM N32 N42 1366*768 HD 15.6 slim 30pin LCD screen for laptop
- Category: LCD Monitors >>>
- Supplier: Shenzhen Jingxingcheng Technology Co. Ltd.
Share on (1600686230184):
Product Overview
Description
Product Description

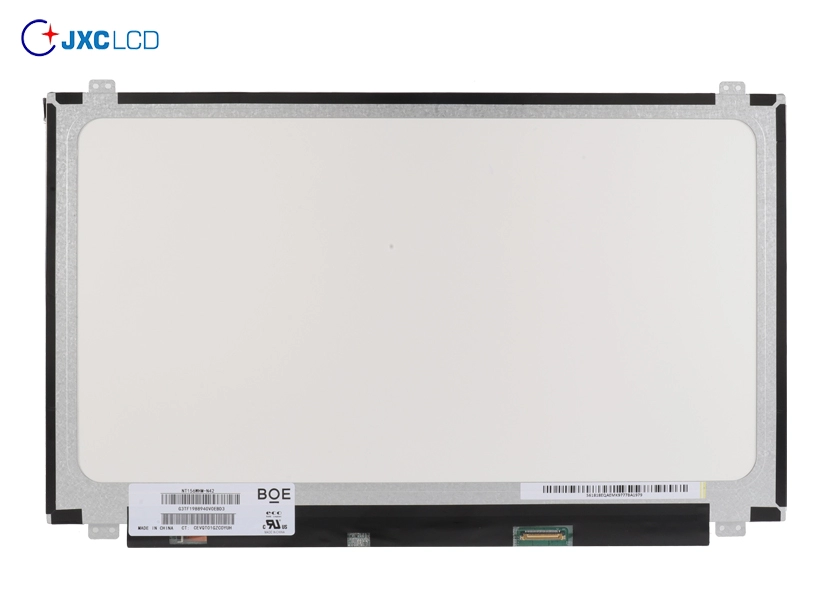

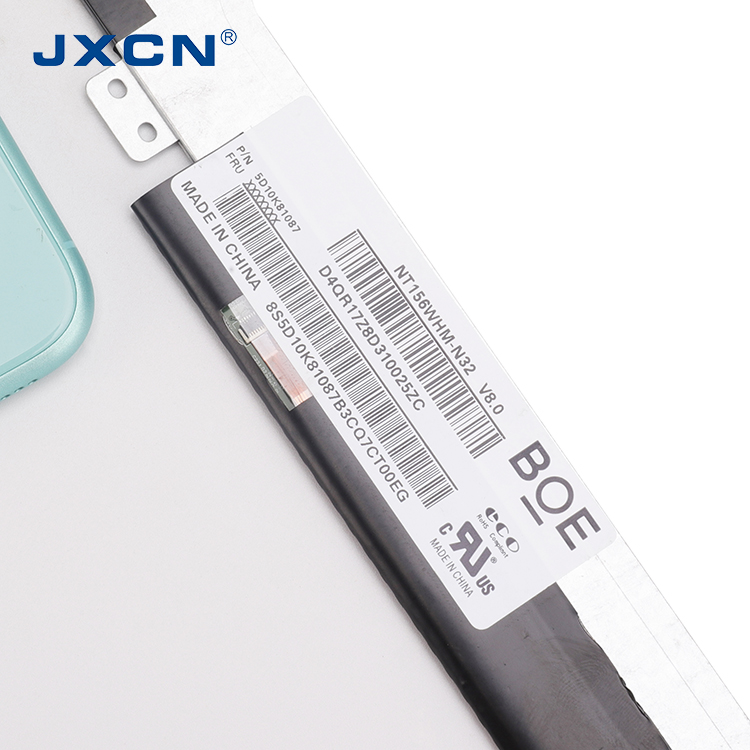

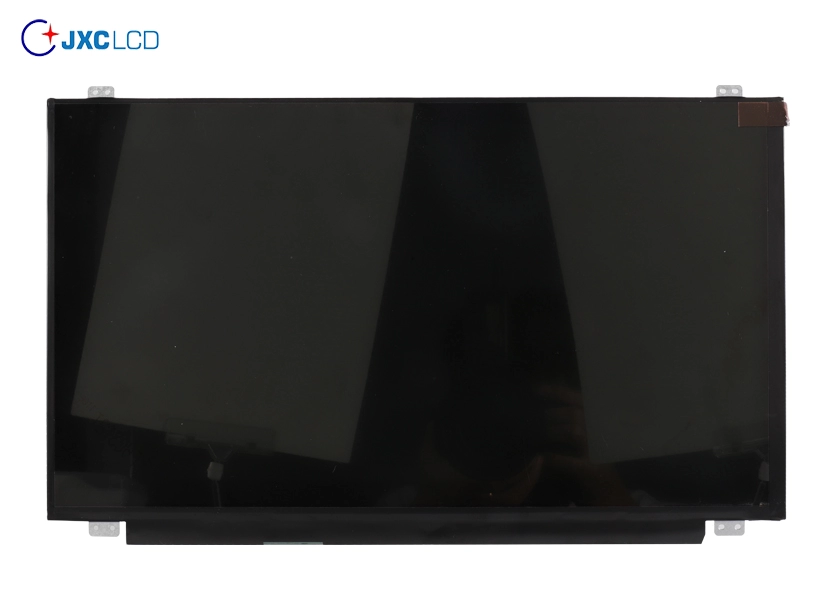

NT156WHM-N32 is a 15.6-inch LCD module product using a-Si TFT-LCD technology launched by BOE Technology Group Co., Ltd. (BOE, BOE). It is equipped with WLED backlight, including LED driver backlight drive, and has no touch. According to the version number issued by BOE on March 16, 2016, it is Rev O's product specification, NT156WHM-N32 display resolution is 1366 (RGB) × 768 (WXGA), the aspect ratio is 16:9 (width: height), and the pixels are arranged in RGB vertical stripes.

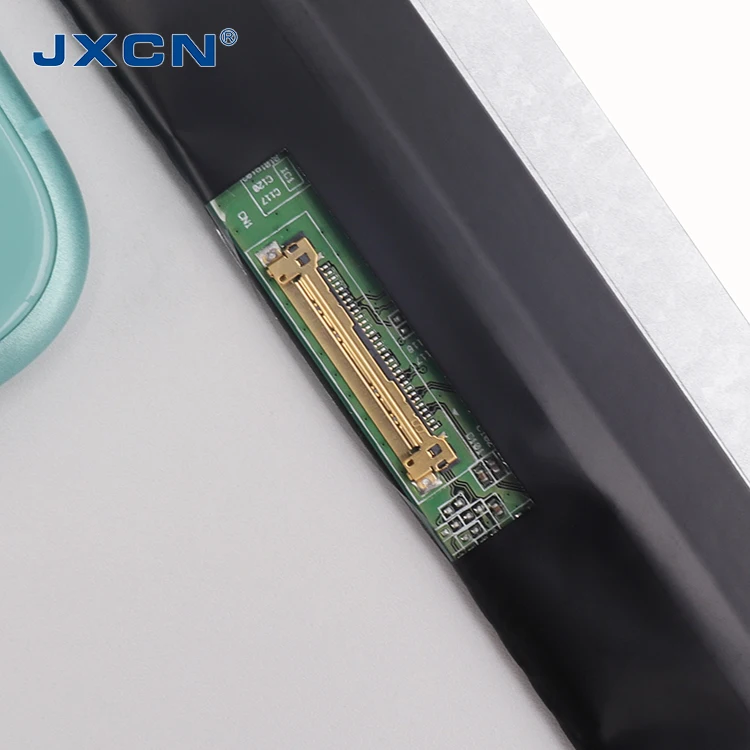

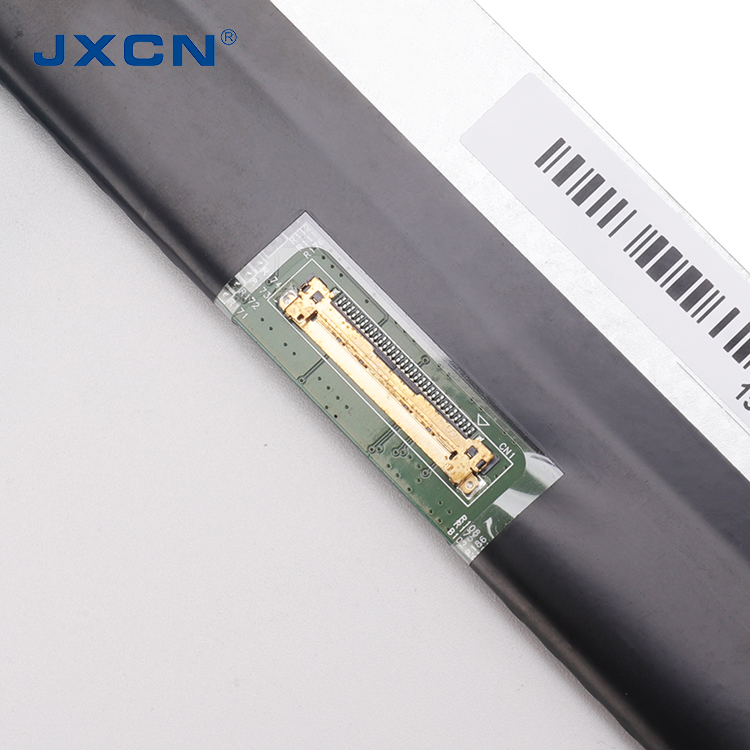

Its display area size is 344.232 × 193.536 (W × Height) mm, external dimension 359.5 × 223.8 (width × High) × 3.2 (thickness) mm, the surface treatment is mirror (Haze 0%), the net weight of the product is 370g (Max.), and the appearance style is thin screen (PCBA is flat and straight, thickness ≤ 3.2mm). In terms of backlight, this product adopts 9S4P WLED side entry light source (bottom), with a service life of 15K hours, including LED driver. NT156WHM-N32 adopts eDP (1 Lane) signal interface, 30 pins in total, terminal connection, and 3.3V (Typ.) drive screen voltage.
| Brand | size | Modle | Grade |
| BOE | 14 | NV140FHM-N4B-A | A |
| BOE | 15.6 | NT156WHM-N42-T | T |
| BOE | 14 | NT140WHM-N31-G | Q |
| BOE | 15.6 | NT156FHM-N41-T | T |
| BOE | 15.6 | NT156FHM-N41-G | Q |
| BOE | 15.6 | NT156WHM-N42-G | Q |
| BOE | 15.6 | NT156WHM-N50-A | A |
