Product Description

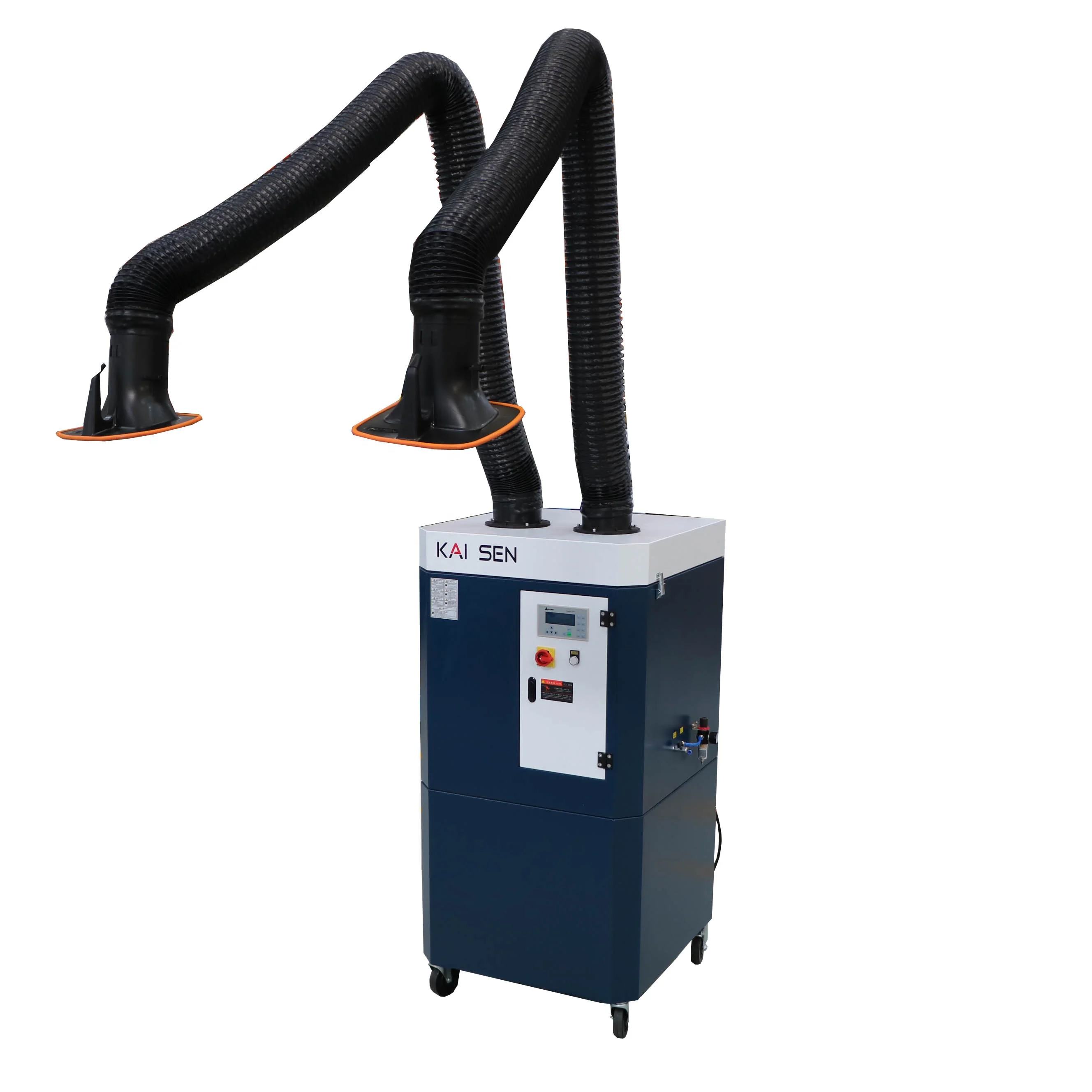

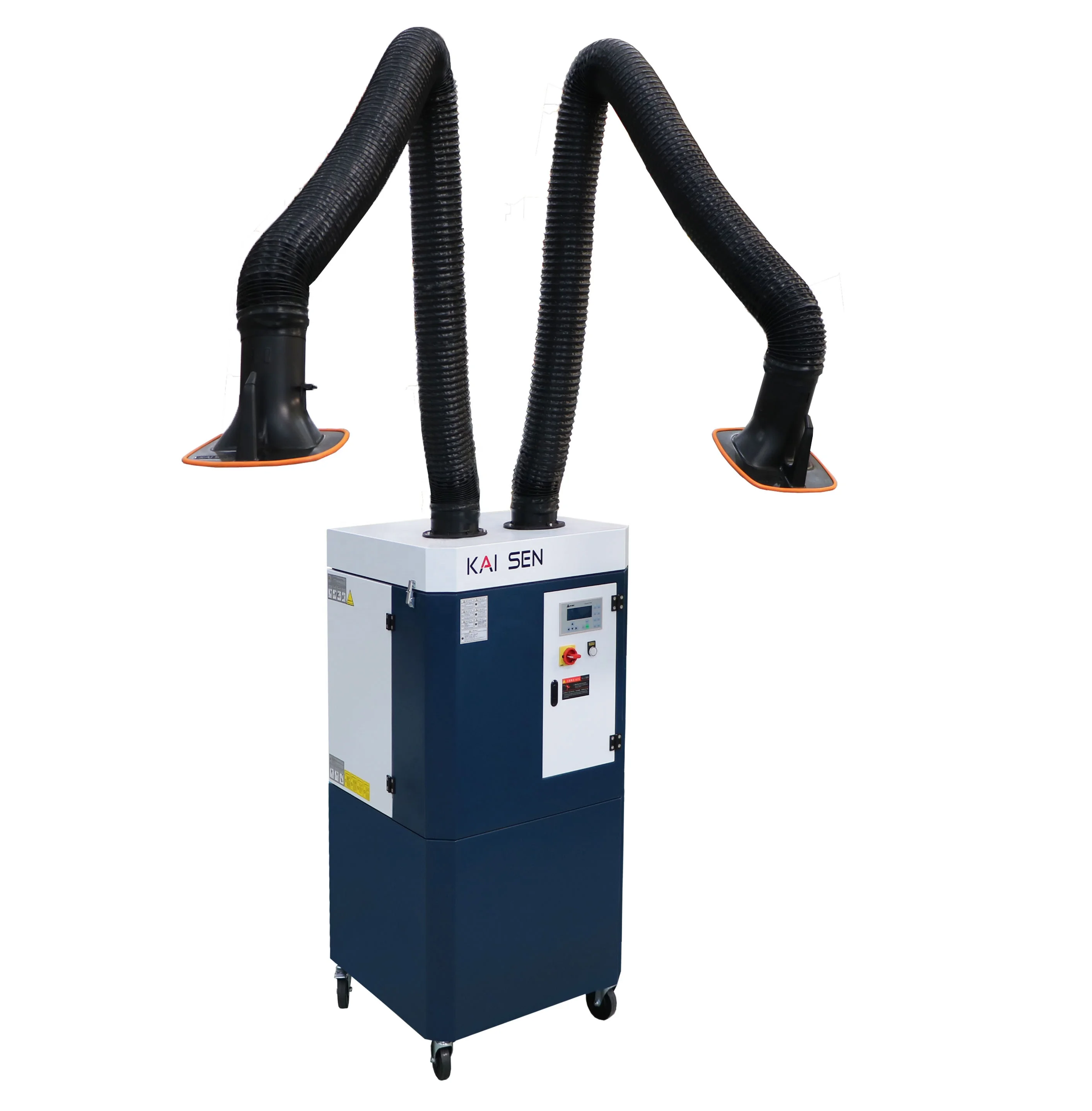

Welding Fume Purifier Metal Dust Collector 2.2 kW With 2 Arms HEPA Filter
This product mainly used for dust purification of metals welding, cutting and grinding. The purification of dust can solve the workshop pollution question, control the emissions of dust from welding process generated within the specified range. Ensure the workers health and cleaning of the workshop environment. And adopted the world leading technique of PTFE coating micro particle filtration, filtration efficiency can reache 99.99%, meanwhile maintains a high air flow; the extractor can clean dust automatically. It is ideal for filtering dry, oil-free, non-corrosive fume mixture generated in welding, polishing, cutting and other processes.aterial.




Specification


No.
item
KSZ-1.5S1/S2
KSZ-1.5S
1
Fan Type
centrifugal fan
centrifugal fan
2
Motor Power
2.2kW
1.5Kw
3
Fan Air Flow
3600±100 m³/h
3000±100 m³/h
4
Treatment Of Air Flow
2000 m3/h
1500 m3/h
5
Voltage
3×380V/50Hz or 3×220V/60HZ
3×380V/50Hz or 3×220V/60HZ
6
Filtering Area
10m2
10m2
7
Filter Cartridge
1 PC
1 PC
8
Filter Medium
Poyester+PTFE
Poyester+PTFE
9
Compressed Air
0.5-0.6MPa
0.5-0.6MPa
10
Filter Cartridge Cleanig Method
automatic cleaning
automatic cleaning
11
Filtration Effiency
>99.9%
>99.9%
12
Filtering Efficiency
≥0.1um
≥0.1um
13
Noise
<74± 5dB(A)
<74± 5dB(A)
14
Dimensions
700*800*1600mm
700*800*1600mm
15
Weight
215± 10kgs
210± 5kgs


Order No.
Description
C1602001503
Smart fume extractor, KSZ-1.5S2
C0301301500
Suction arm 3m length, φ 160mm, 2 Pieces
B007000370
Plastic suction hood with adjustable blast gate


Features


1. Flexible suction arm can rotate 360°and the freedom to stay anywhere.

2. Filter cartridge adopts the high efficiency import PTFE coated polyester fiber, the filtration reach 99.9%.

3. Depending on needs, 2m, 3m flexible suction arm are available.

4. PLC intelligent control panel, easy to operate.

5. The strusture is compact, portable design, can be appiled in a variety of situation.

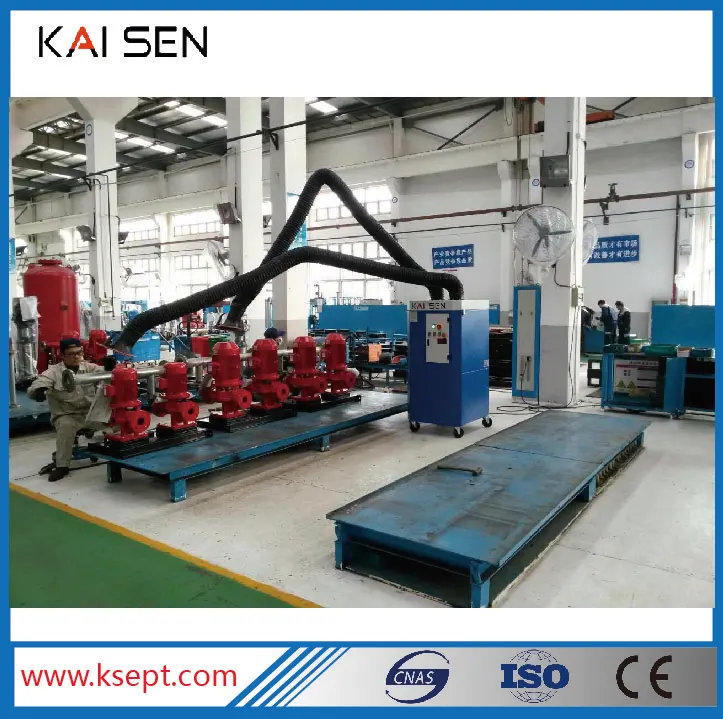

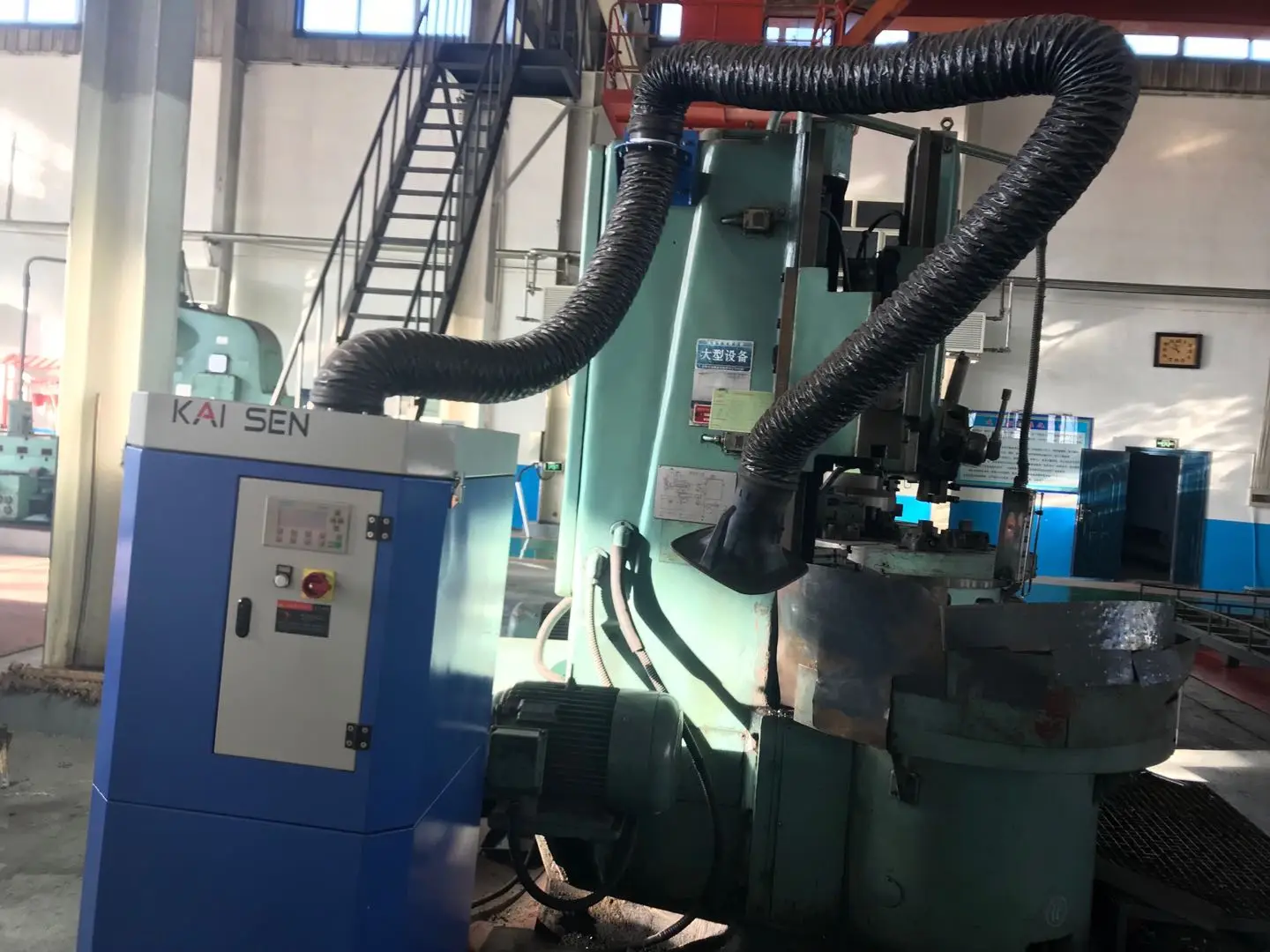

6. Wide range of uses, welding fume dust removal, powder removal, cutting powder removal, grinding and polishing dust removal, tiny metal cutting dust removal.




Packing & Delivery




Packing: wooden box for packing

Shipping: by sea or air is acceptable.
