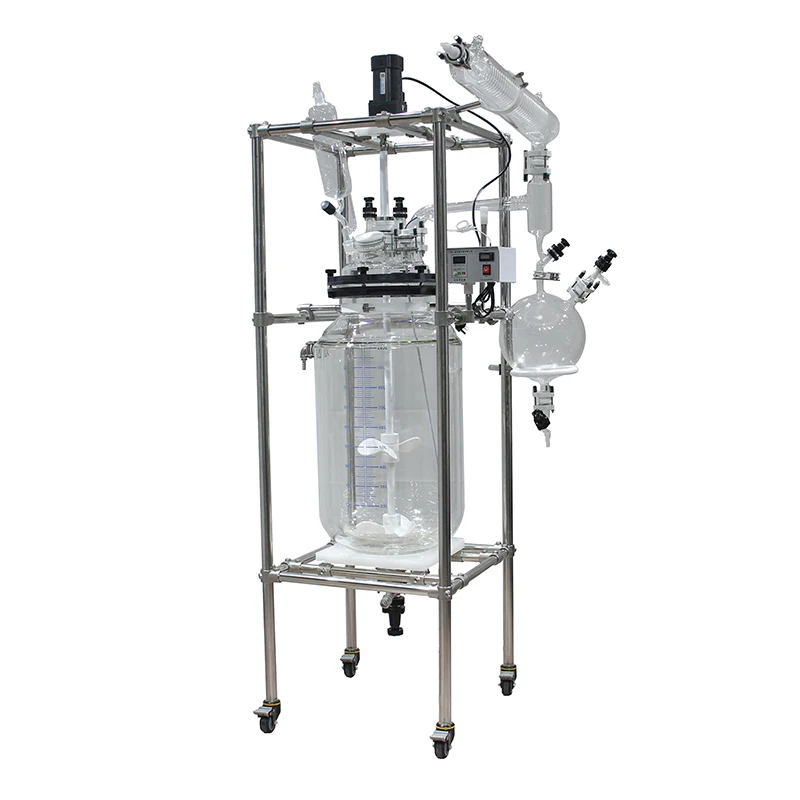

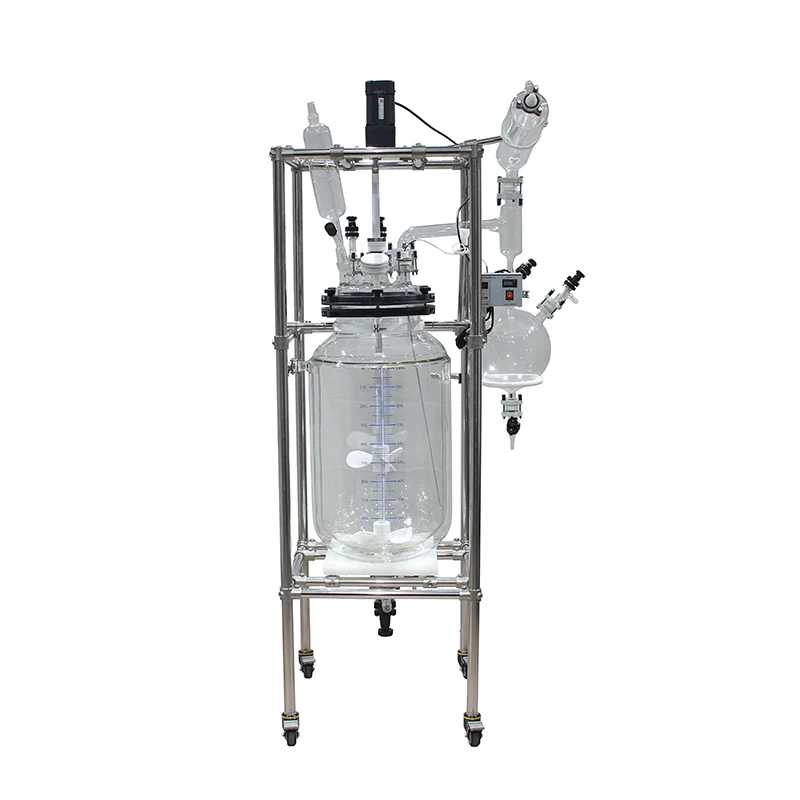

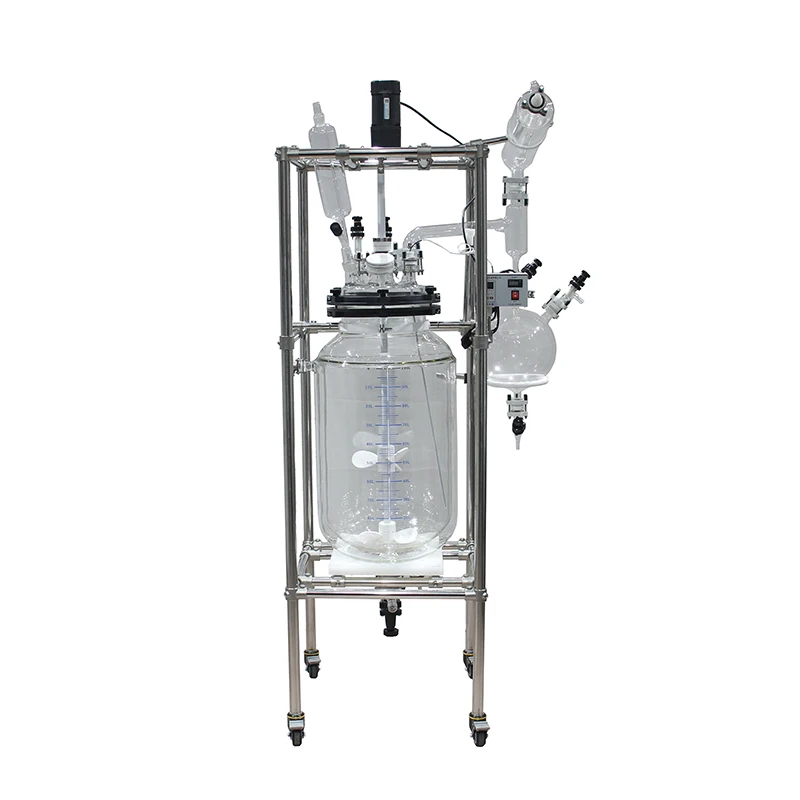

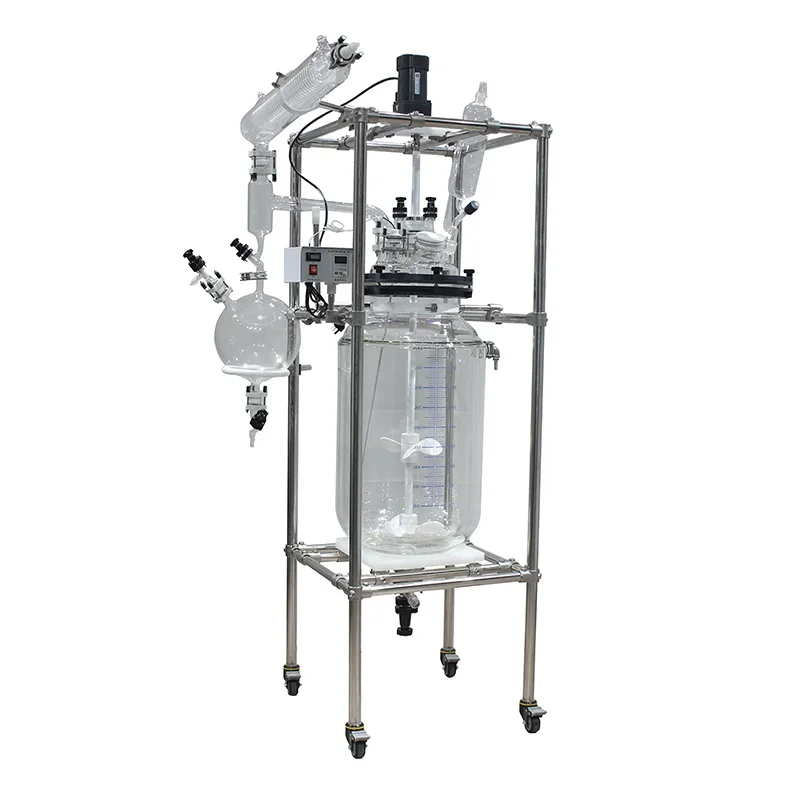

OEM distill constant temperature double layer equipment 80 litre kit glass reactor
- Category: >>>
- Supplier: Guangzhou Yisheng Experimental Instrument Co. Ltd.
Share on (1600688775586):
Product Overview
Description
Specification
Item | jacketed glass reactor | ||
Model | YS-80L | ||
Vessel | 80L bore 450mm, external diameter 500mm,jacket height 620 mm | ||
Jacket capacity | 18L | ||
Power Requirements | 220V/50HZ | ||
Stirrer Wattage | 180W, reduction gearbox 1:3 | ||
Torque | 2.89Nm | ||
Rotary Speed | 0-450rpm/min | ||
Glass Temp | -100℃+280℃ | ||
Temperature Accuracy | ±0.5℃ | ||
Lowest Vacuum Level | 0.098Mpa | ||

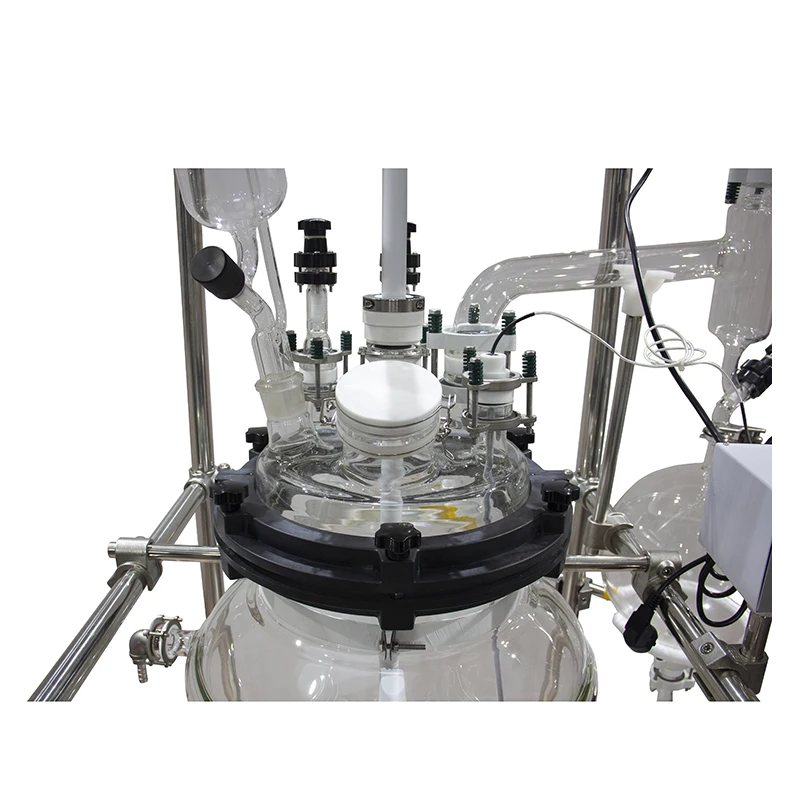

Reactor lid openings (7) Φ340mm | Stirring port | Φ60mm flange port | |
Condensing reflux port | DN40 flange port | ||
Constant-pressure funnel port | 40# standard port | ||
Liquid charging port | DN25 flange port | ||
Sensor port | DN25 flange port | ||
Standby port | DN25 flange port | ||
Solid feeding port | Φ95mmflange port, PTFE cap & quick buckle | ||
Stirring paddle | Φ25*1300H(mm) mixing diameter 240mm | ||
Condenser dimension | Φ120mm*750H(mm) bottom DN40 flange port | ||
Condensing area | 0.3㎡ | ||
Dean-stark | Inlet DN40 flange port, outlet DN40 flange port,fluid receiving flask port DN25 flange port | ||
Receiving flask volume | 10L | ||
Constant-pressure funnel | 2L top 29# standard port with glass stopper; bottom 40# standard stopper | ||
Liquid charging port | DN25 flange port, inlet（Pagoda type joint joint） external diameter 14mm | ||
Diameter of circulating fluid inlet and outlet | DN25 flange port, supporting flange plate,1/2" Male NPT Adapter | ||
Discharge port | DN50flange port Φ25 drain hole ground clearance 420mm | ||
Vacuum nozzle | DN25 flange port | ||
Vacuum & fluid nozzle of condenser | 14mm external diameter(pagoda type joint) | ||
Dimensions | 670*950*2650mm | ||
Net weight | 85KG | ||
Packing size | 750*1000*2350mm volume 1.76㎡ | ||
Gross weight | 115KG | ||
Working principle
The material --under normal or negative pressure and constant speed agitated by stirring paddle--- can be completely mixed inside the vessel of reactor system and heated thru fluid from the jacket volume and then generate?low molecular steam after heating reactions,which cools up and liquefies quickly coming down the serpentine condenser and get distilled or refluxed thru the dean-stark. The leftover residue can be released quickly thru discharge valve after reactions.The cooling reaction would be similar during the whole procedure.
Details Images
Company Profile
Incorporated in June 2009,Guangzhou Yisheng Experimental Instrument Co., Ltd., is a domestic high-tech enterprise specializing in the manufacture of chemical glass instruments and the supporting circulating heater chillers. Located in Panyu District of Guangzhou city,our company--backed up by the strong supply chain in China-- cater for the local factories and units quickly and thus build up her network everyday.
Our company integrates R & D,manufacture and marketing, and by means of ?spirit?of?innovation,she has acquired a number of technological know-how in the fields of biochemistry, electronic materials, ternary synthesis, new energy batteries, polymer materials, metallurgy, etc. She focuses on the research and development of single / double jacketed glass reactor, photocatalytic glass reactor, ternary glass reaction system, glass rectification device, precious metal purification and tail gas treatment system, rotary evaporator, low-temperature cooling circulation pump, closed-off circulating heater, closed-off circulating heater chiller,closed-off PLC-controlled heater chiller, Heating/cooling recirculator (with open bath), short path distiller and other experimental instrument and equipment.
The company always puts quality and reputation first, and with the entrepreneurship, honest operating style, quality products and amicable after-sales service, she provides professional and in-time solutions to specialty?chemicals out of honor and expertise.
Our company integrates R & D,manufacture and marketing, and by means of ?spirit?of?innovation,she has acquired a number of technological know-how in the fields of biochemistry, electronic materials, ternary synthesis, new energy batteries, polymer materials, metallurgy, etc. She focuses on the research and development of single / double jacketed glass reactor, photocatalytic glass reactor, ternary glass reaction system, glass rectification device, precious metal purification and tail gas treatment system, rotary evaporator, low-temperature cooling circulation pump, closed-off circulating heater, closed-off circulating heater chiller,closed-off PLC-controlled heater chiller, Heating/cooling recirculator (with open bath), short path distiller and other experimental instrument and equipment.
The company always puts quality and reputation first, and with the entrepreneurship, honest operating style, quality products and amicable after-sales service, she provides professional and in-time solutions to specialty?chemicals out of honor and expertise.
Rave reviews
Our Advantages
Trade Capacity
Packaging & Shipping
FAQ
1. Are you factory or trading company?
We have our own factory more than 8 years professional experience.
Our factory specializes in experimental instrument, like Single/Double Glass Reactor, Rotary evaporators and so on.
2. Could you do design for us ?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the detailed content and tell u where to put.
3. What about the quality of your products?
Each product,we will test it strictly one by one before ship out,do not worry about that please.
Any questions,can feel free to contact us.
4. How can we place order?
After we made agreement on your product and price, we will make a Performa invoice for your confirmation. After we got your payment (deposit), we will place the order and arrange the goods within 5 working days generally. When goods are ready, we will prepare for our QC report, if there is no problem, we will ship goods to destination port as your required.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. If you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder to help you clear the custom, wish you know that.
5. How many days for your products after sales-services?
There are one year of the quality warranty provided.
6. How long is the delivery time?
Normally, we will prepare your goods after you paid and then arrange the shipping during 2~3 working days. As to the shipping
speed, it depends on which shipping methods you choose.
We have our own factory more than 8 years professional experience.
Our factory specializes in experimental instrument, like Single/Double Glass Reactor, Rotary evaporators and so on.
2. Could you do design for us ?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the detailed content and tell u where to put.
3. What about the quality of your products?
Each product,we will test it strictly one by one before ship out,do not worry about that please.
Any questions,can feel free to contact us.
4. How can we place order?
After we made agreement on your product and price, we will make a Performa invoice for your confirmation. After we got your payment (deposit), we will place the order and arrange the goods within 5 working days generally. When goods are ready, we will prepare for our QC report, if there is no problem, we will ship goods to destination port as your required.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. If you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder to help you clear the custom, wish you know that.
5. How many days for your products after sales-services?
There are one year of the quality warranty provided.
6. How long is the delivery time?
Normally, we will prepare your goods after you paid and then arrange the shipping during 2~3 working days. As to the shipping
speed, it depends on which shipping methods you choose.
