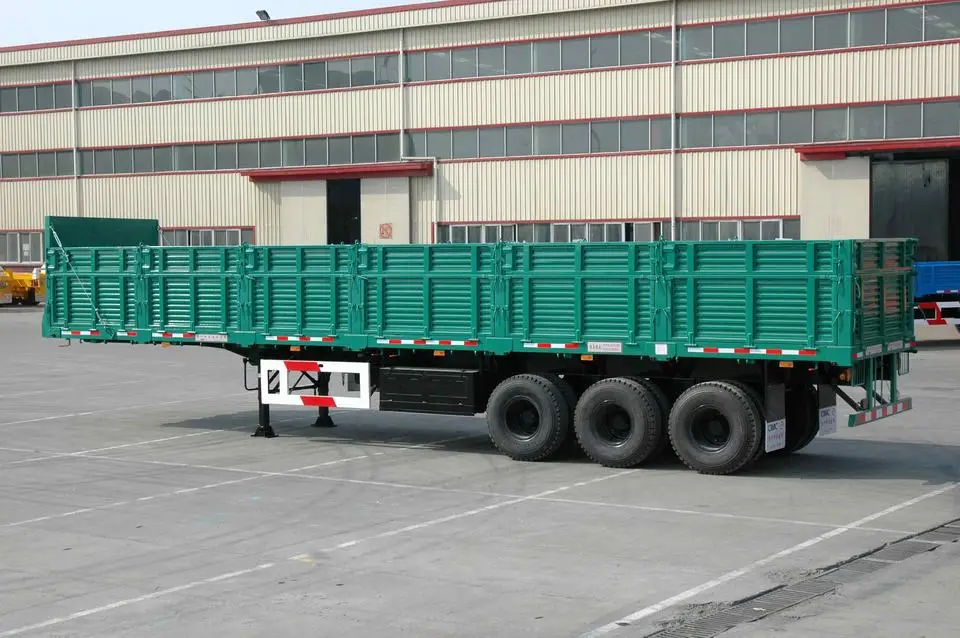

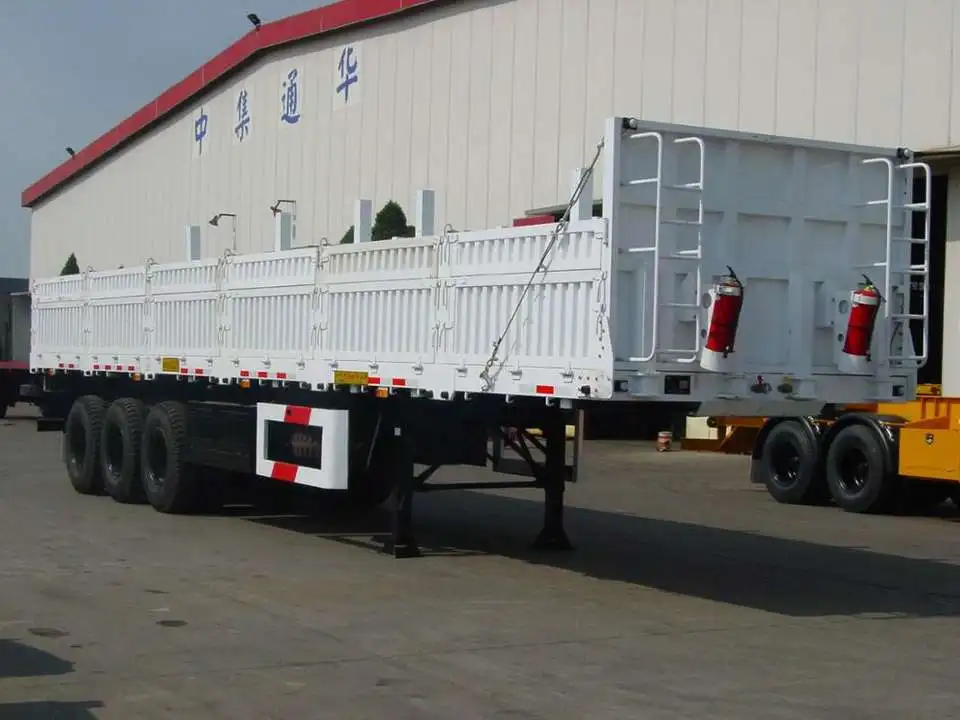

dry cargo three axle 40ft container 800mm side wall semi trailer Made in China

Essential details

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

12130x3000x12300mm

Max Payload:

60ton

Place of Origin:

Tianjin, China

Brand Name:

CIMIC

Suspension:

Germany type

King pin:

JOST BOLT

Axle Brand:

Yonglitai,BPW,FUWA

Landing Gear:

Jost Dual-speed Landing Gear

Axle Number:

3

Braking System:

WABCO

Tire:

11R22.5/315/80R22.5

Tare Weight:

8500KG

Gooseneck:

Hydraulic

Certification:

DOT

Supply Ability

Supply Ability

10000 Unit/Units per Year

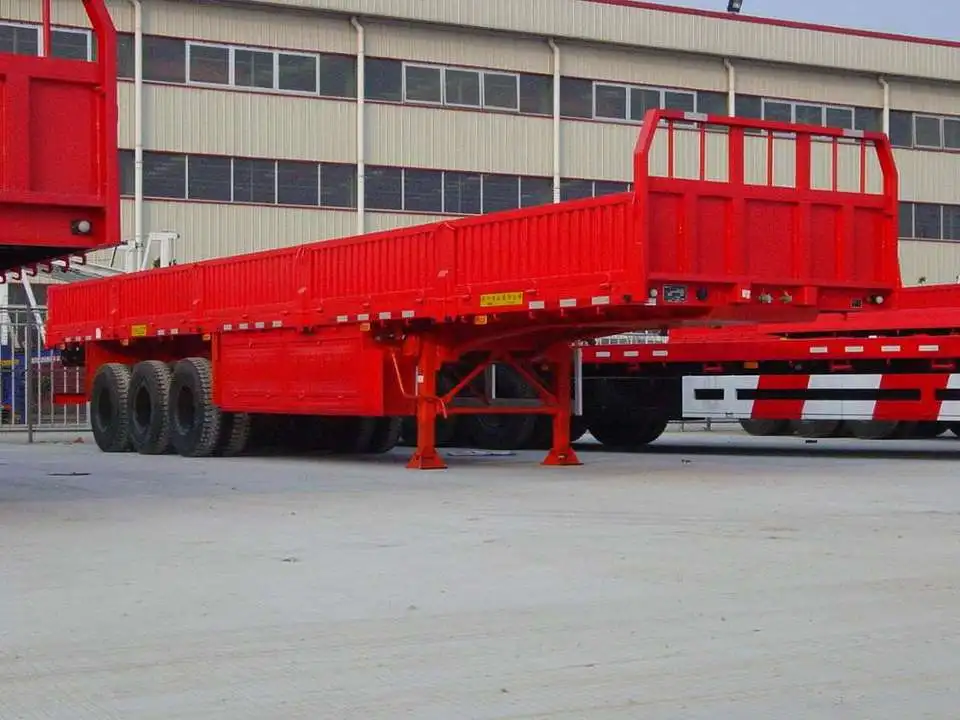

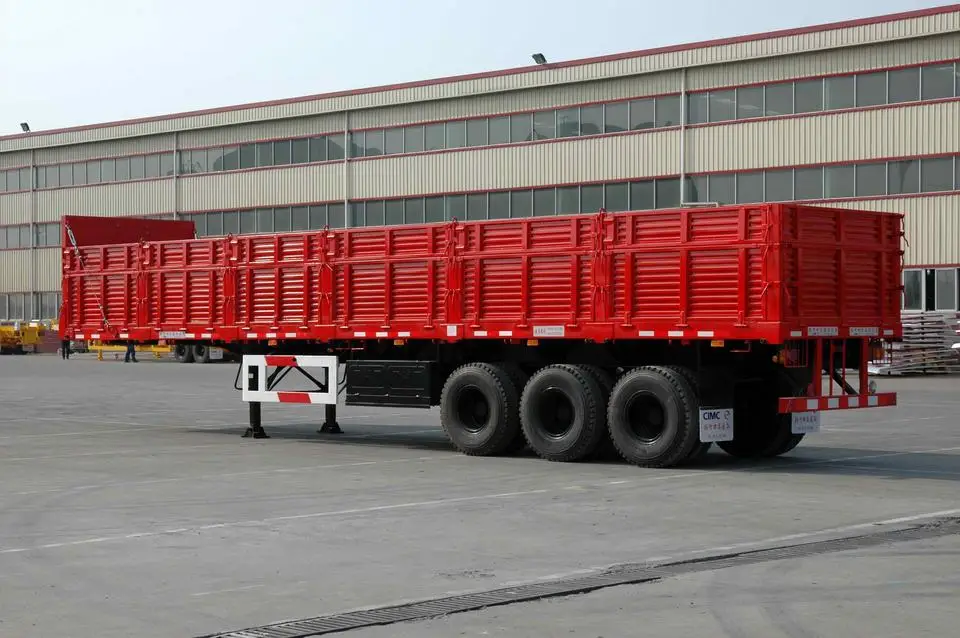

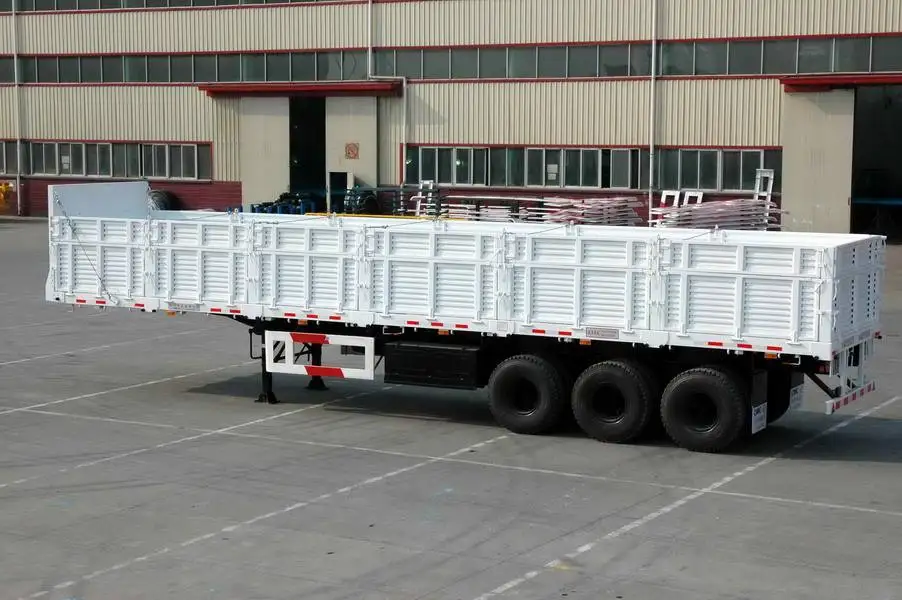

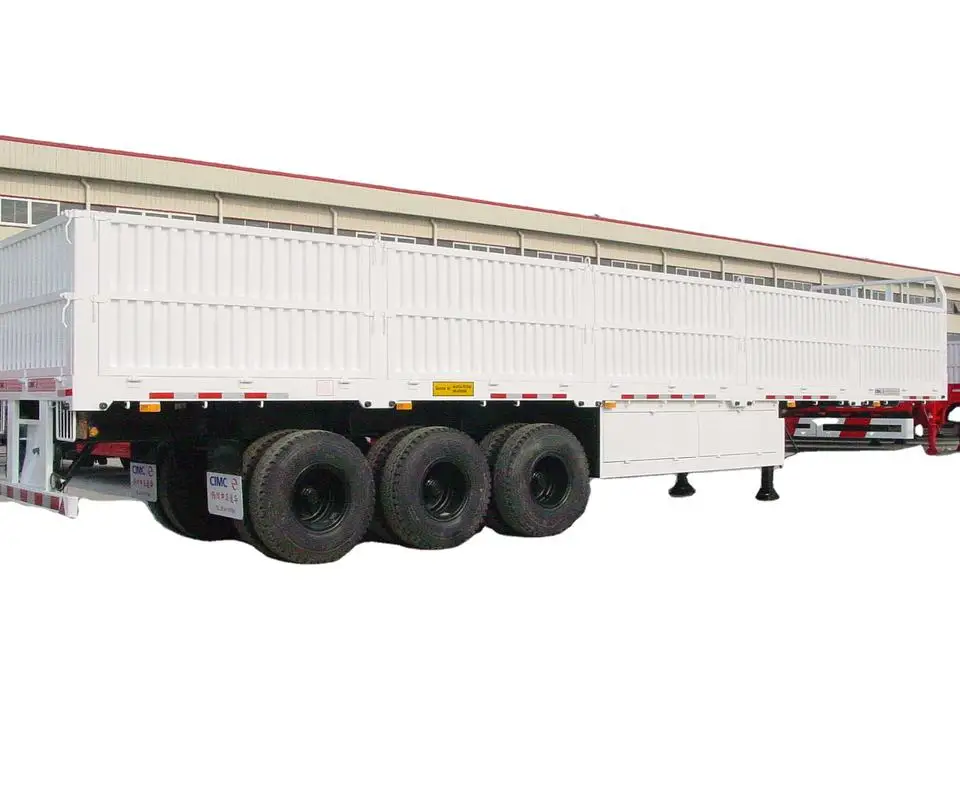

40’dry cargo 800mm side wall  Semi-trailer with tri-axle

The trailer is designed for stevedoring and transporting 1x40’ ,1x 20’ or 2x20’ ISO Cargo
Containers.

Explanation of loading:
From top loading per axle, We think the total weight is 50Ton, The weight 50Ton include the
tractor ,trailer and loading. The tractor is about 9Ton, So the Trailer and loading should be about 41
Ton. Now our trailer is about 7300kg (with one Spare Tire). So the loading can not more 33700kg.
However, In reality, The trailer can load 40Ton without problem.
Steel Structure:
Material: High strength low alloy steel with Q350 (350MPa) yield strength is used for
welded I-beam and Q350(350MPa) yield strength steel is used for the fabricated parts.
Main Beams: 500mm deep x 146mm wide x 6mm web welded I-section main beams.
Platform: checked steel floor, the thickness is 2.5mm.
Front Wall: The height of the front wall is 1000mm
OEM Parts Configuration:
King Pin: 2” bolting king pin. Brand: JOST.
Twist Locks: Twelve(12) units retractable ISO type twist locks.
Landing Gear: 2 speed road side winding with sand shoe, Lifting capacity 24T. Type:
JOST E100, Made in China.
Suspension: heavy duty under mount tri-axle Germany type suspension with equalizers
12-leaf spring.
Axles: 150x150 square axle with 12 tons capacity. Brake: S420x220, Wheel fitting

Others:
Spare Tire Carrier: Equipped one set per chassis with one spare tire

1.  Design code and certificates

ASME,GB,ISO,CE,ADR,BV,DNV

2.  Productivity

100units per day

3.  Logo

Design and painting as your request

4.Payment

50% deposit , 50% before shipment

5. Guarantee

Five (5) years and be based on standard “RE 3” of the “European degree of rusting standards”. Normal wear/tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.The warranty shall be applied faults or failures affecting more than 10% of the painted surface.

Decal guarantee   Seven (7) years.

 6. Contact Message:

Name:KK

Whatssape/Wechat/Phone:008613926242308

1. Payment:  Deposit 30%,Balance will pay when got copy BL or before shipping .

2. Assemble :  We assble the trailer on your company.

3. Working time :  Our team working in 24 hours, we copy with all of your questions and after service.
